Embedded Webinar #17 "Low-level Network Testing in Embedded Devices Development"
- 1. Network Security in Embedded devices Serhii Korniienko - Embedded QA engineer
- 2. Examples of properties of typical embedded computers when compared with general-purpose counterparts are: • low power consumption • small size • rugged operating ranges • low per-unit cost • often ‘non-standard‘ solution
- 3. Why low-level network testing is a must in embedded: • Often custom protocols used to reduce CPU/RAM/ROM/bandwidth usage • Low cost • Timing properties of the program depend heavily on its environment • Environment = +Process or & Memory Hierarchy + Operating System, other processes/threads, … + Network + I/O Devices +…
- 4. Our experience: 1. Requirements 2. Approach 3. Tools 4. Test setup 5. Logs gathering and analysis 6. Issues 7. Test cases 8. Process
- 5. 1. Our requirements: • Low cost – cheapest HW components approved by customer (BoM < 20$) • Http and custom UDP support • Stack: freeRTOS + LwIP • Rigid requirements on synchronization jitter (PTP) • IC network switch to build daisy-chained network structure • Stable work in heavy loaded network (1Gb wireshark dump file per minute)
- 6. 2. Low –level testing approach: • List of all low-level network stuff: – Ports inventory: – 80/tcp – http – 554/tcp - rtsp – 67/udp - dhcps – 68/udp - dhcpc – 319/udp - ptp-event – 320/udp - ptp-general – 2467/udp - custom protocol – 17100/udp - custom protocol
- 8. 3. Tools: 1. NMAP – enumeration and packet sending - sS - sU - sO - sX - sN - sF - sX - sA - sY - --scanflags
- 9. 3. Tools: 2. Ostinato –packet editing and traffic generation - Set a value for any field of any protocol - Open and edit PCAP files, replay and save back - Support for the most common standard protocols - Free, Libre, Open-Source Software
- 10. 3. Tools: 3. LOIC – open-source network stress testing and denial-of-service attack application - IC Switch throughput test
- 11. 4. Test setup
- 12. 5. Logs gathering and analysis: The key thing is to gather and analyze all available info from all system components (switch and microcontroller) to recognize and eliminate bottlenecks and issues: - Buffer overflows and underflows - Queue overflows and underflows - Protocol/link state changes - Tx/Rx error counters - Switch counters - Error messages - Power dropdown - Unauthorized recording - Voltage levels - …
- 13. 6. Issues found: Issue Web server goes down during polite TCP scan Discovered/ Investigated NMAP scan Root cause LwIP configuration issue
- 14. Issues found: Issue Discovered/ investigated Root cause Hard-fault occurs if send fragmented UDP-packet NMAP/ Wireshark/ Ostinato LwIP incorrectly reassemble fragmented UDP packets
- 15. Issues found: Issue Discovered/ investigated Root cause Device can be shutdown by specially crafted control message Script/fuzzing Input validation issue Device can turn off it’s power supply and network chip power supply ☺
- 16. Issues found: Issue Device hard-fault if send abnormally large or small message on control port - Discovered/ investigated LOIC/ Script/fuzzing Root cause Input validation issue

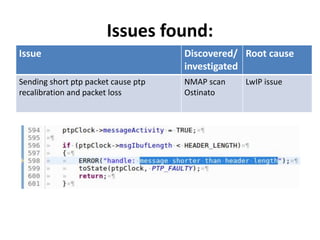

- 17. Issues found: Issue Discovered/ investigated Root cause Sending short ptp packet cause ptp recalibration and packet loss NMAP scan Ostinato LwIP issue
- 18. Issues found: Issue Discovered/ investigated Root cause Network link goes down and Up during nmap scan NMAP/ Wireshark/ Ostinato PSU issue for new IC switch Network link goes down during nmap scan NMAP/ Wireshark/ Ostinato unauthorized command on switch management interface
- 19. Issues found: Issue Discovered/ investigated Root cause Device become unreachable if send short UDP packet on port 319/320 NMAP scan Ostinato IC switch issue All devices in chain become unavailable if perform UDP flood on port 319/320 of last device in chain LOIC/Ostinato IC switch issue
- 21. Test cases:
- 22. Test cases:
- 23. 8. Process: • Perform low-level testing to every hardware changes • Preform low-level testing for every configuration changes • Preform low-level testing for every low-level structures changes • Preform low-level testing periodically
- 24. Conclusion: If you still hesitate about the necessity to perform low-level network testing – go to the issues found chapter!
