Energy 1

Law of Conservation of Mechanical Energy

Energy (E) is … ability to do work a scalar measurement measured in Joules

There are two main types of energy: Potential Kinetic

Kinetic Energy: Energy of Motion

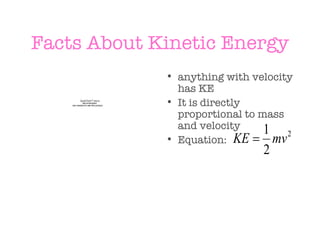

Facts About Kinetic Energy anything with velocity has KE It is directly proportional to mass and velocity Equation:

Potential Energy There are two kinds of potential energy…

Gravitational Potential Energy due to an object’s position in Earth’s (or another planet’s) gravitational field.

Basically, if you have height, you have Gravitational Potential Energy

Elastic Potential Energy stored in a stretched or compressed spring

Total Mechanical Energy Potential Energy and Kinetic Energy

In other words, energy cannot be created or destroyed… Unless work was done on the system, the total energy of the system does not change.

… it can, however, be converted between different types. For example, PE can be transferred to KE!

Work is being done against friction and gravity. input energy (chemical energy) > output energy (thermal energy) energy is lost to friction

If there is no gain in internal energy and no work done against friction, Q=0

The body transfers the chemical energy which is released as kinetic energy of the ball. The input of energy is chemical energy from the ice cream. But the total energy remains the same! Example:

Roller Coasters Good examples of energy transfers

At point W, v = 0 and it’s at its highest point, so it only has gravitational potential energy.

Point X is at the lowest point and has no height, but is in motion so there is only kinetic energy.

At Y, the car has height and velocity. Therefore, it has both kinetic and potential energy.

Even though the energy is changing from potential to kinetic, the total energy is always the same.

Pendulums Another good example of an energy transfer

Maximum PE: Points 1 and 3 This is where the pendulum has its greatest height.

Maximum KE: Point 2 This is where the pendulum has its maximum velocity.

From 1 to 2: KE increases, PE decreases From 2 to 3: KE decreases, PE increases

Neutral spring 1 kg Vertical Spring and Mass 1 kg x Stretched spring

Vertical Spring and Mass 1 kg Has velocity --> KE Has height --> PE g The PE s is converted to PE g and KE

Vertical Spring and Mass 1 kg PE g 2 + PE s 2 Compressed spring --> PEs Has height --> PEg

PE g 2 > PE g 1 1 kg 1 kg KE +PE g 1 PE g 2 + PE s 2 A. B. A has more height --> more PE g

PE s 1 > PE s 2 1 kg PE g 2 + PE s 2 1 kg PE s 1 A. B. Total energy is always the same --> A has only PE s B has PE g and PE s

Horizontal Spring and Mass A: neutral spring. B: Spring is stretched distance x. 1 kg 1 kg x A. B. PE s

PE s is converted to KE Spring returns to neutral position Has velocity 1 kg

KE is converted to PE s A: Spring has KE B: KE is converted to PE s as spring is compressed distance x. 1 kg 1 kg x A. B.

A roller coaster, is pulled up to point A where it and its screaming occupants are released from rest. Assuming no friction, calculate the speed at points B , C and D . ( h a = 35 m, h d = 12 m, h c = 22 m) Problem:

We will find the velocity at point C and show you step by step how to find it. At the end of the presentation, you can solve for the other points in the problem and check your answers with ours.

Step 1: Write/Draw Knowns and Unknowns h a = 35 m h d = 12 m h c = 22 m V a = 0 m/s V b = ? V c = ? V d = ? m = / *mass is irrelevant because it cancels out in the equation

Step 2: Identify Types of Energy A: PE, because it is at rest and at its highest point C: PE, because it has height and KE because it has velocity

Step 3: Select Proper Equations

Step 4: Write Equation Since no energy was added: E before = E after

Step 4: Write Equation E a = E c

Remember the masses cancel out!

Now You Try! Solve for velocity at B and D.

Answers V b = 26.2 m/s V d = 21.2 m/s
