File system implementation

Unit – 4

File System Implementation

Overview

Free Space Management
Efficiency and Performance
Recovery
Log-Structured File Systems
NFS

Free-Space Management
 How should unallocated blocks be managed?
 Need a data structure to keep track of them
Index block
 same as for conventional file, but no info in any block
 initially very large; makes it impractical: index table too large
Linked list
 Very large
 Hard to manage spatial locality
 want to allocate closely located blocks to a file
 this minimizes seek time
 hard to do with a linked list; have to traverse the list to find appropriate
blocks

Linked Free Space List on Disk

 Need a data structure to keep track of them
Grouping
 Modification of free-list (linked-list) approach
 Store the addresses of n free blocks in the first free block
 n - 1 of these are actually free; last block contains pointers to the next n
free block. Etc.
 Can now find a large number of free blocks quickly.
Counting
 Don’t keep the address of every free block.
 Free blocks are often consecutive
 So keep the address of the first free block and the number of following
consecutive blocks that are free.
 Each entry in the free-space list consists of a disk address and a count.

Bit vector (block status map or “disk map”) (n blocks)

0 1 2 n-1
…


0 block[i] free
bit[i] =
1 block[i] occupied
Block number calculation

(number of bits per word) *
(number of 0-value words) +
offset of first 1 bit

Most CPUs have special bit-manipulation instructions.
Example: Intel and PowerPC have instructions that return the offset in a
word of the first bit with the value 1

Free-Space Management (Cont.)

 Bit map requires extra space
Example:
block size = 212 bytes
disk size = 230 bytes (1 gigabyte)
n = 230/212 = 218 bits (or 32K bytes)
 Easy to get contiguous files
 Counting

Free-Space Management (Cont.)

Need to protect:
 Pointer to free list
 Bit map
 Must be kept on disk
 Copy in memory and disk may differ
 Cannot allow for block[i] to have a situation where
bit[i] = 1 in memory and bit[i] = 0 on disk
Solution:
Set bit[i] = 1 in disk
Allocate block[i]
Set bit[i] = 1 in memory

Efficiency and Performance

 Efficiency dependent on:
 disk allocation and directory algorithms
 types of data kept in file’s directory entry
Example: keep a “last write date” and a “last access date”
 Thus whenever a file is read, a field in the directory structure must be
written to.
 This means that the block must be read into memory, a section changed,
and the block written back out to disk.

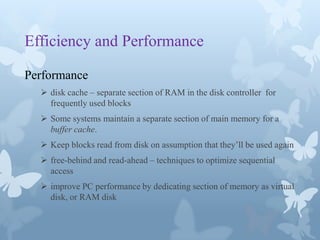

Efficiency and Performance

Performance
 disk cache – separate section of RAM in the disk controller for
frequently used blocks
 Some systems maintain a separate section of main memory for a
buffer cache.
 Keep blocks read from disk on assumption that they’ll be used again
 free-behind and read-ahead – techniques to optimize sequential
access
 improve PC performance by dedicating section of memory as virtual
disk, or RAM disk

Recovery
Consistency checking
Problem:
1. Directory information kept in main memory
2. Main memory more up to date than info on disk
What happens when computer crashes?
 Changes to directories may be lost.
 Actual state is not reflected in the directory structure.
 compares data in directory structure with data blocks on
disk
 tries to fix inconsistencies

Recovery
Fixable problems
 Depend on free-space-management algorithms
 If linked allocation used and each block links to next block
 Then directory structure can be reconstructed from data
block
Example: UNIX
 Indexed system, blocks have no knowledge of one another
 Impossible to recreate files
 This is why UNIX caches read
 But any action that results in metadata changes is done
synchronously, before data blocks are written

Recovery
 Use system programs to back up data from disk to another
storage device (floppy disk, magnetic tape, other magnetic disk,
optical)
 Recover lost file or disk by restoring data from backup
Backup programs take advantage of metadata about file
updates:
Day 1 Copy all files from disk to backup drive (full backup)
Day 2 Copy changes since day 1 (incremental backup)
Day 3 Copy changes since day 2
…
Day n Copy changes since day n-1.
Start over again.
 Allows restoration by starting with full backup, then applying all
incremental changes.

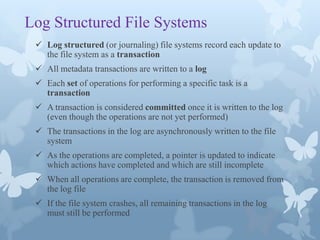

Log Structured File Systems
 Log structured (or journaling) file systems record each update to
the file system as a transaction
 All metadata transactions are written to a log
 Each set of operations for performing a specific task is a
transaction
 A transaction is considered committed once it is written to the log
(even though the operations are not yet performed)
 The transactions in the log are asynchronously written to the file
system
 As the operations are completed, a pointer is updated to indicate
which actions have completed and which are still incomplete
 When all operations are complete, the transaction is removed from
the log file
 If the file system crashes, all remaining transactions in the log
must still be performed

The Sun Network File System (NFS)

 An implementation and a specification of a software system for
accessing remote files across LANs (or WANs)
 The implementation is part of the Solaris and SunOS operating
systems running on Sun workstations using an unreliable
datagram protocol (UDP/IP protocol) and Ethernet
 Interconnected workstations viewed as a set of independent
machines with independent file systems, which allows sharing
among these file systems in a transparent manner

NFS
 Accesing file over a network
 A remote directory is mounted over a local file system
directory
 The mounted directory looks like an integral subtree of the
local file system, replacing the subtree descending from the
local directory
 Specification of the remote directory for the mount operation
is nontransparent; the host name of the remote directory has
to be provided
 Files in the remote directory can then be accessed in a
transparent manner
 Subject to access-rights accreditation, potentially any file
system (or directory within a file system), can be mounted
remotely on top of any local directory

NFS Protocol
 Provides a set of remote procedure calls for remote file
operations.
 The procedures support the following operations:
1. searching for a file within a directory
2. reading a set of directory entries
3. manipulating links and directories
4. accessing file attributes
5. reading and writing files
 NFS servers are stateless; each request has to provide a full set
of arguments
 (NFS V4 is just coming available – very different, stateful)
 The NFS protocol does not provide concurrency-control
mechanisms

Three Major Layers of NFS
Architecture
UNIX file-system layer
 interface (based on the open, read, write, and close calls, and
file descriptors)
Virtual File System (VFS) layer
 Distinguishes local files from remote ones, and local files are
further distinguished according to their file-system types
 The VFS activates file-system-specific operations to handle
local requests according to their file-system types
 Calls the NFS protocol procedures for remote requests
NFS service layer
 bottom layer of the architecture
 Implements the NFS protocol

Hope u have learnt something !!

Thank you
