Tritech is an international engineering company offering turnkey test and measurement solutions, with its subsidiary Syseng specializing in vehicle fleet management through the VDO Fleet Manager product line. The VDO Fleet Manager includes hardware and software platforms that cater to various commercial vehicle needs, enabling data tracking and management for transportation and logistics. Case studies demonstrate the applications in fleet management, accident analysis, and vehicle monitoring, showcasing the system's functionality in real-time vehicle tracking and alerting for operational efficiency.
Fleet Management System
- 1. TriTech Tritech is an International Engineering Company with a Group of Engineering Companies SysEng (S) Pte Ltd is part of the Tritech group
- 2. • M2M Solution Provider • Siemens VDO System Integrator for ASEAN • Started in January 1994 to provide Turnkey Test & Measurement Solutions • Test Engineering solutions • Structural Instrumentation for Buildings, Tunnels, Highway Bridges • Vibration and Acoustic Measurement Systems • Machine Vision Inspection Systems • Instrumentation Consultancy SysEng Core business
- 3. VDO Fleet Manager products Target market & application • VDO fleet manager products are aimed at commercial vehicles & equipment - Most types of vehicles, including buses, sedans, LGV’s (e.g. vans), HGV’s (e.g. trucks, fork-lifts, petrol tankers, street sweepers, etc.) • Products form the basis of solutions across industries and market segments – Transportation, logistics & distribution – Energy, mining, Exploration and Production – Fleet rental, Company cars, etc.
- 4. VDO Fleet Manager Products Overview • 2 core hardware platforms (on-board computers) – VDO Fleet Manager 100 – VDO Fleet Manager 200 Plus* • 2 core software platforms (on FM Office CD) – VDO Fleet Manager Lite – VDO Fleet Manager Professional* • Extensible hardware & software platform Peripherals • FM Terminal , FM Info, FM TCO, FM Trailer ID, FM DECT, VDO EDM, GPS, GSM etc FM Extensions (software plug-ins to FM Professional) • Active Events & Tracking, Costing Extension, Location Reports, GPS Log Viewer, etc. – Bureau service delivery platform: FM-Web
- 5. Data transfer Programming • Vehicle & Engine Speed •Date & Time GPS, Ignition, Air-con, Fuel sensor, Brake, Light...up to 10 sensors) Data transfer Programming Download socket Vehicle plug (green) for data transfer and setting vehicle parameters Data transfer Vehicle parameters Driver plug (blue) Driver ID Disarming of the starter interruption Setting of time / date Driver ID Date/Time Fleet Manager On-board computer

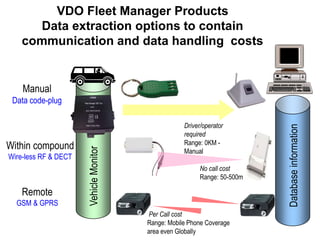

- 6. VDO Fleet Manager Products Data extraction options to contain communication and data handling costs Within compound Wire-less RF & DECT Manual Data code-plug VehicleMonitor Databaseinformation No call cost Range: 50-500m Per Call cost Range: Mobile Phone Coverage area even Globally Driver/operator required Range: 0KM - Manual Remote GSM & GPRS
- 7. VDO Fleet Manager Products Fleet Manager 200 Plus • VDO FM200 Plus Summary • all the VDO FM100 features plus re-programmability and… – 8 configurable digital or analogue lines (Seat belts, head lights, fridges, emergency lights, doors, PTO, UDS, etc) – 3 frequency inputs (GPS, Fuel (EDM), temperature etc..) – 3 outputs (Warning lights, Engine Management etc..) – Tachometer data for detailed analysis and accident analysis (1 second intervals, based on approx 8 day rolling buffer, depending on configuration) – 3 serial interfaces (Communications, GSM, GPS, FM Terminal, Pocket PC etc) – user defined events – extensible: support for peripherals running with VDO FM Professional Software – Provision for internal add-on modules (daughter boards) e.g. internal GSM, GPS
- 8. VDO Fleet Manager Software • Various options: PC – LAN – WAN – Internet • FM Professional: client-server using Microsoft SQL Powerful & scalable enterprise platform supporting all FM units Powerful core functionality & extensions e.g. Tracking, Fleet Costing Extensive data management and reporting Microsoft Office look and feel Extensive documentation • FM-Web Internet bureau based information delivery system
- 9. Project Applications in Security sector Applications 1. Fleet Management system for manage the Vehicle movements 2. Track the Vehicle uptime and servicing planning 3. Track the Doors, Horns, Sirens, Idle time, Engine running time, Speed, Lights, Turning Light Indicators, Wind screen wiper, Windows Up/Down status and other device on the vehicle
- 10. Case Study 1: Fleet Management system for manage the Vehicle Status • Sensor Data tracked in vehicles such as Engine Speed (RPM), Vehicle Speed (km/h) , Brakes, Lights and Doors • Wireless Data Transmission using GSM modem • No vehicle location information (No GPS) • Reporting and Interpretation of Data for Managing Company Assets by reporting the abuse of company assets, planning vehicle servicing schedules based upon distance traveled and engine speed • Post mortem of accidents in court and insurance cases
- 11. An Accident where a life was lost
- 12. Case study 2: Planning and verifying Vehicle Traveling Schedules • GPS Location System • SMS alerting system with pressing of Emergency button • Regular reporting of vehicle information to central command using GPRS • Vehicle Sensor Data such as Engine Speed (RPM), Vehicle Speed (km/h) , Brakes, Lights , Doors and Seat Belt • Unique Driver ID with a Blue plug • Vehicle must arrived at an assigned location within an allocated time slot and allowed to stop within a time duration. System will alert if there are deviations
- 13. Case study 3: Type of information to re-create the events (e.g. robbery) • GPS system giving Location • SMS alerting system with pressing of Emergency button using GSM system • Vehicle parameters: RPM (tachometer), speed, brake, security doors, seat belt and other devices. Information to recreate the events that have happened. • Unique Driver ID with a Blue plug
