IMPLEMENTATION OF DYNAMIC SOURCE ROUTING (DSR) IN
MOBILE AD HOC NETWORK (MANET)
Thiyam Romila Devi1
, Rameswari Biswal2
, Vikram Kumar3
, Abhishek Jena4
1, 2, 3, 4
M.Tech, School of Electronics, KIIT University, Odisha, India
romilath@gmail.com, rameswaribiswal@gmail.com, vikram_2006be@yahoo.co.in, bapuni207@gmail.com
Abstract
Generally, the Base station (BS) is fixed in the mobile communication system however in Mobile Ad hoc network, Base Station (BS)s
is not used, thus it is named as infrastructure less network which can manage its network independently. The Routing protocol plays
an important role and a lot of research has been done in this area. This paper presents a protocol for routing mobile ad hoc network
(MANET) that uses dynamic source routing. This protocol adapts quickly to the change in the routing path as the host is changing its
location frequently. DSR allows the network to be fully self-organising and self-configuring without the need for any existing network.
The protocol is composed of the two mechanisms of route discovery and route maintenance work together to search for the shortest
path and also to maintain source route to arbitrary destination in the Mobile ad hoc network, we used optimize routing protocol in
Mobile ad hoc network (MANET).This optimization is done on DSR (Dynamic Source Routing) protocol using ANT algorithm. The
performance of DSR is analyzed using Qualnet 5.2 with respect to QOS (Quality of Service) of throughput, end to end delay, Routing
overhead, Average hop count. All the parameter are analyzed in three different scenario of velocity, pause time and traffic connection.
All the result are compared with the result of standard DSR routing protocol. The comparison shows that the DSR-ant has better
performance than standard DSR. By using Ant algorithm, the DSR optimization can be improved with a smaller delay and the number
of hop to transfer information between nodes.
Keywords: MANET, DSR, ANT Algorithm
----------------------------------------------------------------------***-----------------------------------------------------------------------
1. INTRODUCTION
1.1 MANET Overview
Mobile ad hoc network (MANET) is a autonomous and
dynamic network consist of wireless mobile hosts or nodes.
For example, communication between remote notes is based
on multiple hop. These nodes are dynamically and arbitrarily
located in such a manner that the interconnections between
nodes are capable of changing on a continual basis. Thus
MANETs are self configuring as there is no central
management system with configuration responsibilities. All
the mobile nodes can communicate each other directly if they
are in others wireless links radio range. In order to enable data
transfer they either communicate through single hop or multi
hop with the help of intermediate nodes. MANETs allow
ubiquitous service access anywhere, anytime without any
fixed infrastructure, thus named as an infrastructure-less
network that can be widely used in military, battlefields,
management services, classrooms, various multimedia
applications and conference halls. The Fig-1. shows the
MANET
Fig-1: Infrastructure less Network
1.2 DSR Protocol and Optimization
The DSR (Dynamic source routing) protocol is a simple and
efficient routing protocol for wireless mesh network which is
designed for the use in multi- hop wireless ad hoc network of
mobile nodes. DSR allows the network to be completely self-

__________________________________________________________________________________________
organizing and self-configuring, without the need of any
predefined infrastructure. This protocol is composed of the
two main mechanisms of a) Route discovery and b) Route
maintenance. These two work together to allow nodes to
discover and maintain routes to arbitrarily destination in the ad
hoc network [1].
1.2.1 Route Discovery
Route Discovery is used to discover a route from source to
particular destination using two stages; Route request (RREQ)
and Route Reply(RREP). This method also includes some
optimization measures; during route request process, and
intermediate node can be authorized to issue a complete route
reply if it contains a valid route to the destination in its route
cache memory. Whenever a source wants to communicate
with destination and if it does not have a route in its Route
Cache, it broadcasts a RREQ message to find a particular
route. Each neighbour receives the RREQ and appends its
own address to the address list in the RREQ (if it has not
already processed the same request earlier) and re-broadcasts
the packet. This process will continue until either the
maximum hop counter is incremented (or RREQ is rejected)
or the destination is reached. The destination receives the
RREQ, appends its address and generates a route reply packet
(RREP) back towards the source using the reverse of the
accumulated route in latter case. When the source finally
receives RREP, it will store the route in its Route Cache [2].
Fig-2: DSR Route Discovery
During the process of discovery, there's a problem that should
be noticed. In the Figure1 above, node D may receive the
router requests both from node C and node E at the same time,
this will lead to the message collision, and the correct requests
cannot be accepted. Therefore, the broadcast in Ad hoc
network isn't reliable. This kind of problem can be avoided by
random delay transmission, authentication and so on.
However, random delay transmission cannot guarantee to
choose the best suitable router item, while the authentication
has to send more router control messages, thus results in more
resource wasted and load aggravation. There comes up a new
algorithm to solve this problem, i.e. ANT Algorithm
1.2.2 Route Maintenance
Route Maintenance is used to manage (cache, expire, switch
among) previously discovered routes. Once some nodes find
the neighbouring link that data is to be sent by is disconnected,
they immediately send a route error message RERR to source
node. When the source node receives the error packet, it
deletes all the routes that use the invalid link from the buffer,
and starts a new route discovery process if necessary. The
nodes that forward the error packet along the way delete all
the route in the broken link from their own routing table. The
route discovery procedure of DSR protocol often discovers
many routes from source node to destination node. And route
with minimal hop is more possible chosen for data
transmission than others, the nodes frequently chosen are more
likely to consume more energy, which results in short usage of
battery.
1.3 Architecture of Mobile communication system
based on DSR
DSR is used to replace the former routing protocol in BS. In
the same time the backbone network of mobile
communication system becomes an entire IP network. Every
BS has assigned a unique IP address and the data transmitted
between the BSs results into the IP formation of the same data.
The Fig- 2. Shows BS of Mobile communication network after
the improvement.
The basic elements of BS are-
a) Wireless link control layer- This layer defines reliable data
transmission between MS and BS in circuit mode and it can be
expanded like as link layer.
b) Wireless resource management layer- It both builds and
removes the wireless link between MS and BS for the MS
where it moves in network when the link state transmission is
being maintained.
c) Mobility management layer- It realizes some functions of
MS such as user's register and authorization in the service area
of different BSs.
d) Communication management layer- It realizes the functions
of management to wireless users such as routing management
and routing management.
e) Switching- It realizes the IP's disposal of data. It can be
discovered and maintained the route between BSs of source
MS and destination MS according to DSR protocol.
f) Wireless channels (Uu) interface- It defines the wireless
interface between BS and Ms.
g). Wireless channels (lu) interface- It defines the wireless
interface between BSs.
The Fig-3 shows the data flow from one BS to another BS
with two wireless hops in mobile communication with the
entire mobility of data and also shows how the inclusion of
more intermediate BSs would behave. The MS originates a
typical data packet and is arriving at the BS A through Uu

__________________________________________________________________________________________
interface. At BS A the packet must transverse the entire
protocol stacks, from the Uu interface down to the lu interface.
At the intermediate BS, the packet must brought up to DSR
sub layer and will be examined and is sent out again. Hence ,
packets do not go beyond the DSR sub layer in the route. All
the packets are originated from and is terminated at the sub
layer of DSR. The relaying of control packets is same as that
of the data packets.
Fig-3: BS of Mobile Communication Network
2. ANT ALGORITHM
ANT algorithm is an algorithm that is similar as the behavior
of ant colonies, known as ant system. Ant can find the
shortest route between the nest and the food source by
footprints or pheromones on the path that has been
traversed. Ants are practically blind but they still manage to
find their way to and from food. These observations inspired a
new type of algorithm called ant algorithms (or ant
systems)[3][4][5][6]. In order to determine the shortest route,
Ant algorithm is being used and the steps of determining are
as follows:-
a). Initialization parameters value algorithm. The intensity of
inter-node ant trail and changes (τij), many of nodes (n)
includes the coordinates (x, y) or the distance between
nodes (dij), Origin node and destination node, constant
cycle of ants (Q), constant intensity controller ant trail (α),
the value of α ≥ 0, constant control visibility (β), the
value of β ≥ 0, visibility between nodes = 1/dij (ηij), the
number of ants (m), evaporation constant trail of ants (ρ),
ρ values must be > 0 and <1 to prevent infinite
pheromone trail, and the maximum number of cycles
(NCmax) is fixed during the algorithm run, while costs
(τij) will be updated at each cycle algorithm from the
first cycle (NC = 1) to reach the maximum number of
cycles (NC = NCmax) or until there is convergence. After
we initialization parameters, further we Initialize the first
node each ant. First performed initialization (τij), then (m)
ants are placed on certain first node randomly. This ant
called forward ant packet, it will trace the route to the
destination node. When it was discovered the destination
node, the ants would go back through the same route. In
this condition the ant called backward ant.
b). Charging the first node in the tabu list. Tabu list is a table
containing the visibility of information between nodes.The
results of the first node initialization every ant in first step
should be filled as the first element of the table list. The
result of this step is to fill its first element table list each ant
with a particular node index, which means that every
tabuk (1) can contain node index between 1and n as the
initialization in step (a).
c). Composition of each ant route to all node. Ant colonies
that have been distributed to some or each node will start to
travel from each first node as the origin node and one
other node as the destination node. Then from the second
node, respectively, ant colonies will continue the trip by
choosing one of the nodes that are not on tabuk as the next
destination node. Journey ant colony continues until all the
nodes one by one visited or have occupied tabuk.If s expressed
sequence index visit, expressed as tabuk origin node (s) and
other node is expressed as {Ntabuk}, then the destination
node is used to determine the probability of the node
equations to visit [3][4][5][6]:
= (1)
for j , for other j with I
as the index of the origin node and J as index destination
node.
d). Calculation of route length of every ant. Calculation of
closed route length (length closed tour) or Lk any ants
performed after one cycle completed by all ants. This
calculation is done based each tabuk with the following
equation with dij is the distance between node i to node j
[3][4][5][6] :
(2)
(3)

__________________________________________________________________________________________
to search the shortest route. After every ant Lk is
calculated, will get a minimum length of each cycle routes
closed or Lmin NC and minimum values on the whole length
of the route is closed or Lmin. Calculation of changes in
the value of the intensity of inter-node ant footprints. Ant
colonies will leave footprints on the path between the nodes in
its path. The existence of evaporation and the difference in
the number of ants making the possibility of a change in the
value of the intensity of inter-node ant footprints. The
equation this changes is [3][4][5][6] :
(4)
Changes in intensity values between nodes and
footprints every ant is calculated based on the equation:
, for (i,j) origin node and destination node
in tabuk (5)
= 0, for other (i,j)
e). The calculation of the value of the intensity of internodes
ant footprints for the next cycle. Ant footprints intensity
values between nodes on all paths between nodes is likely
to change due to evaporation and the difference in the
number of ants that passed. For the next cycle, the ant will
pass the track intensity prices have changed. Ant footprints
intensity values between nodes for the next cycle is
calculated by the equation [3][4][5][6]:
= P* (6)
further Reset the value of the intensity changes between
nodes ant footprints. For the next cycle of price changes
ant trail intensity between the nodes need to be rearranged
in order to have a value equal to zero.
f). Emptying of tabu list, and repeat step b if necessary.
Tabu list needs to be emptied to be filled again with the
new order of nodes in the next cycle, if the maximum
number of cycles has not been achieved or has not
convergence. Algorithm is repeated from step b with prices
intensity parameter ant footprints among nodes that have
been updated.
3. SIMULATION
3.1. Simulation Parameter
In this paper we simulate the transmission of packet data in
mobile Ad Hoc network using DSR protocol that has been
optimized using Ant algorithm ( DSR-Ant). For simulation we
have used Qualnet 5.2 Software. In our simulation we have
taken simulation area 500X500 meters, radio propagation
model Rayleigh and Rician and simulation time 100ms. The
performance will be measured in terms of Qos parameters of
delay and throughput. For analyzing routing scenario, we have
considered routing overhead and hop count. Above mentioned
parameters plays very important roles in analyzing the
network. Delay and throughput parameter gives performance
at receiver side and routing overhead and hop count parameter
used to analyze routing performance based on algorithm used.
3.2. Scenario Analysis
We have analyzed three scenarios to evaluate DSR
performance in velocity of node movement. This is to evaluate
the routing protocol performance in velocity variation and
environment.
• In first scenario, we have fixed nodes and increasing
the velocity of node and data is being transmitted
between the nodes. In this we used 9 values between
2m/s to 18m/s.
• In second scenario, we implement various pause time
to evaluate routing protocol performance in dynamic
network. We have used pause time values between
10s to 100s.
• In third scenario, we have implemented constant
velocity with increasing traffic connection between
the node. We have used ten different traffic
connection and the number of node between 2 to 20.
When there is more traffic then queuing is higher and
produces congestion in network.
4. RESULT AND ANALYSIS
4.1. For velocity scenario
The result shows higher throughput and smaller end -to-end
delay as shown in Fig-4.1(a) and Fig-4.1(b)[7]. DSR-ant
searches the best path needs more routing overhead in a
manner such that protocol find shortest path with smaller hop
change in velocity will effect the shape and configuration of
network data transmission path. In this scenario, we have
analyzed that DSR-ant performance is better than standard
DSR in throughput, smaller end-to-end delay and number of
hop to send the message but DSR-ant has larger routing
overhead.

__________________________________________________________________________________________
Fig-4.1: (a) Throughput
Fig-4.1: (b) End-to-end delay
4.2. Result and Analysis Pause Time Scenario
The Fig-4.2(a) and Fig-4.2(b)[7] shows the pause time
scenario of end-to-end delay and Throughput. We have
analyzed that DSR-ant has smaller end-to-end delay because
this algorithm can search most efficient path with higher
throughput than standard DSR.
Fig-4.2: (a) End-to-end delay
Fig-4.2: (b) Throughput
4.3. Result and Analysis Traffic Connection Scenario
The traffic connection scenario is shown in Fig-4.3 (a), (b), (c)
and (d)[7]. When we are increasing traffic connection in the
network between the user or node will create congestion,
larger number of packets will wait in queue in the system and
lesser bandwidth. The routing protocol that has been
optimized with Ant algorithm can improved the performance
with smaller end-to-end delay and lesser number of hop. DSR-
ant have higher throughput in comparison to standard DSR but
due to complex calculation in DSR-ant to find the shortest
path, we have higher value of routing overhead.
Fig-4.3: (a) End-to-end delay
Fig-4.3: (b) Throughput

__________________________________________________________________________________________
Fig-4.3: (c) Routing overhead
Fig-4.3: (d) Average hop count
CONCLUSIONS
Ant algorithm is a very good tool to be implemented in
optimization of mobile ad hoc network. we have implemented
it using Qualnet 5.2 in reference to three different scenario and
compared our result with a standard DSR. Our result shows
that DSR-ant can improve the performance of MANET in
respect to end-to-end delay, throughput and number of hop to
transfer the message from sender to receiver. We can reduce
time needed to search for the shortest path using the Ant
algorithm. This will makes our mobile Ad hoc network faster
REFERENCES
[1]. Istikmal, Meylanie Olivya, "Performance Analysis of
Routing Protocol on Data Forwarding Effectiveness in
Mobile Ad hoc Network", Proceedings of The 5th
International Conference on Telematics System, Services
and Applications. Institute Technology of Bandung,
November 19-21, 2009.
[2]. Zhaohua Long, Zheng He."Optimization and
Implementation of DSR Route Protocol based on Ad hoc
network".
[3]. Gianni Di Caro and Marco Dorigo. “AntNet: Distributed
Stigmergetic Control for Communications Networks”. Journal
of Artificial Intelligence Research, 9:317–365, 1998.
[4]. Gianni Di Caro."Ant Colony Optimization and Its
Application to Adaptive Routing in Telecommunication
Network"
[5]. Vincensius LR, Indrarini Dyah I, Istikmal . "Performance
Analysis DSDV and ZRP based Ant algorithm at Mobile Ad
hoc network". Telecommunications Journal of Research and
Development, december 2010 volume 15-number 2,pp-109
[6]. Leksono, Agus.“Ant Colony Optimization (ACO)
Algorithm to Completed Travelling Salesman Problem (TSP).
Faculty of Mathematics and natural Sciences, University of
Dipengoro,2009.
[7]. Istikmal."Analysis And Evaluation Optimization Dynamic
Source Routing ( DSR ) Protocol in Mobile Adhoc Network
Based on Ant Algorithm". International Conference of
information and communication technology (ICoICT),2013.
BIOGRAPHIES
Thiyam Romila Devi:- Has received B.E
in Electronics and communication
Engineering from KNSIT, Bangalore
under Visvesvaraya Technological
University (VTU),Belgaum, India. She is
presently pursuing M. Tech from KIIT-
University, Bhubaneswar, Odisha, India with specialization in
Communication System Engineering (ETC).
Rameswari Biswal: Has received B.Tech in
Electronics and Communication Engineering
from BCET, Balasore under Biju Patnayak
University of Technology (BPUT), India.
She is presently pursuing M. Tech from
KIIT-University, Bhubaneswar, Odisha, with
specialization in Communication System Engineering (ETC).
Vikram Kumar:- Has received B.E. in
Electronics and communication
Engineering from LNCT, Bhopal under
Rajiv Gandhi Proudyogiki vishwavidyalaya
(RGTU), India. He is presently pursuing
M. Tech from KIIT-University, Bhubaneswar, Odisha, with
specialization in Communication System Engineering (ETC).

__________________________________________________________________________________________

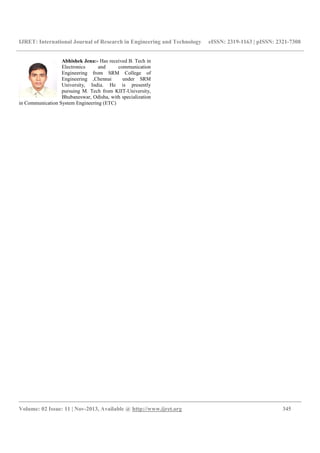

Abhishek Jena:- Has received B. Tech in
Electronics and communication
Engineering from SRM College of
Engineering ,Chennai under SRM
University, India. He is presently
pursuing M. Tech from KIIT-University,
Bhubaneswar, Odisha, with specialization
in Communication System Engineering (ETC)

Implementation of dynamic source routing (dsr) in

More Related Content

What's hot (17)

Viewers also liked (20)

Similar to Implementation of dynamic source routing (dsr) in (20)

More from eSAT Publishing House (20)

Recently uploaded (20)

Implementation of dynamic source routing (dsr) in
