Industrial experiences on Domain-Specific Modeling
1 like1,626 views
The document discusses the benefits of domain-specific modeling (DSM) languages through various industry case studies, highlighting substantial productivity and quality improvements in software development. Four detailed cases illustrate that DSM can significantly reduce development time, with examples showing productivity increases of up to 900%, and facilitate development by non-programmers. Overall, the findings advocate for the adoption of DSM as a means to enhance software engineering efficiency and effectiveness.
Industrial experiences on Domain-Specific Modeling
- 1. Industrial Experiences on Domain-Specific Modeling
- 2. Contents Domain-Specific Modeling Languages: Introduction Review of industry cases – Touch screen – Home automation control – Sports computer – Military radio Summary and discussion

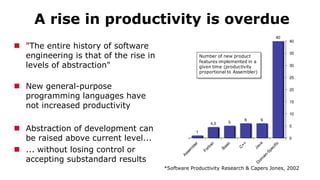

- 3. 1 4,5 5 6 6 40 0 5 10 15 20 25 30 35 40 Number of new product features implemented in a given time (productivity proportional to Assembler) A rise in productivity is overdue "The entire history of software engineering is that of the rise in levels of abstraction" New general-purpose programming languages have not increased productivity Abstraction of development can be raised above current level... ... without losing control or accepting substandard results *Software Productivity Research & Capers Jones, 2002
- 4. What data is available behind the statements* like: "5-fold productivity increase when compared to standard development methods" "The quality of the generated code is clearly better, simply because the modeling language rules out errors" "The DSM solution makes development significantly faster and easier than the old manual coding practices" * source: www.metacase.com/cases/
- 5. Four cases in more detail Touch screen device (Panasonic) Home automation (Ouman) Sports computer (Polar Electro) Military radio (Elektrobit)
- 6. Case 1: Panasonic’s touch screen devices (Safa, 2007) Home automation solution installed by construction firms Features for controlled – Lights – Heating – Air-conditioning – Electricity – Alarms • Burglar • Gas • Smoke – Reporting (energy saving)
- 8. Evaluation method Compare DSM to current manual coding practice Two evaluation methods 1. Implemented an existing product with DSM 2. Implemented the existing features to a different target platform • The same models, a new generator
- 9. Tool-chains covering: – Generate – Compile – Upload – Boot – Run Generators for: – PC simulation – Touch screen – Microcontroller
- 10. Measuring development time Build the same application with both approaches – Measure the time used Results: – DSM is 425% faster Implemented the same product to a new platform – 3 days for generator development – 0 days for modeling
- 11. Return on investment: Panasonic DSM solution developed in 15 days Product development with: – the current approach: 17 days – DSM: 4 days 0 5 10 15 20 25 30 35 DSM Coding Days Creating DSM solution Product 1 Product 2 Product 3 Product 4 Product 5
- 12. Case 2: Home automation (Puolitaival, 2011)
- 13. Home automation, remote control via mobile phone Ouman manufactures home automation systems Products are focused mainly on temperature control with many different heating systems SMS interface for remote control
- 14. A language for specifying remote control applications
- 15. One model for Ouman EH-60 product remote controller
- 16. 0 5 10 15 20 DSM "past" Days Creating DSM solution Product 1 Product 2 Product 3 Product 4 Product 5 Return on investment DSM solution developed: 2 weeks Product development: 1-2 days – Comparison to earlier development effort not possible since outsourced • Cost was 6 figure number DSM allows a non-programmer to develop applications
- 17. Case 3: Polar’s Sport computers Heart rate measuring, analysis and visualization Calorie calculation, like current, cumulative, expenditure rate, active time Speed: current, average, maximum Distance, based on interval, trip, recovery Altimeter, vertical speed, altitude alarms, slope counter, graphical trend Cycling information like pedaling rate and cycling power Barometer, pressure drop alarm, graphical trend Exercise diaries Sensor connectivity (heart rate, speed, cadence, power, GPS) Compass, Temperature, Odometer, Logbooks, etc.
- 18. About the product development (Kärnä et al. 2009) Polar focused on UI application development – Single largest piece of software • Takes 40-50% of the development time – Typically always vary among products Software development is constrained by limited resources: – Memory, processor speed and battery life Polar created the needed languages and generators internally
- 19. Sample of UI application design
- 20. Evaluation methods Compare the use of DSM and the current practice Two research methods – Laboratory study • 6 current developers, 6 implementations • Implement a small, typical feature – Pilot project • Implement large portion of a whole product • 1 person
- 21. Results of the studies Laboratory study – Measuring time: at least 750% faster – Asking opinions: results (scale 1-5, 5 best): Pilot – Measuring time: >900% faster
- 22. Return on investment: Polar DSM solution developed in 60 hours Product development with: – the current approach: 23 days – DSM: 2,3 days
- 23. Case 4: Military radio (Puolitaival et al., 2011)
- 24. EB Tough VoIP Features Tough VoIP is a wired phone that is using UDP/IP network for connection Manufacturer: Elektrobit Main features: – Easy configuration – Point-to-Point call – All call – War-proof device
- 26. EB Test Tool Platform + OpenTTCN tester Two language solution Model Model MBT TTCN-3TTCN-3 Modeling one test case Modeling a test logic Model-Based Testing generates multiple test cases Generating one test case Executing the test case Executing test cases
- 27. Model example 1: test case
- 28. Model example 2: test logic
- 29. 0 5 10 15 20 DSM Coding Days Creating DSM solution Test suite 1 Test suite 2 Test suite 3 Test suite 4 Test suite 5 Return on investment: Elektrobit About 10 times faster with modeling Set-up time estimation: – 2 weeks for the first version, +1 week to make it better Other benefits: – Test coverage dramatically increase – Easy test configuration
- 30. Economics of DSM Repetition: – # of product variants – # of similar features – # of developers – ”outsourcing” to domain experts Investment: – Effort needed to implement DSLs 0 10 20 30 40 50 60 70 80 90 100 0 1 2 3 4 5 6 Repetition Cost Current DSM
- 31. DSM Solution Development Time Man days
- 32. Concepts Symbols GeneratorsRules 1 2 3 4 Steps for implementing DSM
- 33. Summary Domain-Specific Modeling languages provide: – Better productivity – Quality improvements – Easier use and introduction of new developers MetaEdit+ makes moving to DSLs feasible – Expert can focus on language design, not on creating tooling – Models update and work when languages changes Creation of languages does not take much time!
- 34. More details on the cases Kelly, S., Tolvanen, J.-P., Domain-Specific Modeling: Enabling Full Code Generation, Wiley, 2008. http://dsmbook.com Kärnä, J., et al. Evaluating the Use of Domain-Specific Modeling in Practice, Proceedings of the 9th Workshop on Domain- Specific Modeling, HSE Print, B-108, 2009. Puolitaival, O.-P., Home Automation DSL case, Code Generation Conference, 2011 Puolitaival, O.-P., Kanstren, T., Rytky, V.-P., Saarela, A., Utilizing Domain-Specific Modeling for Software Testing, Proceedings of VALID, October 2011 Safa, L., The Making Of User-Interface Designer, A Proprietary DSM Tool, Proceedings of the 7th Workshop on Domain-Specific Modeling, Technical Reports, TR-38, University of Jyväskylä, 2007
- 35. For more cases, customer stories, testimonials visit www.metacase.com Thank You!
