Internal microprocessor architecture

Group Members
 12063122-011 ( M.Noman
)
 12063122-017 ( Hafiz
Hamid )
 12063122-029 ( Salah
Uddin Ayubi )
 12063122-037 ( Mubashar
Naeem )
 12063122-023 ( Safi ur
rehman Tabasum )
 University Of Gujrat
(Pakistan)

Internal microprocessor
architecture
 ON the basis of programing

Microprocessor’s type
Internal structure of microprocessor should be known
Single core 1. single task at any time
2.access whole memory at
the same time by any program
Dual core 1.multiple task at any time
2.access specific memory by
any task

Programing model
Program visible : 8086,8088
Registers are used directly
during programing
Program invisible : 80286 and above
1. Registers are not accessible
directly during programing
2. Can be used indirectly

cont.….
 We can’t access these register with the instruction used
to access general purpose register AX,BX etc….
 To access the low order byte of R8 use R8B
 To access the low order word of R10 use R10W

Special purpose flag
 The 6 Segment Registers are:
 Stack Segment (SS). Pointer to
the stack.
 Code Segment (CS). Pointer to
the code.
 Data Segment (DS). Pointer to
the data.
 Extra Segment (ES). Pointer to
extra data ('E' stands for 'Extra').
 F Segment (FS). Pointer to more
extra data ('F' comes after 'E').
 G Segment (GS). Pointer to still
more extra data ('G' comes after
'F').

Remember
 R_ _ used in 64 bit MP
 E_ _ used in 32 bit MP
 (E stand for extended)
 Register can access as R_ _ , E_ _ , _ _ , _L ,_ H

Multipurpose or general purpose
register

Accumulator (RAX)
 Used for IO operation, rotate, shift, multiplication
and division

Base index (RBX)
 Hold the offset address of a location In a memory
system
 Also address the memory data

Count Register (CX)
 Used as default counter for various instruction like
repeated string, shift, rotate(CL), loop etc…
 Hold the offset address of memory data
 Address memory data

Data Register (DX)
 Hold the part of the result from a multiplication or
part of the dividend before division.
 Address memory data

Stack Pointer : pointing the top of the stack
in stack segment
Base Pointer: contain the offset address within
data segment
Source index : Used as a pointer to a source in
stream operations
Destination index : used as a pointer to
destination in stream
operations
 All these register also used for based
indexed, register indirect addressing

R8-R15
These register are only found in Pentium 4 and core2 if
64-bit extensions are enables
Used as general purpose register
In most application these registers remain unused

Special Purpose Register
Instruction pointer (IP) :
point to the next
instruction in a program located within
the code segment
Stack Pointer :
pointing the top of the stack
in stack segment to store data

Flag Register
Determine the current state of the process
Modified automatically after M.Operations
Conditional Flag
Carry flag:
indication of overflow condition for
unsigned integer and hold carry
Auxiliary flag :
indication the carry/borrow from
lower nibble to high nibble(D3-D4)

Parity flag : indication of parity of the result
Zero : set if result is zero
Sign flag: In signed magnitude format, if the
result of the operation is negative,
sign flag is set

Control Flag
Control the operation of the execution unit
 Trap flag : if set, then debugging operation
is allow
 Interrupt flag: control the operation of interrupt
request.
note : set by instruction STI
clear by instruction CLI
 Direction flag : used in string operation. if it is set,
string byte is accessed from higher memory
address to lower memory address

Flags for 32,64-bit
 IOPL (IO privilege level) :
used to select the privilege level for IO
devices.
 if the current privilege level is 00 ,IO
execute without hindrance
 if 11 then an interrupt occur and
suspended the execution

 NT (nested task) :
 indicate whether the task is nested with
other or not
RF (resume) :
 resume flag is used with debugging to
control the resumption of execution after
the next instruction

VM (virtual mode) :
 This allow the system program to execute
multiple DOS operation
AC (alignment check) :
 if the word or double word
Is addressed on a non-word or
non-double word boundary
VIF (virtual interrupt flag) :
 copy the interrupt flag bit
(in Pentium 4)

VIP (virtual interrupt pending) :
 Give the information about virtual mode
interrupt. Set if interrupt is pending
ID (identification) :
 The ID flag indicate that Pentium 4 micro-
processor support the CPUID or not.
 The CPUID instruction provides the system
with information about microprocessor such
as its version number and manufacturer

Segment Register
CS (code segment) :
 area of memory that hold the code
(executable program) used by MP
 Have the starting address of the memory
that hold code
 CS:IP used to access the whole 64k
memory of code segment

 SS (stack segment) :
 area of memory used for the stack
 stack is used to store data
 memory 64k can be access by SS:SP
 DS (data segment) :
 area of memory that hold all data
refer by general purpose register
(AX, BX etc. )
64k memory Accessed by using DS and offset
address register

ES (extra segment) :
 additional data segment that is used by
some of the string instructions to hold
destination data
 FS and GS :
 supplemental register used as most
extra segment in 64-bit MP. Window use
these segments for internal operation. But
no definition for their usage is available

REAL MODE MEMORY ADDRESSING
 The only mode available on the 8086-8088.
20 bit address bus  1 MB, 16 bit data bus, 16 bit registers
 80286 and above operate in either the real or
protected mode.
 Real mode operation allows addressing of only the
first 1M byte of memory space—even in Pentium 4
or Core2 microprocessor.
 the first 1M byte of memory is called the real memory,
conventional memory, or DOS memory system

Segment registers hold the base address of where a
particular segment begins in memory. There is the
 code segment (CS)
 data segment (DS)
 stack segment (SS)
 extra segment (ES).

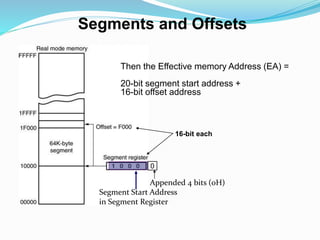

Segments and Offsets
 All real mode memory addresses must consist of a
segment address plus an offset address.
 segment address defines the beginning address of any
64K-byte memory segment
 offset address selects any location within the
64K byte memory segment

16-bit each
Appended 4 bits (0H)
Segment Start Address
in Segment Register
0
Then the Effective memory Address (EA) =
20-bit segment start address +
16-bit offset address

– this shows a memory
segment beginning at
10000H, ending at
location IFFFFH
• 64K bytes in length
– also shows how an offset
address, called a
displacement, of F000H
selects location 1F000H
in the memory

 Once the starting address is known, the ending
address is found by adding FFFFH.
 because a real mode segment of memory is 64K in
length
 The offset address is always added to the segment
starting address to locate the data.
[1000:2000H]
 a segment address of 1000H; an offset of 2000H

Effective Address Calculations
• EA = segment register (SR) x 10H + offset
(a) SR: 1000H
10000 + 0023 = 10023H
(b) SR: AAF0H
AAF00 + 0134 = AB034H
(c) SR: 1200H
12000 + FFF0 = 21FF0H

Default Segment and Offset Registers
 The microprocessor has rules that apply to
segments whenever memory is addressed.
 These define the segment and offset register
combination
[CS:IP]
 The code segment register defines the start of the
code segment.
 The instruction pointer locates the next
instruction within the code segment.

 Another of the default combinations is the stack.
 stack data are referenced through the stack segment at
the memory location addressed by either the stack pointer
(SP) or the base pointer (BP)
 a memory segment can touch or overlap if 64K bytes of
memory are not required for a segment

– think of segments as
Windows that can be
moved over any area of
memory to access data or
code
– a program can have more
than four or six segments,
• but only access four or six
segments at a time
00000
Stack
Code
Data
Extra
0FFFF
10000
1FFFF
20000
2FFFF
30000
33FFF
34000
43FFF
44000
48FFF
49000
58FFF
59000
FFFFF
Memory
1 0 0 0 DS
2 0 0 0 CS
3 4 0 0 SS
4 9 0 0 ES

Code should be limited to
only this portion of the
code segment, to avoid
effects of segment
overlap.

 They can occupy completely separate parts of
memory.
 Multiple segments could even coincide because
there are multiple segment registers, the CPU can
keep track of.
 A program can use, multiple segments at the same
time.

Default Segment and Offset
Registers
 Default segment numbers in:
 CS for program (code)
 SS for stack
 DS for data
 ES for string (destination) data
 Default offset addresses that go with them
Convention Example: EA = CS:[IP]
Segment Start
in Segment register
Offset: Literal
or in a CPU register

TPA
 The Transient Program Area (TPA) holds the DOS
(disk operating system) operating system; other
programs that control the computer system.
 TPA is the first available area of memory above
drivers and other TPA programs
 Area is indicated by a free-pointer maintained by
DOS
 program loading is handled automatically by the
program loader within DOS

The TPA also stores any currently active
or inactive DOS application programs.

Real Mode Addressing Scheme Allows
Relocation
 A relocatable program is one that can be placed
into any area of memory and executed without
change.
 Segment plus offset addressing allows DOS
programs to be relocated in memory.

 This mainly means using relative offsets for data
accesses and jump instructions. If this is easy/possible is
based on the type of architecture, the size of the address
space and the size of the program..
 Relocatable data are data that can be placed in any
area of memory and used without any change to the
program

Real Mode Addressing Scheme Allows
Relocation
 Because memory is addressed within a segment
by an offset address, the memory segment can be
moved to any place in the memory system without
changing any of the offset addresses.
.

 Only the contents of the segment register must be
changed to address the program
in the new area of memory.
 Windows programs are written assuming that the first 2G
of memory are available for code and data.
