The document discusses control systems and provides examples. It begins by describing the general process for designing a control system and examines examples throughout history. Modern control engineering includes strategies to improve manufacturing, energy efficiency, automobiles, and other applications. The document also discusses the gap between physical systems and their models in control system design and how an iterative process can effectively address this gap.
Introduction to control systems
- 1. Illustrations In this chapter we describe a general process for designing a control system. A control system consisting of interconnected components is designed to achieve a desired purpose. To understand the purpose of a control system, it is useful to examine examples of control systems through the course of history. These early systems incorporated many of the same ideas of feedback that are in use today. Modern control engineering practice includes the use of control design strategies for improving manufacturing processes, the efficiency of energy use, advanced automobile control, including rapid transit, among others. We also discuss the notion of a design gap. The gap exists between the complex physical system under investigation and the model used in the control system synthesis. The iterative nature of design allows us to handle the design gap effectively while accomplishing necessary tradeoffs in complexity, performance, and cost in order to meet the design specifications. Chapter 1: Introduction to Control Systems Objectives
- 2. Illustrations Course Synopsis • Provides a background of control principles in various engineering applications. Basic mathematical tools such as Laplace transform, transfer function, block diagram, signal flow graph, mathematical modeling of dynamic systems, time response analysis, stability of linear system, root locus and frequency domain analysis are utilized.
- 3. Illustrations Course Outcomes (CO) CO1 Ability to apply various mathematical principles (from calculus and linear algebra) to solve control system problems. CO2 Ability to obtain mathematical models for such mechanical, electrical and electromechanical systems. CO3 Ability to derive equivalent differential equation, transfer function and state space model for a given system. CO4 The ability to perform system’s time and frequency-domain analysis with response to test inputs. Analysis includes the determination of the system stability.
- 4. Illustrations System – An interconnection of elements and devices for a desired purpose. Control System – An interconnection of components forming a system configuration that will provide a desired response. Process – The device, plant, or system under control. The input and output relationship represents the cause-and- effect relationship of the process.
- 5. Illustrations • The interaction is defined in terms of variables. i. System input ii. System output iii. Environmental disturbances
- 6. Illustrations Control System • Control is the process of causing a system variable to conform to some desired value. • Manual control Automatic control (involving machines only). • A control system is an interconnection of components forming a system configuration that will provide a desired system response. Control System Output Signal Input Signal Energy Source
- 7. Illustrations Multivariable Control System Open-Loop Control Systems utilize a controller or control actuator to obtain the desired response. Closed-Loop Control Systems utilizes feedback to compare the actual output to the desired output response.
- 8. Illustrations Control System Classification Open-Loop Control System Missile Launcher System
- 9. Illustrations Control System Classification Closed-Loop Feedback Control System Missile Launcher System
- 10. Illustrations Manual Vs Automatic Control • Control is a process of causing a system variable such as temperature or position to conform to some desired value or trajectory, called reference value or trajectory. • For example, driving a car implies controlling the vehicle to follow the desired path to arrive safely at a planned destination. i. If you are driving the car yourself, you are performing manual control of the car. ii. If you use design a machine, or use a computer to do it, then you have built an automatic control system.
- 11. Illustrations Control System Classification Desired Output Response Measurement Output Variables Controller Process Multi Input Multi Output (MIMO) System
- 12. Illustrations Purpose of Control Systems i. Power Amplification (Gain) – Positioning of a large radar antenna by low-power rotation of a knob i. Remote Control – Robotic arm used to pick up radioactive materials i. Convenience of Input Form – Changing room temperature by thermostat position iv. Compensation for Disturbances – Controlling antenna position in the presence of large wind disturbance torque
- 13. Illustrations Historical Developments i. Ancient Greece (1 to 300 BC) – Water float regulation, water clock, automatic oil lamp i. Cornellis Drebbel (17th century) – Temperature control i. James Watt (18th century) – Flyball governor i. Late 19th to mid 20th century – Modern control theory
- 14. Illustrations Watt’s Fly ball Governor
- 16. Illustrations Human System i. Pancreas Regulates blood glucose level i. Adrenaline Automatically generated to increase the heart rate and oxygen in times of flight i. Eye Follow moving object i. Hand Pick up an object and place it at a predetermined location i. Temperature Regulated temperature of 36°C to 37°C
- 17. Illustrations History 18th Century James Watt’s centrifugal governor for the speed control of a steam engine. 1920s Minorsky worked on automatic controllers for steering ships. 1930s Nyquist developed a method for analyzing the stability of controlled systems 1940s Frequency response methods made it possible to design linear closed-loop control systems 1950s Root-locus method due to Evans was fully developed 1960s State space methods, optimal control, adaptive control and 1980s Learning controls are begun to investigated and developed. Present and on-going research fields. Recent application of modern control theory includes such non-engineering systems such as biological, biomedical, economic and socio-economic systems ???????????????????????????????????
- 18. Illustrations Control System Components i. System, plant or process – To be controlled i. Actuators – Converts the control signal to a power signal i. Sensors – Provides measurement of the system output i. Reference input – Represents the desired output
- 19. Illustrations General Control System SensorSensor ActuatorActuator ProcessProcessControllerController ++ Set-point or Reference input Actual Output Error Controlled Signal Disturbance Manipulated Variable Feedback Signal + - + +
- 20. Illustrations Control System Design Process If the performance does not meet specifications, then iterate the configuration and actuator
- 21. Illustrations
- 22. Illustrations (a) Automobile steering control system. (b) The driver uses the difference between the actual and the desired direction of travel to generate a controlled adjustment of the steering wheel. (c) Typical direction- of-travel response. Examples of Modern Control Systems
- 23. Illustrations Examples of Modern Control Systems
- 24. Illustrations Examples of Modern Control Systems
- 25. Illustrations Examples of Modern Control Systems
- 26. Illustrations Examples of Modern Control Systems
- 27. Illustrations Examples of Modern Control Systems
- 28. Illustrations Examples of Modern Control Systems
- 29. Illustrations Examples of Modern Control Systems
- 30. Illustrations Examples of Modern Control Systems
- 31. Illustrations The Future of Control Systems
- 32. Illustrations The Future of Control Systems
- 34. Illustrations ELECTRIC SHIP CONCEPT Ship Service Power Main Power Distribution Propulsion Motor Motor Drive Generator Prime Mover Power Conversion Module Electric Drive Reduce # of Prime Movers Fuel savings Reduced maintenance Technology Insertion Warfighting Capabilities VisionVision IntegratedIntegrated PowerPower SystemSystem IntegratedIntegrated PowerPower SystemSystem AllAll ElectricElectric ShipShip AllAll ElectricElectric ShipShip ElectricallyElectrically ReconfigurableReconfigurable ShipShip ElectricallyElectrically ReconfigurableReconfigurable ShipShip Reduced manning Automation Eliminate auxiliary systems (steam, hydraulics, compressed air) Increasing Affordability and Military Capability Design Example
- 35. Illustrations CVN(X) FUTURE AIRCRAFT CARRIER Design Example
- 40. Illustrations

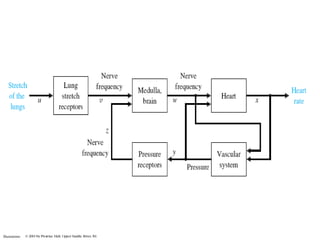

- 41. Illustrations
- 45. Illustrations
- 47. Illustrations
- 48. Illustrations
