Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Huang Introduction to Discrete-Event Simulation jjhuang Using SimPy What is Simulation and When to Use it? What is Discrete-Event Chun-Chieh Huang Simulation? jjhuang Example to Illustrate World Views DSP and Algorithm Design Department Introduction to Metanoia Communications Inc. SimPy <jiunjie.huang@gmail.com> SimPy Example References June 9, 2012

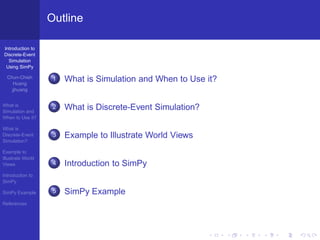

Outline Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Huang 1 What is Simulation and When to Use it? jjhuang What is Simulation and 2 What is Discrete-Event Simulation? When to Use it? What is Discrete-Event 3 Example to Illustrate World Views Simulation? Example to Illustrate World Views 4 Introduction to SimPy Introduction to SimPy SimPy Example 5 SimPy Example References

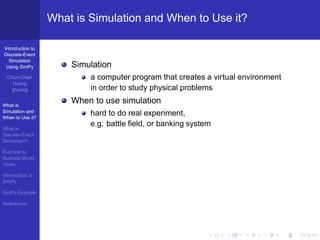

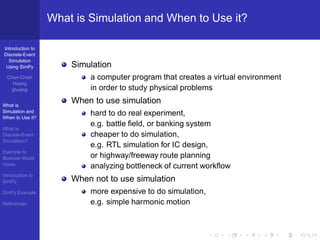

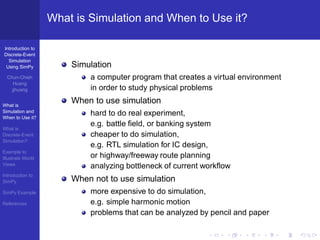

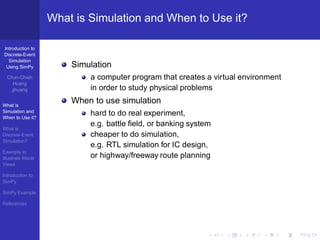

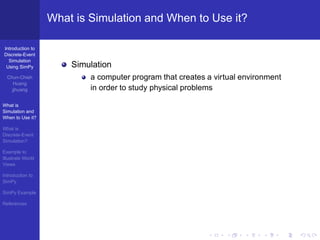

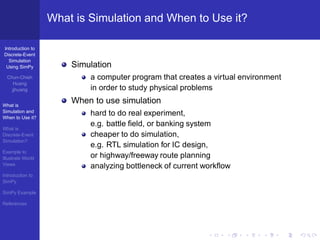

What is Simulation and When to Use it? Introduction to Discrete-Event Simulation Using SimPy Simulation Chun-Chieh a computer program that creates a virtual environment Huang jjhuang in order to study physical problems What is Simulation and When to Use it? What is Discrete-Event Simulation? Example to Illustrate World Views Introduction to SimPy SimPy Example References
What is Simulation and When to Use it? Introduction to Discrete-Event Simulation Using SimPy Simulation Chun-Chieh a computer program that creates a virtual environment Huang jjhuang in order to study physical problems What is When to use simulation Simulation and When to Use it? hard to do real experiment, e.g. battle field, or banking system What is Discrete-Event Simulation? Example to Illustrate World Views Introduction to SimPy SimPy Example References
What is Simulation and When to Use it? Introduction to Discrete-Event Simulation Using SimPy Simulation Chun-Chieh a computer program that creates a virtual environment Huang jjhuang in order to study physical problems What is When to use simulation Simulation and When to Use it? hard to do real experiment, e.g. battle field, or banking system What is Discrete-Event cheaper to do simulation, Simulation? e.g. RTL simulation for IC design, Example to Illustrate World or highway/freeway route planning Views Introduction to SimPy SimPy Example References
What is Simulation and When to Use it? Introduction to Discrete-Event Simulation Using SimPy Simulation Chun-Chieh a computer program that creates a virtual environment Huang jjhuang in order to study physical problems What is When to use simulation Simulation and When to Use it? hard to do real experiment, e.g. battle field, or banking system What is Discrete-Event cheaper to do simulation, Simulation? e.g. RTL simulation for IC design, Example to Illustrate World or highway/freeway route planning Views analyzing bottleneck of current workflow Introduction to SimPy SimPy Example References
What is Simulation and When to Use it? Introduction to Discrete-Event Simulation Using SimPy Simulation Chun-Chieh a computer program that creates a virtual environment Huang jjhuang in order to study physical problems What is When to use simulation Simulation and When to Use it? hard to do real experiment, e.g. battle field, or banking system What is Discrete-Event cheaper to do simulation, Simulation? e.g. RTL simulation for IC design, Example to Illustrate World or highway/freeway route planning Views analyzing bottleneck of current workflow Introduction to SimPy When not to use simulation SimPy Example more expensive to do simulation, References e.g. simple harmonic motion
What is Simulation and When to Use it? Introduction to Discrete-Event Simulation Using SimPy Simulation Chun-Chieh a computer program that creates a virtual environment Huang jjhuang in order to study physical problems What is When to use simulation Simulation and When to Use it? hard to do real experiment, e.g. battle field, or banking system What is Discrete-Event cheaper to do simulation, Simulation? e.g. RTL simulation for IC design, Example to Illustrate World or highway/freeway route planning Views analyzing bottleneck of current workflow Introduction to SimPy When not to use simulation SimPy Example more expensive to do simulation, References e.g. simple harmonic motion problems that can be analyzed by pencil and paper

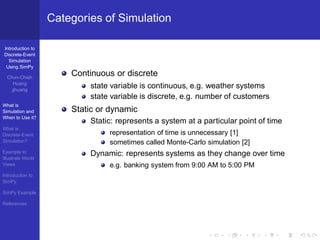

Categories of Simulation Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Continuous or discrete Huang jjhuang state variable is continuous, e.g. weather systems state variable is discrete, e.g. number of customers What is Simulation and When to Use it? What is Discrete-Event Simulation? Example to Illustrate World Views Introduction to SimPy SimPy Example References
Categories of Simulation Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Continuous or discrete Huang jjhuang state variable is continuous, e.g. weather systems state variable is discrete, e.g. number of customers What is Simulation and Static or dynamic When to Use it? Static: represents a system at a particular point of time What is Discrete-Event representation of time is unnecessary [1] Simulation? sometimes called Monte-Carlo simulation [2] Example to Dynamic: represents systems as they change over time Illustrate World Views e.g. banking system from 9:00 AM to 5:00 PM Introduction to SimPy SimPy Example References
Categories of Simulation Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Continuous or discrete Huang jjhuang state variable is continuous, e.g. weather systems state variable is discrete, e.g. number of customers What is Simulation and Static or dynamic When to Use it? Static: represents a system at a particular point of time What is Discrete-Event representation of time is unnecessary [1] Simulation? sometimes called Monte-Carlo simulation [2] Example to Dynamic: represents systems as they change over time Illustrate World Views e.g. banking system from 9:00 AM to 5:00 PM Introduction to SimPy Deterministic or stochastic SimPy Example Deterministic: contains no random variable References Stochastic: has one or more random variables

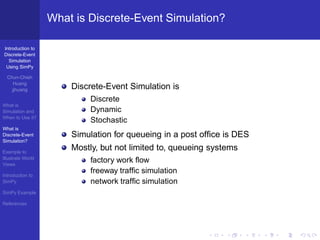

What is Discrete-Event Simulation? Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Huang jjhuang Discrete-Event Simulation is Discrete What is Simulation and Dynamic When to Use it? Stochastic What is Discrete-Event Simulation for queueing in a post office is DES Simulation? Example to Mostly, but not limited to, queueing systems Illustrate World Views factory work flow Introduction to freeway traffic simulation SimPy network traffic simulation SimPy Example References

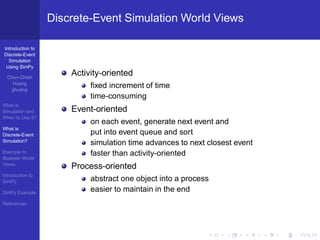

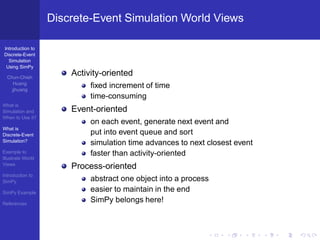

Discrete-Event Simulation World Views Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Activity-oriented Huang jjhuang fixed increment of time time-consuming What is Simulation and When to Use it? What is Discrete-Event Simulation? Example to Illustrate World Views Introduction to SimPy SimPy Example References
Discrete-Event Simulation World Views Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Activity-oriented Huang jjhuang fixed increment of time time-consuming What is Simulation and Event-oriented When to Use it? on each event, generate next event and What is Discrete-Event put into event queue and sort Simulation? simulation time advances to next closest event Example to faster than activity-oriented Illustrate World Views Introduction to SimPy SimPy Example References
Discrete-Event Simulation World Views Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Activity-oriented Huang jjhuang fixed increment of time time-consuming What is Simulation and Event-oriented When to Use it? on each event, generate next event and What is Discrete-Event put into event queue and sort Simulation? simulation time advances to next closest event Example to faster than activity-oriented Illustrate World Views Process-oriented Introduction to SimPy abstract one object into a process SimPy Example easier to maintain in the end References
Discrete-Event Simulation World Views Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Activity-oriented Huang jjhuang fixed increment of time time-consuming What is Simulation and Event-oriented When to Use it? on each event, generate next event and What is Discrete-Event put into event queue and sort Simulation? simulation time advances to next closest event Example to faster than activity-oriented Illustrate World Views Process-oriented Introduction to SimPy abstract one object into a process SimPy Example easier to maintain in the end References SimPy belongs here!

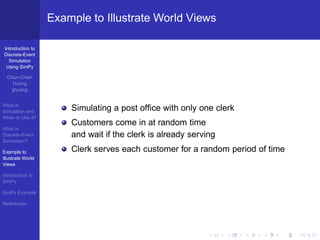

Example to Illustrate World Views Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Huang jjhuang What is Simulation and Simulating a post office with only one clerk When to Use it? Customers come in at random time What is Discrete-Event and wait if the clerk is already serving Simulation? Example to Clerk serves each customer for a random period of time Illustrate World Views Introduction to SimPy SimPy Example References
Discrete-Event Simulation World Views Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Activity-oriented Huang jjhuang fixed increment of time What is time-consuming Simulation and When to Use it? Event-oriented What is on each event, generate next event and Discrete-Event Simulation? put into event queue and sort Example to simulation time advances to next closest event Illustrate World faster than activity-oriented Views Introduction to Process-oriented SimPy abstract one object into a process SimPy Example easier to maintain in the end References

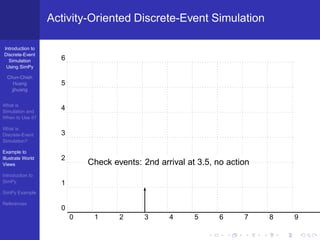

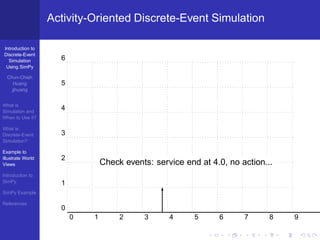

Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is 4 Simulation and When to Use it? Simulation starts at 2.0! What is Discrete-Event 3 Simulation? Gen 1st arr at 2.6 Example to Illustrate World 2 Views Check events: 1st arr at 2.6, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 1st arr at 2.6, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 1st arr at 2.6, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 1st arr at 2.6, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 1st arr at 2.6, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 1st arr at 2.6, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 1st arr at 2.6, process now Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is 4 Simulation and When to Use it? First arrival! What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang Calculate service time, end at 4.0 What is 4 Simulation and When to Use it? Calculate next arrival at 3.5 What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 2nd arrival at 3.5, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 2nd arrival at 3.5, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 2nd arrival at 3.5, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 2nd arrival at 3.5, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 2nd arrival at 3.5, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 2nd arrival at 3.5, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 2nd arrival at 3.5, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 2nd arrival at 3.5, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 2nd arrival at 3.5, process now Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is 4 Simulation and When to Use it? Second arrival! What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is 4 Simulation and When to Use it? Calculate next arrival at ... What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: service end at 4.0, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: service end at 4.0, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: service end at 4.0, no action... Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Discrete-Event Simulation World Views Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Activity-oriented Huang jjhuang fixed increment of time time-consuming What is Simulation and When to Use it? Event-oriented What is on each event, generate next event and Discrete-Event Simulation? put into event queue and sort Example to simulation time advances to next closest event Illustrate World faster than activity-oriented Views Introduction to Process-oriented SimPy abstract one object into a process SimPy Example easier to maintain in the end References

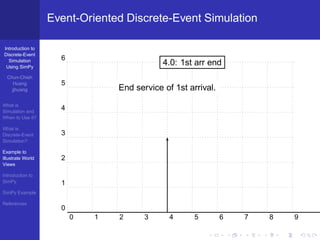

Event-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy 2.6: 1st arr Chun-Chieh Huang 5 jjhuang What is 4 Simulation and When to Use it? Simulation starts! What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Event-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy 2.6: 1st arr Chun-Chieh Huang 5 jjhuang What is 4 Simulation and When to Use it? First arrival! What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Event-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy 3.5: 2nd arr 4.0: 1st arr end Chun-Chieh Huang 5 jjhuang Calculate service time, end at 4.0 What is 4 Simulation and When to Use it? Calculate next arrival at 3.5 What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Event-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy 3.5: 2nd arr 4.0: 1st arr end Chun-Chieh Huang 5 jjhuang What is 4 Simulation and When to Use it? Second arrival! What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Event-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy 4.0: 1st arr end Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Event-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy 4.0: 1st arr end Chun-Chieh Huang 5 jjhuang End service of 1st arrival. What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Discrete-Event Simulation World Views Introduction to Discrete-Event Simulation Using SimPy Activity-oriented Chun-Chieh Huang fixed increment of time jjhuang time-consuming What is Event-oriented Simulation and When to Use it? on each event, generate next event and What is put into event queue and sort Discrete-Event Simulation? simulation time advances to next closest event Example to faster than activity-oriented Illustrate World Views Process-oriented Introduction to abstract one object into a process SimPy Arrival process for customers, or A SimPy Example Clerk process, or S References easier to maintain in the end

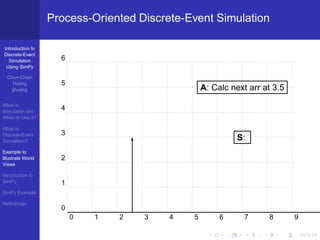

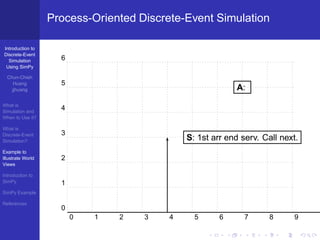

Process-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Huang jjhuang Arrival is an infinite loop of the following What is Calculate next arrival time Simulation and When to Use it? Sleep until next arrival What is Add customer into queue Discrete-Event Simulation? Clerk is an infinite loop of the following Example to Sleep until waken up by customers Illustrate World Views Serve the customer on waken up Introduction to until there is no customer in line SimPy SimPy Example References
Process-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang A: Gen 1st arr at 2.6 What is 4 Simulation and When to Use it? Simulation starts! What is Discrete-Event 3 Simulation? S: Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Process-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang A: Add customer to queue What is 4 Simulation and When to Use it? First arrival! What is Discrete-Event 3 Simulation? S: Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Process-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang A: Calc next arr at 3.5 What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? S: Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Process-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang A: What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? S: Serv, calc serv T at 4.0 Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Process-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang A: Add customer to queue What is 4 Simulation and When to Use it? Second arrival! What is Discrete-Event 3 Simulation? S: Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Process-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang A: Calc next arr at ... What is 4 Simulation and When to Use it? Calc next arrival at ... What is Discrete-Event 3 Simulation? S: Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Process-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang A: What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? S: 1st arr end serv. Call next. Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Process-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang A: What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? S: Serv 2nd arr. Calc end time at ... Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
Implementing Discrete-Event Simulation Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Use your own C/C++ implementation Huang jjhuang takes time to write simulation engine and algorithm code hard to debug when both are not verified What is Simulation and not very convincing When to Use it? What is Discrete-Event Simulation? Example to Illustrate World Views Introduction to SimPy SimPy Example References
Implementing Discrete-Event Simulation Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Use your own C/C++ implementation Huang jjhuang takes time to write simulation engine and algorithm code hard to debug when both are not verified What is Simulation and not very convincing When to Use it? What is Use generalized simulation library, or language Discrete-Event Simulation? SIMULA programming language C++SIM or JavaSIM [3] Example to Illustrate World SimEvents in Simulink/MATLAB Views SimPy [4] Introduction to SimPy SimPy Example References
Implementing Discrete-Event Simulation Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Use your own C/C++ implementation Huang jjhuang takes time to write simulation engine and algorithm code hard to debug when both are not verified What is Simulation and not very convincing When to Use it? What is Use generalized simulation library, or language Discrete-Event Simulation? SIMULA programming language C++SIM or JavaSIM [3] Example to Illustrate World SimEvents in Simulink/MATLAB Views SimPy [4] Introduction to SimPy Use special purpose simulation packages SimPy Example ns-3 for network simulation [5] References
Introduction to SimPy Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Uses Python for modeling Huang jjhuang Python is a scripting language like MATLAB, but faster! Python is free! What is Simulation and Python is very easy to write and beautiful! When to Use it? What is Discrete-Event Simulation? Example to Illustrate World Views Introduction to SimPy SimPy Example References
Introduction to SimPy Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Uses Python for modeling Huang jjhuang Python is a scripting language like MATLAB, but faster! Python is free! What is Simulation and Python is very easy to write and beautiful! When to Use it? What is Process-oriented Discrete-Event Simulation Language Discrete-Event is easier to write model Simulation? provides proven event manager implementation Example to Illustrate World lets you focus on algorithm code Views Introduction to SimPy SimPy Example References
Introduction to SimPy Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Uses Python for modeling Huang jjhuang Python is a scripting language like MATLAB, but faster! Python is free! What is Simulation and Python is very easy to write and beautiful! When to Use it? What is Process-oriented Discrete-Event Simulation Language Discrete-Event is easier to write model Simulation? provides proven event manager implementation Example to Illustrate World lets you focus on algorithm code Views Introduction to Uses coroutine to suspend/resume process SimPy guarantees order of execution SimPy Example cannot run on parallel machine for a single simulation References
SimPy Terminology: Classes Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Huang jjhuang Process What is simulates an entity which evolves in time, e.g. Simulation and When to Use it? a clerk that serves customers What is refered to as thread in [6] Discrete-Event Simulation? Example to Illustrate World Views Introduction to SimPy SimPy Example References
SimPy Terminology: Classes Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Huang jjhuang Process What is simulates an entity which evolves in time, e.g. Simulation and When to Use it? a clerk that serves customers What is refered to as thread in [6] Discrete-Event Simulation? Resource Example to simulates something to be requested and Illustrate World Views queued if not available now Introduction to e.g. a wash machine SimPy SimPy Example References

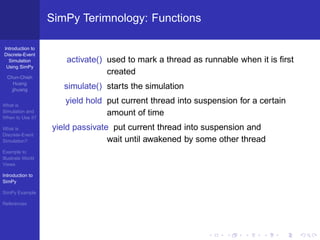

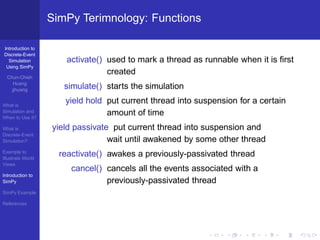

SimPy Terimnology: Functions Introduction to Discrete-Event Simulation activate() used to mark a thread as runnable when it is first Using SimPy created Chun-Chieh Huang jjhuang What is Simulation and When to Use it? What is Discrete-Event Simulation? Example to Illustrate World Views Introduction to SimPy SimPy Example References
SimPy Terimnology: Functions Introduction to Discrete-Event Simulation activate() used to mark a thread as runnable when it is first Using SimPy created Chun-Chieh Huang jjhuang simulate() starts the simulation What is Simulation and When to Use it? What is Discrete-Event Simulation? Example to Illustrate World Views Introduction to SimPy SimPy Example References
SimPy Terimnology: Functions Introduction to Discrete-Event Simulation activate() used to mark a thread as runnable when it is first Using SimPy created Chun-Chieh Huang jjhuang simulate() starts the simulation What is yield hold put current thread into suspension for a certain Simulation and When to Use it? amount of time What is Discrete-Event Simulation? Example to Illustrate World Views Introduction to SimPy SimPy Example References
SimPy Terimnology: Functions Introduction to Discrete-Event Simulation activate() used to mark a thread as runnable when it is first Using SimPy created Chun-Chieh Huang jjhuang simulate() starts the simulation What is yield hold put current thread into suspension for a certain Simulation and When to Use it? amount of time What is yield passivate put current thread into suspension and Discrete-Event Simulation? wait until awakened by some other thread Example to Illustrate World Views Introduction to SimPy SimPy Example References
SimPy Terimnology: Functions Introduction to Discrete-Event Simulation activate() used to mark a thread as runnable when it is first Using SimPy created Chun-Chieh Huang jjhuang simulate() starts the simulation What is yield hold put current thread into suspension for a certain Simulation and When to Use it? amount of time What is yield passivate put current thread into suspension and Discrete-Event Simulation? wait until awakened by some other thread Example to Illustrate World reactivate() awakes a previously-passivated thread Views Introduction to SimPy SimPy Example References
SimPy Terimnology: Functions Introduction to Discrete-Event Simulation activate() used to mark a thread as runnable when it is first Using SimPy created Chun-Chieh Huang jjhuang simulate() starts the simulation What is yield hold put current thread into suspension for a certain Simulation and When to Use it? amount of time What is yield passivate put current thread into suspension and Discrete-Event Simulation? wait until awakened by some other thread Example to Illustrate World reactivate() awakes a previously-passivated thread Views cancel() cancels all the events associated with a Introduction to SimPy previously-passivated thread SimPy Example References
SimPy Terimnology: Functions Introduction to Discrete-Event Simulation activate() used to mark a thread as runnable when it is first Using SimPy created Chun-Chieh Huang jjhuang simulate() starts the simulation What is yield hold put current thread into suspension for a certain Simulation and When to Use it? amount of time What is yield passivate put current thread into suspension and Discrete-Event Simulation? wait until awakened by some other thread Example to Illustrate World reactivate() awakes a previously-passivated thread Views cancel() cancels all the events associated with a Introduction to SimPy previously-passivated thread SimPy Example yield request requests for a given resource References yield release used to indicate that current thread no longer need the given resource
SimPy Example Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Scenario Huang jjhuang A post office with only one clerk. Customer arrival is a poisson process, What is Simulation and i.e. inter-arrival time is exponential distribution. When to Use it? Service time is also a poisson process. What is Discrete-Event Classical M /M /1 problem in queueing theory Simulation? Process Example to Illustrate World Arrival Views Clerk Introduction to SimPy Queue is managed by ourselves SimPy Example So that we can extend to M /M /m later, i.e. m clerks References
Arrival Pseudo Code Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Huang jjhuang What is Simulation and Arrival is an infinite loop of the following When to Use it? Calculate next arrival time What is Discrete-Event Sleep until next arrival Simulation? Add customer into queue Example to Illustrate World Views Introduction to SimPy SimPy Example References
Arrival Process Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Huang 1 class A r r i v a l C l a s s ( Process ) : jjhuang 2 " " " An a r r i v a l maintenance c l a s s " " " 3 ArrivalRate = 1/1.0 # r e c i p r o c a l o f mean i n t e r a r r i v a l t i m e What is 4 def _ _ i n i t _ _ ( s e l f , name ) : Simulation and 5 Process . _ _ i n i t _ _ ( s e l f ) When to Use it? 6 s e l f . name = name 7 What is 8 def Run ( s e l f ) : Discrete-Event 9 while True : Simulation? 10 I n t e r A r r i v a l T i m e = G. Rnd . e x p o v a r i a t e ( A r r i v a l C l a s s . A r r i v a l R a t e ) 11 y i e l d hold , s e l f , I n t e r A r r i v a l T i m e Example to 12 C = Customer ( ) Illustrate World 13 C l e r k C l a s s . Queue . append (C) # a customer a r r i v e s Views 14 G. NumCustomers += 1 Introduction to 15 i f ClerkClass . I d l e != [ ] : # I s t h e r e any c l e r k i d l e ? SimPy 16 r e a c t i v a t e ( C l e r k C l a s s . I d l e [ 0 ] ) # Yes , wake him / her up SimPy Example References
Clerk Pseudo Code Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Huang jjhuang What is Simulation and Clerk is an infinite loop of the following When to Use it? Sleep until waken up by customers What is Discrete-Event Serve the customer on waken up Simulation? until there is no customer in line Example to Illustrate World Views Introduction to SimPy SimPy Example References
Clerk Process Introduction to Discrete-Event 1 class C l e r k C l a s s ( Process ) : Simulation 2 " " " A s e r v e r process , o r c l e r k i n t h e p o s t o f f i c e " " " Using SimPy 3 ServiceRate = 1 / 1 . 2 # r e c i p r o c a l o f mean s e r v i c e t i m e 4 MaxQueueLength = 0 Chun-Chieh 5 Queue = [ ] # customer queue Huang 6 Idle = [ ] # idle clerk l i s t jjhuang 7 Busy = [ ] # busy c l e r k l i s t 8 NumDone = 0 # No . o f customers being s e r v i c e d What is 9 def _ _ i n i t _ _ ( s e l f ) : Simulation and 10 Process . _ _ i n i t _ _ ( s e l f ) When to Use it? 11 C l e r k C l a s s . I d l e . append ( s e l f ) # I n i t i a l l y idle 12 def Run ( s e l f ) : What is 13 while True : Discrete-Event 14 y i e l d passivate , s e l f # w a i t u n t i l awaken by customers Simulation? 15 C l e r k C l a s s . I d l e . remove ( s e l f ) 16 C l e r k C l a s s . Busy . append ( s e l f ) # going t o be busy Example to 17 while C l e r k C l a s s . Queue ! = [ ] : Illustrate World 18 i f l e n ( C l e r k C l a s s . Queue ) > C l e r k C l a s s . MaxQueueLength : Views 19 C l e r k C l a s s . MaxQueueLength = l e n ( C l e r k C l a s s . Queue ) 20 C = C l e r k C l a s s . Queue . pop ( ) # c a l l n e x t customer i n l i n e Introduction to 21 # S t a r t s e r v i c e t h e customer SimPy 22 ServiceTime = G. Rnd . e x p o v a r i a t e ( C l e r k C l a s s . ServiceRate ) SimPy Example 23 y i e l d hold , s e l f , ServiceTime # s t a r t t o serve 24 C . endService ( ) # end o f s e r v i c e References 25 G. T o t a l W a i t i n g T i m e += now ( ) − C . A r r i v a l T i m e 26 C l e r k C l a s s . NumDone += 1 27 del C # customer i s gone 28 C l e r k C l a s s . Busy . remove ( s e l f ) 29 C l e r k C l a s s . I d l e . append ( s e l f )
Simulation Main Loop Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Huang 1 i f DEBUG: jjhuang 2 from SimPy . S i m u l a t i o n T r a c e import ∗ 3 else : What is 4 from SimPy . S i m u l a t i o n import ∗ Simulation and 5 When to Use it? 6 def main ( ) : 7 initialize () # I n i t i a l i z e s simulator What is 8 A = A r r i v a l C l a s s ( name= " A r r i v a l " ) Discrete-Event 9 a c t i v a t e ( A , A . Run ( ) ) # Activate a r r i v a l Simulation? 10 11 S = C l e r k C l a s s ( name= " C l e r k " ) Example to 12 a c t i v a t e ( S , S . Run ( ) ) # Activate clerk Illustrate World 13 Views 14 s i m u l a t e ( u n t i l =MaxSimTime ) # S t a r t to simulate ! 15 Introduction to 16 i f __name__ == ’ __main__ ’ : SimPy 17 main ( ) SimPy Example References
Concluding Remarks Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Huang jjhuang What is Simulation is a powerful tool to study physical problems at Simulation and When to Use it? cheaper cost. What is Discrete-Event SimPy provides process-oriendted DES framework Simulation? to write simulation easily and reasonably fast. Example to Illustrate World And SimPy is free! Views Introduction to SimPy SimPy Example References

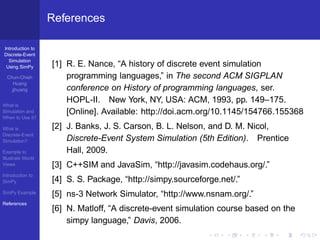

References Introduction to Discrete-Event Simulation Using SimPy [1] R. E. Nance, “A history of discrete event simulation Chun-Chieh programming languages,” in The second ACM SIGPLAN Huang jjhuang conference on History of programming languages, ser. HOPL-II. New York, NY, USA: ACM, 1993, pp. 149–175. What is Simulation and [Online]. Available: http://doi.acm.org/10.1145/154766.155368 When to Use it? What is [2] J. Banks, J. S. Carson, B. L. Nelson, and D. M. Nicol, Discrete-Event Simulation? Discrete-Event System Simulation (5th Edition). Prentice Example to Hall, 2009. Illustrate World Views [3] C++SIM and JavaSim, “http://javasim.codehaus.org/.” Introduction to SimPy [4] S. S. Package, “http://simpy.sourceforge.net/.” SimPy Example [5] ns-3 Network Simulator, “http://www.nsnam.org/.” References [6] N. Matloff, “A discrete-event simulation course based on the simpy language,” Davis, 2006.

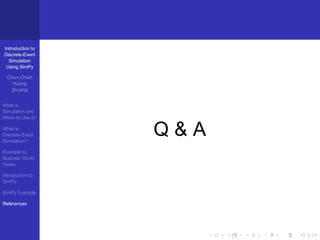

Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Huang jjhuang What is Simulation and When to Use it? What is Discrete-Event Simulation? Q&A Example to Illustrate World Views Introduction to SimPy SimPy Example References

More Related Content

PDF
Manual del modulo Sympy
AngieB

PDF
A Peer-to-Peer Simulator
Uwe Schmidt

PPT
Chapter3 general principles of discrete event simulation
De La Salle University-Manila

PDF
Simulation
Leonardo Daniel López Condoy

PPT
S6 l04 analytical and numerical methods of structural analysis
Shaikh Mohsin

PPTX
Unit 5 general principles, simulation software
raksharao

PPT
Simulation
abubacker siddiq

PPT
Simulation and Modeling
anhdbh

Manual del modulo Sympy
AngieB

A Peer-to-Peer Simulator
Uwe Schmidt

Chapter3 general principles of discrete event simulation
De La Salle University-Manila

Simulation
Leonardo Daniel López Condoy

S6 l04 analytical and numerical methods of structural analysis
Shaikh Mohsin

Unit 5 general principles, simulation software
raksharao

Simulation
abubacker siddiq

Simulation and Modeling
anhdbh


Viewers also liked (20)

PPT
Simulation Techniques
mailrenuka

PPT
Simulation Powerpoint- Lecture Notes
Kesavartinii Bala Krisnain

DOCX
Atm simulation program using python
Happy Nezza Aranjuez

PDF
ETOS discrete event simulation framework focused on easier team cooperation
JiriFiser

PPT
Alopecia
Suvojit Bera

PPT
Alopecia
Suvojit Bera

PPTX
Histopathology of alopecia
Mohammad Manzoor

PPTX
Androgenetic alopecia
Dr Daulatram Dhaked

PPT
Queuing analysis
Parthipan Parthi

PPTX
Guide to Queuing System
Elijahmar Cogollodo

PDF
Operating Systems - Queuing Systems
Emery Berger

PPT
14 queuing
Dian Saputra

PPT
Chapter1
De La Salle University-Manila

PPTX
Female hair loss
Dr Daulatram Dhaked

PPTX
Unit 6 input modeling problems
raksharao

PPTX
Unit 1 introduction contd
raksharao

PPTX
A discrete Event Simulation Model of Asphalt Paving Operations, Ramzi Labban ...
CCT International

PPTX
Extend sim 01
Jeffrey Strickland, Ph.D., CMSP

PPTX
Alopecia - scaring & non-scaring type.
Swetha Saravanan

PPTX
Alopecias
MAX MICHELE REMON TORRES

Simulation Techniques
mailrenuka

Simulation Powerpoint- Lecture Notes
Kesavartinii Bala Krisnain

Atm simulation program using python
Happy Nezza Aranjuez

ETOS discrete event simulation framework focused on easier team cooperation
JiriFiser

Alopecia
Suvojit Bera

Alopecia
Suvojit Bera

Histopathology of alopecia
Mohammad Manzoor

Androgenetic alopecia
Dr Daulatram Dhaked

Queuing analysis
Parthipan Parthi

Guide to Queuing System
Elijahmar Cogollodo

Operating Systems - Queuing Systems
Emery Berger

14 queuing
Dian Saputra

Chapter1
De La Salle University-Manila

Female hair loss
Dr Daulatram Dhaked

Unit 6 input modeling problems
raksharao

Unit 1 introduction contd
raksharao

A discrete Event Simulation Model of Asphalt Paving Operations, Ramzi Labban ...
CCT International

Extend sim 01
Jeffrey Strickland, Ph.D., CMSP

Alopecia - scaring & non-scaring type.
Swetha Saravanan

Alopecias
MAX MICHELE REMON TORRES

Ad

Similar to Introduction to Discrete-Event Simulation Using SimPy (20)

PPT
What is sim?ulation
Musab Cannon

PPTX
Strategy for Social Media MK Plan by Slidesgo.pptx
jshwyi

PPTX
Simulation theory
Abu Bashar

PDF
Unleashing Real-World Simulations: A Python Tutorial by Avjinder Kaler
Avjinder (Avi) Kaler

PPT
Cs854 lecturenotes01
Mehmet Çelik

PDF
Simulator
Kathirvel Ayyaswamy

PPT
cs1538.ppt
TaraLeander

PPTX
Advantages and disadvantages of Simulation
Tilakpoudel2

PDF
O2DESUltra - a new appoach to acceleration simulation-opimization using machi...
Nutchanon Ninyawee

PPTX
Basics of modeling and simulation
Serdar Kaya

PPT
Simulation with ARENA Chapter 1: What is Simulation?
MeilindaFitrianiNurM

PPTX
simulation chapter simulation chapter 1 info
theguy2k22

PPTX
Introduction to simulation and modeling
antim19

PPTX
Velocity 2015: Building Self-Healing Systems
SOASTA

PPTX
Velocity 2015 building self healing systems (slide share version)
SOASTA

PDF
Simulation and modeling
megersaoljira

PDF
SLAM Zero to One
Gavin Gao

PPTX
SIMULATION
Eminent Planners

PDF
4_5821003798000177081.pdf
ozgenn4242

PDF
Manual Simpy
AngieB

What is sim?ulation
Musab Cannon

Strategy for Social Media MK Plan by Slidesgo.pptx
jshwyi

Simulation theory
Abu Bashar

Unleashing Real-World Simulations: A Python Tutorial by Avjinder Kaler
Avjinder (Avi) Kaler

Cs854 lecturenotes01
Mehmet Çelik

Simulator
Kathirvel Ayyaswamy

cs1538.ppt
TaraLeander

Advantages and disadvantages of Simulation
Tilakpoudel2

O2DESUltra - a new appoach to acceleration simulation-opimization using machi...
Nutchanon Ninyawee

Basics of modeling and simulation
Serdar Kaya

Simulation with ARENA Chapter 1: What is Simulation?
MeilindaFitrianiNurM

simulation chapter simulation chapter 1 info
theguy2k22

Introduction to simulation and modeling
antim19

Velocity 2015: Building Self-Healing Systems
SOASTA

Velocity 2015 building self healing systems (slide share version)
SOASTA

Simulation and modeling
megersaoljira

SLAM Zero to One
Gavin Gao

SIMULATION
Eminent Planners

4_5821003798000177081.pdf
ozgenn4242

Manual Simpy
AngieB

Ad

More from pycontw (15)

PDF
Network Security and Analysis with Python
pycontw

PDF
Python on FreeBSD
pycontw

ODP
讓 Python Script 擁有圖形化介面的簡單方法
pycontw

PDF
CyberLink Meets Python
pycontw

PDF
PyKinect: Body Iteration Application Development Using Python
pycontw

PDF
Developing Python Apps on Windows Azure
pycontw

PDF
Qt Quick GUI Programming with PySide
pycontw

PDF
STAF 在自動化測試上的延伸應用 -- TMSTAF (TrendMicro STAF)
pycontw

PDF
Grid Job Management
pycontw

PDF
Small Python Tools for Software Release Engineering
pycontw

PDF
Python and Startup
pycontw

PPTX
Panoramic Video in Environmental Monitoring Software Development and Applica...
pycontw

PDF
那些年 Python 攻佔了 GIS / The Year Python Takes Over GIS
pycontw

PDF
Python and the Web
pycontw

PDF
Large-scale Array-oriented Computing with Python
pycontw

Network Security and Analysis with Python
pycontw

Python on FreeBSD
pycontw

讓 Python Script 擁有圖形化介面的簡單方法
pycontw

CyberLink Meets Python
pycontw

PyKinect: Body Iteration Application Development Using Python
pycontw

Developing Python Apps on Windows Azure
pycontw

Qt Quick GUI Programming with PySide
pycontw

STAF 在自動化測試上的延伸應用 -- TMSTAF (TrendMicro STAF)
pycontw

Grid Job Management
pycontw

Small Python Tools for Software Release Engineering
pycontw

Python and Startup
pycontw

Panoramic Video in Environmental Monitoring Software Development and Applica...
pycontw

那些年 Python 攻佔了 GIS / The Year Python Takes Over GIS
pycontw

Python and the Web
pycontw

Large-scale Array-oriented Computing with Python
pycontw


Recently uploaded (20)

PDF
Assigned Numbers - 2025 - Bluetooth® Document
Bloombase

PDF
MIND Revenue Release Quarter 2 2025 Press Release
MIND CTI

PDF
Encapsulation_ Review paper, used for researhc scholars
gurumoop

PDF
Optimiser vos workloads AI/ML sur Amazon EC2 et AWS Graviton
Julien SIMON

PDF
The Rise and Fall of 3GPP – Time for a Sabbatical?
3G4G

PDF
Approach and Philosophy of On baking technology
30anthuong17

PDF
Build a system with the filesystem maintained by OSTree @ COSCUP 2025
Jian-Hong Pan

PPTX
Spectroscopy.pptx food analysis technology
nawahassan45

PDF
A comparative analysis of optical character recognition models for extracting...
IAESIJAI

PDF
7 ChatGPT Prompts to Help You Define Your Ideal Customer Profile.pdf
SOFTTECHHUB

PDF
Agricultural_Statistics_at_a_Glance_2022_0.pdf
SandeepSingh286037

PPT
Teaching material agriculture food technology
LiaRayya

PPTX
A Presentation on Artificial Intelligence
memembruh336

PDF
cuic standard and advanced reporting.pdf
SimoneTitaniumTomase

PDF
TokAI - TikTok AI Agent : The First AI Application That Analyzes 10,000+ Vira...
SOFTTECHHUB

PDF
Blue Purple Modern Animated Computer Science Presentation.pdf.pdf
Akar16

PDF
Building Integrated photovoltaic BIPV_UPV.pdf
SandeepSingh286037

PPTX
KOM of Painting work and Equipment Insulation REV00 update 25-dec.pptx
muhammadmuneebnaeem7

DOCX
The AUB Centre for AI in Media Proposal.docx
GAONE9

PDF
Per capita expenditure prediction using model stacking based on satellite ima...
IAESIJAI

Assigned Numbers - 2025 - Bluetooth® Document
Bloombase

MIND Revenue Release Quarter 2 2025 Press Release
MIND CTI

Encapsulation_ Review paper, used for researhc scholars
gurumoop

Optimiser vos workloads AI/ML sur Amazon EC2 et AWS Graviton
Julien SIMON

The Rise and Fall of 3GPP – Time for a Sabbatical?
3G4G

Approach and Philosophy of On baking technology
30anthuong17

Build a system with the filesystem maintained by OSTree @ COSCUP 2025
Jian-Hong Pan

Spectroscopy.pptx food analysis technology
nawahassan45

A comparative analysis of optical character recognition models for extracting...
IAESIJAI

7 ChatGPT Prompts to Help You Define Your Ideal Customer Profile.pdf
SOFTTECHHUB

Agricultural_Statistics_at_a_Glance_2022_0.pdf
SandeepSingh286037

Teaching material agriculture food technology
LiaRayya

A Presentation on Artificial Intelligence
memembruh336

cuic standard and advanced reporting.pdf
SimoneTitaniumTomase

TokAI - TikTok AI Agent : The First AI Application That Analyzes 10,000+ Vira...
SOFTTECHHUB

Blue Purple Modern Animated Computer Science Presentation.pdf.pdf
Akar16

Building Integrated photovoltaic BIPV_UPV.pdf
SandeepSingh286037

KOM of Painting work and Equipment Insulation REV00 update 25-dec.pptx
muhammadmuneebnaeem7

The AUB Centre for AI in Media Proposal.docx
GAONE9

Per capita expenditure prediction using model stacking based on satellite ima...
IAESIJAI


Introduction to Discrete-Event Simulation Using SimPy

  • 1. Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Huang Introduction to Discrete-Event Simulation jjhuang Using SimPy What is Simulation and When to Use it? What is Discrete-Event Chun-Chieh Huang Simulation? jjhuang Example to Illustrate World Views DSP and Algorithm Design Department Introduction to Metanoia Communications Inc. SimPy <jiunjie.huang@gmail.com> SimPy Example References June 9, 2012
  • 2. Outline Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Huang 1 What is Simulation and When to Use it? jjhuang What is Simulation and 2 What is Discrete-Event Simulation? When to Use it? What is Discrete-Event 3 Example to Illustrate World Views Simulation? Example to Illustrate World Views 4 Introduction to SimPy Introduction to SimPy SimPy Example 5 SimPy Example References
  • 3. What is Simulation and When to Use it? Introduction to Discrete-Event Simulation Using SimPy Simulation Chun-Chieh a computer program that creates a virtual environment Huang jjhuang in order to study physical problems What is Simulation and When to Use it? What is Discrete-Event Simulation? Example to Illustrate World Views Introduction to SimPy SimPy Example References
  • 4. What is Simulation and When to Use it? Introduction to Discrete-Event Simulation Using SimPy Simulation Chun-Chieh a computer program that creates a virtual environment Huang jjhuang in order to study physical problems What is When to use simulation Simulation and When to Use it? hard to do real experiment, e.g. battle field, or banking system What is Discrete-Event Simulation? Example to Illustrate World Views Introduction to SimPy SimPy Example References
  • 5. What is Simulation and When to Use it? Introduction to Discrete-Event Simulation Using SimPy Simulation Chun-Chieh a computer program that creates a virtual environment Huang jjhuang in order to study physical problems What is When to use simulation Simulation and When to Use it? hard to do real experiment, e.g. battle field, or banking system What is Discrete-Event cheaper to do simulation, Simulation? e.g. RTL simulation for IC design, Example to Illustrate World or highway/freeway route planning Views Introduction to SimPy SimPy Example References
  • 6. What is Simulation and When to Use it? Introduction to Discrete-Event Simulation Using SimPy Simulation Chun-Chieh a computer program that creates a virtual environment Huang jjhuang in order to study physical problems What is When to use simulation Simulation and When to Use it? hard to do real experiment, e.g. battle field, or banking system What is Discrete-Event cheaper to do simulation, Simulation? e.g. RTL simulation for IC design, Example to Illustrate World or highway/freeway route planning Views analyzing bottleneck of current workflow Introduction to SimPy SimPy Example References
  • 7. What is Simulation and When to Use it? Introduction to Discrete-Event Simulation Using SimPy Simulation Chun-Chieh a computer program that creates a virtual environment Huang jjhuang in order to study physical problems What is When to use simulation Simulation and When to Use it? hard to do real experiment, e.g. battle field, or banking system What is Discrete-Event cheaper to do simulation, Simulation? e.g. RTL simulation for IC design, Example to Illustrate World or highway/freeway route planning Views analyzing bottleneck of current workflow Introduction to SimPy When not to use simulation SimPy Example more expensive to do simulation, References e.g. simple harmonic motion
  • 8. What is Simulation and When to Use it? Introduction to Discrete-Event Simulation Using SimPy Simulation Chun-Chieh a computer program that creates a virtual environment Huang jjhuang in order to study physical problems What is When to use simulation Simulation and When to Use it? hard to do real experiment, e.g. battle field, or banking system What is Discrete-Event cheaper to do simulation, Simulation? e.g. RTL simulation for IC design, Example to Illustrate World or highway/freeway route planning Views analyzing bottleneck of current workflow Introduction to SimPy When not to use simulation SimPy Example more expensive to do simulation, References e.g. simple harmonic motion problems that can be analyzed by pencil and paper
  • 9. Categories of Simulation Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Continuous or discrete Huang jjhuang state variable is continuous, e.g. weather systems state variable is discrete, e.g. number of customers What is Simulation and When to Use it? What is Discrete-Event Simulation? Example to Illustrate World Views Introduction to SimPy SimPy Example References
  • 10. Categories of Simulation Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Continuous or discrete Huang jjhuang state variable is continuous, e.g. weather systems state variable is discrete, e.g. number of customers What is Simulation and Static or dynamic When to Use it? Static: represents a system at a particular point of time What is Discrete-Event representation of time is unnecessary [1] Simulation? sometimes called Monte-Carlo simulation [2] Example to Dynamic: represents systems as they change over time Illustrate World Views e.g. banking system from 9:00 AM to 5:00 PM Introduction to SimPy SimPy Example References
  • 11. Categories of Simulation Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Continuous or discrete Huang jjhuang state variable is continuous, e.g. weather systems state variable is discrete, e.g. number of customers What is Simulation and Static or dynamic When to Use it? Static: represents a system at a particular point of time What is Discrete-Event representation of time is unnecessary [1] Simulation? sometimes called Monte-Carlo simulation [2] Example to Dynamic: represents systems as they change over time Illustrate World Views e.g. banking system from 9:00 AM to 5:00 PM Introduction to SimPy Deterministic or stochastic SimPy Example Deterministic: contains no random variable References Stochastic: has one or more random variables
  • 12. What is Discrete-Event Simulation? Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Huang jjhuang Discrete-Event Simulation is Discrete What is Simulation and Dynamic When to Use it? Stochastic What is Discrete-Event Simulation for queueing in a post office is DES Simulation? Example to Mostly, but not limited to, queueing systems Illustrate World Views factory work flow Introduction to freeway traffic simulation SimPy network traffic simulation SimPy Example References
  • 13. Discrete-Event Simulation World Views Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Activity-oriented Huang jjhuang fixed increment of time time-consuming What is Simulation and When to Use it? What is Discrete-Event Simulation? Example to Illustrate World Views Introduction to SimPy SimPy Example References
  • 14. Discrete-Event Simulation World Views Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Activity-oriented Huang jjhuang fixed increment of time time-consuming What is Simulation and Event-oriented When to Use it? on each event, generate next event and What is Discrete-Event put into event queue and sort Simulation? simulation time advances to next closest event Example to faster than activity-oriented Illustrate World Views Introduction to SimPy SimPy Example References
  • 15. Discrete-Event Simulation World Views Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Activity-oriented Huang jjhuang fixed increment of time time-consuming What is Simulation and Event-oriented When to Use it? on each event, generate next event and What is Discrete-Event put into event queue and sort Simulation? simulation time advances to next closest event Example to faster than activity-oriented Illustrate World Views Process-oriented Introduction to SimPy abstract one object into a process SimPy Example easier to maintain in the end References
  • 16. Discrete-Event Simulation World Views Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Activity-oriented Huang jjhuang fixed increment of time time-consuming What is Simulation and Event-oriented When to Use it? on each event, generate next event and What is Discrete-Event put into event queue and sort Simulation? simulation time advances to next closest event Example to faster than activity-oriented Illustrate World Views Process-oriented Introduction to SimPy abstract one object into a process SimPy Example easier to maintain in the end References SimPy belongs here!
  • 17. Example to Illustrate World Views Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Huang jjhuang What is Simulation and Simulating a post office with only one clerk When to Use it? Customers come in at random time What is Discrete-Event and wait if the clerk is already serving Simulation? Example to Clerk serves each customer for a random period of time Illustrate World Views Introduction to SimPy SimPy Example References
  • 18. Discrete-Event Simulation World Views Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Activity-oriented Huang jjhuang fixed increment of time What is time-consuming Simulation and When to Use it? Event-oriented What is on each event, generate next event and Discrete-Event Simulation? put into event queue and sort Example to simulation time advances to next closest event Illustrate World faster than activity-oriented Views Introduction to Process-oriented SimPy abstract one object into a process SimPy Example easier to maintain in the end References
  • 19. Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is 4 Simulation and When to Use it? Simulation starts at 2.0! What is Discrete-Event 3 Simulation? Gen 1st arr at 2.6 Example to Illustrate World 2 Views Check events: 1st arr at 2.6, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 20. Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 1st arr at 2.6, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 21. Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 1st arr at 2.6, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 22. Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 1st arr at 2.6, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 23. Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 1st arr at 2.6, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 24. Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 1st arr at 2.6, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 25. Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 1st arr at 2.6, process now Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9

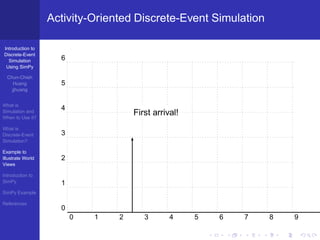

  • 26. Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is 4 Simulation and When to Use it? First arrival! What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 27. Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang Calculate service time, end at 4.0 What is 4 Simulation and When to Use it? Calculate next arrival at 3.5 What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 28. Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 2nd arrival at 3.5, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 29. Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 2nd arrival at 3.5, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 30. Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 2nd arrival at 3.5, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 31. Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 2nd arrival at 3.5, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 32. Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 2nd arrival at 3.5, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 33. Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 2nd arrival at 3.5, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 34. Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 2nd arrival at 3.5, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 35. Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 2nd arrival at 3.5, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 36. Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: 2nd arrival at 3.5, process now Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 37. Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is 4 Simulation and When to Use it? Second arrival! What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 38. Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is 4 Simulation and When to Use it? Calculate next arrival at ... What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 39. Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: service end at 4.0, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 40. Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: service end at 4.0, no action Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 41. Activity-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Check events: service end at 4.0, no action... Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 42. Discrete-Event Simulation World Views Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Activity-oriented Huang jjhuang fixed increment of time time-consuming What is Simulation and When to Use it? Event-oriented What is on each event, generate next event and Discrete-Event Simulation? put into event queue and sort Example to simulation time advances to next closest event Illustrate World faster than activity-oriented Views Introduction to Process-oriented SimPy abstract one object into a process SimPy Example easier to maintain in the end References
  • 43. Event-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy 2.6: 1st arr Chun-Chieh Huang 5 jjhuang What is 4 Simulation and When to Use it? Simulation starts! What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 44. Event-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy 2.6: 1st arr Chun-Chieh Huang 5 jjhuang What is 4 Simulation and When to Use it? First arrival! What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 45. Event-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy 3.5: 2nd arr 4.0: 1st arr end Chun-Chieh Huang 5 jjhuang Calculate service time, end at 4.0 What is 4 Simulation and When to Use it? Calculate next arrival at 3.5 What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 46. Event-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy 3.5: 2nd arr 4.0: 1st arr end Chun-Chieh Huang 5 jjhuang What is 4 Simulation and When to Use it? Second arrival! What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 47. Event-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy 4.0: 1st arr end Chun-Chieh Huang 5 jjhuang What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 48. Event-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy 4.0: 1st arr end Chun-Chieh Huang 5 jjhuang End service of 1st arrival. What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 49. Discrete-Event Simulation World Views Introduction to Discrete-Event Simulation Using SimPy Activity-oriented Chun-Chieh Huang fixed increment of time jjhuang time-consuming What is Event-oriented Simulation and When to Use it? on each event, generate next event and What is put into event queue and sort Discrete-Event Simulation? simulation time advances to next closest event Example to faster than activity-oriented Illustrate World Views Process-oriented Introduction to abstract one object into a process SimPy Arrival process for customers, or A SimPy Example Clerk process, or S References easier to maintain in the end
  • 50. Process-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Huang jjhuang Arrival is an infinite loop of the following What is Calculate next arrival time Simulation and When to Use it? Sleep until next arrival What is Add customer into queue Discrete-Event Simulation? Clerk is an infinite loop of the following Example to Sleep until waken up by customers Illustrate World Views Serve the customer on waken up Introduction to until there is no customer in line SimPy SimPy Example References
  • 51. Process-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang A: Gen 1st arr at 2.6 What is 4 Simulation and When to Use it? Simulation starts! What is Discrete-Event 3 Simulation? S: Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 52. Process-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang A: Add customer to queue What is 4 Simulation and When to Use it? First arrival! What is Discrete-Event 3 Simulation? S: Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 53. Process-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang A: Calc next arr at 3.5 What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? S: Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 54. Process-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang A: What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? S: Serv, calc serv T at 4.0 Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 55. Process-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang A: Add customer to queue What is 4 Simulation and When to Use it? Second arrival! What is Discrete-Event 3 Simulation? S: Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 56. Process-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang A: Calc next arr at ... What is 4 Simulation and When to Use it? Calc next arrival at ... What is Discrete-Event 3 Simulation? S: Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 57. Process-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang A: What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? S: 1st arr end serv. Call next. Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 58. Process-Oriented Discrete-Event Simulation Introduction to Discrete-Event Simulation 6 Using SimPy Chun-Chieh Huang 5 jjhuang A: What is Simulation and 4 When to Use it? What is Discrete-Event 3 Simulation? S: Serv 2nd arr. Calc end time at ... Example to Illustrate World 2 Views Introduction to SimPy 1 SimPy Example References 0 0 1 2 3 4 5 6 7 8 9
  • 59. Implementing Discrete-Event Simulation Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Use your own C/C++ implementation Huang jjhuang takes time to write simulation engine and algorithm code hard to debug when both are not verified What is Simulation and not very convincing When to Use it? What is Discrete-Event Simulation? Example to Illustrate World Views Introduction to SimPy SimPy Example References
  • 60. Implementing Discrete-Event Simulation Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Use your own C/C++ implementation Huang jjhuang takes time to write simulation engine and algorithm code hard to debug when both are not verified What is Simulation and not very convincing When to Use it? What is Use generalized simulation library, or language Discrete-Event Simulation? SIMULA programming language C++SIM or JavaSIM [3] Example to Illustrate World SimEvents in Simulink/MATLAB Views SimPy [4] Introduction to SimPy SimPy Example References
  • 61. Implementing Discrete-Event Simulation Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Use your own C/C++ implementation Huang jjhuang takes time to write simulation engine and algorithm code hard to debug when both are not verified What is Simulation and not very convincing When to Use it? What is Use generalized simulation library, or language Discrete-Event Simulation? SIMULA programming language C++SIM or JavaSIM [3] Example to Illustrate World SimEvents in Simulink/MATLAB Views SimPy [4] Introduction to SimPy Use special purpose simulation packages SimPy Example ns-3 for network simulation [5] References
  • 62. Introduction to SimPy Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Uses Python for modeling Huang jjhuang Python is a scripting language like MATLAB, but faster! Python is free! What is Simulation and Python is very easy to write and beautiful! When to Use it? What is Discrete-Event Simulation? Example to Illustrate World Views Introduction to SimPy SimPy Example References
  • 63. Introduction to SimPy Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Uses Python for modeling Huang jjhuang Python is a scripting language like MATLAB, but faster! Python is free! What is Simulation and Python is very easy to write and beautiful! When to Use it? What is Process-oriented Discrete-Event Simulation Language Discrete-Event is easier to write model Simulation? provides proven event manager implementation Example to Illustrate World lets you focus on algorithm code Views Introduction to SimPy SimPy Example References
  • 64. Introduction to SimPy Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Uses Python for modeling Huang jjhuang Python is a scripting language like MATLAB, but faster! Python is free! What is Simulation and Python is very easy to write and beautiful! When to Use it? What is Process-oriented Discrete-Event Simulation Language Discrete-Event is easier to write model Simulation? provides proven event manager implementation Example to Illustrate World lets you focus on algorithm code Views Introduction to Uses coroutine to suspend/resume process SimPy guarantees order of execution SimPy Example cannot run on parallel machine for a single simulation References
  • 65. SimPy Terminology: Classes Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Huang jjhuang Process What is simulates an entity which evolves in time, e.g. Simulation and When to Use it? a clerk that serves customers What is refered to as thread in [6] Discrete-Event Simulation? Example to Illustrate World Views Introduction to SimPy SimPy Example References
  • 66. SimPy Terminology: Classes Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Huang jjhuang Process What is simulates an entity which evolves in time, e.g. Simulation and When to Use it? a clerk that serves customers What is refered to as thread in [6] Discrete-Event Simulation? Resource Example to simulates something to be requested and Illustrate World Views queued if not available now Introduction to e.g. a wash machine SimPy SimPy Example References
  • 67. SimPy Terimnology: Functions Introduction to Discrete-Event Simulation activate() used to mark a thread as runnable when it is first Using SimPy created Chun-Chieh Huang jjhuang What is Simulation and When to Use it? What is Discrete-Event Simulation? Example to Illustrate World Views Introduction to SimPy SimPy Example References
  • 68. SimPy Terimnology: Functions Introduction to Discrete-Event Simulation activate() used to mark a thread as runnable when it is first Using SimPy created Chun-Chieh Huang jjhuang simulate() starts the simulation What is Simulation and When to Use it? What is Discrete-Event Simulation? Example to Illustrate World Views Introduction to SimPy SimPy Example References
  • 69. SimPy Terimnology: Functions Introduction to Discrete-Event Simulation activate() used to mark a thread as runnable when it is first Using SimPy created Chun-Chieh Huang jjhuang simulate() starts the simulation What is yield hold put current thread into suspension for a certain Simulation and When to Use it? amount of time What is Discrete-Event Simulation? Example to Illustrate World Views Introduction to SimPy SimPy Example References
  • 70. SimPy Terimnology: Functions Introduction to Discrete-Event Simulation activate() used to mark a thread as runnable when it is first Using SimPy created Chun-Chieh Huang jjhuang simulate() starts the simulation What is yield hold put current thread into suspension for a certain Simulation and When to Use it? amount of time What is yield passivate put current thread into suspension and Discrete-Event Simulation? wait until awakened by some other thread Example to Illustrate World Views Introduction to SimPy SimPy Example References
  • 71. SimPy Terimnology: Functions Introduction to Discrete-Event Simulation activate() used to mark a thread as runnable when it is first Using SimPy created Chun-Chieh Huang jjhuang simulate() starts the simulation What is yield hold put current thread into suspension for a certain Simulation and When to Use it? amount of time What is yield passivate put current thread into suspension and Discrete-Event Simulation? wait until awakened by some other thread Example to Illustrate World reactivate() awakes a previously-passivated thread Views Introduction to SimPy SimPy Example References
  • 72. SimPy Terimnology: Functions Introduction to Discrete-Event Simulation activate() used to mark a thread as runnable when it is first Using SimPy created Chun-Chieh Huang jjhuang simulate() starts the simulation What is yield hold put current thread into suspension for a certain Simulation and When to Use it? amount of time What is yield passivate put current thread into suspension and Discrete-Event Simulation? wait until awakened by some other thread Example to Illustrate World reactivate() awakes a previously-passivated thread Views cancel() cancels all the events associated with a Introduction to SimPy previously-passivated thread SimPy Example References
  • 73. SimPy Terimnology: Functions Introduction to Discrete-Event Simulation activate() used to mark a thread as runnable when it is first Using SimPy created Chun-Chieh Huang jjhuang simulate() starts the simulation What is yield hold put current thread into suspension for a certain Simulation and When to Use it? amount of time What is yield passivate put current thread into suspension and Discrete-Event Simulation? wait until awakened by some other thread Example to Illustrate World reactivate() awakes a previously-passivated thread Views cancel() cancels all the events associated with a Introduction to SimPy previously-passivated thread SimPy Example yield request requests for a given resource References yield release used to indicate that current thread no longer need the given resource
  • 74. SimPy Example Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Scenario Huang jjhuang A post office with only one clerk. Customer arrival is a poisson process, What is Simulation and i.e. inter-arrival time is exponential distribution. When to Use it? Service time is also a poisson process. What is Discrete-Event Classical M /M /1 problem in queueing theory Simulation? Process Example to Illustrate World Arrival Views Clerk Introduction to SimPy Queue is managed by ourselves SimPy Example So that we can extend to M /M /m later, i.e. m clerks References
  • 75. Arrival Pseudo Code Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Huang jjhuang What is Simulation and Arrival is an infinite loop of the following When to Use it? Calculate next arrival time What is Discrete-Event Sleep until next arrival Simulation? Add customer into queue Example to Illustrate World Views Introduction to SimPy SimPy Example References
  • 76. Arrival Process Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Huang 1 class A r r i v a l C l a s s ( Process ) : jjhuang 2 " " " An a r r i v a l maintenance c l a s s " " " 3 ArrivalRate = 1/1.0 # r e c i p r o c a l o f mean i n t e r a r r i v a l t i m e What is 4 def _ _ i n i t _ _ ( s e l f , name ) : Simulation and 5 Process . _ _ i n i t _ _ ( s e l f ) When to Use it? 6 s e l f . name = name 7 What is 8 def Run ( s e l f ) : Discrete-Event 9 while True : Simulation? 10 I n t e r A r r i v a l T i m e = G. Rnd . e x p o v a r i a t e ( A r r i v a l C l a s s . A r r i v a l R a t e ) 11 y i e l d hold , s e l f , I n t e r A r r i v a l T i m e Example to 12 C = Customer ( ) Illustrate World 13 C l e r k C l a s s . Queue . append (C) # a customer a r r i v e s Views 14 G. NumCustomers += 1 Introduction to 15 i f ClerkClass . I d l e != [ ] : # I s t h e r e any c l e r k i d l e ? SimPy 16 r e a c t i v a t e ( C l e r k C l a s s . I d l e [ 0 ] ) # Yes , wake him / her up SimPy Example References
  • 77. Clerk Pseudo Code Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Huang jjhuang What is Simulation and Clerk is an infinite loop of the following When to Use it? Sleep until waken up by customers What is Discrete-Event Serve the customer on waken up Simulation? until there is no customer in line Example to Illustrate World Views Introduction to SimPy SimPy Example References
  • 78. Clerk Process Introduction to Discrete-Event 1 class C l e r k C l a s s ( Process ) : Simulation 2 " " " A s e r v e r process , o r c l e r k i n t h e p o s t o f f i c e " " " Using SimPy 3 ServiceRate = 1 / 1 . 2 # r e c i p r o c a l o f mean s e r v i c e t i m e 4 MaxQueueLength = 0 Chun-Chieh 5 Queue = [ ] # customer queue Huang 6 Idle = [ ] # idle clerk l i s t jjhuang 7 Busy = [ ] # busy c l e r k l i s t 8 NumDone = 0 # No . o f customers being s e r v i c e d What is 9 def _ _ i n i t _ _ ( s e l f ) : Simulation and 10 Process . _ _ i n i t _ _ ( s e l f ) When to Use it? 11 C l e r k C l a s s . I d l e . append ( s e l f ) # I n i t i a l l y idle 12 def Run ( s e l f ) : What is 13 while True : Discrete-Event 14 y i e l d passivate , s e l f # w a i t u n t i l awaken by customers Simulation? 15 C l e r k C l a s s . I d l e . remove ( s e l f ) 16 C l e r k C l a s s . Busy . append ( s e l f ) # going t o be busy Example to 17 while C l e r k C l a s s . Queue ! = [ ] : Illustrate World 18 i f l e n ( C l e r k C l a s s . Queue ) > C l e r k C l a s s . MaxQueueLength : Views 19 C l e r k C l a s s . MaxQueueLength = l e n ( C l e r k C l a s s . Queue ) 20 C = C l e r k C l a s s . Queue . pop ( ) # c a l l n e x t customer i n l i n e Introduction to 21 # S t a r t s e r v i c e t h e customer SimPy 22 ServiceTime = G. Rnd . e x p o v a r i a t e ( C l e r k C l a s s . ServiceRate ) SimPy Example 23 y i e l d hold , s e l f , ServiceTime # s t a r t t o serve 24 C . endService ( ) # end o f s e r v i c e References 25 G. T o t a l W a i t i n g T i m e += now ( ) − C . A r r i v a l T i m e 26 C l e r k C l a s s . NumDone += 1 27 del C # customer i s gone 28 C l e r k C l a s s . Busy . remove ( s e l f ) 29 C l e r k C l a s s . I d l e . append ( s e l f )
  • 79. Simulation Main Loop Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Huang 1 i f DEBUG: jjhuang 2 from SimPy . S i m u l a t i o n T r a c e import ∗ 3 else : What is 4 from SimPy . S i m u l a t i o n import ∗ Simulation and 5 When to Use it? 6 def main ( ) : 7 initialize () # I n i t i a l i z e s simulator What is 8 A = A r r i v a l C l a s s ( name= " A r r i v a l " ) Discrete-Event 9 a c t i v a t e ( A , A . Run ( ) ) # Activate a r r i v a l Simulation? 10 11 S = C l e r k C l a s s ( name= " C l e r k " ) Example to 12 a c t i v a t e ( S , S . Run ( ) ) # Activate clerk Illustrate World 13 Views 14 s i m u l a t e ( u n t i l =MaxSimTime ) # S t a r t to simulate ! 15 Introduction to 16 i f __name__ == ’ __main__ ’ : SimPy 17 main ( ) SimPy Example References
  • 80. Concluding Remarks Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Huang jjhuang What is Simulation is a powerful tool to study physical problems at Simulation and When to Use it? cheaper cost. What is Discrete-Event SimPy provides process-oriendted DES framework Simulation? to write simulation easily and reasonably fast. Example to Illustrate World And SimPy is free! Views Introduction to SimPy SimPy Example References
  • 81. References Introduction to Discrete-Event Simulation Using SimPy [1] R. E. Nance, “A history of discrete event simulation Chun-Chieh programming languages,” in The second ACM SIGPLAN Huang jjhuang conference on History of programming languages, ser. HOPL-II. New York, NY, USA: ACM, 1993, pp. 149–175. What is Simulation and [Online]. Available: http://doi.acm.org/10.1145/154766.155368 When to Use it? What is [2] J. Banks, J. S. Carson, B. L. Nelson, and D. M. Nicol, Discrete-Event Simulation? Discrete-Event System Simulation (5th Edition). Prentice Example to Hall, 2009. Illustrate World Views [3] C++SIM and JavaSim, “http://javasim.codehaus.org/.” Introduction to SimPy [4] S. S. Package, “http://simpy.sourceforge.net/.” SimPy Example [5] ns-3 Network Simulator, “http://www.nsnam.org/.” References [6] N. Matloff, “A discrete-event simulation course based on the simpy language,” Davis, 2006.
  • 82. Introduction to Discrete-Event Simulation Using SimPy Chun-Chieh Huang jjhuang What is Simulation and When to Use it? What is Discrete-Event Simulation? Q&A Example to Illustrate World Views Introduction to SimPy SimPy Example References
