Cryptarithmetic Problem
Lecture-13
Hema Kashyap
1
Cryptarithmetic Problem
“It is an arithmetic problem which is represented in letters. It
involves the decoding of digit represented by a character. It is in
the form of some arithmetic equation where digits are distinctly
represented by some characters. The problem requires finding of
the digit represented by each character. Assign a decimal digit to
each of the letters in such a way that the answer to the problem is
correct. If the same letter occurs more than once, it must be
assigned the same digit each time. No two different letters may be
assigned the same digit”.
2
Procedure
• Cryptarithmatic problem is an interesting constraint satisfaction problem
for which different algorithms have been developed. Cryptarithm is a
mathematical puzzle in which digits are replaced by letters of the alphabet
or other symbols. Cryptarithmatic is the science and art of creating and
solving cryptarithms.
• The different constraints of defining a cryptarithmatic problem are as
follows.
1) Each letter or symbol represented only one and a unique digit throughout the problem.
2) When the digits replace letters or symbols, the resultant arithmetical operation must be
correct.
• The above two constraints lead to some other restrictions in the problem.
3
Example
• Consider that, the base of the number is 10. Then there must be at most 10
unique symbols or letters in the problem. Otherwise, it would not possible to
assign a unique digit to unique letter or symbol in the problem. To be semantically
meaningful, a number must not begin with a 0. So, the letters at the beginning of
each number should not correspond to 0. Also one can solve the problem by a
simple blind search. But a rule based searching technique can provide the solution
in minimum time.
4
Step 1
• In the above problem, M must be 1. You can visualize that, this is an
addition problem. The sum of two four digit numbers cannot be more than
10,000. Also M cannot be zero according to the rules, since it is the first
letter.
5
Step 2
• Now in the column s10, s+1 ≥ 10. S must be 8 because there is a 1 carried
over from the column EON or 9. O must be 0 (if s=8 and there is a 1
carried or s = 9 and there is no 1 carried) or 1 (if s=9 and there is a 1
carried). But 1 is already taken, so O must be 0.
6
Step 3
• There cannot be carry from column EON because any digit +0 < 10, unless
there is a carry from the column NRE, and E=9; But this cannot be the case
because then N would be 0 and 0 is already taken. So E < 9 and there is no
carry from this column. Therefore S=9 because 9+1=10.
7
Step 4
• In the column EON, E cannot be equal to N. So there must
be carry from the column NRE; E+1=N. We now look at the
column NRE, we know that E+1=N. Since we know that
carry from this column, N+R=1E (if there is no carry from
the column DEY) or N+R+1=1E (if there is a carry from the
column DEY).
• Let us see both the cases:
– No carry: N +R =10 +(N- 1)= N + 9
– R = 9
• But 9 is already taken, so this will not work
– Carry: N +R + 1= 9
– R = 9 – 1= 8 This must be solution for R
8
Step 5
• Now just think what are the digits we have left? They are 7, 6, 5,
4, 3 and 2. We know there must be a carry from the column DEY.
So D+E>10.N = E+1, So E cannot be 7 because then N would be
8 which is already taken. D is almost 7, so E cannot be 2 because
then D +E <10 and E cannot be 3 because then D+E=10 and
Y=0, but 0 is already taken. Also E cannot be 4 because if D
>6,D+E<10 and if D=6 or D=7 then Y=0 or Y=1, which are both
taken. So E is 5 or 6.
• If E=6, then D=7 and Y=3. So this part will work but look the
column N8E. Point that there is a carry from the column
D5Y.N+8+1=16(As there is a carry from this column). But then
N=7 and 7 is taken by D therefore E=5.
9
Step 6
• Now we have gotten this important digit, it
gets much simpler from here
N+8+1=15, N=6
10

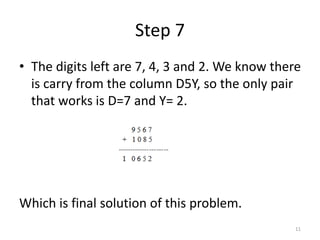

Step 7
• The digits left are 7, 4, 3 and 2. We know there
is carry from the column D5Y, so the only pair
that works is D=7 and Y= 2.
Which is final solution of this problem.
