Mobile cellphone battery charging circuit with explanation

Mobile Cellphone Battery Charging
Circuit with Explanation

http://www.elprocus.com/
Introduction
Mobile Cellphone Battery Charging Circuit with
Explanation
 A mobile battery charger circuit is a device that can automatically recharge a mobile
phone’s battery when the power in it gets low.
 Nowadays mobile phones have become an integral part of everyone’s life and hence
require frequent charging of battery owing to longer duration usage.
 Battery chargers come as simple, trickle, timer based, intelligent, universal battery
charger-analyzers, fast, pulse, inductive, USB based, solar chargers and motion powered
chargers.
 These battery chargers also vary depending on the applications like mobile phone
charger, battery charger for vehicles, electric vehicle batteries chargers and charge
stations.

Explanation
Charging methods are classified into two
categories:
 Fast charge method
 Slow charge method
 Fast charge is a system used to recharge a battery in about two hours or less than this.
 The slow charge is a system used to recharge a battery throughout the night.
 Slow charging is advantageous as it does not require any charge detection circuit.
 The only drawback of this charging system is that it takes maximum time to recharge a
battery.

Explanation
Auto-Turn off Battery Charger
 The aim of this project is to automatically disconnect a battery from the mains when
the battery gets fully charged.
 This system can be used to charge partially discharged cells as well.
 The circuit is simple and consists of AC-DC converter, relay drivers and charge stations.

Explanation
Mobile Battery Charger Circuit

Explanation
Circuit Description
 In an AC-DC converter section, the transformer step-downs the available AC supply to
9v AC at 75o mA which is rectified by using a full wave rectifier, and then filtered by
the capacitor.
 The 12v DC charging voltage is provided by the regulator and when the switch S1 is
pressed, the charger starts working and the power on LED glows to indicate the
charger is ‘on’.
 This relay is connected to the collector of first transistor and it is driven by a second
PNP transistor which in turn is driven by the PNP transistor.
 A D6 diode is connected between the output of the IC and a limiting output voltage
of the battery up to 6.7V is used for charging the battery.

Explanation

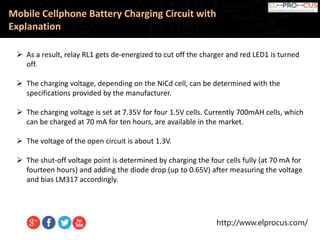

 As a result, relay RL1 gets de-energized to cut off the charger and red LED1 is turned
off.
 The charging voltage, depending on the NiCd cell, can be determined with the
specifications provided by the manufacturer.
 The charging voltage is set at 7.35V for four 1.5V cells. Currently 700mAH cells, which
can be charged at 70 mA for ten hours, are available in the market.
 The voltage of the open circuit is about 1.3V.
 The shut-off voltage point is determined by charging the four cells fully (at 70 mA for
fourteen hours) and adding the diode drop (up to 0.65V) after measuring the voltage
and bias LM317 accordingly.

Explanation
Solar Power Charge Controller
 The main objective of this project is to charge a battery by using solar panels.
 This project deals with a mechanism of charge controlling that will also do over
charge, deep discharge and under voltage protection of the battery.
 In this system, by using photo voltaic cells, solar energy is converted into electrical
energy.
 This project comprises hardware components like solar panel, Op-amps, MOSFET,
diodes, LEDs, potentiometer and battery.
 A set of OP-AMPS are used as comparators for monitoring of panel voltage and lead
current continuously.

Explanation
Solar Power Charge Controller

Explanation
Microcontroller Based Photovoltaic MPPT Charge
Controller
 The aim of this project is to design a charge controller with a maximum power point
tracking based on a microcontroller.
 The major components used in this project are solar panel, battery, inverter, wireless
transceiver, LCD, current sensor and temperature sensor.
 The output of the battery is connected to an inverter that provides outlets for the
user to access the stored energy.
 The solar panel, battery and inverter are bought as the off shell parts while the MPPT
charge controller is designed and built by solar knights.

Explanation
 The output voltage is varied by pulse width modulation from the microcontroller to
MOSFET drivers.
 The way to track a maximum power point by using MPPT algorithm implementation in
controller ensures that the battery is charged at maximum power from the solar panel.

Explanation
Photovoltaic MPPT Charge Controller

Mobile cellphone battery charging circuit with explanation
