This document provides a user guide for the Cambium PTP 800 Series product. It contains important safety information and instructions for using the system components properly. The guide covers the product description and features, including the compact modem unit and outdoor unit. It also addresses licensing requirements, security advice, and caring for the environment.
![Security planning Chapter 2: Planning considerations
Identify the security level for each of the security roles. Three security levels are available:
• No authentication, no privacy
• Authentication, no privacy
• Authentication, privacy
If authentication is required, identify the protocol. Two authentication protocols are
available:
• MD5
• SHA
If privacy will be used, identify the protocol. Two privacy protocols are available:
• DES
• AES
AES link encryption is only available to users who have purchased an appropriate license
key.
If authentication or authentication and privacy protocols are required, identify passphrases
for each protocol for each SNMP user. It is considered good practice to use different
passphrases for authentication and privacy. Passphrases must have length between 8 and
32 characters, and may contain any of the characters listed in Table 8.
Table 8 Permitted character set for SNMPv3 passphrases
Character Code Character Code
<space> 32 ; 59
! 33 < 60
“ 34 = 61
# 35 > 62
$ 36 ? 63
% 37 @ 64
& 38 A..Z 65..90
' 39 [ 91
( 40 92
) 41 ] 93
* 42 ^ 94
+ 43 _ 95
, 44 ` 96
- 45 a..z 97..122
2-26 phn-2513_001v000 (Apr 2012)](https://image.slidesharecdn.com/ptp800userguidesystemrelease05-00-120727061436-phpapp02/85/Ptp800-user-guide-system-release-05-00-140-320.jpg)
![PTP 800 Series User Guide Cambium Networks end user license agreement
The licence and distribution terms for any publically available version or derivative of this
code cannot be changed. i.e. this code cannot simply be copied and put under another
distribution licence [including the GNU Public Licence.]
NET SNMP
Various copyrights apply to this package, listed in various separate parts below. Please
make sure that you read all the parts.
---- Part 1: CMU/UCD copyright notice: (BSD like) -----
Copyright 1989, 1991, 1992 by Carnegie Mellon University
Derivative Work - 1996, 1998-2000
Copyright 1996, 1998-2000 The Regents of the University of California
All Rights Reserved
Permission to use, copy, modify and distribute this software and its documentation for any
purpose and without fee is hereby granted, provided that the above copyright notice
appears in all copies and that both that copyright notice and this permission notice appear
in supporting documentation, and that the name of CMU and The Regents of the
University of California not be used in advertising or publicity pertaining to distribution of
the software without specific written permission.
CMU AND THE REGENTS OF THE UNIVERSITY OF CALIFORNIA DISCLAIM ALL
WARRANTIES WITH REGARD TO THIS SOFTWARE, INCLUDING ALL IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL CMU OR
THE REGENTS OF THE UNIVERSITY OF CALIFORNIA BE LIABLE FOR ANY SPECIAL,
INDIRECT OR CONSEQUENTIAL DAMAGES OR ANY DAMAGES WHATSOEVER
RESULTING FROM THE LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION
OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN
CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.
---- Part 2: Networks Associates Technology, Inc copyright notice (BSD) -----
Copyright (c) 2001-2003, Networks Associates Technology, Inc
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are
permitted provided that the following conditions are met:
• Redistributions of source code must retain the above copyright notice, this list of
conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of
conditions and the following disclaimer in the documentation and/or other materials
provided with the distribution.
• Neither the name of the Networks Associates Technology, Inc nor the names of its
contributors may be used to endorse or promote products derived from this software
without specific prior written permission.
phn-2513_001v000 (Apr 2012) 3-11](https://image.slidesharecdn.com/ptp800userguidesystemrelease05-00-120727061436-phpapp02/85/Ptp800-user-guide-system-release-05-00-223-320.jpg)
![PTP 800 Series User Guide Cambium Networks end user license agreement
9. Accepting Warranty or Additional Liability. While redistributing the Work or Derivative
Works thereof, You may choose to offer, and charge a fee for, acceptance of support,
warranty, indemnity, or other liability obligations and/or rights consistent with this
License. However, in accepting such obligations, You may act only on Your own behalf and
on Your sole responsibility, not on behalf of any other Contributor, and only if You agree to
indemnify, defend, and hold each Contributor harmless for any liability incurred by, or
claims asserted against, such Contributor by reason of your accepting any such warranty
or additional liability.
END OF TERMS AND CONDITIONS
APPENDIX: How to apply the Apache License to your work.
To apply the Apache License to your work, attach the following boilerplate notice, with the
fields enclosed by brackets "[]" replaced with your own identifying information. (Don't
include the brackets!) The text should be enclosed in the appropriate comment syntax for
the file format. We also recommend that a file or class name and description of purpose be
included on the same "printed page" as the copyright notice for easier identification within
third-party archives.
Copyright [yyyy] [name of copyright owner]
Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file
except in compliance with the License.
You may obtain a copy of the License at http://www.apache.org/licenses/LICENSE-2.0
Unless required by applicable law or agreed to in writing, software distributed under the
License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF
ANY KIND, either express or implied.
See the License for the specific language governing permissions and limitations under the
License.
phn-2513_001v000 (Apr 2012) 3-19](https://image.slidesharecdn.com/ptp800userguidesystemrelease05-00-120727061436-phpapp02/85/Ptp800-user-guide-system-release-05-00-231-320.jpg)
Ptp800 user guide system release 05 00
- 1. Cambium PTP 800 Series User Guide System Release 800-05-00
- 2. Accuracy While reasonable efforts have been made to assure the accuracy of this document, Cambium Networks assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein. Cambium reserves the right to make changes to any products described herein to improve reliability, function, or design, and reserves the right to revise this document and to make changes from time to time in content hereof with no obligation to notify any person of revisions or changes. Cambium does not assume any liability arising out of the application or use of any product, software, or circuit described herein; neither does it convey license under its patent rights or the rights of others. It is possible that this publication may contain references to, or information about Cambium products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that Cambium intends to announce such Cambium products, programming, or services in your country. Copyrights This document, Cambium products, and 3rd Party software products described in this document may include or describe copyrighted Cambium and other 3rd Party supplied computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Cambium, its licensors, and other 3rd Party supplied software certain exclusive rights for copyrighted material, including the exclusive right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted material of Cambium, its licensors, or the 3rd Party software supplied material contained in the Cambium products described in this document may not be copied, reproduced, reverse engineered, distributed, merged or modified in any manner without the express written permission of Cambium. Furthermore, the purchase of Cambium products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Cambium or other 3rd Party supplied software, except for the normal non-exclusive, royalty free license to use that arises by operation of law in the sale of a product. Restrictions Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law. No part of the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without prior written permission of Cambium. License Agreements The software described in this document is the property of Cambium and its licensors. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement. High Risk Materials Components, units, or 3rd Party products used in the product described herein are NOT fault- tolerant and are NOT designed, manufactured, or intended for use as on-line control equipment in the following hazardous environments requiring fail-safe controls: the operation of Nuclear Facilities, Aircraft Navigation or Aircraft Communication Systems, Air Traffic Control, Life Support, or Weapons Systems (High Risk Activities). Cambium and its supplier(s) specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities. © 2012 Cambium Networks Limited. All Rights Reserved. phn-2513_001v000 (Apr 2012)
- 3. PTP 800 Series User Guide Important safety information This section describes important safety guidelines that must be observed by personnel installing or operating PTP 800 equipment. To prevent loss of life or physical injury, observe the safety guidelines in this section. Power lines Exercise extreme care when working near power lines. Working at heights Exercise extreme care when working at heights. Grounding and protective earth The outdoor unit (ODU) and compact modem unit (CMU) for the PTP 800 must be properly grounded. It is the user’s responsibility to install the equipment in accordance with national regulations. In the USA, follow Section 810 of the National Electric Code, ANSI/NFPA No.70-1984 (USA). In Canada, follow Section 54 of the Canadian Electrical Code. These codes describe correct installation procedures for grounding the ODU, CMU, mast, lead-in wire and discharge unit, size of grounding conductors and connection requirements for grounding electrodes. Other regulations may apply in different countries and therefore it is recommended that installation of the outdoor unit be contracted to a professional installer. The PTP 800 ODU and CMU must be grounded to a protective earth in accordance with the Local Electrical Regulations. phn-2513_001v000 (Apr 2012) I
- 4. Important safety information Electrical safety The power cable connections must meet International Electrotechnical Commission (IEC) safety standards. Always power down and unplug the equipment before servicing. When using alternative DC supplies, such as battery-backed DC power source, the supply must be SELV rated. Primary disconnect device The power supply must include a primary disconnect device with appropriate fusing. External cables Safety may be compromised if outdoor rated cables are not used for connections that will be exposed to the weather. RF exposure near the antenna Strong radio frequency (RF) fields will be present close to the antenna when the transmitter is on. Always mute the transmitter before undertaking maintenance activities in front of the antenna. Ensure that people cannot stand or walk in front of the antenna within ± 10 degrees of the antenna axis and within the minimum distances listed in Table 208 (ETSI) or Table 209 (FCC). The minimum distances in these tables have been calculated using worst-case assumptions. Reduced separation distances may be appropriate under some circumstances. Further details are provided in Radiation hazard assessment on page 4-85. Thermal safety The CMU may be hot to the touch when in operation. The CMU must not be operated in ambient temperatures exceeding 40 deg C unless mounted in a Restricted Access Location. For more information, see Maximum operating ambient temperature for the CMU on page 5-76. II phn-2513_001v000 (Apr 2012)
- 5. PTP 800 Series User Guide Contents Important safety information ........................................................................................... I About This User Guide ..................................................................................................... 1 General information ..................................................................................................................... 2 Version information................................................................................................................ 2 Contacting Cambium Networks ............................................................................................. 2 Problems and warranty ................................................................................................................ 4 Security advice ............................................................................................................................. 6 Warnings, cautions, and notes ..................................................................................................... 7 Caring for the environment.......................................................................................................... 8 Licensing requirements ............................................................................................................... 9 Operating license ................................................................................................................... 9 Cambium license agreement .................................................................................................. 9 Chapter 1: Product description .................................................................................. 1-1 Overview ................................................................................................................................... 1-2 Key features ........................................................................................................................ 1-2 Supported bands and frequencies ...................................................................................... 1-3 Typical users and applications ............................................................................................ 1-4 System components ............................................................................................................ 1-5 Link types ............................................................................................................................ 1-6 Compact modem unit (CMU) .................................................................................................... 1-8 CMU description ................................................................................................................. 1-8 CMU interfaces ................................................................................................................... 1-9 Further reading on the CMU ............................................................................................ 1-12 Outdoor unit (ODU) ................................................................................................................. 1-13 ODU description ................................................................................................................ 1-13 ODU interfaces .................................................................................................................. 1-15 Further reading on the ODU ............................................................................................. 1-17 Indoor RF unit (IRFU) ............................................................................................................. 1-18 IRFU description ............................................................................................................... 1-18 Transceivers ...................................................................................................................... 1-19 Branching unit .................................................................................................................. 1-19 phn-2513_001v000 (Apr 2012) i
- 6. Contents IRFU availability ............................................................................................................... 1-19 IRFU configuration options ............................................................................................... 1-20 IRFU interfaces ................................................................................................................. 1-25 Further reading on the IRFU ............................................................................................ 1-26 Antennas and couplers ............................................................................................................ 1-27 Antennas ........................................................................................................................... 1-27 Remote mounting kits (RMKs) .......................................................................................... 1-29 Coupler mounting kits....................................................................................................... 1-30 Direct mount dual-polar antennas .................................................................................... 1-32 Further reading on antennas and couplers....................................................................... 1-34 Cabling and lightning protection ............................................................................................ 1-35 Lightning protection (ODU platforms only) ...................................................................... 1-35 RFU to CMU connections ................................................................................................. 1-35 CMU to network connections............................................................................................ 1-35 Cable grounding (ODU platforms only) ............................................................................ 1-35 Further reading on cabling and lightning protection ....................................................... 1-37 Wireless operation .................................................................................................................. 1-38 Channel bandwidth ........................................................................................................... 1-38 Modulation modes ............................................................................................................. 1-38 Adaptive coding and modulation....................................................................................... 1-39 Automatic transmitter power control ............................................................................... 1-39 Maximum receive power ................................................................................................... 1-40 Maximum transmit power ................................................................................................. 1-40 Security ............................................................................................................................. 1-40 Further reading on wireless operation ............................................................................. 1-41 Ethernet bridging.................................................................................................................... 1-42 Customer network............................................................................................................. 1-42 Management network ....................................................................................................... 1-43 Protocol model .................................................................................................................. 1-46 Further reading on Ethernet bridging .............................................................................. 1-50 System management ............................................................................................................... 1-51 Management agent ........................................................................................................... 1-51 Web server ........................................................................................................................ 1-51 Installation wizard ............................................................................................................ 1-53 Configuration pages .......................................................................................................... 1-53 RADIUS authentication ..................................................................................................... 1-53 Email alerts ....................................................................................................................... 1-54 ii phn-2513_001v000 (Apr 2012)
- 7. PTP 800 Series User Guide SNMP ................................................................................................................................ 1-54 Simple Network Time Protocol (SNTP)............................................................................. 1-56 SNMPv3 security............................................................................................................... 1-56 System logging (syslog) .................................................................................................... 1-59 AES license........................................................................................................................ 1-60 Login information .............................................................................................................. 1-61 Flexible capacity upgrades ............................................................................................... 1-61 Software upgrade .............................................................................................................. 1-62 Recovery mode .................................................................................................................. 1-62 Further reading on system management .......................................................................... 1-63 1+1 Hot Standby link protection ............................................................................................ 1-64 1+1 Hot Standby overview ............................................................................................... 1-64 1+1 Hot Standby link antenna options ............................................................................. 1-65 Bridging in 1+1 links ........................................................................................................ 1-66 Receive Diversity............................................................................................................... 1-67 Further reading on 1+1 Hot Standby ............................................................................... 1-70 FIPS 140-2............................................................................................................................... 1-71 FIPS 140-2 capability ........................................................................................................ 1-71 FIPS 140-2 mode ............................................................................................................... 1-72 Further reading on FIPS 140-2 ......................................................................................... 1-73 Chapter 2: Planning considerations ........................................................................... 2-1 Link planning ............................................................................................................................ 2-2 Process ................................................................................................................................ 2-2 Site selection ....................................................................................................................... 2-3 Wind loading ....................................................................................................................... 2-3 Maximum IF cable length ................................................................................................... 2-3 Power supply considerations .............................................................................................. 2-4 PTP LINKPlanner ................................................................................................................ 2-5 Grounding and lightning protection.......................................................................................... 2-7 The need for power surge protection .................................................................................. 2-7 Standards ............................................................................................................................ 2-7 Lightning Protection Zones ................................................................................................. 2-8 General protection requirements ........................................................................................ 2-9 Protection requirements for a mast or tower installation ................................................. 2-11 Protection requirements for the ODU on a high rise building .......................................... 2-13 Protection requirements for the IRFU .............................................................................. 2-17 Data network planning ............................................................................................................ 2-18 phn-2513_001v000 (Apr 2012) iii
- 8. Contents Management mode ........................................................................................................... 2-18 VLAN membership ............................................................................................................ 2-19 Priority for management traffic ........................................................................................ 2-19 IP interface........................................................................................................................ 2-19 Quality of service for bridged Ethernet traffic ................................................................. 2-19 Fast Ethernet port shutdown ............................................................................................ 2-21 Security planning .................................................................................................................... 2-22 Planning for SNTP operation ............................................................................................ 2-22 Planning for AES encryption ............................................................................................. 2-22 Planning for HTTPS/TLS operation ................................................................................... 2-23 Planning for FIPS 140-2 operation ................................................................................... 2-24 Planning for SNMPv3 operation ....................................................................................... 2-25 Planning for RADIUS operation ........................................................................................ 2-28 Planning 1+0 links .................................................................................................................. 2-30 Concept of a 1+0 link........................................................................................................ 2-30 Antenna, RFU and CMU configurations for 1+0 .............................................................. 2-30 Network configurations for 1+0 ....................................................................................... 2-34 Planning 1+1 Hot Standby links ............................................................................................. 2-35 Concept of a 1+1 Hot Standby link .................................................................................. 2-35 Antenna, RFU and CMU configurations for 1+1 .............................................................. 2-35 Designating primary and secondary units ........................................................................ 2-42 Link Planning for 1+1 Hot Standby links ......................................................................... 2-42 Network configurations for 1+1 ....................................................................................... 2-43 Planning for Receive Diversity .......................................................................................... 2-46 Planning 2+0 links .................................................................................................................. 2-49 Concept of a 2+0 link........................................................................................................ 2-49 Antenna, RFU and CMU configurations for 2+0 .............................................................. 2-49 Network configurations for 2+0 ....................................................................................... 2-55 Frequency spacing in 2+0 ODU based links..................................................................... 2-55 Frequency spacing in 2+0 IRFU based links ................................................................... 2-55 Ordering components ............................................................................................................. 2-57 Ordering CMUs ................................................................................................................. 2-57 Ordering antennas ............................................................................................................ 2-59 Ordering ODUs ................................................................................................................. 2-69 Ordering IF cable, grounding and LPUs ........................................................................... 2-80 Ordering RMKs and waveguides....................................................................................... 2-85 Ordering coupler mounting kits ........................................................................................ 2-88 iv phn-2513_001v000 (Apr 2012)
- 9. PTP 800 Series User Guide Ordering OMKs ................................................................................................................. 2-90 Ordering IRFUs and accessories....................................................................................... 2-91 Ordering network connection components ....................................................................... 2-96 Ordering capacity upgrades.............................................................................................. 2-97 Chapter 3: Legal information ..................................................................................... 3-1 Cambium Networks end user license agreement ..................................................................... 3-2 Acceptance of this agreement ............................................................................................. 3-2 Definitions ........................................................................................................................... 3-2 Grant of license ................................................................................................................... 3-2 Conditions of use ................................................................................................................. 3-3 Title and restrictions ........................................................................................................... 3-4 Confidentiality ..................................................................................................................... 3-4 Right to use Cambium’s name ............................................................................................ 3-5 Transfer ............................................................................................................................... 3-5 Updates ............................................................................................................................... 3-5 Maintenance........................................................................................................................ 3-5 Disclaimer ........................................................................................................................... 3-6 Limitation of liability ........................................................................................................... 3-6 U.S. government ................................................................................................................. 3-7 Term of license .................................................................................................................... 3-7 Governing law ..................................................................................................................... 3-7 Assignment .......................................................................................................................... 3-8 Survival of provisions .......................................................................................................... 3-8 Entire agreement ................................................................................................................ 3-8 Third party software ........................................................................................................... 3-8 Hardware warranty ................................................................................................................. 3-20 Limit of liability ....................................................................................................................... 3-21 Chapter 4: Reference information .............................................................................. 4-1 Equipment specifications .......................................................................................................... 4-2 CMU specifications ............................................................................................................. 4-2 ODU specifications .............................................................................................................. 4-5 IRFU specifications ............................................................................................................. 4-8 Flexible waveguide specifications ..................................................................................... 4-10 Coupler mounting kit specifications ................................................................................. 4-15 Protection interface specifications.................................................................................... 4-17 Wireless specifications ............................................................................................................ 4-19 General wireless specifications ......................................................................................... 4-19 phn-2513_001v000 (Apr 2012) v
- 10. Contents Frequency bands and channel separation ........................................................................ 4-20 Capacity, transmit power and sensitivity .......................................................................... 4-22 Data network specifications .................................................................................................... 4-71 Ethernet interfaces ........................................................................................................... 4-71 Ethernet bridging.............................................................................................................. 4-72 Syslog message formats .......................................................................................................... 4-73 Format of syslog server messages .................................................................................... 4-73 Configuration and status messages .................................................................................. 4-73 Event messages ................................................................................................................. 4-74 Network management specifications ...................................................................................... 4-76 Standard SNMP MIBs ....................................................................................................... 4-76 Electromagnetic compliance ................................................................................................... 4-81 Electrical safety compliance ............................................................................................. 4-81 EMC immunity compliance ............................................................................................... 4-81 Compliance testing ........................................................................................................... 4-82 Notifications ...................................................................................................................... 4-83 Radiation hazard assessment .................................................................................................. 4-85 ETSI method ..................................................................................................................... 4-85 FCC method ...................................................................................................................... 4-87 Chapter 5: Installation .............................................................................................. 5-1 Preparing for installation .......................................................................................................... 5-2 Safety precautions during installation ................................................................................ 5-2 Grounding and lightning protection requirements ............................................................. 5-2 Selecting installation options .............................................................................................. 5-2 Preparing personnel............................................................................................................ 5-3 Preparing inventory ............................................................................................................ 5-3 Preparing tools .................................................................................................................... 5-3 Unit pre-configuration ........................................................................................................ 5-4 Installing antennas and ODUs .................................................................................................. 5-5 Installing a direct mount antenna with one ODU ............................................................... 5-6 Installing a remote mount antenna with one ODU ............................................................. 5-9 Installing a direct mount antenna with two ODUs (via coupler) ...................................... 5-20 Installing a remote mount antenna with two ODUs (via coupler) .................................... 5-26 Installing a direct mount dual-polar antenna with two ODUs .......................................... 5-32 Installing the IF and ground cables ........................................................................................ 5-35 Preparing IF cables ........................................................................................................... 5-37 Fitting an N type connector to an IF cable ....................................................................... 5-37 vi phn-2513_001v000 (Apr 2012)
- 11. PTP 800 Series User Guide Connecting the ODU to the top LPU ................................................................................. 5-41 Weatherproofing an N type connector .............................................................................. 5-44 Hoisting the main IF cable ................................................................................................ 5-48 Installing and grounding the main IF cable ...................................................................... 5-51 Making an IF cable ground point ...................................................................................... 5-53 Installing and grounding the IF cable at building entry ................................................... 5-57 Testing the ODU and IF cable ................................................................................................. 5-59 Recommended pre-power tests ......................................................................................... 5-59 Test equipment ................................................................................................................. 5-59 Test preparation ................................................................................................................ 5-60 Testing cable loss .............................................................................................................. 5-61 Measuring distance to fault .............................................................................................. 5-66 Installing antennas and IRFUs ................................................................................................ 5-69 Preparation ....................................................................................................................... 5-69 Installing the IRFU in the rack ......................................................................................... 5-70 Connecting the flexible waveguide to the IRFU ............................................................... 5-71 Connecting the CMU cables to the IRFU .......................................................................... 5-72 Grounding the IRFU .......................................................................................................... 5-73 Connecting power to the IRFU ......................................................................................... 5-75 Installing the CMU .................................................................................................................. 5-76 Maximum operating ambient temperature for the CMU .................................................. 5-76 Operation of CMU in a Restricted Access Location .......................................................... 5-76 Mounting the CMU ........................................................................................................... 5-77 Grounding the CMU .......................................................................................................... 5-80 Connecting the CMU to the IF cable ................................................................................ 5-80 Connecting the CMU power supply .................................................................................. 5-81 Preparing network connections (1+0 and 2+0 links) ............................................................. 5-83 Installing a copper data interface ..................................................................................... 5-84 Installing a fiber data interface......................................................................................... 5-85 Installing a management interface ................................................................................... 5-86 Connecting fiber cables to the CMU ................................................................................. 5-87 Preparing network connections (1+1 Hot Standby) ............................................................... 5-88 Installing an out-of-band protection splitter ..................................................................... 5-89 Installing a redundant copper interface ........................................................................... 5-90 Installing a redundant fiber interface ............................................................................... 5-91 Installing a Fiber-Y interface ............................................................................................ 5-92 Installing a protection cable ............................................................................................. 5-93 phn-2513_001v000 (Apr 2012) vii
- 12. Contents Replacing IRFU components................................................................................................... 5-94 Replacing a transceiver .................................................................................................... 5-95 Replacing a branching unit ............................................................................................... 5-98 Replacing filters .............................................................................................................. 5-100 Replacing a fan assembly ................................................................................................ 5-101 Replacing an RF cable .................................................................................................... 5-103 Chapter 6: Configuration and alignment .................................................................... 6-1 Preparing for configuration and alignment .............................................................................. 6-2 Safety precautions during configuration and alignment .................................................... 6-2 Regulatory compliance during configuration and alignment ............................................. 6-2 Selecting configuration options .......................................................................................... 6-2 Task 1: Connecting to the unit .................................................................................................. 6-3 Configuring the management PC ........................................................................................ 6-3 Updating the ARP table ...................................................................................................... 6-5 Connecting to the PC and powering up .............................................................................. 6-6 Logging into the web interface ........................................................................................... 6-6 Task 2: Configuring IP and Ethernet interfaces ....................................................................... 6-8 Managing the units during configuration and alignment ................................................... 6-8 Configuring the IP interface and management mode ....................................................... 6-10 Reconnecting to the management PC ............................................................................... 6-17 Task 3: Installing license keys ................................................................................................ 6-18 Checking licensed capabilities .......................................................................................... 6-18 Generating a new license key ........................................................................................... 6-20 Entering a new license key ............................................................................................... 6-20 Starting the full capacity trial ........................................................................................... 6-21 Task 4: Upgrading software version ....................................................................................... 6-22 Checking the installed software version ........................................................................... 6-22 Upgrading to a new software version ............................................................................... 6-23 Task 5: Configuring security ................................................................................................... 6-25 Configuring AES encryption ............................................................................................. 6-26 Configuring AES encryption in an operational link .......................................................... 6-28 Configuring HTTPS/TLS.................................................................................................... 6-29 Using the Security Wizard ................................................................................................ 6-30 Configuring local user accounts ....................................................................................... 6-39 Changing own user password ........................................................................................... 6-45 Protecting access to the summary and status pages ........................................................ 6-46 Configuring RADIUS authentication ................................................................................. 6-47 viii phn-2513_001v000 (Apr 2012)
- 13. PTP 800 Series User Guide Task 6: Configuring protection ............................................................................................... 6-50 Configuring unprotected links .......................................................................................... 6-50 Configuring 1+1 Hot Standby links .................................................................................. 6-51 Upgrading an unprotected link to 1+1 Hot Standby ........................................................ 6-58 Task 7: Configuring wireless interface ................................................................................... 6-60 Prerequisites for the Installation Wizard .......................................................................... 6-60 Starting Installation Wizard .............................................................................................. 6-60 Step 1: Enter equipment details ....................................................................................... 6-62 Step 2: Enter details of the radio license .......................................................................... 6-66 Step 3: Configuring wireless parameters ......................................................................... 6-69 Step 4: Confirming installation configuration ................................................................... 6-70 Step 5: Skipping antenna alignment ................................................................................. 6-72 Step 6: Completing configuration without alignment ....................................................... 6-73 Task 8: Setting up SNMP agent .............................................................................................. 6-74 Configuring SNMPv3 agent .............................................................................................. 6-74 Configuring SNMPv1/2c agent ......................................................................................... 6-83 Task 9: Configuring alarms and messages.............................................................................. 6-87 Configuring generation of diagnostics alarms .................................................................. 6-87 Configuring generation of email messages ....................................................................... 6-89 Task 10: Configuring syslog .................................................................................................... 6-91 Configuring system logging (syslog) ................................................................................. 6-91 Task 11: Configuring remote access ....................................................................................... 6-93 Configuring web-based management attributes ............................................................... 6-93 Task 12: Aligning antennas ..................................................................................................... 6-96 Introduction to antenna alignment ................................................................................... 6-96 Prerequisites for alignment .............................................................................................. 6-97 Aligning protected antennas ............................................................................................. 6-97 Aligning dual-polar antennas ............................................................................................ 6-97 Aligning a pair of antennas ............................................................................................... 6-98 Step 5: Starting antenna alignment .................................................................................. 6-98 Step 6: Aligning antennas ................................................................................................. 6-98 Step 7: Completing alignment ........................................................................................ 6-103 Task 13: Reviewing configuration and performance ............................................................ 6-104 Reviewing system configuration attributes..................................................................... 6-104 Comparing actual to predicted performance .................................................................. 6-108 Task 14: Configuring quality of service ................................................................................ 6-109 Configuring quality of service ......................................................................................... 6-109 phn-2513_001v000 (Apr 2012) ix
- 14. Contents Task 15: Connecting link to the network .............................................................................. 6-112 Connecting to the network.............................................................................................. 6-112 Setting the real-time clock .............................................................................................. 6-113 Saving the system configuration ..................................................................................... 6-117 Configuring for FIPS 140-2 applications .............................................................................. 6-119 Prerequisites for FIPS 140-2 configuration .................................................................... 6-119 Configuration procedures for FIPS 140-2 ....................................................................... 6-120 Checking that the unit is in FIPS 140-2 secure mode..................................................... 6-120 HTTPS key size warning ................................................................................................. 6-121 Chapter 7: Operation ................................................................................................. 7-1 Web-based management ........................................................................................................... 7-2 Accessing the web interface ............................................................................................... 7-2 Using the menu options ...................................................................................................... 7-4 Viewing the system summary ............................................................................................. 7-6 Viewing the system status .................................................................................................. 7-7 Identifying a unit from the web browser title ................................................................... 7-12 Logging out ....................................................................................................................... 7-14 Managing alarms and events .................................................................................................. 7-15 Managing alarms .............................................................................................................. 7-15 Managing email alerts ...................................................................................................... 7-24 Managing SNMP traps ...................................................................................................... 7-24 Managing event notification messages ............................................................................. 7-31 Disabling and enabling the wireless interface ........................................................................ 7-32 Disabling wireless transmission........................................................................................ 7-32 Enabling wireless transmission ........................................................................................ 7-32 Managing 1+1 Hot Standby links ........................................................................................... 7-33 Viewing the status of a 1+1 Hot Standby link .................................................................. 7-33 Using the Protected Link page ......................................................................................... 7-36 Forcing protection switches.............................................................................................. 7-37 Enabling and disabling fault protection ............................................................................ 7-43 Replacing a CMU in a 1+1 Hot Standby link .................................................................... 7-48 Managing security .................................................................................................................. 7-51 Exiting FIPS 140-2 mode .................................................................................................. 7-51 Zeroizing critical security parameters .............................................................................. 7-51 Displaying login information ............................................................................................. 7-52 Disabling AES encryption ................................................................................................. 7-52 Changing AES encryption keys ......................................................................................... 7-53 x phn-2513_001v000 (Apr 2012)
- 15. PTP 800 Series User Guide Changing the log-out timer ............................................................................................... 7-55 Managing performance ........................................................................................................... 7-57 Checking system statistics and counters .......................................................................... 7-57 Resetting system statistics and counters .......................................................................... 7-62 Viewing diagnostics .......................................................................................................... 7-62 Using the diagnostics plotter ............................................................................................ 7-63 Downloading diagnostic data ............................................................................................ 7-64 Changing the diagnostics refresh period .......................................................................... 7-65 Maintaining the system ..................................................................................................... 7-66 Restoring, upgrading and rebooting ....................................................................................... 7-67 Restoring the system configuration .................................................................................. 7-67 Upgrading software .......................................................................................................... 7-68 Rebooting .......................................................................................................................... 7-69 Upgrading software in an operational 1+1 Hot Standby link ........................................... 7-69 Checking the recovery version .......................................................................................... 7-70 Using recovery mode .............................................................................................................. 7-71 Entering recovery mode .................................................................................................... 7-71 Selecting recovery option ................................................................................................. 7-72 Upgrading software image ................................................................................................ 7-74 Resetting IP and Ethernet configuration to factory defaults ............................................ 7-75 Erasing configuration........................................................................................................ 7-76 Zeroizing security parameters .......................................................................................... 7-76 Downgrading PTP 800 software........................................................................................ 7-77 Chapter 8: Troubleshooting ....................................................................................... 8-1 Connecting to the web management interface ......................................................................... 8-2 Check the CMU power indicator ......................................................................................... 8-2 Check the DC supply to the CMU ....................................................................................... 8-2 Check the CMU status indicator ......................................................................................... 8-3 CMU out of service ............................................................................................................. 8-3 Check the Management port Ethernet connection ............................................................. 8-4 Check the copper Data port Ethernet connection .............................................................. 8-5 Check the fiber Data port Ethernet connection .................................................................. 8-6 Check IP network connection ............................................................................................. 8-7 Check browser settings ....................................................................................................... 8-8 Installing the link ...................................................................................................................... 8-9 Connect to the web management interface ........................................................................ 8-9 Check RFU status................................................................................................................ 8-9 phn-2513_001v000 (Apr 2012) xi
- 16. Contents Transmitter status............................................................................................................. 8-10 Antenna alignment ............................................................................................................ 8-10 Check transmit and receive frequencies........................................................................... 8-11 Check waveguide and antennas ........................................................................................ 8-11 Check link status ............................................................................................................... 8-11 Check IRFU status LEDs ................................................................................................... 8-12 136H Testing protection switchover ................................................................................................ 8-13 407H 137H Check protection interface status ..................................................................................... 8-13 408H 138H Check that protection switching is enabled ...................................................................... 8-13 409H 139H Check the status of the wireless interface ........................................................................ 8-14 410H 1320H Check the link protection cable ........................................................................................ 8-14 41H 132H Force a protection switchover .......................................................................................... 8-14 412H 132H Check the configuration of the active and inactive units.................................................. 8-14 413H 132H Glossary ........................................................................................................................... I 41H 1324H xii phn-2513_001v000 (Apr 2012)
- 17. PTP 800 Series User Guide List of Figures Figure 1 Typical PTP 800 deployment (ODU platform) ................................................................. 1-5 Figure 2 Typical PTP 800 deployment (IRFU platform) ................................................................ 1-5 Figure 3 PTP 800 CMU ................................................................................................................. 1-8 Figure 4 CMU front panel ............................................................................................................. 1-9 Figure 5 ODU-A ........................................................................................................................... 1-14 Figure 6 ODU-B ........................................................................................................................... 1-14 Figure 7 ODU front view ............................................................................................................. 1-15 Figure 8 ODU rear view .............................................................................................................. 1-16 Figure 9 ODU-A side view ........................................................................................................... 1-16 Figure 10 ODU-B side view ......................................................................................................... 1-16 Figure 11 Top and front view of IRFU shelf (with single transceiver and waveguide) ............... 1-18 Figure 12 IRFU 1+0 configuration.............................................................................................. 1-20 Figure 13 IRFU 1+1 Tx MHSB configuration ............................................................................. 1-21 Figure 14 IRFU 1+0 Tx MHSB Ready configuration .................................................................. 1-22 Figure 15 IRFU 1+1 Tx MHSB / Rx SD configuration ................................................................ 1-23 Figure 16 IRFU 2+0 configuration.............................................................................................. 1-24 Figure 17 IRFU transceiver interfaces ........................................................................................ 1-25 Figure 18 Typical PTP 800 antenna with ODU (Cambium direct mount interface) .................... 1-27 Figure 19 Direct mount mechanical interface ............................................................................ 1-28 Figure 20 ODU clipped onto direct mount mechanical interface................................................ 1-28 Figure 21 Remote mount antenna waveguide interface ............................................................. 1-28 Figure 22 RMK showing the ODU interface ................................................................................ 1-30 Figure 23 RMK showing the waveguide interface ...................................................................... 1-30 Figure 24 ODU coupler mounting kit .......................................................................................... 1-31 Figure 25 Two ODUs and antenna mounted on a coupler .......................................................... 1-32 Figure 26 Orthogonal mode transducer ...................................................................................... 1-33 Figure 27 Cable grounding kit for 1/4" and 3/8" cable ............................................................... 1-36 Figure 28 PTP 800 LPU end kit ................................................................................................... 1-36 Figure 29 Forwarding behavior in out-of-band local management mode ................................... 1-47 Figure 30 Forwarding behavior in out-of-band management mode ............................................ 1-47 Figure 31 Forwarding behavior in in-band mode ........................................................................ 1-47 phn-2513_001v000 (Apr 2012) xiii
- 18. List of Figures Figure 32 Inactive unit frame forwarding – out-of-band management ....................................... 1-48 Figure 33 Inactive unit frame forwarding – in-band management ............................................. 1-48 Figure 34 Protocol layers between Ethernet and wireless interfaces ........................................ 1-49 Figure 35 Protocol layers between external interfaces and the management agent ................. 1-49 Figure 36 Receive Diversity Ethernet frames ............................................................................. 1-68 Figure 37 Indication of FIPS 140-2 capability ............................................................................ 1-71 Figure 38 FIPS operational mode alarm ..................................................................................... 1-72 Figure 39 LINKPlanner profile view ............................................................................................. 2-5 Figure 40 LINKPlanner configuration and performance details ................................................... 2-6 Figure 41 LINKPlanner Bill of Materials view .............................................................................. 2-6 Figure 42 Rolling sphere method to determine the lightning protection zones ........................... 2-8 Figure 43 Grounding and lightning protection on mast or tower ............................................... 2-12 Figure 44 Grounding and lightning protection on mast or tower (protected end) ..................... 2-13 Figure 45 Grounding and lightning protection on building ........................................................ 2-14 Figure 46 Grounding and lightning protection inside high building .......................................... 2-15 Figure 47 Grounding and lightning protection inside high building (protected end) ................. 2-16 Figure 48 Grounding requirements for the IRFU and CMU ....................................................... 2-17 Figure 49 Schematic view of 1+0 ODU direct mount link end ................................................... 2-31 Figure 50 Schematic view of 1+0 ODU remote mount link end ................................................. 2-32 Figure 51 Schematic view of 1+0 IRFU link end ........................................................................ 2-33 Figure 52 Schematic view of network connections for a 1+0 link end ....................................... 2-34 Figure 53 ODUs coupled to single direct mount antenna (schematic) ....................................... 2-36 Figure 54 ODUs coupled to single remote mount antenna (schematic) ..................................... 2-37 Figure 55 ODUs with separate direct mount antennas (schematic) ........................................... 2-38 Figure 56 ODUs with separate remote mount antennas (schematic) ......................................... 2-39 Figure 57 IRFU 1+1 Tx MHSB with single remote mount antenna (schematic) ........................ 2-40 Figure 58 IRFU 1+1 Tx MHSB / Rx SD with two remote mount antennas (schematic) ............. 2-41 Figure 59 Schematic of 1+1 out-of-band network connections (redundant copper or fiber) ..... 2-44 Figure 60 Schematic of 1+1 out-of-band network connections (Fiber-Y) ................................... 2-45 Figure 61 Schematic of 1+1 in-band network connections ........................................................ 2-46 Figure 62 ODUs coupled to single direct mount antenna - co-polar links (schematic)............... 2-50 Figure 63 ODUs coupled to a single remote mount antenna - co-polar links (schematic) .......... 2-51 Figure 64 ODUs coupled to a single direct mount antenna - cross-polar links (schematic) ....... 2-52 Figure 65 ODUs connected to a dual polar remote mount antenna - cross-polar links (schematic) ................................................................................................................................................ 2-53 Figure 66 IRFU 2+0 with single remote mount antenna (schematic) ........................................ 2-54 Figure 67 Locations of waveguide flanges .................................................................................. 4-10 xiv phn-2513_001v000 (Apr 2012)
- 19. PTP 800 Series User Guide Figure 68 Waveguide flanges – 6 GHz ........................................................................................ 4-12 Figure 69 Waveguide flanges – 7 to 15 GHz ............................................................................... 4-13 Figure 70 Waveguide flanges – 18 to 38 GHz ............................................................................. 4-14 Figure 71 Waveguide flanges – 11 GHz tapered transition......................................................... 4-14 Figure 72 European Union compliance label .............................................................................. 4-84 Figure 73 Dual-polar antenna in remote mount configuration ................................................... 5-10 Figure 74 Words embossed on coupler (asymmetric shown) ...................................................... 5-21 Figure 75 Correct orientation of LPUs ........................................................................................ 5-36 Figure 76 ODU and top LPU grounding ...................................................................................... 5-41 Figure 77 Using the hoist line ..................................................................................................... 5-50 Figure 78 IF cable grounding on a mast or tower ...................................................................... 5-51 Figure 79 Grounding at building entry ....................................................................................... 5-57 Figure 80 Example of a cable analyzer ....................................................................................... 5-60 Figure 81 Example of the cable test............................................................................................ 5-60 Figure 82 Cable loss plot for a 17 meter cable with no ODU...................................................... 5-62 Figure 83 Cable loss plot for a 17 meter cable with ODU connected ......................................... 5-63 Figure 84 Cable loss plot for a 100 meter cable with no ODU.................................................... 5-64 Figure 85 Cable loss plot for a 100 meter cable with ODU connected ....................................... 5-64 Figure 86 DTF plot for a 17 meter cable with no ODU ............................................................... 5-67 Figure 87 DTF plot for a 17 meter cable with ODU connected................................................... 5-68 Figure 88 IRFU rack mounting ................................................................................................... 5-70 Figure 89 Partial rear view of IRFU with waveguide port .......................................................... 5-71 Figure 90 Connecting the coaxial cable to the IRFU .................................................................. 5-72 Figure 91 IRFU grounding terminal (front option) ..................................................................... 5-73 Figure 92 IRFU grounding terminal (rear option) ...................................................................... 5-73 Figure 93 IRFU power connection .............................................................................................. 5-75 Figure 94 CMU kit contents ........................................................................................................ 5-77 Figure 95 CMU mounted on bench ............................................................................................. 5-78 Figure 96 CMU mounted with bracket........................................................................................ 5-78 Figure 97 CMU with rack mounting kit and blanking plate........................................................ 5-79 Figure 98 CMU mounted in rack ................................................................................................. 5-79 Figure 99 Rack mounted CMU with a right angled IF cable connector ..................................... 5-79 Figure 100 CMU ground connector ............................................................................................ 5-80 Figure 101 Cambium AC to DC converter ................................................................................... 5-81 Figure 102 Copper data interface connections ........................................................................... 5-84 Figure 103 Fiber data interface connections .............................................................................. 5-85 Figure 104 Management interface connections .......................................................................... 5-86 phn-2513_001v000 (Apr 2012) xv
- 20. List of Figures Figure 105 Out-of-band protection splitter connections ............................................................. 5-89 Figure 106 Redundant copper interface connections ................................................................. 5-90 Figure 107 Redundant fiber interface connections .................................................................... 5-91 Figure 108 Optical Y interface connections ................................................................................ 5-92 Figure 109 Protection cable connections .................................................................................... 5-93 Figure 110 IRFU components (example) .................................................................................... 5-94 Figure 111 Transceiver replacement (1+0 example) .................................................................. 5-96 Figure 112 Branching unit replacement ..................................................................................... 5-98 Figure 113 Filter replacement .................................................................................................. 5-100 Figure 114 Fan assembly replacement ..................................................................................... 5-101 Figure 115 RF cable installation and removal (1+1 Tx MHSB / Rx SD example) ..................... 5-103 Figure 116 LAN Configuration page with VLAN disabled .......................................................... 6-11 Figure 117 Confirm LAN Configuration ...................................................................................... 6-17 Figure 118 Software License Key page ....................................................................................... 6-19 Figure 119 Software License Key page with full capacity trial in progress ............................... 6-21 Figure 120 Software Version in System Status page .................................................................. 6-23 Figure 121 Installation Configuration page ................................................................................ 6-27 Figure 122 Security Configuration Wizard page......................................................................... 6-31 Figure 123 Step 1: Enter Key of Keys page ................................................................................ 6-32 Figure 124 Step 2: TLS Private Key and Public Certificate page ............................................... 6-33 Figure 125 Step 3: User Security Banner page .......................................................................... 6-33 Figure 126 Step 4: Login Information Settings page .................................................................. 6-34 Figure 127 Step 5: Random Number Entropy Input page .......................................................... 6-34 Figure 128 Step 6: Enter Wireless Link Encryption Key page .................................................... 6-35 Figure 129 Step 7: HTTP and Telnet Settings page.................................................................... 6-36 Figure 130 Step 8: Commit Security Configuration page ........................................................... 6-38 Figure 131 Local User Accounts page (identity-based user accounts not shown)...................... 6-40 Figure 132 Identity-based user accounts .................................................................................... 6-44 Figure 133 Change Password page ............................................................................................. 6-46 Figure 134 Webpage Properties page ......................................................................................... 6-46 Figure 135 RADIUS Configuration page ..................................................................................... 6-48 Figure 136 Protection Configuration page (protection disabled) ............................................... 6-50 Figure 137 Protection Configuration page for 1+1 (Primary) .................................................... 6-53 Figure 138 Protection Configuration page for 1+1 with Rx Diversity (Primary) ........................ 6-53 Figure 139 Protection Configuration page for 1+1 (Secondary) ................................................ 6-54 Figure 140 Protection Configuration page for 1+1 with Rx Diversity (Secondary).................... 6-54 Figure 141 Current Installation Summary page ......................................................................... 6-61 xvi phn-2513_001v000 (Apr 2012)
- 21. PTP 800 Series User Guide Figure 142 Step 1: Enter equipment details page (ODU) ........................................................... 6-62 Figure 143 Step 1: Enter equipment details page (IRFU) .......................................................... 6-63 Figure 144 Step 2: Radio License Configuration page (fixed modulation) ................................. 6-66 Figure 145 Step 2: Radio License Configuration page (FCC adaptive modulation) ................... 6-67 Figure 146 Step 2: Radio License Configuration page (ETSI adaptive modulation)................... 6-67 Figure 147 Step 3: Wireless Configuration page (normal) ......................................................... 6-69 Figure 148 Step 3: Wireless Configuration page (ETSI adaptive modulation) ........................... 6-69 Figure 149 Step 4: Confirm Installation Configuration page ...................................................... 6-71 Figure 150 Step 5: Start Antenna Alignment page ..................................................................... 6-72 Figure 151 Step 6: Configuration Complete page (step 5 cancelled) ......................................... 6-73 Figure 152 Current SNMP Summary page (when SNMP is disabled) ........................................ 6-74 Figure 153 Step 1: SNMP Configuration page (for SNMPv3)..................................................... 6-75 Figure 154 Step 2: SNMP MIB-II System Objects page .............................................................. 6-76 Figure 155 Step 3: SNMP User Policy Configuration page (for SNMPv3) ................................. 6-77 Figure 156 Step 4: SNMP User Accounts Configuration page (for SNMPv3) ............................ 6-79 Figure 157 Step 5: SNMP Trap Configuration page (for SNMPv3) ............................................ 6-80 Figure 158 Confirm SNMP Configuration page (for SNMPv3) ................................................... 6-82 Figure 159 Step 1: SNMP Configuration page (for SNMPv1/2c) ................................................ 6-83 Figure 160 Step 3: SNMP Trap Configuration page (for SNMPv1/2c) ....................................... 6-84 Figure 161 Confirm SNMP Configuration page (for SNMPv1/2c) .............................................. 6-86 Figure 162 Diagnostic Alarms page (with protection alarms) .................................................... 6-88 Figure 163 Email Configuration page ......................................................................................... 6-89 Figure 164 Syslog Configuration page ........................................................................................ 6-91 Figure 165 Web-Based Management page ................................................................................. 6-94 Figure 166 Step 6: Antenna Alignment page (searching for link)............................................... 6-99 Figure 167 Symmetrical relationship between voltage and alignment ..................................... 6-100 Figure 168 Typical RSSI voltage peaks and troughs ................................................................ 6-101 Figure 169 Step 6: Antenna Alignment page (link established) ................................................ 6-103 Figure 170 Alignment Abandoned ............................................................................................. 6-103 Figure 171 Step 7: Installation Complete page......................................................................... 6-103 Figure 172 Installation Configuration page .............................................................................. 6-105 Figure 173 QoS Configuration page (Ethernet) ........................................................................ 6-109 Figure 174 QoS Configuration page (IP/MPLS) ........................................................................ 6-110 Figure 175 Time Configuration page (SNTP disabled) ............................................................. 6-114 Figure 176 Time Configuration page (SNTP enabled) .............................................................. 6-115 Figure 177 Save & Restore Configuration page ....................................................................... 6-118 Figure 178 HTTPS key size warning alarm ............................................................................... 6-121 phn-2513_001v000 (Apr 2012) xvii
- 22. List of Figures Figure 179 System Administration Login page ............................................................................. 7-2 Figure 180 Menu and System Summary page (wireless link up) .................................................. 7-3 Figure 181 System Summary page ............................................................................................... 7-6 Figure 182 System Status page (unprotected link) ...................................................................... 7-8 Figure 183 System Status page (1+1 Hot Standby link) .............................................................. 7-9 Figure 184 Web browser with default title ................................................................................. 7-12 Figure 185 Browser Title variable entry ..................................................................................... 7-13 Figure 186 Identifying units in the web browser title bar and tabs ........................................... 7-14 Figure 187 Alarm warning triangle ............................................................................................. 7-15 Figure 188 Syslog local log ......................................................................................................... 7-31 Figure 189 System Configuration page (partial view) when transmitter is muted ..................... 7-32 Figure 190 Protected Link page .................................................................................................. 7-33 Figure 191 Login Information page ............................................................................................ 7-52 Figure 192 Encryption key mismatch ......................................................................................... 7-55 Figure 193 Web Page Properties page ........................................................................................ 7-56 Figure 194 System Statistics and Counters page ....................................................................... 7-58 Figure 195 Diagnostics page (1+0 or 2+0 link).......................................................................... 7-62 Figure 196 Diagnostics page (1+1 link)...................................................................................... 7-63 Figure 197 Diagnostics Plotter page ........................................................................................... 7-64 Figure 198 Generate Downloadable Diagnostics page ............................................................... 7-65 Figure 199 Reboot Wireless Unit page ....................................................................................... 7-69 Figure 200 Recovery Mode Warning page .................................................................................. 7-72 Figure 201 Recovery Options page ............................................................................................. 7-73 Figure 202 Recovery Software Upgrade confirmation page ....................................................... 7-74 Figure 203 Recovery Software Upgrade complete page ............................................................ 7-74 Figure 204 Reset Configuration dialog ....................................................................................... 7-75 Figure 205 Erase Configuration dialog ....................................................................................... 7-76 Figure 206 Zeroize Security Parameters dialog ......................................................................... 7-77 xviii phn-2513_001v000 (Apr 2012)
- 23. PTP 800 Series User Guide List of Tables Table 1 PTP 800 licensed bands and frequencies (ODU platform) ............................................... 1-3 Table 2 PTP 800 licensed bands and frequencies (IRFU platform)............................................... 1-3 Table 3 CMU interfaces ................................................................................................................. 1-9 Table 4 CMU LED states ............................................................................................................. 1-11 Table 5 ODU interfaces ............................................................................................................... 1-17 Table 6 IRFU transceiver interfaces ........................................................................................... 1-25 Table 7 HTTPS/TLS security material ......................................................................................... 2-23 Table 8 Permitted character set for SNMPv3 passphrases ......................................................... 2-26 Table 9 Default SNMPv3 users ................................................................................................... 2-27 Table 10 Definition of auth-role vendor-specific attribute ........................................................... 2-29 Table 11 Frame size and latency relationship in Rx SD links ..................................................... 2-48 Table 12 Minimum transmit/transmit frequency separation at a 2+0 IRFU link end................. 2-55 Table 13 Minimum transmit/receive frequency separation at a 2+0 IRFU link end................... 2-56 Table 14 Optional components for PTP 800 CMUs ..................................................................... 2-57 Table 15 Selecting antennas for each hardware configuration .................................................. 2-59 Table 16 Antennas: 6 GHz single polarization ............................................................................ 2-60 Table 17 Antennas: 6 GHz dual polarization ............................................................................... 2-60 Table 18 Antennas: 7 GHz and 8 GHz single polarization........................................................... 2-61 Table 19 Antennas: 7 GHz and 8 GHz dual polarization ............................................................. 2-61 Table 20 Antennas: 11 GHz single polarization .......................................................................... 2-62 Table 21 Antennas: 11 GHz dual polarization ............................................................................. 2-62 Table 22 Antennas: 13 GHz single polarization .......................................................................... 2-63 Table 23 Antennas: 13 GHz dual polarization ............................................................................. 2-63 Table 24 Antennas: 15 GHz single polarization .......................................................................... 2-64 Table 25 Antennas: 15 GHz dual polarization ............................................................................. 2-64 Table 26 Antennas: 18 GHz single polarization .......................................................................... 2-65 Table 27 Antennas: 18 GHz dual polarization ............................................................................. 2-65 Table 28 Antennas: 23 GHz single polarization .......................................................................... 2-66 Table 29 Antennas: 23 GHz dual polarization ............................................................................. 2-66 Table 30 Antennas: 26 GHz single polarization .......................................................................... 2-67 Table 31 Antennas: 26 GHz dual polarization ............................................................................. 2-67 phn-2513_001v000 (Apr 2012) xix
- 24. List of Tables Table 32 Antennas: 28 GHz single polarization .......................................................................... 2-67 Table 33 Antennas: 28 GHz dual polarization ............................................................................. 2-67 Table 34 Antennas: 32 GHz single polarization .......................................................................... 2-68 Table 35 Antennas: 32 GHz dual polarization ............................................................................. 2-68 Table 36 Antennas: 38 GHz single polarization .......................................................................... 2-68 Table 37 Antennas: 38 GHz dual polarization ............................................................................. 2-68 Table 38 ODUs: Lower 6 GHz ODU-A ......................................................................................... 2-69 Table 39 ODUs: Upper 6 GHz ODU-A ......................................................................................... 2-70 Table 40 ODUs: 7 GHz ODU-A .................................................................................................... 2-70 Table 41 ODUs: 8 GHz ODU-A .................................................................................................... 2-73 Table 42 ODUs: 11 GHz ODU-B .................................................................................................. 2-74 Table 43 ODUs: 11 GHz ODU-A .................................................................................................. 2-74 Table 44 ODUs: 13 GHz ODU-A .................................................................................................. 2-75 Table 45 ODUs: 15 GHz ODU-A .................................................................................................. 2-75 Table 46 ODUs: 18 GHz ODU-B .................................................................................................. 2-77 Table 47 ODUs: 18 GHz ODU-A .................................................................................................. 2-77 Table 48 ODUs: 23 GHz ODU-B .................................................................................................. 2-78 Table 49 ODUs: 23 GHz ODU-A .................................................................................................. 2-78 Table 50 ODUs: 26 GHz ODU-A .................................................................................................. 2-79 Table 51 ODUs: 28 GHz ODU-A .................................................................................................. 2-79 Table 52 ODUs: 32 GHz ODU-A .................................................................................................. 2-79 Table 53 ODUs: 38 GHz ODU-A .................................................................................................. 2-80 Table 54 Cable and LPU components ......................................................................................... 2-81 Table 55 Inventory of the coaxial cable installation assembly kit (WB3616) .............................. 2-83 Table 56 Additional components for each remote-mounted ODU ............................................... 2-85 Table 57 Remote mounting kits .................................................................................................. 2-86 Table 58 Flexible waveguides ..................................................................................................... 2-87 Table 59 Flex-twist hanger kits available from Cambium ........................................................... 2-88 Table 60 ODU coupler mounting kits .......................................................................................... 2-88 Table 61 Orthogonal mounting kits (OMKs) ............................................................................... 2-90 Table 62 IRFUs – 6 GHz and 11 GHz .......................................................................................... 2-91 Table 63 IF cable between IRFU and CMU................................................................................. 2-92 Table 64 IRFU transceivers, fan and covers – 6 GHz and 11 GHz .............................................. 2-93 Table 65 RF cables between transceiver and BU – 6 GHz and 11 GHz ...................................... 2-93 Table 66 IRFU filter assemblies – 6 GHz and 11 GHz ................................................................. 2-94 Table 67 IRFU upgrade kits – 6 GHz and 11 GHz ....................................................................... 2-94 Table 68 Antennas and antenna accessories for IRFU deployments .......................................... 2-95 xx phn-2513_001v000 (Apr 2012)
- 25. PTP 800 Series User Guide Table 69 Copper network cables and connectors ....................................................................... 2-96 Table 70 Fiber network cables and connectors .......................................................................... 2-96 Table 71 Single-step capacity upgrades (per unit)...................................................................... 2-97 Table 72 Step-by-step capacity upgrades (per unit) ................................................................... 2-98 Table 73 CMU physical specifications ........................................................................................... 4-2 Table 74 CMU environmental specifications................................................................................. 4-2 Table 75 CMU electrical specifications ......................................................................................... 4-2 Table 76 ODU and CMU power consumption (ODU-A only) ......................................................... 4-3 Table 77 AC to DC converter specifications .................................................................................. 4-4 Table 78 ODU physical specifications ........................................................................................... 4-5 Table 79 ODU-A and ODU-B environmental specifications ........................................................... 4-5 Table 80 RSSI voltage, received signal level and bandwidth ........................................................ 4-5 Table 81 IRFU physical specifications .......................................................................................... 4-8 Table 82 IRFU electrical specifications ......................................................................................... 4-8 Table 83 IRFU environmental specifications ................................................................................ 4-9 Table 84 IRFU EMC and safety compliance .................................................................................. 4-9 Table 85 IRFU transceiver power consumption .......................................................................... 4-10 Table 86 Antenna, transition, waveguide and RMK flanges ....................................................... 4-11 Table 87 Torque value in Nm (lb ft) for each fastener size ......................................................... 4-15 Table 88 ODU coupler physical specifications ............................................................................ 4-15 Table 89 ODU coupler environmental specifications .................................................................. 4-15 Table 90 ODU coupler return losses and isolation ...................................................................... 4-16 Table 91 ODU coupler insertion losses ....................................................................................... 4-16 Table 92 Out-of-band protection splitter specifications .............................................................. 4-17 Table 93 Out-of-band protection cable pin outs .......................................................................... 4-17 Table 94 Fiber-Y kit specifications .............................................................................................. 4-18 Table 95 General wireless specifications .................................................................................... 4-19 Table 96 ETSI band plan (ODU-A and ODU-B)............................................................................ 4-20 Table 97 FCC and IC band plan (ODU-A and ODU-B) ................................................................. 4-21 Table 98 FCC and IC band plan (IRFU platforms) ...................................................................... 4-21 Table 99 NTIA band plan ............................................................................................................. 4-22 Table 100 Brazil band plan .......................................................................................................... 4-22 Table 101 Lower 6 GHz FCC and Canada with 10 MHz bandwidth ........................................... 4-24 Table 102 Lower 6 GHz FCC and Canada with 30 MHz bandwidth ........................................... 4-24 Table 103 Lower 6 GHz ETSI with 29.65 MHz channel separation ............................................ 4-25 Table 104 Upper 6 GHz FCC with 10 MHz bandwidth ............................................................... 4-26 Table 105 Upper 6 GHz FCC with 30 MHz bandwidth ............................................................... 4-26 phn-2513_001v000 (Apr 2012) xxi
- 26. List of Tables Table 106 Upper 6 GHz ETSI with 7 MHz channel separation ................................................... 4-27 Table 107 Upper 6 GHz ETSI with 14 MHz channel separation ................................................. 4-27 Table 108 Upper 6 GHz ETSI with 30 MHz channel separation ................................................. 4-27 Table 109 Upper 6 GHz ETSI with 40 MHz channel separation ................................................. 4-28 Table 110 Upper 6 GHz ETSI with 60 MHz channel separation ................................................. 4-28 Table 111 6 GHz FCC and Canada with 10 MHz bandwidth for IRFU ....................................... 4-29 Table 112 6 GHz FCC with 25 MHz bandwidth for IRFU ........................................................... 4-30 Table 113 6 GHz FCC and Canada with 30 MHz bandwidth for IRFU ....................................... 4-30 Table 114 Transmit branching unit losses for 6 GHz IRFU ........................................................ 4-31 Table 115 Receive branching unit losses for 6 GHz IRFU .......................................................... 4-31 Table 116 7 GHz ETSI with 7 MHz channel separation .............................................................. 4-32 Table 117 7 GHz ETSI with 14 MHz channel separation ............................................................ 4-32 Table 118 7 GHz ETSI with 28 MHz channel separation ............................................................ 4-33 Table 119 8 GHz ETSI with 7 MHz channel separation .............................................................. 4-33 Table 120 8 GHz ETSI with 14 MHz channel separation ............................................................ 4-34 Table 121 8 GHz ETSI with 28 MHz channel separation ............................................................ 4-34 Table 122 8 GHz ETSI with 29.65 MHz channel separation ....................................................... 4-34 Table 123 11 GHz FCC and Canada with 10 MHz bandwidth (ODU-A) ...................................... 4-35 Table 124 11 GHz FCC and Canada with 10 MHz bandwidth (ODU-B) ...................................... 4-35 Table 125 11 GHz FCC and Canada with 30 MHz bandwidth (ODU-A) ...................................... 4-36 Table 126 11 GHz FCC and Canada with 30 MHz bandwidth (ODU-B) ...................................... 4-36 Table 127 11 GHz FCC and Canada with 40 MHz bandwidth (ODU-A) ...................................... 4-37 Table 128 11 GHz FCC and Canada with 40 MHz bandwidth (ODU-B) ...................................... 4-37 Table 129 11 GHz ETSI with 40 MHz channel separation .......................................................... 4-38 Table 130 11 GHz FCC and Canada with 10 MHz bandwidth for IRFU ..................................... 4-39 Table 131 11 GHz FCC and Canada with 30 MHz bandwidth for IRFU ..................................... 4-40 Table 132 11 GHz FCC and Canada with 40 MHz bandwidth for IRFU ..................................... 4-40 Table 133 Transmit branching unit losses for 11 GHz IRFU ...................................................... 4-41 Table 134 Receive branching unit losses for 11 GHz IRFU ........................................................ 4-41 Table 135 13 GHz ETSI with 7 MHz channel separation ............................................................ 4-42 Table 136 13 GHz ETSI with 14 MHz channel separation .......................................................... 4-42 Table 137 13 GHz ETSI with 28 MHz channel separation .......................................................... 4-43 Table 138 15 GHz ETSI with 7 MHz channel separation ............................................................ 4-44 Table 139 15 GHz ETSI with 14 MHz channel separation .......................................................... 4-44 Table 140 15 GHz ETSI with 28 MHz channel separation .......................................................... 4-45 Table 141 15 GHz ETSI with 56 MHz channel separation .......................................................... 4-45 Table 142 18 GHz FCC and Canada with 10 MHz bandwidth (ODU-A) ...................................... 4-46 xxii phn-2513_001v000 (Apr 2012)
- 27. PTP 800 Series User Guide Table 143 18 GHz FCC and Canada with 10 MHz bandwidth (ODU-B) ...................................... 4-46 Table 144 18 GHz FCC and Canada with 20 MHz bandwidth (ODU-A) ...................................... 4-47 Table 145 18 GHz FCC and Canada with 20 MHz bandwidth (ODU-B) ...................................... 4-47 Table 146 18 GHz FCC and Canada with 30 MHz bandwidth (ODU-A) ...................................... 4-48 Table 147 18 GHz FCC and Canada with 30 MHz bandwidth (ODU-B) ...................................... 4-48 Table 148 18 GHz FCC and Canada with 40 MHz bandwidth (ODU-A) ...................................... 4-49 Table 149 18 GHz FCC and Canada with 40 MHz bandwidth (ODU-B) ...................................... 4-49 Table 150 18 GHz FCC and Canada with 50 MHz bandwidth (ODU-A) ...................................... 4-50 Table 151 18 GHz FCC and Canada with 50 MHz bandwidth (ODU-B) ...................................... 4-50 Table 152 18 GHz FCC and Canada with 80 MHz bandwidth (ODU-B) ...................................... 4-51 Table 153 18 GHz ETSI with 7 MHz channel separation ............................................................ 4-51 Table 154 18 GHz ETSI with 13.75 MHz channel separation ..................................................... 4-51 Table 155 18 GHz ETSI with 27.5 MHz channel separation ....................................................... 4-52 Table 156 18 GHz ETSI with 55 MHz channel separation .......................................................... 4-52 Table 157 18 GHz Brazil with 13.75 MHz channel separation ................................................... 4-53 Table 158 18 GHz Brazil with 27.5 MHz channel separation ..................................................... 4-53 Table 159 18 GHz Brazil with 55 MHz channel separation ........................................................ 4-53 Table 160 23 GHz FCC and Canada with 10 MHz bandwidth (ODU-A) ...................................... 4-54 Table 161 23 GHz FCC and Canada with 10 MHz bandwidth (ODU-B) ...................................... 4-55 Table 162 23 GHz FCC and Canada with 20 MHz bandwidth (ODU-A) ...................................... 4-55 Table 163 23 GHz FCC and Canada with 20 MHz bandwidth (ODU-B) ...................................... 4-56 Table 164 23 GHz FCC and Canada with 30 MHz bandwidth (ODU-A) ...................................... 4-56 Table 165 23 GHz FCC and Canada with 30 MHz bandwidth (ODU-B) ...................................... 4-57 Table 166 23 GHz FCC and Canada with 40 MHz bandwidth (ODU-A) ...................................... 4-57 Table 167 23 GHz FCC and Canada with 40 MHz bandwidth (ODU-B) ...................................... 4-58 Table 168 23 GHz FCC and Canada with 50 MHz bandwidth (ODU-A) ...................................... 4-58 Table 169 23 GHz FCC and Canada with 50 MHz bandwidth (ODU-B) ...................................... 4-59 Table 170 23 GHz ETSI with 7 MHz channel separation ............................................................ 4-59 Table 171 23 GHz ETSI with 14 MHz channel separation .......................................................... 4-59 Table 172 23 GHz ETSI with 28 MHz channel separation .......................................................... 4-60 Table 173 23 GHz ETSI with 56 MHz channel separation .......................................................... 4-60 Table 174 26 GHz FCC with 10 MHz bandwidth ........................................................................ 4-61 Table 175 26 GHz FCC with 20 MHz bandwidth ........................................................................ 4-61 Table 176 26 GHz FCC with 40 MHz bandwidth ........................................................................ 4-62 Table 177 26 GHz ETSI with 7 MHz channel separation ............................................................ 4-62 Table 178 26 GHz ETSI with 14 MHz channel separation .......................................................... 4-62 Table 179 26 GHz ETSI with 28 MHz channel separation .......................................................... 4-63 phn-2513_001v000 (Apr 2012) xxiii
- 28. List of Tables Table 180 26 GHz ETSI with 56 MHz channel separation .......................................................... 4-63 Table 181 28 GHz ETSI with 7 MHz bandwidth ......................................................................... 4-64 Table 182 28 GHz ETSI with 14 MHz channel separation .......................................................... 4-64 Table 183 28 GHz ETSI with 28 MHz channel separation .......................................................... 4-65 Table 184 28 GHz ETSI with 56 MHz channel separation .......................................................... 4-65 Table 185 32 GHz ETSI with 7 MHz channel separation ............................................................ 4-66 Table 186 28 GHz ETSI with 14 MHz channel separation .......................................................... 4-66 Table 187 32 GHz ETSI with 28 MHz channel separation .......................................................... 4-67 Table 188 32 GHz ETSI with 56 MHz channel separation .......................................................... 4-67 Table 189 38 GHz FCC and Canada with 10 MHz bandwidth .................................................... 4-68 Table 190 38 GHz FCC and Canada with 50 MHz bandwidth .................................................... 4-68 Table 191 38 GHz ETSI with 7 MHz channel separation ............................................................ 4-69 Table 192 38 GHz ETSI with 14 MHz channel separation .......................................................... 4-69 Table 193 38 GHz ETSI with 28 MHz channel separation .......................................................... 4-70 Table 194 38 GHz ETSI with 56 MHz channel separation .......................................................... 4-70 Table 195 Copper data port specifications ................................................................................. 4-71 Table 196 Fiber data port specifications ..................................................................................... 4-71 Table 197 Management port specifications ................................................................................ 4-71 Table 198 Ethernet bridging specifications ................................................................................ 4-72 Table 199 Event messages .......................................................................................................... 4-74 Table 200 Standard SNMP objects ............................................................................................. 4-76 Table 201 Identification of interfaces ......................................................................................... 4-78 Table 202 Counters for the wireless interface ............................................................................ 4-78 Table 203 Counters for the data interface .................................................................................. 4-79 Table 204 Counters for the management interface .................................................................... 4-79 Table 205 Supported standard notifications ............................................................................... 4-80 Table 206 Electrical safety specifications ................................................................................... 4-81 Table 207 EMC immunity compliance specifications .................................................................. 4-81 Table 208 PTP 800 minimum separation distances, ETSI method.............................................. 4-86 Table 209 PTP 800 minimum separation distances, FCC method (ODU) ................................... 4-88 Table 210 PTP 800 minimum separation distances, FCC method (IRFU) .................................. 4-88 Table 211 Tools required for PTP 800 installation ........................................................................ 5-3 Table 212 Selecting antenna and ODU installation procedures ................................................... 5-5 Table 213 Expected cable loss when ODU is not connected ....................................................... 5-65 Table 214 Tools required for IRFU installation........................................................................... 5-69 Table 215 IRFU waveguide and flange specifications ................................................................ 5-72 Table 216 Selecting network interfaces for 1+1 Hot Standby links ........................................... 5-88 xxiv phn-2513_001v000 (Apr 2012)
- 29. PTP 800 Series User Guide Table 217 Tools required for IRFU component replacement ...................................................... 5-95 Table 218 RF cable connections (1+1 Tx MHSB / Rx SD example) .......................................... 5-103 Table 219 IP interface attributes ................................................................................................ 6-12 Table 220 Management port attributes ...................................................................................... 6-14 Table 221 Data port attributes .................................................................................................... 6-15 Table 222 Bridged Ethernet traffic attributes ............................................................................. 6-16 Table 223 Capability summary attributes ................................................................................... 6-19 Table 224 HTTP and Telnet attributes ........................................................................................ 6-37 Table 225 Local User account management attributes............................................................... 6-41 Table 226 Password complexity configuration attributes ........................................................... 6-42 Table 227 Identity-based user accounts attributes ..................................................................... 6-45 Table 228 RADIUS Authentication attributes ............................................................................. 6-49 Table 229 Protection Configuration attributes ........................................................................... 6-55 Table 230 Step 1: Equipment Configuration attributes .............................................................. 6-63 Table 231 Step 2: Radio License Configuration attributes ......................................................... 6-68 Table 232 Step 3: Wireless Configuration attributes .................................................................. 6-69 Table 233 Step 1: SNMP Configuration attributes (for SNMPv3) .............................................. 6-75 Table 234 Step 2: SNMP MIB-II System Objects attributes........................................................ 6-76 Table 235 Step 3: SNMP User Policy Configuration attributes (for SNMPv3) ........................... 6-78 Table 236 Step 3: SNMP User Accounts Configuration attributes (for SNMPv3) ...................... 6-79 Table 237 Step 5: SNMP Trap Configuration attributes (for SNMPv3) ...................................... 6-80 Table 238 Step 1: SNMP Configuration attributes (for SNMPv1/2c).......................................... 6-83 Table 239 Step 3: SNMP Trap Configuration attributes (for SNMPv1/2c) ................................. 6-85 Table 240 Email Configuration attributes ................................................................................... 6-90 Table 241 Syslog Configuration attributes.................................................................................. 6-92 Table 242 Web-Based Management attributes ........................................................................... 6-95 Table 243 System Configuration attributes .............................................................................. 6-106 Table 244 Layer 2 Control Protocols ......................................................................................... 6-111 Table 245 Ethernet Priority Queue settings .............................................................................. 6-111 Table 246 Manual clock attributes ............................................................................................ 6-114 Table 247 SNTP clock attributes ............................................................................................... 6-116 Table 248 Procedures performed from each menu option ............................................................ 7-4 Table 249 System Summary attributes ......................................................................................... 7-6 Table 250 RFU Status attribute values ....................................................................................... 7-10 Table 251 Transmitter Status attribute values ........................................................................... 7-10 Table 252 Wireless Link Status attribute values ......................................................................... 7-11 Table 253 Transmit Modulation Selection Detail attribute values .............................................. 7-11 phn-2513_001v000 (Apr 2012) xxv
- 30. List of Tables Table 254 Data Port Status attribute values ............................................................................... 7-12 Table 255 Management Port Status attribute values.................................................................. 7-12 Table 256 Browser Title attribute variables................................................................................ 7-13 Table 257 SNMP traps supported by PTP 800 ............................................................................ 7-24 Table 258 Protected Link page symbols and text ....................................................................... 7-34 Table 259 System Statistics and Counters attributes ................................................................. 7-59 Table 260 Recovery options ........................................................................................................ 7-73 Table 261 CMU power indicator checks ....................................................................................... 8-2 Table 262 DC supply checks when CMU power indicator is off ................................................... 8-2 Table 263 CMU status indicator checks........................................................................................ 8-3 Table 264 Management port indicator checks .............................................................................. 8-4 Table 265 Copper Data port indicator checks............................................................................... 8-5 Table 266 Fiber Data port indicator checks .................................................................................. 8-6 Table 267 Ping response checks ................................................................................................... 8-8 Table 268 RFU status checks ........................................................................................................ 8-9 Table 269 Transmitter Status checks .......................................................................................... 8-10 Table 270 Link Status checks...................................................................................................... 8-11 Table 271 IRFU LED status checks ............................................................................................. 8-12 180H Table 272 Protected Interface Status values and actions ........................................................... 8-13 892H 1802H xxvi phn-2513_001v000 (Apr 2012)
- 31. PTP 800 Series User Guide About This User Guide This guide describes the planning, installation and operation of the Cambium PTP 800. It is intended for use by the system designer, system installer and the system administrator. Users of this guide should have knowledge of the following areas: • Radio network design • Outdoor radio equipment installation • System installation, configuration, monitoring and fault finding System designers should refer to the following chapters: • Chapter 1: Product description • Chapter 2: Planning considerations • Chapter 3: Legal information • Chapter 4: Reference information Installers should refer to the following chapters: • Chapter 5: Installation • Chapter 6: Configuration and alignment • Chapter 8: Troubleshooting Operators should refer to the following chapters: • Chapter 1: Product description • Chapter 6: Configuration and alignment • Chapter 7: Operation • Chapter 8: Troubleshooting phn-2513_001v000 (Apr 2012) 1
- 32. General information About This User Guide General information Version information The following shows the issue status of this document: Document Date of Remarks issue issue 001v000 Apr 2012 System Release 800-05-00 Contacting Cambium Networks Support website: http://www.cambiumnetworks.com/support Main website: http://www.cambiumnetworks.com Sales enquiries: solutions@cambiumnetworks.com Support enquiries: support@cambiumnetworks.com Telephone number list: http://www.cambiumnetworks.com/contact.php Address: Cambium Networks Limited, Linhay Business Park, Eastern Road, Ashburton, Devon, UK, TQ13 7UP 2 phn-2513_001v000 (Apr 2012)
- 33. PTP 800 Series User Guide General information Purpose Cambium Networks Point-To-Point (PTP) documents are intended to instruct and assist personnel in the operation, installation and maintenance of the Cambium PTP equipment and ancillary devices. It is recommended that all personnel engaged in such activities be properly trained. Cambium disclaims all liability whatsoever, implied or express, for any risk of damage, loss or reduction in system performance arising directly or indirectly out of the failure of the customer, or anyone acting on the customer's behalf, to abide by the instructions, system parameters, or recommendations made in this document. Cross references References to external publications are shown in italics. Other cross references, emphasized in blue text in electronic versions, are active links to the references. This document is divided into numbered chapters that are divided into sections. Sections are not numbered, but are individually named at the top of each page, and are listed in the table of contents. Feedback We appreciate feedback from the users of our documents. This includes feedback on the structure, content, accuracy, or completeness of our documents. Send feedback to support@cambiumnetworks.com. phn-2513_001v000 (Apr 2012) 3
- 34. Problems and warranty About This User Guide Problems and warranty Reporting problems If any problems are encountered when installing or operating this equipment, follow this procedure to investigate and report: 1 Search this document and the software release notes of supported releases. 2 Visit the support website. 3 Ask for assistance from the Cambium product supplier. 4 Gather information from affected units, such as any available diagnostic downloads. 5 Escalate the problem by emailing or telephoning support. Repair and service If unit failure is suspected, obtain details of the Return Material Authorization (RMA) process from the support website. Warranty Cambium’s standard hardware warranty is for one (1) year from date of shipment from Cambium or a Cambium distributor. Cambium warrants that hardware will conform to the relevant published specifications and will be free from material defects in material and workmanship under normal use and service. Cambium shall within this time, at its own option, either repair or replace the defective product within thirty (30) days of receipt of the defective product. Repaired or replaced product will be subject to the original warranty period but not less than thirty (30) days. To register PTP products or activate warranties, visit the support website. For warranty assistance, contact the reseller or distributor. Using non-Cambium parts for repair could damage the equipment or void warranty. Contact Cambium for service and repair instructions. 4 phn-2513_001v000 (Apr 2012)
- 35. PTP 800 Series User Guide Problems and warranty Portions of Cambium equipment may be damaged from exposure to electrostatic discharge. Use precautions to prevent damage. phn-2513_001v000 (Apr 2012) 5
- 36. Security advice About This User Guide Security advice Cambium Networks systems and equipment provide security parameters that can be configured by the operator based on their particular operating environment. Cambium recommends setting and using these parameters following industry recognized security practices. Security aspects to be considered are protecting the confidentiality, integrity, and availability of information and assets. Assets include the ability to communicate, information about the nature of the communications, and information about the parties involved. In certain instances Cambium makes specific recommendations regarding security practices, however the implementation of these recommendations and final responsibility for the security of the system lies with the operator of the system. 6 phn-2513_001v000 (Apr 2012)
- 37. PTP 800 Series User Guide Warnings, cautions, and notes Warnings, cautions, and notes The following describes how warnings and cautions are used in this document and in all documents of the Cambium Networks document set. Warnings Warnings precede instructions that contain potentially hazardous situations. Warnings are used to alert the reader to possible hazards that could cause loss of life or physical injury. A warning has the following format: Warning text and consequence for not following the instructions in the warning. Cautions Cautions precede instructions and are used when there is a possibility of damage to systems, software, or individual items of equipment within a system. However, this damage presents no danger to personnel. A caution has the following format: Caution text and consequence for not following the instructions in the caution. Notes A note means that there is a possibility of an undesirable situation or provides additional information to help the reader understand a topic or concept. A note has the following format: Note text. phn-2513_001v000 (Apr 2012) 7
- 38. Caring for the environment About This User Guide Caring for the environment The following information describes national or regional requirements for the disposal of Cambium Networks supplied equipment and for the approved disposal of surplus packaging. In EU countries The following information is provided to enable regulatory compliance with the European Union (EU) directives identified and any amendments made to these directives when using Cambium equipment in EU countries. Disposal of Cambium equipment European Union (EU) Directive 2002/96/EC Waste Electrical and Electronic Equipment (WEEE) Do not dispose of Cambium equipment in landfill sites. In the EU, Cambium in conjunction with a recycling partner ensures that equipment is collected and recycled according to the requirements of EU environmental law. Disposal of surplus packaging Do not dispose of surplus packaging in landfill sites. In the EU, it is the individual recipient’s responsibility to ensure that packaging materials are collected and recycled according to the requirements of EU environmental law. In non-EU countries In non-EU countries, dispose of Cambium equipment and all surplus packaging in accordance with national and regional regulations. 8 phn-2513_001v000 (Apr 2012)
- 39. PTP 800 Series User Guide Licensing requirements Licensing requirements Operating license This equipment operates in bands that require a license in most countries. In most countries it is illegal to operate the PTP 800 without a license from the regional or local regulating authority. United States of America This device has been verified by Cambium Networks as being in compliance with the requirements of the rules of the Federal Communications Commission (FCC), 47 C.F.R. Part 101, and may not be operated without a station license. In the United States such licenses are issued by the FCC to entities other than agencies of the United States government. Federal government agencies are licensed by the National Telecommunications and Information Administration (NTIA) acting upon the recommendation of the Interdepartment Radio Advisory Committee (IRAC). Cambium license agreement The PTP 800 must be operated in accordance with the Cambium Networks end user license agreement, as specified in Chapter 3: Legal information. phn-2513_001v000 (Apr 2012) 9
- 40. Licensing requirements About This User Guide 10 phn-2513_001v000 (Apr 2012)
- 41. PTP 800 Series User Guide Chapter 1: Product description This chapter provides a high level description of the PTP 800 product. It describes in general terms the function of the product, the main product variants and typical deployment. It also describes the main hardware components. The following topics are described in this chapter: • Overview on page 1-2 introduces the key features, typical uses, product variants and components of the PTP 800. • Compact modem unit (CMU) on page 1-8 describes the CMU and its interfaces. • Outdoor unit (ODU) on page 1-13 describes the ODU and its interfaces. • Indoor RF unit (IRFU) on page 1-18 describes the IRFU and its interfaces. • Antennas and couplers on page 1-27 describes the PTP 800 antennas, couplers and remote mounting kit. • Cabling and lightning protection on page 1-35 describes the cabling and lightning protection components of a PTP 800 installation. • Wireless operation on page 1-38 describes how the PTP 800 wireless link is operated, including modulation modes, power control and security. • Ethernet bridging on page 1-42 describes how the PTP 800 controls Ethernet data, in both the customer data network and the system management network. • System management on page 1-51 introduces the PTP 800 management system, including the web interface, installation, configuration, alerts and upgrades. • 1+1 Hot Standby link protection on page 1-64 describes the concept, operation and interfaces of 1+1 Hot Standby links. • FIPS 140-2 on page 1-71 describes the (optional) FIPS 140-2 cryptographic mode of operation. phn-2513_001v000 (Apr 2012) 1-1
- 42. Overview Chapter 1: Product description Overview Cambium PTP 800 Licensed Ethernet Microwave products are designed for Ethernet bridging at up to 368 Mbps over licensed point-to-point microwave links in selected licensed bands from 6 GHz to 38 GHz. The products offer exceptional cost efficiency and scalability. Key features The key features of the PTP 800 include: • Support for licensed bands from 6 GHz to 38 GHz. • Link capacity from 10 Mbps to 368 Mbps in each direction. • Configurable channel bandwidths from 7 MHz to 80 MHz (FCC and ETSI). • Upgradeable link capacity limits from 10 Mbps to full capacity via software license key, purchased for each end to allow asymmetric link capacity. • Fixed modulation modes QPSK to 256 QAM. • Hitless adaptive modulation, the instantaneous capacity adapting to the varying radio conditions. • Optional 1+1 Hot Standby link protection. • Optional receive spatial diversity. • Effective quality of service (QoS), with Layer 2 or Layer 3 classification and eight queues. • Ultra-low latency, <115 us @ 368 Mbps with 64 byte frames. • Split mount architecture with a compact indoor unit and a separate RF unit, either outdoor or indoor. • All indoor solution with 19" rack mounted Indoor Radio Frequency Unit( IRFU). • In-band or out-of-band network management. • Link planning with the PTP LINKPlanner. • Optional FIPS-197 128/256bit AES encryption. • Optional HTTPS/TLS security on the web-based management interface. • SNMPv3 with optional AES privacy and SHA1 authentication. • Full capacity trial for the first 60 days. 1-2 phn-2513_001v000 (Apr 2012)
- 43. PTP 800 Series User Guide Overview Supported bands and frequencies The PTP 800 outdoor unit (ODU) platform supports the licensed bands and frequencies listed in Table 1. The PTP 800 indoor RF unit (IRFU) platform supports the licensed bands and frequencies listed in Table 2. Table 1 PTP 800 licensed bands and frequencies (ODU platform) Licensed band Regions Frequency coverage Lower 6 GHz FCC, IC, ETSI 5.925 – 6.425 GHz Upper 6 GHz FCC, ETSI 6.425 – 7.125 GHz 7 GHz ETSI, NTIA 7.110 – 7.9 GHz 8 GHz ETSI, NTIA 7.725 – 8.5 GHz 11 GHz FCC, IC, ETSI 10.7 – 11.7 GHz 13 GHz ETSI 12.75 – 13.25 GHz 15 GHz ETSI, Mexico, ANZ 14.4 GHz – 15.35 GHz 18 GHz FCC, IC, ETSI, Brazil 17.7 – 19.7 GHz 23 GHz FCC, IC, ETSI 21.2 – 23.6 GHz 26 GHz FCC, ETSI 24.25 – 26.5 GHz 28 GHz ETSI 27.5 – 29.5 GHz 32 GHz ETSI 31.8 – 33.4 GHz 38 GHz FCC, IC, ETSI 37 – 40 GHz Table 2 PTP 800 licensed bands and frequencies (IRFU platform) Licensed band Regions Frequency coverage Lower 6 GHz FCC, IC 5.925 – 6.425 GHz Upper 6 GHz FCC 6.525 – 6.875 GHz 7 GHz FCC 6.875 – 7.125 GHz 11 GHz FCC 10.70 – 11.71 GHz 11 GHz IC 10.696 – 11.71 GHz phn-2513_001v000 (Apr 2012) 1-3
- 44. Overview Chapter 1: Product description Typical users and applications PTP 800 links may be used to provide high-performance Ethernet communication for: • Enterprises • Internet Service Providers (ISPs) • Government agencies • Cellular carriers • Health care and hospitals • Schools and universities • Municipalities • Public safety agencies PTP 800 systems serve a wide variety of enterprise and network applications, including: • Building-to-building connectivity • Leased-line replacement • Video surveillance • Network redundancy • WiMAX, LTE and 3G backhaul • Data overlay networks • Last mile access and connection 1-4 phn-2513_001v000 (Apr 2012)
- 45. PTP 800 Series User Guide Overview System components The main components of the PTP 800 are shown in Figure 1 (ODU platform) and Figure 2 (IRFU platform). Figure 1 Typical PTP 800 deployment (ODU platform) Figure 2 Typical PTP 800 deployment (IRFU platform) Antenna Antenna Waveguide Waveguide Power supply Power supply CMU CMU IRFU IRFU Network equipment Network equipment phn-2513_001v000 (Apr 2012) 1-5
- 46. Overview Chapter 1: Product description The main components are: • Compact modem unit (CMU): The CMU converts data signals between Ethernet frames and a modulated intermediate frequency (IF) carrier. • Outdoor unit (ODU): The ODU converts signals between a modulated intermediate frequency (IF) and radio band frequencies. • Indoor RF unit (IRFU): The IRFU is an alternative to the ODU. It is installed indoors, for easier maintenance and security. • Antennas and couplers: Cambium supplies high performance, low profile antennas for PTP 800 frequency bands in sizes from 0.3 m (1 ft) to 3.7 m (12 ft). These can be mounted directly to the ODUs, or remotely via waveguide. In 1+1 links, ODUs installed at the same end can share an antenna through the use of coupler mounting kits. • Cabling and lightning protection: o ODU platforms: The CMU is connected to the ODU using CNT-400 coaxial cable (IF cable), lightning protection units (LPUs) and grounding cables. In remote mount configurations,. o IRFU platforms: The IRFU is connected to the antenna using flexible waveguide and premium elliptical waveguide. The generic term RFU is used in this user guide (and in the web interface) to include the ODU and IRFU. Link types The PTP 800 supports the following link types: • 1+0 single link: A 1+0 single link transports Ethernet frames between two sites. Each link end has one CMU, one RFU and one antenna. • 1+1 Hot Standby link: A 1+1 Hot Standby link transports Ethernet frames between two sites and provides protection against single point equipment failure. This is achieved by the deployment of extra equipment which can automatically take over the operation of the link in case of equipment failure. Each end of the link requires two CMUs, either one or two antennas and either two ODUs for outdoor deployments or a 1+1 capable IRFU for indoor deployments. A 1+1 Hot Standby Link can also be configured to support Receive Spatial Diversity which requires two antennas at each end of the link. For indoor deployments, a 1+1 Rx SD capable IRFU is required. • 2+0 two links sharing antennas: A 2+0 configuration consists of two 1+0 links between the same two sites, where the antenna at each site is shared between the two 1+0 links. In this user guide and in PTP LINKPlanner, these two links are called link ‘A’ and link ‘B’. Link A and link B must operate on different frequencies and will generally require separate radio licenses. The antennas in a 2+0 link may be single-polar or dual-polar. 1-6 phn-2513_001v000 (Apr 2012)
- 47. PTP 800 Series User Guide Overview For more information about these link types refer to: • Planning 1+0 links on page 2-30 • Planning 1+1 Hot Standby links on page 2-35 • Planning 2+0 links on page 2-49 phn-2513_001v000 (Apr 2012) 1-7
- 48. Compact modem unit (CMU) Chapter 1: Product description Compact modem unit (CMU) This section describes the PTP 800 CMU and its interfaces. CMU description The PTP 800 compact modem unit (CMU) (Figure 3) is mounted indoors and provides the Ethernet interface to the network. It converts the Ethernet frames to a data stream which then modulates an intermediate frequency (IF) signal which is sent to the radio frequency unit (RFU), either an outdoor unit (ODU) or an indoor radio frequency unit (IRFU). In the other direction, the CMU demodulates a similar IF signal from the RFU and reconstructs Ethernet frames to send to the network. Both IF signals are carried over a coaxial IF cable connecting the CMU to the RFU. The CMU also provides power to the ODU and this is also carried over the coaxial cable. The IRFU is powered separately. The CMU is mounted on a shelf, on a wall (using the provided bracket), or in a standard 19 inch rack (using the optional CMU rack mounting kit). It is ideally suited to applications where space is limited. Figure 3 PTP 800 CMU 1-8 phn-2513_001v000 (Apr 2012)
- 49. PTP 800 Series User Guide Compact modem unit (CMU) CMU interfaces The CMU front panel interfaces are illustrated in Figure 4 and described in Table 3. The CMU front panel indicator LEDs and their states are described in Table 4. Figure 4 CMU front panel Table 3 CMU interfaces Interface Function ODU This is a standard N-type female connector, used to connect the CMU to the ODU or IRFU transceiver via IF cable. The IF cable carries the following multiplexed signals: Power supply at –48 V dc Transmit signal at 350 MHz Receive signal at 140 MHz RFU control and status signals Do not connect or disconnect the IF cable when the –48 V supply is applied to the CMU. Management This is a 10baseT and 100baseT Ethernet port, used to connect the CMU to the management network when ‘out-of- band’ management is implemented. It is not used when ‘in- band’ management is implemented. For more information on the Ethernet interfaces see Data network specifications on page 4-71. For 1+1 Hot Standby protection, spare pins in the management port provide the protection interface between the two CMUs at one end of a link. For more information see 1+1 Hot Standby link protection on page 1-64. phn-2513_001v000 (Apr 2012) 1-9
- 50. Compact modem unit (CMU) Chapter 1: Product description Interface Function Recovery This switch is used to start the CMU in recovery mode. Recovery mode provides a means to recover from serious configuration errors including lost or forgotten passwords and unknown IP addresses. For more information see Recovery mode on page 1-62. Recovery mode also allows new main application software to be loaded even when the integrity of the existing main application software has been compromised. Data (copper port) This is a 100baseT and 1000baseT Ethernet port, used to connect the CMU to the customer data network. In the ‘in- band’ management mode, the system is managed through the Data port and management traffic is multiplexed with customer traffic. For more information on Ethernet interfaces see Data network specifications on page 4-71. Data (fiber SFP port) This is a standard small form-factor pluggable (SFP) gigabit interface, used to connect the CMU to the customer data network via a fiber-optic module. When a supported SFP module is present and is working, and the fiber carrier is present, the customer traffic network (and in-band management network, if enabled) connects through fiber, and the copper data port is not used. If the fiber link fails or loses the carrier signal, the Ethernet service falls back to the copper LAN connection. The fiber SFP port is a Class 1 laser product, safe under all conditions of normal operation. For more information on Ethernet interfaces see Wireless specifications on page 4-19. -48V DC Power This a socket for connecting the CMU to a standard –48 V dc telecommunications supply, with supply range –40.5 V to –60 V. The 0 V (positive connection) is grounded at the CMU casing, IF cable outer shield and ODU casing. Ground stud This M5 ground stud is used to ground the CMU via the supplied lug. The ground cable is fitted to a low impedance ground point. This protects personnel and equipment from hazardous voltages caused by lightning strikes. For a 1+1 Hot Standby protected link, both CMUs are connected to a common ground. 1-10 phn-2513_001v000 (Apr 2012)
- 51. PTP 800 Series User Guide Compact modem unit (CMU) Table 4 CMU LED states Indicator State Description ODU Green steady RFU ready for use and transmitting Green slow blink RFU available for use but muted, or RFU incompatible with radio license configuration Red steady No response from, or incompatible RFU Off RFU not powered 1+1 Green steady CMU active and protected Management Green blink CMU on standby and protecting the link Orange steady CMU active but not protected Orange blink CMU is not protecting the link Off The link is not 1+1 Hot Standby 10/100 Orange steady Ethernet link up, no traffic Management Orange blink Ethernet link up, traffic Off Ethernet link down or not connected 100 Data Orange steady 100baseT Ethernet link up, no traffic Orange blink 100baseT Ethernet link up, traffic Off Ethernet link down or not 100baseT 1000 Data Green steady 1000baseT Ethernet link up, no traffic Green blink 1000baseT Ethernet link up, traffic Off Ethernet link down or not 1000baseT GigE Data Green steady Fiber Ethernet link up, no traffic Green blink Fiber Ethernet link up, traffic Off Ethernet link down or not connected Modem Green steady Normal operation Green slow blink Wireless link down Orange steady CMU booting Red steady Out of service Red slow blink Recovery mode Off Power supply fault (there may still be power to the CMU) Power Green steady Power supply correct Off Power supply fault (there may still be power to the CMU) phn-2513_001v000 (Apr 2012) 1-11
- 52. Compact modem unit (CMU) Chapter 1: Product description Further reading on the CMU For more information on the CMU, refer to the following: • Power supply considerations on page 2-4 describes how to plan the power supply to the PTP 800 CMU. • Ordering CMUs on page 2-57 describes how to order CMUs for the link and specifies the Cambium part number of the CMU kit. • CMU specifications on page 4-2 contains specifications of the CMU, such as dimensions, weight and environmental requirements. • Installing the CMU on page 5-76 describes how to install and connect the CMU. • Preparing network connections (1+0 and 2+0 links) on page 5-83 describes how to prepare the CMU network connections for unprotected links. • Preparing network connections (1+1 Hot Standby) on page 5-88 describes how to prepare the CMU network connections for protected links. • Connecting to the network on page 6-112 describes how to complete and test the CMU network connections. 1-12 phn-2513_001v000 (Apr 2012)
- 53. PTP 800 Series User Guide Outdoor unit (ODU) Outdoor unit (ODU) This section describes the PTP 800 ODU and its interfaces. ODU description The PTP 800 outdoor unit (ODU) provides the necessary frequency conversion and amplification of signals which pass between the CMU and antenna. In the transmit direction, the ODU takes the fixed intermediate frequency (IF) signal provided by the CMU and converts and amplifies it to a configured licensed band radio frequency signal for transmission at the antenna. In the receive direction, the ODU provides amplification and down conversion of a licensed band signal received at the antenna interface. The result is a fixed IF signal which is passed to the CMU for demodulation. ODUs are available in all licensed bands supported by PTP 800 (see Supported bands and frequencies on page 1-3 for the full list of supported bands). A given licensed band is generally split into sub-bands where a given sub-band is supported by a pair of ODUs. One ODU is designed to transmit at the high frequency side of the Frequency Division Duplex (FDD), the other at the low frequency side. The ODU transmit and receive frequencies are configurable within a sub-band. The ODU is designed for outdoor operation, either mounting directly to the back of an antenna or mounted separately using a Remote Mount Kit which then connects to the antenna with flexible waveguide. The ODU also provides an interface which allows the installer to monitor the receive signal level when aligning antennas. phn-2513_001v000 (Apr 2012) 1-13
- 54. Outdoor unit (ODU) Chapter 1: Product description Alternative ODU platforms There are two alternative ODU platforms: ODU-A (Figure 5) or ODU-B (Figure 6). Figure 5 ODU-A Figure 6 ODU-B ODU-B is available in selected regions and bands. It is the preferred choice when available, as it offers the following advantages over ODU-A: • Superior ACM characteristics • Higher transmit power • Lower power dissipation Do not install an ODU-A and an ODU-B in the same link. For more information about the capabilities and availability of ODU-A and ODU-B, refer to Ordering ODUs on page 2-69. 1-14 phn-2513_001v000 (Apr 2012)
- 55. PTP 800 Series User Guide Outdoor unit (ODU) The term ‘ODU’ covers both ODU-A and ODU-B. ODU interfaces The ODU interfaces are illustrated in Figure 7, Figure 8, Figure 9 and Figure 10. They are described in Table 5. Figure 7 ODU front view phn-2513_001v000 (Apr 2012) 1-15
- 56. Outdoor unit (ODU) Chapter 1: Product description Figure 8 ODU rear view Figure 9 ODU-A side view Figure 10 ODU-B side view 1-16 phn-2513_001v000 (Apr 2012)
- 57. PTP 800 Series User Guide Outdoor unit (ODU) Table 5 ODU interfaces Interface Function Waveguide polarization This indicates the orientation of the waveguide interface. The arrow arrow is parallel to the short dimension of the rectangular waveguide aperture. Spring loaded latches These four spring loaded latches are used to fasten the ODU to the antenna, remote mounting kit or coupler. Waveguide interface This connects to a Cambium direct mount antenna, an ODU coupler kit, or a remote mounting kit. Ground connector This is used to ground the ODU to the top lightning protection unit (LPU). RSSI connector The received signal strength indication (RSSI) connector is a standard BNC female connector that provides access to an analogue voltage proportional to the received power at the ODU input. A voltmeter is attached to the RSSI connector to measure the voltage when aligning the antenna. For more information, see Step 6: Aligning antennas on page 6-98. CMU connector This connects the ODU to the CMU via an IF cable. Further reading on the ODU For more information on the ODU, refer to the following: • Grounding and lightning protection on page 2-7 describes the grounding and lightning protection requirements of a PTP 800 installation, including the ODU. • Ordering ODUs on page 2-69 lists the ODUs available for PTP 800 installations, with Cambium part numbers. • ODU specifications on page 4-5 contains specifications of the ODU, such as dimensions, weight and environmental requirements. • Coupler mounting kit specifications on page 4-15 contains specifications of the couplers that may be used to connect two ODUs to one antenna. • Installing antennas and ODUs on page 5-5 describes how to install the antennas, ODUs and waveguide connections at each link end, either in a direct mount or remote mount configuration, with or without couplers. phn-2513_001v000 (Apr 2012) 1-17
- 58. Indoor RF unit (IRFU) Chapter 1: Product description Indoor RF unit (IRFU) This section describes the PTP 800 IRFU and its interfaces. IRFU description The PTP 800 indoor RF unit (IRFU) (Figure 11) converts signals between a modulated intermediate frequency (IF) and radio band frequencies for transmission over a line-of- sight link. The IRFU can be chosen as an alternative to the ODU to operate with one or two PTP 800 CMUs. Figure 11 Top and front view of IRFU shelf (with single transceiver and waveguide) The PTP 800 IRFU platform supports the licensed bands and frequencies listed in Table 2. The IRFU chassis is designed for mounting in an indoor 19" rack. The 2.77 U height chassis can house one or two field replaceable transceivers, where each transceiver interfaces to a separate CMU via an intermediate frequency coaxial cable, or IF cable. The IRFU also provides either one or two waveguide interfaces for connection to the antenna or antennas. The waveguide interfaces have excellent voltage standing wave ratio (VSWR). This reduces the amplitude of reflected signals passing up the waveguide which could otherwise degrade the quality of the transmitted and received signals. When connected to a suitably low VSWR antenna, this makes the IRFU ideal for operation with a wide range of waveguide lengths. 1-18 phn-2513_001v000 (Apr 2012)
- 59. PTP 800 Series User Guide Indoor RF unit (IRFU) Transceivers Each transceiver provides the necessary frequency conversion and amplification of signals which pass between the CMU and antenna. In the transmit direction, a transceiver up-converts and amplifies the fixed intermediate frequency (IF) signal received from the CMU resulting in a configured licensed band radio frequency signal transmitted at the waveguide interface. In the receive direction, a transceiver provides low noise amplification and down-conversion of the licensed band signal received at the waveguide interface. The result is a fixed IF signal which is passed to the CMU for demodulation. Each transceiver is powered via its own dedicated power socket. Cambium Networks do not provide the power supply, but they do provide the power connector. For power supply requirements, please see IRFU specifications on page 4-8. To prevent grounding issues with the CMU, only a -48 V dc power supply is supported. Each transceiver is cooled by its own field replaceable fan assembly. Each fan assembly contains two fans which are automatically controlled by the transceiver which responds to changes in the temperature of its power amplifier. As an aid to aligning antennas, the IRFU provides an interface per transceiver for monitoring the strength of the received signal level. Branching unit The transceivers connect to the waveguide interfaces via the IRFU branching unit. The branching unit is an integral part of the IRFU and is situated at the back of the chassis. The branching unit provides the necessary coupling and filtering and also the necessary isolation between transceivers. Although the branching unit is not field replaceable, the transmit and receive filters within the branching unit are both field replaceable. IRFU availability IRFUs are available at 6 GHz and 11 GHz. The 6 GHz IRFU support the L6 and U6 bands of both FCC and Industry Canada regulations. The FCC 7 GHz band is also supported by this IRFU. The 11 GHz IRFU supports the 11 GHz band for both FCC and Industry Canada regulations. Although the transceivers are designed to cover the entire frequency range of a given band, the branching unit is factory tuned for a specific transmit frequency and a specific receive frequency. The transmit frequency and receive frequency must therefore be specified when ordering an IRFU. phn-2513_001v000 (Apr 2012) 1-19
- 60. Indoor RF unit (IRFU) Chapter 1: Product description IRFU configuration options IRFUs are available with the following optional configurations: 1+0 This consists of a single transceiver with the branching unit providing a single waveguide interface (Figure 12). With this option, the right hand transceiver position is not populated. Figure 12 IRFU 1+0 configuration Back view: 1-20 phn-2513_001v000 (Apr 2012)
- 61. PTP 800 Series User Guide Indoor RF unit (IRFU) 1+1 Tx MHSB (with equal or unequal receiver coupling) This option consists of two transceivers with the branching unit providing a single waveguide interface for connection to an antenna (Figure 13). This option provides monitored hot standby (MHSB) operation, which allows the link to continue to operate in the event of single point equipment failure. Both transceivers are capable of receiving and transmitting, but the transmission from only one of the transceivers is routed to the waveguide interface at any one time. This is achieved with an RF switch which is an integral component of the IRFU. The other transceiver remains on standby waiting to take over in case of equipment failure. This option is available with equal or unequal receive coupling, the latter providing a better radio link budget for the primary transceiver, which is the preferred transceiver. For more details of 1+1 operation, see 1+1 Hot Standby link protection on page 1-64. Figure 13 IRFU 1+1 Tx MHSB configuration Back view: phn-2513_001v000 (Apr 2012) 1-21
- 62. Indoor RF unit (IRFU) Chapter 1: Product description 1+0 Tx MHSB Ready (with equal or unequal receiver coupling) This option consists of a single transceiver and a single waveguide interface (Figure 14), but the branching unit is ready for connection of a second transceiver if an upgrade to a full 1+1 Tx MHSB is required at a later date. Similar to the 1+1 Tx MHSB, this option is available with equal or unequal receive coupling. Figure 14 IRFU 1+0 Tx MHSB Ready configuration Back view: 1-22 phn-2513_001v000 (Apr 2012)
- 63. PTP 800 Series User Guide Indoor RF unit (IRFU) 1+1 Tx MHSB / Rx SD This option consists of two transceivers with the branching unit providing two waveguide interfaces (Figure 15). As well as providing MHSB operation in the event of single point equipment failure, it also provides receive spatial diversity by providing a second waveguide interface which connects to a diverse antenna. The IRFU will only radiate from the main waveguide interface (left hand viewed from the front). Although both transceivers are capable of transmitting, the transmission from only one of the transceivers is routed to the main waveguide interface at any one time. This is achieved with an RF switch incorporated within the IRFU. In the receive direction, the left hand transceiver will receive from the left hand (or main) waveguide interface and the right hand transceiver will receive from the right hand (or diverse) waveguide interface. Figure 15 IRFU 1+1 Tx MHSB / Rx SD configuration phn-2513_001v000 (Apr 2012) 1-23
- 64. Indoor RF unit (IRFU) Chapter 1: Product description 2+0 This option consists of two transceivers with the branching unit providing a single waveguide interface (Figure 16). This option allows the operator to run two parallel 1+0 links which share the same antenna. Both transceivers will simultaneously transmit and receive through the same waveguide interface. Each transceiver must operate on a different transmit frequency and on a different receive frequency. A license will generally be required for each link. Figure 16 IRFU 2+0 configuration 1-24 phn-2513_001v000 (Apr 2012)
- 65. PTP 800 Series User Guide Indoor RF unit (IRFU) IRFU interfaces The IRFU transceiver interfaces are illustrated in Figure 17 and described in Table 6. Figure 17 IRFU transceiver interfaces Table 6 IRFU transceiver interfaces # Interface Function 1 Power button For powering the transceiver on and off. 2 Power connector For connecting the transceiver to a standard –48 V dc telecommunications supply 3 “Alarm” LED For indicating the status of the IRFU. LED states and troubleshooting actions are described in Check IRFU status LEDs on page 8-12. 4 CMU connector For connecting the transceiver to the CMU via an IF cable with SMA connectors. 5 RSSI MAIN Test Jack For connecting a voltmeter to measure the voltage when aligning the antenna. For more information, see Step 6: Aligning antennas on page 6-98. 6 RSSI SD Test Jack As RSSI MAIN Test Jack, but measures the voltage when aligning the diversity antenna in 1+1 Tx MHSB / Rx SD configurations. Not equipped on single RX configurations. 7 TX Connector For connecting the transceiver (transmit) to the BU via an RF cable with SMA connectors. phn-2513_001v000 (Apr 2012) 1-25
- 66. Indoor RF unit (IRFU) Chapter 1: Product description # Interface Function 8 RX Connector For connecting the transceiver (receive) to the BU via an RF cable with SMA connectors. 9 RX SD Connector For connecting the transceiver (receive diversity) to the BU via an RF cable with SMA connectors. Not equipped on single RX configurations. Further reading on the IRFU For more information on the IRFU, refer to the following: • Grounding and lightning protection on page 2-7 describes the grounding and lightning protection requirements of a PTP 800 installation, including the ODU. • Ordering IRFUs and accessories on page 2-91 lists the IRFUs, IRFU components, waveguides, antennas and antenna accessories for IRFU deployments, with Cambium part numbers. • IRFU specifications on page 4-8 contains specifications of the IRFU, such as dimensions, weight, electrical and environmental requirements. • Installing antennas and IRFUs on page 5-69 describes how to install an IRFU with antenna and waveguide. • Replacing IRFU components on page 5-94 describes how to replaces IRFU components in operational links. 1-26 phn-2513_001v000 (Apr 2012)
- 67. PTP 800 Series User Guide Antennas and couplers Antennas and couplers This section describes the PTP 800 antennas, couplers and remote mounting kit. Antennas A typical antenna is shown in Figure 18. Figure 18 Typical PTP 800 antenna with ODU (Cambium direct mount interface) Antenna diameter In each band, the antennas are provided in a number of diameters, the larger the diameter, the greater the gain. Antenna interface There are two types of antennas providing different interfaces to the RFU: • Direct mount interface: The ODU mounts directly to the back of the antenna (Figure 19) and is secured using the integral spring loaded latches (Figure 20). Direct mount antennas are not installed with IRFUs. • Waveguide interface: The antenna connects to the RFU via a waveguide (Figure 21). The RFU (ODU or IRFU) is mounted separately from the antenna. phn-2513_001v000 (Apr 2012) 1-27
- 68. Antennas and couplers Chapter 1: Product description Figure 19 Direct mount mechanical interface Figure 20 ODU clipped onto direct mount mechanical interface Figure 21 Remote mount antenna waveguide interface 1-28 phn-2513_001v000 (Apr 2012)
- 69. PTP 800 Series User Guide Antennas and couplers Antenna polarization Antennas can be provided as single polar or dual polar: • Single polar : A single polar antenna provides a single interface to the RFU. The antennas are normally supplied with vertical polarization. For horizontal polarization, the antennas can be modified by the user using the instructions provided. Single polar antennas can be provided with a direct mount interface or a waveguide interface. • Dual polar: Dual polar antennas provide two interfaces, one with vertical polarization and one with horizontal polarization. This allows two links connecting the same two sites to share antennas, the two links operating on opposite polarizations. Dual Polar antennas provide a waveguide interface only. Remote mounting kits (RMKs) Applies to ODU deployments only. An RMK is used in an ODU (not IRFU) remote mount configurations to connect the ODU (or coupler) to the antenna via a flexible waveguide. Direct mount configurations do not require RMKs. The RMK has the following features: • A clamp for attaching the RMK to a monopole. • A cylindrical transition (Figure 22) onto which the ODU mounts. • A waveguide interface transition (Figure 23) for connection to the antenna via a flexible waveguide. The choice of RMK depends upon the frequency variant. The 11 GHz RMK is always used with a tapered transition between the antenna and the flexible waveguide. phn-2513_001v000 (Apr 2012) 1-29
- 70. Antennas and couplers Chapter 1: Product description Figure 22 RMK showing the ODU interface Figure 23 RMK showing the waveguide interface Coupler mounting kits Applies to ODU deployments only. The signals from two ODUs can be coupled to a single antenna. The ODUs mount directly to the coupler (Figure 24) which then provides an interface to the antenna which is identical to that of an ODU. The coupler can mount directly to the back of a direct mount interface antenna (Figure 25), or it can be mounted separately using the remote mounting kit (RMK). Coupler mounting kits are provided in two options: 1-30 phn-2513_001v000 (Apr 2012)
- 71. PTP 800 Series User Guide Antennas and couplers • Symmetric coupler mounting kits: This option splits the power evenly between the two ODUs. A nominal 3 dB is lost in each arm of the coupler. • Asymmetric coupler mounting kits : This option splits the power in a way which favours one ODU. A nominal 1 dB is lost in the Main arm of the coupler with a nominal 7 dB being lost in the other arm. This is often a preferred option for 1+1 Hot Standby links (see Link types on page 1-6). Couplers increase system loss. The choice of coupler mounting kit depends on the frequency variant and on the coupler type required (symmetric or asymmetric). Figure 24 ODU coupler mounting kit phn-2513_001v000 (Apr 2012) 1-31
- 72. Antennas and couplers Chapter 1: Product description Figure 25 Two ODUs and antenna mounted on a coupler Direct mount dual-polar antennas Applies to ODU deployments only. Direct mount dual-polar antennas are only used in 2+0 cross-polar direct mount configurations. They are supplied with an orthogonal mode transducer (Figure 26) with transitions (vertical and horizontal) that allow two ODUs to be coupled to the antenna. Cambium supply dual-polar direct mount antennas as listed in Ordering antennas on page 2-59. However, if a previously purchased antenna is to be upgraded to support a 2+0 cross-polar direct mount configuration, Cambium can supply separate orthogonal mount kits (OMKs), as listed in Ordering OMKs on page 2-90. The OMK can only be fitted to an antenna that is in the same band, for example, a 6 GHz antenna can only accept a 6 GHz OMK. 1-32 phn-2513_001v000 (Apr 2012)
- 73. PTP 800 Series User Guide Antennas and couplers Figure 26 Orthogonal mode transducer phn-2513_001v000 (Apr 2012) 1-33
- 74. Antennas and couplers Chapter 1: Product description Further reading on antennas and couplers For more information on antennas and antenna accessories, refer to the following: • Site selection on page 2-3 describes how to select a site for the antenna. • Grounding and lightning protection on page 2-7 describes the grounding and lightning protection requirements of a PTP 800 installation, including the antenna. • Ordering antennas on page 2-59 lists the antennas required for PTP 800 installations, with Cambium part numbers. • Ordering RMKs and waveguides on page 2-85 lists the RMKs, waveguides, hangers and transitions required for PTP 800 installations, with Cambium part numbers. • Ordering coupler mounting kits on page 2-88 lists the couplers required for PTP 800 installations, with Cambium part numbers. • Ordering OMKs on page 2-90 lists the OMKs required for PTP 800 installations, with Cambium part numbers. • Equipment specifications on page 4-2 contains specifications of the flexible waveguides and couplers. • Installing antennas and ODUs on page 5-5 describes how to install the antennas, ODUs and waveguide connections at each link end, either in a direct mount or remote mount configuration, with or without couplers. • Task 12: Aligning antennas on page 6-96 describes how to align the two antenna in a link. 1-34 phn-2513_001v000 (Apr 2012)
- 75. PTP 800 Series User Guide Cabling and lightning protection Cabling and lightning protection This section describes the cabling and lightning protection components of a PTP 800 installation. Lightning protection (ODU platforms only) The PTP 800 has been tested for compliance to the EMC immunity specifications identified in EMC immunity compliance on page 4-81. The ODUs for the PTP 800 are fitted with surge limiting circuits and other features to minimize the risk of damage due to nearby lightning strikes. To be fully effective, these standard features require some additional equipment to be configured as part of the system installation. The PTP 800 Series is not designed to survive direct lightning strikes. For this reason the antenna and ODU should not be installed at the highest point in a localized area. See Grounding and lightning protection on page 2-7. RFU to CMU connections The RFU is connected to the LPUs and CMU using CNT-400 coaxial cable (IF cable). CMU to network connections The CMU is connected to network equipment using either a copper data port (100baseT or 1000baseT Ethernet) or a fiber interface (1000BaseSX or 1000BaseLX). Cable grounding (ODU platforms only) The ODU, LPUs and IF cable must be grounded to the supporting structure at the points specified in Grounding and lightning protection on page 2-7. One cable grounding kit (Figure 27) is required at each grounding point. phn-2513_001v000 (Apr 2012) 1-35
- 76. Cabling and lightning protection Chapter 1: Product description Figure 27 Cable grounding kit for 1/4" and 3/8" cable Lightning protection units (LPUs) The PTP 800 LPU end kit (Figure 28) is required for IF cables. One LPU is installed next to the ODU and the other is installed near the building entry point. Figure 28 PTP 800 LPU end kit 1-36 phn-2513_001v000 (Apr 2012)
- 77. PTP 800 Series User Guide Cabling and lightning protection Further reading on cabling and lightning protection For more information on cabling and lightning protection, refer to the following: • Maximum IF cable length on page 2-3 gives the maximum permitted lengths of IF cables in PTP 800 installations. • Grounding and lightning protection on page 2-7 describes the grounding and lightning protection requirements of a PTP 800 installation. • Ordering IF cable, grounding and LPUs on page 2-80 lists the cables, connectors, grounding kits and LPUs required for PTP 800 installations. • Installing the IF and ground cables on page 5-35 describes how to install the IF cables and how to install grounding and lightning protection. phn-2513_001v000 (Apr 2012) 1-37
- 78. Wireless operation Chapter 1: Product description Wireless operation This section describes how the PTP 800 wireless link is operated, including modulation modes, power control and security. Channel bandwidth The PTP 800 wireless link supports the following channel bandwidths: • 7 MHz • 10 MHz • 13.75 MHz • 14 MHz • 20 MHz • 27.5 MHz • 28 MHz • 29.65 MHz • 30 MHz • 40 MHz • 50 MHz • 55 MHz • 56 MHz • 80 MHz. The available selection of channel bandwidths varies depending on band and region. Modulation modes The PTP 800 wireless link operates using single carrier modulation with the following fixed modulation modes: • QPSK • 8PSK • 16QAM • 32QAM • 64QAM • 128QAM 1-38 phn-2513_001v000 (Apr 2012)
- 79. PTP 800 Series User Guide Wireless operation • 256QAM The available selection of modulation modes varies depending on band, region and channel bandwidth. PTP 800 uses Low Density Parity Check (LDPC) forward error correction (FEC) coding. The code rate is calculated as the ratio between the un-coded block size and the coded block size. FEC code rate in PTP 800 varies between 0.76 and 0.94 depending on channel bandwidth and modulation mode. For more information, see Capacity, transmit power and sensitivity on page 4-22. Adaptive coding and modulation PTP 800 supports both Fixed Modulation and Adaptive Coding and Modulation (ACM) modes. In ACM mode, the PTP 800 selects the modulation mode according to the quality of the received signal. The selection criterion is to provide the highest link capacity that can be achieved while keeping the communication error free. When compared with Fixed Modulation operation, ACM can increase either link availability, or average wireless link capacity, or both. ODU-B offers superior ACM characteristics to ODU-A. Automatic transmitter power control PTP 800 provides closed-loop automatic transmitter power control (ATPC). ATPC avoids overload of the receivers in links with low link loss by automatically adjusting transmitter power. The ATPC threshold is –40 dBm received power. ATPC has no effect in links where the received power is lower than the threshold. Automatic adjustment of the transmitter can be enabled or disabled using the Automatic Transmitter Power Control attribute on the Configuration page of the web-based interface. This attribute must have the same setting at both ends of the link. In some regions ATPC is a regulatory requirement and in these cases ATPC cannot be disabled. The power control loop compensates for slow variations in received power and does not respond to fast fading that occurs in multipath channels. In addition to its main function, ATPC includes a mechanism protecting against a lock up scenario. The mechanism is active regardless of the received power. This lock up occurs when the configured maximum transmit power causes the received power at both ends of the link to be too high to allow correct signal demodulation. In this situation, no communication can be established in either direction, causing the radios to wait forever for the remote end to appear. phn-2513_001v000 (Apr 2012) 1-39
- 80. Wireless operation Chapter 1: Product description The protection mechanism works as follows. Upon the link dropping for more than 10 seconds, ATPC drops the maximum transmit power of the end which has the lowest transmit frequency by 15 dB. This ensures the link will come up even if the maximum transmit power is set incorrectly. The delay prevents this mechanism from being triggered when the link drops briefly due to severe fading. Maximum receive power The maximum receive power is the maximum power at which a PTP 800 link should be operated to maintain error free communication. This maximum receive power for normal operation is -35 dBm. Automatic transmitter power control, if enabled, will reduce the installation receive level to a -40 dBm operating level if there is sufficient dynamic range available in the maximum transmit power. For example, a link installed at -35 dBm with a maximum transmit power set to at least 5 dB above the minimum power level will successfully operate at -40 dBm. Links operating without ATPC, or with less than 5 dB available dynamic range should ensure that the normal operating level does not exceed -35 dBm. On very short links it may be necessary to use a fixed waveguide attenuator, which will require the use of a remote mount antenna, to keep the maximum receive power at an acceptable level. Maximum transmit power Maximum transmit power is the maximum power that the PTP 800 is permitted to generate at the waveguide interface assuming that ATPC is disabled, or the link loss is high enough such that ATPC is not activated. The equipment limit for maximum transmit power is defined by modulation mode, band, channel bandwidth and standards body or region. The spectrum license limit is determined by the maximum EIRP permitted by the individual license, the antenna gain and feeder loss. The maximum transmit power that can be configured for PTP 800 is limited by the more restrictive of the equipment limit and the spectrum license limit. Maximum transmit power defaults to the maximum permitted as described above, but can be reduced if necessary using Step 3 of the Installation Wizard, or the Configuration page of the web-based interface. Security PTP 800 provides optional 128-bit and 256-bit encryption using the Advanced Encryption Standard (AES). The implementation in PTP 800 has been validated against Federal Information Processing Standard Publication 197 (FIPS-197) in the Cryptographic Algorithm Validation Program (CAVP) of the US National Institute of Standards and Technology (NIST). 1-40 phn-2513_001v000 (Apr 2012)
- 81. PTP 800 Series User Guide Wireless operation AES encryption protects all traffic over the wireless link, including in-band and out-of-band network management traffic. Each CMU behaves as a cryptographic device in which the Ethernet interfaces transmit and receive plain text data, and the IF interface transmits and receives cipher text data. The IF cable and RFUs are outside the cryptographic boundary. Further reading on wireless operation For more information on wireless operation, refer to the following: • Link planning on page 2-2 describes factors to be taken into account when planning links, and introduces PTP LINKPlanner. • Wireless specifications on page 4-19 contains specifications of the PTP 800 wireless interface, such as RF bands, channel width, spectrum settings, maximum power and sensitivity. • Electromagnetic compliance on page 4-81 describes how the PTP 800 complies with the radio regulations that are in force in various countries. • Task 7: Configuring wireless interface on page 6-60 describes how to configure the wireless interface using the installation wizard. • Comparing actual to predicted performance on page 6-108 describes how to check that a newly installed link is achieving predicted levels of performance. • Disabling and enabling the wireless interface on page 7-32 describes how to disable wireless transmission (prevent antenna radiation) and enable wireless transmission (allow antenna radiation). • Managing performance on page 7-57 describes how to manage the performance of a PTP 800 link. phn-2513_001v000 (Apr 2012) 1-41
- 82. Ethernet bridging Chapter 1: Product description Ethernet bridging This section describes how the PTP 800 controls Ethernet data, in both the customer data network and the system management network. Customer network Transparent Ethernet service The PTP 800 Series provides an Ethernet service between the data port at a local CMU and the data port at an associated remote CMU. The Ethernet service is based on conventional layer two transparent bridging, and is equivalent to the Ethernet Private Line (EPL) service defined by the Metro Ethernet Forum (MEF). The service is transparent to untagged frames, standard VLAN frames, priority-tagged frames, provider bridged frames, and provider backbone bridged frames. In each case, the service preserves MAC addresses, VLAN ID, Ethernet priority and Ethernet payload in the forwarded frame. The maximum frame size for bridged frames in the customer network is 9600 octets. Layer two control protocols The PTP 800 Series is transparent to layer two control protocols (L2CP) including: • Spanning tree protocol (STP), rapid spanning tree protocol (RSTP) • Multiple spanning tree protocol (MSTP) • Link aggregation control protocol (LACP) • Link OAM, IEEE 802.3ah • Port authentication, IEEE 802.1X • Ethernet local management interface (E-LMI), ITU-T Q.933. • Link layer discovery protocol (LLDP) • Multiple registration protocol (MRP) • Generic attribute registration protocol (GARP) PTP 800 handles IEEE 802.3 Pause frames as a special case; each CMU can be configured to either forward (tunnel) or discard Pause frames received at the Data port. PTP 800 discards all Pause frames received at the Management port. The PTP 800 Series does not generate or respond to any L2CP traffic. 1-42 phn-2513_001v000 (Apr 2012)
- 83. PTP 800 Series User Guide Ethernet bridging Quality of service for bridged Ethernet traffic The PTP 800 Series supports eight traffic queues for Ethernet frames waiting for transmission over the wireless link. Ethernet frames are classified by inspection of the Ethernet destination address, the Ethernet priority code point in the outermost VLAN tag, the Differentiated Services Code Point (DSCP) in an IPv4 or IPv6 header, or the Traffic Class in an MPLS header. PTP 800 provides a configurable mapping between Ethernet, IP or MPLS priority and transmission queue, together with a simple way to restore a default mapping based on the recommended default in IEEE 802.1Q-2005. Untagged frames, or frames with an unknown network layer protocol, can be separately classified. Scheduling for transmission over the wireless link is by strict priority. In other words, a frame at the head of a given queue is transmitted only when all higher priority queues are empty. Fragmentation The PTP 800 Series minimizes latency and jitter for high-priority Ethernet traffic by fragmenting Ethernet frames before transmission over the wireless link. The fragment size is selected automatically according to channel bandwidth and modulation mode of the wireless link. Fragments are reassembled on reception, and incomplete Ethernet frames are discarded. Traffic is not fragmented in the highest priority traffic class. Management network IP interface Each PTP 800 CMU contains an embedded management agent with a single IP interface. Network management communication is exclusively based on IP and associated higher layer transport and application protocols. The default IP address of the management agent is 169.254.1.1. The PTP 800 does not require use of supplementary serial interfaces. In a 1+1 protection scheme, each CMU contains a separate management agent. MAC address The management agent end-station MAC address is recorded on the underside of the enclosure. The MAC address is not configurable by the user. phn-2513_001v000 (Apr 2012) 1-43
- 84. Ethernet bridging Chapter 1: Product description VLAN membership The management agent can be configured to transmit and receive either untagged, priority-tagged, C-tagged (IEEE 802.1Q) or S-tagged (IEEE 801.ad) frames. S-tagged frames must be single tagged, in other words, an S-tag with no encapsulated C-tag. The VLAN ID can be 0 (priority tagged) or in the range 1 to 4094. Out-of-band management PTP 800 supports an end-to-end out-of-band management mode in which the management agent can be reached from the management port at the local CMU, and (assuming that the wireless link is established) the management port at the remote CMU. This management mode allows communication from the CMU management port to Ethernet end stations reached through the remote CMU, supporting construction of an extended management network that is isolated from the customer network. End-to-end out-of-band management is possible only when the network management mode is configured to “out-of-band” at every CMU. Out-of-band quality of service Out-of-band management traffic is forwarded over the wireless link using a dedicated channel. The management channel represents a single traffic class, and the same quality of service is afforded to all management frames. Traffic in the management channel is fragmented for transmission over the wireless link to minimize the jitter imposed on high priority traffic in the customer network. The management channel has higher priority than traffic in the customer network, subject to a configurable committed information rate (CIR) with a range between 200 Kbit/s and 2 Mbps. Committed capacity that remains unused by management traffic is available for customer traffic. Out-of-band local management The out-of-band local management mode is similar to the standard out-of-band mode, except that management frames are not forwarded over the wireless link. Connection to the management agent is solely through the management port of the local CMU. The management channel CIR control is disabled in out-of-band local mode. Out-of-band local management is the default management mode. If the management port is not accessible remotely, this mode should be changed to permit remote management. 1-44 phn-2513_001v000 (Apr 2012)
- 85. PTP 800 Series User Guide Ethernet bridging In-band management In the in-band management mode, the management agent can be reached from the data port at the local CMU, and (assuming that the wireless link is established) the data port at the remote CMU. In this mode, the management port is disabled. Management frames in the customer network are processed by the management agent if (a) destination MAC address in the frame matches the CMU MAC address, and (b) the VLAN ID in the frame matches the VLAN configuration of the management agent. If Local Packet Filtering is enabled, unicast frames forwarded to the management agent are filtered, that is, not forwarded in the customer network. In-band quality of service The CMU may be configured to tag the Ethernet frames generated by its management agent. When configured for In Band Management, these frames are assigned to a queue based on the priority code point in the same way as customer traffic. Source address learning If Local Packet Filtering is enabled, the management agent learns the location of end stations from the source addresses in received management frames. The agent filters transmitted management frames to ensure that the frame is transmitted at the Ethernet (data or management) port, or over the wireless link as appropriate. If the end station address is unknown, then management traffic is transmitted at the Ethernet port and over the wireless link. In out-of-band local management mode, management frames are not transmitted over the wireless link, and so address learning is not active. Wireless link down alert The PTP 800 Series can be configured to alert a ‘loss of link’ to the connected network equipment. It does this by means of a brief disconnection of the copper data port or fiber data port. When the PTP 800 Series is configured for out-of-band operation, it also briefly disconnects the management port. Ethernet disconnection typically occurs within 50 ms of detection of link failure. The alert is triggered by any condition which prevents the link from forwarding traffic in one or both link directions. Examples include a deep wireless fade, equipment failure such as an RFU failure, and Ethernet cable disconnection. In 1+1 Hot Standby links, the alert will only be triggered if a protection switch does not resolve the failure condition, for example if both sets of equipment at an end exhibit a fault or if there is a deep wireless fade. phn-2513_001v000 (Apr 2012) 1-45
- 86. Ethernet bridging Chapter 1: Product description The wireless link down alert can be deployed in networks which provide alternative traffic routes in the event of failure. Spanning Tree Protocol (STP) and Ethernet Automatic Protection Switching (EAPS) are two protocols which are commonly deployed in such complex networks and both react to the wireless link down alert. Protocol model Ethernet bridging behavior at each end of the wireless link is equivalent to a three-port, managed, transparent MAC bridge where the three ports are: • Ethernet Management Port • Ethernet Data Port • Wireless Port Frames are transmitted at the Wireless port over a proprietary point-to-point circuit-mode link layer between ends of the PTP 800 link. For a single CMU configuration or the active CMU in a 1+1 Hot Standby configuration, Ethernet frames received at the data or management ports, or generated internally within the management agent, are encapsulated within a lightweight MAC layer for transmission over the wireless link. For the inactive CMU at a protected end no traffic is transmitted over the wireless link. Any management traffic generated is transmitted towards the management port (for out- of-band management) or the traffic port (for in-band management). Forwarding behavior In out-of-band local mode (Figure 29) and out-of-band mode (Figure 30), the management network (shown in red) is isolated from the customer data network (shown in blue). In out- of-band mode, the management network is isolated from the customer data at the wireless port by use of a separate service access point and associated dedicated logical channel. Ethernet frames will not leak between management and data networks, even in the presence of configuration errors. In in-band mode (Figure 31), the management and customer data networks are not isolated, and the Management port is not used. 1-46 phn-2513_001v000 (Apr 2012)
- 87. PTP 800 Series User Guide Ethernet bridging Figure 29 Forwarding behavior in out-of-band local management mode Management agent Management port Wireless Data port MAC bridge Figure 30 Forwarding behavior in out-of-band management mode Figure 31 Forwarding behavior in in-band mode phn-2513_001v000 (Apr 2012) 1-47
- 88. Ethernet bridging Chapter 1: Product description Forwarding behavior for 1+1 Hot Standby links Forwarding behavior for the active CMU is as for a non-protected link. Forwarding behavior for the inactive CMU in a 1+1 Hot Standby link requires management data to be routed to the Ethernet management port (Figure 32) or data port (Figure 33), depending on the management mode. Only status information from the remote CMU is forwarded at the wireless interface. Figure 32 Inactive unit frame forwarding – out-of-band management Figure 33 Inactive unit frame forwarding – in-band management 1-48 phn-2513_001v000 (Apr 2012)
- 89. PTP 800 Series User Guide Ethernet bridging Protocol layers Protocol layers involved in bridging between Ethernet and wireless interfaces are shown in Figure 34. Protocol layers involved in bridging between external interfaces and the management agent are shown in Figure 35. In these figures, the layers have the meanings defined in IEEE 802.1Q-2005. Figure 34 Protocol layers between Ethernet and wireless interfaces Figure 35 Protocol layers between external interfaces and the management agent phn-2513_001v000 (Apr 2012) 1-49
- 90. Ethernet bridging Chapter 1: Product description Further reading on Ethernet bridging For more information on Ethernet bridging, refer to the following: • Data network planning on page 2-18 describes factors to be considered when planning PTP 800 data networks. • Data network specifications on page 4-71 contains specifications of the PTP 800 Ethernet interfaces. • Task 2: Configuring IP and Ethernet interfaces on page 6-8 describes how to configure the IP and Ethernet attributes of the PTP 800. 1-50 phn-2513_001v000 (Apr 2012)
- 91. PTP 800 Series User Guide System management System management This section introduces the PTP 800 management system, including the web interface, installation, configuration, alerts and upgrades. Management agent PTP 800 equipment is managed through an embedded management agent. Management workstations, network management systems or PCs can be connected to this agent using an in-band mode, or a choice of two out-of-band modes. These modes are described in detail in Management network on page 1-43. The management agent supports the following interfaces: • Hyper text transfer protocol (HTTP) • HTTP over transport layer security (HTTPS/TLS) • RADIUS authentication • Simple network management protocol (SNMP) • Simple mail transfer protocol (SMTP) • Simple network time protocol (SNTP) • System logging (syslog) Web server The PTP 800 management agent contains a web server. The web server supports the HTTP and HTTPS/TLS interfaces. Operation of HTTPS/TLS is enabled by purchase of an optional AES upgrade as described in Task 3: Installing license keys on page 6-18. Web-based management offers a convenient way to manage the PTP 800 equipment from a locally connected computer or from a network management workstation connected through a management network, without requiring any special management software. The web-based interfaces are the only interfaces supported for system installation, and for the majority of configuration management tasks. Transport layer security The HTTPS/TLS interface provides the same set of web-pages as the HTTP interface, but allows HTTP traffic to be encrypted using Transport Layer Security (TLS). PTP 800 uses AES encryption for HTTPS/TLS. phn-2513_001v000 (Apr 2012) 1-51
- 92. System management Chapter 1: Product description HTTPS/TLS requires installation of a private key and a public key certificate where the common name of the subject in the public key certificate is the IP address or host name of the PTP 800 unit. HTTPS/TLS operation is configured through the web-based interfaces using the Security Wizard. Details of the security material needed for HTTPS/TLS are provided in Security planning on page 2-22. The PTP 800 has no default public key certificate, and Cambium is not able to generate private keys or public key certificates for specific network applications. User account management PTP 800 allows a network operator to configure a policy for login attempts, the period of validity of passwords and the action taken on expiry of passwords. See Configuring local user accounts on page 6-39 for further details. Identity-based user accounts The PTP 800 web-based interface provides two methods of authenticating users: • Role-based user authentication allows the user, on entry of a valid password, to access all configuration capabilities and controls. This is the default method. • Identity-based user authentication supports up to 10 users with individual usernames and passwords. When identity-based user accounts are enabled, a security officer can define from one to ten user accounts, each of which may have one of the three possible roles: • Security officer. • System administrator. • Read only. Identity-based user accounts are enabled in the Local User Accounts page of the web- based interface. Password complexity PTP 800 allows a network operator to enforce a configurable policy for password complexity. Password complexity configuration additionally allows a pre-determined best practice configuration to be set. See Configuring local user accounts on page 6-39 for further details. 1-52 phn-2513_001v000 (Apr 2012)
- 93. PTP 800 Series User Guide System management Installation wizard The web-based interface includes an Installation wizard. This feature simplifies the process of entering initial configuration details, setting the system into alignment mode, achieving the lowest possible link loss through correct antenna alignment, and reporting on the performance of the installed link. The process handles the important configuration settings that must be set to comply with individual license conditions. These important settings are not normally modified in an operating link, and cannot be changed in PTP 800 except through use of the Installation wizard. Configuration pages The web-based interface includes a number of configuration pages. These pages allow for modification of the system configuration of an installed link. In general, configuration changes can be completed without a reboot. Configuration pages include controls relating to the management agent IP interface, the Ethernet interfaces, quality of service at the wireless interface, security passwords and AES keys. RADIUS authentication PTP 800 supports remote authentication for users of the web interface using the Challenge-Handshake Authentication Protocol (CHAP) or Microsoft CHAP version 2 (MS-CHAPv2) over the Remote Authentication Dial-In User Service (RADIUS). PTP 800 supports connections to primary and secondary RADIUS servers. The RADIUS interface is configured through the RADIUS Authentication page of the web-based interfaces. PTP 800 RADIUS supports the standard Service Type attribute to indicate authentication roles of System Administrator and Read Only together with a vendor specific attribute to indicate authentication roles of Security Officer, System Administrator, and Read Only. Remote authentication can be used in addition to local authentication, or can be used as a replacement for local authentication. If remote and local authentications are used together, PTP 800 checks log in attempts against locally stored user credentials before submitting a challenge and response for remote authentication. Remote authentication is not attempted if the username and password match locally stored credentials. RADIUS is only available when PTP 800 is configured for Identity-based User Accounts. For more information, refer to Planning for RADIUS operation on page 2-28. phn-2513_001v000 (Apr 2012) 1-53
- 94. System management Chapter 1: Product description Email alerts The management agent can be configured to generate alerts by electronic mail when any of the following events occur: • Wireless link up • Wireless link down • Data port up • Data port down • Management port up • Management port down • Link name mismatch • Alignment mode • Unit out of calibration • Encryption enabled mismatch • Data port disabled warning • Data port fiber status • Data port configuration mismatch • SNTP sync • Management port disabled warning • RFU status • Management port configuration mismatch • Wireless link status • Protection interface status Email alerts are described in Managing alarms and events on page 7-15. SNMP The management agent supports fault and performance management by means of an SNMP interface. The management agent is compatible with SNMP v1 and SNMP v2c, using the following MIBs: • PTP 800 enterprise MIB • The system group and the interfaces group from MIB-II, RFC-1213 • The interfaces group and the ifXTable from RFC-2233 • The dot1dBase group and the dot1dBasePortTable group from the Bridge MIB, RFC- 1493. 1-54 phn-2513_001v000 (Apr 2012)

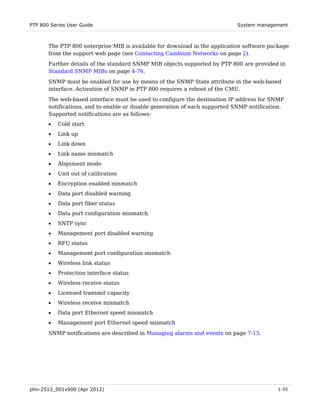

- 95. PTP 800 Series User Guide System management The PTP 800 enterprise MIB is available for download in the application software package from the support web page (see Contacting Cambium Networks on page 2). Further details of the standard SNMP MIB objects supported by PTP 800 are provided in Standard SNMP MIBs on page 4-76. SNMP must be enabled for use by means of the SNMP State attribute in the web-based interface. Activation of SNMP in PTP 800 requires a reboot of the CMU. The web-based interface must be used to configure the destination IP address for SNMP notifications, and to enable or disable generation of each supported SNMP notification. Supported notifications are as follows: • Cold start • Link up • Link down • Link name mismatch • Alignment mode • Unit out of calibration • Encryption enabled mismatch • Data port disabled warning • Data port fiber status • Data port configuration mismatch • SNTP sync • Management port disabled warning • RFU status • Management port configuration mismatch • Wireless link status • Protection interface status • Wireless receive status • Licensed transmit capacity • Wireless receive mismatch • Data port Ethernet speed mismatch • Management port Ethernet speed mismatch SNMP notifications are described in Managing alarms and events on page 7-15. phn-2513_001v000 (Apr 2012) 1-55
- 96. System management Chapter 1: Product description Simple Network Time Protocol (SNTP) The clock supplies accurate date and time information to the system. It can be set to run with or without a connection to one or two network time servers (SNTP). It can be configured to display local time by setting the time zone and daylight saving in the Time Configuration web page. If an SNTP server connection is available, the clock can be set to synchronize with the server time at regular intervals. For secure applications, the PTP 800 can be configured to authenticate received NTP messages using the DES or MD5 protocol. SNMPv3 security SNMP Engine ID PTP 800 supports three different formats for SNMP Engine ID: • MAC address • IP address • Configurable text string SNMPv3 security configuration is re-initialized when the SNMP Engine ID is changed. User-based security model PTP 800 supports the SNMPv3 user-based security model (USM) for up to 10 users, with MD5, SHA-1, DES and (subject to the license key) AES protocols in the following combinations: • No authentication, no privacy, • MD5, no privacy, • SHA-1, no privacy, • MD5, DES, • SHA-1, DES, • MD5, AES, • SHA-1, AES. Use of AES privacy requires the AES upgrade described in AES license on page 1-60. The system will allow the creation of users configured with AES privacy protocol, regardless of license key. However, a user configured to use AES privacy protocol will not be able to transmit and receive encrypted messages unless the license key enables the AES capability. 1-56 phn-2513_001v000 (Apr 2012)
- 97. PTP 800 Series User Guide System management View-based access control model PTP 800 supports the SNMPv3 view-based access control model (VACM) with a single context. The context name is the empty string. The context table is read-only, and cannot be modified by users. Access to critical security parameters The SNMPv3 management interface does not provide access to critical security parameters (CSPs). It is not possible to read or modify AES keys used to encrypt data transmitted at the wireless interface. MIB-based management of SNMPv3 security PTP 800 supports a standards-based approach to configuring SNMPv3 users and views through the SNMP MIB. This approach provides maximum flexibility in terms of defining views and security levels appropriate for different types of user. The system provides a default SNMPv3 configuration. This initial configuration is not secure, but it provides the means by which a secure configuration can be created using SNMPv3. The secure configuration should be configured in a controlled environment to prevent disclosure of the initial security keys necessarily sent as plaintext, or sent as encrypted data using a predictable key. The initial security information should not be configured over an insecure network. The default configuration is restored when any of the following occurs: • All CMU configuration data is erased. • All SNMP users are deleted using the SNMP management interface. • The SNMP Engine ID Format has been changed. • The SNMP Engine ID Format is IP Address AND the IP Address has been changed. • The SNMP Engine ID Format is Text String AND the text string has been changed. • The SNMP Engine ID Format is MAC Address AND configuration has been restored using a file saved from a different unit. • SNMPv3 Security Management is changed from web-based to MIB-based. The default user configuration is specified in SNMPv3 default configuration (MIB-based) on page 2-27. The system creates the initial user and template users with localized authentication and privacy keys derived from the passphrase string 123456789. Authentication keys for the templates users are fixed and cannot be changed. Any or all of the template users can be deleted. phn-2513_001v000 (Apr 2012) 1-57
- 98. System management Chapter 1: Product description The default user initial is created with a view of the entire MIB, requiring authentication for SET operations. There is no access for template users. VACM grants access for requests sent with more than the configured security level. The default user initial will have read/write access to the whole of the MIB. This is described in further detail in View-based access control model on page 1-57. The template users have no access to the MIB in the default configuration. User initial will normally be used to create one or more additional users with secret authentication and privacy keys, and with appropriate access to the whole of the MIB or to particular views of the MIB according to the operator’s security policy. New users must be created by cloning template users. The user initial may then be deleted to prevent access using the well-known user name and keys. Alternatively, the keys associated with initial may be set to some new secret value. Web-based management of SNMPv3 security PTP 800 supports an alternative, web-based approach for configuring SNMPv3 security. In this case, the web-based interface allows users to specify SNMPv3 users, security levels, privacy and authentication protocols, and passphrases. Web-based management will be effective for many network applications, but the capabilities supported are somewhat less flexible than those supported using the MIB-based security management. Selection of web-based management for SNMPv3 security disables the MIB-based security management. Web-based management of SNMPv3 security allows for two security roles: • Read Only • System Administrator Read Only and System Administrator users are associated with fixed views allowing access to the whole of the MIB, excluding the objects associated with SNMPv3 security. System Administrators have read/write access as defined in the standard and proprietary MIBs. Web-based management of SNMPv3 security allows an operator to define the security levels and protocols for each of the security roles; all users with the same role share a common selection of security level and protocols. Web-based security configuration is re-initialized when any of the following occurs: • All CMU configuration data is erased. • The SNMP Engine ID Format has been changed. • The SNMP Engine ID Format is IP Address and the IP Address has been changed. • The SNMP Engine ID Format is Text String and the text string has been changed. • The SNMP Engine ID Format is MAC Address and configuration has been restored using a file saved from a different unit. 1-58 phn-2513_001v000 (Apr 2012)
- 99. PTP 800 Series User Guide System management • SNMPv3 Security Management is changed from MIB-based to web-based. Additionally, all SNMP user accounts are disabled when the authentication protocol, the privacy protocol, or the security level is changed. Downgrade of the license key A possible lockout condition exists if a user downgrades the license key so as to disable the AES capability when SNMPv3 users are configured with AES privacy and VACM is configured to require privacy. In this case, recovery is by either (a) restoring the correct license key, or (b) using recovery mode to erase all configuration and entering new configuration. Option (b) will cause default users and access configuration to be re-created. System logging (syslog) PTP 800 supports the standard syslog protocol to log important configuration changes, status changes and events. The protocol complies with RFC 3164. PTP 800 creates syslog messages for configuration changes to any attribute that is accessible via the web-based interface, or via the enterprise MIB at the SNMP interface. PTP 800 additionally creates syslog messages for changes in any status variable displayed in the web-based interface. PTP 800 creates syslog messages on a number of events (for example successful and unsuccessful attempts to log in to the web-based interface). PTP 800 can be configured to send syslog messages to one or two standard syslog servers. Additionally, PTP 800 logs event notification messages locally. Locally-stored event messages survive reboot of the unit, and are overwritten only when the storage capacity is exhausted (approximately 2000 messages). The locally stored events can be reviewed using the web-based user interface. Only users with ‘Security Officer’ role are permitted to configure the syslog client. Users with Security Officer, System Administrator or Read Only roles are permitted to review the locally logged event messages. phn-2513_001v000 (Apr 2012) 1-59
- 100. System management Chapter 1: Product description AES license PTP 800 provides optional encryption using the Advanced Encryption Standard (AES). Encryption is not available in the standard system. AES upgrades are supplied as an access key purchased from your Cambium Point-to-Point distributor or solutions provider. The access key authorizes AES operation for one CMU. Two access keys are needed to operate AES on a link. The upgrade is applied by entering an access key together with the MAC address of the target CMU into the PTP License Key Generator web page, which may be accessed from the support web page (see Contacting Cambium Networks on page 2). The License Key Generator creates a new license key that is delivered by email. The license key must be installed on the CMU. When the license key is installed, the CMU must be rebooted before AES can be enabled. Once applied, the AES upgrade is bound to a single CMU and is not transferrable. AES encryption may be used in the following ways: • At the wireless port to encrypt data transmitted over the wireless link. • At the SNMP management interface in the SNMPv3 mode. • At the HTTPS/TLS management interface. Two levels of encryption are available to purchase: • 128-bit: This allows an operator to encrypt all traffic sent over the wireless link using 128-bit encryption. • 256-bit: This allows an operator to encrypt traffic using either 128-bit or 256-bit encryption. Encryption must be configured with the same size key in each direction. AES encryption at the wireless port is based on pre-shared keys. An identical key must be entered at each end of the link. AES encryption for SNMPv3 is always based on a 128-bit key, regardless of level enabled in the license key. For more information, see: • Task 3: Installing license keys on page 6-18 • Task 5: Configuring security on page 6-25 1-60 phn-2513_001v000 (Apr 2012)
- 101. PTP 800 Series User Guide System management Login information PTP 800 optionally provides details of the most recent successful login, and the most recent unsuccessful login attempt, for each user of the web-based interface. Flexible capacity upgrades The maximum data throughput capacity of the PTP 800 wireless link is the lower of the wireless link capacity and the data capacity limit set by the PTP 800 license key. All PTP 800 CMUs are shipped with a factory-set 10 Mbps capacity limit, meaning that capacity is restricted to a maximum of 10 Mbps at the data port. Users can purchase capacity upgrades in nine steps between 20 Mbps and unlimited capacity. Upgrades are applied through the CMU license key, without any change to the hardware. Capacity may be different for different directions. Full capacity trial period: New PTP 800 units can be configured to operate with full transmit capacity (unlimited) during a trial period of duration 60 days, reverting to the licensed capacity when the trial period expires. This trial period is also available on existing units that are upgraded to System Relelease 800-04-00 (or later) from an earlier release. Capacity upgrades are supplied as an access key. The access key authorizes a specific capacity limit for one CMU. Two access keys are needed to operate a link at enhanced capacity. The upgrade is applied by entering an access key together with the MAC address of the target CMU into the PTP License Key Generator web page, which may be accessed from the support web page (see Contacting Cambium Networks on page 2). This web page generates a new license key that must be installed on the CMU. Capacity upgrades become active as soon as the license key is validated. There is no need to reboot the CMU, and the upgrade process does not involve a service interruption. Once applied, the capacity upgrade is bound to a single CMU and is not transferrable. For ordering details including Cambium part numbers, refer to Ordering capacity upgrades on page 2-97. phn-2513_001v000 (Apr 2012) 1-61
- 102. System management Chapter 1: Product description Software upgrade The management agent supports application software upgrade using the web-based interface. PTP 800 software images are digitally signed, and the CMU will accept only images that contain a valid Cambium PTP digital signature. The CMU always requires a reboot to complete a software upgrade. The CMU application software image contains an embedded software image for the RFU. If a CMU software upgrade introduces a new RFU software version, then the RFU software is upgraded automatically following reboot of the CMU. Obtain the application software and this user guide from the support website BEFORE warranty expires. CMU software version must be the same at both ends of the link. Limited operation may sometimes be possible with dissimilar software version, but such operation is not supported by Cambium. The management process for software upgrade is described in detail in Task 4: Upgrading software version on page 6-22. Software can be downgraded using Recovery mode as described in Downgrading PTP 800 software on page 7-77. Recovery mode The PTP 800 recovery mode provides a means to recover from serious configuration errors including lost or forgotten passwords and unknown IP addresses. Recovery mode also allows new main application software to be loaded even when the integrity of the existing main application software image has been compromised. The most likely cause of an integrity problem with the installed main application software is where the power supply has been interrupted during an earlier software upgrade. The CMU operates in recovery mode in the following circumstances: • When a checksum error occurs for the main application software image. • When the CMU front panel recovery button is pressed at the same time as the CMU is rebooted or power cycled. • When the Short Power Cycle for Recovery is enabled, and CMU is power cycled, and the “off” period is between one and five seconds. 1-62 phn-2513_001v000 (Apr 2012)
- 103. PTP 800 Series User Guide System management Options in recovery mode are as follows: • Load new main application software. • Reset all configuration data to factory default. This option resets IP and Ethernet configuration, and erases (zeroizes) critical security parameters. • Reset IP and Ethernet configuration to factory default. • Erase (zeroize) critical security parameters. • Reboot with existing software and configuration. If recovery mode has been entered either because of a checksum error or Short Power Cycle, by default the CMU will reboot with existing software and configuration following a 30 second wait. The recovery software image is installed during manufacture of the CMU and cannot be upgraded by operators. For detailed instructions on using the recovery mode, see Using recovery mode on page 7- 71. Further reading on system management For more information on system management, refer to the following: • Security planning on page 2-22 describes how to plan for PTP 800 links to operate in secure modes, including HTTPS/TLS, SNMP and SNMPv3. • Chapter 6: Configuration and alignment describes all configuration and alignment tasks that are performed when a PTP 800 link is deployed. • Chapter 7: Operation provides instructions for operators of the PTP 800 web user interface. phn-2513_001v000 (Apr 2012) 1-63
- 104. 1+1 Hot Standby link protection Chapter 1: Product description 1+1 Hot Standby link protection This section is an overview of the concept, operation and interfaces of 1+1 Hot Standby links. 1+1 Hot Standby overview The 1+1 Hot Standby feature provides an option for protecting against a single point equipment failure. It also enables maintenance to be carried out with insignificant impact on customer traffic. Such maintenance actions include software upgrade and unit replacement. In order to protect against failure, extra equipment is required to be installed at each end of the link compared to a standard 1+0 link. This extra equipment will remain on standby until it is required to take over in case of equipment failure. Each end of a 1+1 Hot Standby consists of two CMUs, and either two ODUs for outdoor deployments or one 1+1 capable IRFU for indoor deployments. The 1+1 capable IRFU contains two transceivers for the purposes of protection. In addition, each end can be deployed with either one or two antennas depending on the customer requirements. The antenna options are described in 1+1 Hot Standby link antenna options on page 1-65. At the network side, at least one Ethernet switch must be installed at each end of the link. Detailed network options are described in Planning 1+1 Hot Standby links on page 2-35. The two CMUs which are installed at the same end of a 1+1 Hot Standby link exchange information over an interface known as the Protection Interface. This shares the same physical socket as the Management Port. For configurations which manage the CMU over the Management Port, an accessory known as the Out of Band Protection Splitter is required. This splits out the management traffic from the protection interface. The 1 + 1 Hot Standby feature is only supported in CMUs with Boot Monitor software Boot-03-00 or later. Active and inactive units At any one time at a given end of a 1+1 Hot Standby link, only one CMU will provide the function of forwarding Ethernet frames between the wireless interface and the Ethernet interface. Also, only the ODU / IRFU transceiver connected to this CMU will radiate at the antenna. These units are called the active units. 1-64 phn-2513_001v000 (Apr 2012)
- 105. PTP 800 Series User Guide 1+1 Hot Standby link protection The other CMU and ODU / IRFU transceiver are called the inactive units and these will remain on standby waiting to take over in case of a failure of the active units. If a failure does occur, an automatic protection switch will take place and the previously inactive units will take over as the active units. A protection switch may take place at one end of the link independently of the other end of the link. A protection switch may also be executed by management action. Primary and secondary units At each end of the link, one CMU must be configured as a Primary unit, the other as a Secondary unit. The decision of whether the Primary or Secondary CMU becomes active is automatically controlled by the CMU application software. In normal fault free conditions, the CMU application software will select the Primary CMU and associated ODU / IRFU transceiver to be the active unit. 1+1 Hot Standby link antenna options Single antenna per end The ODUs installed at the same end of a 1+1 Hot Standby link can share an antenna. This is done with an ODU Coupler Mounting Kit (Figure 24). The Coupler Mounting Kit can be supplied with equal or unequal coupling. The equal coupler provides the same path loss to the two ODUs where as the unequal coupler provides a lower path loss to one of the ODUs. As the unit configured as Primary is expected to be the active unit for most of the life of a 1+1 Hot Standby link, the highest link availability is achieved by connecting the Primary ODU to the arm of the unequal coupler with the lowest path loss. IRFUs with the 1+1 Tx MHSB option are designed to connect to a single antenna via elliptical waveguide. Although this IRFU option is supplied with two transceivers, only the active transceiver will radiate at the antenna port. This is achieved by an RF switch which is an integral part of the 1+1 IRFUs. The position of the switch is controlled by the CMU application software. The RF switch is not used for the receive direction and both transceivers will simultaneously receive from this same antenna. This is achieved through the use of a coupler which is internal to the IRFU. The 1+1 Tx MHSB option can be supplied with equal or unequal receiver coupling. For more information on the IRFU options, please refer to Planning 1+1 Hot Standby links on page 2-35. phn-2513_001v000 (Apr 2012) 1-65
- 106. 1+1 Hot Standby link protection Chapter 1: Product description Two antennas per end The ODUs installed at the same end of a 1+1 Hot Standby link can be connected to separate antennas. Although antennas with different gains or mounting options may be deployed, they must have the same polarization. If the two antennas at a given end have different gains, the ODU configured as Primary should be connected to the antenna with the highest gain. This option is generally used to provide Spatial Diversity however it also provides protection in the case of antenna or waveguide failure. IRFUs with the 1+1 Tx MHSB / RX SD option are designed to connect to two antennas via elliptical waveguide, a main antenna and a diverse antenna. However the IRFU will only ever radiate from the main antenna, the transceivers being routed to this antenna by an RF switch in an identical way to the 1+1 Tx MHSB option. In the receive direction, spatial diversity is achieved by the main antenna connecting to one transceiver and the diverse antenna connecting to the other transceiver. Although antennas with different gains may be deployed, they must have the same polarization. For more information about spatial diversity, refer to Receive Diversity on page 1-67. Bridging in 1+1 links Only the active CMU forwards customer data from the wireless interface to the Ethernet switch. Also, when Out of Band Management is enabled, only the active CMU forwards management data received from the wireless interface to the Ethernet Switch. In the reverse direction only the active CMU forwards customer and management frames to the wireless interface. This includes management frames which are sourced by the CMU. When a protection switch occurs, the Ethernet Switch learns to send traffic to the newly active CMU. This is achieved by the newly Inactive CMU momentarily disabling its Ethernet ports which causes the Ethernet Switch to flush its forwarding data base and learn the new path. The selected Ethernet Switch must support the feature of flushing the forwarding data base on port down. The Inactive CMU is only manageable from its local Ethernet Port. This is the Data Port when configured for In Band operation and the Management Port when configured for Out of Band operation. Remote management of the Inactive CMU is still possible across the wireless link, the active CMU forwarding management traffic received on the wireless interface to Ethernet Switch which in turn forwards on to the Inactive CMU. 1-66 phn-2513_001v000 (Apr 2012)
- 107. PTP 800 Series User Guide 1+1 Hot Standby link protection Receive Diversity Receive Diversity improves link availability by providing each end of a wireless link with multiple observations of the signal which has been transmitted from the remote end of the link. It is particularly effective in combating multipath fading caused by atmospheric effects such as scintillation and ducting. Both these effects can occur to a significant degree in microwave links. It also combats fading caused by reflections from water. Receive Diversity can be enabled (at the CMU) in any of the supported 1+1 Hot Standby configurations. When Receive Diversity is enabled, the Active CMU examines the quality of the data which has been received from the wireless interface of both neighbour CMUs and selects the best data on a byte by byte basis. If separate antennas are installed at each end, then Receive Spatial Diversity is achieved. Receive Diversity Ethernet frames An important aspect of Receive Diversity is how the data received at the wireless interface of the Inactive CMU arrives at the Active CMU. This is achieved by the Inactive CMU encapsulating the received wireless data into Ethernet frames and sending the frames out on the Data port at a constant rate. This requires that the Data ports and also the ports to which they connect at the Ethernet switch are configured into a VLAN dedicated to Receive Diversity Ethernet frames (Figure 36). phn-2513_001v000 (Apr 2012) 1-67
- 108. 1+1 Hot Standby link protection Chapter 1: Product description Figure 36 Receive Diversity Ethernet frames Effects of Receive Diversity on 1+1 operation In almost all aspects, the 1+1 Hot Standby feature operates in the same way regardless of whether or not Receive Diversity has been enabled. Of most significance is the concept of the Active and Inactive units, where it is the Active ODU or IRFU transceiver which always radiates at the antenna and the Active CMU which forwards Ethernet frames to the network. The Inactive unit remains on standby to take over the role of the Active unit in case of a fault. However, there are some subtle differences as follows: • When Receive Diversity is enabled, then a protection switch will not occur if the fault only affects the wireless receiver of the Active CMU, ODU or IRFU transceiver. This is because the Active CMU will seamlessly use the data received at the wireless interface of the Inactive CMU. The Active ODU or IRFU transceiver will continue to radiate at the antenna. Receiver faults in this category are the RFU Rx Synthesizer faults and complete loss of the wireless receive signal. 1-68 phn-2513_001v000 (Apr 2012)
- 109. PTP 800 Series User Guide 1+1 Hot Standby link protection • The Fiber-Y configuration is useful in a network which requires a single Ethernet interface for customer traffic. In order to support Receiver Diversity in Fiber-Y configurations, the CMU copper data ports must also be connected to the same Ethernet Switch as the Fiber-Y interface. This is because the Fiber port of the Inactive CMU is necessarily disabled in Fiber-Y configurations. The copper port is therefore required in order for the Inactive CMU to send Receive Diversity Ethernet Frames. Note that the copper port will never carry customer traffic hence the single interface for customer traffic is not compromised. When Receive Diversity is enabled, there is a small impact on maximum Latency, and hence jitter. When there is significant fading and the Active CMU is using data which has been received at the wireless interface of the Inactive CMU, the latency increase will be affected by the customer traffic. The worst case is where jumbo frames are included in the customer traffic in which case the maximum increase in latency will be 150 μs. In periods where there is no significant fading, the Active CMU will use the data from its own wireless receiver in which case there will be a fixed increase in maximum latency of 12 μs. phn-2513_001v000 (Apr 2012) 1-69
- 110. 1+1 Hot Standby link protection Chapter 1: Product description Further reading on 1+1 Hot Standby For more information on 1+1 Hot Standby link protection, refer to the following: • Planning 1+1 Hot Standby links on page 2-35 describes factors to be considered when planning a 1+1 Hot Standby link. • Protection interface specifications on page 4-17 contains specifications of components used in 1+1 protection interfaces. • Upgrading an unprotected link to on page 6-58 describes how to upgrade an existing unprotected link to use the 1+1 Hot Standby link protection feature. • Installing antennas and ODUs on page 5-5 describes how to connect one antenna to two ODUs via a coupler, either in a direct mount or remote mount configuration. • Preparing network connections (1+1 Hot Standby) on page 5-88 describes how to connect the CMUs to the network equipment for 1+1 Hot Standby links. • Upgrading software in an operational 1+1 Hot Standby link on page 7-69 describes how to manage software upgrades in 1+1 Hot Standby links. • Task 6: Configuring protection on page 6-50 describes how to configure the CMUs as two pairs of protected units. • Aligning protected antennas on page 6-97 describes the alignment process for a 1+1 Hot Standby link with two antennas at each end. • Managing 1+1 Hot Standby links on page 7-33 describes how to use the Protected Link web page. • Testing protection switchover on page 8-13 describes the tests to be performed if any problems are experienced with protection switchovers in a newly installed (or operational) 1+1 Hot Standby link. 1-70 phn-2513_001v000 (Apr 2012)
- 111. PTP 800 Series User Guide FIPS 140-2 FIPS 140-2 This section describes the (optional) FIPS 140-2 cryptographic mode of operation. PTP 800 provides an optional secure cryptographic mode of operation validated to Level 1 of Federal Information Processing Standards Publication 140-2. FIPS 140-2 capability A PTP 800 unit is capable of operating in the FIPS 140-2 mode when all of the following are true: • The CMU license key has AES encryption enabled. • The CMU license key has FIPS operation enabled. • The CMU software image is validated for FIPS operation. Validated software image FIPS validated software images are indicated by a -FIPS suffix to the file name, for example: PTP800-04-10-FIPS.DLD2. The general features of a FIPS validated software image are identical to those of the standard image with the same version number. For example, PTP800-04-10-FIPS.DLD2 is equivalent to PTP800-04-10.DLD2 apart from the ability of the FIPS image to operate in FIPS mode. Indication of FIPS 140-2 capability The FIPS 140-2 capability is indicated by a distinctive symbol displayed at the top of the navigation bar in the web-based interface, as shown in Figure 37. Figure 37 Indication of FIPS 140-2 capability phn-2513_001v000 (Apr 2012) 1-71
- 112. FIPS 140-2 Chapter 1: Product description FIPS 140-2 mode PTP 800 operates in the FIPS 140-2 mode when all of the following are true: • The PTP 800 is FIPS 140-2 capable. • The HTTPS/TLS management interface is enabled. • The HTTP management interface is disabled. • The Telnet management interface is disabled. • SNMP control of HTTP and Telnet is disabled. • AES encryption is enabled at the wireless interface. • The HTTPS/TLS management interface is configured for identity-based user accounts. • RADIUS authentication of web-based users is disabled. FIPS operational mode alarm The FIPS operational mode alarm indicates that the unit is FIPS 140-2 capable, but has not been configured correctly for FIPS 140-2 operation. The FIPS operational mode alarm appears as shown in Figure 38. Figure 38 FIPS operational mode alarm Indication of FIPS 140-2 mode The PTP 800 is operating in FIPS 140-2 mode when the FIPS 140-2 capability logo is displayed in the navigation bar and the FIPS Operational Mode Alarm is absent from the Home page. Exiting from the FIPS 140-2 operational mode A PTP 800 in FIPS 140-2 operational mode can be prepared to accept new security configuration by zeroizing critical security parameters (CSPs). The unit remains FIPS 140-2 capable. 1-72 phn-2513_001v000 (Apr 2012)
- 113. PTP 800 Series User Guide FIPS 140-2 Reverting to standard operation A FIPS 140-2 capable CMU can be used in standard (non-FIPS) mode by loading a standard (non-FIPS) software image and rebooting. The critical security parameters (CSPs) are zeroized when the unit is no longer FIPS 140-2 Capable. Further reading on FIPS 140-2 For more information on FIPS 140-2, refer to the following: • Planning for FIPS 140-2 operation on page 2-24 describes how to prepare for FIPS 140- 2 operation by obtaining the required cryptographic material and by configuring the PTP 800 system. • Configuring for FIPS 140-2 applications on page 6-119 is a summary of all the configuration tasks that are necessary if the unit is to operate in FIPS 140-2 secure mode. • Task 3: Installing license keys on page 6-18 describes how to ensure that FIPS 140-2 operation is enabled by license key. • Task 4: Upgrading software version on page 6-22 describes how to ensure that the installed software version is FIPS 140-2 validated. • Task 5: Configuring security on page 6-25 describes how to to configure the PTP 800 in accordance with the network operator’s security policy. • Exiting FIPS 140-2 mode on page 7-51 describes how to disable FIPS 140-2 operation. phn-2513_001v000 (Apr 2012) 1-73
- 114. FIPS 140-2 Chapter 1: Product description 1-74 phn-2513_001v000 (Apr 2012)
- 115. PTP 800 Series User Guide Chapter 2: Planning considerations This chapter provides information to help the user to plan a PTP 800 link. The following topics are described in this chapter: • Link planning on page 2-2 describes factors to be taken into account when planning PTP 800 links, such as site selection and cable length, and it introduces the PTP LINKPlanner. • Grounding and lightning protection on page 2-7 describes the grounding and lightning protection requirements of PTP 800 installations. • Data network planning on page 2-18 describes factors to be considered when planning PTP 800 data networks. • Security planning on page 2-22 describes how to plan for PTP 800 links to operate in secure mode. • Planning 1+1 Hot Standby links on page 2-35 describes how to plan a 1+1 Hot Standby link to provide Hot Standby link protection. • Ordering components on page 2-57 describes how to select components for a planned PTP 800 link (as an alternative to PTP LINKPlanner). It specifies Cambium part numbers for PTP 800 components. phn-2513_001v000 (Apr 2012) 2-1
- 116. Link planning Chapter 2: Planning considerations Link planning This section describes factors to be taken into account when planning PTP 800 links, such as site selection and cable length, and it introduces the PTP LINKPlanner. Process The majority of the 6 to 38 GHz spectrum is licensed on a link by link basis. Licensing regimes vary from country to country, and the planning process must sometimes be adapted to local circumstances. Link planning must consider the following factors: 1 Identify suitable sites at the ends of the link. 2 Determine the data capacity and availability required for the link. 3 Select an RF band, taking into account the range of link, the capacity required, the availability required, the licensing policy for bands in the region or country, and likely availability of individual licenses in that band. 4 Decide whether spatial diversity is required. Regulations may mandate, or at least recommend spatial diversity for certain lengths of link. LINKPlanner can also be used to determine the availability improvement if Spatial Diversity is deployed. 5 Decide whether 1+1 Hot Standby is required. This may be required for very critical links where outages due to equipment failure cannot be tolerated. If Spatial Diversity has been selected, 1+1 Hot Standby automatically becomes available. 6 Decide whether the Radio Frequency Units should be installed on the mast (ODU) or whether they should be installed indoors (IRFU). Both ends of the link must be deployed with the same option. 7 Use the PTP LINKPlanner to check that a satisfactory, unobstructed, line-of-sight path is possible between the ends. 8 Use PTP LINKPlanner to investigate the performance increase provided by enabling ACM. 9 Apply for an individual license. 10 Use the PTP LINKPlanner with the license details to identify a Bill of Materials for the link. 11 Order equipment from Cambium. 2-2 phn-2513_001v000 (Apr 2012)
- 117. PTP 800 Series User Guide Link planning Cambium offers a license coordination service for links in the USA. The service includes link study, PCN, FCC application filling, Schedule-K completion and one year license protection warranty. The FCC Microwave license coordination service may be ordered as Cambium part number WB3659. Site selection To provide a clear line-of-sight path for the link, antennas should be mounted where they are elevated above their immediate surroundings and above obstructions. Although LINKPLanner can determine suitable antenna heights to clear the terrain, a site survey should be conducted to ensure that there are no other obstacles. Wind loading For all the antennas supplied by Cambium, the maximum permitted wind velocities are: • Operational wind velocity: 113 km/h (70 mph) • Peak survival wind velocity: 249 km/h (155 mph) Maximum IF cable length Applies to ODU deployments only. The maximum permitted IF cable lengths are: • 190 meters (620 ft) with CNT-400 or equivalent cable. • 300 meters (970 ft) with CNT-600 or equivalent cable. phn-2513_001v000 (Apr 2012) 2-3
- 118. Link planning Chapter 2: Planning considerations Power supply considerations Consider the following when planning the power supply to the PTP 800. • A means of removing power from the CMU and IRFU (if installed) without disrupting other equipment, for example a circuit breaker. • If the link is protected, a means of removing power from one PTP 800 without disrupting the other PTP 800. • Any circuit breaker or switch should be labeled. • Wiring from the power source to the PTP 800 should be sized accordingly. • All supply wiring should be to national standards and best practice. • A rack mounted power supply should be grounded in accordance with national standards and best practice. For more information, refer to AC to DC converter specifications on page 4-4. A 4 Amp fuse or similar protection device must be provided between the –48 volt supply source and the PTP 800 CMU and IRFU (if installed). Always ensure that the power supply is turned off before attempting any service on the PTP 800 installation. The CMU and IRFU (if installed) are positive ground and the DC power supply or battery must also be positive ground or isolated. 2-4 phn-2513_001v000 (Apr 2012)
- 119. PTP 800 Series User Guide Link planning PTP LINKPlanner The Cambium PTP LINKPlanner is a link planning and optimization tool designed for use with all PTP products, including the PTP 800 licensed band products. PTP LINKPlanner is free and available from the support web page (see Contacting Cambium Networks on page 2). The advantages of PTP LINKPlanner are as follows: • It is supported on Windows and Macintosh Platforms. • It is very easy to use without specialist radio planning knowledge. • It is powerful, implementing the latest ITU recommendations for predicting the performance of a radio link. • It expresses the performance in terms of data link capacity. • It is integrated with Google Earth™ to facilitate site entry and path visualization. • It provides bill of materials data for ease of purchasing. • It can provide path data by an automated email service. • It can model all Cambium PTP products. • It can plan multiple links in the same session. • It can generate an export file for Cambium's FCC Coordination service. The PTP LINKPlanner provides path profile information for individual links as shown in Figure 39. Figure 39 LINKPlanner profile view phn-2513_001v000 (Apr 2012) 2-5
- 120. Link planning Chapter 2: Planning considerations The PTP LINKPlanner also provides configuration and performance details as shown in Figure 40, and Bill of Materials data as shown in Figure 41. This is necessarily a brief introduction to the PTP LINKPlanner. Please download and evaluate this free software in further detail. Figure 40 LINKPlanner configuration and performance details Figure 41 LINKPlanner Bill of Materials view 2-6 phn-2513_001v000 (Apr 2012)
- 121. PTP 800 Series User Guide Grounding and lightning protection Grounding and lightning protection This section describes the grounding and lightning protection requirements of PTP 800 installations. Electro-magnetic discharge (lightning) damage is not covered under warranty. The recommendations in this guide, when followed correctly, give the user the best protection from the harmful effects of EMD. However 100% protection is neither implied nor possible. The need for power surge protection Structures, equipment and people must be protected against power surges (typically caused by lightning) by conducting the surge current to ground via a separate preferential solid path. The actual degree of protection required depends on local conditions and applicable local regulations. Cambium recommends that PTP 800 installation is contracted to a professional installer. Standards Full details of lightning protection methods and requirements can be found in the international standards IEC 61024-1 and IEC 61312-1, the U.S. National Electric Code ANSI/NFPA No. 70-1984 or section 54 of the Canadian Electric Code. International and national standards take precedence over the requirements in this guide. phn-2513_001v000 (Apr 2012) 2-7
- 122. Grounding and lightning protection Chapter 2: Planning considerations Lightning Protection Zones The ‘rolling sphere method’ (Figure 42) is used to determine where it is safe to mount equipment. An imaginary sphere, typically 50 meters in radius, is rolled over the structure. Where the sphere rests against the ground and a strike termination device (such as a finial or ground bar), all the space under the sphere is considered to be in the zone of protection (Zone B). Similarly, where the sphere rests on two finials, the space under the sphere is considered to be in the zone of protection. Figure 42 Rolling sphere method to determine the lightning protection zones Assess locations on masts, towers and buildings to determine if the location is in Zone A or Zone B: • Zone A: In this zone a direct lightning strike is possible. Do not mount equipment in this zone. • Zone B: In this zone, direct EMD (lightning) effects are still possible, but mounting in this zone significantly reduces the possibility of a direct strike. Mount equipment in this zone. Never mount equipment in Zone A. Mounting in Zone A may put equipment, structures and life at risk. 2-8 phn-2513_001v000 (Apr 2012)
- 123. PTP 800 Series User Guide Grounding and lightning protection General protection requirements To adequately protect a PTP 800 installation, both ground bonding and transient voltage surge suppression are required. Basic requirements The following basic protection requirements must be implemented; • The outdoor equipment, that is antenna and ODU (if deployed), must be in ‘Zone B’ (see Lightning Protection Zones on page 2-8). • The indoor equipment, that is CMU and IRFU (if deployed), must be grounded at their chassis bonding points. Grounding cable requirements When selecting and installing grounding cables, the following requirements must be observed: • All grounding cables must be no less than 16mm2 or #6AWG in size, solid or stranded, tinned and/or jacketed copper conductor. • Grounding conductors must be run as short, straight, and smoothly as possible, with the fewest possible number of bends and curves. • Grounding cables must not be installed with drip loops. • All bends must have a minimum radius of 203 mm (8 in) and a minimum angle of 90°. A diagonal run is preferable to a bend, even though it does not follow the contour or run parallel to the supporting structure. • All bends, curves and connections must be routed towards the grounding electrode system, ground rod, or ground bar. • Grounding conductors must be securely fastened. • Braided grounding conductors must not be used. • Approved bonding techniques must be used for the connection of dissimilar metals. phn-2513_001v000 (Apr 2012) 2-9
- 124. Grounding and lightning protection Chapter 2: Planning considerations LPU and IF cable requirements Applies to ODU deployments only. The following LPU and IF cable protection requirements must be implemented: • A lightning protection unit (LPU) must be installed within 600 mm (24 in) of the point at which the IF cable enters the building or equipment room. The use of the LPU provided in the lightning protection kit (WB3657) is strongly recommended. • The IF cable must be bonded to the supporting structure in order to prevent lightning creating a potential between the structure and cable, which could cause arcing, resulting in damage to equipment. • The IF cable must be grounded at the building entry point. Specific requirements for the ODU Applies to ODU deployments only. The following ODU protection requirements must be implemented: • The distance between the ODU and LPU should be kept to a minimum; it is recommended that the cable supplied in the accessory kit be used. • The IF cable length between the ODU and LPU must be less than 800mm. • The top LPU should be mounted lower than the ODU. • The ODU and top LPU should be bonded together with the 800 mm long 16mm2, #6AWG cable supplied in the accessory kit. • The LPU should be bonded to the tower (or main grounding system) using the 600mm long 16mm2, #6AWG cable supplied in the accessory kit. 2-10 phn-2513_001v000 (Apr 2012)
- 125. PTP 800 Series User Guide Grounding and lightning protection Protection requirements for a mast or tower installation Applies to ODU deployments only. If the equipment (ODU or antenna) is to be mounted on a metal tower or mast, then in addition to the general protection requirements (above), the following requirements must be observed: • The equipment must be lower than the top of the tower or its lightning terminal and finial. • The metal tower or mast must be correctly grounded. • A grounding kit must be installed at the first point of contact between the IF cable and the tower, near the top. • A grounding kit must be installed at the bottom of the tower, near the vertical to horizontal transition point. This grounding kit must be bonded to the tower or tower ground bus bar (TGB) if installed. • If the tower is greater than 61 m (200 ft) in height, an additional grounding kit must be installed at the tower midpoint. Additional ground kits must be installed as necessary to reduce the distance between ground kits to 61 m (200 ft) or less. • In high lightning prone geographical areas, additional ground kits should be installed at spacing between 15 to 22 m (50 to 75 ft). This is especially important on towers taller than 45 m (150 ft). phn-2513_001v000 (Apr 2012) 2-11
- 126. Grounding and lightning protection Chapter 2: Planning considerations Mast or tower protection diagrams Figure 43 shows the protection requirements for an ODU mounted on a metal tower or mast. Figure 44 shows the protection requirements for a 1+1 Hot Standby protected end. Figure 43 Grounding and lightning protection on mast or tower IF cable ODU and antenna Network cable PTP 800 ground cable Tower/building ground system Lightning Protection Unit (LPU) First point of contact with tower Mid-point of tower Ground bus conductor Rack Ground Bar (RGB) Master Ground Bar (MGB) Bottom of tower CMU Tower Ground Bar (TGB) External Ground Bar (EGB) Network To network equipment Ground ring Lightning Protection Unit (LPU) Equipment rack 2-12 phn-2513_001v000 (Apr 2012)
- 127. PTP 800 Series User Guide Grounding and lightning protection Figure 44 Grounding and lightning protection on mast or tower (protected end) Two ODUs and one antenna connected via coupler IF cable Network cable Lightning Protection Units (LPUs) PTP 800 ground cable Tower/building ground system First point of contact with tower Mid-point of tower Ground bus conductor Rack Ground Bar (RGB) Master Ground Bar (MGB) Bottom of tower CMUs Tower Ground Bar (TGB) External Ground Bar (EGB) Ethernet To network switch Ground ring Lightning Protection Units (LPUs) Equipment rack Protection requirements for the ODU on a high rise building Applies to ODU deployments only. If the antenna or ODU is to be mounted on a high rise building, it is likely that cable entry is at roof level (Figure 45) and equipment room several floors below (Figure 46). In addition to the general protection requirements (above), the following requirements must be observed: • The antenna and ODU must be below the lightning terminals and finials. • A grounding conductor must be installed around the roof perimeter, to form the main roof perimeter lightning protection ring. • Air terminals are typically installed along the length of the main roof perimeter lightning protection ring typically every 6.1m (20ft). phn-2513_001v000 (Apr 2012) 2-13
- 128. Grounding and lightning protection Chapter 2: Planning considerations • The main roof perimeter lightning protection ring must contain at least two down conductors connected to the grounding electrode system. The down conductors should be physically separated from one another, as far as practical. Figure 45 Grounding and lightning protection on building 2-14 phn-2513_001v000 (Apr 2012)
- 129. PTP 800 Series User Guide Grounding and lightning protection Protection inside the building The following protection requirements must be observed inside multi-story or high rise buildings (Figure 46): • The IF cable shield must be bonded to the building grounding system at the entry point to the building. • The IF cable shield must be bonded to the building grounding system at the entry point to the equipment area. • An LPU must be installed within 600 mm (24 in) of the entry point to the equipment area. Figure 46 Grounding and lightning protection inside high building phn-2513_001v000 (Apr 2012) 2-15
- 130. Grounding and lightning protection Chapter 2: Planning considerations In a 1+1 Hot Standby protected end, prior to connecting CMUs via the protection interface, the front panel ground stud of both CMUs must be connected to a common ground (Figure 47). Figure 47 Grounding and lightning protection inside high building (protected end) 2-16 phn-2513_001v000 (Apr 2012)
- 131. PTP 800 Series User Guide Grounding and lightning protection Protection requirements for the IRFU Applies to IRFU deployments only. The CMU and IRFU (if deployed), must be grounded at their chassis bonding points to the building grounding system (Figure 48). The waveguide and antenna must be grounded according to their manufacturers’ instructions. Figure 48 Grounding requirements for the IRFU and CMU phn-2513_001v000 (Apr 2012) 2-17
- 132. Data network planning Chapter 2: Planning considerations Data network planning This section describes factors to be considered when planning PTP 800 data networks. Management mode Decide how the PTP 800 will be managed. There are three modes of management: out-of- band local, out-of-band and in-band. In the default out-of-band local management mode, the management agent can be reached only from the Management port of the CMU. This mode is appropriate during configuration and installation when the equipment is managed using a locally connected PC at each end of the link. It may additionally be useful where network management communication is based on a completely independent data network (for example, one based on a 3G cellular wireless terminal at each site). In many network applications the wireless link will provide the only communication path to a remote site. In such applications, CMUs and other network equipment at the remote site will be managed over the wireless link. For applications of this type, select either out-of- band or in-band management mode. Out-of-band management should be configured by operators who wish to fully separate customer data traffic from the traffic generated by management of the network equipment. When configured for out-of-band management mode, the PTP 800 supports two networks, the customer data network and the management network. The customer data is transported between the Data ports of the CMUs and the management traffic is transported between the Management ports. The CMU management agent is also part of the management network. Traffic never crosses between the two networks. The management network has a configurable Committed Information Rate of between 100 kbps and 2 Mbps. It will also provide a maximum of 10 Mbps when there is no customer traffic to send over the link. When configured for in-band management mode, the PTP 800 only supports a single network. Customer traffic and Management traffic are multiplexed and passed between the Data ports of the CMUs. The CMU Management port is disabled in this mode. This mode of operation may be useful where a customer has a limited number of Ethernet ports at a site. Make sure that the same management mode is selected for CMUs at both ends of a link. See Management network on page 1-43 for further explanation of management modes. When using out-of-band management mode, avoid connecting Management and Data ports in the same network. Loops in the network can be complicated to detect and correct. 2-18 phn-2513_001v000 (Apr 2012)
- 133. PTP 800 Series User Guide Data network planning VLAN membership Decide if the IP interface of the CMU management agent will be connected in a VLAN. If so, decide if this is a standard (IEEE 802.1Q) VLAN or provider bridged (IEEE 802.1ad) VLAN, and select the VLAN ID for this VLAN. Use of a separate management VLAN is strongly recommended for applications based on the in-band management mode. Use of the management VLAN helps to ensure that the CMU management agent cannot be accessed by customers. See Management network on page 1-43 for further explanation of VLAN membership. Priority for management traffic Choose the Ethernet priority for management traffic generated within the CMU management agent. The priority should be selected so as to be consistent with existing policy on priority of management traffic in the network. Use of a high priority is strongly recommended for applications based on the in-band management mode to ensure that management traffic is not discarded if the link is overloaded. IP interface Choose an IP address for the IP interface of the CMU management agent. The IP address must be unique and valid for the connected network segment and VLAN. Find out the correct subnet mask and gateway IP address for this network segment and VLAN. Ensure that the design of the data network permits bi-direction routing of IP datagrams between network management systems and the CMUs. For example, ensure that the gateway IP address identifies a router or other gateway that provides access to the rest of the data network. See Management network on page 1-43 for further explanation of configuration of the IP interface. Quality of service for bridged Ethernet traffic Decide how quality of service will be configured in PTP 800 to minimize frame loss and latency for high priority traffic. Wireless links often have lower data capacity than wired links or network equipment like switches and routers, and quality of service configuration is most critical at network bottlenecks. phn-2513_001v000 (Apr 2012) 2-19
- 134. Data network planning Chapter 2: Planning considerations PTP 800 provides eight queues for traffic waiting for transmission over the wireless link. Q0 is the lowest priority queue and Q7 is the highest priority queue. Traffic is scheduled using strict priority; in other words, traffic in a given queue is transmitted when all higher priority queues are empty. Layer 2 control protocols Select the transmission queue for each of the recognized layer 2 control protocols (L2CP). These protocols are essential to correct operation of the Ethernet network, and are normally mapped to a high priority queue. Ethernet frames that match one of the recognized L2CPs are not subject to the Ethernet and IP/MPLS classification described below. Priority schemes Select the priority scheme based on Ethernet priority or IP/MPLS priority to match QoS policy in the rest of the data network. Ethernet priority is also known as Layer 2 or link layer priority. IP/MPLS priority is also known as Layer 3 or network layer priority. Ethernet priority scheme Ethernet priority is encoded in a VLAN tag. Use the Ethernet priority scheme if the network carries traffic in customer or service provider VLANs, and the priority in the VLAN tag has been set to indicate the priority of each type of traffic. Select a suitable mapping from the Ethernet priority to the eight PTP 800 queues. An advantage of Ethernet priority is that any VLAN-tagged frame can be marked with a priority, regardless of the higher-layer protocols contained within the frame. A disadvantage of Ethernet priority is that the priority in the frame must be regenerated whenever traffic passes through a router. The user interface provides a convenient shortcut to select the assignment recommended in IEEE 802.1Q-2005. IP/MPLS priority scheme IP priority is encoded in the DSCP field in an IPv4 or IPv6 header. The DSCP field provides 64 levels of priority. Determine the DSCP values used in the network and select a suitable mapping from these DSCP values to the eight PTP 800 queues. An advantage of IP priority is that priority in the IP header is normally propagated transparently through a router. Also, the DSCP field supports a large number of distinct priority code points. A disadvantage of DSCP is that frames receive a single default classification if they contain a network layer protocol other than IPv4 or IPv6. MPLS priority is encoded in the traffic class (TC) field in the outermost MPLS label. Select a suitable mapping from MPLS TC to the eight PTP 800 queues. 2-20 phn-2513_001v000 (Apr 2012)
- 135. PTP 800 Series User Guide Data network planning Hot Standby links In a 1+1 Hot Standby link, set the same QoS configuration on primary and secondary units. Out-of-band management When the wireless link is configured for out-of-band management, select an appropriate setting for the Management CIR attribute. A high CIR will provide greater capacity for management traffic, at the cost of allowing bursty management traffic to have a greater impact on capacity remaining for customer traffic. A low CIR may result in extended response times for network management traffic. Fast Ethernet port shutdown If the PTP 800 link is part of a redundant network where STP or EAPS is used in external Ethernet bridges in order to resolve loops, enable the Data Port Wireless Down Alert and Management Data Port Wireless Down Alert to ensure that protection protocols are invoked promptly following loss of the wireless link. phn-2513_001v000 (Apr 2012) 2-21
- 136. Security planning Chapter 2: Planning considerations Security planning This section describes how to plan for PTP 800 links to operate in secure mode. Planning for SNTP operation To prepare for Simple Network Time Protocol (SNTP) operation: • Identify the time zone and daylight saving requirements that apply to the system. • Determine whether or not there is a requirement to synchronize the PTP 800 clock with an SNTP server at regular intervals. If SNTP server synchronization is not required, the clock can be set to run manually. The clock is battery backed and will continue to operate for several days after the CMU is switched off. • If SNTP server synchronization is required, identify the details of one or two SNTP servers: IP address and server key. • For secure applications, the PTP 800 can be configured to authenticate received NTP messages using the DES or MD5 protocols. Planning for AES encryption To prepare for wireless link encryption: • Choose 128-bit or 256-bit AES encryption. • Use a cryptographic key generator to generate an encryption key for AES. The key length is dictated by the selected AES encryption algorithm (128 or 256 bits). The same encryption key is required at each link end. 2-22 phn-2513_001v000 (Apr 2012)
- 137. PTP 800 Series User Guide Security planning Planning for HTTPS/TLS operation To prepare for HTTPS/TLS operation, ensure that the cryptographic material listed in Table 7 is available. Table 7 HTTPS/TLS security material Item Description Quantity required Key of Keys An encryption key generated using a One per unit. cryptographic key generator. The key length is dictated by the installed license key. License keys with AES-128 will require a key of keys of 128-bits. License keys with AES-256 will require a key of keys of 256-bits. The key output should be in ASCII hexadecimal characters. TLS Private An RSA private key of size 1024, generated in One pair per unit. Key and Public either PKCS#1 or PKCS#5 format, Certificates unencrypted, and encoded in the ASN.1 DER format. An X.509 certificate containing an RSA public key, generated in either PKCS#1 or PKCS#5 format, unencrypted, and encoded in the ASN.1 DER format. The public key certificate must form a valid pair with the private key. User Defined The banner provides warnings and notices to Normally one per link. Security be read by the user before logging in to the This depends upon Banner CMU. Use text that is appropriate to the network policy. network security policy. Entropy Input This must be of size 512 bits (128 hexadecimal One per unit. characters), output from a random number generator. Port numbers Port numbers allocated by the network. As allocated by for HTTP, network. HTTPS and Telnet phn-2513_001v000 (Apr 2012) 2-23
- 138. Security planning Chapter 2: Planning considerations Planning for FIPS 140-2 operation To prepare for FIPS 140-2 secure mode operation, ensure that the following cryptographic material is generated using a FIPS-approved cryptographic generator: • Key of Keys • TLS Private Key and Public Certificates. FIPS 140-2 now recommends 2048 bit keys. • Entropy Input • Wireless Link Encryption Key for AES Ensure that the web browsers used are enabled for HTTPS/TLS operation using FIPS- approved cipher specifications. Ensure that following attributes of user accounts for the web-based management interface have been configured to match the operator’s network security policy: • Auto Logout Period. • Maximum Number of Login Attempts. • Login Attempt Lockout. • Minimum Password Change Period. • Password Expiry Period. • Webpage Session Control Ensure that the following are configured: • Password complexity rules reset to ‘best practice’ values. • User account passwords compliant with the network security policy. • RADIUS authentication = Disabled. Configure all of the above correctly to ensure that PTP 800 is operating in compliance with the FIPS 140-2 validation. FIPS validated software is available from System Release PTP800-04-00. Load standard (non-FIPS) software from PTP800-04-00 or later before loading a FIPS software image. 2-24 phn-2513_001v000 (Apr 2012)
- 139. PTP 800 Series User Guide Security planning Planning for SNMPv3 operation SNMP security mode Decide how SNMPv3 security will be configured. MIB-based security management uses standard SNMPv3 MIBs to configure the user-based security model and the view-based access control model. This approach provides considerable flexibility, allowing a network operator to tailor views and security levels appropriate for different types of user. MIB-based security management may allow a network operator to take advantage of built-in security management capabilities of existing network managers. Web-based security management allows an operator to configure users, security levels, privacy and authentication protocols, and passphrases using the web-based management interface. The capabilities supported are somewhat less flexible than those supported using the MIB-based security management, but will be sufficient in many applications. Selection of web-based management for SNMPv3 security disables the MIB-based security management. The system does not support concurrent use of MIB-based and web-based management of SNMPv3 security. Web-based management of SNMPv3 security Initial configuration of SNMPv3 security is available only to HTTP or HTTPS/TLS user accounts with security role of Security Officer. Identify the minimum security role of HTTP or HTTPS/TLS user accounts that will be permitted access for web-based management of SNMPv3 security. Two roles are available: • System Administrator • Security Officer Identify the format used for SNMP Engine ID. Three formats are available: • MAC address (default) • IP address • Text string If SNMP Engine ID will be based on a text string, identify the text string required by the network management system. This is often based on some identifier that survives replacement of the PTP hardware. Identify the user names and security roles of initial SNMPv3 users. Two security roles are available: • Read Only • System Administrator phn-2513_001v000 (Apr 2012) 2-25
- 140. Security planning Chapter 2: Planning considerations Identify the security level for each of the security roles. Three security levels are available: • No authentication, no privacy • Authentication, no privacy • Authentication, privacy If authentication is required, identify the protocol. Two authentication protocols are available: • MD5 • SHA If privacy will be used, identify the protocol. Two privacy protocols are available: • DES • AES AES link encryption is only available to users who have purchased an appropriate license key. If authentication or authentication and privacy protocols are required, identify passphrases for each protocol for each SNMP user. It is considered good practice to use different passphrases for authentication and privacy. Passphrases must have length between 8 and 32 characters, and may contain any of the characters listed in Table 8. Table 8 Permitted character set for SNMPv3 passphrases Character Code Character Code <space> 32 ; 59 ! 33 < 60 “ 34 = 61 # 35 > 62 $ 36 ? 63 % 37 @ 64 & 38 A..Z 65..90 ' 39 [ 91 ( 40 92 ) 41 ] 93 * 42 ^ 94 + 43 _ 95 , 44 ` 96 - 45 a..z 97..122 2-26 phn-2513_001v000 (Apr 2012)
- 141. PTP 800 Series User Guide Security planning Character Code Character Code . 46 { 123 / 47 | 124 0..9 48..57 } 125 : 58 ~ 126 Identify up to two SNMP users that will be configured to receive notifications (traps). Identify the IP address and UDP port number of the associated SNMP manager. SNMPv3 default configuration (MIB-based) When SNMPv3 MIB-based Security Mode is enabled, the default configuration for the usmUserTable table is based on one initial user and four template users as listed in Table 9. Table 9 Default SNMPv3 users Object Entry 1 Entry 2 Entry 3 Name initial templateMD5_DES templateSHA_DES SecurityName initial templateMD5_DES templateSHA_DES AuthProtocol usmHMACMD5AuthProt usmHMACMD5AuthProto usmHMACSAHAuthPro ocol col tocol PrivProtocol usmDESPrivProtocol usmDESPrivProtocol usmDESPrivProtoco l StorageType nonVolatile nonVolatile nonVolatile Object Entry 4 Entry 5 Name templateMD5_AES templateSHA_AES SecurityName templateMD5_AES templateSHA_AES AuthProtocol usmHMACMD5AuthProtocol usmHMACSHAAuthProtocol PrivProtocol usmAESPrivProtocol usmAESPrivProtocol StorageType nonVolatile nonVolatile phn-2513_001v000 (Apr 2012) 2-27
- 142. Security planning Chapter 2: Planning considerations Planning for RADIUS operation Configure RADIUS where remote authentication is required for users of the web-based interface. Remote authentication has the following advantages: • Control of passwords can be centralized. • Management of user accounts can be more sophisticated For example, users can be prompted by email to change passwords at regular intervals. As another example, passwords can be checked for inclusion of dictionary words and phrases. • Passwords can be updated without reconfiguring multiple network elements. • User accounts can be disabled without reconfiguring multiple network elements. Remote authentication has one significant disadvantage in a wireless link product such as PTP 800. If the wireless link is down, a unit on the remote side of the broken link may be prevented from contacting a RADIUS Server, with the result that users are unable to access the web-based interface. One useful strategy would be to combine RADIUS authentication for normal operation with a single locally-authenticated user account for emergency use. PTP 800 provides a choice of three authentication methods: • CHAP • MS-CHAPv2 • PEAP(MS-CHAPv2) PEAP(MS-CHAPv2) is supported for Microsoft Windows Server 2003. Ensure that the authentication method selected in PTP 800 is supported by the RADIUS server. RADIUS is not permitted in FIPS 140-2 applications. RADIUS and PEAP(MS-CHAPv2) are mandatory in UC-APL applications. RADIUS attributes If the standard RADIUS attribute session-timeout (Type 27) is present in a RADIUS response, PTP 800 sets a maximum session length for the authenticated user. If the attribute is absent, the maximum session length is infinite. If the standard RADIUS attribute idle-timeout (Type 28) is present in a RADIUS response, PTP 800 overrides the Auto Logout Timer with this value in the authenticated session. 2-28 phn-2513_001v000 (Apr 2012)
- 143. PTP 800 Series User Guide Security planning If the vendor-specific RADIUS attribute auth-role is present in a RADIUS response, PTP 800 selects the role for the authenticated user according to auth-role. The supported values of auth-role are as follows: • 0: Invalid role. The user is not admitted. • 1: Read Only • 2: System Administrator • 3: Security Officer If the vendor-specific auth-role attribute is absent, but the standard service-type (Type 6) attribute is present, PTP 800 selects the role for the authenticated user according to service-type. The supported values of service-type are as follows: • Login(1): Read Only • Administrative(6): System Administrator • NAS Prompt(7): Read Only If the auth-role and service-type attributes are absent, PTP 800 selects the Read Only role. The auth-role vendor-specific attribute is defined in Table 10. Table 10 Definition of auth-role vendor-specific attribute Field Length Value Notes Type 1 26 Vendor-specific attribute. Length 1 12 Overall length of the attribute. Vendor ID 4 17713 The same IANA code used for the SNMP enterprise MIB. Vendor Type 1 1 auth-role Vendor 1 4 Length of the attribute specific part. Length Attribute- 4 0..3 Integer type (32-bit unsigned). Supported values: Specific invalid-role(0), readonly-role(1), system-admin- role(2), security-officer-role(3). phn-2513_001v000 (Apr 2012) 2-29
- 144. Planning 1+0 links Chapter 2: Planning considerations Planning 1+0 links Concept of a 1+0 link A 1+0 link is the simplest link to deploy. There is no redundant equipment deployed and so costs are minimized. The 1+0 link provides no protection in the case of equipment failure. If a link is very critical to network operation and where a service outage due to equipment failure cannot be tolerated, consider deploying a 1+1 Hot Standby link. Antenna, RFU and CMU configurations for 1+0 A 1+0 link may be implemented using the following link end configurations: • ODU with direct mount antenna (Figure 49). • ODU with remote mount antenna (Figure 50). • IRFU with remote mount antenna (Figure 51). Do not install an ODU and an IRFU in the same link, as they cannot interwork. 2-30 phn-2513_001v000 (Apr 2012)
- 145. PTP 800 Series User Guide Planning 1+0 links Figure 49 Schematic view of 1+0 ODU direct mount link end Direct ODU mount antenna IF cable CMU Network connections phn-2513_001v000 (Apr 2012) 2-31
- 146. Planning 1+0 links Chapter 2: Planning considerations Figure 50 Schematic view of 1+0 ODU remote mount link end Flexible Remote waveguide mount antenna ODU RMK IF cable CMU Network connections 2-32 phn-2513_001v000 (Apr 2012)
- 147. PTP 800 Series User Guide Planning 1+0 links Figure 51 Schematic view of 1+0 IRFU link end Fixed tuned connector Remote Premium mount elliptical antenna waveguide Air tubing Fixed tuned connector Pressure window Flexible waveguide Distribution IRFU manifold Dehydrator Left transceiver IF cable Right transceiver not required Network connections phn-2513_001v000 (Apr 2012) 2-33
- 148. Planning 1+0 links Chapter 2: Planning considerations Network configurations for 1+0 Each 1+0 link end needs the network connections shown in Figure 52. For out-of-band management, provide both Data port and Management port cables. For in-band management, provide Data port cables only. For part numbers, see Ordering network connection components on page 2-96. Figure 52 Schematic view of network connections for a 1+0 link end IF cable CMU Cat5e management cable (for out-of-band only) Cat5e data cable (for out-of-band and in-band) Alternative fiber data cable (for out-of-band and in-band) Management port Data port (copper) Data port (fiber) Ethernet switch 2-34 phn-2513_001v000 (Apr 2012)
- 149. PTP 800 Series User Guide Planning 1+1 Hot Standby links Planning 1+1 Hot Standby links Concept of a 1+1 Hot Standby link A 1+1 Hot Standby link provides protection against single point equipment failure. This is achieved by the deployment of extra equipment which automatically takes over the operation of the link in case of failure. The two main advantages of a 1+1 Hot Standby link are: • Better availability. In the unlikely event of equipment failure, the 1+1 Hot Standby link becomes operational again with a down time of less than 250 ms. This is compared to a lengthy down time in the event of equipment failure in a 1+0 link. This may be particularly important in remote locations or for safety critical applications. • Maintenance operations can be carried out, such as installation of new software, with a minimum of interruption to the service provided by the link. Antenna, RFU and CMU configurations for 1+1 Do not install an ODU and an IRFU in the same link, as they cannot interwork. A 1+1 Hot Standby link may be implemented using the following link end configurations: phn-2513_001v000 (Apr 2012) 2-35
- 150. Planning 1+1 Hot Standby links Chapter 2: Planning considerations ODUs coupled to single direct mount antenna The coupler mounts directly to the back of the antenna (Figure 53). The choice of coupler may be equal or unequal. The unequal coupler provides a better link budget (nominally 6 dB) for the Primary ODUs at the expense of the link budget of the Secondary ODUs. Figure 53 ODUs coupled to single direct mount antenna (schematic) Primary ODU Direct mount antenna Secondary ODU Equal or unequal coupler IF cables Primary CMU Secondary CMU Network connections 2-36 phn-2513_001v000 (Apr 2012)
- 151. PTP 800 Series User Guide Planning 1+1 Hot Standby links ODUs coupled to single remote mount antenna Requires a Remote Mount Kit (RMK) to mount the Coupler and 3' of flexible waveguide to connect the RMK to the antenna (Figure 54). The choice of Coupler may be equal or unequal. The unequal coupler provides a better link budget (nominally 6 dB) for the Primary ODUs at the expense of the link budget of the Secondary ODUs. Figure 54 ODUs coupled to single remote mount antenna (schematic) Flexible Remote waveguide mount Primary ODU antenna Remote mount kit Secondary ODU Equal or unequal coupler IF cables Primary CMU Secondary CMU Network connections phn-2513_001v000 (Apr 2012) 2-37
- 152. Planning 1+1 Hot Standby links Chapter 2: Planning considerations ODUs with separate direct mount antennas May be used to provide spatial diversity. The ODUs mounts directly to the back of the antennas (Figure 55). The antenna connected to the Secondary ODU may have lower gain if space on the mast is an issue. Although antennas may have different gains, the polarizations must be the same. Figure 55 ODUs with separate direct mount antennas (schematic) Direct Primary mount ODU antenna Direct Secondary mount ODU antenna IF cable IF cable Primary CMU Secondary CMU Network connections 2-38 phn-2513_001v000 (Apr 2012)
- 153. PTP 800 Series User Guide Planning 1+1 Hot Standby links ODUs with separate remote mount antennas May be used to provide spatial diversity. Each ODU is mounted using a Remote Mount Kit (Figure 56). Each RMK connects to its antenna with a 3' flexible waveguide. The antenna connected to the Secondary ODU may have lower gain if space on the mast is an issue. Although antennas may have different gains, the polarizations must be the same. Figure 56 ODUs with separate remote mount antennas (schematic) Remote Flexible mount waveguide antenna Primary ODU Remote mount Remote antenna mount kits Flexible Secondary waveguide ODU IF cable IF cable Primary CMU Secondary CMU Network connections phn-2513_001v000 (Apr 2012) 2-39
- 154. Planning 1+1 Hot Standby links Chapter 2: Planning considerations IRFU 1+1 Tx MHSB with single remote mount antenna Requires a length of elliptical waveguide dependant on the distance between the antenna and the IRFU (Figure 57). Requires waveguide dehydration accessories. The receiver coupling is internal to the IRFU. The IRFU may be purchased with equal or unequal coupling, the unequal coupling option provides a better link budget (nominally 6 dB) for the Primary transceivers. Figure 57 IRFU 1+1 Tx MHSB with single remote mount antenna (schematic) 2-40 phn-2513_001v000 (Apr 2012)
- 155. PTP 800 Series User Guide Planning 1+1 Hot Standby links IRFU 1+1 Tx MHSB / Rx SD with two remote mount antennas Requires two lengths of elliptical waveguide (Figure 58). The length of each waveguide is dependant on the distance between the antenna and the IRFU. Requires waveguide dehydration accessories. The IRFU will only radiate from the main antenna. The diverse antenna may be selected with lower gain if space on the mast is an issue. Both antennas must have the same polarity. Figure 58 IRFU 1+1 Tx MHSB / Rx SD with two remote mount antennas (schematic) phn-2513_001v000 (Apr 2012) 2-41
- 156. Planning 1+1 Hot Standby links Chapter 2: Planning considerations Designating primary and secondary units At each end, the CMU which is connected to the ODU or IRFU transceiver with the best link budget should be configured as the Primary unit. In ODU deployments with unequal couplers, this will be the ODU connected to the arm of the coupler with the lowest path loss. The coupler labels this arm as "Main". In the case of separate antennas, it will be the ODU connected to the antenna with the highest gain. If equal gain antennas are used, either CMU can be configured as Primary CMU. In IRFU deployments, the CMU which connects to the left hand transceiver must be configured as the Primary CMU. The procedure for configuring the primary and secondary units is described in Configuring 1+1 Hot Standby links on page 6-51). Link Planning for 1+1 Hot Standby links A 1+1 Hot Standby link has four radio paths: • Primary end A to Primary end B • Primary end A to Secondary end B • Secondary end A to Primary end B • Secondary end A to Secondary end B Although a 1+1 Hot Standby link will normally operate on the Primary to Primary radio path, LINKPlanner does allow the user to check wireless link availability for all four paths, any of which could become the active path in the case of a fault causing a protection switch at either end of the link. When using LINKPlanner, ensure that the availability of all four paths meets your requirements. 2-42 phn-2513_001v000 (Apr 2012)
- 157. PTP 800 Series User Guide Planning 1+1 Hot Standby links Network configurations for 1+1 1+1 Hot Standby link management In a 1+1 Hot Standby Link, each CMU is managed separately and must be assigned its own IP address. Choosing Ethernet switches The Ethernet switch must react to a brief disconnection of an Ethernet port by flushing its forwarding data base (see Bridging in 1+1 links on page 1-66). This allows the Ethernet switch to learn the new bridging path following a protection switch. When choosing an Ethernet switch, ensure that this feature is supported. Many inexpensive unmanaged switches fail to meet this requirement. The switch must support the required number of ports for 1+1 Hot Standby operation. This is dependent on the following factors: • Whether copper or fiber is the physical connection medium or whether the Fiber-Y option is required. • Whether in-band or out-of-band management mode is required. The details of these requirements are in the following sections. 1+1 Hot Standby link with out-of-band management Out-of-band management provides two separate networks, one for customer data and one for managing the network. Please refer to Management network on page 1-43 for more details on out-of-band Management. When Out of Band management is selected, the Ethernet switch must provide two ports in order to carry the management traffic to both CMUs. As the protection interface shares the same physical socket as the management port, an Out of Band Protection Splitter is required to route the management traffic from the two CMUs to the Ethernet switch. For the customer data, there are two methods of connection, either redundant data ports or Fiber-Y. For redundant data ports, the Ethernet switch must provide two ports for carrying customer data traffic to both CMUs. The choice of physical medium can be copper or fiber and this can be selected independently for each CMU. This arrangement is shown in Figure 59. phn-2513_001v000 (Apr 2012) 2-43
- 158. Planning 1+1 Hot Standby links Chapter 2: Planning considerations The Fiber-Y arrangement can be a useful feature in complex networks, such as ring architectures, where there is a requirement for the link to provide a single interface at the Ethernet Switch. The Ethernet Switch must provide a single fiber port. This arrangement is shown in Figure 60. Figure 59 Schematic of 1+1 out-of-band network connections (redundant copper or fiber) 2-44 phn-2513_001v000 (Apr 2012)
- 159. PTP 800 Series User Guide Planning 1+1 Hot Standby links Figure 60 Schematic of 1+1 out-of-band network connections (Fiber-Y) Primary CMU Secondary CMU IF cables Cat5e cables for management network Fiber-Y splitter kits for customer Out-of-band network: protection Switch to CMU splitter CMU to switch Ethernet switch Management port Only required when Receive Diversity is enabled with Fiber-Y: Data port (copper) Cat5e cables for forwarding Receive Diversity Data port (fiber) Ethernet frames from the Inactive CMU 1+1 Hot Standby link with in-band management In Band management provides a single network which multiplexes customer data with management data. Please refer to Management network on page 1-43 for more details of this mode. When In Band is configured, the Ethernet Switch must provide two ports to carry the traffic to the two CMUs. The choice of physical medium can be copper or fiber and this can be selected independently for each CMU. This arrangement is shown in Figure 61. For correct 1+1 Hot Standby operation, the two CMUs must also be connected together over the protection interface. Please refer to Protection cable on page 4-17. phn-2513_001v000 (Apr 2012) 2-45
- 160. Planning 1+1 Hot Standby links Chapter 2: Planning considerations Figure 61 Schematic of 1+1 in-band network connections Primary CMU Secondary CMU IF cable Cat5e protection cable Cat5e cable for network Alternative fiber cable for network Management port Data port (copper) Data port (fiber) Ethernet switch Planning for Receive Diversity PTP 800 supports the Receive Diversity feature, which provides hitless protection against receiver faults. This feature can be enabled (at the CMU) in any of the supported 1+1 Hot Standby configurations described in Antenna, RFU and CMU configurations for 1+1 on page 2-35. This feature provides Receive Spatial Diversity when two antennas are installed at the same end, that is, in the following configurations: • ODUs with separate direct mount antennas on page 2-38 • ODUs with separate remote mount antennas on page 2-39 • IRFU 1+1 Tx MHSB / Rx SD with two remote mount antennas on page 2-41 For further information on the Receive Diversity feature, see Receive Diversity on page 1- 67. 2-46 phn-2513_001v000 (Apr 2012)
- 161. PTP 800 Series User Guide Planning 1+1 Hot Standby links Ethernet Switch Requirements for Receive Diversity In addition to the Ethernet Switch features required to support operation of a 1+1 Hot Standby link, further features are required when Receive Diversity is enabled. This is because the Ethernet Switch must bridge special Receive Diversity Ethernet Frames from the Inactive CMU to the Active CMU. The payload of these frames contains the demodulated and decoded data received at the wireless interface of the Inactive CMU. The Active CMU can then make use of the data received at the wireless interface of either CMU. • The customer data ports which connect the Ethernet Switch to the CMU must be capable of negotiating at 1 Gbps full duplex. This is to ensure that latency is kept to a minimum and that the highest capacity configurations can be supported. Note that Receive Diversity Frames are not sent from the Inactive CMU if either CMU has trained at less than 1 Gbps full duplex. • The Ethernet Switch must support the configuration of Virtual LANs using either 802.1Q or 802.1ad. Configuring a dedicated VLAN to bridge Receive Diversity Ethernet Frames from the Inactive CMU to the Active CMU prevents these frames from flooding the network. • The network configurations are identical to those described for the 1+1 Hot Standby configurations (see Network configurations for 1+1 on page 2-43), with the exception of the Fiber-Y configuration. In addition to connecting the Fiber ports of the CMU to the Ethernet switch using Fiber-Y, the copper data ports of the CMUs must also connect to the Ethernet switch (see Figure 60). The copper data port will only be used for forwarding Receive Diversity Frames out of the Inactive CMU which will necessarily have its fiber port disabled in the Fiber-Y configuration. Customer data will only ever be forwarded to and from the Fiber port of the Active CMU ensuring that the Fiber-Y configuration meets the requirement for a single customer data port at the Ethernet switch. VLAN considerations for Receive Diversity The ports which connect the Ethernet Switch to the CMUs must be configured into a dedicated VLAN for Receive Diversity Ethernet Frames. Only these two ports must be configured in this VLAN to prevent the frames from flooding the network. Existing VLANs configured for these ports will not be affected. The following attributes must be considered when planning for Receive Diversity. • Select either C-TAG (802.1Q) or S-TAG (802.1ad) operation for the Receive Diversity VLAN. The configuration at the switch must match the value of the CMU attribute Rx Diversity TPID. • Select a dedicated VLAN identifier (VID) for the Receive Diversity VLAN. The configuration at the switch must match the value of the CMU attribute Rx Diversity VID. phn-2513_001v000 (Apr 2012) 2-47
- 162. Planning 1+1 Hot Standby links Chapter 2: Planning considerations • At the Ethernet Switch, configure the Receive Diversity VLAN for tagged operation. At the ingress, the ports in this VLAN must accept tagged frames which arrive with the Receive Diversity VID and forward them to the other port which is also a member of this VLAN. At the egress, the Ethernet Switch must NOT strip the Receive Diversity tag. Performance considerations for Receive Diversity As the Ethernet Switch multiplexes the Receive Diversity Frames with customer traffic, the impact of the Receive Diversity feature on latency and jitter must be considered. When the link is not fading, the maximum latency increases by 12 μs in all configurations. When the link fades to the point where the Active unit can no longer demodulate a signal and where the data stream from the Inactive unit is being used, the maximum latency increases to a value which is dependent on the frames size of the customer traffic as shown in Table 11. Table 11 Frame size and latency relationship in Rx SD links Maximum Customer Latency increase with Frame Size (octets) Receive Diversity enabled (µs) 64 53 1500 64 9600 150 In all cases, the minimum latency does not change hence jitter is increased. Link Planning for Spatial Diversity Spatial Diversity can significantly improve the availability of a link, particularly for long links. Indeed regulations can recommend or even mandate that Spatial Diversity is deployed for links which are longer than a specific range. LINKPlanner calculates link availability for all link configurations and provides a very convenient way of seeing the effect of enabling Spatial Diversity. Note that when ACM is enabled, Spatial Diversity only increases the availability of the lowest configured modulation mode. The availability of higher order modes is not increased. 2-48 phn-2513_001v000 (Apr 2012)
- 163. PTP 800 Series User Guide Planning 2+0 links Planning 2+0 links Concept of a 2+0 link A 2+0 link consists of two independent 1+0 links which connect the same two sites and which share an antenna. The two 1+0 links must operate on different frequencies and so a separate license is generally required for each 1+0 link. The two 1+0 links are managed independently as two separate links. Link aggregation can be achieved by deployment of a suitable Ethernet switch at each end of the link. This is outside the scope of this user guide. Antenna, RFU and CMU configurations for 2+0 Do not install an ODU and an IRFU in the same link, as they cannot interwork. A 2+0 link may be implemented using the following link end configurations: phn-2513_001v000 (Apr 2012) 2-49
- 164. Planning 2+0 links Chapter 2: Planning considerations ODUs coupled to single direct mount antenna - co-polar links The Coupler mounts directly to the back of the antenna (Figure 62). An equal coupler will normally be selected to give the two 1+0 links equal link budget. Figure 62 ODUs coupled to single direct mount antenna - co-polar links (schematic) Link ‘A’ ODU Direct mount antenna (single polar) Link ‘B’ ODU Coupler IF cables Link ‘A’ CMU Link ‘B’ CMU Network Network connections connections 2-50 phn-2513_001v000 (Apr 2012)
- 165. PTP 800 Series User Guide Planning 2+0 links ODUs coupled to a single remote mount antenna - co-polar links Requires a Remote Mount Kit (RMK) to mount the Coupler and 3' of flexible waveguide to connect the RMK to the antenna (Figure 63). An equal coupler will normally be selected to give the two 1+0 links equal link budget. Figure 63 ODUs coupled to a single remote mount antenna - co-polar links (schematic) Flexible waveguide Remote mount antenna (single polar) Link ‘A’ ODU Link ‘B’ ODU Remote mount kit Coupler IF cables Link ‘A’ CMU Link ‘B’ CMU Network Network connections connections phn-2513_001v000 (Apr 2012) 2-51
- 166. Planning 2+0 links Chapter 2: Planning considerations ODUs coupled to a single direct mount antenna - cross-polar links Requires a direct mount dual polar antenna (Figure 64). Operators can upgrade any standard antenna to a direct mount dual polar antenna by purchasing an orthogonal mount kit. Figure 64 ODUs coupled to a single direct mount antenna - cross-polar links (schematic) 2-52 phn-2513_001v000 (Apr 2012)
- 167. PTP 800 Series User Guide Planning 2+0 links ODUs connected to a dual polar remote mount antenna - cross-polar links Requires two Remote Mount Kits (RMK) to mount the ODUs and two 3' flexible waveguide to connect the RMKs to the antenna (Figure 65). Figure 65 ODUs connected to a dual polar remote mount antenna - cross-polar links (schematic) Flexible waveguide Remote mount Link ‘A’ antenna ODU (dual polar) Remote mount kits Link ‘B’ ODU Flexible waveguide IF cable IF cable Link ‘A’ CMU Link ‘B’ CMU Network Network connections connections phn-2513_001v000 (Apr 2012) 2-53
- 168. Planning 2+0 links Chapter 2: Planning considerations IRFU 2+0 with single remote mount antenna Requires a length of elliptical waveguide dependant on the distance between the antenna and the IRFU (Figure 66). Requires waveguide dehydration accessories. The receiver coupling is internal to the IRFU. The IRFU may be purchased with equal or unequal coupling, the unequal coupling option provides a better link budget (nominally 6 dB) for the Primary transceivers. Figure 66 IRFU 2+0 with single remote mount antenna (schematic) Fixed tuned connector Antenna (single polar) Premium elliptical waveguide Air tubing Fixed tuned connector Pressure window Flexible waveguide Distribution IRFU - 1+1 Tx MHSB Equal or Unequal coupling manifold Dehydrator Link ‘A’ Link ‘B’ transceiver transceiver IF cables Link ‘A’ Link ‘B’ CMU CMU Network Network connections connections 2-54 phn-2513_001v000 (Apr 2012)
- 169. PTP 800 Series User Guide Planning 2+0 links Network configurations for 2+0 In a 2+0 configuration, Link ‘A’ and Link ‘B’ are independent. Each CMU is connected to the network using one of the methods described in Network configurations for 1+0 on page 2-34. The two links may be managed in different ways, for example Link ‘A’ may be out-of-band and Link ‘B’ may be in-band. Frequency spacing in 2+0 ODU based links For co-polar deployments, the transmit frequency of link A and link B at a given end must be separated by at least two channel separations. For example, if the channel separation is configured as 28 MHz, the spacing between the two transmit frequencies must be at least 56 MHz. For cross-polar deployments, the transmit frequency of link A and link B at a given end must be separated by at least one channel separation. For example, if the channel separation is configured as 28 MHz, the spacing between the two transmit frequencies must be at least 28 MHz. Frequency spacing in 2+0 IRFU based links In a 2+0 IRFU-based link, plan the four transmit frequencies to meet the following requirements: • At each link end, the two transmit frequencies must be separated by at least the amount quoted in Table 12. • At each link end, the transmit and receive frequencies must be separated by at least the amount quoted in Table 13. Table 12 Minimum transmit/transmit frequency separation at a 2+0 IRFU link end Channel bandwidth Band RF filter Minimum separation between bandwidth transmit frequencies 25, 30, 40 MHz 6 GHz, 30 MHz 70 MHz 11 GHz 40 MHz 80 MHz 10 MHz 6 GHz 30 MHz 40 MHz 10 MHz 11 GHz 30 MHz 60 MHz 40 MHz 70 MHz phn-2513_001v000 (Apr 2012) 2-55
- 170. Planning 2+0 links Chapter 2: Planning considerations Table 13 Minimum transmit/receive frequency separation at a 2+0 IRFU link end Band RF filter Minimum separation between bandwidth transmit and receive frequencies (*) 6 GHz 30 MHz 70 MHz 11 GHz 30 MHz 80 MHz 40 MHz 100 MHz (*) This is the minimum allowed separation between the four combinations of transmit/receive frequency. For example, in the 6 GHz band with an RF filter bandwidth of 30 MHz: • Link ‘A’ Tx and Link ‘A’ Rx must be separated by at least 70 MHz. • Link ‘A’ Tx and Link ‘B’ Rx must be separated by at least 70 MHz. • Link ‘B’ Tx and Link ‘A’ Rx must be separated by at least 70 MHz. • Link ‘B’ Tx and Link ‘B’ Rx must be separated by at least 70 MHz. 2-56 phn-2513_001v000 (Apr 2012)
- 171. PTP 800 Series User Guide Ordering components Ordering components This section describes how to select components for a planned PTP 800 link. Ordering CMUs Determine the number of CMUs required per link, as follows: • 1+0 links: 2 CMUs. • 1+1 Hot Standby links: 4 CMUs. • 2+0 links: 4 CMUs. Cambium supply the Compact modem unit (CMU) kit: ‘PTP800 Modem 1000/100BaseT with Capacity CAP 10 Mbps’, Cambium part number: WB3480. Kit contents: one CMU, CMU bracket, power connector, ground lug. Cambium also supply the optional CMU components list in Table 14. Table 14 Optional components for PTP 800 CMUs Item Cambium description, part number and notes AC to DC power supply convertor Output voltage -48 VDC. No mains cable included. ‘AC-DC Power Supply Convertor’. Cambium part number WB3622. DC connector A DC connector is supplied in the CMU kit. Compatible DC connectors are also available from three manufacturers: Molex: 395305004 Tyco: 4-796634-4 Phoenix Contact: 1757035 phn-2513_001v000 (Apr 2012) 2-57
- 172. Ordering components Chapter 2: Planning considerations Item Cambium description, part number and notes Mains Lead (for AC to DC converter) ‘Mains Lead- US 3pin to C5 (PTP800 AC-DC PSU)’. Cambium part number WB3618. ‘Mains Lead- UK 3pin to C5 (PTP800 AC-DC PSU)’. Cambium part number WB3619. ‘Mains Lead- EU with dual earth to C5 (PTP800 AC-DC PSU)’. Cambium part number WB3620. ‘Mains Lead- AUS 3pin to C5 (PTP800 AC-DC PSU)’. Cambium part number WB3621. Only appropriately rated and approved mains leads, in accordance with the regulations of the country of use, should be used with this equipment. CMU rack mounting kit Required for rack-mounted CMUs. ‘PTP800 CMU/PTP-SYNC 19inch Rack Mount Installation Kit’. Cambium part number WB3486. Kit contents: bracket, washers, screws, nuts, handles and rack mount blank plate. Right angle IF cable connector A right angle connector can make it easier to install the CMU in the rack. ‘RF CONNECTOR,N,MALE,RIGHT ANGLE FOR CNT-400 CABLE’. Cambium part number 01010589001. 2-58 phn-2513_001v000 (Apr 2012)
- 173. PTP 800 Series User Guide Ordering components Ordering antennas Applies to ODU deployments only. Use Table 15 to select the type and quantity of antennas required per link. Table 15 Selecting antennas for each hardware configuration Hardware Antenna mounting Antenna Antenna Quantity configuration protection? polarization per link 1+0 Direct or remote - Single (*1) 2 1+1 Direct or remote No Single 2 1+1 Direct or remote Yes Single 4 2+0 co-polar Direct or remote - Single 2 2+0 cross-polar Direct or remote (*2) - Dual 2 (*1) The antennas in a 1+0 link are normally single-polar. However, to provide for an anticipated upgrade to 2+0, dual-polar remote mount antennas may be installed. (*2) Dual-polar direct mount antennas are supplied with an orthogonal mode transducer. They are for 2+0 cross-polar links only. Operators can upgrade any standard antenna to a direct mount dual polar antenna by purchasing an orthogonal mount (OMK); refer to Ordering OMKs on page 2-90. Only low VSWR antennas are supported for IRFU based installations. Use PTP LINKPlanner to confirm that the selected antenna is compatible with the IRFU. Cambium supply the antennas listed in the following tables: • Lower 6 GHz and Upper 6 GHz: Table 16 and Table 17. • 7 GHz and 8 GHz: Table 18 and Table 19. • 11 GHz: Table 20 and Table 21. • 13 GHz: Table 22 and Table 23. • 15 GHz: Table 24 and Table 25. • 18 GHz: Table 26 and Table 27. • 23 GHz: Table 28 and Table 29. • 26 GHz: Table 30 and Table 31. • 28 GHz: Table 32 and Table 33. phn-2513_001v000 (Apr 2012) 2-59
- 174. Ordering components Chapter 2: Planning considerations • 32 GHz: Table 34 and Table 35. • 38 GHz: Table 36 and Table 37. In the Interface column of these tables, ‘Direct’ means Cambium direct mount and a flange size, for example ‘PDR70’, means remote mount. The following optional parabolic radomes are available: • ‘10 Foot Radome For Par10 Antenna’. Cambium part number 85009295001. • ‘11 Foot Radome For Par12 Antenna’. Cambium part number 85009295002. Table 16 Antennas: 6 GHz single polarization Cambium Diameter Interface Mid- Vertical Weight number band beamwidth gain 85009298001 1.0 m (3 ft) Direct 33 dBi 3.3° 24 kg (53 lb) 85010089050 1.2 m (4 ft) Direct 35 dBi 2.9° 55 kg (121 lb) 85010089021 1.8 m (6 ft) Direct 39 dBi 1.8° 62 kg (137 lb) 85010091022 1.0 m (3 ft) PDR70 33 dBi 3.3° 24 kg (53 lb) 85010091024 1.2 m (4 ft) PDR70 35 dBi 2.9° 55 kg (121 lb) 85010091007 1.8 m (6 ft) PDR70 39 dBi 1.8° 62 kg (137 lb) 85009294001 1.8 m (6 ft) CPR137G 38.2 dBi 1.9° 78 kg (172 lb) 85009294002 2.4 m (8 ft) CPR137G 40.8 dBi 1.4° 114 kg (251 lb) 85009294003 3 m (10 ft) CPR137G 43.4 dBi 1.1° 144 kg (317 lb) 85009294004 3.7 m (12 ft) CPR137G 44.9 dBi 0.9° 245 kg (540 lb) Table 17 Antennas: 6 GHz dual polarization Cambium Diameter Interface Mid- Vertical Weight number band beamwidth gain 85009302001 1.0 m (3 ft) Direct (*) 33 dBi 3.3° 85009302002 1.2 m (4 ft) Direct (*) 35 dBi 2.9° 85009302003 1.8 m (6 ft) Direct (*) 39 dBi 1.8° 85010092048 1.0 m (3 ft) PDR70 33 dBi 3.3° 24 kg (53 lb) 85010092060 1.2 m (4 ft) PDR70 35 dBi 2.9° 55 kg (121 lb) 85010092021 1.8 m (6 ft) PDR70 39 dBi 1.8° 62 kg (137 lb) (*) The antenna includes an orthogonal mode transducer. 2-60 phn-2513_001v000 (Apr 2012)
- 175. PTP 800 Series User Guide Ordering components Table 18 Antennas: 7 GHz and 8 GHz single polarization Cambium Diameter Interface Mid- Vertical Weight number band beamwidth gain 85010089045 0.6 m (2 ft) Direct 31.1 dBi 4.7° 11 kg (25 lb) 85009298002 1.0 m (3 ft) Direct 35.5 dBi 2.6° 24 kg (53 ib) 85010089051 1.2 m (4 ft) Direct 37.3 dBi 2.2° 55 kg (121 lb) 85010089025 1.8 m (6 ft) Direct 40.8 dBi 1.5° 62 kg (137 lb) 85010091020 0.6 m (2 ft) PDR84 31.1 dBi 4.7° 11 kg (25 lb) 85010091023 1.0 m (3 ft) PDR84 35.5 dBi 2.6° 24 kg (53 lb) 85010091025 1.2 m (4 ft) PDR84 37.3 dBi 2.2° 55 kg (121 lb) 85010091011 1.8 m (6 ft) PDR84 40.8 dBi 1.5° 62 kg (137 lb) Table 19 Antennas: 7 GHz and 8 GHz dual polarization Cambium Diameter Interface Mid-band Vertical Weight number gain beamwidth 85009303001 0.6 m (2 ft) Direct (*) 31.1 dBi 4.7° 85009303002 1.0 m (3 ft) Direct (*) 35.5 dBi 2.6° 85009303003 1.2 m (4 ft) Direct (*) 37.3 dBi 2.2° 85009303004 1.8 m (6 ft) Direct (*) 40.6 dBi 1.5 ° 85010092051 0.6 m (2 ft) PDR84 31.1 dBi 4.7° 14 kg (31 lb) 85010092059 1.0 m (3 ft) PDR84 35.5 dBi 2.6° 24 kg (53 lb) 85010092061 1.2 m (4 ft) PDR84 37.3 dBi 2.2° 55 kg (121 lb) 85010092025 1.8 m (6 ft) PDR84 40.6 dBi 1.5 ° 62 kg (137 lb) (*) The antenna includes an orthogonal mode transducer. phn-2513_001v000 (Apr 2012) 2-61
- 176. Ordering components Chapter 2: Planning considerations Table 20 Antennas: 11 GHz single polarization Cambium Diameter Interface Mid- Vertical Weight number band beamwidth gain 85010089049 0.6 m (2 ft) Direct 34.5 dBi 3.3° 11 kg (25 lb) 85010089003 0.8 m (2.6 ft) Direct 37.4 dBi 2.1° 30 kg (66 lb) 85009298003 1.0 m (3 ft) Direct 38.4 dBi 2.0° 24 kg (53 lb) 85010089052 1.2 m (4 ft) Direct 40.4 dBi 1.5° 46 kg (101 lb) 85010089005 1.8 m (6 ft) Direct 43.8 dBi 1.1° 84 kg (185 lb) 85010091019 0.6 m (2 ft) PDR100 (*1) 34.5 dBi 3.3° 11 kg (25 lb) 85010091003 0.8 m (2.6 ft) PDR100 (*1) 37.4 dBi 2.1° 30 kg (66 lb) 85010091017 1.0 m (3 ft) PDR100 (*1) 38.4 dBi 2.0° 24 kg (53 lb) 85010091026 1.2 m (4 ft) PDR100 (*1) 40.4 dBi 1.5° 46 kg (101 lb) 85010091005 1.8 m (6 ft) PDR100 (*1) 43.8 dBi 1.1° 84 kg (185 lb) (*1) Waveguide interface 11 GHz antennas require a tapered transition (Table 56). Table 21 Antennas: 11 GHz dual polarization Cambium Diameter Interface Mid- Vertical Weight number band beamwidth gain 85009304001 0.6 m (2 ft) Direct (*1) 34.5 dBi 3.3° 85009304002 1.0 m (3 ft) Direct (*1) 38.4 dBi 2.0° 85009304003 1.2 m (4 ft) Direct (*1) 40.4 dBi 1.5° 85009304004 1.8 m (6 ft) Direct (*1) 43.8 dBi 1.1° 85010092052 0.6 m (2 ft) PDR100 (*2) 34.5 dBi 3.3° 11 kg (25 lb) 85010092003 0.8 m (2.6 ft) PDR100 (*2) 37.2 dBi 2.1° 30 kg (66 lb) 85010092042 1.0 m (3 ft) PDR100 (*2) 38.4 dBi 2.0° 24 kg (53 lb) 85010092062 1.2 m (4 ft) PDR100 (*2) 40.4 dBi 1.5° 46 kg (101 lb) 85010092005 1.8 m (6 ft) PDR100 (*2) 43.8 dBi 1.1° 84 kg (185 lb) (*1) The antenna includes an orthogonal mode transducer. (*2) Waveguide interface 11 GHz antennas require a tapered transition (Table 56). 2-62 phn-2513_001v000 (Apr 2012)
- 177. PTP 800 Series User Guide Ordering components The 11 GHz waveguide interface antennas require an extra component, the 11 GHz tapered transition. This is supplied by Cambium (Table 56) and is required to convert between the antenna interface and the waveguide flange. Table 22 Antennas: 13 GHz single polarization Cambium Diameter Interface Mid- Vertical Weight number band beamwidth gain 85010089053 0.3 m (1 ft) Direct 30.9 dBi 4.7° 7 kg (15 lb) 85010089046 0.6 m (2 ft) Direct 36.0 dBi 2.7° 11 kg (25 lb) 85009298004 1.0 m (3 ft) Direct 40.0 dBi 1.6° 24 kg (53 lb) 85010089054 1.2 m (4 ft) Direct 42.0 dBi 1.3° 55 kg (121 lb) 85010089030 1.8 m (6 ft) Direct 45.2 dBi 0.9° 62 kg (137 lb) 85010091012 0.3 m (1 ft) PBR120 30.9 dBi 4.7° 7 kg (15 lb) 85010091021 0.6 m (2 ft) PBR120 36.0 dBi 2.7° 11 kg (25 lb) 85010091018 1.0 m (3 ft) PBR120 40.0 dBi 1.6° 24 kg (53 lb) 85010091027 1.2 m (4 ft) PBR120 42.0 dBi 1.3° 55 kg (121 lb) 85010091016 1.8 m (6 ft) PBR120 45.2 dBi 0.9° 62 kg (137 lb) Table 23 Antennas: 13 GHz dual polarization Cambium Diameter Interface Mid- Vertical Weight number band beamwidth gain 85009305001 0.3 m (1 ft) Direct (*) 30.9 dBi 4.7° 85009305002 0.6 m (2 ft) Direct (*) 36.0 dBi 2.7° 85009305003 1.0 m (3 ft) Direct (*) 40.0 dBi 1.6° 85009305004 1.2 m (4 ft) Direct (*) 42.0 dBi 1.3° 85009305005 1.8 m (6 ft) Direct (*) 45.2 dBi 0.9° 85010092026 0.3 m (1 ft) PBR120 30.9 dBi 4.7° 7 kg (15 lb) 85010092056 0.6 m (2 ft) PBR120 36.0 dBi 2.7° 11 kg (25 lb) 85010092043 1.0 m (3 ft) PBR120 40.0 dBi 1.6° 24 kg (53 lb) 85010092063 1.2 m (4 ft) PBR120 42.0 dBi 1.3° 55 kg (121 lb) 85010092030 1.8 m (6 ft) PBR120 45.2 dBi 0.9° 62 kg (137 lb) phn-2513_001v000 (Apr 2012) 2-63
- 178. Ordering components Chapter 2: Planning considerations (*) The antenna includes an orthogonal mode transducer. Table 24 Antennas: 15 GHz single polarization Cambium Diameter Interface Mid- Vertical Weight number band beamwidth gain 85010089055 0.3 m (1 ft) Direct 32.1 dBi 4.3° 7 kg (15 lb) 85010089047 0.6 m (2 ft) Direct 36.8 dBi 2.5 ° 11 kg (25 lb) 85009298005 1.0 m (3 ft) Direct 41.1 dBi 1.5° 24 kg (53 lb) 85010089056 1.2 m (4 ft) Direct 42.9 dBi 1.2° 55 kg (121 lb) 85010089035 1.8 m (6 ft) Direct 46.2 dBi 0.8° 62 kg (137 lb) Table 25 Antennas: 15 GHz dual polarization Cambium Diameter Interface Mid- Vertical Weight number band beamwidth gain 85009306001 0.3 m (1 ft) Direct (*) 32.0 dBi 4.3° 85009306002 0.6 m (2 ft) Direct (*) 36.8 dBi 2.5° 85009306003 1.0 m (3 ft) Direct (*) 41.1 dBi 1.5° 85009306004 1.2 m (4 ft) Direct (*) 42.9 dBi 1.2° 85009306005 1.8 m (6 ft) Direct (*) 46.2 dBi 0.8° 85010092031 0.3 m (1 ft) PBR140 32.0 dBi 4.3° 7 kg (15 lb) 85010092057 0.6 m (2 ft) PBR140 36.8 dBi 2.5° 11 kg (25 lb) 85010092044 1.0 m (3 ft) PBR140 41.1 dBi 1.5° 24 kg (53 lb) 85010092064 1.2 m (4 ft) PBR140 42.9 dBi 1.2° 55 kg (121 lb) 85010092035 1.8 m (6 ft) PBR140 46.2 dBi 0.8° 62 kg (137 lb) (*) The antenna includes an orthogonal mode transducer. 2-64 phn-2513_001v000 (Apr 2012)
- 179. PTP 800 Series User Guide Ordering components Table 26 Antennas: 18 GHz single polarization Cambium Diameter Interface Mid- Vertical Weight number band beamwidth gain 85010089057 0.3 m (1 ft) Direct 34.2 dBi 3.3° 6 kg (13 lb) 85010089042 0.6 m (2 ft) Direct 38.9 dBi 2.1° 11 kg (25 lb) 85009298006 1.0 m (3 ft) Direct 43.5 dBi 1.1° 24 kg (53 lb) 85010089058 1.2 m (4 ft) Direct 44.7 dBi 0.9° 46 kg (101 lb) 85010089010 1.8 m (6 ft) Direct 47.8 dBi 0.7° 84 kg (185 lb) Table 27 Antennas: 18 GHz dual polarization Cambium Diameter Interface Mid- Vertical Weight number band beamwidth gain 85009307001 0.3 m (1 ft) Direct (*) 34.2 dBi 3.3° 85009307002 0.6 m (2 ft) Direct (*) 38.9 dBi 2.1° 85009307003 1.0 m (3 ft) Direct (*) 43.5 dBi 1.1° 85009307004 1.2 m (4 ft) Direct (*) 44.7 dBi 0.9° 85009307005 1.8 m (6 ft) Direct (*) 47.6 dBi 0.7° 85010092006 0.3 m (1 ft) PBR220 34.2 dBi 3.3° 6 kg (13 lb) 85010092053 0.6 m (2 ft) PBR220 38.9 dBi 2.1° 11 kg (25 lb) 85010092045 1.0 m (3 ft) PBR220 43.5 dBi 1.1° 24 kg (53 lb) 85010092065 1.2 m (4 ft) PBR220 44.7 dBi 0.9° 46 kg (101 lb) 85010092010 1.8 m (6 ft) PBR220 47.6 dBi 0.7° 84 kg (185 lb) (*) The antenna includes an orthogonal mode transducer. phn-2513_001v000 (Apr 2012) 2-65
- 180. Ordering components Chapter 2: Planning considerations Table 28 Antennas: 23 GHz single polarization Cambium Diameter Interface Mid- Vertical Weight number band beam gain -width 85010089059 0.3 m (1 ft) Direct 35.3 dBi 3.0° 6 kg (13 lb) 85010089043 0.6 m (2 ft) Direct 40.5 dBi 1.7° 11 kg (25 lb) 85009298007 1.0 m (3 ft) Direct 44.8 dBi 1.0° 24 kg (53 lb) 85010089060 1.2 m (4 ft) Direct 46.7 dBi 0.8° 46 kg (101 lb) 85010089015 1.8 m (6 ft) Direct 49.4 dBi 0.5° 84 kg (185 lb) Table 29 Antennas: 23 GHz dual polarization Cambium Diameter Interface Mid- Vertical Weight number band beam gain -width 85009308001 0.3 m (1 ft) Direct (*) 35.3 dBi 3.0° 85009308002 0.6 m (2 ft) Direct (*) 40.5 dBi 1.7° 85009308003 1.0 m (3 ft) Direct (*) 44.8 dBi 1.0° 85009308004 1.2 m (4 ft) Direct (*) 46.7 dBi 0.8° 85009308005 1.8 m (6 ft) Direct (*) 49.2 dBi 0.5° 85010092011 0.3 m (1 ft) PBR220 35.3 dBi 3.0° 6 kg (13 lb) 85010092054 0.6 m (2 ft) PBR220 40.5 dBi 1.7° 11 kg (25 lb) 85010092046 1.0 m (3 ft) PBR220 44.8 dBi 1.0° 24 kg (53 lb) 85010092066 1.2 m (4 ft) PBR220 46.7 dBi 0.8° 46 kg (101 lb) 85010092015 1.8 m (6 ft) PBR220 49.2 dBi 0.5° 84 kg (185 lb) (*) The antenna includes an orthogonal mode transducer. 2-66 phn-2513_001v000 (Apr 2012)
- 181. PTP 800 Series User Guide Ordering components Table 30 Antennas: 26 GHz single polarization Cambium Diameter Interface Mid- Vertical Weight number band beam- gain width 85010089061 0.3 m (1 ft) Direct 36.6 dBi 2.5° 6 kg (13 lb) 85010089044 0.6 m (2 ft) Direct 41.6 dBi 1.5° 11 kg (25 lb) 85009298008 1.0 m (3 ft) Direct 45.8 dBi 0.8° 24 kg (53 lb) 85010089062 1.2 m (4 ft) Direct 47.4 dBi 0.6° 46 kg (101 lb) Table 31 Antennas: 26 GHz dual polarization Cambium Diameter Interface Mid- Vertical Weight number band beam- gain width 85010092016 0.3 m (1 ft) PBR220 36.6 dBi 2.5° 6 kg (13 lb) 85010092055 0.6 m (2 ft) PBR220 41.6 dBi 1.5° 11 kg (25 lb) 85010092047 1.0 m (3 ft) PBR220 45.8 dBi 0.8° 24 kg (53 lb) 85010092067 1.2 m (4 ft) PBR220 47.4 dBi 0.6° 46 kg (101 lb) Table 32 Antennas: 28 GHz single polarization Cambium Diameter Interface Mid- Vertical Weight number band beam- gain width 85010089064 0.3 m (1 ft) Direct 38.1 dBi 2.2° 7 kg (14 lb) 85010089041 0.6 m (2 ft) Direct 42.6 dBi 1.2° 11 kg (25 lb) Table 33 Antennas: 28 GHz dual polarization Cambium Diameter Interface Mid- Vertical Weight number band beam- gain width 85010092040 0.3 m (1 ft) PBR320 38.1 dBi 2.2° 7 kg (14 lb) 85010092041 0.6 m (2 ft) PBR320 42.6 dBi 1.2° 11 kg (25 lb) phn-2513_001v000 (Apr 2012) 2-67
- 182. Ordering components Chapter 2: Planning considerations Table 34 Antennas: 32 GHz single polarization Cambium Diameter Interface Mid- Vertical Weight number band beam- gain width 85010089036 0.3 m (1 ft) Direct 38.9 dBi 1.8° 7 kg (14 lb) 85010089037 0.6 m (2 ft) Direct 43.5 dBi 1.0° 11 kg (25 lb) Table 35 Antennas: 32 GHz dual polarization Cambium Diameter Interface Mid- Vertical Weight number band beam- gain width 85010092036 0.3 m (1 ft) PBR320 38.9 dBi 1.8° 7 kg (14 lb) 85010092037 0.6 m (2 ft) PBR320 43.5 dBi 1.0° 11 kg (25 lb) Table 36 Antennas: 38 GHz single polarization Cambium Diameter Interface Mid- Vertical Weight number band beam- gain width 85010089063 0.3 m (1 ft) Direct 40.1 dBi 1.6° 6 kg (13 lb) 85010089048 0.6 m (2 ft) Direct 45.2 dBi 0.9° 11 kg (25 lb) Table 37 Antennas: 38 GHz dual polarization Cambium Diameter Interface Mid- Vertical Weight number band beam- gain width 85010092038 0.3 m (1 ft) PBR320 40.1 dBi 1.6° 7 kg (15 lb) 85010092058 0.6 m (2 ft) PBR320 45.2 dBi 0.9° 11 kg (25 lb) 2-68 phn-2513_001v000 (Apr 2012)
- 183. PTP 800 Series User Guide Ordering components Ordering ODUs Applies to ODU deployments only. Determine the number of ODUs required per link, as follows: • 1+0 links: 2 ODUs. • 1+1 Hot Standby links: 4 ODUs. • 2+0 links: 4 ODUs. Cambium supply the ODUs listed in the following tables: • Lower 6 GHz: Table 38. • Upper 6 GHz: Table 39. • 7 GHz: Table 40. • 8 GHz: Table 41. • 11 GHz: Table 42 (ODU-B) and Table 43 (ODU-A). • 13 GHz: Table 44. • 15 GHz: Table 45. • 18 GHz: Table 46 (ODU-B) and Table 47 (ODU-A). • 23 GHz: Table 48 (ODU-B) and Table 49 (ODU-A). • 26 GHz: Table 50. • 28 GHz: Table 51. • 32 GHz: Table 52. • 38 GHz: Table 53. If ODU-B is available (11, 18 and 23 GHz), choose it in preference to ODU-A. Do not install ODU-A and ODU-B in the same link. Table 38 ODUs: Lower 6 GHz ODU-A Cambium part Standard Sub- Sub-band frequency T/R number band spacing 01010411007 FCC, B1-Lo 5925 – 6025 MHz 252 ETSI MHz 01010411008 B1-Hi 6175 – 6275 MHz 01010411009 B2-Lo 6000 – 6100 MHz phn-2513_001v000 (Apr 2012) 2-69
- 184. Ordering components Chapter 2: Planning considerations Cambium part Standard Sub- Sub-band frequency T/R number band spacing 01010411010 B2-Hi 6250 – 6350 MHz 01010411011 B3-Lo 6075 – 6175 MHz 01010411012 B3-Hi 6325 – 6425 MHz Table 39 ODUs: Upper 6 GHz ODU-A Cambium part Standard Sub- Sub-band frequency T/R number band spacing 01010411024 FCC B1-Lo 6580 – 6640 MHz 160 MHz 01010411022 B1-Hi 6740 – 6800 MHz 01010411025 B2-Lo 6640 – 6710 MHz 01010411023 B2-Hi 6800 – 6870 MHz 01010411027 FCC B1-Lo 6530 – 6580 MHz 170 MHz 01010411026 B1-Hi 6700 – 6750 MHz 01010411013 ETSI B1-Lo 6430 – 6540 MHz 340 MHz 01010411014 B1-Hi 6770 – 6880 MHz 01010411015 B2-Lo 6520 – 6630 MHz 01010411016 B2-Hi 6860 – 6970 MHz 01010411017 B3-Lo 6600 – 6710 MHz 01010411018 B3-Hi 6940 – 7050 MHz 01010411019 B4-Lo 6670 – 6780 MHz 01010411020 B4-Hi 7010 – 7120 MHz Table 40 ODUs: 7 GHz ODU-A Cambium Standard Sub- Sub-band frequency T/R part number band spacing 01010610001 ETSI B1-Lo 7428 – 7484 MHz 154 MHz 01010610002 B1-Hi 7582 – 7638 MHz 01010610003 B2-Lo 7470 – 7526 MHz 01010610004 B2-Hi 7624 – 7680 MHz 01010610005 B3-Lo 7512 – 7568 MHz 2-70 phn-2513_001v000 (Apr 2012)
- 185. PTP 800 Series User Guide Ordering components Cambium Standard Sub- Sub-band frequency T/R part number band spacing 01010610006 B3-Hi 7666 – 7722 MHz 01010610013 ETSI B1-Lo 7114 – 7177 MHz 161 MHz 01010610014 B1-Hi 7275 – 7338 MHz 01010610015 B2-Lo 7149 – 7212 MHz 01010610016 B2-Hi 7310 – 7373 MHz 01010610017 B3-Lo 7184 – 7247 MHz 01010610018 B3-Hi 7345 – 7408 MHz 01010610019 B4-Lo 7219 – 7282 MHz 01010610020 B4-Hi 7380 – 7443 MHz 01010610021 B5-Lo 7239 – 7302 MHz 01010610022 B5-Hi 7400 – 7463 MHz 01010610023 B6-Lo 7274 – 7337 MHz 01010610024 B6-Hi 7435 – 7498 MHz 01010610025 B7-Lo 7309 – 7372 MHz 01010610026 B7-Hi 7470 – 7533 MHz 01010610027 B8-Lo 7344 – 7407 MHz 01010610028 B8-Hi 7505 – 7568 MHz 01010610029 B9-Lo 7414 – 7477 MHz 01010610030 B9-Hi 7575 – 7638 MHz 01010610031 B10-Lo 7449 – 7512 MHz 01010610032 B10-Hi 7610 – 7673 MHz 01010610033 B21-Lo 7484 – 7547 MHz 01010610034 B21-Hi 7645 – 7708 MHz 01010610035 B22-Lo 7519 – 7582 MHz 01010610036 B22-Hi 7680 – 7743 MHz 01010610037 B23-Lo 7539 – 7602 MHz 01010610038 B23-Hi 7700 – 7763 MHz 01010610039 B24-Lo 7574 – 7637 MHz 01010610040 B24-Hi 7735 – 7798 MHz phn-2513_001v000 (Apr 2012) 2-71
- 186. Ordering components Chapter 2: Planning considerations Cambium Standard Sub- Sub-band frequency T/R part number band spacing 01010610041 B25-Lo 7609 – 7672 MHz 01010610042 B25-Hi 7770 – 7833 MHz 01010610043 B26-Lo 7644 – 7707 MHz 01010610044 B26-Hi 7805 – 7868 MHz 01010610062 ETSI B1-Lo 7443 – 7499 MHz 168 MHz 01010610063 B1-Hi 7611 – 7667 MHz 01010610064 B2-Lo 7485 – 7541 MHz 01010610065 B2-Hi 7653 – 7709 MHz 01010610066 B3-Lo 7527 – 7583 MHz 01010610067 B3-Hi 7695 – 7751 MHz 01010610045 ETSI B1-Lo 7093 – 7149 MHz 196 MHz 01010610046 B1-Hi 7289 – 7345 MHz 01010610047 B2-Lo 7121 – 7177 MHz 01010610048 B2-Hi 7317 – 7373 MHz 01010610049 B3-Lo 7149 – 7205 MHz 01010610050 B3-Hi 7345 – 7401 MHz 01010610051 B4-Lo 7177 – 7233 MHz 01010610052 B4-Hi 7373 – 7429 MHz 01010610053 B5-Lo 7205 – 7261 MHz 01010610054 B5-Hi 7401 – 7457 MHz 01010610055 ETSI B1-Lo 7400 – 7484 MHz 245 MHz 01010610056 B1-Hi 7645 – 7729 MHz 01010610057 B2-Lo 7484 – 7568 MHz 01010610058 B2-Hi 7729 – 7813 MHz 01010610059 B3-Lo 7568 – 7652 MHz 01010610060 B3-Hi 7813 – 7897 MHz 01010610068 NTIA B1-Lo 7090 – 7210 MHz 300 MHz 01010610069 B1-Hi 7390 – 7510 MHz 01010610070 B2-Lo 7210 – 7330 MHz 2-72 phn-2513_001v000 (Apr 2012)
- 187. PTP 800 Series User Guide Ordering components Cambium Standard Sub- Sub-band frequency T/R part number band spacing 01010610071 B2-Hi 7510 – 7630 MHz 01010610072 B3-Lo 7330 – 7450 MHz 01010610073 B3-Hi 7630 – 7750 MHz Table 41 ODUs: 8 GHz ODU-A Cambium Standard Sub- Sub-band frequency T/R part number band spacing 01010611001 ETSI B1-Lo 8279 – 8307 MHz 119 MHz and 01010611002 B1-Hi 8398 – 8426 MHz 126 MHz 01010611003 B2-Lo 8293 – 8321 MHz 01010611004 B2-Hi 8412 – 8440 MHz 01010611005 B3-Lo 8307 – 8335 MHz 01010611006 B3-Hi 8426 – 8454 MHz 01010611007 B4-Lo 8321 – 8349 MHz 01010611008 B4-Hi 8440 – 8468 MHz 01010611009 B5-Lo 8335 – 8363 MHz 01010611010 B5-Hi 8454 – 8482 MHz 01010611011 B6-Lo 8349 – 8377 MHz 01010611012 B6-Hi 8468 – 8496 MHz 01010611019 ETSI B1-Lo 8043 – 8113 MHz 208 MHz 01010611020 B1-Hi 8251 – 8321 MHz 01010611021 B2-Lo 8099 – 8169 MHz 01010611022 B2-Hi 8307 – 8377 MHz 01010611023 B3-Lo 8155 – 8225 MHz 01010611024 B3-Hi 8363 – 8433 MHz 01010611025 B4-Lo 8211 – 8281 MHz 01010611026 B4-Hi 8419 – 8489 MHz 01010611027 ETSI B1-Lo 7905 – 8024 MHz 266 MHz 01010611028 B1-Hi 8171 – 8290 MHz 01010611029 B2-Lo 8017 – 8136 MHz phn-2513_001v000 (Apr 2012) 2-73
- 188. Ordering components Chapter 2: Planning considerations Cambium Standard Sub- Sub-band frequency T/R part number band spacing 01010611030 B2-Hi 8283 – 8402 MHz 01010611031 ETSI B2-Lo 7835 – 7971 MHz 311 MHz 01010611032 B2-Hi 8146 – 8282 MHz 01010611033 B3-Lo 7717 – 7867 MHz 01010611034 B3-Hi 8028 – 8178 MHz 01010611036 NTIA B1-Lo 7750 – 7870 MHz 360 MHz 01010611037 B1-Hi 8110 – 8230 MHz 01010611038 B2-Lo 7870 – 7990 MHz 01010611039 B2-Hi 8230 – 8350 MHz 01010611040 B3-Lo 7990 – 8110 MHz 01010611041 B3-Hi 8350 – 8470 MHz Table 42 ODUs: 11 GHz ODU-B Cambium part Standard Sub-band Sub-band frequency T/R number spacing 85009317001 FCC B5-Lo 10700 – 10890 MHz 490 MHz 85009317002 B5-Hi 11200 – 11390 MHz and 85009317003 B6-Lo 10855 – 11045 MHz 500 MHz 85009317004 B6-Hi 11355 – 11545 MHz 85009317005 B7-Lo 11010 – 11200 MHz 85009317006 B7-Hi 11510 – 11700 MHz Table 43 ODUs: 11 GHz ODU-A Cambium part Standard Sub-band Sub-band frequency T/R number spacing 01010208001 FCC, B5-Lo 10700 – 10890 MHz 490 MHz ETSI and 01010208002 B5-Hi 11200 – 11390 MHz 500 MHz 01010208003 B6-Lo 10855 – 11045 MHz 01010208004 B6-Hi 11355 – 11545 MHz 01010208005 B7-Lo 11010 – 11200 MHz 2-74 phn-2513_001v000 (Apr 2012)
- 189. PTP 800 Series User Guide Ordering components Cambium part Standard Sub-band Sub-band frequency T/R number spacing 01010208006 B7-Hi 11510 – 11700 MHz 01010208007 ETSI B1-Lo 10675 – 10855 MHz 530 MHz 01010208008 B1-Hi 11205 – 11385 MHz 01010208009 B2-Lo 10795 – 10975 MHz 01010208010 B2-Hi 11325 – 11505 MHz 01010208011 B3-Lo 10915 – 11135 MHz 01010208012 B3-Hi 11455 – 11665 MHz 01010208013 B4-Lo 11035 – 11215 MHz 01010208014 B4-Hi 11565 – 11745 MHz Table 44 ODUs: 13 GHz ODU-A Cambium Standard Sub- Sub-band frequency T/R part number band spacing 01010583001 ETSI B1-Lo 12751 – 12814 MHz 266 MHz 01010583002 B1-Hi 13017 – 13080 MHz 01010583003 B2-Lo 12807 – 12870 MHz 01010583004 B2-Hi 13073 – 13136 MHz 01010583005 B3-Lo 12863 – 12926 MHz 01010583006 B3-Hi 13129 – 13192 MHz 01010583007 B4-Lo 12919 – 12982 MHz 01010583008 B4-Hi 13185 – 13248 MHz Table 45 ODUs: 15 GHz ODU-A Cambium part Standard Sub- Sub-band frequency T/R number band spacing 01010584001 ETSI B4-Lo 14501 – 14613 MHz 420 MHz 01010584002 B4-Hi 14921 – 15033 MHz 01010584003 B5-Lo 14606 – 14725 MHz 01010584004 B5-Hi 15026 – 15145 MHz phn-2513_001v000 (Apr 2012) 2-75
- 190. Ordering components Chapter 2: Planning considerations Cambium part Standard Sub- Sub-band frequency T/R number band spacing 01010584005 B6-Lo 14718 – 14837 MHz 01010584006 B6-Hi 15138 – 15257 MHz 01010584007 B7-Lo 14816 – 14928 MHz 01010584008 B7-Hi 15236 – 15348 MHz 01010584009 ETSI B4-Lo 14403 – 14522 MHz 490 MHz 01010584010 B4-Hi 14893 – 15012 MHz 01010584011 B5-Lo 14515 – 14634 MHz 01010584012 B5-Hi 15005 – 15124 MHz 01010584013 B6-Lo 14627 – 14746 MHz 01010584014 B6-Hi 15117 – 15236 MHz 01010584015 B7-Lo 14739 – 14858 MHz 01010584016 B7-Hi 15229 – 15348 MHz 01010584020 ETSI B2-Lo 14500 – 14625 MHz 728 MHz 01010584021 B2-Hi 15228 – 15353 MHz 01010584022 Mexico, B1-Lo 14627 – 14746 MHz 315 MHz Italy 01010584023 B1-Hi 14942 – 15061 MHz 01010584024 B2-Lo 14725 – 14844 MHz 01010584025 B2-Hi 15040 – 15159 MHz 01010584026 B3-Lo 14823 – 14942 MHz 01010584027 B3-Hi 15138 – 15257 MHz 01010584028 ETSI B1-Lo 14400 – 14512 MHz 644 MHz 01010584029 B1-Hi 15044 – 15156 MHz 01010584030 B2-Lo 14498 – 14610 MHz 01010584031 B2-Hi 15142 – 15254 MHz 01010584032 B3-Lo 14596 – 14708 MHz 01010584033 B3-Hi 15240 – 15352 MHz 2-76 phn-2513_001v000 (Apr 2012)
- 191. PTP 800 Series User Guide Ordering components Table 46 ODUs: 18 GHz ODU-B Cambium part Standard Sub- Sub-band frequency T/R number band spacing 85009318001 FCC B3-Lo 17700 – 18140 MHz 1560 MHz 85009318002 B3-Hi 19260 – 19700 MHz Table 47 ODUs: 18 GHz ODU-A Cambium part Standard Sub- Sub-band frequency T/R number band spacing 01010209001 ETSI B1-Lo 17685 – 17985 MHz 1010 MHz and 1008 01010209002 B1-Hi 18695 – 18995 MHz MHz 01010209003 B2-Lo 17930 – 18230 MHz 01010209004 B2-Hi 18940 – 19240 MHz 01010209005 B3-Lo 18180 – 18480 MHz 01010209006 B3-Hi 19190 – 19490 MHz 01010209007 B4-Lo 18400 – 18700 MHz 01010209008 B4-Hi 19410 – 19710 MHz 01010209013 FCC, B3-Lo 17700 – 18140 MHz 1560 MHz Brazil 01010209014 B3-Hi 19260 – 19700 MHz phn-2513_001v000 (Apr 2012) 2-77
- 192. Ordering components Chapter 2: Planning considerations Table 48 ODUs: 23 GHz ODU-B Cambium Standard Sub- Sub-band frequency T/R part number band spacing 85009319001 FCC B5-Lo 21200 – 21600 MHz 1200 MHz 85009319002 B5-Hi 22400 – 22800 MHz 85009319003 B6-Lo 21600 – 22000 MHz 85009319004 B6-Hi 22800 – 23200 MHz 85009319005 B7-Lo 22000 – 22400 MHz 85009319006 B7-Hi 23200 – 23600 MHz Table 49 ODUs: 23 GHz ODU-A Cambium Standard Sub- Sub-band frequency T/R part number band spacing 01010210001 ETSI B1-Lo 21994 – 22330 MHz 1008 MHz 01010210002 B1-Hi 23002 – 23338 MHz 01010210003 B2-Lo 22274 – 22610 MHz 01010210004 B2-Hi 23282 – 23618 MHz 01010210005 FCC B5-Lo 21200 – 21600 MHz 1200 MHz 01010210006 B5-Hi 22400 – 22800 MHz 01010210007 B6-Lo 21600 – 22000 MHz 01010210008 B6-Hi 22800 – 23200 MHz 01010210009 B7-Lo 22000 – 22400 MHz 01010210010 B7-Hi 23200 – 23600 MHz 01010210011 ETSI B1-Lo 21200 – 21500 MHz 1232 MHz 01010210012 B1-Hi 22432 – 22732 MHz 01010210013 B2-Lo 21472 – 21786 MHz 01010210014 B2-Hi 22704 – 23018 MHz 01010210015 B3-Lo 21779 – 22093 MHz 01010210016 B3-Hi 23011 – 23325 MHz 01010210017 B4-Lo 22086 – 22386 MHz 2-78 phn-2513_001v000 (Apr 2012)
- 193. PTP 800 Series User Guide Ordering components Cambium Standard Sub- Sub-band frequency T/R part number band spacing 01010210018 B4-Hi 23318 – 23618 MHz Table 50 ODUs: 26 GHz ODU-A Cambium part Standard Sub- Sub-band frequency T/R number band spacing 01010403003 ETSI B1-Lo 24549 – 24885 MHz 1008 MHz 01010403004 B1-Hi 25557 – 25893 MHz 01010403005 B2-Lo 24829 – 25165 MHz 01010403006 B2-Hi 25837 – 26173 MHz 01010403007 B3-Lo 25109 – 25445 MHz 01010403008 B3-Hi 26117 – 26453 MHz 01010403001 FCC B1-Lo 24250 – 24450 MHz 800 MHz 01010403002 B1-Hi 25050 – 25250 MHz Table 51 ODUs: 28 GHz ODU-A Cambium part Standard Sub- Sub-band frequency T/R number band spacing 01009420001 ETSI B1-Lo 27520 – 28025 MHz 1008 MHz 01009420002 B1-Hi 28528 – 29033 MHz 01009420003 B2-Lo 27968 – 28473 MHz 01009420004 B2-Hi 28976 – 29481 MHz Table 52 ODUs: 32 GHz ODU-A Cambium part Standard Sub- Sub-band frequency T/R number band spacing 01010612001 ETSI B1-Lo 31815 – 32207 MHz 812 MHz 01010612002 B1-Hi 32627 – 33019 MHz 01010612003 B2-Lo 32179 – 32571 MHz 01010612004 B2-Hi 32991 – 33383 MHz phn-2513_001v000 (Apr 2012) 2-79
- 194. Ordering components Chapter 2: Planning considerations Table 53 ODUs: 38 GHz ODU-A Cambium part Standard Sub- Sub-band frequency T/R number band spacing 01010433002 FCC B1-Lo 38595 – 38805 MHz 700 MHz 01010433003 B1-Hi 39295 – 39505 MHz 01010433004 B2-Lo 38795 – 39005 MHz 01010433005 B2-Hi 39495 – 39705 MHz 01010433006 B3-Lo 38995 – 39205 MHz 01010433007 B3-Hi 39695 – 39905 MHz 01010433008 B4-Lo 39195 – 39405 MHz 01010433009 B4-Hi 39895 – 40105 MHz 01010433010 ETSI B1-Lo 37044 – 37632 MHz 1260 MHz 01010433011 B1-Hi 38304 – 38892 MHz 01010433012 B2-Lo 37604 – 38192 MHz 01010433001 B2-Hi 38864 – 39452 MHz Ordering IF cable, grounding and LPUs Applies to ODU deployments only. ODU based installations require the cable and LPU components listed in Table 54. 2-80 phn-2513_001v000 (Apr 2012)
- 195. PTP 800 Series User Guide Ordering components Table 54 Cable and LPU components Item Cambium part number and notes CNT-400 coaxial cable, 50 Ohm CNT-400 cable is supplied by Cambium (IF cable) with the following lengths and part numbers. ‘50 Ohm Braided Coaxial Cable - 75 meter’. Cambium part number 30010194001. ‘50 Ohm Braided Coaxial Cable - 500 meter’. Cambium part number 30010195001. For 1+1 and 2+0 links, order enough IF cable to connect two ODU/CMU pairs at each link end. Lightning protection unit (LPU) end kit Quantity per link: 1+0 links: 2 LPU kits (4 LPUs). 1+1 Hot Standby links: 4 LPU kits (8 LPUs). 2+0 links: 4 LPU kits (8 LPUs). ‘LPU END KIT PTP800’. Cambium part number WB3657. Hoisting Grip for CNT-400 cable For hoisting the IF cable up to the ODU without damaging the connector. Quantity per link: 1+0 links: 2 minimum. 1+1 Hot Standby links: 4 minimum. 2+0 links: 4 minimum. ‘Hoisting Grip for CNT-400 cable’. Cambium part number 07009304001. phn-2513_001v000 (Apr 2012) 2-81
- 196. Ordering components Chapter 2: Planning considerations Item Cambium part number and notes Coaxial cable installation assembly kit Quantity per link: (for CNT-400 cable) 1+0 links: 2 kits. 1+1 Hot Standby links: 4 kits. 2+0 links: 4 kits. ‘Coaxial Cable Installation Assembly Kit’. Cambium part number WB3616. For kit contents, see Table 55. Cable grounding kits for 1/4" and 3/8" Additional grounding kits may be required cable to cover all IF cable grounding points. ‘Cable Grounding Kits For 1/4" And 3/8" Cable’. Cambium part number 01010419001. Kit contents: grounding cable, self- amalgamating tape, PVC tape, tie-wraps, bolts, washers and nuts. Crimp tool for N-type connector Required for crimping N-type connectors to IF cables. ‘Crimp tool for N-type connector’. Cambium part number 66010063001. 2-82 phn-2513_001v000 (Apr 2012)
- 197. PTP 800 Series User Guide Ordering components Table 55 Inventory of the coaxial cable installation assembly kit (WB3616) Item Notes Braided cable assembly Quantity per kit: 1. 0.7 meter long cable to go between the ODU and the top LPU. Cable grounding kits for 1/4" and 3/8" Quantity per kit: 2. cable Each kit contains, earth wire, PVC tape, self amalgamating tape and fixings. Ground lead Quantity per kit: 1 Green, 0.8 meter long with M5 lugs fitted each end. Use for grounding the ODU to the top LPU. phn-2513_001v000 (Apr 2012) 2-83
- 198. Ordering components Chapter 2: Planning considerations Item Notes Ground lead Quantity per kit: 2. Green, 0.6 meter long with M5 lugs fitted one end and M10 the other. Use for grounding the top and bottom LPUs to the supporting structure. Weather proofing kit Quantity per kit: 1. Kit contains 6 reels of self amalgamating tape, 2 reels of 19mm wide PVC tape and 1 reel of 50mm wide PVC tape. N type connector Quantity per kit: 4. To fit CNT-400 cable. Use crimp tool part number 66010063001. Cable ties Quantity per kit: 50. 2-84 phn-2513_001v000 (Apr 2012)
- 199. PTP 800 Series User Guide Ordering components Ordering RMKs and waveguides Applies to ODU deployments only. Each remote mounted ODU (or coupler) requires the additional components list in Table 56. Table 56 Additional components for each remote-mounted ODU Item Cambium part number and notes ODU remote mounting kit Quantity per remote mounted ODU: 1. Part numbers: listed in Table 57. Flexible waveguide Quantity per remote mounted ODU: 1. Part numbers: listed in Table 58. All waveguides are 900 mm (35 in) long. For more information, see Flexible waveguide specifications on page 4-10. Flex-twist hanger kit Quantity per remote mounted ODU: 2. Part numbers: listed in Table 59. To provide adequate support for a 900mm flexible waveguide, two hangers are required. phn-2513_001v000 (Apr 2012) 2-85
- 200. Ordering components Chapter 2: Planning considerations Item Cambium part number and notes Tapered transition Required only for 11 GHz remote-mounted antennas, fitted between the antenna and the flexible waveguide. Quantity per remote mounted ODU: 1. Part number: 58010077001. For more information, see Flexible waveguide specifications on page 4-10. Table 57 Remote mounting kits Band Output Cambium part number 6 GHZ UDR70 07010109008 7 GHz UBR84 07010109001 8 GHz UBR84 07010109002 11 – 13 GHZ UBR120 07010109003 15 GHz UBR140 07010109004 18 – 26 GHz UBR220 07010109005 28 – 32 GHz UBR320 07010109006 38 GHz UBR320 07010109007 2-86 phn-2513_001v000 (Apr 2012)
- 201. PTP 800 Series User Guide Ordering components Table 58 Flexible waveguides Band Cambium Atten- VSWR Flanges Max Min bend part uation (RMK/ twist radius number antenna) (E/H plane) 6 GHz 58010076016 0.3 dB/m 1.10 PDR70 214°/m E: 102 mm CPR137G (4.0 in) H: 204 mm (8.0 in) 6 GHz 58010076017 0.3 dB/m 1.10 PDR70 214°/m E: 102 mm UDR70 (4.0 in) H: 204 mm (8.0 in) 7 GHz 58010076019 0.4 dB/m 1.10 PBR84 264°/m E: 76 mm 8 GHz UDR84 (3.0 in) H: 152 mm (6.0 in) 11 GHz 58010076005 0.6 dB/m 1.10 PBR120 360°/m E: 64 mm 13 GHz UBR120 (2.5 in) H: 115 mm (4.5 in) 11 GHz 58010076018 PDR100 13 GHz CPR90G 15 GHz 58010076008 0.99 dB/m 1.10 PBR140 445°/m E: 52 mm UBR140 (2 in) H: 102 mm (4 in) 18 GHz 58010076011 2.6 dB/m 1.25 PBR220 510°/m E: 38 mm 23 GHz UBR220 (1.5 in) 26 GHz H: 76 mm (3.0 in) 28 GHz 58010076014 3.3 dB/m 1.30 PBR320 510°/m E: 38 mm 32 GHz UBR320 (1.5 in) 38 GHz H: 76 mm (3.0 in) phn-2513_001v000 (Apr 2012) 2-87
- 202. Ordering components Chapter 2: Planning considerations Table 59 Flex-twist hanger kits available from Cambium Accessory Frequency Cambium part variant number WR137 flex-twist hanger kit 6 GHz 07010118001 WR112 flex-twist hanger kit 7 – 8 GHz 07010118002 WR75 flex-twist hanger kit 11 – 13 GHz 07010118003 WR62 flex-twist hanger kit 15 GHz 07010118004 WR42 flex-twist hanger kit 18 – 26 GHz 07010118005 WR28 flex-twist hanger kit 28 – 38 GHz 07010118006 Ordering coupler mounting kits Applies to ODU deployments only. Determine the number of coupler mounting kits required per link, as follows: • 1+0 links: not required. • 1+1 Hot Standby links without antenna protection: 2 coupler mounting kits. • 1+1 Hot Standby links with antenna protection: not required. • 2+0 co-polar links: 2 coupler mounting kits. • 2+0 cross-polar links: not required. Select symmetric or asymmetric couplers. Cambium supply the coupler mounting kits listed in Table 60. Table 60 ODU coupler mounting kits Band Coupler type Cambium part number 6 GHz 3 dB symmetric 07010110021 6 GHz 6 dB asymmetric 07010110022 7 GHz 3 dB symmetric 07010110001 7 GHz 6 dB asymmetric 07010110002 2-88 phn-2513_001v000 (Apr 2012)
- 203. PTP 800 Series User Guide Ordering components Band Coupler type Cambium part number 8 GHz 3 dB symmetric 07010110003 8 GHz 6 dB asymmetric 07010110004 11 GHz 3 dB symmetric 07010110005 11 GHz 6 dB asymmetric 07010110006 13 GHz 3 dB symmetric 07010110007 13 GHz 6 dB asymmetric 07010110008 15 GHz 3 dB symmetric 07010110009 15 GHz 6 dB asymmetric 07010110010 18 GHz 3 dB symmetric 07010110011 18 GHz 6 dB asymmetric 07010110012 23 GHz 3 dB symmetric 07010110013 23 GHz 6 dB asymmetric 07010110014 26 GHz 3 dB symmetric 07010110015 26 GHz 6 dB asymmetric 07010110016 28 GHz 3 dB symmetric 07010110023 28 GHz 6 dB asymmetric 07010110024 32 GHz 3 dB symmetric 07010110017 32 GHz 6 dB asymmetric 07010110018 38 GHz 3 dB symmetric 07010110019 38 GHz 6 dB asymmetric 07010110020 phn-2513_001v000 (Apr 2012) 2-89
- 204. Ordering components Chapter 2: Planning considerations Ordering OMKs Applies to ODU deployments only. An orthogonal mounting kit (OMK) is only required if a previously purchased antenna is to be upgraded to support a direct mount interface in a 2+0 cross-polar link. An OMK can only be fitted to an antenna that is in the same band, for example, a 6 GHz antenna can only accept a 6 GHz OMK. Cambium supply the OMKs listed in Table 61. Table 61 Orthogonal mounting kits (OMKs) Band Cambium part number 6 GHz 85009316001 7 GHz and 8 GHz 85009316002 11 GHz 85009316004 13 GHz 85009316005 15 GHz 85009316006 18 GHz 85009316007 23 GHz 85009316008 Cambium also supply dual-polar direct mount antennas complete with orthogonal mode transducers for 2+0 cross-polar links. See Ordering antennas on page 2-59. 2-90 phn-2513_001v000 (Apr 2012)
- 205. PTP 800 Series User Guide Ordering components Ordering IRFUs and accessories Applies to IRFU deployments only. Cambium supply the IRFUs and IRFU accessories listed in the following tables: • IRFUs (6 GHz and 11 GHz): Table 62. • IF cable between IRFU and CMU: Table 63. • IRFU transceivers, fan and covers (6 GHz and 11 GHz): Table 64. • RF cables between transceiver and BU (6 GHz and 11 GHz): Table 65. • IRFU filter assemblies (6 GHz and 11 GHz): Table 66. • IRFU upgrade kits (6 GHz and 11 GHz): Table 67. • Antennas and antenna accessories for IRFU deployments: Table 68. When ordering IRFUs, specify the Tx and Rx center frequencies. Table 62 IRFUs – 6 GHz and 11 GHz Cambium Description number 58009282002 IRFU,ANSI,6G,1+0,HP 58009282013 IRFU,ANSI,6G,1+0 MHSB Ready to upgrade to 1+1,EQ,HP 58009282014 IRFU,ANSI,6G,1+0 MHSB Ready to upgrade to 1+1,UNEQ,HP 58009282005 IRFU,ANSI,6G,1+1,EQ,HP 58009282006 IRFU,ANSI,6G,1+1,UNEQ,HP 58009282004 IRFU,ANSI,6G,1+1 with SD,HP 58009282007 IRFU,ANSI,6G,2+0,HP 58009281002 IRFU,ANSI,11G,1+0,10/30MHz,HP 58009281019 IRFU,ANSI,11G,1+0 MHSB Ready to upgrade to 1+1,EQ,10/30MHz,HP IRFU,ANSI,11G,1+0 MHSB Ready to upgrade to 58009281021 1+1,UNEQ,10/30MHz,HP 58009281004 IRFU,ANSI,11G,1+1,EQ,10/30MHz,HP 58009281006 IRFU,ANSI,11G,1+1,UNEQ,10/30MHz,HP phn-2513_001v000 (Apr 2012) 2-91
- 206. Ordering components Chapter 2: Planning considerations Cambium Description number 58009281008 IRFU,ANSI,11G,1+1 with SD,10/30MHz,HP 58009281010 IRFU,ANSI,11G,2+0,10/30MHz,HP 58009281003 IRFU,ANSI,11G,1+0,40MHz,HP 58009281020 IRFU,ANSI,11G,1+0 MHSB Ready to upgrade to 1+1,EQ,40MHz,HP 58009281022 IRFU,ANSI,11G,1+0 MHSB Ready to upgrade to 1+1,UNEQ,40MHz,HP 58009281005 IRFU,ANSI,11G,1+1,EQ,40MHz,HP 58009281005 IRFU,ANSI,11G,1+1,EQ,40MHz,HP 58009281007 IRFU,ANSI,11G,1+1,UNEQ,40MHz,HP 58009281009 IRFU,ANSI,11G,1+1 with SD,40MHz,HP 58009281011 IRFU,ANSI,11G,2+0,40MHz,HP 58009281032 IRFU,ANSI,Side A "6G,1+0,HP" and Side B "6G,1+0,HP" 58009281030 IRFU,ANSI,Side A "6G,1+0,HP" and Side B "11G,1+0,10/30 MHz,HP" 58009281031 IRFU,ANSI,Side A "6G,1+0,HP" and Side B "11G,1+0,40 MHz,HP" IRFU,ANSI,Side A "11G,1+0,10/30 MHz,HP" and Side B 58009281027 "11G,1+0,10/30 MHz,HP" IRFU,ANSI,Side A "11G,1+0,10/30 MHz,HP" and Side B "11G,1+0,40 58009281028 MHz,HP" IRFU,ANSI,Side A "11G,1+0,40 MHz,HP" and Side B "11G,1+0,40 58009281029 MHz,HP" Table 63 IF cable between IRFU and CMU Cambium Description number 30009403001 IF cable for CMU and IRFU 2-92 phn-2513_001v000 (Apr 2012)
- 207. PTP 800 Series User Guide Ordering components Table 64 IRFU transceivers, fan and covers – 6 GHz and 11 GHz Cambium Description number 58009282001 XCVR,ANSI,6G,HP 58009281001 XCVR,ANSI,11G,HP 64009324003 FAN Assembly of IRFU 64009324001 IRFU Shelf Frontal Cover 64009324002 IRFU Shelf Frontal Extended Cover Table 65 RF cables between transceiver and BU – 6 GHz and 11 GHz Cambium Description number 30009399001 Cable Assembly Kit 1, SMA, M-M, R/A 30009399004 Cable Assembly Kit 2, SMA, M-M, R/A 30009399005 Cable Assembly Kit 3, SMA, M-M, R/A 30009399006 Cable Assembly Kit 4, SMA, M-M, R/A 30009399007 Cable Assembly Kit 5, SMA, M-M, R/A 30009399008 Cable Assembly Kit 6, SMA, M-M, R/A 30009399009 Cable Assembly Kit 7, SMA, M-M, R/A 30009399010 Cable Assembly Kit 8, SMA, M-M, R/A 30009399011 Cable Assembly Kit 9, SMA, M, R/A-M, R/A 30009399002 Cable Assembly Kit 10, SMA, M, R/A-M, R/A 30009399003 Cable Assembly Kit 11, SMA, M, R/A-M, R/A phn-2513_001v000 (Apr 2012) 2-93
- 208. Ordering components Chapter 2: Planning considerations Table 66 IRFU filter assemblies – 6 GHz and 11 GHz Cambium Description number 91009315001 (*) Tx Filter Assembly,6G, 10/30MHz 91009315004 (*) Rx Filter Assembly,6G, 10/30MHz 91009315002 (*) Tx Filter Assembly,11G, 40 MHz 91009315003 (*) Tx Filter Assembly,11G, 10/30MHz 91009315005 (*) Rx Filter Assembly,11G, 40 MHz 91009315006 (*) Rx Filter Assembly,11G, 10/30MHz (*) When ordering these filter assemblies, specify central frequency. Table 67 IRFU upgrade kits – 6 GHz and 11 GHz Cambium Description number 58009282008 IRFU,ANSI,6G,EQ,HP, 1+0 to 1+1 MHSB Upgrade Kit 58009282009 IRFU,ANSI,6G,UNEQ,HP,1+0 to 1+1 MHSB Upgrade Kit 58009282011 IRFU,ANSI,6G,HP,1+0 MHSB Ready to 1+1 MHSB Upgrade Kit IRFU,ANSI,6G,HP,1+0 MHSB Ready to 1+1 MHSB with SD Upgrade 58009282012 (*) Kit 58009282010 (*) IRFU,ANSI,6G,HP,1+0 to 1+1 MHSB with SD Upgrade Kit 58009281014 IRFU,ANSI,11G,EQ,HP, 1+0 to 1+1 MHSB Upgrade Kit 58009281015 IRFU,ANSI,11G,UNEQ,HP,1+0 to 1+1 MHSB Upgrade Kit 58009281017 IRFU,ANSI,11G,HP,1+0 MHSB Ready to 1+1 MHSB Upgrade Kit IRFU,ANSI,11G,HP,1+0 MHSB Ready to 1+1 MHSB with SD 58009281018 (*) Upgrade Kit,10/30 MHz IRFU,ANSI,11G,HP,1+0 to 1+1 MHSB with SD Upgrade Kit,10/30 58009281016 (*) MHz IRFU,ANSI,11G,HP,1+0 MHSB Ready to 1+1 MHSB with SD 58009281025 (*) Upgrade Kit,40 MHz 58009281026 (*) IRFU,ANSI,11G,HP,1+0 to 1+1 MHSB with SD Upgrade Kit,40 MHz (*) When ordering these kits, specify Rx center frequency. 2-94 phn-2513_001v000 (Apr 2012)
- 209. PTP 800 Series User Guide Ordering components Table 68 Antennas and antenna accessories for IRFU deployments Cambium Description number 58009273001 EWP52 - Premium Elliptical Waveguide, 5.725 - 6.425 GHz (per ft) 58009273003 EWP63 - Premium Elliptical Waveguide, 6.425 - 7.125 GHz (per ft) 58009273002 EWP90 - Premium Elliptical Waveguide, 10.7 - 11.7 GHz (per ft) 09009399001 Fixed-tuned CPR137G connector for EWP52 09009399003 Fixed-tuned CPR137G connector for EWP63 09009399002 Fixed-tuned CPR90G connector for EWP90 07009343002 Grounding Kit for waveguide EWP90 07009343001 Grounding Kit for waveguide EWP52 and EWP63 07009344001 Hoisting Grip for waveguide EWP52 and EWP63 07009344002 Hoisting Grip for waveguide EWP90 58009283001 Pressure Window for WR137, 5.85-8.2 GHz, mates to CPR137G 58009283002 Pressure Window for WR90, 8.2-12.4 GHz, mates to CPR90G DryLine Dehydrator, Low-pressure membrane, Wall Mountable, 115 01009504002 Vac 58009284001 2-port Gas Distribution Manifold 58009284002 4-port Gas Distribution Manifold 58009279001 1' Flex Waveguide 11 GHz - CRP90G/CRP90G 58009279002 2' Flex Waveguide 11 GHz - CRP90G/CRP90G 58009279003 3' Flex Waveguide 11 GHz - CRP90G/CRP90G 58009280001 1' Flex Waveguide 6 GHz - CRP137G/CRP137G 58009280002 2' Flex Waveguide 6 GHz - CRP137G/CRP137G 58009280003 3' Flex Waveguide 6 GHz - CRP137G/CRP137G 85009328001 HP4 - 4' SP Antenna, 5.725 ~ 6.425 GHz with radome, Single Pol, (*) CPR137G 85009328002 HP4 - 4' SP Antenna, 6.425 ~ 7.125 GHz with radome, Single Pol, (*) CPR137G (*) Required for Receive Spatial Diversity only. phn-2513_001v000 (Apr 2012) 2-95
- 210. Ordering components Chapter 2: Planning considerations Ordering network connection components PTP 800 links may require the network connection components listed in Table 69 (copper) or Table 70 (fiber). Table 69 Copper network cables and connectors Item Cambium part number and notes Screened Cat5e cable To minimise radiated emissions, use screened Cat5e cable for all copper connections from the CMU Ethernet ports (Data or Management) to any network switch. RJ45 connectors Two required per Cat5e cable. Out-of-band protection splitter Quantity per link: 2 (with out-of-band management). Only required for 1+1 links with out-of-band- band management. ‘1+1 Out-of-Band Splitter Kit’. Cambium part number WB3807. Protection cable Quantity per link: 2 (with in-band management). Only required for 1+1 links with in-band management. For specification, see Protection cable on page 4-17. Table 70 Fiber network cables and connectors Item Cambium part number and notes Fiber cable and connectors If a fiber interface between the CMU and Ethernet switch is required, then fiber cable and connectors are needed (not supplied by Cambium). 2-96 phn-2513_001v000 (Apr 2012)
- 211. PTP 800 Series User Guide Ordering components Item Cambium part number and notes SFP Gig-E fiber pluggable module If a fiber interface between the CMU and Ethernet switch is required, then two SFP modules are needed. Either: ‘SFP SX Gig-E Optical Pluggable Module - 850 nm’. Cambium part number 01010430001. Or: ‘SFP LX Gig-E Optical Pluggable Module - 1310 nm’. Cambium part number 01010431001. Fiber-Y kit Optional customer network connection for a 1+1 Hot Standby link with out-of-band management. Quantity per link: 2 (with out-of-band management). ‘1+1 Optical-Y Splitter Kit per end (inc SFP Modules - 850nm)’. Cambium part number WB3806. Kit contains: Two Optical-Y cable assemblies (one illustrated), one for transmit and one for receive. Two 1000-BASE-SX SFP modules. Ordering capacity upgrades Purchasing a capacity upgrade will not necessarily lead to an increase in data capacity, as capacity also depends on channel bandwidth and modulation mode. For more information, see Capacity, transmit power and sensitivity on page 4-22. Available capacity upgrades are listed in Table 71 and Table 72. Select either a single-step upgrade or one or more step-by-step upgrades, as required. Table 71 Single-step capacity upgrades (per unit) Cambium part Capacity WB3538 20 Mbps phn-2513_001v000 (Apr 2012) 2-97
- 212. Ordering components Chapter 2: Planning considerations Cambium part Capacity WB3539 30 Mbps WB3540 40 Mbps WB3541 50 Mbps WB3542 100 Mbps WB3543 150 Mbps WB3544 200 Mbps WB3545 300 Mbps WB3546 Full capacity Table 72 Step-by-step capacity upgrades (per unit) Cambium part Capacity increase WB3547 20 Mbps → 30 Mbps WB3548 30 Mbps → 40 Mbps WB3549 40 Mbps → 50 Mbps WB3550 50 Mbps → 100 Mbps WB3551 100 Mbps → 150 Mbps WB3552 150 Mbps → 200 Mbps WB3553 200 Mbps → 300 Mbps WB3554 300 Mbps → full capacity 2-98 phn-2513_001v000 (Apr 2012)
- 213. PTP 800 Series User Guide Chapter 3: Legal information This chapter provides legal notices including software license agreements. Changes or modifications must not be made to the equipment without the express consent of the party responsible for compliance. Any such modifications could void the user’s authority to operate the equipment and will void the manufacturer’s warranty. The following topics are described in this section: • Cambium Networks end user license agreement on page 3-2 • Hardware warranty on page 3-20 • Limit of liability on page 3-21 phn-2513_001v000 (Apr 2012) 3-1
- 214. Cambium Networks end user license agreement Chapter 3: Legal information Cambium Networks end user license agreement Acceptance of this agreement In connection with Cambium’s delivery of certain proprietary software or products containing embedded or pre-loaded proprietary software, or both, Cambium is willing to license this certain proprietary software and the accompanying documentation to you only on the condition that you accept all the terms in this End User License Agreement (“Agreement”). IF YOU DO NOT AGREE TO THE TERMS OF THIS AGREEMENT, DO NOT USE THE PRODUCT OR INSTALL THE SOFTWARE. INSTEAD, YOU MAY, FOR A FULL REFUND, RETURN THIS PRODUCT TO THE LOCATION WHERE YOU ACQUIRED IT OR PROVIDE WRITTEN VERIFICATION OF DELETION OF ALL COPIES OF THE SOFTWARE. ANY USE OF THE SOFTWARE, INCLUDING BUT NOT LIMITED TO USE ON THE PRODUCT, WILL CONSTITUTE YOUR ACCEPTANCE TO THE TERMS OF THIS AGREEMENT. Definitions In this Agreement, the word “Software” refers to the set of instructions for computers, in executable form and in any media, (which may include diskette, CD-ROM, downloadable internet, hardware, or firmware) licensed to you. The word “Documentation” refers to electronic or printed manuals and accompanying instructional aids licensed to you. The word “Product” refers to Cambium’s fixed wireless broadband devices for which the Software and Documentation is licensed for use. Grant of license Cambium Networks Limited (“Cambium”) grants you (“Licensee” or “you”) a personal, nonexclusive, non-transferable license to use the Software and Documentation subject to the Conditions of Use set forth in “Conditions of use” and the terms and conditions of this Agreement. Any terms or conditions relating to the Software and Documentation appearing on the face or reverse side of any purchase order, purchase order acknowledgment or other order document that are different from, or in addition to, the terms of this Agreement will not be binding on the parties, even if payment is accepted. 3-2 phn-2513_001v000 (Apr 2012)
- 215. PTP 800 Series User Guide Cambium Networks end user license agreement Conditions of use Any use of the Software and Documentation outside of the conditions set forth in this Agreement is strictly prohibited and will be deemed a breach of this Agreement. 1. Only you, your employees or agents may use the Software and Documentation. You will take all necessary steps to insure that your employees and agents abide by the terms of this Agreement. 2. You will use the Software and Documentation (i) only for your internal business purposes; (ii) only as described in the Software and Documentation; and (iii) in strict accordance with this Agreement. 3. You may use the Software and Documentation, provided that the use is in conformance with the terms set forth in this Agreement. 4. Portions of the Software and Documentation are protected by United States copyright laws, international treaty provisions, and other applicable laws. Therefore, you must treat the Software like any other copyrighted material (for example, a book or musical recording) except that you may either: (i) make 1 copy of the transportable part of the Software (which typically is supplied on diskette, CD-ROM, or downloadable internet), solely for back-up purposes; or (ii) copy the transportable part of the Software to a PC hard disk, provided you keep the original solely for back-up purposes. If the Documentation is in printed form, it may not be copied. If the Documentation is in electronic form, you may print out 1 copy, which then may not be copied. With regard to the copy made for backup or archival purposes, you agree to reproduce any Cambium copyright notice, and other proprietary legends appearing thereon. Such copyright notice(s) may appear in any of several forms, including machine-readable form, and you agree to reproduce such notice in each form in which it appears, to the extent it is physically possible to do so. Unauthorized duplication of the Software or Documentation constitutes copyright infringement, and in the United States is punishable in federal court by fine and imprisonment. 5. You will not transfer, directly or indirectly, any product, technical data or software to any country for which the United States Government requires an export license or other governmental approval without first obtaining such license or approval. phn-2513_001v000 (Apr 2012) 3-3
- 216. Cambium Networks end user license agreement Chapter 3: Legal information Title and restrictions If you transfer possession of any copy of the Software and Documentation to another party outside of the terms of this agreement, your license is automatically terminated. Title and copyrights to the Software and Documentation and any copies made by you remain with Cambium and its licensors. You will not, and will not permit others to: (i) modify, translate, decompile, bootleg, reverse engineer, disassemble, or extract the inner workings of the Software or Documentation, (ii) copy the look-and-feel or functionality of the Software or Documentation; (iii) remove any proprietary notices, marks, labels, or logos from the Software or Documentation; (iv) rent or transfer all or some of the Software or Documentation to any other party without Cambium’s prior written consent; or (v) utilize any computer software or hardware which is designed to defeat any copy protection device, should the Software and Documentation be equipped with such a protection device. If the Software and Documentation is provided on multiple types of media (such as diskette, CD-ROM, downloadable internet), then you will only use the medium which best meets your specific needs, and will not loan, rent, lease, or transfer the other media contained in the package without Cambium’s written consent. Unauthorized copying of the Software or Documentation, or failure to comply with any of the provisions of this Agreement, will result in automatic termination of this license. Confidentiality You acknowledge that all Software and Documentation contain valuable proprietary information and trade secrets and that unauthorized or improper use of the Software and Documentation will result in irreparable harm to Cambium for which monetary damages would be inadequate and for which Cambium will be entitled to immediate injunctive relief. If applicable, you will limit access to the Software and Documentation to those of your employees and agents who need to use the Software and Documentation for your internal business purposes, and you will take appropriate action with those employees and agents to preserve the confidentiality of the Software and Documentation, using the same degree of care to avoid unauthorized or improper disclosure as you use for the protection of your own proprietary software, but in no event less than reasonable care. You have no obligation to preserve the confidentiality of any proprietary information that: (i) was in the public domain at the time of disclosure; (ii) entered the public domain through no fault of yours; (iii) was given to you free of any obligation to keep it confidential; (iv) is independently developed by you; or (v) is disclosed as required by law provided that you notify Cambium prior to such disclosure and provide Cambium with a reasonable opportunity to respond. 3-4 phn-2513_001v000 (Apr 2012)
- 217. PTP 800 Series User Guide Cambium Networks end user license agreement Right to use Cambium’s name Except as required in “Conditions of use”, you will not, during the term of this Agreement or thereafter, use any trademark of Cambium Networks, or any word or symbol likely to be confused with any Cambium Networks trademark, either alone or in any combination with another word or words. Transfer The Software and Documentation may not be transferred to another party without the express written consent of Cambium, regardless of whether or not such transfer is accomplished by physical or electronic means. Cambium’s consent may be withheld at its discretion and may be conditioned upon transferee paying all applicable license fees and agreeing to be bound by this Agreement. Updates During the first 12 months after purchase of a Product, or during the term of any executed Maintenance and Support Agreement for the Product, you are entitled to receive Updates. An “Update” means any code in any form which is a bug fix, patch, error correction, or minor enhancement, but excludes any major feature added to the Software. Updates are available for download at the support website. Major features may be available from time to time for an additional license fee. If Cambium makes available to you major features and no other end user license agreement is provided, then the terms of this Agreement will apply. Maintenance Except as provided above, Cambium is not responsible for maintenance or field service of the Software under this Agreement. phn-2513_001v000 (Apr 2012) 3-5
- 218. Cambium Networks end user license agreement Chapter 3: Legal information Disclaimer CAMBIUM DISCLAIMS ALL WARRANTIES OF ANY KIND, WHETHER EXPRESS, IMPLIED, STATUTORY, OR IN ANY COMMUNICATION WITH YOU. CAMBIUM SPECIFICALLY DISCLAIMS ANY WARRANTY INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILTY, NONINFRINGEMENT, OR FITNESS FOR A PARTICULAR PURPOSE. THE SOFTWARE AND DOCUMENTATION ARE PROVIDED “AS IS.” CAMBIUM DOES NOT WARRANT THAT THE SOFTWARE WILL MEET YOUR REQUIREMENTS, OR THAT THE OPERATION OF THE SOFTWARE WILL BE UNINTERRUPTED OR ERROR FREE, OR THAT DEFECTS IN THE SOFTWARE WILL BE CORRECTED. CAMBIUM MAKES NO WARRANTY WITH RESPECT TO THE CORRECTNESS, ACCURACY, OR RELIABILITY OF THE SOFTWARE AND DOCUMENTATION. Some jurisdictions do not allow the exclusion of implied warranties, so the above exclusion may not apply to you. Limitation of liability THE TOTAL LIABILITY OF CAMBIUM UNDER THIS AGREEMENT FOR DAMAGES WILL NOT EXCEED THE TOTAL AMOUNT PAID BY YOU FOR THE PRODUCT LICENSED UNDER THIS AGREEMENT. IN NO EVENT WILL CAMBIUM BE LIABLE IN ANY WAY FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION, LOST BUSINESS PROFITS, OR LIABILITY OR INJURY TO THIRD PERSONS, WHETHER FORESEEABLE OR NOT, REGARDLESS OF WHETHER CAMBIUM HAS BEEN ADVISED OF THE POSSIBLITY OF SUCH DAMAGES. Some jurisdictions do not permit limitations of liability for incidental or consequential damages, so the above exclusions may not apply to you. 3-6 phn-2513_001v000 (Apr 2012)
- 219. PTP 800 Series User Guide Cambium Networks end user license agreement U.S. government If you are acquiring the Product on behalf of any unit or agency of the U.S. Government, the following applies. Use, duplication, or disclosure of the Software and Documentation is subject to the restrictions set forth in subparagraphs (c) (1) and (2) of the Commercial Computer Software – Restricted Rights clause at FAR 52.227-19 (JUNE 1987), if applicable, unless being provided to the Department of Defense. If being provided to the Department of Defense, use, duplication, or disclosure of the Products is subject to the restricted rights set forth in subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013 (OCT 1988), if applicable. Software and Documentation may or may not include a Restricted Rights notice, or other notice referring specifically to the terms and conditions of this Agreement. The terms and conditions of this Agreement will each continue to apply, but only to the extent that such terms and conditions are not inconsistent with the rights provided to you under the aforementioned provisions of the FAR and DFARS, as applicable to the particular procuring agency and procurement transaction. Term of license Your right to use the Software will continue in perpetuity unless terminated as follows. Your right to use the Software will terminate immediately without notice upon a breach of this Agreement by you. Within 30 days after termination of this Agreement, you will certify to Cambium in writing that through your best efforts, and to the best of your knowledge, the original and all copies, in whole or in part, in any form, of the Software and all related material and Documentation, have been destroyed, except that, with prior written consent from Cambium, you may retain one copy for archival or backup purposes. You may not sublicense, assign or transfer the license or the Product, except as expressly provided in this Agreement. Any attempt to otherwise sublicense, assign or transfer any of the rights, duties or obligations hereunder is null and void. Governing law This Agreement is governed by the laws of the United States of America to the extent that they apply and otherwise by the laws of the State of Illinois. phn-2513_001v000 (Apr 2012) 3-7
- 220. Cambium Networks end user license agreement Chapter 3: Legal information Assignment This agreement may not be assigned by you without Cambium’s prior written consent. Survival of provisions The parties agree that where the context of any provision indicates an intent that it survives the term of this Agreement, then it will survive. Entire agreement This agreement contains the parties’ entire agreement regarding your use of the Software and may be amended only in writing signed by both parties, except that Cambium may modify this Agreement as necessary to comply with applicable laws. Third party software The software may contain one or more items of Third-Party Software supplied by other third-party suppliers. The terms of this Agreement govern your use of any Third-Party Software UNLESS A SEPARATE THIRD-PARTY SOFTWARE LICENSE IS INCLUDED, IN WHICH CASE YOUR USE OF THE THIRD-PARTY SOFTWARE WILL THEN BE GOVERNED BY THE SEPARATE THIRD-PARTY LICENSE. OpenSSL The OpenSSL toolkit stays under a dual license, i.e. both the conditions of the OpenSSL License and the original SSLeay license apply to the toolkit. See below for the actual license texts. Actually both licenses are BSD-style Open Source licenses. In case of any license issues related to OpenSSL please contact openssl-core@openssl.org. 3-8 phn-2513_001v000 (Apr 2012)
- 221. PTP 800 Series User Guide Cambium Networks end user license agreement OpenSSL License Copyright (c) 1998-2011 The OpenSSL Project. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 3. All advertising materials mentioning features or use of this software must display the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)". 4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact openssl-core@openssl.org. 5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written permission of the OpenSSL Project. 6. Redistributions of any form whatsoever must retain the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)". THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT ``AS IS'' AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. ==================================================== This product includes cryptographic software written by Eric Young (eay@cryptsoft.com). This product includes software written by Tim Hudson (tjh@cryptsoft.com). phn-2513_001v000 (Apr 2012) 3-9
- 222. Cambium Networks end user license agreement Chapter 3: Legal information Original SSLeay License Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com) All rights reserved. This package is an SSL implementation written by Eric Young (eay@cryptsoft.com). The implementation was written so as to conform with Netscapes SSL. This library is free for commercial and non-commercial use as long as the following conditions are adhered to. The following conditions apply to all code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code; not just the SSL code. The SSL documentation included with this distribution is covered by the same copyright terms except that the holder is Tim Hudson (tjh@cryptsoft.com). Copyright remains Eric Young's, and as such any Copyright notices in the code are not to be removed. If this package is used in a product, Eric Young should be given attribution as the author of the parts of the library used. This can be in the form of a textual message at program startup or in documentation (online or textual) provided with the package. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 3. All advertising materials mentioning features or use of this software must display the following acknowledgement: "This product includes cryptographic software written by Eric Young (eay@cryptsoft.com)" The word 'cryptographic' can be left out if the routines from the library being used are not cryptographic related :-). 4. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include an acknowledgement: "This product includes software written by Tim Hudson (tjh@cryptsoft.com)" THIS SOFTWARE IS PROVIDED BY ERIC YOUNG ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. 3-10 phn-2513_001v000 (Apr 2012)
- 223. PTP 800 Series User Guide Cambium Networks end user license agreement The licence and distribution terms for any publically available version or derivative of this code cannot be changed. i.e. this code cannot simply be copied and put under another distribution licence [including the GNU Public Licence.] NET SNMP Various copyrights apply to this package, listed in various separate parts below. Please make sure that you read all the parts. ---- Part 1: CMU/UCD copyright notice: (BSD like) ----- Copyright 1989, 1991, 1992 by Carnegie Mellon University Derivative Work - 1996, 1998-2000 Copyright 1996, 1998-2000 The Regents of the University of California All Rights Reserved Permission to use, copy, modify and distribute this software and its documentation for any purpose and without fee is hereby granted, provided that the above copyright notice appears in all copies and that both that copyright notice and this permission notice appear in supporting documentation, and that the name of CMU and The Regents of the University of California not be used in advertising or publicity pertaining to distribution of the software without specific written permission. CMU AND THE REGENTS OF THE UNIVERSITY OF CALIFORNIA DISCLAIM ALL WARRANTIES WITH REGARD TO THIS SOFTWARE, INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL CMU OR THE REGENTS OF THE UNIVERSITY OF CALIFORNIA BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR ANY DAMAGES WHATSOEVER RESULTING FROM THE LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE. ---- Part 2: Networks Associates Technology, Inc copyright notice (BSD) ----- Copyright (c) 2001-2003, Networks Associates Technology, Inc All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: • Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. • Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. • Neither the name of the Networks Associates Technology, Inc nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. phn-2513_001v000 (Apr 2012) 3-11
- 224. Cambium Networks end user license agreement Chapter 3: Legal information THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. ---- Part 3: Cambridge Broadband Ltd. copyright notice (BSD) ----- Portions of this code are copyright (c) 2001-2003, Cambridge Broadband Ltd. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: • Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. • Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. • The name of Cambridge Broadband Ltd. may not be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDER ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. ---- Part 4: Sun Microsystems, Inc. copyright notice (BSD) ----- Copyright © 2003 Sun Microsystems, Inc., 4150 Network Circle, Santa Clara, California 95054, U.S.A. All rights reserved. Use is subject to license terms below. This distribution may include materials developed by third parties. 3-12 phn-2513_001v000 (Apr 2012)
- 225. PTP 800 Series User Guide Cambium Networks end user license agreement Sun, Sun Microsystems, the Sun logo and Solaris are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. Redistribution and use in source and binary forms, with or withoutmodification, are permitted provided that the following conditions are met: • Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. • Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. • Neither the name of the Sun Microsystems, Inc. nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. ---- Part 5: Sparta, Inc copyright notice (BSD) ----- Copyright (c) 2003-2008, Sparta, Inc All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: • Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. • Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. • Neither the name of Sparta, Inc nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. phn-2513_001v000 (Apr 2012) 3-13
- 226. Cambium Networks end user license agreement Chapter 3: Legal information THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. ---- Part 6: Cisco/BUPTNIC copyright notice (BSD) ----- Copyright (c) 2004, Cisco, Inc and Information Network Center of Beijing University of Posts and Telecommunications. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: • Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. • Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. • Neither the name of Cisco, Inc, Beijing University of Posts and Telecommunications, nor the names of their contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. ---- Part 7: Fabasoft R&D Software GmbH & Co KG copyright notice (BSD) ----- Copyright (c) Fabasoft R&D Software GmbH & Co KG, 2003 oss@fabasoft.com Author: Bernhard Penz <bernhard.penz@fabasoft.com> 3-14 phn-2513_001v000 (Apr 2012)
- 227. PTP 800 Series User Guide Cambium Networks end user license agreement Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: • Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. • Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. • The name of Fabasoft R&D Software GmbH & Co KG or any of its subsidiaries, brand or product names may not be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDER ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. phn-2513_001v000 (Apr 2012) 3-15
- 228. Cambium Networks end user license agreement Chapter 3: Legal information Explorer Canvas JavaScript Library Apache License Version 2.0, January 2004 http://www.apache.org/licenses/ TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION 1. Definitions. "License" shall mean the terms and conditions for use, reproduction, and distribution as defined by Sections 1 through 9 of this document. "Licensor" shall mean the copyright owner or entity authorized by the copyright owner that is granting the License. "Legal Entity" shall mean the union of the acting entity and all other entities that control, are controlled by, or are under common control with that entity. For the purposes of this definition, "control" means (i) the power, direct or indirect, to cause the direction or management of such entity, whether by contract or otherwise, or (ii) ownership of fifty percent (50%) or more of the outstanding shares, or (iii) beneficial ownership of such entity. "You" (or "Your") shall mean an individual or Legal Entity exercising permissions granted by this License. "Source" form shall mean the preferred form for making modifications, including but not limited to software source code, documentation source, and configuration files. "Object" form shall mean any form resulting from mechanical transformation or translation of a Source form, including but not limited to compiled object code, generated documentation, and conversions to other media types. "Work" shall mean the work of authorship, whether in Source or Object form, made available under the License, as indicated by a copyright notice that is included in or attached to the work (an example is provided in the Appendix below). "Derivative Works" shall mean any work, whether in Source or Object form, that is based on (or derived from) the Work and for which the editorial revisions, annotations, elaborations, or other modifications represent, as a whole, an original work of authorship. For the purposes of this License, Derivative Works shall not include works that remain separable from, or merely link (or bind by name) to the interfaces of, the Work and Derivative Works thereof. 3-16 phn-2513_001v000 (Apr 2012)
- 229. PTP 800 Series User Guide Cambium Networks end user license agreement "Contribution" shall mean any work of authorship, including the original version of the Work and any modifications or additions to that Work or Derivative Works thereof, that is intentionally submitted to Licensor for inclusion in the Work by the copyright owner or by an individual or Legal Entity authorized to submit on behalf of the copyright owner. For the purposes of this definition, "submitted" means any form of electronic, verbal, or written communication sent to the Licensor or its representatives, including but not limited to communication on electronic mailing lists, source code control systems, and issue tracking systems that are managed by, or on behalf of, the Licensor for the purpose of discussing and improving the Work, but excluding communication that is conspicuously marked or otherwise designated in writing by the copyright owner as "Not a Contribution." "Contributor" shall mean Licensor and any individual or Legal Entity on behalf of whom a Contribution has been received by Licensor and subsequently incorporated within the Work. 2. Grant of Copyright License. Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable copyright license to reproduce, prepare Derivative Works of, publicly display, publicly perform, sublicense, and distribute the Work and such Derivative Works in Source or Object form. 3. Grant of Patent License. Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable (except as stated in this section) patent license to make, have made, use, offer to sell, sell, import, and otherwise transfer the Work, where such license applies only to those patent claims licensable by such Contributor that are necessarily infringed by their Contribution(s) alone or by combination of their Contribution(s) with the Work to which such Contribution(s) was submitted. If You institute patent litigation against any entity (including a cross-claim or counterclaim in a lawsuit) alleging that the Work or a Contribution incorporated within the Work constitutes direct or contributory patent infringement, then any patent licenses granted to You under this License for that Work shall terminate as of the date such litigation is filed. 4. Redistribution. You may reproduce and distribute copies of the Work or Derivative Works thereof in any medium, with or without modifications, and in Source or Object form, provided that You meet the following conditions: (a) You must give any other recipients of the Work or Derivative Works a copy of this License; and (b) You must cause any modified files to carry prominent notices stating that You changed the files; and (c) You must retain, in the Source form of any Derivative Works that You distribute, all copyright, patent, trademark, and attribution notices from the Source form of the Work, excluding those notices that do not pertain to any part of the Derivative Works; and phn-2513_001v000 (Apr 2012) 3-17
- 230. Cambium Networks end user license agreement Chapter 3: Legal information (d) If the Work includes a "NOTICE" text file as part of its distribution, then any Derivative Works that You distribute must include a readable copy of the attribution notices contained within such NOTICE file, excluding those notices that do not pertain to any part of the Derivative Works, in at least one of the following places: within a NOTICE text file distributed as part of the Derivative Works; within the Source form or documentation, if provided along with the Derivative Works; or, within a display generated by the Derivative Works, if and wherever such third-party notices normally appear. The contents of the NOTICE file are for informational purposes only and do not modify the License. You may add Your own attribution notices within Derivative Works that You distribute, alongside or as an addendum to the NOTICE text from the Work, provided that such additional attribution notices cannot be construed as modifying the License. You may add Your own copyright statement to Your modifications and may provide additional or different license terms and conditions for use, reproduction, or distribution of Your modifications, or for any such Derivative Works as a whole, provided Your use, reproduction, and distribution of the Work otherwise complies with the conditions stated in this License. 5. Submission of Contributions. Unless You explicitly state otherwise, any Contribution intentionally submitted for inclusion in the Work by You to the Licensor shall be under the terms and conditions of this License, without any additional terms or conditions. Notwithstanding the above, nothing herein shall supersede or modify the terms of any separate license agreement you may have executed with Licensor regarding such Contributions. 6. Trademarks. This License does not grant permission to use the trade names, trademarks, service marks, or product names of the Licensor, except as required for reasonable and customary use in describing the origin of the Work and reproducing the content of the NOTICE file. 7. Disclaimer of Warranty. Unless required by applicable law or agreed to in writing, Licensor provides the Work (and each Contributor provides its Contributions) on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied, including, without limitation, any warranties or conditions of TITLE, NON- INFRINGEMENT, MERCHANTABILITY, or FITNESS FOR A PARTICULAR PURPOSE. You are solely responsible for determining the appropriateness of using or redistributing the Work and assume any risks associated with Your exercise of permissions under this License. 8. Limitation of Liability. In no event and under no legal theory, whether in tort (including negligence), contract, or otherwise, unless required by applicable law (such as deliberate and grossly negligent acts) or agreed to in writing, shall any Contributor be liable to You for damages, including any direct, indirect, special, incidental, or consequential damages of any character arising as a result of this License or out of the use or inability to use the Work (including but not limited to damages for loss of goodwill, work stoppage, computer failure or malfunction, or any and all other commercial damages or losses), even if such Contributor has been advised of the possibility of such damages. 3-18 phn-2513_001v000 (Apr 2012)
- 231. PTP 800 Series User Guide Cambium Networks end user license agreement 9. Accepting Warranty or Additional Liability. While redistributing the Work or Derivative Works thereof, You may choose to offer, and charge a fee for, acceptance of support, warranty, indemnity, or other liability obligations and/or rights consistent with this License. However, in accepting such obligations, You may act only on Your own behalf and on Your sole responsibility, not on behalf of any other Contributor, and only if You agree to indemnify, defend, and hold each Contributor harmless for any liability incurred by, or claims asserted against, such Contributor by reason of your accepting any such warranty or additional liability. END OF TERMS AND CONDITIONS APPENDIX: How to apply the Apache License to your work. To apply the Apache License to your work, attach the following boilerplate notice, with the fields enclosed by brackets "[]" replaced with your own identifying information. (Don't include the brackets!) The text should be enclosed in the appropriate comment syntax for the file format. We also recommend that a file or class name and description of purpose be included on the same "printed page" as the copyright notice for easier identification within third-party archives. Copyright [yyyy] [name of copyright owner] Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at http://www.apache.org/licenses/LICENSE-2.0 Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License. phn-2513_001v000 (Apr 2012) 3-19
- 232. Hardware warranty Chapter 3: Legal information Hardware warranty Cambium’s standard hardware warranty is for one (1) year from date of shipment from Cambium or a Cambium Point-To-Point Distributor. Cambium warrants that hardware will conform to the relevant published specifications and will be free from material defects in material and workmanship under normal use and service. Cambium shall within this time, at its own option, either repair or replace the defective product within thirty (30) days of receipt of the defective product. Repaired or replaced product will be subject to the original warranty period but not less than thirty (30) days. 3-20 phn-2513_001v000 (Apr 2012)
- 233. PTP 800 Series User Guide Limit of liability Limit of liability IN NO EVENT SHALL CAMBIUM NETWORKS BE LIABLE TO YOU OR ANY OTHER PARTY FOR ANY DIRECT, INDIRECT, GENERAL, SPECIAL, INCIDENTAL, CONSEQUENTIAL, EXEMPLARY OR OTHER DAMAGE ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION OR ANY OTHER PECUNIARY LOSS, OR FROM ANY BREACH OF WARRANTY, EVEN IF CAMBIUM HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. (Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you.) IN NO CASE SHALL CAMBIUM’S LIABILITY EXCEED THE AMOUNT YOU PAID FOR THE PRODUCT. phn-2513_001v000 (Apr 2012) 3-21
- 234. Limit of liability Chapter 3: Legal information 3-22 phn-2513_001v000 (Apr 2012)
- 235. PTP 800 Series User Guide Chapter 4: Reference information This chapter describes the physical, environmental, safety, wireless and electromagnetic specifications for PTP 800. The following topics are described in this chapter: • Equipment specifications on page 4-2 contains specifications of the CMU, RFU and other equipment supplied by Cambium for PTP 800 installations. • Wireless specifications on page 4-19 contains specifications of the PTP 800 wireless interface, including RF bands, channel width and link loss. • Data network specifications on page 4-71 contains specifications of the PTP 800 Ethernet interface. • Syslog message formats on page 4-73 describes the format and content of Syslog event messages. • Network management specifications on page 4-76 lists supported SNMP objects from the standard MIB-II, IF-MIB and Bridge-MIB. • Electromagnetic compliance on page 4-81 describes how the PTP 800 complies with the regulations that are in force in various countries, and contains notifications made to regulatory bodies for the PTP 800. • Radiation hazard assessment on page 4-85 evaluates the radiation levels produced by the PTP 800 products against ETSI and FCC standards. phn-2513_001v000 (Apr 2012) 4-1
- 236. Equipment specifications Chapter 4: Reference information Equipment specifications This section contains specifications of the CMU, RFU and other equipment supplied by Cambium for PTP 800 installations. CMU specifications The PTP 800 CMU (Cambium part number WB3480) conforms to the specifications listed in Table 73, Table 74 and Table 75. The CMU and ODU power consumption figures are specified in Table 76. Table 73 CMU physical specifications Category Specification Dimensions Width 18.0 cm (7.1 in), Height 3.5 cm (1.4 in), Depth 22.0 cm (8.7 in) Weight 1.1 kg (2.4 lbs) Table 74 CMU environmental specifications Category Specification Temperature –33°C to 55°C Humidity 95% non-condensing Waterproof IP20 UV Exposure 10 year operational life (UL746C test evidence) Table 75 CMU electrical specifications Category Specification Input voltage –40.5 V to –60 V Input voltage withstand 0 V to –72 V CMU dissipation 21 W 4-2 phn-2513_001v000 (Apr 2012)
- 237. PTP 800 Series User Guide Equipment specifications Table 76 ODU and CMU power consumption (ODU-A only) Band (GHz) ODU in ODU in CMU (W) 1+0 1+1 Mute Transmit Configuration Configuration (W) (W) (*2) (W) (W) (*1) 6 29 46 20 66 115 7 29 46 20 66 115 8 29 46 20 66 115 11 23 46 20 66 109 13 10 35 20 55 85 15 10 35 20 55 85 18 7 35 20 55 82 23 14 35 20 55 89 26 14 35 20 55 89 28 13 35 20 55 88 32 19 35 20 55 94 38 21 35 20 55 96 (*1) Typical ODU DC power consumption in Mute condition (W) (*2)Typical ODU DC power consumption in Transmit condition (W) phn-2513_001v000 (Apr 2012) 4-3
- 238. Equipment specifications Chapter 4: Reference information AC to DC converter specifications For details of alternative power supply arrangements, refer to Power supply considerations on page 2-4. The PTP 800 AC to DC converter conforms to the specifications listed in Table 77. Table 77 AC to DC converter specifications Category Specification Input range 90 to 264 V ac (wide range) Output voltage Single output 48 V dc nominal Maximum output power 80 W Line frequency 47 to 63 Hz Inrush current 40 A maximum at 264 V ac, cold start 25 °C Input current 1.8 A maximum Power conversion efficiency 85% typical Electromagnetic compatibility FCC Part 15, Subpart B Class A EN55022 (CISPR 22) Class A Safety ground leakage 3.5 mA maximum at 60 Hz, 254 V ac input current Hold-up time 10 ms minimum at full load at 90/264 V ac Overvoltage protection 53 - 60 V latching type, recycle ac to reset Overcurrent protection Output short-circuit protection automatic recovery Thermal protection Output will latch off Waterproof IP20 Temperature –33°C to 55°C 4-4 phn-2513_001v000 (Apr 2012)
- 239. PTP 800 Series User Guide Equipment specifications ODU specifications The PTP 800 ODU conforms to the specifications listed in Table 78 and Table 79. Table 78 ODU physical specifications Category ODU-A ODU-B Dimensions Diameter 26.7 cm (10.5 in), Diameter 25.2 cm (9.9 in), Depth 8.9 cm (3.5 in) Depth 9.2 cm (3.6 in) Weight 4.6 kg (10.1 lbs) 3.9 kg (8.6 lbs) Table 79 ODU-A and ODU-B environmental specifications Category Specification Temperature –33°C to 55°C (cold start at -45°C) Humidity 100% condensing Waterproof IP67 UV Exposure 10 year operational life (UL746C test evidence) RSSI output Table 80 specifies the voltage measured at the RSSI connector of the ODU for each combination of received signal level (dBm) and channel separation or bandwidth (MHz). This table applies to ODU-A and ODU-B. Table 80 RSSI voltage, received signal level and bandwidth RSL Channel separation Bandwidth Bandwidth Bandwidth (dBm) 7, 13.75, 14, 27.5, 28, 10, 20 or 30 MHz 50 MHz 29.65, 55, 56, 60 or 40 MHz 80 MHz -20 4.54 4.63 4.71 4.57 -21 4.48 4.57 4.65 4.51 -22 4.41 4.50 4.58 4.44 -23 4.35 4.44 4.52 4.38 -24 4.29 4.38 4.46 4.32 phn-2513_001v000 (Apr 2012) 4-5
- 240. Equipment specifications Chapter 4: Reference information RSL Channel separation Bandwidth Bandwidth Bandwidth (dBm) 7, 13.75, 14, 27.5, 28, 10, 20 or 30 MHz 50 MHz 29.65, 55, 56, 60 or 40 MHz 80 MHz -25 4.22 4.31 4.39 4.25 -26 4.16 4.25 4.33 4.19 -27 4.10 4.19 4.27 4.13 -28 4.03 4.12 4.20 4.06 -29 3.97 4.06 4.14 4.00 -30 3.90 4.00 4.08 3.94 -31 3.84 3.93 4.01 3.87 -32 3.78 3.87 3.95 3.81 -33 3.71 3.81 3.89 3.75 -34 3.65 3.74 3.82 3.68 -35 3.59 3.68 3.76 3.62 -36 3.52 3.62 3.70 3.56 -37 3.46 3.55 3.63 3.49 -38 3.40 3.49 3.57 3.43 -39 3.33 3.43 3.51 3.37 -40 3.27 3.36 3.44 3.30 -41 3.21 3.30 3.38 3.24 -42 3.14 3.24 3.32 3.18 -43 3.08 3.17 3.25 3.11 -44 3.02 3.11 3.19 3.05 -45 2.95 3.05 3.13 2.98 -46 2.89 2.98 3.06 2.92 -47 2.83 2.92 3.00 2.86 -48 2.76 2.86 2.94 2.79 -49 2.70 2.79 2.87 2.73 -50 2.64 2.73 2.81 2.67 -51 2.57 2.67 2.75 2.60 -52 2.51 2.60 2.68 2.54 4-6 phn-2513_001v000 (Apr 2012)
- 241. PTP 800 Series User Guide Equipment specifications RSL Channel separation Bandwidth Bandwidth Bandwidth (dBm) 7, 13.75, 14, 27.5, 28, 10, 20 or 30 MHz 50 MHz 29.65, 55, 56, 60 or 40 MHz 80 MHz -53 2.45 2.54 2.62 2.48 -54 2.38 2.48 2.55 2.41 -55 2.32 2.41 2.49 2.35 -56 2.26 2.35 2.43 2.29 -57 2.19 2.29 2.36 2.22 -58 2.13 2.22 2.30 2.16 -59 2.07 2.16 2.24 2.10 -60 2.00 2.10 2.17 2.03 -61 1.94 2.03 2.11 1.97 -62 1.88 1.97 2.05 1.91 -63 1.81 1.90 1.98 1.84 -64 1.75 1.84 1.92 1.78 -65 1.69 1.78 1.86 1.72 -66 1.62 1.71 1.79 1.65 -67 1.56 1.65 1.73 1.59 -68 1.50 1.59 1.67 1.53 -69 1.43 1.52 1.60 1.46 -70 1.37 1.46 1.54 1.40 -71 1.31 1.40 1.48 1.34 -72 1.24 1.33 1.41 1.27 -73 1.18 1.27 1.35 1.21 -74 1.11 1.21 1.29 1.15 -75 1.05 1.14 1.22 1.08 -76 0.99 1.08 1.16 1.02 -77 0.92 1.02 1.10 0.96 -78 0.86 0.95 1.03 0.89 -79 0.80 0.89 0.97 0.83 -80 0.73 0.83 0.91 0.77 phn-2513_001v000 (Apr 2012) 4-7
- 242. Equipment specifications Chapter 4: Reference information RSL Channel separation Bandwidth Bandwidth Bandwidth (dBm) 7, 13.75, 14, 27.5, 28, 10, 20 or 30 MHz 50 MHz 29.65, 55, 56, 60 or 40 MHz 80 MHz -81 0.67 0.76 0.84 0.70 -82 0.61 0.70 0.78 0.64 -83 0.54 0.64 0.72 0.58 -84 0.48 0.57 0.65 0.51 -85 0.42 0.51 0.59 0.45 -86 0.35 0.45 0.53 0.39 -87 0.29 0.38 0.46 0.32 -88 0.23 0.32 0.40 0.26 -89 0.16 0.26 0.34 0.19 -90 0.10 0.19 0.27 0.13 IRFU specifications The PTP 800 IRFU conforms to the specifications in Table 81, Table 82, Table 83, and Table 84 and Table 85. Table 81 IRFU physical specifications Category Specification Rack mounting Less than 3 RMS (2.77 U) in a NEBS standard 19” rack, for an space (RMS) IRFU with 2 transceivers and associated BU. Dimensions (approx) W x D x H (mm): 432 x 280 x 123 W x D x H (in): 17 x 11 x 4.843 Weight 8.1 Kg for 1+0 configuration, including the BU. 11.8 Kg for 1+1 MHSB configuration, including the BU. Table 82 IRFU electrical specifications Category Specification Input voltage -48 V dc 4-8 phn-2513_001v000 (Apr 2012)
- 243. PTP 800 Series User Guide Equipment specifications Category Specification Power feed for the RFU transceiver Direct feed by battery Power supply inrush current Compliant to ETS 300 132-2 Table 83 IRFU environmental specifications Category Specification Operational temperature range -5 to +50 °C Storage -45 to + 80 °C Humidity Up to 95%, non-condensing Altitude 0 to 5000 m AMSL Vibration EN 300 019-2-3, class 3.2 Transit vibration (packaged equipment) EN 300 019-2-2, class 2.3 Transit shock (packaged equipment) EN 300 019-2-2, class 2.3 Earthquake EN 300 019-2-3 Table 84 IRFU EMC and safety compliance Category Specification Radiated and conducted susceptibility RF Magnetic field: IEC 61000-4-3 Electrical Fast Transient/Burst: IEC 61000-4-4 ESD: IEC 61000-4-2 Radiated emission and conducted CISPR 22, Class B emission FCC 47 CFR Part 15, subpart B, Class B Canada ICES-003, Class B Safety requirements IEC 60950-1 2006, Second Edition phn-2513_001v000 (Apr 2012) 4-9
- 244. Equipment specifications Chapter 4: Reference information Table 85 IRFU transceiver power consumption Transceiver type and 6 GHz Power 11 GHz Power status Consumption @ 48 V (W) Consumption @ 48 V (W) 1+0 IRFU transceiver with 81 71 fans operating 1+1 Active IRFU 81 71 transceiver with fans operating 1+1 Inactive IRFU 68.8 60.5 transceiver with fans off Flexible waveguide specifications Waveguide flanges Figure 67 shows the locations of the flanges on the antenna, transition, waveguide and remote mounting kit (RMK). The numbers (1 to 4) refer to Table 86. Figure 67 Locations of waveguide flanges The numbered call-outs in Figure 67 are: 1. Antenna flange 2. Tapered transition flanges 3. Flexible waveguide flanges 4-10 phn-2513_001v000 (Apr 2012)
- 245. PTP 800 Series User Guide Equipment specifications 4. RMK flange Flanges for each frequency variant Table 86 specifies the antenna, transition, waveguide and RMK flanges for each frequency variant. Table 86 Antenna, transition, waveguide and RMK flanges 1 2 3 3 4 Frequency Antenna Tapered Waveguide Waveguide RMK Wave flange transition flange flange flange guide flanges (antenna) (ODU) size 6 GHz (*) PDR70 n/a UDR70 PDR70 UDR70 WR137 6 GHz (*) CPR137G n/a CPR137G PDR70 UDR70 WR137 7 GHz PDR84 n/a UDR84 PBR84 UBR84 WR112 8 GHz PDR84 n/a UDR84 PBR84 UBR84 WR112 11 GHz PDR100 UDR100/ UBR120 PBR120 UBR120 WR75 PBR120 13 GHz PBR120 n/a UBR120 PBR120 UBR120 WR75 15 GHz PBR140 n/a UBR140 PBR140 UBR140 WR62 18 GHz PBR220 n/a UBR220 PBR220 UBR220 WR42 23 GHz PBR220 n/a UBR220 PBR220 UBR220 WR42 26 GHz PBR220 n/a UBR220 PBR220 UBR220 WR42 32 GHz PBR320 n/a UBR320 PBR320 UBR320 WR28 38 GHz PBR320 n/a UBR320 PBR320 UBR320 WR28 (*) These flanges are used for both Lower 6 GHz and Upper 6 GHz. phn-2513_001v000 (Apr 2012) 4-11
- 246. Equipment specifications Chapter 4: Reference information Waveguide flange diagrams Waveguide flanges are illustrated in Figure 68 (Lower and Upper 6 GHz), Figure 69 (7 to 15 GHz), Figure 70 (18 to 38 GHz) and Figure 71 (11 GHz tapered transition). Figure 68 Waveguide flanges – 6 GHz RMK Side Antenna Side Flange Flange 49.3 6 GHz 68.3 PDR70 UDR70 49.3 68.3 6 GHz PDR70 CPR137G Note that the CPR137G has the same overall dimensions as the PDR70 but with a shallower groove depth. 4-12 phn-2513_001v000 (Apr 2012)
- 247. PTP 800 Series User Guide Equipment specifications Figure 69 Waveguide flanges – 7 to 15 GHz phn-2513_001v000 (Apr 2012) 4-13
- 248. Equipment specifications Chapter 4: Reference information Figure 70 Waveguide flanges – 18 to 38 GHz Figure 71 Waveguide flanges – 11 GHz tapered transition 4-14 phn-2513_001v000 (Apr 2012)
- 249. PTP 800 Series User Guide Equipment specifications Torque values for waveguide flanges To obtain the correct torque values for fastening waveguides, refer to Table 87. Table 87 Torque value in Nm (lb ft) for each fastener size Material M3 M4 M5 M6 M8 Stainless 0.9 2.2 4.5 7.7 18.7 steel (0.6) (1.6) (3.3) (5.7) (13.8) Coupler mounting kit specifications The PTP 800 ODU coupler mounting kits conform to the specifications listed in Table 88 and Table 89. Table 88 ODU coupler physical specifications Category Specification Packed 250 x 280 x 390 (W x L x H) mm dimensions 10 x 11 x 15.5 (W x L x H) ins Weight 6 GHz band: 7 GHz to 11 GHz bands: 4.6 kg (10.1 lbs) 13 GHz to 38 GHz bands: 4.2 kg (9.3 lbs) Table 89 ODU coupler environmental specifications Category Specification Temperature –40°C to 50°C Relative humidity 0% to 100% Weatherproofing IP67 Exposure Salt mist, industrial atmospheres and UV radiation Shock and Vibration ETSI EN 300 019-2-4 (class 4.1E) IEC class 4M5 phn-2513_001v000 (Apr 2012) 4-15
- 250. Equipment specifications Chapter 4: Reference information Coupler losses and isolation Table 90 contains ODU port return losses and isolation figures for Cambium-supplied ODU couplers. These figures apply to both symmetric and asymmetric couplers. Table 90 ODU coupler return losses and isolation Bands ODU port return loss Isolation between ODU ports 6 GHz 18 dB minimum 20 dB minimum 7 GHz to 38 GHz 20 dB maximum 20 dB minimum Table 91 contains ODU port insertion losses for Cambium-supplied ODU couplers. Table 91 ODU coupler insertion losses Bands Coupler type ODU port maximum insertion losses 6 GHz 3 dB symmetric 6 dB asymmetric Main 1.9 dB, Standby 6.5 dB 7 GHz to 26 GHz 3 dB symmetric 3.8 dB 6 dB asymmetric Main 1.8 dB, Standby 7.2 dB 32 GHz to 38 GHz 3 dB symmetric 4.0 dB 6 dB asymmetric Main 2.0 dB, Standby 7.4 dB 4-16 phn-2513_001v000 (Apr 2012)
- 251. PTP 800 Series User Guide Equipment specifications Protection interface specifications Out-of-band protection splitter specifications The out-of-band protection splitter (Cambium part number WB3807) conforms to the specifications in Table 92. Table 92 Out-of-band protection splitter specifications Category Specification Operating temperature range –33°C to 55°C Storage temperature range -40°C to 60°C Humidity 90% non-condensing Compliance IEC 721, RoHS, WEEE, CMM Restrictions For indoor operation only Protection cable The maximum length of the protection cable is 2 meters. The wiring must comply with one of the options given in Table 93: Table 93 Out-of-band protection cable pin outs Option 1 Option 2 (Gigabit cross over cable) 1 – 1 1 – 3 2 – 2 2 – 6 3 – 3 3 – 1 4 – 7 4 – 7 5 – 8 5 – 8 6 – 6 6 – 2 7 – 4 7 – 4 8 – 5 8 – 5 phn-2513_001v000 (Apr 2012) 4-17
- 252. Equipment specifications Chapter 4: Reference information Fiber-Y kit specifications The Fiber-Y kit (Cambium part number WB3806) conforms to the specifications listed in Table 94. Table 94 Fiber-Y kit specifications Category Specification Operating mode 1000-BASE-SX operating in Multi-Mode with a wavelength of 850 nm Operating temperature –33°C to 55°C range Storage temperature range -40°C to 60°C Humidity 90% non-condensing Compliance RoHS, WEEE, CMM Restrictions For indoor operation only 4-18 phn-2513_001v000 (Apr 2012)
- 253. PTP 800 Series User Guide Wireless specifications Wireless specifications This section contains specifications of the PTP 800 wireless interface, including RF bands, channel width and link loss. General wireless specifications The PTP 800 conforms to the general wireless specifications listed in Table 95. Table 95 General wireless specifications Feature Specification Channel separation (ETSI) 7, 13.75, 14, 27.5, 28, 29.65, 30, 40, 55, 56 or 60 MHz. Channel bandwidth (FCC/IC) 10, 20, 25, 30, 40, 50 or 80 MHz. Modulation QPSK, 8PSK, 16QAM, 32QAM, 64QAM, 128QAM and 256QAM. Fixed or adaptive modulation. Duplex scheme Frequency division duplex. Capacity options Basic capacity is 10 Mbps in each link direction. May be upgraded via software license key to one of the following capacity levels: 20, 30, 40, 50, 100, 150, 200, 300 Mbps, Unlimited. Latency Ultra-low latency, <115 us @ 368 Mbps with 64 bytes frame. Encryption FIPS-197 128/256 bit AES encryption. ATPC Supported in all configurations. phn-2513_001v000 (Apr 2012) 4-19
- 254. Wireless specifications Chapter 4: Reference information Frequency bands and channel separation EN 302 217 refers to the relevant ITU-R and CEPT recommendations which are appropriate for operation in ETSI regions. These are summarized in Table 96. Table 96 ETSI band plan (ODU-A and ODU-B) Band Frequency Channel T/R ERC ITU-R range separation spacing (CEPT/ERC) (GHz) (MHz) (MHz) Lower 5.9-6.4 29.65 252.04 14-01 An 1 F.383-8 6 GHz Upper 6.4-7.1 30, 40, 60 340 14-02E F.384-10 6 GHz 7, 14 340 - - 7 GHz 7.1-7.9 7, 14, 28 154, 161, 168, 02-06 Annex 1 F.385-9 196, 245 and 3 8 GHz 7.7 – 8.5 7, 14, 28 119, 126, 208, - F.386-8 An 2, 3, 266 5 29.65 311.32 - F.386-8 An 6 11 GHz 10.7-11.7 40 490, 530 12-06E F.387-10 13 GHz 12.75-13.25 7, 14, 28 266 12-02E F.497-7 15 GHz 14.4-15.35 7, 14, 28, 56 420, 490, 644, T/R 12-07 F.636-3 728 315, 322 - - 18 GHz 17.7-19.7 7, 13.75, 27.5, 1010 12-03E F.595-9 55 7 1008 - F.595-9 An 3 23 GHz 21.2-23.6 7, 14, 28, 56 1008 13-02E An A F.637-3 An 3, 5 7, 14, 28 1232 - F.637-3 An 1 26 GHz 24.5-26.5 7, 14, 28, 56 1008 13-02E An B F.748-4 An 1 32 GHz 31.8-33.4 7, 14, 28, 56 812 Rec 01(02) F.1520-2 An 1, 2 38 GHz 37-39.5 7, 14, 28, 56 1260 T/R 12-01 F.749-2 An 1 4-20 phn-2513_001v000 (Apr 2012)
- 255. PTP 800 Series User Guide Wireless specifications FCC 101.147 defines the frequency plans for FCC. These are summarized in Table 97 (ODU platforms) and Table 98 (IRFU platforms). Table 97 FCC and IC band plan (ODU-A and ODU-B) Band Frequency Bandwidth T/R FCC/IC Reference range (MHz) spacing (GHz) (MHz) Lower 5.9-6.4 10, 30 252.04 FCC, IC - 6 GHz Upper 6.5-6.9 10, 30 160, 170 FCC only - 6 GHz 11 GHz 10.7-11.7 10, 30, 40 490, 500 FCC, IC Part 101-147 (o) 10-1-08 Edition 18 GHz 17.7-18.7 10, 20, 30, 1560 FCC, IC Part 101-147 (r) 40, 50 10-1-08 Edition ODU-B: 80 23 GHz 21.8-23.6 10, 20, 30, 1200 FCC, IC Part 101-147 (s) 40, 50 10-1-08 Edition 26 GHz 24.2-25.3 10, 20, 40 800 FCC only Part 101-147 (s) 10-1-08 Edition 38 GHz 38.6-40 10, 50 700 FCC, IC - Table 98 FCC and IC band plan (IRFU platforms) Band Frequency Bandwidth T/R FCC/IC Reference range (MHz) spacing (GHz) (MHz) Lower 5.9-6.4 10, 30 252.04 FCC, IC FCC Part 101 6 GHz SRSP 305.9 Upper 6.5-6.9 10, 30 160, 170 FCC FCC Part 101 6 GHz 7 GHz 6.9-7.1 25 150 FCC FCC Notice 11-120 11 GHz 10.7-11.7 10, 30, 40 490, 500 FCC FCC Part 101 11 GHz 10.7-11.7 10, 30, 40 490, 500 IC SRSP 310.7 phn-2513_001v000 (Apr 2012) 4-21
- 256. Wireless specifications Chapter 4: Reference information The NTIA Red Book defines the frequency plans for NTIA. These are summarized in Table 99. Table 99 NTIA band plan Band Frequency (GHz) Bandwidth (MHz) T/R (MHz) 7 GHz 7.10-7.75 10, 20, 30, 40, 50 300 8 GHz 7.75-8.50 10, 20, 30, 40, 50 360 The frequency plan for Brazil is summarized in Table 100. Table 100 Brazil band plan Band Frequency Channel separation T/R ERC ITU-R (GHz) (MHz) (MHz) (CEPT) 18 GHz 17.7-19.7 13.75, 27.5, 55 1560 F.595-9 An 7 Capacity, transmit power and sensitivity This section contains tables of wireless performance for PTP 800 links. The tables specify, for each frequency band, region (FCC and ETSI), bandwidth and modulation mode, the following data: • F/R mode: This means ‘Fixed or reference mode’. It indicates whether or not the modulation mode is available as a fixed or reference mode. • Cap (Mbps): This means ‘Capacity’. It is the maximum sustained aggregate load applied to the data and management Ethernet ports that can be delivered to the remote Ethernet ports without packet discard. This capacity can be achieved with Ethernet Frames which have the highest configured Quality of Service class. Capacity is approximately 1.5% lower for Ethernet Frames with a lower classification. Please refer to Customer network on page 1-42 for an explanation of Ethernet Frame classification. • Sens (dBm): This means ‘Sensitivity’ It is the typical receive signal level which produces a Frame Error Rate of 5 x 10-4 using 64 octet frames. This is equivalent to a Bit Error Rate of 1 x 10-6 as defined in EN 302 217 Annex F. • ACM-o (dBm): This means ‘ACM threshold out'. It is the typical signal level at which a given modulation can no longer be supported. When adaptive modulation is enabled and the signal level falls below this level, the modulation with the next lower capacity is automatically selected. • ACM-i (dBm): This means 'ACM threshold in'. It is the typical signal level required for a given modulation to be automatically selected when adaptive modulation is enabled. 4-22 phn-2513_001v000 (Apr 2012)
- 257. PTP 800 Series User Guide Wireless specifications • Max tx (dBm): This means ‘Maximum transmit power’, the maximum value to which the Maximum Transmit Power parameter may be configured. The PTP 800 will not transmit at a level greater than the configured value of Maximum Transmit Power. However if ATPC is enabled, the PTP 800 may transmit at a lower power than the configured value for Maximum Transmit Power. • Min tx (dBm): This means ‘Minimum transmit power’, the minimum value to which the Maximum Transmit Power parameter may be configured. If ATPC is enabled, the PTP 800 may transmit at a lower power than the configured value for Minimum Transmit Power. The tables are ordered by frequency band as follows: • Wireless performance in the Lower 6 GHz band (ODU) on page 4-24 • Wireless performance in the Upper 6 GHz band (ODU) on page 4-26 • Wireless performance in the 6 GHz band (IRFU) on page 4-29 • Wireless performance in the 7 GHz band on page 4-32 • Wireless performance in the 8 GHz band on page 4-33 • Wireless performance in the 11 GHz band (ODU) on page 4-35 • Wireless performance in the 11 GHz band (IRFU) on page 4-39 • Wireless performance in the 13 GHz band on page 4-42 • Wireless performance in the 15 GHz band on page 4-44 • Wireless performance in the 18 GHz band on page 4-46 • Wireless performance in the 23 GHz band on page 4-54 • Wireless performance in the 26 GHz band on page 4-61 • Wireless performance in the 32 GHz band on page 4-66 • Wireless performance in the 38 GHz band on page 4-68 phn-2513_001v000 (Apr 2012) 4-23
- 258. Wireless specifications Chapter 4: Reference information Wireless performance in the Lower 6 GHz band (ODU) Applies to ODU deployments only. The following tables contain capacity, transmit power and sensitivity data for PTP 800 links operating in the Lower 6 GHz band. For column definitions, refer to Capacity, transmit power and sensitivity on page 4-22. Table 101 Lower 6 GHz FCC and Canada with 10 MHz bandwidth Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.83 Yes 50.7 -74.1 -69 -67.5 22 9 64QAM 0.82 Yes 42.2 -77.3 -72.7 -71.4 22 9 32QAM 0.87 Yes 34.7 -79.3 -74.9 -73.6 22 9 16QAM 0.88 Yes 28.2 -82.2 -78.1 -76.8 22 9 8PSK 0.86 Yes 20.8 -84.5 -79.9 -78.6 22 9 QPSK 0.86 Yes 13.8 -88.9 - - 22 9 Table 102 Lower 6 GHz FCC and Canada with 30 MHz bandwidth Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 177.4 -67.8 -60.1 -57.5 22 9 128QAM 0.82 Yes 155.1 -70.6 -67.3 -66.1 22 9 64QAM 0.87 Yes 135.4 -73 -69.6 -68.3 22 9 32QAM 0.84 Yes 103.6 -76.3 -73.1 -71.9 22 9 16QAM 0.79 Yes 77.9 -80.1 -77.1 -75.9 22 9 8PSK 0.80 Yes 59.1 -82.3 -78.9 -77.6 22 9 QPSK 0.80 Yes 39.4 -85.9 - - 22 9 4-24 phn-2513_001v000 (Apr 2012)
- 259. PTP 800 Series User Guide Wireless specifications Table 103 Lower 6 GHz ETSI with 29.65 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 170.5 -68.1 -61.2 -59.2 22 14 128QAM 0.84 Yes 151.1 -70.9 -67.5 -66.3 24 14 64QAM 0.82 Yes 125.3 -73.9 -70.4 -69.2 24 14 32QAM 0.85 Yes 101.2 -76.4 -73.2 -71.9 28 14 16QAM 0.79 Yes 74.8 -80.3 -77.3 -76.1 28 14 8PSK 0.80 No 56.8 - -79 -77.8 28 14 QPSK 0.80 Yes 37.8 -86.1 - - 30 14 phn-2513_001v000 (Apr 2012) 4-25
- 260. Wireless specifications Chapter 4: Reference information Wireless performance in the Upper 6 GHz band (ODU) Applies to ODU deployments only. The following tables contain capacity, transmit power and sensitivity data for PTP 800 links operating in the Upper 6 GHz band. For column definitions, refer to Capacity, transmit power and sensitivity on page 4-22. Table 104 Upper 6 GHz FCC with 10 MHz bandwidth Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.83 Yes 50.8 -74.2 -70.3 -68.9 22 9 64QAM 0.83 Yes 42.8 -77.3 -73.6 -72.4 22 9 32QAM 0.84 Yes 33.6 -79.9 -76.5 -75.3 22 9 16QAM 0.91 Yes 29.1 -82.4 -79.2 -78 22 9 8PSK 0.85 Yes 20.4 -85 -81.3 -80.1 22 9 QPSK 0.86 Yes 13.8 -89.9 - - 22 9 Table 105 Upper 6 GHz FCC with 30 MHz bandwidth Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 177.4 -67.8 -60.1 -57.5 22 9 128QAM 0.82 Yes 155.1 -70.6 -67.3 -66.1 22 9 64QAM 0.87 Yes 135.4 -73 -69.6 -68.3 22 9 32QAM 0.84 Yes 103.6 -76.3 -73.1 -71.9 22 9 16QAM 0.79 Yes 77.9 -80.1 -77.1 -75.9 22 9 8PSK 0.80 Yes 59.1 -82.3 -78.9 -77.6 22 9 QPSK 0.80 Yes 39.4 -85.9 - - 22 9 4-26 phn-2513_001v000 (Apr 2012)
- 261. PTP 800 Series User Guide Wireless specifications Table 106 Upper 6 GHz ETSI with 7 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.76 Yes 34.4 -76.4 -71.7 -70.3 24 14 64QAM 0.82 Yes 30 -78.8 -74.2 -72.9 24 14 32QAM 0.87 Yes 24.6 -80.8 -76.4 -75.2 26 14 16QAM 0.88 Yes 20 -83.7 -79.6 -78.3 28 14 8PSK 0.86 No 14.7 - -81.4 -80.1 28 14 QPSK 0.88 Yes 10 -90.4 - - 30 14 Table 107 Upper 6 GHz ETSI with 14 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.76 Yes 71 -73.4 -68.6 -67.2 24 14 64QAM 0.82 Yes 61.8 -75.7 -71.1 -69.8 24 14 32QAM 0.87 Yes 50.7 -77.7 -73.4 -72.1 26 14 16QAM 0.88 Yes 41.3 -80.6 -76.5 -75.3 28 14 8PSK 0.86 No 30.4 - -78.3 -77 28 14 QPSK 0.86 Yes 20.3 -87.3 - - 30 14 Table 108 Upper 6 GHz ETSI with 30 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 170.5 -68.1 -61.2 -59.2 22 14 128QAM 0.84 Yes 151.1 -70.9 -67.5 -66.3 24 14 64QAM 0.82 Yes 125.3 -73.9 -70.4 -69.2 24 14 32QAM 0.85 Yes 101.2 -76.4 -73.2 -71.9 26 14 16QAM 0.79 Yes 74.8 -80.3 -77.3 -76.1 28 14 8PSK 0.80 No 56.8 - -79 -77.8 28 14 QPSK 0.80 Yes 37.8 -86.1 - - 30 14 phn-2513_001v000 (Apr 2012) 4-27
- 262. Wireless specifications Chapter 4: Reference information Table 109 Upper 6 GHz ETSI with 40 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 No 236.6 - -59.8 -57.8 22 14 128QAM 0.82 Yes 206.8 -69.4 -66.1 -64.9 24 14 64QAM 0.88 Yes 181.9 -71.8 -68.4 -67.1 24 14 32QAM 0.92 No 150.7 - -70.7 -69.5 26 14 16QAM 0.79 No 103.8 - -75.9 -74.7 28 14 8PSK 0.80 No 78.9 - -77.6 -76.3 28 14 QPSK 0.80 No 52.5 - - - 30 14 Table 110 Upper 6 GHz ETSI with 60 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.91 Yes 368.6 -63.2 -58.1 -56.1 22 14 256QAM 0.80 Yes 347.1 -65.1 -58.1 -56.1 22 14 128QAM 0.82 Yes 303.5 -67.8 -64.5 -63.2 24 14 64QAM 0.82 Yes 255.2 -70.8 -67.3 -66.1 24 14 32QAM 0.84 No 202.7 - -70.2 -68.9 26 14 16QAM 0.79 No 152.4 - -74.2 -73 28 14 8PSK 0.80 No 115.8 - -75.9 -74.7 28 14 QPSK 0.80 No 77.1 - - - 30 14 4-28 phn-2513_001v000 (Apr 2012)
- 263. PTP 800 Series User Guide Wireless specifications Wireless performance in the 6 GHz band (IRFU) Applies to IRFU deployments only. The following tables contain capacity, transmit power and sensitivity data for PTP 800 links operating in the 6 GHz band. For column definitions, refer to Capacity, transmit power and sensitivity on page 4-22. The maximum and minimum transmit powers are the powers at the output of an IRFU transceiver and not at the waveguide interface. The power at the waveguide interface depends on the branching unit configuration, which adds additional loss according to Table 114. The receive sensitivities are at the input to the IRFU transceiver and not at the waveguide interface. The sensitivity at the waveguide interface depends on the branching unit configuration, which adds additional loss according to Table 115. Table 111 6 GHz FCC and Canada with 10 MHz bandwidth for IRFU Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.76 Yes 55.9 -72.7 -64.7 -62.1 29 10 128QAM 0.83 Yes 50.2 -75 -64.5 -61.7 30 10 64QAM 0.78 Yes 40.5 -79.2 -71.2 -69.9 31 10 32QAM 0.79 Yes 31.1 -81.8 -75.5 -74.3 32 10 16QAM 0.88 Yes 27.9 -83.8 -78.4 -77.2 33 10 8PSK 0.88 Yes 21 -85.6 -80.6 -79.4 33 10 QPSK 0.79 Yes 12.6 -90.9 - - 34 10 phn-2513_001v000 (Apr 2012) 4-29
- 264. Wireless specifications Chapter 4: Reference information Table 112 6 GHz FCC with 25 MHz bandwidth for IRFU Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.81 Yes 151.4 -69.5 -62.5 -60.4 29 10 128QAM 0.81 Yes 130.5 -72.9 -62.5 -60.4 30 10 64QAM 0.83 Yes 111 -75.5 -69.5 -68.3 31 10 32QAM 0.87 Yes 90.6 -78 -72 -70.7 32 10 16QAM 0.85 Yes 70.8 -81.5 -74.7 -73.5 33 10 8PSK 0.81 Yes 50.8 -83.9 -78.5 -77.2 33 10 QPSK 0.76 Yes 31.8 -87.3 - - 34 10 Table 113 6 GHz FCC and Canada with 30 MHz bandwidth for IRFU Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 177.4 -68.6 -61.5 -59.4 29 10 128QAM 0.82 Yes 154.7 -71.9 -68.6 -67.3 30 10 64QAM 0.88 Yes 135.9 -74.1 -70.7 -69.4 31 10 32QAM 0.83 Yes 102.6 -77.7 -74.5 -73.3 32 10 16QAM 0.85 Yes 83.3 -80.8 -77.8 -76.6 33 10 8PSK 0.80 Yes 58.9 -83.1 -79.7 -78.4 33 10 QPSK 0.80 Yes 39.3 -86.8 - - 34 10 4-30 phn-2513_001v000 (Apr 2012)
- 265. PTP 800 Series User Guide Wireless specifications Table 114 Transmit branching unit losses for 6 GHz IRFU IRFU branching configuration Tx A Tx B BU loss BU loss RFU 1plus0 0 RFU 1plus1 MHSB Equal RFU 1plus1 MHSB Unequal RFU 1plus0 MHSB Ready Equal 0.4 RFU 1plus0 MHSB Ready Unequal RFU 1plus1 Tx MHSB Rx SD RFU 2plus0 0 0.5 Table 115 Receive branching unit losses for 6 GHz IRFU IRFU branching configuration Rx A Rx B BU loss BU loss RFU 1plus0 1.0 RFU 1plus1 MHSB Equal 4.2 5.1 RFU 1plus0 MHSB Ready Equal RFU 1plus1 MHSB Unequal 2.3 8.8 RFU 1plus0 MHSB Ready Unequal RFU 1plus1 Tx MHSB Rx SD 1.0 0.8 RFU 2plus0 1.0 1.5 phn-2513_001v000 (Apr 2012) 4-31
- 266. Wireless specifications Chapter 4: Reference information Wireless performance in the 7 GHz band The following tables contain capacity, transmit power and sensitivity data for PTP 800 links operating in the 7 GHz band. For column definitions, refer to Capacity, transmit power and sensitivity on page 4-22. Table 116 7 GHz ETSI with 7 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.76 Yes 34.4 -76.4 -71.7 -70.3 24 14 64QAM 0.82 Yes 30 -78.8 -74.2 -72.9 24 14 32QAM 0.87 No 24.6 - -76.4 -75.2 28 14 16QAM 0.88 Yes 20 -83.7 -79.6 -78.3 28 14 8PSK 0.86 No 14.7 - -81.4 -80.1 28 14 QPSK 0.88 Yes 10 -90.4 - - 30 14 Table 117 7 GHz ETSI with 14 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.76 Yes 71 -73.4 -68.6 -67.2 24 14 64QAM 0.82 Yes 61.8 -75.7 -71.1 -69.8 24 14 32QAM 0.87 Yes 50.7 -77.7 -73.4 -72.1 28 14 16QAM 0.88 Yes 41.3 -80.6 -76.5 -75.3 28 14 8PSK 0.86 No 30.4 - -78.3 -77 28 14 QPSK 0.86 Yes 20.3 -87.3 - - 30 14 4-32 phn-2513_001v000 (Apr 2012)
- 267. PTP 800 Series User Guide Wireless specifications Table 118 7 GHz ETSI with 28 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 170.5 -68.1 -61.2 -59.2 22 14 128QAM 0.84 Yes 151.1 -70.9 -67.5 -66.3 24 14 64QAM 0.82 Yes 125.3 -73.9 -70.4 -69.2 24 14 32QAM 0.85 Yes 101.2 -76.4 -73.2 -71.9 28 14 16QAM 0.79 Yes 74.8 -80.3 -77.3 -76.1 28 14 8PSK 0.80 No 56.8 - -79 -77.8 28 14 QPSK 0.80 Yes 37.8 -86.1 - - 30 14 Wireless performance in the 8 GHz band The following tables contain capacity, transmit power and sensitivity data for PTP 800 links operating in the 8 GHz band. For column definitions, refer to Capacity, transmit power and sensitivity on page 4-22. Table 119 8 GHz ETSI with 7 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.76 Yes 34.4 -76.4 -71.7 -70.3 24 14 64QAM 0.82 Yes 30 -78.8 -74.2 -72.9 24 14 32QAM 0.87 No 24.6 - -76.4 -75.2 28 14 16QAM 0.88 Yes 20 -83.7 -79.6 -78.3 28 14 8PSK 0.86 No 14.7 - -81.4 -80.1 28 14 QPSK 0.88 Yes 10 -90.4 - - 30 14 phn-2513_001v000 (Apr 2012) 4-33
- 268. Wireless specifications Chapter 4: Reference information Table 120 8 GHz ETSI with 14 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.76 Yes 71 -73.4 -68.6 -67.2 24 14 64QAM 0.82 Yes 61.8 -75.7 -71.1 -69.8 24 14 32QAM 0.87 Yes 50.7 -77.7 -73.4 -72.1 28 14 16QAM 0.88 Yes 41.3 -80.6 -76.5 -75.3 28 14 8PSK 0.86 No 30.4 - -78.3 -77 28 14 QPSK 0.86 Yes 20.3 -87.3 - - 30 14 Table 121 8 GHz ETSI with 28 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 170.5 -68.1 -61.2 -59.2 22 14 128QAM 0.84 Yes 151.1 -70.9 -67.5 -66.3 24 14 64QAM 0.82 Yes 125.3 -73.9 -70.4 -69.2 24 14 32QAM 0.85 Yes 101.2 -76.4 -73.2 -71.9 28 14 16QAM 0.79 Yes 74.8 -80.3 -77.3 -76.1 28 14 8PSK 0.80 No 56.8 - -79 -77.8 28 14 QPSK 0.80 Yes 37.8 -86.1 - - 30 14 Table 122 8 GHz ETSI with 29.65 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 170.5 -68.1 -61.2 -59.2 22 14 128QAM 0.84 Yes 151.1 -70.9 -67.5 -66.3 24 14 64QAM 0.82 Yes 125.3 -73.9 -70.4 -69.2 24 14 32QAM 0.85 Yes 101.2 -76.4 -73.2 -71.9 28 14 16QAM 0.79 Yes 74.8 -80.3 -77.3 -76.1 28 14 8PSK 0.80 No 56.8 - -79 -77.8 28 14 QPSK 0.80 Yes 37.8 -86.1 - - 30 14 4-34 phn-2513_001v000 (Apr 2012)
- 269. PTP 800 Series User Guide Wireless specifications Wireless performance in the 11 GHz band (ODU) Applies to ODU deployments only. The following tables contain capacity, transmit power and sensitivity data for PTP 800 links operating in the 11 GHz band. For column definitions, refer to Capacity, transmit power and sensitivity on page 4-22. Table 123 11 GHz FCC and Canada with 10 MHz bandwidth (ODU-A) Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.83 Yes 50.7 -74.6 -69.5 -68 19 6 64QAM 0.82 Yes 42.2 -77.8 -73.2 -71.9 19 6 32QAM 0.87 Yes 34.7 -79.8 -75.4 -74.1 19 6 16QAM 0.88 Yes 28.2 -82.7 -78.6 -77.3 19 6 8PSK 0.86 Yes 20.8 -85 -80.4 -79.1 19 6 QPSK 0.86 Yes 13.8 -89.4 - - 19 6 Table 124 11 GHz FCC and Canada with 10 MHz bandwidth (ODU-B) Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.83 Yes 50.8 -74.7 -70.8 -69.4 20 5 64QAM 0.83 Yes 42.8 -77.8 -74.1 -72.9 20 5 32QAM 0.84 Yes 33.6 -80.4 -77 -75.8 20 5 16QAM 0.91 Yes 29.1 -82.9 -79.7 -78.5 20 5 8PSK 0.85 Yes 20.4 -85.5 -81.8 -80.6 20 5 QPSK 0.86 Yes 13.8 -90.4 - 20 5 phn-2513_001v000 (Apr 2012) 4-35
- 270. Wireless specifications Chapter 4: Reference information Table 125 11 GHz FCC and Canada with 30 MHz bandwidth (ODU-A) Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 177.4 -68.5 -61.5 -59.6 19 6 128QAM 0.82 Yes 155.1 -71.2 -67.9 -66.6 19 6 64QAM 0.82 Yes 130.4 -74.2 -70.8 -69.5 19 6 32QAM 0.84 Yes 103.6 -76.8 -73.6 -72.4 19 6 16QAM 0.79 Yes 77.9 -80.6 -77.6 -76.4 19 6 8PSK 0.80 Yes 59.1 -82.8 -79.4 -78.1 19 6 QPSK 0.80 Yes 39.4 -86.4 - - 19 6 Table 126 11 GHz FCC and Canada with 30 MHz bandwidth (ODU-B) Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 177.4 -68.1 -61 -58.9 20 5 128QAM 0.82 Yes 154.7 -71.4 -68.1 -66.8 20 5 64QAM 0.88 Yes 135.9 -73.6 -70.2 -68.9 20 5 32QAM 0.83 Yes 102.6 -77.2 -74 -72.8 20 5 16QAM 0.85 Yes 83.3 -80.3 -77.3 -76.1 20 5 8PSK 0.80 Yes 58.9 -82.6 -79.2 -77.9 20 5 QPSK 0.80 Yes 39.3 -86.3 - - 20 5 4-36 phn-2513_001v000 (Apr 2012)
- 271. PTP 800 Series User Guide Wireless specifications Table 127 11 GHz FCC and Canada with 40 MHz bandwidth (ODU-A) Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 236.6 -67.2 -60.3 -58.3 19 6 128QAM 0.82 Yes 206.8 -69.9 -66.6 -65.4 19 6 64QAM 0.88 Yes 181.9 -72.3 -68.9 -67.6 19 6 32QAM 0.92 Yes 150.7 -74.4 -71.2 -70 19 6 16QAM 0.79 Yes 103.8 -79.3 -76.4 -75.2 19 6 8PSK 0.80 Yes 78.9 -81.5 -78.1 -76.8 19 6 QPSK 0.80 Yes 52.5 -85.1 - - 19 6 Table 128 11 GHz FCC and Canada with 40 MHz bandwidth (ODU-B) Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 236.6 -67.1 -60.1 -58.1 20 5 128QAM 0.82 Yes 206.3 -70 -66.7 -65.5 20 5 64QAM 0.87 Yes 180 -72.5 -69.1 -67.8 20 5 32QAM 0.92 Yes 150.4 -74.4 -71.2 -70 20 5 16QAM 0.85 Yes 111.1 -79 -76.1 -74.9 20 5 8PSK 0.80 Yes 78.5 -81.3 -77.9 -76.6 20 5 QPSK 0.80 Yes 52.4 -85.1 - - 20 5 phn-2513_001v000 (Apr 2012) 4-37
- 272. Wireless specifications Chapter 4: Reference information Table 129 11 GHz ETSI with 40 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 No 236.6 - -60.3 -58.3 19 11 128QAM 0.82 Yes 206.8 -69.9 -66.6 -65.4 21 11 64QAM 0.88 Yes 181.9 -72.3 -68.9 -67.6 21 11 32QAM 0.92 No 150.7 - -71.2 -70 26 11 16QAM 0.79 No 103.8 - -76.4 -75.2 26 11 8PSK 0.80 No 78.9 - -78.1 -76.8 26 11 QPSK 0.80 No 52.5 - - - 28 11 4-38 phn-2513_001v000 (Apr 2012)
- 273. PTP 800 Series User Guide Wireless specifications Wireless performance in the 11 GHz band (IRFU) Applies to IRFU deployments only. The following tables contain capacity, transmit power and sensitivity data for PTP 800 links operating in the 11 GHz band. For column definitions, refer to Capacity, transmit power and sensitivity on page 4-22. The maximum and minimum transmit powers are the powers at the output of an IRFU transceiver and not at the waveguide interface. The power at the waveguide interface depends on the branching unit configuration, which adds additional loss according to Table 133. The receive sensitivities are at the input to the IRFU transceiver and not at the waveguide interface. The sensitivity at the waveguide interface depends on the branching unit configuration, which adds additional loss according to Table 134. Table 130 11 GHz FCC and Canada with 10 MHz bandwidth for IRFU Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.76 Yes 55.9 -72.2 -64.2 -61.6 26 7 128QAM 0.83 Yes 50.2 -74.5 -64 -61.2 27 7 64QAM 0.78 Yes 40.5 -78.7 -70.7 -69.4 28 7 32QAM 0.79 Yes 31.1 -81.3 -75 -73.8 29 7 16QAM 0.88 Yes 27.9 -83.3 -77.9 -76.7 30 7 8PSK 0.88 Yes 21 -85.1 -80.1 -78.9 30 7 QPSK 0.79 Yes 12.6 -90.4 - - 31 7 phn-2513_001v000 (Apr 2012) 4-39
- 274. Wireless specifications Chapter 4: Reference information Table 131 11 GHz FCC and Canada with 30 MHz bandwidth for IRFU Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 177.4 -68.1 -61 -58.9 26 7 128QAM 0.82 Yes 154.7 -71.4 -68.1 -66.8 27 7 64QAM 0.88 Yes 135.9 -73.6 -70.2 -68.9 28 7 32QAM 0.83 Yes 102.6 -77.2 -74 -72.8 29 7 16QAM 0.85 Yes 83.3 -80.3 -77.3 -76.1 30 7 8PSK 0.80 Yes 58.9 -82.6 -79.2 -77.9 30 7 QPSK 0.80 Yes 39.3 -86.3 - - 31 7 Table 132 11 GHz FCC and Canada with 40 MHz bandwidth for IRFU Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 236.6 -67.1 -60.1 -58.1 26 7 128QAM 0.82 Yes 206.3 -70 -66.7 -65.5 27 7 64QAM 0.87 Yes 180 -72.5 -69.1 -67.8 28 7 32QAM 0.92 Yes 150.4 -74.4 -71.2 -70 29 7 16QAM 0.85 Yes 111.1 -79 -76.1 -74.9 30 7 8PSK 0.80 Yes 78.5 -81.3 -77.9 -76.6 30 7 QPSK 0.80 Yes 52.4 -85.1 - - 31 7 4-40 phn-2513_001v000 (Apr 2012)
- 275. PTP 800 Series User Guide Wireless specifications Table 133 Transmit branching unit losses for 11 GHz IRFU IRFU branching configuration Tx A Tx B BU loss BU loss RFU 1plus0 0 RFU 1plus1 MHSB Equal RFU 1plus1 MHSB Unequal RFU 1plus0 MHSB Ready Equal 0.5 RFU 1plus0 MHSB Ready Unequal RFU 1plus1 Tx MHSB Rx SD RFU 2plus0 0 0.7 Table 134 Receive branching unit losses for 11 GHz IRFU IRFU branching configuration Rx A Rx B BU loss BU loss RFU 1plus0 1.5 RFU 1plus1 MHSB Equal 4.8 6.0 RFU 1plus0 MHSB Ready Equal RFU 1plus1 MHSB Unequal 3.2 9.7 RFU 1plus0 MHSB Ready Unequal RFU 1plus1 Tx MHSB Rx SD 1.5 1.3 RFU 2plus0 1.5 2.2 phn-2513_001v000 (Apr 2012) 4-41
- 276. Wireless specifications Chapter 4: Reference information Wireless performance in the 13 GHz band The following tables contain capacity, transmit power and sensitivity data for PTP 800 links operating in the 13 GHz band. For column definitions, refer to Capacity, transmit power and sensitivity on page 4-22. Table 135 13 GHz ETSI with 7 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.76 Yes 34.4 -76.9 -72.2 -70.8 18 8 64QAM 0.82 Yes 30 -79.3 -74.7 -73.4 18 8 32QAM 0.87 No 24.6 - -76.9 -75.7 23 8 16QAM 0.88 Yes 20 -84.2 -80.1 -78.8 23 8 8PSK 0.86 No 14.7 - -81.9 -80.6 23 8 QPSK 0.88 Yes 10 -90.9 - - 26 8 Table 136 13 GHz ETSI with 14 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.76 Yes 71 -73.9 -69.1 -67.7 18 8 64QAM 0.82 Yes 61.8 -76.2 -71.6 -70.3 18 8 32QAM 0.87 Yes 50.7 -78.2 -73.9 -72.6 23 8 16QAM 0.88 Yes 41.3 -81.1 -77 -75.8 23 8 8PSK 0.86 No 30.4 - -78.8 -77.5 23 8 QPSK 0.86 Yes 20.3 -87.8 - - 26 8 4-42 phn-2513_001v000 (Apr 2012)
- 277. PTP 800 Series User Guide Wireless specifications Table 137 13 GHz ETSI with 28 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 170.5 -68.6 -61.7 -59.7 16 8 128QAM 0.84 Yes 151.1 -71.4 -68 -66.8 18 8 64QAM 0.82 Yes 125.3 -74.4 -70.9 -69.7 18 8 32QAM 0.85 Yes 101.2 -76.9 -73.7 -72.4 23 8 16QAM 0.79 Yes 74.8 -80.8 -77.8 -76.6 23 8 8PSK 0.80 No 56.8 - -79.5 -78.3 23 8 QPSK 0.80 Yes 37.8 -86.6 - - 26 8 phn-2513_001v000 (Apr 2012) 4-43
- 278. Wireless specifications Chapter 4: Reference information Wireless performance in the 15 GHz band The following tables contain capacity, transmit power and sensitivity data for PTP 800 links operating in the 15 GHz band. For column definitions, refer to Capacity, transmit power and sensitivity on page 4-22. Table 138 15 GHz ETSI with 7 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.76 Yes 34.4 -76.9 -72.2 -70.8 18 8 64QAM 0.82 Yes 30 -79.3 -74.7 -73.4 18 8 32QAM 0.87 No 24.6 - -76.9 -75.7 23 8 16QAM 0.88 Yes 20 -84.2 -80.1 -78.8 23 8 8PSK 0.86 No 14.7 - -81.9 -80.6 23 8 QPSK 0.88 Yes 10 -90.9 - - 26 8 Table 139 15 GHz ETSI with 14 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.76 Yes 71 -73.9 -69.1 -67.7 18 8 64QAM 0.82 Yes 61.8 -76.2 -71.6 -70.3 18 8 32QAM 0.87 Yes 50.7 -78.2 -73.9 -72.6 23 8 16QAM 0.88 Yes 41.3 -81.1 -77 -75.8 23 8 8PSK 0.86 No 30.4 - -78.8 -77.5 23 8 QPSK 0.86 Yes 20.3 -87.8 - - 26 8 4-44 phn-2513_001v000 (Apr 2012)
- 279. PTP 800 Series User Guide Wireless specifications Table 140 15 GHz ETSI with 28 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 170.5 -68.6 -61.7 -59.7 16 8 128QAM 0.84 Yes 151.1 -71.4 -68 -66.8 18 8 64QAM 0.82 Yes 125.3 -74.4 -70.9 -69.7 18 8 32QAM 0.85 Yes 101.2 -76.9 -73.7 -72.4 23 8 16QAM 0.79 Yes 74.8 -80.8 -77.8 -76.6 23 8 8PSK 0.80 No 56.8 - -79.5 -78.3 23 8 QPSK 0.80 Yes 37.8 -86.6 - - 26 8 Table 141 15 GHz ETSI with 56 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256 QAM 0.91 Yes 368.6 -63.7 -58.6 -56.6 16 8 256 QAM 0.80 Yes 347.1 -65.6 -58.6 -56.6 16 8 128 QAM 0.82 Yes 303.5 -68.3 -65 -63.7 18 8 64 QAM 0.82 Yes 255.2 -71.3 -67.8 -66.6 18 8 32 QAM 0.84 No 202.7 - -70.7 -69.4 23 8 16 QAM 0.79 Yes 152.4 -77.7 -74.7 -73.5 23 8 8PSK 0.80 No 115.8 - -76.4 -75.2 23 8 QPSK 0.80 Yes 77.1 -83.5 - - 26 8 phn-2513_001v000 (Apr 2012) 4-45
- 280. Wireless specifications Chapter 4: Reference information Wireless performance in the 18 GHz band The following tables contain capacity, transmit power and sensitivity data for PTP 800 links operating in the 18 GHz band. For column definitions, refer to Capacity, transmit power and sensitivity on page 4-22. Table 142 18 GHz FCC and Canada with 10 MHz bandwidth (ODU-A) Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.83 Yes 50.7 -74.6 -69.5 -68 17 2 64QAM 0.82 Yes 42.2 -77.8 -73.2 -71.9 17 2 32QAM 0.87 Yes 34.7 -79.8 -75.4 -74.1 22 2 16QAM 0.88 Yes 28.2 -82.7 -78.6 -77.3 22 2 8PSK 0.86 Yes 20.8 -85 -80.4 -79.1 22 2 QPSK 0.86 Yes 13.8 -89.4 - - 23 2 Table 143 18 GHz FCC and Canada with 10 MHz bandwidth (ODU-B) Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.83 Yes 50.8 -74.7 -70.8 -69.4 19 2 64QAM 0.83 Yes 42.8 -77.8 -74.1 -72.9 19 2 32QAM 0.84 Yes 33.6 -80.4 -77 -75.8 23 2 16QAM 0.91 Yes 29.1 -82.9 -79.7 -78.5 23 2 8PSK 0.85 Yes 20.4 -85.5 -81.8 -80.6 23 2 QPSK 0.86 Yes 13.8 -90.4 - - 24 2 4-46 phn-2513_001v000 (Apr 2012)
- 281. PTP 800 Series User Guide Wireless specifications Table 144 18 GHz FCC and Canada with 20 MHz bandwidth (ODU-A) Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.76 Yes 113.7 -70.4 -61.8 -58.9 15 2 128QAM 0.83 Yes 102.2 -72.5 -68.7 -67.4 17 2 64QAM 0.81 Yes 84.9 -75.9 -72.1 -70.9 17 2 32QAM 0.84 Yes 67.8 -78.3 -74.8 -73.5 22 2 16QAM 0.91 Yes 58.5 -80.6 -77.3 -76.1 22 2 8PSK 0.83 Yes 40.3 -83.6 -79.8 -78.6 22 2 QPSK 0.88 Yes 28.5 -87.6 - - 23 2 Table 145 18 GHz FCC and Canada with 20 MHz bandwidth (ODU-B) Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.77 Yes 114.4 -70.2 -61.3 -58.1 17 2 128QAM 0.83 Yes 102 -72.7 -69 -67.7 19 2 64QAM 0.83 Yes 85.5 -75.9 -72.1 -70.9 19 2 32QAM 0.85 Yes 68.8 -78.4 -74.9 -73.6 23 2 16QAM 0.91 Yes 58.4 -80.6 -77.3 -76.1 23 2 8PSK 0.83 Yes 40.4 -83.7 -79.9 -78.7 23 2 QPSK 0.84 Yes 27.1 -88 - - 24 2 phn-2513_001v000 (Apr 2012) 4-47
- 282. Wireless specifications Chapter 4: Reference information Table 146 18 GHz FCC and Canada with 30 MHz bandwidth (ODU-A) Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 177.4 -68.5 -61.5 -59.6 15 2 128QAM 0.82 Yes 155.1 -71.2 -67.9 -66.6 17 2 64QAM 0.82 Yes 130.4 -74.2 -70.8 -69.5 17 2 32QAM 0.84 Yes 103.6 -76.8 -73.6 -72.4 22 2 16QAM 0.79 Yes 77.9 -80.6 -77.6 -76.4 22 2 8PSK 0.80 Yes 59.1 -82.8 -79.4 -78.1 22 2 QPSK 0.80 Yes 39.4 -86.4 - - 23 2 Table 147 18 GHz FCC and Canada with 30 MHz bandwidth (ODU-B) Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 177.4 -68.1 -61 -58.9 17 2 128QAM 0.82 Yes 154.7 -71.4 -68.1 -66.8 19 2 64QAM 0.88 Yes 135.9 -73.6 -70.2 -68.9 19 2 32QAM 0.83 Yes 102.6 -77.2 -74 -72.8 23 2 16QAM 0.85 Yes 83.3 -80.3 -77.3 -76.1 23 2 8PSK 0.80 Yes 58.9 -82.6 -79.2 -77.9 23 2 QPSK 0.80 Yes 39.3 -86.3 - - 24 2 4-48 phn-2513_001v000 (Apr 2012)
- 283. PTP 800 Series User Guide Wireless specifications Table 148 18 GHz FCC and Canada with 40 MHz bandwidth (ODU-A) Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 236.6 -67.2 -60.3 -58.3 15 2 128QAM 0.82 Yes 206.8 -69.9 -66.6 -65.4 17 2 64QAM 0.88 Yes 181.9 -72.3 -68.9 -67.6 17 2 32QAM 0.92 Yes 150.7 -74.4 -71.2 -70 22 2 16QAM 0.79 Yes 103.8 -79.3 -76.4 -75.2 22 2 8PSK 0.80 Yes 78.9 -81.5 -78.1 -76.8 22 2 QPSK 0.80 Yes 52.5 -85.1 - - 23 2 Table 149 18 GHz FCC and Canada with 40 MHz bandwidth (ODU-B) Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 236.6 -67.1 -60.1 -58.1 17 2 128QAM 0.82 Yes 206.3 -70 -66.7 -65.5 19 2 64QAM 0.87 Yes 180 -72.5 -69.1 -67.8 19 2 32QAM 0.92 Yes 150.4 -74.4 -71.2 -70 23 2 16QAM 0.85 Yes 111.1 -79 -76.1 -74.9 23 2 8PSK 0.80 Yes 78.5 -81.3 -77.9 -76.6 23 2 QPSK 0.80 Yes 52.4 -85.1 - - 24 2 phn-2513_001v000 (Apr 2012) 4-49
- 284. Wireless specifications Chapter 4: Reference information Table 150 18 GHz FCC and Canada with 50 MHz bandwidth (ODU-A) Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.83 Yes 301.7 -65.8 -58.5 -56.3 15 2 128QAM 0.82 Yes 258.6 -69 -65.6 -64.3 17 2 64QAM 0.82 Yes 217.4 -72 -68.5 -67.2 17 2 32QAM 0.87 Yes 178.6 -74.3 -71 -69.8 22 2 16QAM 0.91 Yes 150.5 -76.3 -73.3 -72 22 2 8PSK 0.84 Yes 103.7 -79.6 -76.1 -74.8 22 2 QPSK 0.80 Yes 65.7 -84.2 - - 23 2 Table 151 18 GHz FCC and Canada with 50 MHz bandwidth (ODU-B) Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.83 Yes 302.1 -65.8 -58.5 -56.3 17 2 128QAM 0.82 Yes 257.8 -69.1 -65.7 -64.4 19 2 64QAM 0.82 Yes 216.5 -72.1 -68.6 -67.3 19 2 32QAM 0.87 Yes 178.6 -74.5 -71.2 -70 23 2 16QAM 0.92 Yes 150.8 -76.7 -73.7 -72.4 23 2 8PSK 0.84 Yes 103.7 -79.9 -76.4 -75.1 23 2 QPSK 0.80 Yes 65.7 -83.9 - - 24 2 4-50 phn-2513_001v000 (Apr 2012)
- 285. PTP 800 Series User Guide Wireless specifications Table 152 18 GHz FCC and Canada with 80 MHz bandwidth (ODU-B) Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.91 Yes 368.6 -63.7 -58.6 -56.6 17 2 256QAM 0.80 Yes 347.1 -65.6 -58.6 -56.6 17 2 128QAM 0.82 Yes 303.5 -68.3 -65 -63.7 19 2 64QAM 0.82 Yes 255.2 -71.3 -67.8 -66.6 19 2 32QAM 0.83 Yes 201 -74.1 -70.9 -69.6 23 2 16QAM 0.85 Yes 163.9 -77.3 -74.3 -73.1 23 2 8PSK 0.80 Yes 115.8 -79.9 -76.4 -75.2 23 2 QPSK 0.80 Yes 77.1 -83.5 - - 24 2 Table 153 18 GHz ETSI with 7 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.76 Yes 34.4 -76.9 -72.2 -70.8 17 7 64QAM 0.82 Yes 30 -79.3 -74.7 -73.4 17 7 32QAM 0.87 No 24.6 - -76.9 -75.7 22 7 16QAM 0.88 Yes 20 -84.2 -80.1 -78.8 22 7 8PSK 0.86 No 14.7 - -81.9 -80.6 22 7 QPSK 0.88 Yes 10 -90.9 - - 25.5 7 Table 154 18 GHz ETSI with 13.75 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.76 Yes 69.8 -74 -69.2 -67.8 17 7 64QAM 0.82 Yes 60.7 -76.3 -71.7 -70.4 17 7 32QAM 0.87 Yes 49.9 -78.3 -73.9 -72.7 22 7 16QAM 0.88 Yes 40.6 -81.2 -77.1 -75.8 22 7 8PSK 0.86 No 29.9 - -78.9 -77.6 22 7 QPSK 0.86 Yes 19.9 -87.9 - - 25.5 7 phn-2513_001v000 (Apr 2012) 4-51
- 286. Wireless specifications Chapter 4: Reference information Table 155 18 GHz ETSI with 27.5 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 167 -68.7 -61.8 -59.8 15 7 128QAM 0.84 Yes 148 -71.4 -68.1 -66.9 17 7 64QAM 0.82 Yes 122.7 -74.4 -71 -69.8 17 7 32QAM 0.85 Yes 99.1 -76.9 -73.8 -72.5 22 7 16QAM 0.79 Yes 73.3 -80.8 -77.9 -76.7 22 7 8PSK 0.80 No 55.7 - -79.6 -78.4 22 7 QPSK 0.80 Yes 37 -86.6 - - 25.5 7 Table 156 18 GHz ETSI with 55 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.91 Yes 364.9 -63.7 -58.6 -56.7 15 7 256QAM 0.80 Yes 343.6 -65.6 -58.6 -56.7 15 7 128QAM 0.82 Yes 300.4 -68.3 -65 -63.8 17 7 64QAM 0.82 Yes 252.6 -71.3 -67.9 -66.6 17 7 32QAM 0.84 No 200.7 - -70.7 -69.5 22 7 16QAM 0.79 Yes 150.9 -77.7 -74.8 -73.5 22 7 8PSK 0.80 No 114.6 - -76.5 -75.2 22 7 QPSK 0.80 Yes 76.3 -83.5 - - 25.5 7 4-52 phn-2513_001v000 (Apr 2012)
- 287. PTP 800 Series User Guide Wireless specifications Table 157 18 GHz Brazil with 13.75 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.76 No 69.8 - -69.2 -67.8 17 7 64QAM 0.82 No 60.7 - -71.7 -70.4 17 7 32QAM 0.87 Yes 49.9 -78.3 -73.9 -72.7 22 7 16QAM 0.88 Yes 40.6 -81.2 -77.1 -75.8 22 7 8PSK 0.86 No 29.9 - -78.9 -77.6 22 7 QPSK 0.86 Yes 19.9 -87.9 - - 25.5 7 Table 158 18 GHz Brazil with 27.5 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 No 167 - -61.8 -59.8 15 7 128QAM 0.84 Yes 148 -71.4 -68.1 -66.9 17 7 64QAM 0.82 No 122.7 - -71 -69.8 17 7 32QAM 0.85 No 99.1 - -73.8 -72.5 22 7 16QAM 0.79 Yes 73.3 -80.8 -77.9 -76.7 22 7 8PSK 0.80 No 55.7 - -79.6 -78.4 22 7 QPSK 0.80 Yes 37 -86.6 - - 25.5 7 Table 159 18 GHz Brazil with 55 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.91 No 364.9 - -58.6 -56.7 15 7 256QAM 0.80 No 343.6 - -58.6 -56.7 15 7 128QAM 0.82 No 300.4 - -65 -63.8 17 7 64QAM 0.82 No 252.6 - -67.9 -66.6 17 7 32QAM 0.84 No 200.7 - -70.7 -69.5 22 7 16QAM 0.79 Yes 150.9 -77.7 -74.8 -73.5 22 7 8PSK 0.80 No 114.6 - -76.5 -75.2 22 7 phn-2513_001v000 (Apr 2012) 4-53
- 288. Wireless specifications Chapter 4: Reference information Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) QPSK 0.80 No 76.3 - - - 25.5 7 Wireless performance in the 23 GHz band The following tables contain capacity, transmit power and sensitivity data for PTP 800 links operating in the 23 GHz band. For column definitions, refer to Capacity, transmit power and sensitivity on page 4-22. Table 160 23 GHz FCC and Canada with 10 MHz bandwidth (ODU-A) Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.83 Yes 50.7 -74.1 -69 -67.5 17 2 64QAM 0.82 Yes 42.2 -77.3 -72.7 -71.4 17 2 32QAM 0.87 Yes 34.7 -79.3 -74.9 -73.6 22 2 16QAM 0.88 Yes 28.2 -82.2 -78.1 -76.8 22 2 8PSK 0.86 Yes 20.8 -84.5 -79.9 -78.6 22 2 QPSK 0.86 Yes 13.8 -88.9 - - 23 2 4-54 phn-2513_001v000 (Apr 2012)
- 289. PTP 800 Series User Guide Wireless specifications Table 161 23 GHz FCC and Canada with 10 MHz bandwidth (ODU-B) Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.83 Yes 50.8 -74.2 -70.3 -68.9 19 2 64QAM 0.83 Yes 42.8 -77.3 -73.6 -72.4 19 2 32QAM 0.84 Yes 33.6 -79.9 -76.5 -75.3 23 2 16QAM 0.91 Yes 29.1 -82.4 -79.2 -78 23 2 8PSK 0.85 Yes 20.4 -85 -81.3 -80.1 23 2 QPSK 0.86 Yes 13.8 -89.9 - - 23 2 Table 162 23 GHz FCC and Canada with 20 MHz bandwidth (ODU-A) Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.76 Yes 113.7 -69.9 -61.3 -58.4 15 2 128QAM 0.83 Yes 102.2 -72 -68.2 -66.9 17 2 64QAM 0.81 Yes 84.9 -75.4 -71.6 -70.4 17 2 32QAM 0.84 Yes 67.8 -77.8 -74.3 -73 22 2 16QAM0.91 Yes 58.5 -80.1 -76.8 -75.6 22 2 8PSK 0.83 Yes 40.3 -83.1 -79.3 -78.1 22 2 QPSK 0.88 Yes 28.5 -87.1 - - 23 2 phn-2513_001v000 (Apr 2012) 4-55
- 290. Wireless specifications Chapter 4: Reference information Table 163 23 GHz FCC and Canada with 20 MHz bandwidth (ODU-B) Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.77 Yes 114.4 -69.7 -60.8 -57.6 17 2 128QAM 0.83 Yes 102 -72.2 -68.5 -67.2 19 2 64QAM 0.83 Yes 85.5 -75.4 -71.6 -70.4 19 2 32QAM 0.85 Yes 68.8 -77.9 -74.4 -73.1 23 2 16QAM 0.91 Yes 58.4 -80.1 -76.8 -75.6 23 2 8PSK 0.83 Yes 40.4 -83.2 -79.4 -78.2 23 2 QPSK 0.84 Yes 27.1 -87.5 - - 23 2 Table 164 23 GHz FCC and Canada with 30 MHz bandwidth (ODU-A) Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 177.4 -68 -61 -59.1 15 2 128QAM 0.82 Yes 155.1 -70.7 -67.4 -66.1 17 2 64QAM 0.82 Yes 130.4 -73.7 -70.3 -69 17 2 32QAM 0.84 Yes 103.6 -76.3 -73.1 -71.9 22 2 16QAM 0.79 Yes 77.9 -80.1 -77.1 -75.9 22 2 8PSK 0.80 Yes 59.1 -82.3 -78.9 -77.6 22 2 QPSK 0.80 Yes 39.4 -85.9 - - 23 2 4-56 phn-2513_001v000 (Apr 2012)
- 291. PTP 800 Series User Guide Wireless specifications Table 165 23 GHz FCC and Canada with 30 MHz bandwidth (ODU-B) Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 177.4 -67.6 -60.5 -58.4 17 2 128QAM 0.82 Yes 154.7 -70.9 -67.6 -66.3 19 2 64QAM 0.88 Yes 135.9 -73.1 -69.7 -68.4 19 2 32QAM 0.83 Yes 102.6 -76.7 -73.5 -72.3 23 2 16QAM 0.85 Yes 83.3 -79.8 -76.8 -75.6 23 2 8PSK 0.80 Yes 58.9 -82.1 -78.7 -77.4 23 2 QPSK 0.80 Yes 39.3 -85.8 - - 23 2 Table 166 23 GHz FCC and Canada with 40 MHz bandwidth (ODU-A) Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 236.6 -66.7 -59.8 -57.8 15 2 128QAM 0.82 Yes 206.8 -69.4 -66.1 -64.9 17 2 64QAM 0.88 Yes 181.9 -71.8 -68.4 -67.1 17 2 32QAM 0.92 Yes 150.7 -73.9 -70.7 -69.5 22 2 16QAM 0.79 Yes 103.8 -78.8 -75.9 -74.7 22 2 8PSK 0.80 Yes 78.9 -81 -77.6 -76.3 22 2 QPSK 0.80 Yes 52.5 -84.6 - - 23 2 phn-2513_001v000 (Apr 2012) 4-57
- 292. Wireless specifications Chapter 4: Reference information Table 167 23 GHz FCC and Canada with 40 MHz bandwidth (ODU-B) Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 236.6 -66.6 -59.6 -57.6 17 2 128QAM 0.82 Yes 206.3 -69.5 -66.2 -65 19 2 64QAM 0.87 Yes 180 -72 -68.6 -67.3 19 2 32QAM 0.92 Yes 150.4 -73.9 -70.7 -69.5 23 2 16QAM 0.85 Yes 111.1 -78.5 -75.6 -74.4 23 2 8PSK 0.80 Yes 78.5 -80.8 -77.4 -76.1 23 2 QPSK 0.80 Yes 52.4 -84.6 - - 23 2 Table 168 23 GHz FCC and Canada with 50 MHz bandwidth (ODU-A) Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.83 Yes 301.7 -65.3 -58 -55.8 15 2 128QAM 0.82 Yes 258.6 -68.5 -65.1 -63.8 17 2 64QAM 0.82 Yes 217.4 -71.5 -68 -66.7 17 2 32QAM 0.87 Yes 178.6 -73.8 -70.5 -69.3 22 2 16QAM 0.91 Yes 150.5 -75.8 -72.8 -71.5 22 2 8PSK 0.84 Yes 103.7 -79.1 -75.6 -74.3 22 2 QPSK 0.80 Yes 65.7 -83.7 - - 23 2 4-58 phn-2513_001v000 (Apr 2012)
- 293. PTP 800 Series User Guide Wireless specifications Table 169 23 GHz FCC and Canada with 50 MHz bandwidth (ODU-B) Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.83 Yes 302.1 -65.3 -58 -55.8 17 2 128QAM 0.82 Yes 257.8 -68.6 -65.2 -63.9 19 2 64QAM 0.82 Yes 216.5 -71.6 -68.1 -66.8 19 2 32QAM 0.87 Yes 178.6 -74 -70.7 -69.5 23 2 16QAM 0.92 Yes 150.8 -76.2 -73.2 -71.9 23 2 8PSK 0.84 Yes 103.7 -79.4 -75.9 -74.6 23 2 QPSK 0.80 Yes 65.7 -83.4 - - 23 2 Table 170 23 GHz ETSI with 7 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.76 Yes 34.4 -76.4 -71.7 -70.3 17 2 64QAM 0.82 Yes 30 -78.8 -74.2 -72.9 17 2 32QAM 0.87 No 24.6 - -76.4 -75.2 22 2 16QAM 0.88 Yes 20 -83.7 -79.6 -78.3 22 2 8PSK 0.86 No 14.7 - -81.4 -80.1 22 2 QPSK 0.88 Yes 10 -90.4 - - 25 2 Table 171 23 GHz ETSI with 14 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.76 Yes 71 -73.4 -68.6 -67.2 17 7 64QAM 0.82 Yes 61.8 -75.7 -71.1 -69.8 17 7 32QAM 0.87 No 50.7 - -73.4 -72.1 22 7 16QAM 0.88 Yes 41.3 -80.6 -76.5 -75.3 22 7 8PSK 0.86 No 30.4 - -78.3 -77 22 7 QPSK 0.86 Yes 20.3 -87.3 - - 25 7 phn-2513_001v000 (Apr 2012) 4-59
- 294. Wireless specifications Chapter 4: Reference information Table 172 23 GHz ETSI with 28 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 170.5 -68.1 -61.2 -59.2 15 7 128QAM 0.84 Yes 151.1 -70.9 -67.5 -66.3 17 7 64QAM 0.82 Yes 125.3 -73.9 -70.4 -69.2 17 7 32QAM 0.85 Yes 101.2 -76.4 -73.2 -71.9 22 7 16QAM 0.79 Yes 74.8 -80.3 -77.3 -76.1 22 7 8PSK 0.80 No 56.8 - -79 -77.8 22 7 QPSK 0.80 Yes 37.8 -86.1 - - 25 7 Table 173 23 GHz ETSI with 56 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.91 Yes 368.6 -63.2 -58.1 -56.1 15 7 256QAM 0.80 Yes 347.1 -65.1 -58.1 -56.1 15 7 128QAM 0.82 Yes 303.5 -67.8 -64.5 -63.2 17 7 64QAM 0.82 Yes 255.2 -70.8 -67.3 -66.1 17 7 32QAM 0.84 No 202.7 - -70.2 -68.9 22 7 16QAM 0.79 Yes 152.4 -77.2 -74.2 -73 22 7 8PSK 0.80 No 115.8 - -75.9 -74.7 22 7 QPSK 0.80 Yes 77.1 -83 - - 25 7 4-60 phn-2513_001v000 (Apr 2012)
- 295. PTP 800 Series User Guide Wireless specifications Wireless performance in the 26 GHz band The following tables contain capacity, transmit power and sensitivity data for PTP 800 links operating in the 26 GHz band. For column definitions, refer to Capacity, transmit power and sensitivity on page 4-22. Table 174 26 GHz FCC with 10 MHz bandwidth Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.83 Yes 50.8 -74.8 -70.3 -68.9 17 2 64QAM 0.83 Yes 42.8 -77.8 -73.5 -72.3 17 2 32QAM 0.84 Yes 33.6 -80.4 -76.4 -75.1 22 2 16QAM 0.91 Yes 29.1 -82.9 -79.1 -77.9 22 2 8PSK 0.85 Yes 20.4 -85.5 -81.2 -80 22 2 QPSK 0.86 Yes 13.8 -90.4 - - 23 2 Table 175 26 GHz FCC with 20 MHz bandwidth Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.76 Yes 113.7 -69.9 -61.3 -58.4 15 2 128QAM 0.83 Yes 102.2 -72 -68.2 -66.9 17 2 64QAM 0.81 Yes 84.9 -75.4 -71.6 -70.4 17 2 32QAM 0.84 Yes 67.8 -77.8 -74.3 -73 22 2 16QAM 0.91 Yes 58.5 -80.1 -76.8 -75.6 22 2 8PSK 0.83 Yes 40.3 -83.1 -79.3 -78.1 22 2 QPSK 0.88 Yes 28.5 -87.1 - - 23 2 phn-2513_001v000 (Apr 2012) 4-61
- 296. Wireless specifications Chapter 4: Reference information Table 176 26 GHz FCC with 40 MHz bandwidth Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 236.6 -66.7 -59.8 -57.8 15 2 128QAM 0.82 Yes 206.8 -69.4 -66.1 -64.9 17 2 64QAM 0.88 Yes 181.9 -71.8 -68.4 -67.1 17 2 32QAM 0.92 Yes 150.7 -73.9 -70.7 -69.5 22 2 16QAM 0.79 Yes 103.8 -78.8 -75.9 -74.7 22 2 8PSK 0.80 Yes 78.9 -81 -77.6 -76.3 22 2 QPSK 0.80 Yes 52.5 -84.6 - - 23 2 Table 177 26 GHz ETSI with 7 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.76 Yes 34.4 -76.4 -71.7 -70.3 17 7 64QAM 0.82 Yes 30 -78.8 -74.2 -72.9 17 7 32QAM 0.87 No 24.6 - -76.4 -75.2 22 7 16QAM 0.88 Yes 20 -83.7 -79.6 -78.3 22 7 8PSK 0.86 No 14.7 - -81.4 -80.1 22 7 QPSK 0.88 Yes 10 -90.4 - - 25 7 Table 178 26 GHz ETSI with 14 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.76 Yes 71 -73.4 -68.6 -67.2 17 7 64QAM 0.82 Yes 61.8 -75.7 -71.1 -69.8 17 7 32QAM 0.87 No 50.7 - -73.4 -72.1 22 7 16QAM 0.88 Yes 41.3 -80.6 -76.5 -75.3 22 7 8PSK 0.86 No 30.4 - -78.3 -77 22 7 QPSK 0.86 Yes 20.3 -87.3 - - 25 7 4-62 phn-2513_001v000 (Apr 2012)
- 297. PTP 800 Series User Guide Wireless specifications Table 179 26 GHz ETSI with 28 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 170.5 -68.1 -61.2 -59.2 15 7 128QAM 0.84 Yes 151.1 -70.9 -67.5 -66.3 17 7 64QAM 0.82 Yes 125.3 -73.9 -70.4 -69.2 17 7 32QAM 0.85 Yes 101.2 -76.4 -73.2 -71.9 22 7 16QAM 0.79 Yes 74.8 -80.3 -77.3 -76.1 22 7 8PSK 0.80 No 56.8 - -79 -77.8 22 7 QPSK 0.80 Yes 37.8 -86.1 - - 25 7 Table 180 26 GHz ETSI with 56 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.91 Yes 368.6 -63.2 -58.1 -56.1 15 7 256QAM 0.80 Yes 347.1 -65.1 -58.1 -56.1 15 7 128QAM 0.82 Yes 303.5 -67.8 -64.5 -63.2 17 7 64QAM 0.82 Yes 255.2 -70.8 -67.3 -66.1 17 7 32QAM 0.84 No 202.7 - -70.2 -68.9 22 7 16QAM 0.79 Yes 152.4 -77.2 -74.2 -73 22 7 8PSK 0.80 No 115.8 - -75.9 -74.7 22 7 QPSK 0.80 Yes 77.1 -83 - - 25 7 phn-2513_001v000 (Apr 2012) 4-63
- 298. Wireless specifications Chapter 4: Reference information Wireless performance in the 28 GHz band The following tables contain capacity, transmit power and sensitivity data for PTP 800 links operating in the 28 GHz band. For column definitions, refer to Capacity, transmit power and sensitivity on page 4-22. Table 181 28 GHz ETSI with 7 MHz bandwidth Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.76 Yes 34.4 -75.9 -71.2 -69.8 17 7 64QAM 0.82 Yes 30 -78.3 -73.7 -72.4 17 7 32QAM 0.87 No 24.6 - -75.9 -74.7 20 7 16QAM 0.88 Yes 20 -83.2 -79.1 -77.8 22 7 8PSK 0.86 No 14.7 - -80.9 -79.6 22 7 QPSK 0.88 Yes 10 -89.9 - - 25 7 Table 182 28 GHz ETSI with 14 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.76 Yes 71 -72.9 -68.1 -66.7 17 7 64QAM 0.82 Yes 61.8 -75.2 -70.6 -69.3 17 7 32QAM 0.87 No 50.7 - -72.9 -71.6 20 7 16QAM 0.88 Yes 41.3 -80.1 -76.0 -74.8 22 7 8PSK 0.86 No 30.4 - -77.8 -76.5 22 7 QPSK 0.86 Yes 20.3 -86.8 - - 25 7 4-64 phn-2513_001v000 (Apr 2012)
- 299. PTP 800 Series User Guide Wireless specifications Table 183 28 GHz ETSI with 28 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 170.5 -67.6 -60.7 -58.7 15 7 128QAM 0.84 Yes 151.1 -70.4 -67 -65.8 17 7 64QAM 0.82 Yes 125.3 -73.4 -69.9 -68.7 17 7 32QAM 0.85 Yes 101.2 -75.9 -72.7 -71.4 20 7 16QAM 0.79 Yes 74.8 -79.8 -76.8 -75.6 22 7 8PSK 0.80 No 56.8 - -78.5 -77.3 22 7 QPSK 0.80 Yes 37.8 -85.6 - - 25 7 Table 184 28 GHz ETSI with 56 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.91 Yes 368.6 -62.7 -57.6 -55.6 15 7 256QAM 0.80 Yes 347.1 -64.6 -57.6 -55.6 15 7 128QAM 0.82 Yes 303.5 -67.3 -64 -62.7 17 7 64QAM 0.82 Yes 255.2 -70.3 -66.8 -65.6 17 7 32QAM 0.84 No 202.7 - -69.7 -68.4 20 7 16QAM 0.79 Yes 152.4 -76.7 -73.7 -72.5 22 7 8PSK 0.80 No 115.8 - -75.4 -74.2 22 7 QPSK 0.80 Yes 77.1 -82.5 - - 25 7 phn-2513_001v000 (Apr 2012) 4-65
- 300. Wireless specifications Chapter 4: Reference information Wireless performance in the 32 GHz band The following tables contain capacity, transmit power and sensitivity data for PTP 800 links operating in the 32 GHz band. For column definitions, refer to Capacity, transmit power and sensitivity on page 4-22. Table 185 32 GHz ETSI with 7 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.76 Yes 34.4 -75.4 -70.7 -69.3 16 6 64QAM 0.82 Yes 30 -77.8 -73.2 -71.9 16 6 32QAM 0.87 Yes 24.6 -79.8 -75.4 -74.2 19 6 16QAM 0.88 Yes 20 -82.7 -78.6 -77.3 21 6 8PSK 0.86 No 14.7 - -80.4 -79.1 21 6 QPSK 0.88 Yes 10 -89.4 - - 23 6 Table 186 28 GHz ETSI with 14 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.76 Yes 71 -72.4 -67.6 -66.2 16 6 64QAM 0.82 Yes 61.8 -74.7 -70.1 -68.8 16 6 32QAM 0.87 Yes 50.7 -76.7 -72.4 -71.1 19 6 16QAM 0.88 Yes 41.3 -79.6 -75.5 -74.3 21 6 8PSK 0.86 No 30.4 - -77.3 -76 21 6 QPSK 0.86 Yes 20.3 -86.3 - - 23 6 4-66 phn-2513_001v000 (Apr 2012)
- 301. PTP 800 Series User Guide Wireless specifications Table 187 32 GHz ETSI with 28 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 170.5 -67.1 -60.2 -58.2 14 6 128QAM 0.84 Yes 151.1 -69.9 -66.5 -65.3 16 6 64QAM 0.82 Yes 125.3 -72.9 -69.4 -68.2 16 6 32QAM 0.85 Yes 101.2 -75.4 -72.2 -70.9 19 6 16QAM 0.79 Yes 74.8 -79.3 -76.3 -75.1 21 6 8PSK 0.80 No 56.8 - -78 -76.8 21 6 QPSK 0.80 Yes 37.8 -85.1 - - 23 6 Table 188 32 GHz ETSI with 56 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.91 Yes 368.6 -62.2 -57.1 -55.1 14 6 256QAM 0.80 Yes 347.1 -64.1 -57.1 -55.1 14 6 128QAM 0.82 Yes 303.5 -66.8 -63.5 -62.2 16 6 64QAM 0.82 Yes 255.2 -69.8 -66.3 -65.1 16 6 32QAM 0.84 Yes 202.7 -72.4 -69.2 -67.9 19 6 16QAM 0.79 Yes 152.4 -76.2 -73.2 -72 21 6 8PSK 0.80 No 115.8 - -74.9 -73.7 21 6 QPSK 0.80 Yes 77.1 -82 - - 23 6 phn-2513_001v000 (Apr 2012) 4-67
- 302. Wireless specifications Chapter 4: Reference information Wireless performance in the 38 GHz band The following tables contain capacity, transmit power and sensitivity data for PTP 800 links operating in the 38 GHz band. For column definitions, refer to Capacity, transmit power and sensitivity on page 4-22. Table 189 38 GHz FCC and Canada with 10 MHz bandwidth Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.83 Yes 50.8 -71.8 -67.3 -65.9 16 1 64QAM 0.83 Yes 42.8 -74.8 -70.5 -69.3 16 1 32QAM 0.84 Yes 33.6 -77.4 -73.4 -72.1 20 1 16QAM 0.91 Yes 29.1 -79.9 -76.1 -74.9 20 1 8PSK 0.85 Yes 20.4 -82.5 -78.2 -77 20 1 QPSK 0.86 Yes 13.8 -87.4 - - 21 1 Table 190 38 GHz FCC and Canada with 50 MHz bandwidth Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.83 Yes 301.7 -62.3 -55 -52.8 14 1 128QAM 0.82 Yes 258.6 -65.5 -62.1 -60.8 16 1 64QAM 0.82 Yes 217.4 -68.5 -65 -63.7 16 1 32QAM 0.87 Yes 178.6 -70.8 -67.5 -66.3 20 1 16QAM 0.91 Yes 150.5 -72.8 -69.8 -68.5 20 1 8PSK 0.84 Yes 103.7 -76.1 -72.6 -71.3 20 1 QPSK 0.80 Yes 65.7 -80.7 - - 21 1 4-68 phn-2513_001v000 (Apr 2012)
- 303. PTP 800 Series User Guide Wireless specifications Table 191 38 GHz ETSI with 7 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.76 Yes 34.4 -74.4 -69.7 -68.3 16 6 64QAM 0.82 Yes 30 -76.8 -72.2 -70.9 16 6 32QAM 0.87 No 24.6 - -74.4 -73.2 20 6 16QAM 0.88 Yes 20 -81.7 -77.6 -76.3 20 6 8PSK 0.86 No 14.7 - -79.4 -78.1 20 6 QPSK 0.88 Yes 10 -88.4 - - 23 6 Table 192 38 GHz ETSI with 14 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 128QAM 0.76 Yes 71 -71.4 -66.6 -65.2 16 6 64QAM 0.82 Yes 61.8 -73.7 -69.1 -67.8 16 6 32QAM 0.87 No 50.7 - -71.4 -70.1 20 6 16QAM 0.88 Yes 41.3 -78.6 -74.5 -73.3 20 6 8PSK 0.86 No 30.4 - -76.3 -75 20 6 QPSK 0.86 Yes 20.3 -85.3 - - 23 6 phn-2513_001v000 (Apr 2012) 4-69
- 304. Wireless specifications Chapter 4: Reference information Table 193 38 GHz ETSI with 28 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.80 Yes 170.5 -66.1 -59.2 -57.2 14 6 128QAM 0.84 Yes 151.1 -68.9 -65.5 -64.3 16 6 64QAM 0.82 Yes 125.3 -71.9 -68.4 -67.2 16 6 32QAM 0.85 Yes 101.2 -74.4 -71.2 -69.9 20 6 16QAM 0.79 Yes 74.8 -78.3 -75.3 -74.1 20 6 8PSK 0.80 No 56.8 - -77 -75.8 20 6 QPSK 0.80 Yes 37.8 -84.1 - - 23 6 Table 194 38 GHz ETSI with 56 MHz channel separation Modulation F/R Cap Sens ACM-o ACM-i Max tx Min tx mode mode (Mbps) (dBm) (dBm) (dBm) (dBm) (dBm) 256QAM 0.91 Yes 368.6 -61.2 -56.1 -54.1 14 6 256QAM 0.80 Yes 347.1 -63.1 -56.1 -54.1 14 6 128QAM 0.82 Yes 303.5 -65.8 -62.5 -61.2 16 6 64QAM 0.82 Yes 255.2 -68.8 -65.3 -64.1 16 6 32QAM 0.84 No 202.7 - -68.2 -66.9 20 6 16QAM 0.79 Yes 152.4 -75.2 -72.2 -71 20 6 8PSK 0.80 No 115.8 - -73.9 -72.7 20 6 QPSK 0.80 Yes 77.1 -81 - - 23 6 4-70 phn-2513_001v000 (Apr 2012)
- 305. PTP 800 Series User Guide Data network specifications Data network specifications This section contains specifications of the PTP 800 Ethernet interface. Ethernet interfaces The PTP 800 CMU Ethernet ports conform to the specifications listed in Table 195, Table 196, and Table 197. Table 195 Copper data port specifications Feature Specification Ethernet Speed 1000 Base-T Auto-negotiation advertisement options 100 Mbps or 1000 Mbps Full Duplex Forced configuration options 100 Mbps Full Duplex Auto MDI / MDIX Enabled when auto-negotiation enabled Maximum frame size (bytes) 9600 Table 196 Fiber data port specifications Feature Specification Ethernet Speed 1000 Base-SX or 1000 Base-LX Requires upgrade kit Auto-negotiation advertisement options 1000 Mbps Full Duplex Forced configuration options None Auto MDI / MDIX Not applicable Maximum frame size (bytes) 9600 Table 197 Management port specifications Feature Specification Ethernet Speed 100 Base-T Auto-negotiation advertisement options 100 Mbps or 10 Mbps Full Duplex Forced configuration options 100 Mbps or 10 Mbps Full Duplex Auto MDI / MDIX Enabled when auto-negotiation enabled Maximum frame size (bytes) 2000 phn-2513_001v000 (Apr 2012) 4-71
- 306. Data network specifications Chapter 4: Reference information Ethernet bridging The PTP 800 conforms to the Ethernet bridging specifications listed in Table 198. Table 198 Ethernet bridging specifications Feature Specification Frame types Ethernet, IEEE 802.3–2008 C-VLAN, IEEE 802.1Q-2005 S-VLAN, IEEE 802.1ad-2005 Service type Transparent Ethernet bridging equivalent to Ethernet private line (EPL). Service classes for bridged Eight queues traffic QoS Classification Layer 2 control protocols: Bridge, GARP/MRP, CFM, R-APS, EAPS. Layer 2 priority, based on the priority code point (PCP) in the outermost VLAN tag. Layer 3 priority, based on IPv4 DSCP, IPv6 DSCP, or MPLS Traffic Class. Scheduling Strict priority 4-72 phn-2513_001v000 (Apr 2012)
- 307. PTP 800 Series User Guide Syslog message formats Syslog message formats This section describes the format and content of Syslog messages. Format of syslog server messages PTP 800 generates syslog messages in this format: SP = “ ” = %x20 CO = “:” = %x3A SC = “;” = %x3B LT = “<” = %x3C GT = “>” = %x3E syslog = pri header SP message pri = LT “1”-“182” GT header = timestamp SP hostname timestamp = month SP days SP hours “:” minutes “:” seconds month = “Jan”|“Feb”|“Mar”|“Apr”|“May”|“Jun”|“Jul”|“Aug”|“Sep”|“Oct”|“Nov”|“Dec” days = “ 1”-“31” hours = “00”-“23” minutes = seconds = “00”-“59” hostname = “0.0.0.0”-“255.255.255.255” message = “PTP800” CO SP (configuration | status | event) configuration = “configuration” SC SP attribute-name SC SP (“Web user”|“SNMP user”|“SNTP”) SC SP “was=” previous-value SC SP “now=” new-value SC status = “status” SC SP attribute-name SC SP “was=” previous-value SC SP “now=” new-value SC event = “event” SC SP identifier SC SP event-message-content SC Configuration and status messages Configuration and status messages contain all of the relevant attributes. This is an example of a configuration message: PTP800: configuration; IP Address; Web user; was=10.10.10.10; now=169.254.1.1; This is an example of a status message: PTP800: status; Data Port Status; was=Down; now=Up; phn-2513_001v000 (Apr 2012) 4-73
- 308. Syslog message formats Chapter 4: Reference information Event messages Event messages are listed in Table 199. Definition of abbreviations: SC = ";" SP = " " This is an example of an event message: PTP800: event; auth_login; web user=MarkT; from=169.254.1.1; port=80; connection=HTTP; authentication=local; Table 199 Event messages Facility Severity Identifier Message content security(4) warning(4) auth_idle "Web user=" user-name SC SP "from=" IP-address SC SP security(4) info(6) auth_login "port=" port-number SC SP security(4) warning(4) auth_login_failed "connection=" ("HTTP" | "HTTPS") SC SP security(4) warning(4) auth_login_locked "authentication=" ("local" | "RADIUS") security(4) info(6) auth_logout SC kernel(0) warning(4) cold_start "PTP wireless bridge has reinitialized, reason=" reset-reason SC security(4) warning(4) License_update "License Key updated" SC syslog(5) warning(4) log_full "Syslog local flash log is 90% full" SC syslog(5) warning(4) log_wrap "Syslog local flash log has wrapped" SC local6(22) warning(4) protection_switch "Protection switch, reason=" protectionSwitchCause SC security(4) info(6) radius_auth "RADIUS user=" user-name SC SP "server " ("1" | "2") " at " IP-address SP "succeeded" SC security(4) warning(4) radius_auth_fail "RADIUS user=" user-name SC SP "server " ("1" | "2") " at " IP-address SP ("failed" | "succeeded" | "failed (no response)") SC security(4) alert(1) resource_low "Potential DoS attack on packet ingress " ("warning" | "cleared") SC local6(22) warning(4) rfu_power_button_pressed "The IRFU Power button has been pressed" 4-74 phn-2513_001v000 (Apr 2012)
- 309. PTP 800 Series User Guide Syslog message formats Facility Severity Identifier Message content local6(22) warning(4) rfu_switch_firmware_banks "Switching RFU firmware banks following software upgrade" security(4) warning(4) sec_zeroize "Critical Security Parameters (CSPs) zeroized" SC local6(22) warning(4) snmpv3_asn1 "ASN.1 parse error" SC security(4) warning(4) snmpv3_auth "Authentication failure" SC local6(22) warning(4) snmpv3_decryption "Decryption failure" SC local6(22) warning(4) snmpv3_engine_id "Unknown engine ID" SC local6(22) warning(4) snmpv3_sec_level "Unknown security level" SC kernel(0) warning(4) sys_reboot "System Reboot, reason=" reset-reason SC security(4) warning(4) sys_software "Software upgraded from " software- _upgrade version " to " software-version SC software-version = "800-" digit digit "-" digit digit ("" | "-FIPS" | "-UCAPL") SC local6(22) info(6) system_counters_reset "System Counters Reset" SC local6(22) info(6) system_statistics_reset "System Statistics Reset" SC local6(22) warning(4) telnet_idle local6(22) info(6) telnet_login "Telnet user=" user-name SC SP "from=" IP-address SC SP local6(22) warning(4) telnet_login_failed "port=" port-number SC local6(22) info(6) telnet_logout local6(22) info(6) tftp_complete "TFTP software upgrade finished" SC local6(22) info(6) tftp_failure "TFTP software upgrade failed, reason=" reason SC local6(22) info(6) tftp_start "TFTP software upgrade started" SC NTP(12) warning(4) time_auth_failed "SNTP authentication failed at IP- address=" IP-address SC SP "port- number=" port SC NTP(12) warning(4) time_conn_failed "SNTP connection failed at IP- address=" IP-address SC SP "port- number=" port SC SP "reason=" reason SC phn-2513_001v000 (Apr 2012) 4-75
- 310. Network management specifications Chapter 4: Reference information Network management specifications This section lists supported SNMP objects from the standard MIB-II, IF-MIB and Bridge- MIB. Standard SNMP MIBs PTP 800 supports the following SNMP objects from the standard MIB-II, IF-MIB and Bridge-MIB: Table 200 Standard SNMP objects Object identifier Object name .1.3.6.1.2.1.1.1 sysDescr .1.3.6.1.2.1.1.2 sysObjectID .1.3.6.1.2.1.1.3 sysUpTime .1.3.6.1.2.1.1.4 sysContact .1.3.6.1.2.1.1.5 sysName .1.3.6.1.2.1.1.6 sysLocation .1.3.6.1.2.1.1.7 sysServices .1.3.6.1.2.1.2.1 ifNumber .1.3.6.1.2.1.2.2.1.1 ifIndex .1.3.6.1.2.1.2.2.1.2 ifDescr .1.3.6.1.2.1.2.2.1.3 ifType .1.3.6.1.2.1.2.2.1.4 ifMtu .1.3.6.1.2.1.2.2.1.5 ifSpeed .1.3.6.1.2.1.2.2.1.6 ifPhysAddress .1.3.6.1.2.1.2.2.1.7 ifAdminStatus .1.3.6.1.2.1.2.2.1.8 ifOperStatus .1.3.6.1.2.1.2.2.1.9 ifLastChange .1.3.6.1.2.1.2.2.1.10 ifInOctets .1.3.6.1.2.1.2.2.1.11 ifInUcastPkts .1.3.6.1.2.1.2.2.1.12 ifInNUcastPkts 4-76 phn-2513_001v000 (Apr 2012)
- 311. PTP 800 Series User Guide Network management specifications Object identifier Object name .1.3.6.1.2.1.2.2.1.13 ifInDiscards .1.3.6.1.2.1.2.2.1.14 ifInErrors .1.3.6.1.2.1.2.2.1.15 ifInUnknownProtos .1.3.6.1.2.1.2.2.1.16 ifOutOctets .1.3.6.1.2.1.2.2.1.17 ifOutUcastPkts .1.3.6.1.2.1.2.2.1.18 ifOutNUcastPkts .1.3.6.1.2.1.2.2.1.19 ifOutDiscards .1.3.6.1.2.1.2.2.1.20 ifOutErrors .1.3.6.1.2.1.2.2.1.21 ifOutQLen .1.3.6.1.2.1.2.2.1.22 ifSpecific .1.3.6.1.2.1.31.1.1.1.1 ifName .1.3.6.1.2.1.31.1.1.1.2 ifInMulticastPkts .1.3.6.1.2.1.31.1.1.1.3 ifInBroadcastPkts .1.3.6.1.2.1.31.1.1.1.4 ifOutMulticastPkts .1.3.6.1.2.1.31.1.1.1.5 ifOutBroadcastPkts .1.3.6.1.2.1.31.1.1.1.6 ifHCInOctets .1.3.6.1.2.1.31.1.1.1.7 ifHCInUcastPkts .1.3.6.1.2.1.31.1.1.1.8 ifHCInMulticastPkts .1.3.6.1.2.1.31.1.1.1.9 ifHCInBroadcastPkts .1.3.6.1.2.1.31.1.1.1.10 ifHCOutOctets .1.3.6.1.2.1.31.1.1.1.11 ifHCOutUcastPkts .1.3.6.1.2.1.31.1.1.1.12 ifHCOutMulticastPkts .1.3.6.1.2.1.31.1.1.1.13 ifHCOutBroadcastPkts .1.3.6.1.2.1.31.1.1.1.14 ifLinkUpDownTrapEnable .1.3.6.1.2.1.31.1.1.1.15 ifHighSpeed .1.3.6.1.2.1.31.1.1.1.16 ifPromiscuousMode .1.3.6.1.2.1.31.1.1.1.17 ifConnectorPresent .1.3.6.1.2.1.31.1.1.1.18 ifAlias .1.3.6.1.2.1.31.1.1.1.19 ifCounterDiscontinuityTime .1.3.6.1.2.1.17.1.1 dot1dBaseBridgeAddress phn-2513_001v000 (Apr 2012) 4-77
- 312. Network management specifications Chapter 4: Reference information Object identifier Object name .1.3.6.1.2.1.17.1.2 dot1dBaseNumPorts .1.3.6.1.2.1.17.1.3 dot1dBaseType .1.3.6.1.2.1.17.4.1.1 dot1dBasePort .1.3.6.1.2.1.17.4.1.2 dot1dBasePortIfIndex .1.3.6.1.2.1.17.4.1.3 dot1dBasePortCircuit .1.3.6.1.2.1.17.4.1.4 dot1dBasePortDelayExceededDiscards .1.3.6.1.2.1.17.4.1.5 dot1dBasePortMtuExceededDiscards Interfaces The standard interface MIB for PTP 800 always reports five interfaces as follows: Table 201 Identification of interfaces ifIndex ifDescr ifType ifOperStatus 1 wireless interface propWirelessP2P(157) up | down 2 ethernet data interface ethernetCsmacd(6) up | down 3 ethernet management interface ethernetCsmacd(6) up | down 4 telecom channel A interface ds1(18) notPresent 5 telecom channel B interface ds1(18) notPresent PTP 800 does not support telecom channels. These interfaces are included for consistency with other Cambium PTP products. Counters The tables below demonstrate the relationship between counter objects in the standard MIB and attributes on the Detailed Counters page of the web-based management interface: Table 202 Counters for the wireless interface MIB object Detailed counter in the web-based interface ifInUcastPkts WirelessDataRxFrames + WirelessManagementRxFrames ifInDiscards Sum of WirelessDataRxFramesDiscardedQn 4-78 phn-2513_001v000 (Apr 2012)
- 313. PTP 800 Series User Guide Network management specifications MIB object Detailed counter in the web-based interface ifInErrors WirelessDataRxFramesCRCError ifHCInUcastPkts 64-bit version of ifInUcastPkts ifOutUcastPkts WirelessDataTxFrames + WirelessManagementTxFrames ifOutDiscards Sum of WirelessDataTxFramesDiscardedQn ifHCOutUcastPkts 64-bit version of ifOutUcastPkts Table 203 Counters for the data interface MIB object Detailed counter in the web-based interface ifInOctets EthernetDataRxOctets ifInUcastPkts EthernetDataRxFrames – EthernetDataRxBroadcastFrames ifInNUcastPkts EthernetDataRxBroadcastFrames ifInErrors EthernetDataRxFramesCRCError + EthernetDataRxFramesUndersize + EthernetDataRxFramesOversize ifInBroadcastPkts EthernetDataRxBroadcastFrames ifHCInOctets 64-bit version of ifInOctets ifHCInUcastPkts 64-bit version of ifInUcastPkts ifHCInBroadcastPkts 64-bit version of ifInBroadcastPkts ifOutOctets EthernetDataTxOctets ifOutUcastPkts EthernetDataTxFrames ifHCOutOctets 64-bit version of ifOutOctets ifHCOutUcastPkts 64-bit version of ifOutUcastPkts Table 204 Counters for the management interface MIB object Detailed counter in the web-based interface ifInOctets EthernetManagementRxOctets ifInUcastPkts EthernetManagementRxFrames – EthernetDataManagementRxMulticastFrames – EthernetDataManagementRxBroadcastFrames ifInNUcastPkts EthernetManagementRxMulticastFrames + EthernetManagementRxBroadcastFrames phn-2513_001v000 (Apr 2012) 4-79
- 314. Network management specifications Chapter 4: Reference information MIB object Detailed counter in the web-based interface ifInErrors EthernetManagementRxFramesCRCError + EthernetManagementRxFramesUndersize + EthernetManagementRxFramesOversize ifInMulticastPkts EthernetManagementRxMulticastFrames ifInBroadcastPkts EthernetManagementRxBroadcastFrames ifHCInOctets 64-bit version of ifInOctets ifHCInUcastPkts 64-bit version of ifInUcastPkts ifHCInMulticastPkts 64-bit version of ifInMulticastPkts ifHCInBroadcastPkts 64-bit version of ifInBroadcastPkts ifOutOctets EthernetManagementTxOctets ifOutUcastPkts EthernetManagementTxFrames – EthernetManagementTxMulticastFrames – EthernetManagementTxBroadcastFrames ifOutNUcastPkts EthernetManagementTxMulticastFrames + EthernetManagementTxBroadcastFrames ifOutMulticastPkts EthernetManagementTxMulticastFrames ifOutBroadcastPkts EthernetManagementTxBroadcastFrames ifHCOutOctets 64-bit version of ifOutOctets ifHCOutUcastPkts 64-bit version of ifOutUcastPkts ifHCOutMulticastPkts 64-bit version of ifOutMulticastPkts ifHCOutBroadcastPkts 64-bit version of ifOutBroadcastPkts Notifications PTP 800 supports the following SNMP notifications (traps) in the standard IF-MIB: Table 205 Supported standard notifications Object identifier Object name .1.3.6.1.6.3.1.1.5.1 coldStart .1.3.6.1.6.3.1.1.5.3 linkDown .1.3.6.1.6.3.1.1.5.4 linkUp .1.3.6.1.6.3.1.1.5.5 authenticationFailure 4-80 phn-2513_001v000 (Apr 2012)
- 315. PTP 800 Series User Guide Electromagnetic compliance Electromagnetic compliance This section describes how the PTP 800 complies with the regulations that are in force in various countries, and contains notifications made to regulatory bodies for the PTP 800. Electrical safety compliance The PTP 800 hardware has been tested for compliance to the electrical safety specifications listed in Table 206. Table 206 Electrical safety specifications Region Specification USA UL 60950 Canada CSA C22.2 No.60950 International CB certified & certificate to IEC 60950 EMC immunity compliance The PTP 800 has been tested for compliance to the EMC immunity specifications listed in Table 207. The top level Specification is ETSI 301-489. Table 207 EMC immunity compliance specifications Specification Comment EN 55082-1 Generic EMC and EMI requirements for Europe EN 61000-4-2: 2001 Electro Static The levels used for testing were increased to Discharge (ESD), Class 2, 8 kV air, 4 ensure immunity to 15kV air and 8kV kV contact discharge contact discharges. EN 61000-4-3 (2006) Radiated Immunity 3 V/m EN 61000-4-4: 2004 (Bursts/Fast Equipment was tested with level increased Transients), Class 4, 4 kV level (power for dc input and signal lines @ 0.5 kV open lines AC & DC) circuit voltage. EN 61000-4-5 (2006) Surge Immunity phn-2513_001v000 (Apr 2012) 4-81
- 316. Electromagnetic compliance Chapter 4: Reference information Specification Comment EN 61000-4-6: 1996 (Injected RF), Signal lines, Class 3 @ 3 V RMS un- power line, Class 3 @ 10 V/m modulated. Compliance testing Changes or modifications not expressly approved by Cambium could void the user’s authority to operate the system. This system has achieved Type Approval in various countries around the world. This means that the system has been tested against various local technical regulations and found to comply. Safety testing The PTP 800 system has been tested for compliance with IEC 60950-1:2005 Edition 2.0 and IEC 60950-1:2001 Edition 1.0, with deviations applicable for Australia and New Zealand. ETSI compliance testing The PTP 800 system has been tested for compliance to harmonized European standard EN 302 217.2.2 Digital systems operating in frequency bands where frequency coordination is applied. This covers the essential requirements of Article 3.2 of the R&TTE directive. It has also been tested for compliance to the electro-magnetic compatibility standards EN 301 489-1 V1.8.1 and EN 301 489-4 V1.4.1. The limits for radiated and conducted radiations of Class A have been applied. Compliance to the requirements of the R&TTE directive has been confirmed by a Notified Body. Canada compliance The PTP 800 system has been tested for compliance to RSS-GEN and the band specific Technical Requirements documents in the SRSP series. The test results have been scrutinized by a TCB who have issued a Certificate of Conformity. 4-82 phn-2513_001v000 (Apr 2012)
- 317. PTP 800 Series User Guide Electromagnetic compliance Notifications General notification Where necessary, the end user is responsible for obtaining any national licenses required to operate this product and these must be obtained before using the product in any particular country. Contact the appropriate national administrations for details on the conditions of use for the bands in question and any exceptions that might apply. In order to reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the Effective Isotropic Radiated Power (EIRP) is not more than that permitted for successful communication. United States and Canada notification This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules and with RSS-GEN of Industry Canada. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. A Class A Digital Device is a device that is marketed for use in a commercial, industrial or business environment, exclusive of a device which is marketed for use by the general public or is intended to be used in the home. phn-2513_001v000 (Apr 2012) 4-83
- 318. Electromagnetic compliance Chapter 4: Reference information European Union notification This product complies with the Class A limits for Radiated and Conducted Emissions. It may cause interference if used in residential areas. Such use must be avoided unless the user takes special measures to reduce electromagnetic emissions to prevent interference to the reception of radio and television broadcasts. The PTP 800 is a Class 2 device as it operates on frequencies that are not harmonized across the EU. The operator is responsible for obtaining any national licenses required to operate this product and these must be obtained before using the product in any particular country. See http://www.ero.dk for further information. Hereby, Cambium Networks declares that the PTP 800 product complies with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at the support web page (see Contacting Cambium Networks on page 2). This equipment is marked to show compliance with the European R&TTE directive 1999/5/EC. Figure 72 European Union compliance label This equipment may be used in the following EU states: Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, United Kingdom. This equipment may also be used in the following non-EU states that belong to CEPT: Belarus, Iceland, Norway, Switzerland and Turkey. Thailand notification This telecommunication equipment conforms to the requirements of the National Telecommunications Commission. 4-84 phn-2513_001v000 (Apr 2012)
- 319. PTP 800 Series User Guide Radiation hazard assessment Radiation hazard assessment This section evaluates the radiation levels produced by the PTP 800 products against ETSI and FCC standards. ETSI method This section evaluates the radiation levels produced by the PTP 800 products against the following standards: • 1999/519/EC of 12 July 1999 on the limitation of exposure of the general public to electromagnetic fields (0 Hz to 300 GHz). • EN 50385:2002 Product standard to demonstrate the compliances of radio base stations and fixed terminal stations for wireless telecommunication systems with the basic restrictions or the reference levels related to human exposure to radio frequency electromagnetic fields (110 MHz to 40 GHz) — general public. • EN 50383:2002 Basic standard for the calculation and measurement of electromagnetic field strength and SAR related to human exposure from radio base stations and fixed terminal stations for wireless telecommunication systems (110 MHz to 40 GHz). Exposure categories EN 50385:2002 Clause 3.1 defines the restrictions on exposure to time-varying electric, magnetic, and electromagnetic fields that are based directly on established health effects. Between 10 GHz and 40 GHz, the physical quantity is the power density. 1999/519/EC defines the exposure limit (‘Basic Restriction’) to be considered for the general public. Annex II and Table 1 define this to be 10 W/m2. Antenna directivity The Cambium recommended antennas have Hi-Performance polar patterns in accordance with ETSI EN302 217-4-1 classes 2 and 3. They have gains in excess of 30 dB and beamwidths of less than 5 degrees. Thus, they provide high attenuation of radiated energy at the sides and rear of the antenna. phn-2513_001v000 (Apr 2012) 4-85
- 320. Radiation hazard assessment Chapter 4: Reference information Calculation Calculation is used to identify the Compliance Boundary; outside this boundary the radiation levels meet the Basic Restriction, which is defined in 1999/519/EC as 10 W/m2. The distance from the antenna at which the Power Flux Density limit is equal to some specified value is calculated using the Cylindrical Wave model as follows: P .180 S= π Ddδ Where S = Power density (W/m2), P = Maximum average transmit power capability of the radio (Watts), D = Antenna diameter (meters), d = Distance from point source (meters), δ = 3 dB antenna beamwidth (degrees). Rearranging terms to solve for distance yields: P .180 d = S π Dδ Distances from antenna Table 208 specifies calculated minimum separation distances for a range of frequency bands and antenna sizes at the peak of the antenna beam. At these and greater distances, the power density from the RF field is not considered to be hazardous. Table 208 PTP 800 minimum separation distances, ETSI method Band Antenna diameter 0.3 m 0.6 m 0.8 m 1.2 m 1.8 m (1 ft) (2 ft) (2.5 ft) (4 ft) (6 ft) 6 GHz N/A N/A N/A 1.7 m 1.8 m 7 and 8 GHz N/A 2.0 m 2.2 m 2.2 m 2.1 m 11 GHz N/A 1.8 m 2.2 m 2.0 m 1.8 m 13 GHz 1.6 m 1.4 m 1.4 m 1.5 m 1.4 m 15 GHz 1.8 m 1.5 m 1.6 m 1.6 m 1.6 m 18 GHz 2.1 m 1.6 m 1.7 m 1.9 m 1.6 m 23 GHz 2.0 m 1.8 m 2.0 m 2.0 m 2.0 m 26 GHz 2.4 m 2.0 m 2.3 m 2.5 m N/A 32 and 38 GHz 2.4 m 2.1 m N/A N/A N/A 4-86 phn-2513_001v000 (Apr 2012)
- 321. PTP 800 Series User Guide Radiation hazard assessment These separation distances are significantly lower than those calculated by the method specified by the FCC. The ETSI method recognises that radiation is distributed across the antenna aperture and is not in reality a point source. FCC method Relevant standards (North America and EC) applicable when working with RF equipment are: • ANSI IEEE C95.1-1991, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. • US FCC limits for the general population. See the FCC web site at http://www.fcc.gov, and the policies, guidelines, and requirements in Part 1 of Title 47 of the Code of Federal Regulations, as well as the guidelines and suggestions for evaluating compliance in FCC OET Bulletin 65. • Health Canada limits for the general population. See the Health Canada web site at http://www.hc-sc.gc.ca/ewh-semt/pubs/radiation/99ehd-dhm237/limits-limites_e.html and Safety Code 6. • ICNIRP (International Commission on Non-Ionizing Radiation Protection) guidelines for the general public. See the ICNIRP web site at http://www.icnirp.de/ and Guidelines for Limiting Exposure to Time-Varying Electric, Magnetic, and Electromagnetic Fields. Calculation FCC OET Bulletin 65 specifies the far-field method to calculate power density: PG S= 4π R 2 Where S = Power density (W/m2), P = Maximum average transmit power capability of the radio (Watts), G = Antenna gain, R = Distance from point source (meters). FCC Title 47 Part 1.1310 defines the exposure limit for the general population to be 10 W/m2 (1 mW/cm2) in the frequency range 1500 to 100,000 MHz. This defines an exposure time of 30 minutes. Higher levels are permitted for shorter periods of exposure. Rearranging terms to solve for distance yields: 4π S R= PG phn-2513_001v000 (Apr 2012) 4-87
- 322. Radiation hazard assessment Chapter 4: Reference information Distances from antenna For ODU deployments, Table 209 specifies calculated minimum separation distances for a range of frequency bands and antenna sizes at the peak of the antenna beam. For IRFU deployments, refer to Table 210. At these and greater distances, the power density from the RF field is not considered to be hazardous. These tables are based on the worst case transmit power. Table 209 PTP 800 minimum separation distances, FCC method (ODU) Band Antenna diameter 0.3 m 0.6 m 0.8 m 1.2 m 1.8 m (1 ft) (2 ft) (2.5 ft) (4 ft) (6 ft) 6 GHz N/A N/A N/A 2.7 m 4.2 m 7 GHz (8.8 ft) (13.6 ft) 8 GHz 11 GHz N/A 1.9 m 2.7 m 3.7 m 5.6 m (6.3 ft) (8.9 ft) (12.2 ft) (18.4 ft) 18 GHz 2.9 m 4.8 m 6.3 m 9.6 m 14.0 m (9.6 ft) (15.8 ft) (20.7 ft) (31.5 ft) (46.0 ft) 23 GHz 3.0 m 5.4 m 7.1 m 10.7 m 14.9 m (9.9 ft) 17.8 ft) (23.3 ft) (35.2 ft) (48.9 ft) 26 GHz 3.4 m 5.9 m 8.0 m 11.7 m N/A (11.2 ft) (19.4 ft) (26.3 ft) (38.4 ft) 38 GHz 4.0 m 7.4 m N/A N/A N/A (13.2 ft) (24.3 ft) Table 210 PTP 800 minimum separation distances, FCC method (IRFU) Band Antenna diameter 0.3 m 0.6 m 0.8 m 1.2 m 1.8 m (1 ft) (2 ft) (2.5 ft) (4 ft) (6 ft) 6 GHz N/A N/A N/A 11.3 m 17.4 m (37.1 ft) (57.1 ft) 11 GHz N/A 7.1 m 10.2 m 13.9 m 21.0 m (23.3 ft) (33.5 ft) (45.7 ft) (68.9 ft) 4-88 phn-2513_001v000 (Apr 2012)
- 323. PTP 800 Series User Guide Chapter 5: Installation This chapter describes how to install and test the hardware for a PTP 800 link. Before starting the installation, refer to: • Preparing for installation on page 5-2 describes the checks to be performed before proceeding with the installation. If installing an ODU-based link, refer to: • Installing antennas and ODUs on page 5-5 describes how to install the antennas, ODUs and waveguide connections at each link end. • Installing the IF and ground cables on page 5-35 describes how to install the IF cables and how to install grounding and lightning protection. • Testing the ODU and IF cable on page 5-59 describes how to perform pre-power tests on the ODU, LPUs and IF cable. If installing or servicing an IRFU-based link, refer to: • Installing antennas and IRFUs on page 5-69 describes how to install an IRFU with antenna and waveguide. • Replacing IRFU components on page 5-94 describes how to to replace IRFU components in the field. To install the CMU and network connections, refer to: • Installing the CMU on page 5-76 describes how to mount the CMU in the building or cabinet, and to connect it to ground, power supply and PC. • Preparing network connections (1+0 and 2+0 links) on page 5-83 describes how to prepare the cables to connect the CMU to the customer and (optionally) management networks. It applies only to unprotected ends (1+0 and 2+0 links). • Preparing network connections (1+1 Hot Standby) on page 5-88 describes how to prepare the cables to connect the CMU to the customer and (optionally) management networks. It applies only to protected ends (1+1 Hot Standby links). phn-2513_001v000 (Apr 2012) 5-1
- 324. Preparing for installation Chapter 5: Installation Preparing for installation This section describes the checks to be performed before proceeding with the installation, and describes how to upgrade an unprotected link to 1+1 Hot Standby. Safety precautions during installation All national and local safety standards must be followed while developing a site, installing equipment, or performing maintenance. Ensure that personnel are not exposed to unsafe levels of RF energy. The units start to radiate as soon as they are powered up. Respect the safety standards defined in Radiation hazard assessment on page 4-85, in particular the minimum separation distances. Observe the following guidelines: • Never work in front of the antenna when the CMU is powered. • Always power down the CMU before connecting or disconnecting the drop cable from the CMU, ODU or LPU. Grounding and lightning protection requirements The installation must meet the requirements defined in Grounding and lightning protection on page 2-7. Selecting installation options Use the installation report to determine which installation options are required. Refer to Link planning on page 2-2. When installing a 1+1 Hot Standby link, refer to 1+1 Hot Standby link protection on page 1-64 for an overview of alternative hardware configurations. 5-2 phn-2513_001v000 (Apr 2012)
- 325. PTP 800 Series User Guide Preparing for installation Preparing personnel In no event shall Cambium Networks be liable for any injury or damage caused during the installation of the Cambium PTP 800. Ensure that only qualified personnel undertake the installation of a PTP 800 link. Ensure that all safety precautions are observed. Preparing inventory Perform the following inventory checks: • Check that an installation report is available and that it is based on the principles described in Chapter 2: Planning considerations. • Check that the correct components are available, as described Ordering components on page 2-57. • Check the contents of all packages against their packing lists. Preparing tools Check that the tools listed in Table 211 are available. Table 211 Tools required for PTP 800 installation Equipment to be Installed Tools Required CMU Pozi screw driver (PZ1) Ground lug crimp tool (diameter 5mm) 8mm spanner Direct Mount ODU Lubricant (supplied) Remote Mount 17mm spanner Lubricant (supplied) Flexible Wave Guide Allen key (supplied in the kit) Flexible Wave Guide hanger 13mm spanner 5mm Allen key Flat bladed screw driver (6mm) or Pozi screw driver (PZ2) phn-2513_001v000 (Apr 2012) 5-3
- 326. Preparing for installation Chapter 5: Installation Equipment to be Installed Tools Required Coupler 6mm Allen key 2.5mm and 3mm Allen keys (supplied) Lubricant (supplied) Antenna 17mm spanner 7 mm spanner (for tapered transition) Voltmeter and BNC lead Compass and GPS meter Cable Cable cutters Cable hoist Flat file to dress the cable inner core Wire brush to comb the braid Crimp tool Cambium part 66010063001 Torque wrench Unit pre-configuration It is common practice to pre-configure the CMUs during staging before site installation. The process is summarized as follows: 1 Perform the following tasks from Chapter 6: Configuration and alignment for each CMU: from Task 1: Connecting to the unit on page 6-3, to Task 11: Configuring remote access on page 6-93. 2 Install and test the new hardware by following the relevant procedures in this chapter. 3 Align the antennas and complete the configuration by performing the following tasks from Chapter 6: Configuration and alignment: from Task 12: Aligning antennas on page 6-96, to Task 15: Connecting link to the network on page 6-112. 5-4 phn-2513_001v000 (Apr 2012)
- 327. PTP 800 Series User Guide Installing antennas and ODUs Installing antennas and ODUs Applies to ODU deployments only. This section describes how to install the antennas, ODUs and waveguide connections at each link end. Use Table 212 to select installation procedures. Table 212 Selecting antenna and ODU installation procedures Hardware Antenna Antenna Procedures to be performed configuration mounting protection? 1+0 Direct - Installing a direct mount antenna with one ODU on page 5-6. 1+0 Remote - Installing a remote mount antenna with one ODU on page 5-9. 1+1 Direct No Installing a direct mount antenna with two ODUs (via coupler) on page 5-20. 1+1 Direct Yes Installing a direct mount antenna with one ODU on page 5-6. Repeat for the second antenna and ODU. 1+1 Remote No Installing a remote mount antenna with two ODUs (via coupler) on page 5-26. 1+1 Remote Yes Installing a remote mount antenna with one ODU on page 5-9. Repeat for the second antenna and ODU. 2+0 co-polar Direct - Installing a direct mount antenna with two ODUs (via coupler) on page 5-20. 2+0 co-polar Remote - Installing a remote mount antenna with two ODUs (via coupler) on page 5-26. 2+0 cross-polar Direct - Installing a direct mount dual-polar antenna with two ODUs on page 5-32. 2+0 cross-polar Remote - Installing a remote mount antenna with one ODU on page 5-9. Install two ODUs and waveguides and one dual-polar antenna, but connect both ODUs to the antenna via the waveguide ports. phn-2513_001v000 (Apr 2012) 5-5
- 328. Installing antennas and ODUs Chapter 5: Installation Follow applicable health and safety rules for use of silicone grease. If necessary use the latex gloves supplied with the products. If upgrading an unprotected link to 1+1 Hot Standby, mute the active unit before installing the coupler. For safety reasons this is required when working with the ODUs or when working close to the antenna. See Disabling and enabling the wireless interface on page 7-32. When installing 1+1 Hot Standby links, observe that the ODUs are labeled ‘Hi’ or ‘Lo’ depending on the frequency sub-band. Ensure that the two ‘Hi’ ODUs are installed at one end of the link and the two ‘Lo’ ODUs are installed at the other end. Installing a direct mount antenna with one ODU In the direct mount configuration, the ODU is attached directly to the antenna (with Cambium ODU interface) via four latches. To install a direct mount antenna with a single ODU, proceed as follows: 1 Follow the antenna manufacturer’s instructions to attach the antenna to its bracket. 2 Polarization depends upon the antenna waveguide interface position. To change polarization, rotate the antenna transition, following the antenna manufacturer’s instructions. Vertical polarization: Horizontal polarization: 5-6 phn-2513_001v000 (Apr 2012)
- 329. PTP 800 Series User Guide Installing antennas and ODUs 3 Apply silicone grease to the ‘O’ Ring of the antenna transition. 4 Remove the ODU waveguide interface dust cover. 5 Fit the ODU to the antenna transition, ensuring that the antenna and ODU waveguide interfaces align correctly. Observe the polarization of the antenna waveguide interface. Vertical polarization: Horizontal polarization: phn-2513_001v000 (Apr 2012) 5-7
- 330. Installing antennas and ODUs Chapter 5: Installation 6 Secure the ODU to the antenna with the four latches, taking care to ensure they are correctly engaged. 7 Check that the antenna, mounting bracket and ODU are assembled. 8 Follow the manufacturer’s instructions to attach the assembly to the mast or pole. 5-8 phn-2513_001v000 (Apr 2012)
- 331. PTP 800 Series User Guide Installing antennas and ODUs Installing a remote mount antenna with one ODU In the remote mount configuration, the antenna and ODU are attached to the mast separately, connected to each other via a flexible waveguide. The flexible waveguide is designed to isolate vibration and eliminate difficulties caused by misalignment. The flexible waveguide must be protected from damage that may be caused by contamination, vibration or bending. When installing a flexible waveguide, observe the following precautions: • Unpacking: To avoid damage to the waveguide, do not unpack it until required. When unpacked, protect the waveguide from dirt, dust or ingress of foreign objects. • Vibration: Flexible waveguides may be damaged if subjected to excessive vibration or excessive bending. If a flexible waveguide is installed in a stressed (tensile) condition, vibration should be kept to a minimum, as the waveguide rubber jacket may become more susceptible to ozone and general environmental attack. Always use the waveguide hangers; two hangers should be used for the 900mm (3ft) flexible waveguide. • Bend radius: Conform to the bend radii, maximum twist and torque settings specified in Flexible waveguide specifications on page 4-10. • Static bend radius: When installing a flexible waveguide, pay attention to the static bend radius (quoted in the waveguide manufacturer’s data sheet). Static bend radius is the minimum bend that an assembly may be subject to without repeat movement (except as a consequence of small vibrations or axial expansions). Before installation, check that the ODU, RMK, waveguide and antenna have compatible interfaces. For a 2+0 cross-polar remote mount configuration, follow the procedures in this section to install two ODUs and waveguides and one dual-polar antenna, but connect both ODUs to the antenna via the waveguide ports (Figure 73). phn-2513_001v000 (Apr 2012) 5-9
- 332. Installing antennas and ODUs Chapter 5: Installation Figure 73 Dual-polar antenna in remote mount configuration 5-10 phn-2513_001v000 (Apr 2012)
- 333. PTP 800 Series User Guide Installing antennas and ODUs Mounting ODU on pole using RMK To mount the ODU on the pole using a remote mounting kit (RMK), proceed as follows: 1 Follow the manufacturer’s instructions to attach the RMK to the mast or pole. 2 Apply silicone grease to the ‘O’ ring of the RMK transition. 3 Remove the ODU waveguide interface dust cover. phn-2513_001v000 (Apr 2012) 5-11
- 334. Installing antennas and ODUs Chapter 5: Installation 4 Fit the ODU to the RMK transition, ensuring that the locating pegs on the RMK transition fit into the peg holes in the ODU waveguide interface. 5 Secure the ODU to the RMK with the four latches, taking care to ensure they are correctly engaged. 5-12 phn-2513_001v000 (Apr 2012)
- 335. PTP 800 Series User Guide Installing antennas and ODUs 6 Check that the RMK and ODU are correctly mounted on the mast or pole. Assembling the flexible waveguide hangers To provide adequate support for a 900mm flexible waveguide, two hangers are required. To assemble the flexible waveguide hangers, proceed as follows: 1 Check the flexible waveguide hanger kit contents. 2 Assemble the pole clip, making note of the angle of the slots in the metal strip. phn-2513_001v000 (Apr 2012) 5-13
- 336. Installing antennas and ODUs Chapter 5: Installation 3 Fit the rubber moulding clamp to the studding. 4 Use the 5mm Allen key to fit the pole clip to the studding. 5 Temporarily fit the rubber mouldings. 6 Check the finished assembly. 5-14 phn-2513_001v000 (Apr 2012)
- 337. PTP 800 Series User Guide Installing antennas and ODUs Attaching antenna and waveguide to pole If the antenna is 11 GHz, a tapered transition must be fitted between the antenna and waveguide as described in Mounting an 11 GHz antenna with tapered transition and waveguide on page 5-18. To mount the antenna on the pole and attach it to the ODU via the flexible waveguide, proceed as follows: 1 Follow the antenna manufacturer’s instructions to attach the antenna to its bracket and to the mast or pole. 2 Check that the waveguide, antenna and RMK have compatible interfaces. Check that the mating surfaces are clean and free from damage. 3 Fit one of the ‘O’ ring seals supplied with the waveguide kit to the flexible waveguide flange that has the O ring groove. 4 Using the waveguide flange fitted with the ‘O’ ring, fit the flexible waveguide to the remote mount. Ensure that the waveguide cavity orientation matches the opening in the RMK. Fit four shorter screws, using a spring washer and a plain washer on each screw. It is sometimes more convenient to complete this operation before the assembly is fitted to the mast, connecting the flexible waveguide to the antenna when fitting the remote mount to the mast. phn-2513_001v000 (Apr 2012) 5-15
- 338. Installing antennas and ODUs Chapter 5: Installation 5 Fit the remote mount to the tower. Fit an ‘O’ ring seal to the antenna interface and secure the plain flange of flexible waveguide to the antenna. Ensure that the waveguide cavity orientation matches the opening in the antenna. Secure the flexible waveguide using four of the shorter screws to the antenna. Fit each screw with a spring washer and a plain washer. 6 Fit the rubber inserts from the hanger kit to the flex waveguide. 7 Insert the rubber insert and flex waveguide into the hanger. 5-16 phn-2513_001v000 (Apr 2012)
- 339. PTP 800 Series User Guide Installing antennas and ODUs 8 Fit the hanger cover and tighten. 9 When routing the flex waveguide ensure that the minimum bend radius is not exceeded. phn-2513_001v000 (Apr 2012) 5-17
- 340. Installing antennas and ODUs Chapter 5: Installation 10 Check the complete assembly. Mounting an 11 GHz antenna with tapered transition and waveguide The 11GHz remote mount antenna requires the use of the tapered transition fitted between the antenna and the flexible waveguide. The tapered transition converts from the PDR100 waveguide flange on the antenna to the UBR120 flange on the flexible waveguide. To mount an 11 GHz antenna with taper transition and flexible waveguide, proceed as follows: 1 Mount the bracket on the antenna. 5-18 phn-2513_001v000 (Apr 2012)
- 341. PTP 800 Series User Guide Installing antennas and ODUs 2 Remove the protective film from the antenna waveguide and fit the gasket, (supplied in the kit). 3 Use the 8 screws to fit the tapered transition to the antenna. 4 Fit the seal to the tapered transition, (supplied in the kit). phn-2513_001v000 (Apr 2012) 5-19
- 342. Installing antennas and ODUs Chapter 5: Installation 5 Use the four screws supplied in the kit to fit the flexible waveguide to the tapered transition. It makes taping the joint easier if the four screws are inserted in the direction shown. 6 Use FT-TB fusion tape (Andrews part FT-TB) to water proof the junctions as shown. Installing a direct mount antenna with two ODUs (via coupler) In the direct mount configuration, the coupler (with ODUs) is attached directly to the antenna (with Cambium ODU interface) via four latches. If the coupler is asymmetric, one side is embossed with the word ‘MAIN’ and the other side with ‘STANDBY’ (Figure 74). The ‘MAIN’ side has lower loss. Ensure that the ‘MAIN’ and ‘STANDBY’ sides can still be identified after the ODUs are fitted, as this allows them to be connected to the correct CMUs. 5-20 phn-2513_001v000 (Apr 2012)
- 343. PTP 800 Series User Guide Installing antennas and ODUs Figure 74 Words embossed on coupler (asymmetric shown) Attaching coupler to antenna To attach the coupler to the antenna, proceed as follows: 1 Follow the antenna manufacturer’s instructions to attach the antenna to its bracket. 2 Check that the supplied coupler is the correct type for this installation. Check the contents of the coupler mounting kit. phn-2513_001v000 (Apr 2012) 5-21
- 344. Installing antennas and ODUs Chapter 5: Installation 3 Ensure the correct spacers are fitted to each of the four legs: 11GHz - spacer length 27mm 18 GHz, 23 GHz, and 26 GHz - spacer length 7.75mm. 4 For a 1+1 Hot Standby link, check that the circular transitions on the coupler have the same alignment (vertical or horizontal depending on the antenna polarity). If necessary, rotate the circular transitions according to the manufacturer’s instructions. 5 Take note of the word ‘TOP’ embossed in the casting; ensure this edge is upper most when attached to the antenna. 5-22 phn-2513_001v000 (Apr 2012)
- 345. PTP 800 Series User Guide Installing antennas and ODUs 6 Remove protective film from coupler antenna port. 7 Apply silicone grease to the ‘O’ Ring of the antenna transition. 8 Fit the coupler to the antenna by following this sequence: Initially, hand-tighten two of the diagonally opposed M8 bolts with the Allen key supplied in the kit. Using the latch clamp, clip the same two corners. Repeat the above on the remaining two diagonally opposed bolts and clips. Torque down all four M8 bolts to 18 Nm. phn-2513_001v000 (Apr 2012) 5-23
- 346. Installing antennas and ODUs Chapter 5: Installation Attaching ODUs to coupler To attach the ODUs to the coupler and mount the assembly on the pole, proceed as follows: 1 Remove protective film from the coupler ports. 2 Apply silicone grease to the ‘O’ rings of the coupler transitions. 3 Fit the ODUs to the coupler transitions, ensuring that the waveguide interfaces align correctly for vertical or horizontal polarization. Both ODUs must be fitted with handles at the top and connectors at the bottom. For asymmetric couplers, check that the ‘MAIN’ and ‘STANDBY’ sides of the coupler can still be identified. 5-24 phn-2513_001v000 (Apr 2012)
- 347. PTP 800 Series User Guide Installing antennas and ODUs 4 Follow the manufacturer’s instructions to attach the assembly to the mast or pole. 5 Check the finished installation. phn-2513_001v000 (Apr 2012) 5-25
- 348. Installing antennas and ODUs Chapter 5: Installation Installing a remote mount antenna with two ODUs (via coupler) In the remote mount configuration, the antenna and coupler (with two ODUs) are attached to the mast separately, connected to each other via a flexible waveguide. The flexible waveguide is designed to isolate vibration and eliminate difficulties caused by misalignment. The flexible waveguide must be protected from damage that may be caused by contamination, vibration or bending. Observe the precautions in Installing a remote mount antenna with one ODU on page 5-9. Before installation, check that the ODUs, coupler, RMK, waveguide and antenna have compatible interfaces. If the coupler is asymmetric, one side is embossed with the word ‘MAIN’ and the other side with ‘STANDBY’ (Figure 74). The ‘MAIN’ side has lower loss. Ensure that the ‘MAIN’ and ‘STANDBY’ sides can still be identified after the ODUs are fitted, as this allows them to be connected to the correct CMUs. Attaching coupler to RMK To attach the coupler to the RMK, proceed as follows: 1 Ensure the correct RMK, coupler and flexible wave guide are present for the frequency band. 5-26 phn-2513_001v000 (Apr 2012)
- 349. PTP 800 Series User Guide Installing antennas and ODUs 2 Check that the supplied coupler is the correct type for this installation. Check the contents of the coupler mounting kit. 3 Ensure the correct spacers are fitted to each of the four legs: 11GHz - spacer length 27mm 18 GHz, 23 GHz and 26 GHz - spacer length 7.75mm phn-2513_001v000 (Apr 2012) 5-27
- 350. Installing antennas and ODUs Chapter 5: Installation 4 Check that the circular transition on the coupler is correctly aligned for remote mount bracket polarity (vertical or horizontal). If necessary, rotate the circular transition according to the manufacturer’s instructions. 5 Take note of the polarization marks on the remote mount bracket. 6 Take note of the word ‘TOP’ embossed in the casting; ensure this edge is upper most when attached to the antenna. 5-28 phn-2513_001v000 (Apr 2012)
- 351. PTP 800 Series User Guide Installing antennas and ODUs 7 Remove the protective film from the coupler remote mount port. 8 Apply silicone grease to the ‘O’ ring of the remote mount transition. 9 Fit the coupler to the remote mount bracket by following this sequence: Initially, hand tighten two of the diagonally opposed M8 bolts with the Allen Key supplied in the kit. Using the latch clamp, clip the same two corners. Repeat the above on the remaining two diagonally opposed bolts and clips. Torque down all four M8 bolts to 18Nm. Assembling the flexible waveguide hangers Assemble the hangers as described in Assembling the flexible waveguide hangers on page 5-13. phn-2513_001v000 (Apr 2012) 5-29
- 352. Installing antennas and ODUs Chapter 5: Installation Attaching antenna to pole Follow the antenna manufacturer’s instructions to attach the antenna to its bracket and to the mast or pole. Attaching ODUs to coupler To attach the ODUs to the coupler and mount the assembly on the pole, proceed as follows: 1 Fit the flex waveguide to the remote mount bracket. 2 Fit assembly to pole. 5-30 phn-2513_001v000 (Apr 2012)
- 353. PTP 800 Series User Guide Installing antennas and ODUs 3 Connect the flexible waveguide to the antenna. 4 Remove protective film from coupler ports. 5 Apply silicone grease to the ‘O’ rings of the coupler transitions. 6 Fit the ODUs to the coupler transitions, ensuring that the waveguide interfaces align correctly for vertical or horizontal polarization. Both ODUs must be fitted with handles at the top and connectors at the bottom. For asymmetric couplers, check that the ‘MAIN’ and ‘STANDBY’ sides of the coupler can still be identified. phn-2513_001v000 (Apr 2012) 5-31
- 354. Installing antennas and ODUs Chapter 5: Installation 7 Support the flexible waveguide with the waveguide hangers. Do not exceed the flexible waveguide minimum bend radius. 8 Check the finished installation. Installing a direct mount dual-polar antenna with two ODUs Direct mount dual-polar antennas are supplied with an orthogonal mode transducer with two direct-mount interfaces. Operators can upgrade any standard antenna to a direct mount dual polar antenna by purchasing an orthogonal mount kit. To install a direct mount dual-polar antenna with two ODUs, proceed as follows: 1 Follow the manufacturer’s instructions to fit the antenna mounting bracket and fit the antenna to the orthogonal mode transducer. 5-32 phn-2513_001v000 (Apr 2012)
- 355. PTP 800 Series User Guide Installing antennas and ODUs 2 Remove protective film from the ODU transitions. 3 Apply silicone grease to the ‘O’ rings of the ODU transitions. phn-2513_001v000 (Apr 2012) 5-33
- 356. Installing antennas and ODUs Chapter 5: Installation 4 Fit the ODUs to the transitions, ensuring that the waveguide interfaces align correctly for vertical or horizontal polarization. 5 Follow the manufacturer’s instructions to attach the assembly to the mast or pole. 6 Place the supplied spirit level on the leveling flat and use it to achieve horizontal alignment of the antenna and ODU assembly. 5-34 phn-2513_001v000 (Apr 2012)
- 357. PTP 800 Series User Guide Installing the IF and ground cables Installing the IF and ground cables Applies to ODU deployments only. This section describes how to install the IF cables and how to install grounding and lightning protection. When installing a 1+1 Hot Standby link, install and ground separate IF cables for the Primary and Secondary ODUs. When installing a 2+0 link, install and ground separate IF cables for the link A and link B ODUs. This task consists of the following procedures: • Preparing IF cables on page 5-37. • Fitting an N type connector to an IF cable on page 5-37. • Connecting the ODU to the top LPU on page 5-41. • Weatherproofing an N type connector on page 5-44. • Hoisting the main IF cable on page 5-48. • Installing and grounding the main IF cable on page 5-51. • Making an IF cable ground point on page 5-53. • Installing and grounding the IF cable at building entry on page 5-57. When installing IF and ground cables, observe the following precautions: o The IF and ground cable installation must meet the requirements defined in Grounding and lightning protection on page 2-7. o To provide effective protection against lightning induced surges, grounding cables must be installed without drip loops and pointing down towards the ground. o To ensure that IF connections are not damaged by water ingress, all outdoor IF connectors must be protected from the weather with self-amalgamating and vinyl tape. o Do not connect or disconnect the IF cable when the power supply is applied to the CMU. o Always ensure the lightning protection units are connected the correct way round (Figure 75). phn-2513_001v000 (Apr 2012) 5-35
- 358. Installing the IF and ground cables Chapter 5: Installation Figure 75 Correct orientation of LPUs ODU Antenna EQUIPMENT port Top LPU SURGE port SURGE port Bottom LPU EQUIPMENT port CMU 5-36 phn-2513_001v000 (Apr 2012)
- 359. PTP 800 Series User Guide Installing the IF and ground cables Preparing IF cables Prepare the following lengths of IF cable: • ‘ODU-LPU’ IF cable: Use the braided cable assembly supplied in the coaxial cable installation assembly kit (Table 55), as this is pre-fitted with N type connectors. If this is not suitable, cut a short section of IF cable and fit N type connectors to both ends as described in Fitting an N type connector to an IF cable on page 5-37. • ‘Main’ IF cable: Prepare a long section of IF cable to connect the top LPU to the bottom LPU: o Cut this to the approximate length required (allowing a bit of surplus), or leave it on the drum so that it can be unwound as the cable is hoisted. o Slide one or more hoisting grips onto the top end of the main IF cable, as described in Hoisting the main IF cable on page 5-48. o Fit an N type connector to the top end only, as described in Fitting an N type connector to an IF cable on page 5-37. • ‘LPU-CMU’ IF cable: Prepare a short section of IF cable to connect the bottom LPU to the CMU: o Cut this to the approximate length required (allowing a bit of surplus). o Fit an N type connector to the LPU end only, as described in Fitting an N type connector to an IF cable on page 5-37. Fitting an N type connector to an IF cable The crimp tool for the standard N type connector is available from Cambium, see Table 14. Not all connectors and crimp tools are compatible. If any other type of connector is to be installed, ensure that the correct crimp tool is used. Preparing a cable end To prepare an IF cable to receive an N type connector, proceed as follows: 1 Check that the correct IF cable crimp tool and connectors are available. phn-2513_001v000 (Apr 2012) 5-37
- 360. Installing the IF and ground cables Chapter 5: Installation 2 Remove 21mm (0.827 inch) of the outer jacket: 3 Slide ferrule over braid, ensure the chamfer is towards the braid: 4 Comb braid straight with wire brush: 5 Trim braid back to 9mm (0.354 inch): 6 Remove foam insulation and trim centre conductor to 6mm (0.236 inch): 5-38 phn-2513_001v000 (Apr 2012)
- 361. PTP 800 Series User Guide Installing the IF and ground cables 7 Chamfer the centre conductor at a angle of 45°: Failure to correctly chamfer the centre conductor will cause damage to the connector when assembling the cable into the connector. 8 Mark a line 22 mm from the end of the ferrule: 9 Daub grease onto the braid uniformly: phn-2513_001v000 (Apr 2012) 5-39
- 362. Installing the IF and ground cables Chapter 5: Installation Crimping a connector To crimp an N type connector to an IF cable, proceed as follows: 1 Insert the cable into connector. The cable centre conductor must be inserted into the inner contact fingers: 2 Ensure that the cable is not inserted beyond the line marked in Step 8. Crimp the connector body in the area shown: 3 Use the larger of the openings in the crimp tool: 4 Check the finished part: 5-40 phn-2513_001v000 (Apr 2012)
- 363. PTP 800 Series User Guide Installing the IF and ground cables Connecting the ODU to the top LPU Perform this procedure to connect the ODU to the top lightning protection unit (LPU) via ground and IF cables, and to ground the LPU to the supporting structure (Figure 76). Figure 76 ODU and top LPU grounding ODU and antenna Lightning Protection Unit (LPU) IF cable Ground cable To connect and ground the ODU and top LPU, proceed as follows: 1 Attach one end of the ODU ground cable to the ODU. phn-2513_001v000 (Apr 2012) 5-41
- 364. Installing the IF and ground cables Chapter 5: Installation 2 Attach the other end of the ODU ground cable to the top LPU, under the LPU mounting nut. Attach one end of the LPU ground cable to the LPU, under the LPU mounting nut. 3 Attach one end of the ODU-LPU IF cable to the ODU. 5-42 phn-2513_001v000 (Apr 2012)
- 365. PTP 800 Series User Guide Installing the IF and ground cables 4 Attach the other end of the ODU-LPU IF cable to the EQUIPMENT port of the top LPU. 5 Mount the top LPU on the supporting structure. 6 Route and fasten the ODU ground cable and ODU-LPU IF cable. The ground cable should be routed downwards without any loops. 7 Attach the other end of the LPU ground cable to the grounding bar of the supporting structure. phn-2513_001v000 (Apr 2012) 5-43
- 366. Installing the IF and ground cables Chapter 5: Installation 8 Protect the N type connectors at the ODU and LPU from the weather by applying self-amalgamating and PVC tape, as described in Weatherproofing an N type connector on page 5-44. Weatherproofing an N type connector The following procedure should be used to weatherproof the N type connectors fitted to the ODU and LPU. Before weatherproofing the connectors, ensure that the installation has been tested as described in Testing the ODU and IF cable on page 5-59. These tests require connection and disconnection of the IF cables at various places. N type connectors should be tightened using a torque wrench, set to 15 lb in or 1.7 Nm. If a torque wrench is not available, N type connectors may be finger tightened. To weatherproof an N type connector, proceed as follows: 1 Ensure the connection is tight. A torque wrench should be used if available: 2 Wrap the connection with a layer of 19 mm (0.75 inch) PVC tape, starting 25 mm (1 inch) below the connector body. Overlap the tape to half-width and extend the wrapping to the body of the LPU. Avoid making creases or wrinkles: 5-44 phn-2513_001v000 (Apr 2012)
- 367. PTP 800 Series User Guide Installing the IF and ground cables 3 Smooth tape edges: 4 Cut a 125mm (5 inches) length of rubber tape (self amalgamating): 5 Expand the width of the tape by stretching it so that it will wrap completely around the connector and cable: phn-2513_001v000 (Apr 2012) 5-45
- 368. Installing the IF and ground cables Chapter 5: Installation 6 Press the tape edges together so that there are no gaps. The tape should extend 25mm (1inch) beyond the PVC tape: 7 Wrap a layer of 50 mm (2 inch) PVC tape from bottom to top, starting from 25 mm (1 inch) below the edge of the self-amalgamating tape, overlapping at half width. 5-46 phn-2513_001v000 (Apr 2012)
- 369. PTP 800 Series User Guide Installing the IF and ground cables 8 Repeat with a further four layers of 19 mm (0.75 inch) PVC tape, always overlapping at half width. Wrap the layers in alternate directions: Second layer: top to bottom. Third layer: bottom to top. Fourth layer: top to bottom. Fifth layer: bottom to top. The bottom edge of each layer should be 25 mm (1 inch) below the previous layer. 9 Completed weatherproof connection: phn-2513_001v000 (Apr 2012) 5-47
- 370. Installing the IF and ground cables Chapter 5: Installation Hoisting the main IF cable Hoisting grips are designed for hoisting cable safely up a tower or building and providing permanent support so that mechanical connection to an antenna can be made. A clamp is placed over the grip and secured to the cable with a special tool. When the cable is in position and the grip handle is fastened to a tower member, the hoist line can be removed. A suitable hoisting grip for CNT-400 IF cable is Cambium part number 07009304001 used together with the correct crimp tool SG-IT (Andrew part number 243333). Failure to obey the following precautions may result in injury or death. Observe the following precautions: • Use the hoisting grip to hoist one cable only. Attempting to hoist more than one cable may cause the hoisting grip to break or the cables to fall. • Do not use the hoisting grip for lowering cable unless the clamp is securely in place. • Do not reuse hoisting grips. Used grips may have lost elasticity, stretched, or become weakened. Reusing a grip can cause the cable to slip, break, or fall. • Use hoisting grips at intervals of no more than 60 m (200 ft). • Use the proper hoisting grip for the cable being installed. If the wrong hoisting grip is used, slippage or insufficient gripping strength will result. Attaching the hoisting grip Attach one or more hoisting grips to the main IF cable before fitting the N type connector to the top end (as described in Preparing IF cables on page 5-37). Attach one additional hoisting grip for each 60 m (200 ft) of cable. 5-48 phn-2513_001v000 (Apr 2012)
- 371. PTP 800 Series User Guide Installing the IF and ground cables To attach a hoisting grip to the main IF cable, proceed as follows: 1 Compress the grip ends towards each other and slide the grip heel (woven end) onto the cable (see photo). Place the hoisting grip(s) at the proper location on the cable before attaching the connector. Allow a sufficient length of cable leader to reach the antenna connector when cable hoisting and attachment of the grip handle is completed. Hold the heel with one hand and firmly slide the other hand along the grip to tighten it. 2 Slide the clamp onto the grip and position it 25 mm (1”) from the heel. 3 Crimp the clamp with Andrew crimping tool 243333 at each hoisting grip clamp location. phn-2513_001v000 (Apr 2012) 5-49
- 372. Installing the IF and ground cables Chapter 5: Installation Using the hoist line Maintain tension on the hoisting grip during hoisting. Loss of tension can cause dangerous movement of the cable and result in injury or death to personnel on or near the tower. Also, do not release tension on the grip until after the cable has been fastened to the tower members. Attach the hoist line to the grip (Figure 77). Tie the cable leader to the hoist line so that the leader does not dangle. Apply tension slowly to the hoist line, allowing the hoisting grip to tighten uniformly on the cable. Hoist the main IF cable up to the ODU. Figure 77 Using the hoist line N type connector Minimum leader 1.5 m (5 ft) Clevis Cable hoist 5-50 phn-2513_001v000 (Apr 2012)
- 373. PTP 800 Series User Guide Installing the IF and ground cables Installing and grounding the main IF cable Perform this procedure to install and ground the IF cable from the top LPU to the building entry point (Figure 78). The IF cable must be grounded at the points specified in Protection requirements for a mast or tower installation on page 2-11. Figure 78 IF cable grounding on a mast or tower phn-2513_001v000 (Apr 2012) 5-51
- 374. Installing the IF and ground cables Chapter 5: Installation To install and ground the main IF cable, proceed as follows: 1 Attach the N type connector at the top end of the main IF cable to the SURGE port of the top LPU. 2 Protect the N type connectors on the LPU from the weather by applying self- amalgamating and PVC tape, as described in Weatherproofing an N type connector on page 5-44. 3 Lay the main IF cable as far as the building entry point, ensuring there is enough length to extend through the wall of the building to the bottom LPU. 4 Attach the main IF cable to the supporting structure using the cable ties provided. 5 Ground the IF cable at the points specified in Protection requirements for a mast or tower installation on page 2-11. Follow the procedure Making an IF cable ground point on page 5-53. 5-52 phn-2513_001v000 (Apr 2012)
- 375. PTP 800 Series User Guide Installing the IF and ground cables Making an IF cable ground point Perform this task to connect the screen of the IF cable to the metal of the supporting structure using a cable grounding kit. The cable grounding kit for 1/4” and 3/8” cable (Figure 27) contains the following components: • 1 x grounding cable with grounding 2 hole lug fitted (M10) • 1 x self Amalgamating tape • 1 x PVC tape • 3 x tie wraps • 2 x bolt, washer and nut Ground cables must be installed without drip loops and pointing down towards the ground, otherwise they may not be effective. To ground the IF cable to a metal structure using the Cambium grounding kit (part number 01010419001), proceed as follows: 1 Remove 60 mm (2.5 inches) of the IF cable outer jacket: phn-2513_001v000 (Apr 2012) 5-53
- 376. Installing the IF and ground cables Chapter 5: Installation 2 Cut 38 mm (1.5 inches) of rubber tape (self amalgamating) and fit to the ground cable lug. Wrap the tape completely around the lug and cable: 3 Fold the ground wire strap around the drop cable screen and fit cable ties. 4 Tighten the cable ties with pliers. Cut the surplus from the cable ties. 5-54 phn-2513_001v000 (Apr 2012)
- 377. PTP 800 Series User Guide Installing the IF and ground cables 5 Cut a 38 mm (1.5 inches) section of self-amalgamating tape and fit to the ground cable lug. Wrap the self-amalgamating tape completely around the lug and cable. 6 Use the remainder of the self-amalgamating tape to wrap the complete assembly. Press the tape edges together so that there are no gaps: phn-2513_001v000 (Apr 2012) 5-55
- 378. Installing the IF and ground cables Chapter 5: Installation 7 Wrap a layer of PVC tape from bottom to top, starting from 25 mm (1 inch) below and finishing 25 mm (1 inch) above the edge of the self-amalgamating tape, over lapping at half width. 8 Repeat with a further four layers of PVC tape, always overlapping at half width. Wrap the layers in alternate directions: Second layer: top to bottom. Third layer: bottom to top. Fourth layer: top to bottom. Fifth layer: bottom to top. The edges of each layer should be 25mm (1 inch) above (A) and 25 mm (1 inch) below (B) the previous layer. 9 Prepare the metal grounding point of the supporting structure to provide a good electrical contact with the grounding cable clamp. Remove paint, grease or dirt, if present. Apply anti-oxidant compound liberally between the two metals. 5-56 phn-2513_001v000 (Apr 2012)
- 379. PTP 800 Series User Guide Installing the IF and ground cables 10 Clamp the bottom lug of the grounding cable to the supporting structure using site approved methods. Use a two-hole lug secured with fasteners in both holes. This provides better protection than a single-hole lug. Installing and grounding the IF cable at building entry Perform this procedure to install and ground the IF at the building (or cabinet) entry point (Figure 79). Figure 79 Grounding at building entry IF cable Ground cable Master Ground Bar (MGB) To CMU External Ground Bar (EGB) Lightning Protection Unit Ground ring (LPU) phn-2513_001v000 (Apr 2012) 5-57
- 380. Installing the IF and ground cables Chapter 5: Installation To run the IF cable into the building, proceed as follows: 1 Make an entry point into the building and run the main IF cable into the building. 2 Ground the IF cable to the external ground bar outside the building entry point, as described in Making an IF cable ground point on page 5-53. 3 Install the bottom LPU inside the building entry point. 4 Ground the bottom LPU to the master ground bar. 5 Cut any surplus length from the bottom end of the main IF cable and fit an N type connector, as described in Fitting an N type connector to an IF cable on page 5-37. 6 Connect the main IF cable (from the ODU) to the SURGE port of the bottom LPU. 7 Connect the LPU-CMU IF cable to the EQUIPMENT port of the bottom LPU and run it to the location of the CMU. 5-58 phn-2513_001v000 (Apr 2012)
- 381. PTP 800 Series User Guide Testing the ODU and IF cable Testing the ODU and IF cable Applies to ODU deployments only. This section describes how to perform pre-power tests on the ODU, LPUs and the IF cable. Recommended pre-power tests Following the installation of the ODU, LPUs and the IF cable, but before connecting and applying power to the CMU, the following tests are recommended: • Cable loss with ODU disconnected: This test will ensure that the total cable loss, including loss from the LPUs, is within acceptable limits. • Cable loss with the ODU connected: This test will confirm that the cable contains no short circuit or open circuit. • Distance to fault (DTF) return loss with the ODU connected: This test confirms the position of the LPUs in the cable run and confirms there are no other points of discontinuity in the cable. By comparing a current plot to a previously recorded plot, it is possible to detect any degradation over time. Test equipment An RF cable analyzer such as an Anritsu ‘Site Master’ can be used to confirm that the installed cable between the ODU and the CMU has the correct loss and does not have any short or open circuits. If the cable is faulty, this equipment can be used to identify the location of a fault in the cable. Figure 80 is an example of a cable analyzer that is suitable for performing the tests described in this section. phn-2513_001v000 (Apr 2012) 5-59
- 382. Testing the ODU and IF cable Chapter 5: Installation Figure 80 Example of a cable analyzer Test preparation Figure 81 is an example to show how the equipment should be set up to perform the pre- power tests. In this example, there is a short length of cable from the analyzer (in place of the CMU) to the first LPU, a length of cable ‘y’ from the first LPU to the second LPU (at the top of the tower) and a short length of cable from the second LPU to the ODU (0.7m long supplied in the accessory kit). Figure 81 Example of the cable test These tests should be performed in conjunction with the test equipment manufacturer’s instructions. 5-60 phn-2513_001v000 (Apr 2012)
- 383. PTP 800 Series User Guide Testing the ODU and IF cable To prepare for pre-power testing, proceed as follows: 1 Connect the analyzer to the first LPU (Figure 81). 2 Connect the first LPU to the second (Figure 81). 3 Check that the second LPU is disconnected from the cable that leads to the ODU (Figure 81). The second LPU and ODU are reconnected during testing. 4 Power on the analyzer. When these preparations are complete, perform the following tests: • Testing cable loss on page 5-61. • Measuring distance to fault on page 5-66. Testing cable loss The purpose of this test is to ensure that the total cable loss is within acceptable limits. Before performing this test, ensure that the test equipment is set up as described in Test preparation on page 5-60. To measure cable loss, proceed as follows: 1 Select the ‘cable loss-one port’ mode of the cable analyzer (Figure 80). 2 Set the frequency of measurement to: F1 = 350MHz F2 = 400MHz. 3 Calibrate the instrument for the selected frequencies, using the correct calibration kit. 4 Before connecting the ODU, obtain a plot of cable loss and check that it is within the expected limits for the given cable length (Table 213). Compare it to examples of good installations (Figure 82 and Figure 84). 5 Connect the ODU. 6 Observe the effect of the ODU connection on the plot of cable loss. Compare it to examples of good installations (Figure 83 and Figure 85). If there is little or no change to the plot when the ODU is connected, it indicates a short or open circuit on the cable. 7 Keep a copy of the cable loss plots so that they can be compared with subsequent plots to determine if there is any degradation with time. phn-2513_001v000 (Apr 2012) 5-61
- 384. Testing the ODU and IF cable Chapter 5: Installation Cable loss example using a 17 meter cable This example is for a cable run consisting of the following: • 0.7m cable from the test equipment to the first LPU. • The first LPU. • 17m of cable between the two LPUs (length ‘y’ in Figure 81). • The second (mast mounted) LPU. • 0.7m of cable from the LPU to ODU. When performing steps 4 to 6 above, compare the ‘before’ and ‘after’ plots of cable loss: • Figure 82 is a plot of cable loss taken before the ODU was connected. The plot shows an average cable loss of 1.96 dB. This can be compared with the expected result in Table 213. For a cable length of approximately 19m (17m + 0.7m + 0.7m) with two LPUs, the table result is 1.9 dB, which is within the expected tolerance of +/- 10%. • Figure 83 is a plot of cable loss taken after the ODU was connected. Figure 82 Cable loss plot for a 17 meter cable with no ODU 5-62 phn-2513_001v000 (Apr 2012)
- 385. PTP 800 Series User Guide Testing the ODU and IF cable Figure 83 Cable loss plot for a 17 meter cable with ODU connected Cable Loss ODU 17M M1: -11.67 dB @ 350.00 MHz 0 -5 -10 -15 dB -20 -25 M1 -30 300 310 320 330 340 350 360 370 380 390 400 Frequency (300.0 - 400.0 MHz) Resolution: 517 CAL:ON(COAX) CW: ON Std: --- Channel: N/A Date: 11/11/2009 Time: 04:12:12 Avg.CableLoss: 12.89 dB Model: S311D Serial #: 00936036 Cable loss example using a 100 meter cable This is similar to the above example, except that there is now 100m of cable between the two LPUs (length ‘y’ in Figure 81). It shows similar results: • Figure 84 is a plot of cable loss taken before the ODU was connected. • Figure 85 is a plot of cable loss taken after the ODU was connected. phn-2513_001v000 (Apr 2012) 5-63
- 386. Testing the ODU and IF cable Chapter 5: Installation Figure 84 Cable loss plot for a 100 meter cable with no ODU Cable Loss NO ODU 100M M1: -9.08 dB @ 350.00 MHz 0 -5 -10 -15 dB -20 -25 M1 -30 300 310 320 330 340 350 360 370 380 390 400 Frequency (300.0 - 400.0 MHz) Resolution: 517 CAL:ON(COAX) CW: ON Std: --- Channel: N/A Date: 11/11/2009 Time: 03:43:56 Avg.CableLoss: 8.97 dB Model: S311D Serial #: 00936036 Figure 85 Cable loss plot for a 100 meter cable with ODU connected Cable Loss ODU 100M M1: -16.74 dB @ 350.00 MHz 0 -5 -10 -15 dB -20 -25 M1 -30 300 310 320 330 340 350 360 370 380 390 400 Frequency (300.0 - 400.0 MHz) Resolution: 517 CAL:ON(COAX) CW: ON Std: --- Channel: N/A Date: 11/11/2009 Time: 03:45:03 Avg.CableLoss: 17.89 dB Model: S311D Serial #: 00936036 5-64 phn-2513_001v000 (Apr 2012)
- 387. PTP 800 Series User Guide Testing the ODU and IF cable Expected cable loss Table 213 quotes the expected cable loss for given cable lengths when the ODU is not connected. All loss figures have a tolerance of plus or minus 10%, for example, 1.76 dB means that the loss is expected to be between 1.58 and 1.94 dB. Table 213 Expected cable loss when ODU is not connected Cable Cable Loss Cable Loss (+/- 10%) with two Length (+/- 10%) at Lightning Protection Units fitted, (meters) 350 MHz (dB) at 350 MHz (dB) 1 0.08 0.3 2 0.15 0.37 3 0.23 0.45 4 0.31 0.53 5 0.39 0.61 6 0.46 0.68 7 0.54 0.76 8 0.62 0.84 9 0.69 0.91 10 0.77 0.99 20 1.54 1.76 30 2.31 2.53 40 3.08 3.3 50 3.85 4.1 100 7.7 7.92 phn-2513_001v000 (Apr 2012) 5-65
- 388. Testing the ODU and IF cable Chapter 5: Installation Measuring distance to fault The distance to fault (DTF) test is used as a means of characterizing the cable installation, but can also be used to determine the location of a fault in an installation. Before performing this test, ensure that the test equipment is set up as described in Test preparation on page 5-60. To measure distance to fault, proceed as follows: 1 Select the ‘DTF-return loss’ mode of the cable analyzer (Figure 80). 2 Select ‘DTF Aid’. 3 Use the up/down key to select and set the following: Cable type - select LMR400 (similar to CNT-400) or LMR600 (similar to CNT-600) as appropriate. F2 - select the highest frequency possible for the greatest resolution, 1600 MHz. D1 and D2 - set as appropriate for the specific installation. 4 Recalibrate the instrument. 5 Before connecting the ODU, obtain a plot of DTF loss. Compare it to an example of a good installation (Figure 86). 6 Connect the ODU. 7 Observe the effect of the ODU connection on the DTF plot. Compare it to an example of a good installation (Figure 87). 8 Keep a copy of the DTF plots so that they can be compared with subsequent plots to determine if there is any degradation with time. The absolute readings of DTF should be read with care, as many different variables affect both distance and amplitude accuracy. 5-66 phn-2513_001v000 (Apr 2012)
- 389. PTP 800 Series User Guide Testing the ODU and IF cable DTF return loss example This example shows typical DTF return loss in a good installation. The distances from the test equipment to first LPU (marker M2), and then the second LPU (marker M3) are clearly shown. The cable between them shows no discontinuity. There are two plots: • Figure 86 is a plot of DTF return loss before the ODU is connected. The final peak (marker M1) is the position of the cable open circuit. • Figure 87 is a plot of DTF return loss after the ODU is connected. The final peak remains in the same position but is now reduced in amplitude because less signal is reflected, as a consequence of the better match of the ODU. Figure 86 DTF plot for a 17 meter cable with no ODU Distance-to-fault LPU+17M M1: -5.03 dB @ 18.56 m M2: -13.11 dB @ .63 m M3: -17.41 dB @ 17.83 m 0 -10 -20 -30 dB -40 -50 M2 M M 3 1 -60 0.0 2.5 5.0 7.5 10.0 12.5 15.0 17.5 20.0 22.5 25.0 Distance (0.0 - 25.0 Meter) Resolution: 517 CAL:ON(COAX) CW: OFF Std: --- Channel: N/A Date: 11/10/2009 Time: 04:49:26 Ins.Loss:0.135dB/m Model: S311D Serial #: 00936036 Prop.Vel:0.850 phn-2513_001v000 (Apr 2012) 5-67
- 390. Testing the ODU and IF cable Chapter 5: Installation Figure 87 DTF plot for a 17 meter cable with ODU connected Distance-to-fault ODU+LPU+17M M1: -16.41 dB @ 18.70 m M2: -13.08 dB @ .63 m M3: -17.50 dB @ 17.83 m 0 -10 -20 -30 dB -40 -50 M2 M3 M1 -60 0.0 2.5 5.0 7.5 10.0 12.5 15.0 17.5 20.0 22.5 25.0 Distance (0.0 - 25.0 Meter) Resolution: 517 CAL:ON(COAX) CW: OFF Std: --- Channel: N/A Date: 11/10/2009 Time: 04:50:58 Ins.Loss:0.135dB/m Model: S311D Serial #: 00936036 Prop.Vel:0.850 5-68 phn-2513_001v000 (Apr 2012)
- 391. PTP 800 Series User Guide Installing antennas and IRFUs Installing antennas and IRFUs Applies to IRFU deployments only. This section describes how to install an IRFU with antenna and waveguide. Install the antenna and flexible waveguide by following their manufacturers’ instructions. The waveguide must be long enough to connect to the IRFU branching unit in its rack. Preparation Before installing the IRFU, ensure the following are provided: • IF cable for CMU and IRFU (Cambium part number 30009403001). • A -48 V dc power source. • Access to the building ground terminal. • All required tools (Table 214). Table 214 Tools required for IRFU installation Item Required specifications Where used Screwdriver Phillips #2, medium tip Throughout Allen key For #8-32 socket-head For connecting the flexible screws waveguide to the IRFU Multimeter With ohm meter Miscellaneous tools for Refer to the manufacturer installing connectors on documentation provided with For connecting the CMU to the CMU to IRFU the connector the IRFU coaxial cable Torque wrench for SMA 5/16, set to 0.1 kg•m connectors (9.0 lb-inch) phn-2513_001v000 (Apr 2012) 5-69
- 392. Installing antennas and IRFUs Chapter 5: Installation Installing the IRFU in the rack Allocate a free space of at least 0.4 RMS (18 mm or 0.7 in) between the bottom of the IRFU bracket and the top of the CMU and, 1.3 RMS (58 mm or 2.3 in) between two IRFU shelves. Mounting brackets can be assembled for either ETSI or NEBS (ANSI) rack-mounting. To minimize risk of injury, use two persons to place a fully assembled IRFU (weighing approximately 12 kg) in the rack. Install the shelf mounting lugs (2) using the machine screws provided. Leave these lugs in place for holding the IRFU during installation. Starting with the two top screws, secure the six mounting bracket screws to the rack (Figure 88). Figure 88 IRFU rack mounting 5-70 phn-2513_001v000 (Apr 2012)
- 393. PTP 800 Series User Guide Installing antennas and IRFUs Connecting the flexible waveguide to the IRFU To connect the flexible waveguide from the antenna to the IRFU branching unit (BU), proceed as follows: 1 Remove the protection cap from the BU mating flange (Figure 89). 2 Connect the flanged end of the flexible waveguide to its mating flange on the BU, using the eight socket-head screws provided. Refer to Table 215 for the waveguide and flange specifications. 3 Install the correct flange gasket according to the type of waveguide mating flange (not supplied). 4 Check that the waveguide has been installed according to manufacturer’s instructions, with sealed ends and a pressure window. 5 Pressurize the waveguide with dry air (using an appropriate dehydrator) according to manufacturer’s instructions. Figure 89 Partial rear view of IRFU with waveguide port phn-2513_001v000 (Apr 2012) 5-71
- 394. Installing antennas and IRFUs Chapter 5: Installation Table 215 IRFU waveguide and flange specifications Band (GHz) Waveguide Flange type Flange holes L6 and U6 WR-137 CPR-137G 7 and 8 WR-112 CPR-112G Tapped for #8-32 screws 11 WR-90 CPR-90G Connecting the CMU cables to the IRFU Connect the CMU to the IRFU using the supplied IF cable (Cambium part number 30009403001). For 1+1 and 2+0 links, repeat for the second transceiver unit and CMU. Figure 90 Connecting the coaxial cable to the IRFU 5-72 phn-2513_001v000 (Apr 2012)
- 395. PTP 800 Series User Guide Installing antennas and IRFUs Grounding the IRFU Ground the IRFU by connecting a 4.11 mm (6 AWG) copper cable from any one of the grounding terminals of the IRFU shelf (Figure 91 and Figure 92) to the building grounding system. Figure 91 IRFU grounding terminal (front option) Figure 92 IRFU grounding terminal (rear option) phn-2513_001v000 (Apr 2012) 5-73
- 396. Installing antennas and IRFUs Chapter 5: Installation Safety requirements for grounding: It is very important that the path of lowest resistance goes directly to the main ground point. The ground conductor resistance needs to be less than 0.5 Ohm. Do not connect other equipment to the same grounding cable as the IRFU. Each piece of equipment at the site should have a separate grounding cable to a common very low resistance main ground point. Connect the equipment directly to the DC supply system grounding electrode conductor or to a bonding jumper from a grounding terminal bar, or bus to which the DC supply grounding electrode is connected. Provide fusing according to Local and National Electrical Codes. Fuse rating must be: 4 A for -48 V operation. 5-74 phn-2513_001v000 (Apr 2012)
- 397. PTP 800 Series User Guide Installing antennas and IRFUs Connecting power to the IRFU Connect the power supply cable to the IRFU (Figure 93). Check that the power connector screws are tight enough to hold the power cable securely in place. For EMI Class B compliance, a 10 AWG braided shielded power cable with drain wire and foil is recommended. If a battery is being used to supply power, connect the ‘common’ battery terminal to the main electrical grounding system (not directly to the building grounding system). Figure 93 IRFU power connection phn-2513_001v000 (Apr 2012) 5-75
- 398. Installing the CMU Chapter 5: Installation Installing the CMU This section describes how to mount the CMU in the building or cabinet, and to connect it to ground, power supply and PC. When installing a 1+1 Hot Standby link, install two CMUs at each end, one for the Primary and one for the Secondary unit. When installing a 2+0 link, install two CMUs at each end, one for the link ‘A’ and one for the link ‘B’ ODU. To minimise radiated emissions, use screened Ethernet cable for all copper connections from the CMU Ethernet ports. This includes the Data port connection to any network switch and the Management port to the splitter WB3807 (if fitted) and onwards to any network switch. Maximum operating ambient temperature for the CMU HOT SURFACES: care should be taken when handling an operating CMU. The CMU must be mounted on either a horizontal or vertical surface. The supplied mounting bracket must be used. The CMU must not be operated in ambient temperatures exceeding 40 deg C unless mounted in a Restricted Access Location. At ambient temperatures over this limit, the temperature of the external metal case parts of the CMU may exceed a touch temperature of 70 deg C. Heat warning labels are fixed adjacent to the hottest parts, on the top of the unit adjacent to the rear face and to the front panel mounted N type connector. Operation of CMU in a Restricted Access Location The CMU may be operated in ambient temperatures up to 55°C when it is housed in a Restricted Access Location. Under these conditions the temperature of the external metal case parts of the CMU may exceed a touch temperature of 70°C, but will be less than 90°C. A Restricted Access Location is defined (in EN 90650-1) as one where access may only be gained by use of a tool or lock and key, or other means of security, and access is controlled by the authority responsible for the location. 5-76 phn-2513_001v000 (Apr 2012)
- 399. PTP 800 Series User Guide Installing the CMU Examples of permissible Restricted Access Locations are:- • A lockable equipment room. • A lockable cabinet. Access must only be gained by persons who have been instructed about the reasons for the restrictions applied to the location and about any precautions that must be taken. Mounting the CMU The CMU can be mounted in three ways: • On a shelf or bench top. • On a wall. • In a cabinet rack. The CMU kit contains the CMU, CMU bracket, power connector and ground lug (Figure 94). Figure 94 CMU kit contents To prevent the CMU from overheating, ensure that the ventilation holes on the side of the CMU are not obstructed and that there is room for air flow across the back of the CMU (the end opposite the connector face). Shelf or bench top mounting If the CMU is installed on a shelf or bench top (Figure 95), the CMU bracket must be used to secure the CMU. The bracket screws to the base of the CMU. phn-2513_001v000 (Apr 2012) 5-77
- 400. Installing the CMU Chapter 5: Installation Figure 95 CMU mounted on bench Wall mounting The CMU bracket also acts as a wall mounting bracket (Figure 96). The bracket may be placed against the wall to allow fixing holes to be made. The bracket should then be secured to the CMU using the screws supplied, before offering the assembly up to the wall for fixing. In order to comply with safety certification, mount the CMU with the connectors facing upwards or downwards; do not mount the CMU with the connectors facing sideways. Figure 96 CMU mounted with bracket Rack mounting A rack mounting kit allows one or two CMUs to be installed in a 19 inch cabinet rack (Figure 97 and Figure 98). The kit contains a blanking plate and CMU securing screws. 5-78 phn-2513_001v000 (Apr 2012)
- 401. PTP 800 Series User Guide Installing the CMU Figure 97 CMU with rack mounting kit and blanking plate Figure 98 CMU mounted in rack To avoid damaging the RF cable, route it in such a way that the minimum bend radius for the selected cable is always exceeded. If cables are laid in an air-handling cavity, they must be Plenum rated. A right angle IF cable connector (Cambium part number 01010589001) can make it easier to install the CMU in the rack (Figure 99). Figure 99 Rack mounted CMU with a right angled IF cable connector phn-2513_001v000 (Apr 2012) 5-79
- 402. Installing the CMU Chapter 5: Installation Grounding the CMU Ground the CMU to a rack ground bar, master ground bar or other suitable ground using a minimum cable cross section of 10 mm2 (6AWG) (Figure 43). It is a condition of the safety approval that the unit is grounded. For a 1+1 Hot Standby link, ground both CMUs to the same grounding point (Figure 44). Attach the ground cable to the CMU ground connector (Figure 100). Figure 100 CMU ground connector Connecting the CMU to the IF cable ODU-based deployments Cut any surplus length from the CMU end of the ODU-CMU IF cable and fit an N type connector, as described in Fitting an N type connector to an IF cable on page 5-37. Connect this IF cable to the CMU. For 1+1 and 2+0 links, repeat for the second ODU and CMU. For an ODU-based 1+1 Hot Standby link with an asymmetric coupler, ensure that the following connections are made: The IF cable from the ‘MAIN’ side of the ODU coupler is connected to the CMU labelled ‘Primary’. The IF cable from the ‘STANDBY’ side of the ODU coupler is connected to the CMU labelled ‘Secondary’. 5-80 phn-2513_001v000 (Apr 2012)
- 403. PTP 800 Series User Guide Installing the CMU IRFU-based deployments Connect the supplied IF cable (Cambium part number 30009403001) to the CMU. For 1+1 and 2+0 links, repeat for the second transceiver unit and CMU. For an IRFU-based 1+1 Hot Standby link with the unequal coupling option, ensure that the following connections are made: The IF cable from the primary (left hand) transceiver is connected to the CMU labelled ‘Primary’. The IF cable from the secondary (right hand) transceiver is connected to the CMU labelled ‘Secondary’. Connecting the CMU power supply Connect the CMU to a minus 48 Volt (−48V) supply capable of supplying a maximum of 2 amps. The Cambium supplied AC to DC converter is shown in Figure 101. For specifications of the converter, mains cables and DC connectors, refer to AC to DC converter specifications on page 4-4. Figure 101 Cambium AC to DC converter phn-2513_001v000 (Apr 2012) 5-81
- 404. Installing the CMU Chapter 5: Installation For details of alternative power supply arrangements, refer to Power supply considerations on page 2-4. If an alternative power supply is to be installed, it must include the following safeguards: • The DC supply must have over current protection that does not exceed 3 amps • A means of isolating the CMU from the DC supply must also be provided. If a DC connector has to be attached to the DC output cable, use the following pin connections: • Pin 1: −48 Volts • Pin 2: 0 Volts • Pin 3: Not Connected • Pin 4: Chassis ground Pin 1 is the left most pin on the CMU power connector when looking at the front panel. 5-82 phn-2513_001v000 (Apr 2012)
- 405. PTP 800 Series User Guide Preparing network connections (1+0 and 2+0 links) Preparing network connections (1+0 and 2+0 links) This section describes how to prepare the cables to connect the CMU to router ports, switch ports or other equipment in the customer and (optionally) management networks. It applies only to unprotected ends (1+0 and 2+0 links). When installing a 2+0 link, prepare separate network connections for the link ‘A’ and the link ‘B’ CMUs. The CMU is not normally connected to the network equipment until antenna alignment is complete (as described in Task 15: Connecting link to the network on page 6-112). For all management modes (out-of-band and in-band), decide whether the data network connection is to be copper or fiber, then perform either Installing a copper data interface on page 5-84 or Installing a fiber data interface on page 5-85. For out-of-band management modes (but not in-band), perform Installing a management interface on page 5-86. phn-2513_001v000 (Apr 2012) 5-83
- 406. Preparing network connections (1+0 and 2+0 links) Chapter 5: Installation Installing a copper data interface If an unprotected configuration requires a copper data interface, connect the CMU Data port (copper) to the network as shown in Figure 102. Figure 102 Copper data interface connections 5-84 phn-2513_001v000 (Apr 2012)
- 407. PTP 800 Series User Guide Preparing network connections (1+0 and 2+0 links) Installing a fiber data interface If an unprotected configuration requires a fiber data interface, connect the CMU Fiber SFP (GigE) port to the network as shown in Figure 103. Figure 103 Fiber data interface connections SFP module in CMU Tx Rx CMU Tx port to Ethernet switch Rx port CMU Rx port to Ethernet switch Tx port SFP module in Ethernet switch Tx Rx phn-2513_001v000 (Apr 2012) 5-85
- 408. Preparing network connections (1+0 and 2+0 links) Chapter 5: Installation Refer to Connecting fiber cables to the CMU on page 5-87. Installing a management interface If an unprotected configuration requires a management interface, connect the CMU Management port to the network as shown in Figure 104. At the edge of a network, it is possible that no management network equipment is reachable. In this case the CMU management port may be left disconnected. Figure 104 Management interface connections 5-86 phn-2513_001v000 (Apr 2012)
- 409. PTP 800 Series User Guide Preparing network connections (1+0 and 2+0 links) Connecting fiber cables to the CMU To connect fiber cables to the CMU, proceed as follows: 1 Insert an SFP module into the GigE port of the CMU with the PCB connector down and label up. 2 Remove the protective caps from the LC connectors. 3 Plug the LC connectors into the SFP module, ensuring they snap home. phn-2513_001v000 (Apr 2012) 5-87
- 410. Preparing network connections (1+1 Hot Standby) Chapter 5: Installation Preparing network connections (1+1 Hot Standby) This section describes how to prepare the cables to connect the CMU to the Ethernet switch in the customer and (optionally) management networks. It applies only to protected ends (1+1 Hot Standby links). The CMU is not normally connected to the network equipment until antenna alignment is complete. See Task 15: Connecting link to the network on page 6-112. Select and install the required interfaces depending on the choice of management mode and network connection (Table 216). Table 216 Selecting network interfaces for 1+1 Hot Standby links Management Network Procedures mode connection Out-of-band Customer data Either: Installing a redundant copper interface on (Figure 59) page 5-90; Or: Installing a redundant fiber interface on page 5- 91; Or: one copper and one fiber (*1); Or: Installing a Fiber-Y interface on page 5-92. Management data Installing an out-of-band protection splitter on page (not ‘last hop’) 5-89 Management data Either: Installing an out-of-band protection splitter (‘last hop’) on page 5-89, but connect the two LAN ports (*2) together using a protection cable; Or: Installing a protection cable on page 5-93. In-band Customer data Either: Installing a redundant copper interface on (Figure 61) page 5-90; Or: Installing a redundant fiber interface on page 5- 91; Or: one copper and one fiber (*1). Management data Installing a protection cable on page 5-93 (*1) It is possible to combine the two types of redundant interface at one link end, that is, connect one CMU to the network via copper and the other CMU via fiber. (*2) ‘Last hop’ link ends are those that are at the edge of the network, where access to the management network is not always available. 5-88 phn-2513_001v000 (Apr 2012)
- 411. PTP 800 Series User Guide Preparing network connections (1+1 Hot Standby) Installing an out-of-band protection splitter If a 1+1 protected configuration requires an out-of-band protection splitter, connect the CMU Management ports to the management network as shown in Figure 105. Use straight-through Cat5e cables with a maximum length of 2 m to connect the CMUs to the splitter. At the edge of the network (the ‘last hop’), if no management network equipment is available, the two LAN ports can be connected using a protection cable. The cable pin outs are specified in Protection cable on page 4-17. Figure 105 Out-of-band protection splitter connections phn-2513_001v000 (Apr 2012) 5-89
- 412. Preparing network connections (1+1 Hot Standby) Chapter 5: Installation Installing a redundant copper interface If a 1+1 protected configuration requires a redundant copper interface, connect the CMU Data ports (copper) to the network as shown in Figure 106. Figure 106 Redundant copper interface connections 5-90 phn-2513_001v000 (Apr 2012)
- 413. PTP 800 Series User Guide Preparing network connections (1+1 Hot Standby) Installing a redundant fiber interface If a 1+1 protected configuration requires a redundant fiber interface, connect the CMU Fiber SFP (GigE) ports to the network as shown in Figure 107. Figure 107 Redundant fiber interface connections SFP module in CMU 1 SFP module in CMU 2 Tx Rx Tx Rx CMU 1 Tx port to CMU 2 Tx port to Ethernet switch Ethernet switch Rx port Rx port CMU 2 Rx port to CMU 1 Rx port to Ethernet switch Ethernet switch Tx port Tx port SFP modules in Ethernet switch Tx Rx Tx Rx Refer to Connecting fiber cables to the CMU on page 5-87. phn-2513_001v000 (Apr 2012) 5-91
- 414. Preparing network connections (1+1 Hot Standby) Chapter 5: Installation Installing a Fiber-Y interface If a 1+1 protected configuration requires a Fiber-Y interface, connect the CMU Fiber SFP (GigE) to the customer network as shown in Figure 108. Figure 108 Optical Y interface connections SFP module in CMU 1 SFP module in CMU 2 Tx Rx Tx Rx Optical Y cable Optical Y cable connects CMU Tx connects CMU Rx ports to Ethernet ports to Ethernet switch Rx port switch Tx port SFP module in Ethernet switch Tx Rx Refer to Connecting fiber cables to the CMU on page 5-87. 5-92 phn-2513_001v000 (Apr 2012)
- 415. PTP 800 Series User Guide Preparing network connections (1+1 Hot Standby) Installing a protection cable If a 1+1 protected configuration requires a protection cable, connect the CMU Management ports together as shown in Figure 109. The cable pin outs are specified in Protection cable on page 4-17. Figure 109 Protection cable connections phn-2513_001v000 (Apr 2012) 5-93
- 416. Replacing IRFU components Chapter 5: Installation Replacing IRFU components Applies to IRFU deployments only. Perform this task to replace IRFU components in the field (Figure 110). Before removing or replacing a main component, wear an ESD wrist strap and attach its free end (or clamp) to the grounding lug of the IRFU. IRFUs ship fully assembled per customer’s ordered options. Figure 110 identifies all field- replaceable parts. Figure 110 IRFU components (example) 5-94 phn-2513_001v000 (Apr 2012)
- 417. PTP 800 Series User Guide Replacing IRFU components Before replacing IRFU components, check that the required tools are available (Table 217). Table 217 Tools required for IRFU component replacement Item Required specifications Where used Screwdriver Phillips #1, small tip For installing a fan assembly Screwdriver Phillips #2, medium tip Throughout Ball-point allen key 7/64 For installing filters Open-end wrench 5/16 SMA torque wrench Model ST-SMA8, (from For installing a transceiver w/right-angle adaptor Fairview Microwave Inc.) and RF cable Standard torque 5/16, set to 0.1 kg•m wrench (9.0 lb-inch) Replacing a transceiver When replacing a transceiver, refer to Figure 111. In an unprotected link, this procedure will affect traffic. In a 1+1 Hot Standby link, ensure that traffic is locked on the available channel during maintenance. Ensure that the new transceiver has the same part number as the discarded one. phn-2513_001v000 (Apr 2012) 5-95
- 418. Replacing IRFU components Chapter 5: Installation Figure 111 Transceiver replacement (1+0 example) Remove the transceiver To remove the old transceiver, proceed as follows: 1 Power off the CMU. 2 Push the PWR button OFF for at least 3 seconds, until the PWR LED is Off. This ensures that there are no sparks at the DC power connectors when removing DC from the transceiver. This will also indicate to the IRFU controller that, after installing the new transceiver, the PWR button has to be pushed ON again. Otherwise, power will automatically turn on when DC power is reconnected to the newly installed transmitter, regardless of the user’s intentions. 3 Disconnect both the power cable and IF cable from their respective connectors on the IRFU. 5-96 phn-2513_001v000 (Apr 2012)
- 419. PTP 800 Series User Guide Replacing IRFU components 4 Remove the IRFU section Cover Plate by unfastening both its Captive thumbscrews. 5 Disconnect all RF cables from the transceiver, and the RF switch ribbon cable (not present in 1+0 configurations) from the bottom of the transceiver. To reduce replacement time, it may be more practical to disconnect only the end of each cable from the transceiver, and leave all cables within the shelf, provided they do not interfere with the removal and installation of the transceiver. 6 Unfasten the transceiver captive Captive screws (2), then carefully slide the Transceiver module out of the shelf. It might be necessary to slightly raise the transceiver in the front as it is being slid out. Install the new transceiver To install the new transceiver, proceed as follows: 1 Connect the RF switch ribbon cable (not present in 1+0 configurations) to the bottom of the new transceiver. 2 Space permitting, use the Standard torque wrench set to 0.1 kg-m (9.0 lb-inch) to tighten each connector nut. Otherwise, use the SMA torque wrench w/right-angle adaptor to tighten the SMA connectors. 3 As an alternative, first hand-tighten the RF cable connector nuts to the transceiver ports, slide the transceiver in the shelf, then fasten its Captive screws (2) to secure it in place. 4 As appropriate, use the Standard torque wrench or the SMA torque wrench w/right-angle adaptor, set to 0.1 kg•m (9.0 lb-inch), to tighten all RF cable connector nuts. 5 Replace the IRFU section cover plate by fastening both its Captive thumbscrews. 6 Connect both the Power cable and Coaxial cable to their respective connectors on the IRFU. 7 Push the PWR button ON. Once the radio link is re-established, verify that there are no alarms. phn-2513_001v000 (Apr 2012) 5-97
- 420. Replacing IRFU components Chapter 5: Installation Replacing a branching unit When replacing a branching unit, refer to Figure 112. This procedure will interrupt traffic, whether the system is protected or non-protected. Figure 112 Branching unit replacement Remove the branching unit To remove the old branching unit, proceed as follows: 1 Disconnect any flexible waveguide(s) from the Antenna Port(s). 2 Remove the Transceiver, following the procedure Remove the transceiver on page 5-96. 5-98 phn-2513_001v000 (Apr 2012)
- 421. PTP 800 Series User Guide Replacing IRFU components 3 Remove the cable between the Tx filter to the RF switch. 4 Unfasten the six Captive screws attaching the Tx Filter and the Rx Filter to the bottom of the shelf. Refer to Figure 112 for locating the screws. 5 Remove the BU Assembly (filters and Circulator Assembly) from the shelf. Install the new branching unit To install the new branching unit, proceed as follows: 1 Assemble the BU. Reuse disassembled components only if they are sound. Use new components bearing the same specifications as the original ones. 2 Position the replacement BU Assembly in its designated location, ensuring to align properly all screws on the filters with their corresponding holes on the bottom of the shelf. 3 Re-fasten the 6 Captive screws unfastened earlier, to secure the BU Assembly to the bottom of the shelf. DO NOT overtighten. Reinstall the transceiver To reinstall the transceiver after replacing the branching unit, proceed as follows: 1 Reconnect the RF switch ribbon cable to the bottom of the transceiver, slide the transceiver in the shelf, then fasten its Captive screws (2) to secure it in place. 2 Using a 5/16 inch SMA torque wrench w/right-angle adaptor or a Standard torque wrench set to 0.1 kg•m (9.0 lb-inch), reconnect the RF cables to the transceiver, referring to the applicable configuration. For guidance, follow procedure Install the new RF cable on page 5-104. 3 Re-place the IRFU section cover plate by fastening both its Captive thumbscrews. 4 Connect both the Power cable and Coaxial cable to their respective connectors on the IRFU. 5 Push the PWR button ON. Once the radio link is re-established, verify that there are no alarms. phn-2513_001v000 (Apr 2012) 5-99
- 422. Replacing IRFU components Chapter 5: Installation Replacing filters When replacing filters, refer to Figure 113. This step is only required when changing frequencies, without changing bands. However, to facilitate the removal of filters, perform Remove the branching unit on page 5-98. This procedure will interrupt traffic, whether the system is protected or non-protected. Figure 113 Filter replacement Remove the filters 1 Perform Remove the branching unit on page 5-98. 2 Deposit the BU (Circulator an filters assembly) on a flat surface. 3 Unfasten all required socket-head screws, and keep them for reuse. 5-100 phn-2513_001v000 (Apr 2012)
- 423. PTP 800 Series User Guide Replacing IRFU components 4 Separate the Circulator Assembly from both filters. Install new filters 1 Refer to Figure 113 for aligning the outside corners and screw holes of the Circulator Assembly and the Filter flanges. 2 Insert and hand tighten each socket-head screw in its respective hole, taking care not force or rip the screw threads. 3 Secure all screws, using the Ball-point Allen key, without overtightening. 4 Follow Steps 2 and 3 from procedure Install the new branching unit on page 5-99. Replacing a fan assembly When replacing a fan assembly, refer to Figure 114. Each fan assembly can be replaced while the radio is operating. However, once started, ensure this procedure is completed as quickly as possible, to avoid overheating conditions. Surface may be hot to touch. Figure 114 Fan assembly replacement phn-2513_001v000 (Apr 2012) 5-101
- 424. Replacing IRFU components Chapter 5: Installation Remove the fan assembly To remove the old fan assembly, proceed as follows: 1 Unfasten the two front flat-head screws (#4-40), and keep them for re-use. 2 Insert a Phillips small-tip screwdriver in Through-holes A and B to reach and unfasten the two Captive screws 1 and 2. 3 Once Captive screws 1 and 2 are completely unfastened, grasp the Fan Assembly by its sides, pull it forward and disconnect cables, then pull it out of the shelf. Install the new fan assembly To install the new fan assembly, proceed as follows: 1 Place the fan assembly over the transceiver, making sure to properly align Captive screws 1 and 2 with their respective screw holes. 2 Connect the cables; then, using a Phillips small-tip screwdriver inserted through holes A and B, fasten Captive screws 1 and 2. 3 Fasten the two Front flat-head screws. Carefully observe connector keying. 5-102 phn-2513_001v000 (Apr 2012)
- 425. PTP 800 Series User Guide Replacing IRFU components Replacing an RF cable When replacing RF cables, refer to Figure 120 and Table 218 as a guide for connecting each cable, using the appropriate connector (angled or straight) to the corresponding component. Figure 115 RF cable installation and removal (1+1 Tx MHSB / Rx SD example) Table 218 RF cable connections (1+1 Tx MHSB / Rx SD example) # Part number SMA cable SMA cable connector from connector to (angled) (straight) 1 30009399001 Transceiver A Rx Filter A 2 30009399004 Tx Filter A RF Switch 3 30009399005 Transceiver A RF Switch 4 30009399006 Transceiver B RF Switch 5 30009399001 Transceiver B Rx Filter B phn-2513_001v000 (Apr 2012) 5-103
- 426. Replacing IRFU components Chapter 5: Installation Remove the RF cable To remove an RF cable, proceed as follows: 1 Note the Part Number printed on the label of the cable before removal, referring to Table 218 as an example. 2 Using the Standard torque wrench or SMA torque wrench w/right-angle adaptor, unscrew each connector’s end nut for about three 1/4 turns, enough to reduce resistance, then continue by hand until free. Install the new RF cable To install an RF cable, proceed as follows: 1 Before installing the replacement RF cable, verify that its Part Number matches exactly that of the discarded cable. 2 Fastening each cable-end nut by hand, start with the angled connector, then follow by the straight one, as identified in Table 218. 3 Space permitting, use the Standard torque wrench set to 0.1 kg•m (9.0 lb-inch) to tighten each connector nut. Otherwise, use the SMA torque wrench w/right-angle adaptor to tighten the SMA connectors. 4 As an alternative, first hand-tighten the RF cable connector nuts to the transceiver ports – referring to the applicable configuration from IRFU configuration options on page 1-20 – slide the transceiver in the shelf, then fasten its Captive screws (2) to secure it in place. 5 As appropriate, use the Standard torque wrench or the SMA torque wrench w/right-angle adaptor, set to 0.1 kg•m (9.0 lb-inch), to tighten all RF cable connector nuts. 5-104 phn-2513_001v000 (Apr 2012)
- 427. PTP 800 Series User Guide Chapter 6: Configuration and alignment This chapter describes all configuration and alignment tasks that are performed when a PTP 800 link is deployed. Observe the precautions in Preparing for configuration and alignment on page 6-2. Configure the two units by performing the following tasks: • Task 1: Connecting to the unit on page 6-3 • Task 2: Configuring IP and Ethernet interfaces on page 6-8 • Task 3: Installing license keys on page 6-18 • Task 4: Upgrading software version on page 6-22 • Task 5: Configuring security on page 6-25 • Task 6: Configuring protection on page 6-50 • Task 7: Configuring wireless interface on page 6-60 • Task 8: Setting up SNMP agent on page 6-74 • Task 9: Configuring alarms and messages on page 6-87 • Task 10: Configuring syslog on page 6-91 • Task 11: Configuring remote access on page 6-93 When all equipment has been installed at both link ends, perform the following tasks: • Task 12: Aligning antennas on page 6-96 • Task 13: Reviewing configuration and performance on page 6-104 • Task 14: Configuring quality of service on page 6-109 • Task 15: Connecting link to the network on page 6-112 If FIPS 140-2 secure mode is required, refer to Configuring for FIPS 140-2 applications on page 6-119. For 1+1 Hot Standby links, configure all four units and align all antennas. phn-2513_001v000 (Apr 2012) 6-1
- 428. Preparing for configuration and alignment Chapter 6: Configuration and alignment Preparing for configuration and alignment This section describes the checks to be performed before proceeding with unit configuration and antenna alignment. Safety precautions during configuration and alignment All national and local safety standards must be followed while configuring the units and aligning the antennas. Ensure that personnel are not exposed to unsafe levels of RF energy. The units start to radiate as soon as they are powered up. Respect the safety standards defined in Radiation hazard assessment on page 4-85, in particular the minimum separation distances. Observe the following guidelines: o Never work in front of the antenna when the CMU is powered. o Always power down the CMU before connecting or disconnecting the drop cable from the CMU, RFU or LPU. Regulatory compliance during configuration and alignment All applicable radio regulations must be followed while configuring the units and aligning the antennas. For more information, refer to Electromagnetic compliance on page 4-81. USA only: if the system designer has provided a list of channels to be barred for TDWR radar avoidance, the affected channels must be barred during staging, before the units are allowed to radiate on site, otherwise FCC rules will be infringed. Selecting configuration options Use the installation report to determine which configuration options are required. Refer to Link planning on page 2-2. 6-2 phn-2513_001v000 (Apr 2012)
- 429. PTP 800 Series User Guide Task 1: Connecting to the unit Task 1: Connecting to the unit This task consists of the following procedures: • Configuring the management PC on page 6-3 • Updating the ARP table on page 6-5 • Connecting to the PC and powering up on page 6-6 • Logging into the web interface on page 6-6 Configuring the management PC To configure the local management PC to communicate with the PTP 800, proceed as follows: 1 Display the Local Area Connection Properties dialog. The path to this dialog depends on Windows version and PC configuration, for example select: Control Panel, Network Connections, Local Area Connection, Properties. phn-2513_001v000 (Apr 2012) 6-3
- 430. Task 1: Connecting to the unit Chapter 6: Configuration and alignment 2 Select Internet Protocol (TCP/IP) and click on Properties. The Internet Protocol (TCP/IP) Properties dialog is displayed: 3 Enter an IP address that is valid for the 169.254.X.X network, avoiding: 169.254.0.0 and 169.254.1.1 A good example is 169.254.1.3 as shown. 4 Enter a subnet mask of 255.255.0.0. Leave the default gateway blank. 5 Click on OK. 6-4 phn-2513_001v000 (Apr 2012)
- 431. PTP 800 Series User Guide Task 1: Connecting to the unit 6 If the network adaptor supports advanced properties then ensure that Ethernet Speed and Duplex are both configured for automatic negotiation. One example, based on a Broadcom™ adaptor, is shown: Updating the ARP table All PTP 800 units are supplied with the same default IP address. When the management PC is connected to a PTP 800 unit, it creates an association between the default IP address (169.254.1.1) and the MAC address of the PTP 800. If two or more PTP 800 units are being configured, this association must be removed after each unit has been configured. To remove the association between IP address and MAC address in the ARP table of the management PC: open a command prompt window on the PC and enter this command: arp –d 169.254.1.1 When this address is next used, the PC will connect it with the MAC address of the unit being configured and update the ARP table with the new association. phn-2513_001v000 (Apr 2012) 6-5
- 432. Task 1: Connecting to the unit Chapter 6: Configuration and alignment Connecting to the PC and powering up Connect the PC Ethernet port to the Management port of the CMU using a straight- through or crossed Cat5e cable. Switch on the CMU power supply. Wait until the CMU status indicator shows green steady or green slow blink. This normally occurs within 60 seconds from applying power. Logging into the web interface If the management PC is connected to another LAN it may need to be configured to not use proxy servers for this IP address. To log into the CMU web interface, proceed as follows: 1 Start the web browser from the management PC. 2 Type this IP address of the unit into the address bar: 169.254.1.1 3 Press ENTER. The web interface menu and System Summary page are displayed: 6-6 phn-2513_001v000 (Apr 2012)
- 433. PTP 800 Series User Guide Task 1: Connecting to the unit 4 Select menu option System Administration. The login page is displayed: 5 Leave the Password blank and select Login. phn-2513_001v000 (Apr 2012) 6-7
- 434. Task 2: Configuring IP and Ethernet interfaces Chapter 6: Configuration and alignment Task 2: Configuring IP and Ethernet interfaces This task consists of the following procedures: • Managing the units during configuration and alignment on page 6-8 • Configuring the IP interface and management mode on page 6-10 • Reconnecting to the management PC on page 6-17 Managing the units during configuration and alignment Choose the best way to manage the PTP 800 units during the configuration and alignment process. Out-of-band management Where out-of-band management is chosen, the management port is active and a PC can be locally connected. Once the wireless link is operational, the remote PTP 800 unit may also be accessed across the wireless link. In a 1+1 Hot Standby link with out-of-band management, the commissioning engineer can connect to both PTP 800s in the following ways: • Locally from the Ethernet port of the protection splitter • From a PC connected to a local switch where routing and connectivity exist for accessing the Ethernet port of the protection splitter. • Before the protection splitter is installed, locally from the management port. 6-8 phn-2513_001v000 (Apr 2012)
- 435. PTP 800 Series User Guide Task 2: Configuring IP and Ethernet interfaces In-band management Where in-band management is chosen, the choice of scheme depends on the available data network and the method of network connectivity. With in-band management, there is a risk that a configuration error could lead to loss of management connectivity. If connectivity is lost, recover the units to a known working saved configuration, as described in Using recovery mode on page 7-71. In a 1+1 Hot Standby link with in-band management, the commissioning engineer can connect to both PTP 800s in the following ways: • On the bench, via a local router: Configure and test the final data port configuration “on the bench”. Access for commissioning will be available from a port on a locally connected switch or router. This has the advantage that simultaneous access is possible to both the CMUs being installed. • On the bench, via the management network: As above, but with a connection to a management centre (not across the wireless link being installed) where a co-worker is able to configure and control the PTP 800 units. • Using out-of-band: Install the CMUs using out-of-band management and configure in- band management on site. However, a protection splitter is required and the management setup needs to be reconfigured. Errors could cause loss of the management connection. • Using a local PC: Use in-band management and connect a PC locally to the copper data port. This is possible if VLAN tagging is disabled. Some reconfiguration may be needed, but if the data network is not fully commissioned this could be an alternative. It is recommended that in the final configuration VLAN tagging is enabled. phn-2513_001v000 (Apr 2012) 6-9
- 436. Task 2: Configuring IP and Ethernet interfaces Chapter 6: Configuration and alignment Configuring the IP interface and management mode The IP interface allows users to connect to the PTP 800 web interface, either from a locally connected computer or from a management network. Before setting Management Mode to ‘Out-of-Band’ or ‘In-Band’, ensure that the local and remote CMUs are configured with different IP addresses, otherwise the management agent will not be able to distinguish the two CMUs. Similarly for a 1+1 Hot Standby link, all four CMUs must be configured with different IP addresses so that the active and inactive units may be distinguished as well as the local and remote CMUs. Forcing Ethernet configuration is a last resort that should only be selected if problems are experienced with auto-negotiation. The Ethernet Auto Negotiation and Auto Neg Advertisement attributes must have the same settings in the CMU and in connected network equipment. If they are not consistent, then a duplex mismatch will occur, resulting in greatly reduced data capacity. The Auto Neg Advertisement data rate must be within the capability of the connected network equipment, otherwise loss of service will occur. To configure the Ethernet link to run at a fixed speed and duplex, leave Ethernet Auto Negotiation set to ‘Enabled’ and set Auto Neg Advertisement to the required speed. To configure the IP interface, proceed as follows: 1 Select menu option System, Configuration, LAN Configuration. The LAN Configuration page is displayed (Figure 116). 2 Review and update the IP interface attributes (Table 219). 3 If Management Mode has been set to ‘Out-of-Band Local’ or ‘Out-of-Band’, review and update the management port attributes (Table 220). 4 Review and update the data port attributes (Table 221). 5 Review and update the bridging attributes (Table 222). 6 Select Submit Updated System Configuration. The Confirm LAN configuration page is displayed (Figure 117). 7 Select Confirm Changes. 6-10 phn-2513_001v000 (Apr 2012)
- 437. PTP 800 Series User Guide Task 2: Configuring IP and Ethernet interfaces If the IP address is updated, then selecting Submit Updated System Configuration will change the IP address and communication between the management PC and the CMU will be terminated. To continue configuration, re-connect to the new IP address as described in Reconnecting to the management PC on page 6-17. In case of error see Resetting IP and Ethernet configuration to factory defaults on page 7-75. The SFP Configuration page is only displayed when an SFP module is installed. Figure 116 LAN Configuration page with VLAN disabled phn-2513_001v000 (Apr 2012) 6-11
- 438. Task 2: Configuring IP and Ethernet interfaces Chapter 6: Configuration and alignment Table 219 IP interface attributes Attribute Meaning IP Address Internet protocol (IP) address. This address is used by the family of internet protocols to uniquely identify the unit on a network. The default IP address of the management agent is 169.254.1.1. Subnet Mask Defines the address range of the connected IP network. Gateway IP Address The IP address of a computer on the current network that acts as a gateway. A gateway acts as an entrance and exit to packets from and to other networks. Use VLAN For This controls whether or not the management interfaces Management Interface (WWW/SNMP/SMTP/SNTP) use VLAN tags. Ensure that the configured VLAN is accessible, otherwise it will not be possible to access the unit following the next reboot. DSCP Management The Differentiated Services Code Point value. This is inserted Priority in the IP header of all IP datagrams transmitted by the management interfaces. VLAN Management Only displayed when ‘Use VLAN for Management Interfaces’ VID is enabled. Enter the VLAN VID (range 0 to 4094) that will be included in Ethernet frames generated by the management interfaces. VLAN Management Only displayed when ‘Use VLAN for Management Interfaces’ Priority is enabled. Enter the VLAN priority (range 0 to 7) that will be included in Ethernet frames generated by the management interfaces. 6-12 phn-2513_001v000 (Apr 2012)
- 439. PTP 800 Series User Guide Task 2: Configuring IP and Ethernet interfaces Attribute Meaning Management Mode ‘Out-of-Band Local’ means that the web interface can be reached from the management port at the local CMU only. This mode allows the construction of a management network that is isolated from the customer network. This is the default mode. For more information, see Out-of-band local management on page 1-44. ‘Out-of-Band’ means that the web interface can be reached from the management port at both the local and remote CMUs (assuming that the wireless link is established). For a 1+1 Hot Standby link, configuration access to the remote inactive unit requires connectivity between the management ports. For more information, see Out-of-band management on page 1-44. If ‘Out-of-Band’ is selected, remember to set the Management Committed Information Rate (Table 222). ‘In-Band’ means that the web interface can be reached from the data port at both the local and remote CMUs (assuming that the wireless link is established). In this mode, the management port is disabled. For a 1+1 Hot Standby link, connectivity must be provided between the CMU data ports by the customer’s network. For more information, see In-band management on page 1-45. For in-band and out-of-band remote management after installation, all four units providing a 1+1 Hot Standby link are accessible from the user interface of each unit. phn-2513_001v000 (Apr 2012) 6-13
- 440. Task 2: Configuring IP and Ethernet interfaces Chapter 6: Configuration and alignment Table 220 Management port attributes Attribute Meaning Management Port Only displayed when the Management Mode attribute is set Wireless Down Alert to ‘Out-of-Band Local’. If a condition is detected where the link can no longer forward management traffic in one or both directions, for example, a wireless fade or equipment failure, then if this attribute is enabled the management port will be briefly disconnected from the network. This signals to the connected network equipment that this link is no longer available for management traffic. Enabling this feature can be beneficial in complex networks where alternative routes provide continued service in the event of link failure (see Wireless link down alert on page 1-45). Management Port Auto ‘Enabled’ means that configuration of the out-of-band Negotiation management Ethernet interface is automatically negotiated. This is the default setting. ‘Disabled’ means that configuration is forced. Use the same setting for both ends of the link. Management Port Auto Select the data rate that the auto-negotiation mechanism Neg Advertisement will advertise as available on the out-of-band management Ethernet interface. Use the same setting for both ends of the link. Only select a data rate that is within the capability of connected network equipment, otherwise loss of service may occur. 6-14 phn-2513_001v000 (Apr 2012)
- 441. PTP 800 Series User Guide Task 2: Configuring IP and Ethernet interfaces Table 221 Data port attributes Attribute Meaning Data Port Wireless If a condition is detected where the link can no longer Down Alert forward customer data traffic in one or both directions, for example, a wireless fade or equipment failure, then if this attribute is enabled the data port will be briefly disconnected from the network. This signals to the connected network equipment that this link is no longer available for data traffic. Enabling this feature can be beneficial in complex networks where alternative routes provide continued service in the event of link failure (see Wireless link down alert on page 1-45). Data Port Ethernet Only displayed when an SFP module is installed. Media Type To Use ‘Auto with Fiber Preference’ means that if a supported SFP module is present and is working, and the fiber carrier is present, the Ethernet service connects through fiber and the copper data port is not used. If the fiber link fails or loses the carrier signal, the Ethernet service falls back to the copper LAN connection. ‘Force Copper’ means that the Ethernet service connects through the copper port only and the Fiber SFP interface is disabled. Data Port Copper Auto ‘Enabled’ means that configuration is automatically Negotiation negotiated. This is the default setting. ‘Disabled’ means that configuration is forced. Use the same setting for both ends of the link. Data Port Copper Auto Select the data rate that the auto-negotiation mechanism Neg Advertisement will advertise as available. Use the same setting for both ends of the link. Only select a data rate that is within the capability of connected network equipment, otherwise loss of service may occur. phn-2513_001v000 (Apr 2012) 6-15
- 442. Task 2: Configuring IP and Ethernet interfaces Chapter 6: Configuration and alignment Table 222 Bridged Ethernet traffic attributes Attribute Meaning Local Packet Filtering If Local Packet Filtering is enabled, the management agent learns the location of end stations from the source addresses in received management frames. The agent filters transmitted management frames to ensure that the frame is transmitted at the Ethernet (data or management) port, or over the wireless link as appropriate. If the end station address is unknown, then management traffic is transmitted at the Ethernet port and over the wireless link. In out-of-band local management mode, management frames are not transmitted over the wireless link, and so address learning is not active. Management Only displayed when Management Mode is set to ‘Out-of- Committed Information Band’. Rate Select the minimum data rate (range 200 to 2000 Kbit/s) that the network will guarantee to be available for management traffic. Data Port Pause ‘Tunnel’ means that the bridge tunnels Layer 2 PAUSE Frames frames arriving at the Data Port. ‘Discard’ means that the bridge discards Layer 2 PAUSE frames arriving at the Data Port. Pause frames are identified by the destination MAC Address being equal to 01-80-C2-00-00-01 6-16 phn-2513_001v000 (Apr 2012)
- 443. PTP 800 Series User Guide Task 2: Configuring IP and Ethernet interfaces Figure 117 Confirm LAN Configuration Reconnecting to the management PC If the IP Address, Subnet Mask and Gateway IP Address of the unit have been updated to meet network requirements, then reconfigure the local management PC to use an IP address that is valid for the network. Refer to Configuring the management PC on page 6- 3. When the IP address of the unit has been reconfigured, log in using the new IP address. Refer to Logging into the web interface on page 6-6. Access to the CMU can be recovered using Recovery mode as described in Resetting IP and Ethernet configuration to factory defaults on page 7-75. phn-2513_001v000 (Apr 2012) 6-17
- 444. Task 3: Installing license keys Chapter 6: Configuration and alignment Task 3: Installing license keys This task consists of the following procedures: • Checking licensed capabilities on page 6-18 • Generating a new license key on page 6-20 • Entering a new license key on page 6-20 • Starting the full capacity trial on page 6-21 Some PTP 800 products are supplied with two license keys: one installed at the factory and one alternative key. A license key is not required in order to enable the 1+1 protection capability. Each of the PTP 800s in the protection scheme is individually licensed and configured with its own license key for the capacity of the link. Checking licensed capabilities To check that the installed license key meets the requirements, select menu option System, License Key. The Software License Key page is displayed (Figure 118). Check the attributes in the Capability summary section (Table 223). These attributes (other than MAC Address) must be the same at both link ends, otherwise the link will not operate correctly. If the current capabilities do not meet the operator’s requirements, then perform Generating a new license key on page 6-20. 6-18 phn-2513_001v000 (Apr 2012)
- 445. PTP 800 Series User Guide Task 3: Installing license keys Figure 118 Software License Key page Table 223 Capability summary attributes Attribute Meaning Product Name The name of the PTP 800 product variant. MAC Address The MAC address of the PTP 800. FIPS Security Level The maximum configurable security level. If FIPS 140-2 capability is required, ensure that the FIPS Security Level is set to ‘FIPS’. Encryption Algorithm The encryption algorithms available for use at the wireless interface of the CMU. This attribute is only displayed if the current license key permits encryption. This attribute must be the same at both link ends. To determine upgrade requirements, see AES license on page 1-60. phn-2513_001v000 (Apr 2012) 6-19
- 446. Task 3: Installing license keys Chapter 6: Configuration and alignment Attribute Meaning Transmit Capacity Maximum permitted data rate for Ethernet frames. The actual data rate depends upon the prevailing wireless conditions. The application software does permit a link to be established between units with different Transmit Capacity values. A full capacity trial period may be available on this unit. For more information, see Starting the full capacity trial on page 6-21. Generating a new license key To generate a new license key to activate new licensed capabilities (for example activate AES encryption or increase transmit capacity), proceed as follows: 1 Purchase the required new capabilities from the Cambium authorized Point-To- Point dealer who supplied the link. The dealer will supply one or more access keys. 2 Go to the PTP web support page (see Contacting Cambium Networks on page 2). 3 Select Key Generator. The PTP License Key Generator form should be displayed. 4 Enter the required details, including the access keys supplied by the dealer. 5 Submit the web form. The PTP License Key Generator will respond with the new license key. Entering a new license key To upgrade the unit to a new license key, select menu option System, License Key. The Software License Key page is displayed (Figure 118). Enter the new License Key and select Validate license key. If the license key is valid, a confirmation message is displayed. Select OK to confirm. The new license key is installed in the unit. 6-20 phn-2513_001v000 (Apr 2012)
- 447. PTP 800 Series User Guide Task 3: Installing license keys Starting the full capacity trial The full capacity trial period allows a unit that has a limited data throughput capacity (up to 300 Mbps) to operate with full transmit capacity (unlimited) during a trial period of duration 60 days, reverting to the limited capacity when the trial period expires. The full capacity trial period is available on: • Newly purchased PTP 800 units. • Existing PTP 800 units that are upgraded to System Release 800-04-00 or a later release. If a full capacity trial is pending on this unit, the Software License Key page contains a trial period start control (Figure 118). To start the trial period, select Start trial period; when the confirmation message is displayed, select OK. To allow full transmit capacity, start the trial period at both link ends. When the trial has started, the Software License Key page displays the Trial Period Remaining attribute (Figure 119). This shows the time remaining (in days, hours or minutes) before the full capacity trial period expires. Figure 119 Software License Key page with full capacity trial in progress When the trial has ended, the Software License Key page displays a message. phn-2513_001v000 (Apr 2012) 6-21
- 448. Task 4: Upgrading software version Chapter 6: Configuration and alignment Task 4: Upgrading software version This task consists of the following procedures: • Checking the installed software version on page 6-22 • Upgrading to a new software version on page 6-23 Ensure that the correct units are upgraded, as units cannot easily be downgraded afterwards. If the link is operational, ensure that the remote end of the link is upgraded first using the wireless connection, and then the local end can be upgraded. Otherwise, the remote end may not be accessible. Load the standard (non-FIPS) software image for 800-04-00 or later before loading a FIPS software image. Checking the installed software version To check the installed software version, select menu option Status. The System Status page is displayed. Software Version is in the CMU section (Figure 120). If FIPS capability is required, check that the installed software is FIPS validated, as indicated by a -FIPS prefix to the Software Version, for example: FIPS-PTP800-04-10 Go to the support web page (see Contacting Cambium Networks on page 2) and find Point- to-Point software updates. Check that the latest software version (for example 800-04-10) is the same as the installed Software Version. If the software needs to be upgraded to the latest version, perform Upgrading to a new software version on page 6-23. 6-22 phn-2513_001v000 (Apr 2012)
- 449. PTP 800 Series User Guide Task 4: Upgrading software version Figure 120 Software Version in System Status page Upgrading to a new software version Perform this task to upgrade the units to a new version of PTP 800 operational software. CMU software version must be the same at both ends of the link. Limited operation may sometimes be possible with dissimilar software version, but such operation is not supported by Cambium. Upgrade the remote end of a link before upgrading the local end, and for a 1+1 Hot Standby link upgrade the inactive units and force a protection switch to them before upgrading the active units. This approach maximizes system availability. To upgrade the software, proceed as follows: 1 Save the pre-upgrade system configuration as described in Saving the system configuration on page 6-117. 2 Go to the support web page (see Contacting Cambium Networks on page 2) and find Point-to-Point software updates. Download and save the required software image (for example PTP 800-nn-mm.dld2 or PTP 800-nn-mm-FIPS.dld2). 3 Select menu option System, Software Upgrade. The Software Upgrade page is displayed: phn-2513_001v000 (Apr 2012) 6-23
- 450. Task 4: Upgrading software version Chapter 6: Configuration and alignment 4 Select Browse. Navigate to the folder containing the downloaded software image and select Open. 5 Select Upload Software Image. The Software Upgrade Confirmation page is displayed: If the upgrade is taking the CMU into or out of FIPS mode, an additional warning is displayed stating that the upgrade will cause automatic erasure of the critical security parameters (CSPs). 6 Select Program Software Image into Non-Volatile Memory. The Progress Tracker page is displayed. On completion, the Software Upgrade Complete page is displayed: 7 Select Reboot Wireless Unit. Select OK to confirm. The unit reboots with the new software installed. 8 Save the post-upgrade system configuration as described in Saving the system configuration on page 6-117. 6-24 phn-2513_001v000 (Apr 2012)
- 451. PTP 800 Series User Guide Task 5: Configuring security Task 5: Configuring security Perform this task to configure the PTP 800 in accordance with the network operator’s security policy. Choose from the following procedures: • Configuring AES encryption on page 6-26: to configure AES link encryption without HTTPS/TLS. • Configuring AES encryption in an operational link on page 6-28: to enable AES encryption over an operational link. • Configuring HTTPS/TLS on page 6-29: to configure the unit to operate in HTTPS/TLS mode. • Configuring local user accounts on page 6-39: to set user account options, password complexity and identity-based users. • Changing own user password on page 6-45: for any user to change their own password. • Protecting access to the summary and status pages on page 6-46: to apply password access to the System Summary and System Status pages. • Configuring RADIUS authentication on page 6-47: to configure RADIUS server authentication of PTP 800 users. If FIPS 140-2 secure mode is required, please refer to Configuring for FIPS 140-2 applications on page 6-119 instead of Configuring HTTPS/TLS on page 6-29. Ensure that the operator’s security requirements are configured before connecting the PTP 800 to the network. Otherwise, security may be compromised. phn-2513_001v000 (Apr 2012) 6-25
- 452. Task 5: Configuring security Chapter 6: Configuration and alignment Configuring AES encryption To configure AES link encryption (before the link is operational), proceed as follows: 1 Check the capability summary in the Software License Key page to ensure that the current license key supports AES. If necessary, obtain an access key and generate a new license key, as described in Task 3: Installing license keys on page 6-18. 2 Select menu option System, Configuration. The Installation Configuration page is displayed (Figure 121). 3 Select the Encryption Algorithm, either ‘AES 128-bit’ or ‘AES 256-bit’. The same algorithm must be used at both ends of the link. 4 Enter and confirm the encryption key. The key consists of 32 or 64 case-insensitive hexadecimal characters. The same key must be used at both ends of the link. 5 Select Submit Updated System Configuration. The reboot confirmation dialog is displayed: 6 Select Reboot Wireless Unit and then OK to confirm. 6-26 phn-2513_001v000 (Apr 2012)
- 453. PTP 800 Series User Guide Task 5: Configuring security Figure 121 Installation Configuration page phn-2513_001v000 (Apr 2012) 6-27
- 454. Task 5: Configuring security Chapter 6: Configuration and alignment Configuring AES encryption in an operational link Configuring link encryption over an operational link will necessitate a service outage. Therefore, the configuration process should be scheduled during a period of low link utilization. To enable AES encryption over an operational link, proceed as follows: 1 Open two browsers. 2 Log into the web interfaces at each end of the link. 3 Perform Configuring AES encryption on page 6-26 at each unit. 4 Reboot both ends of the link. 5 The software is designed to allow five seconds so that a user can command both ends of the link to reboot before the wireless link drops. To enable AES encryption over an operational 1+1 Hot Standby link: • Configure licence keys on all CMUs, if required to permit use of encryption. See Task 3: Installing license keys on page 6-18. • Follow the procedure Changing AES encryption keys on page 7-53. 6-28 phn-2513_001v000 (Apr 2012)
- 455. PTP 800 Series User Guide Task 5: Configuring security Configuring HTTPS/TLS Perform this procedure if the unit is required to operate in HTTPS/TLS mode. For more information, refer to Planning for HTTPS/TLS operation on page 2-23. If FIPS 140-2 secure mode is required, refer to Configuring for FIPS 140-2 applications on page 6-119 instead of this procedure. To configure HTTPS/TLS, proceed as follows: 1 Ensure that the following cryptographic material has been generated: Key Of Keys TLS Private Key and Public Certificates (for the correct IP address) User Defined Security Banner Entropy Input Wireless Link Encryption Key for AES 2 Identify the Port numbers for HTTPS, HTTP and Telnet. 3 Ensure that the web browsers used are enabled for HTTPS/TLS operation. 4 Select menu option Management, Web, Local User Accounts and check that: EITHER: Identity Based User Accounts are ‘Disabled’, OR: Identity Based User Accounts are ‘Enabled’. and the current user's role is Security Officer. 5 Perform Task 3: Installing license keys on page 6-18 and ensure that the installed license key meets all requirements including HTTPS/TLS compatibility: Check that Encryption Algorithm is ‘AES….’. If necessary, generate and enter a new license key with the above settings. 6 To activate HTTPS/TLS mode, perform Using the Security Wizard on page 6-30. phn-2513_001v000 (Apr 2012) 6-29
- 456. Task 5: Configuring security Chapter 6: Configuration and alignment Using the Security Wizard If the PTP 800 is to operate in secure mode (HTTPS/TLS with or without FIPS 140-2), use the Security Wizard to review and configure HTTPS/TLS security related parameters. The Security Wizard is only available when both of the following conditions are true: • The wireless unit has a license key with either 128-bit or 256-bit AES link encryption enabled, • AND: o EITHER: identity-based user accounts are disabled, o OR: identity-based user accounts are enabled and the user's role is Security Officer. If these conditions are not both true, the Current Security Summary page prevents execution of the wizard. Starting Security Wizard To review HTTPS/TLS security related parameters, select menu option Security. The Security Configuration Wizard page is displayed (Figure 122). Review the summary: if any updates are required, select Continue to Security Wizard. 6-30 phn-2513_001v000 (Apr 2012)
- 457. PTP 800 Series User Guide Task 5: Configuring security Figure 122 Security Configuration Wizard page phn-2513_001v000 (Apr 2012) 6-31
- 458. Task 5: Configuring security Chapter 6: Configuration and alignment Step 1: Enter key of keys Erasing or changing the keys of keys erases all critical security parameters (CSPs). The Step 1: Enter Key of Keys page is displayed (Figure 123). Enter the generated key of keys in both the Key Of Keys and Confirm Key Of Keys fields. Select Next. Figure 123 Step 1: Enter Key of Keys page Step 2: TLS private key and public certificate If the certificates expire, the unit will be unreachable. If this occurs, put the unit into recovery mode and erase all configuration. For more information, refer to Using recovery mode on page 7-71. The Step 2: TLS Private Key and Public Certificate page is displayed (Figure 124). If a valid TLS private key exists, then an SHA-1 thumbprint of the key is displayed. If this key is correct, then take no action. Otherwise, select Browse and select the generated private key file (.der). If a valid TLS public certificate exists, then an SHA-1 thumbprint of the certificate is displayed. If this certificate is correct, then take no action. Otherwise, select Browse and select the generated certificate file (.der). Select Next. 6-32 phn-2513_001v000 (Apr 2012)
- 459. PTP 800 Series User Guide Task 5: Configuring security Figure 124 Step 2: TLS Private Key and Public Certificate page Step 3: User security banner The Step 3: User Security Banner page is displayed (Figure 125). Update the User Defined Security Banner field. This banner will be displayed every time a user attempts to login to the wireless unit. Select Next Figure 125 Step 3: User Security Banner page phn-2513_001v000 (Apr 2012) 6-33
- 460. Task 5: Configuring security Chapter 6: Configuration and alignment Step 4: Login information settings The Step 4: Login Information Settings page is displayed (Figure 126). Set Display Login Information to ‘No’ or ‘Yes’. Select Next. Figure 126 Step 4: Login Information Settings page Step 5: Random number entropy input The Step 5: Random Number Entropy Input page is displayed (Figure 127). The entropy input is used to seed the TLS random number generator. If valid entropy input exists, then an SHA-1 thumbprint of the input is displayed. If this input is correct, then take no action. Otherwise, enter the generated input in the Entropy Input and Confirm Entropy Input fields. Select Next. Figure 127 Step 5: Random Number Entropy Input page 6-34 phn-2513_001v000 (Apr 2012)
- 461. PTP 800 Series User Guide Task 5: Configuring security Step 6: Enter the wireless link encryption key The Step 6: Enter The Wireless Link Encryption Key page is displayed (Figure 128). The wireless link encryption key is used to encrypt all traffic over the PTP 800 wireless link. Select the applicable value in the Encryption Algorithm field. If a valid encryption key exists, then an SHA-1 thumbprint of the key is displayed. If this key is correct, then take no action. Otherwise, enter the generated key in the Wireless Link Encryption Key and Confirm Wireless Link Encryption Key fields. Select Next. Figure 128 Step 6: Enter Wireless Link Encryption Key page phn-2513_001v000 (Apr 2012) 6-35
- 462. Task 5: Configuring security Chapter 6: Configuration and alignment Step 7: HTTP and Telnet settings The Step 7: HTTP and Telnet Settings page is displayed (Figure 129). The PTP 800 can be remotely managed in four ways: HTTPS, HTTP, Telnet or SNMP. Review and update the HTTP and Telnet attributes (Table 224). Select Next. Figure 129 Step 7: HTTP and Telnet Settings page 6-36 phn-2513_001v000 (Apr 2012)
- 463. PTP 800 Series User Guide Task 5: Configuring security Table 224 HTTP and Telnet attributes Attribute Meaning HTTPS Port The port number for HTTPS access. A value of zero means the Number wireless unit uses the default port. HTTPS access is controlled by license key. HTTP Access ‘No’ means that the unit will not respond to any requests on the Enabled HTTP port. ‘Yes’ means that the unit will respond to requests on the HTTP port. Remote management via HTTPS is not affected by this setting. HTTP Port The port number for HTTP access. A value of zero means the Number wireless unit uses the default port. Telnet Access ‘No’ means that the unit will not respond to any requests on the Enabled Telnet port. ‘Yes’ means that the unit will respond to requests on the Telnet port. Telnet Port The port number for Telnet access. A value of zero means the Number wireless unit uses the default port. SNMP Control of ‘Disabled’ means that neither HTTP nor Telnet can be controlled HTTP And Telnet remotely via SNMP. ‘Enabled’ means that both HTTP and Telnet can be controlled remotely via SNMP. Debug Access ‘Yes’ means that Cambium Technical Support is allowed to Enabled access the system to investigate faults. If HTTP, Telnet and SNMP are all disabled (as required for FIPS 140-2 mode), the secure web server becomes the only management tool for the CMU web interface. To reenter the web interface after Step 7 of the Security Wizard, use the URL https://aa.bb.cc.dd (where aa.bb.cc.dd is the IP address of the unit). phn-2513_001v000 (Apr 2012) 6-37
- 464. Task 5: Configuring security Chapter 6: Configuration and alignment Step 8: Commit security configuration Review all changes that have been made in the Security Wizard (Figure 130). To ensure that the changes take effect, select Commit Security Configuration. The unit reboots and the changes take effect. Figure 130 Step 8: Commit Security Configuration page 6-38 phn-2513_001v000 (Apr 2012)
- 465. PTP 800 Series User Guide Task 5: Configuring security If the Key of keys is entered or modified in the Security Wizard, user accounts are reset when Commit Security Configuration is selected. It is then necessary to reconfigure them. Configuring local user accounts Perform this procedure to ensure that user access to the web-based management interface is controlled in accordance with the network operator’s security policy. If identity-based user accounts are enabled, this procedure may only be performed by a Security Officer. Setting user account options To set user account options, select menu option Management, Web, Local User Accounts. The Local User Accounts page is displayed (Figure 131). Review and update the Local User Account Management attributes (Table 225). If any attributes have been updated, select Submit User Account Updates. phn-2513_001v000 (Apr 2012) 6-39
- 466. Task 5: Configuring security Chapter 6: Configuration and alignment Figure 131 Local User Accounts page (identity-based user accounts not shown) 6-40 phn-2513_001v000 (Apr 2012)
- 467. PTP 800 Series User Guide Task 5: Configuring security Table 225 Local User account management attributes Attribute Meaning Identity Based When this is disabled, access to the web interface is controlled by a User Accounts single system administration password. When this is enabled, the identity-based user account attributes are enabled. For more information, refer to Creating or updating identity-based users on page 6-44. Auto Logout The time without user activity that elapses before a user is Period automatically logged out (minutes). Minimum The minimum time that elapses before a user is allowed to change a Password password (minutes). A value of zero disables this feature. Change Period Password The time that elapses before a password expires (days). A value of Expiry Period zero disables this feature. Maximum The maximum number of login attempts (with incorrect password) Number of that are allowed before a user is locked out. Login Attempts Also, the maximum number of password change attempts before a user is locked out. Login Attempt Action to be taken when a user is locked out. Lockout Action ‘Timeout’ means the user is allowed to attempt to log in again after a specified period. ‘Disabled’ means the user is disabled. Login Attempt The time that elapses before a locked out user is allowed to log in Lockout Period again (minutes). Only displayed when Login Attempt Lockout Action is set to ‘Timeout’. Webpage When this is enabled, any attempt to open a new tab or browser Session Control instance will force the user to re-enter password. Password The action to be taken by the PTP 800 when a password expires. Expiry Action phn-2513_001v000 (Apr 2012) 6-41
- 468. Task 5: Configuring security Chapter 6: Configuration and alignment Setting password complexity Complete this task to configure password complexity rules for the web-based management interface. If identity-based user accounts are enabled, this task may only be performed by a Security Officer. If the unit is required to operate in FIPS 140-2 secure mode, password complexity configuration must be set to ‘Best Practise Values’. To set these options, proceed as follows: 1 Select menu option Management, Web, Local User Accounts. The Local User Accounts page is displayed (Figure 131). 2 Review and update the password complexity configuration attributes (Table 226). 3 To reset all attributes to the best practice values (as shown in Table 226), select Set Best Practice Complexity. This is required for FIPS 140-2. 4 To restore default values, select Set Default Complexity. 5 If any attributes have been updated, select Submit User Account Updates. Table 226 Password complexity configuration attributes Attribute Meaning Best practice Minimum Password The minimum number of characters required in 10 Length passwords. Password Can ‘No’ means that passwords must not contain the No Contain User Name user name. ‘Yes’ means that passwords may contain the user name. Minimum Number The minimum number of lowercase, uppercase, 2 Of Specific numeric and special characters required in Characters passwords. For example, if all values are set to 2, then ‘FredBloggs’ will be rejected, but ‘FredBloggs(25)’ will be accepted. 6-42 phn-2513_001v000 (Apr 2012)
- 469. PTP 800 Series User Guide Task 5: Configuring security Attribute Meaning Best practice Maximum The maximum number of consecutive repeated 2 Consecutive alphabetic, numeric and special characters Repeated permitted in passwords. Characters For example, if all values are set to 2, then ‘aaa’, ‘XXX’, ‘999’ and ‘$$$’ will be rejected, but ‘aa’, ‘XX’, ‘99’ or ‘$$’ will be accepted. Maximum The maximum number of consecutive lowercase, 5 Consecutive uppercase and numeric characters permitted in Characters of a passwords. Certain Type For example, if all values are set to 5, then ‘ALFRED’, ‘neuman’ and ‘834030’ will be rejected. Maximum Series The maximum number of alphabetic and numeric 3 Length characters permitted in passwords. For example, if set to 3, then ‘abcd’, ‘WXYZ’ and ‘0123’ will be rejected, but ‘abc’, ‘xyz’ and ‘123’ will be accepted. Maximum Repeated The maximum sequence of characters that can be 3 Pattern Length repeated consecutively in passwords. For example, if set to 3, then ‘BlahBlah’ and ‘31st31st’ will be rejected, but ‘TicTicTock’ and ‘GeeGee’ will be accepted. ‘Blah-Blah’ will be accepted because the two sequences are not consecutive. Match Reversed ‘No’ means that reversed patterns are not Yes Patterns checked. ‘Yes’ means that reversed patterns are checked. For example, if Maximum Repeated Pattern Length is set to 3 and Match Reversed Patterns is set to ‘Yes’, then ‘AB1221BA’ will be rejected. Minimum The minimum number of password characters that 4 Characters That must change every time a password is updated. Must Change Password Reuse ‘Permitted’ means that a user may reuse a Prohibited previous password. ‘Prohibited’ means that a user must not reuse a previous password. phn-2513_001v000 (Apr 2012) 6-43
- 470. Task 5: Configuring security Chapter 6: Configuration and alignment Attribute Meaning Best practice Special Characters User defined set of special characters used in !"%&'()*+,- password construction. The only characters ./:;<=>? permitted in a password are: (a-z), (A-Z), (0-9) and any of the special characters entered here. Creating or updating identity-based users Perform this task to allow multiple users (from one to ten) to access the CMU with different levels of access. There are three defined levels of access: Security Officer, System Administrator and Read Only. If identity-based user accounts are already enabled, this task may only be performed by a user with role set to Security Officer. To create or update identity-based user accounts, proceed as follows: 1 Select menu option Management, Web, Local User Accounts. The Local User Accounts page is displayed (Figure 131). 2 Set the Identity Based User Accounts attribute to ‘Enabled’ (if it is not already set). The identity-based user account attributes are enabled for update (Figure 132). 3 Create or update up to 10 user accounts (Table 227). 4 To restore default accounts, select Reset to Factory Defaults. 5 If any accounts have been created or updated, select Submit User Account Updates. Figure 132 Identity-based user accounts 6-44 phn-2513_001v000 (Apr 2012)
- 471. PTP 800 Series User Guide Task 5: Configuring security Table 227 Identity-based user accounts attributes Attribute Meaning Name Enter a user name. Role Select a role from the list: Security Officer System Administrator Read Only At least one user must be assigned the Security Officer role. If RADIUS is enabled, then this rule is relaxed, in which case the RADIUS server(s) SHOULD be configured with at least one user with 'Security Officer' privileges. Password Enter a password for the user. Passwords must comply with the complexity rules (Table 226). Password Confirm Retype the password to confirm. Force Password Force this user to change their password when they next log on. Change Disable Tick the box to disable a user account. Changing own user password This method is used for any user to change their personal password. A security officer can change the passwords of other users using the User Accounts page, as described in Creating or updating identity-based users on page 6-44. Select menu option Change Password. The Change Password page is displayed (Figure 133). Enter and confirm the new password (the factory default is blank). The new password must comply with the complexity rules (Table 226). phn-2513_001v000 (Apr 2012) 6-45
- 472. Task 5: Configuring security Chapter 6: Configuration and alignment Figure 133 Change Password page Protecting access to the summary and status pages By default, the Home and Status menu items are not protected by password. If a higher level of system security is required, password protection can be extended to these pages. To apply password access to the System Summary and System Status pages, select menu option Management, Web, Web Properties. The Webpage Properties page is displayed (Figure 134). In the Web Properties attribute, uncheck the ‘Disable FrontPage login’ box and select Apply Properties. If the System Administration Password has not yet been set, see Changing own user password on page 6-45. Figure 134 Webpage Properties page 6-46 phn-2513_001v000 (Apr 2012)
- 473. PTP 800 Series User Guide Task 5: Configuring security Configuring RADIUS authentication This task is only performed when the PTP 800 link requires RADIUS authentication. RADIUS authentication is only available when PTP 800 is configured for Identity-based User Accounts and when RADIUS servers are connected to the network. Only users with ‘Security Officer’ role are permitted to configure RADIUS authentication. When RADIUS is enabled, the Security Officer may disable all local user accounts, as described in Creating or updating identity-based users on page 6-44. At least one user with Security Officer privileges must exist and be enabled, in order to disable the RADIUS client. To configure RADIUS, select menu option Management, Web, Radius Config. The RADIUS Authentication page is displayed (Figure 135). Update the attributes as required (Table 228). Select Submit RADIUS Configuration. phn-2513_001v000 (Apr 2012) 6-47
- 474. Task 5: Configuring security Chapter 6: Configuration and alignment Figure 135 RADIUS Configuration page 6-48 phn-2513_001v000 (Apr 2012)
- 475. PTP 800 Series User Guide Task 5: Configuring security Table 228 RADIUS Authentication attributes Attribute Meaning RADIUS Client ‘Enabled’ means that PTP 800 users may be authenticated via Enabled the RADIUS servers. ‘Disabled’ may only be selected if at least one user with Security Officer privileges exists. RADIUS Primary Specifies the primary server, determining the order in which the Server servers are tried. RADIUS Primary Time (in minutes) to hold off trying to communicate with a Server Dead Time previously unavailable RADIUS server. Setting the value to zero disables the timer. RADIUS Server Number of times the PTP 800 will retry after a RADIUS server Retries fails to respond to an initial request. RADIUS Server Time (in seconds) the PTP 800 will wait for a response from a Timeout RADIUS server. Authentication Method used by RADIUS to authenticate users. Method Authentication Server 1 and 2: RADIUS Server The status of the RADIUS server. This contains the time of the Status last test and an indication of success or failure. If the Authentication Server attributes are incorrect, the displayed status is ‘server config not valid’. RADIUS Server IP IP address of the RADIUS server. Address RADIUS Server Network port used by RADIUS server for authentication Authentication services. Port RADIUS Server Shared secret used in RADIUS server communications. May Shared Secret contain alphabetic, numeric, special characters or spaces, but not extended unicode characters. The maximum length is 127 characters. RADIUS Server Shared secret confirmation. Shared Secret Confirm phn-2513_001v000 (Apr 2012) 6-49
- 476. Task 6: Configuring protection Chapter 6: Configuration and alignment Task 6: Configuring protection If the PTP 800 link is to be unprotected (1+0 or 2+0), perform Configuring unprotected links on page 6-50. If the PTP 800 link is to be protected using the 1+1 Hot Standby feature, perform Configuring 1+1 Hot Standby links on page 6-51. To upgrade an existing unprotected link to use the 1+1 Hot Standby, perform Upgrading an unprotected link to 1+1 Hot Standby on page 6-58. Configuring unprotected links To ensure that protection is disabled, select menu option System, Configuration, Protection. When the Protection Configuration page is displayed (Figure 136), confirm that the Protection attribute is set to ‘Disabled’. Figure 136 Protection Configuration page (protection disabled) The Status page shows details of the PTP 800 at the other end of the link with no protection information. 6-50 phn-2513_001v000 (Apr 2012)
- 477. PTP 800 Series User Guide Task 6: Configuring protection Configuring 1+1 Hot Standby links Before configuring CMUs which are part of a 1+1 Hot Standby link, it is strongly advised that a label is attached to the CMU identifying the IP Address, the Site Name and whether it is to be configured as Primary or Secondary. It should also be very clear which site is required to transmit on the High side of the FDD frequency plan and which is required to transmit at the low side. Depending on the configuration, a CMU labelled Primary must eventually be connected to one of the following: • The ODU which is connected to the arm of the coupler labelled Main. • The ODU which is connected to the antenna with the highest gain. • The left hand transceiver in an IRFU. For background information, see 1+1 Hot Standby link protection on page 1-64. Before configuring the CMUs, ensure that the following information is known. • Which CMU is to be configured as Primary and which unit is to be configured as Secondary. This is controlled by the Primary Secondary Mode attribute. • Whether the end is to be installed with one or two antennas. This is controlled by the Number of Antennas attribute. • Whether the method of connection to the Ethernet switch is via Fiber-Y. This is controlled by the Fiber-Y attribute. (see Network configurations for 1+1 on page 2-43 for details about Fiber-Y). • Whether the Primary Recovery feature should be enabled and if so, the value of Primary Recovery Period. If the Primary has become Inactive for any reason, for example a previous fault, this feature automatically forces the Primary to become active again if it has been fault free for a configurable period of time defined by the Primary Recovery Period. This only needs to be configured on the CMU configured as Secondary. • Whether an Ethernet port down alert is required on each protection switch. This is controlled by the Protection Switch Alert attribute. Enabling this feature is only of benefit in complex networks, for example where a 1+1 Hot Standby link forms part of a ring network architecture. This should normally remain disabled. • Whether Receive Diversity is to be enabled (see Planning for Receive Diversity on page 2-46 for planning of this feature). This is controlled by the protection attribute. • If Receive Diversity is to be enabled, ensure that the values for the Rx Diversity TPID (Tag Protocol Identifier) and the Rx Diversity VID (VLAN identifier) are known. phn-2513_001v000 (Apr 2012) 6-51
- 478. Task 6: Configuring protection Chapter 6: Configuration and alignment Before upgrading existing links from unprotected to protected, complete the following prerequisites: • Configure the new CMUs as primary or secondary units by setting the Primary Secondary Mode attribute. • For a new primary CMU, ensure that wireless transmission is disabled by selecting Mute Transmitter. This prevents possible interference with the existing operational unit. • Attach ‘Primary” or ‘Secondary’ labels as appropriate to the new CMUs. • Set Fault Protection Switching to ‘Disabled’. This prevents fault protection switches occurring during installation. To configure protection, proceed as follows: 1 Select menu option System, Configuration, Protection. The Protection Configuration page is displayed (Figure 136). 2 If the Transmitter attribute is set to ‘Enabled’, there may be a safety requirement to disable wireless transmission. If so, select Mute Transmitter. The Transmitter attribute changes to ‘Muted’. 3 Depending on whether Receive Diversity is required, set the Primary unit protection attribute to either ‘Hot Standby 1+1’ (Figure 137) or ‘Hot Standby 1+1 with Rx Diversity’ (Figure 138). 4 Repeat at the Secondary unit (Figure 139 or Figure 140): 5 Review and update the Protection Configuration attributes (Table 229). 6 Select Submit Updated configuration. 6-52 phn-2513_001v000 (Apr 2012)
- 479. PTP 800 Series User Guide Task 6: Configuring protection Figure 137 Protection Configuration page for 1+1 (Primary) Figure 138 Protection Configuration page for 1+1 with Rx Diversity (Primary) phn-2513_001v000 (Apr 2012) 6-53
- 480. Task 6: Configuring protection Chapter 6: Configuration and alignment Figure 139 Protection Configuration page for 1+1 (Secondary) Figure 140 Protection Configuration page for 1+1 with Rx Diversity (Secondary) 6-54 phn-2513_001v000 (Apr 2012)
- 481. PTP 800 Series User Guide Task 6: Configuring protection If a CMU is set to primary when a coupler is used, it must be connected to the ODU on the MAIN side of the coupler. This is especially important for an asymmetric coupler where the performance of the MAIN unit will be enhanced. In this case, Primary Recovery Period should be set to a non-zero value to maximize the use of the Main Path. If antenna protection is used and the two antennas are not the same, then the CMU connected to the more powerful antenna must be the primary. In this case, for optimum link performance, Primary Recovery Period must also be set to a non-zero value. Table 229 Protection Configuration attributes Attribute Meaning Transmitter If the transmitter is set to ‘Muted’, the RFU will not radiate and the CMU will not forward Ethernet frames between the wireless interface and the Ethernet ports. This applies in all conditions. If the transmitter is set to ‘Enabled’, the RFU is allowed by the user to radiate and the CMU is allowed by the user to forward Ethernet frames between the wireless interface and the Ethernet ports. However, other factors may still prevent this, for example if the unit is the inactive unit at an end of a 1+1 Hot Standby link. This attribute does not indicate whether the unit is actually radiating and forwarding Ethernet Frames, but is a configuration attribute allowing the unit to radiate and forward traffic if other factors permit. To see if the unit is actually radiating and forwarding traffic, examine the Transmitter Status attribute on the Status page. Protection For a 1+1 Hot Standby link, set this to: ‘Hot Standby 1+1’ ‘Hot Standby 1+1 with Rx Diversity’ For all other link types, set this to 'Disabled'. phn-2513_001v000 (Apr 2012) 6-55
- 482. Task 6: Configuring protection Chapter 6: Configuration and alignment Attribute Meaning Fault Protection Switching This must be set to ‘Enabled’ for the normal 1+1 operation. When this is set to ‘Disabled’, a protection switch will not occur when a fault is detected on the active unit. With this setting, the user still has the ability to change which unit is active. This setting can be useful during installation or maintenance operations where the user wishes to have full control of which unit is active. When this is set to ‘Enabled’, a protection switch will occur when a fault is detected on the active unit. Primary Secondary mode Allows the user to configure the CMU as Primary or Secondary. The CMU configured as Primary is the preferred unit in that it will become the active unit unless it is faulty. In the case where the two ODUs at an end have a different path loss, for example where they are coupled to a common antenna using an Asymmetric Coupler Mounting Kit (see Coupler mounting kits on page 1-30), the CMU configured as Primary should be connected to the RFU with the lowest path loss. Fiber-Y This must be only configured as ‘Enabled’ if the neighboring CMUs at an end of a 1+1 Hot Standby link are connected to the network using the Optical Y Splitter Kit (see Installing a Fiber-Y interface on page 5-92). For all other network connections, this must be set to ‘Disabled’. If a CMU is being replaced in an otherwise working 1+1 Hot Standby link, the Fiber must not be physically connected to the CMU unless Fiber-Y has already been configured as ‘Enabled’. If the fiber is connected before enabling Fiber-Y, the 1+1 link will not bridge customer data until it is enabled. Number of Antennas Set this to the number of antennas to be installed at this end of the link. 6-56 phn-2513_001v000 (Apr 2012)
- 483. PTP 800 Series User Guide Task 6: Configuring protection Attribute Meaning Primary Recovery If Primary Recovery is set to ‘Enabled’ and the active unit is the Secondary unit, the Primary unit will become active if it has been fault free for a configurable period of time. It is the Secondary unit which controls if the Primary has been fault free for a sufficiently long period of time and so this option is only available on a unit configured as Secondary. Primary Recovery Period This allows the user to configure how long the Primary unit must be free of faults before the Primary takes over as the active unit (see Primary Recovery). Protection Switch Alert This provides the option for alerting to the Ethernet switch that a protection switch has occurred. This is done by the CMU momentarily (between 0.5 and 1 second) disabling the Ethernet port on the newly active unit. For most network deployments, this would normally be set to ‘Disabled’. Setting this to ‘Enabled’ may however be useful in complex networks where the network design is to allow an alternative route to bridge the traffic following a protection switch. Rx Diversity TPID The Inactive unit sends special Receive Diversity Ethernet Frames to the Active unit via the Ethernet Switch. These frames must be configured to be tagged as either C-TAG or S-TAG frames. Rx Diversity VID The Inactive unit sends special Receive Diversity Ethernet Frames to the Active unit via the Ethernet Switch. These frames must be configured with a specific VID. phn-2513_001v000 (Apr 2012) 6-57
- 484. Task 6: Configuring protection Chapter 6: Configuration and alignment Upgrading an unprotected link to 1+1 Hot Standby This section describes how to upgrade an existing unprotected link to use the 1+1 Hot Standby link protection feature. Although the disruption to an existing link can be minimized, this process cannot be carried out without interrupting the operation of the link. The following actions will interrupt link operation: • Upgrading the software. This can be carried out in advance of hardware installation. Alternatively during the installation after the inactive units have been installed and when the inactive units are providing an operational link, the existing units may be upgraded and configured. • Installing a second ODU on the coupler if a single antenna is used at each end. • Aligning antennas when antenna protection is implemented. As the new antennas operate on the same frequencies as the existing ones, alignment cannot be performed while the existing antennas run an operational link. • Other operations if working close to an antenna. • Testing that the protection is working correctly by forcing protection switchovers. If configuration is carried out on site, then before the new units are taken to site, radio transmission should be inhibited as described in Disabling wireless transmission on page 7-32. This prevents possible interference with the existing operational unit. 6-58 phn-2513_001v000 (Apr 2012)
- 485. PTP 800 Series User Guide Task 6: Configuring protection To implement protection on an unprotected link, follow this process: 1 It is common practice to pre-configure the two new CMUs during staging before site installation. Perform the following tasks from Chapter 6: Configuration and alignment for each CMU: from Task 1: Connecting to the unit on page 6-3, to Task 11: Configuring remote access on page 6-93. These tasks may be performed after installation, if preferred. 2 In the field, upgrade the operational CMUs to the latest software version by performing Task 4: Upgrading software version on page 6-22. 3 In the field, configure the operational CMUs for protected operation by performing Task 6: Configuring protection on page 6-50. If this is done in advance of installation of the new CMUs, the PTP 800 will still be operational and the wireless link can operate with single units, but alarms will be issued due to the absence of protecting units. The Protected link page is now available with local and remote ends shown as unprotected, see Viewing the status of a 1+1 Hot Standby link on page 7-33. 4 Install and test the new hardware by following the relevant procedures in this chapter. 5 Align the antennas and complete the configuration. Perform the following tasks from Chapter 6: Configuration and alignment: from Task 12: Aligning antennas on page 6-96, to Task 15: Connecting link to the network on page 6-112. 6 Initiate a protection switch so that the link is running Primary to Primary. If primary recovery is set, the units will switch automatically after the timer has expired. phn-2513_001v000 (Apr 2012) 6-59
- 486. Task 7: Configuring wireless interface Chapter 6: Configuration and alignment Task 7: Configuring wireless interface The Installation Wizard handles the important configuration settings that must be set to comply with the individual license conditions. These settings can only be changed using the Installation Wizard. This task consists of the following procedures: • Prerequisites for the Installation Wizard on page 6-60 • Step 1: Enter equipment details on page 6-62 • Step 2: Enter details of the radio license on page 6-66 • Step 3: Configuring wireless parameters on page 6-69 • Step 4: Confirming installation configuration on page 6-70 • Step 5: Skipping antenna alignment on page 6-72 • Step 6: Completing configuration without alignment on page 6-73 Prerequisites for the Installation Wizard Before performing Steps 1 to 4 of the Installation Wizard, check that the following requirements have been met: • All license details are available, including maximum EIRP, antenna gain, transmit and receive frequencies, channel bandwidth. • A unique link name has been assigned to this link. Link Name must be the same at both link ends, otherwise the link will not work. Starting Installation Wizard To start the Installation Wizard, select menu option Installation. The Current Installation Summary page (Figure 141) is displayed. Review the summary. If any changes are required, select Continue to Installation Wizard. 6-60 phn-2513_001v000 (Apr 2012)
- 487. PTP 800 Series User Guide Task 7: Configuring wireless interface Figure 141 Current Installation Summary page phn-2513_001v000 (Apr 2012) 6-61
- 488. Task 7: Configuring wireless interface Chapter 6: Configuration and alignment Step 1: Enter equipment details Step 1 of the Installation Wizard is for updating the equipment configuration. If RFU Installation Platform is set to ‘ODU-A’ or ‘ODU-B’, the page is displayed without IRFU attributes (Figure 142). If RFU Installation Platform is set to ‘IRFU-HP’, the page is displayed with IRFU attributes (Figure 143). The attributes are described in Table 230. Update the attributes as required and select Next. Figure 142 Step 1: Enter equipment details page (ODU) 6-62 phn-2513_001v000 (Apr 2012)
- 489. PTP 800 Series User Guide Task 7: Configuring wireless interface Figure 143 Step 1: Enter equipment details page (IRFU) Table 230 Step 1: Equipment Configuration attributes Attribute Meaning Link Link Name Enter a meaningful name for the PTP link. It is used to establish a connection with the PTP 800 at the other link end (site). Ensure that Link name is the same at both ends of the link. If the Link name is not the same, the link will not establish. phn-2513_001v000 (Apr 2012) 6-63
- 490. Task 7: Configuring wireless interface Chapter 6: Configuration and alignment Attribute Meaning Site Name Enter the Site Name where the unit is to be installed. For 1+1 Hot Standby links, it is recommended that the Primary and Secondary CMUs installed at the same end are configured with the same Site Name. An individual unit within a network is then identifiable from the three attributes: Link Name, Site Name and Primary Secondary Mode. RFU RFU Status The status of the RFU. If the RFU is not connected to the CMU, this attribute indicates “No Response” with a red background. RFU Installation If the Installation Wizard is being run with no RFU connected, Platform select the RFU platform that will be installed (IRFU-HP, ODU- A or ODU-B). If an RFU is already connected, the CMU will identify the platform here. RFU Branching Only displayed when RFU Installation Platform is set to ‘IRFU- Configuration HP’. Select the required IRFU branching configuration: RFU 1+0 RFU 1+0 MHSB Ready (Equal) RFU 1+0 MHSB Ready (Unequal) RFU 1+1 MHSB (Equal) RFU 1+1 MHSB (Unequal) RFU 1+1 Tx MHSB / Rx SD RFU 2+0 For details of these configurations, refer to . RFU Transceiver Only displayed when RFU Installation Platform is set to ‘IRFU- Location HP’ and RFU Branching Configuration is not ‘RFU 1+0’. The CMU must know the location of the transceiver within the IRFU to which it is connected. Select the location of the transceiver: Left (TRx A) Right (TRx B) 6-64 phn-2513_001v000 (Apr 2012)
- 491. PTP 800 Series User Guide Task 7: Configuring wireless interface Attribute Meaning RFU Receive Only displayed when RFU Installation Platform is set to ‘IRFU- Branching Unit Loss HP’. This reports the receiver branching unit loss between the IRFU waveguide port and the transceiver. RFU Transmit Only displayed when RFU Installation Platform is set to ‘IRFU- Branching Unit Loss HP’. This reports the transmitter branching unit loss between the transceiver and IRFU waveguide port. Antenna Antenna Gain Enter the antenna gain (dBi). RF Feeder Loss Enter the loss (dB) in the feeder (waveguide) between the RFU and antenna, including loss of couplers. This should be zero for a direct mount configuration with no coupler. Waveguide specifications are provided in Flexible waveguide specifications on page 4-10. Diverse Antenna Gain Only displayed when RFU Installation Platform is set to ‘IRFU- HP’ and RFU Branching Configuration is set to ‘RFU 1+1 Tx MHSB / Rx SD’. Enter the gain (dBi) of the diverse antenna. Diverse RF Feeder Loss Only displayed when RFU Installation Platform is set to ‘IRFU- HP’ and RFU Branching Configuration is set to ‘RFU 1+1 Tx MHSB / Rx SD’. Enter the loss (dB) in the feeder (waveguide) between the IRFU and diverse antenna. IF Cable IF Cable Length Enter the total length of the IF cable from the RFU to the CMU in meters or feet as appropriate. The maximum permitted length is 190 meters (620 ft) for standard IF cable. If the required IF cable length is between 190 and 300 meters (620 ft and 980 ft), contact Technical Support. The units can be changed using the Properties web page. Modem phn-2513_001v000 (Apr 2012) 6-65
- 492. Task 7: Configuring wireless interface Chapter 6: Configuration and alignment Attribute Meaning Short Power Cycle For If set to ‘Enabled’, a short power cycle will cause the CMU to Recovery boot in recovery mode. If set to ‘Disabled’, the CMU will boot in recovery mode only through use of the front panel recovery switch. If it is reasonably easy to access the CMU to press the Recovery button then set to ‘Disabled’. Set to ‘Enabled’ only if the CMU will be installed in a location that is difficult to access. The short power cycle provides an additional way to start the CMU in recovery mode for remote operation. For more information, see Using recovery mode on page 7-71. Step 2: Enter details of the radio license Step 2 of the Installation Wizard is for updating radio license attributes. The attributes depend upon Radio License Region and Radio License Modulation Selection (Figure 144 or Figure 145 or Figure 146). The attributes are described in Table 231. Update the attributes as required and select Next. Figure 144 Step 2: Radio License Configuration page (fixed modulation) 6-66 phn-2513_001v000 (Apr 2012)
- 493. PTP 800 Series User Guide Task 7: Configuring wireless interface Figure 145 Step 2: Radio License Configuration page (FCC adaptive modulation) Figure 146 Step 2: Radio License Configuration page (ETSI adaptive modulation) phn-2513_001v000 (Apr 2012) 6-67
- 494. Task 7: Configuring wireless interface Chapter 6: Configuration and alignment Table 231 Step 2: Radio License Configuration attributes Attribute Meaning Radio License Enter an identifier for the radio license, for example a Identifier certificate number, if one was provided by the licensing authority. This attribute is for reference only. Radio License Band Select the licensed band (GHz). When an RFU is attached, this attribute is set automatically. Radio License Region Select the license region. Radio License Select the licensed bandwidth (MHz). Bandwidth This attribute is only displayed when Radio License Region is set to FCC or Canada. Radio License Channel Select the licensed spacing between channels (MHz). Separation This attribute is only displayed when Radio License Region is set to ETSI or Brazil. Radio License ‘Fixed Modulation’ is the default. Modulation Selection ‘Adaptive Modulation’ may be available, if permitted by the license. Radio License Mod Select the licensed modulation mode. Mode This attribute is only displayed when Radio License Modulation Selection is set to ‘Fixed Modulation’. Radio License Ref. Reference modulation mode specified by the license. This Modulation control is only visible for certain regions when Radio License Modulation Selection is set to ‘Adaptive’. Radio License Max Select the highest modulation mode allowed by the license. Mod Mode This control is only visible for certain regions when Radio License Modulation Selection is set to ‘Adaptive’. Radio License Min Select the lowest modulation mode allowed by the license. Mod Mode This control is only visible for certain regions when Radio License Modulation Selection is set to ‘Adaptive’. Radio License Max Enter the maximum permitted strength of the radio signal EIRP in dBm EIRP. Radio License Tx Enter the licensed transmit frequency (MHz). Frequency Radio License Rx Enter the licensed receive frequency (MHz). Frequency 6-68 phn-2513_001v000 (Apr 2012)
- 495. PTP 800 Series User Guide Task 7: Configuring wireless interface Step 3: Configuring wireless parameters Step 3 of the Installation Wizard is for updating the constraints on wireless operation. The attributes depend upon Radio License Region and Radio License Modulation Selection (Figure 147 or Figure 148). The attributes are described in Table 232. Update the attributes as required and select Next. Figure 147 Step 3: Wireless Configuration page (normal) Figure 148 Step 3: Wireless Configuration page (ETSI adaptive modulation) Table 232 Step 3: Wireless Configuration attributes Attribute Meaning Maximum Transmit Enter the maximum transmit power the wireless unit is Power permitted to use when establishing and maintaining the wireless link. This defaults to the lowest of the maximum allowed by the equipment, the maximum allowed by the license or the user maximum set in a previous installation. When an IRFU is connected (rather than an ODU), this refers to the power at the transceiver output, not at the antenna port. EIRP EIRP that is achieved when the transmitter is operating at the configured Maximum Transmit Power. phn-2513_001v000 (Apr 2012) 6-69
- 496. Task 7: Configuring wireless interface Chapter 6: Configuration and alignment Attribute Meaning User ACM Highest This is the maximum modulation mode the radio can use Mod Mode when ACM is enabled. The valid range depends on the region, license and Tx Max Power. This attribute is only visible for certain regions when Radio License Modulation Selection is set to ‘Adaptive’. User ACM Lowest This is the minimum modulation mode the radio can use Mod Mode when ACM is enabled. The valid range depends on the region, license and Tx Max Power. This attribute is only visible for certain regions when Radio License Modulation Selection is set to ‘Adaptive’. Step 4: Confirming installation configuration When the Step 4: Confirm Installation Configuration page is displayed (Figure 149), review the attributes. If any are incorrect, select Back and return to the appropriate step to correct them. If all attributes are correct, select Submit Updated Installation Configuration or Next. If the RFU is not connected to the CMU, the RFU Type attribute is set to ‘Not Present’. Changed parameters are shown in bold. 6-70 phn-2513_001v000 (Apr 2012)
- 497. PTP 800 Series User Guide Task 7: Configuring wireless interface Figure 149 Step 4: Confirm Installation Configuration page phn-2513_001v000 (Apr 2012) 6-71
- 498. Task 7: Configuring wireless interface Chapter 6: Configuration and alignment Step 5: Skipping antenna alignment If the Installation Wizard is being run during pre-configuration before site installation, then antenna alignment must be deferred until site installation is complete at both link ends. If the Installation Wizard is being run after site installation is complete, then antenna alignment can begin immediately. Do not start antenna alignment until it is safe for the antennas to radiate RF, that is, until the antennas and ODUs have been installed on the masts or poles and no personnel are in front of the antennas. When the Step 5: Start Antenna Alignment page is displayed (Figure 150), choose whether to defer or start alignment: • If alignment is to be deferred, select Skip Alignment. This cancels the Install Wizard without doing alignment, but configuration changes are saved. • If alignment is to be started now, continue at Task 12: Aligning antennas on page 6-96. If the RFU is not connected to the CMU, then the Start Alignment option is disabled. The Installation Wizard does not allow progress to antenna alignment. Figure 150 Step 5: Start Antenna Alignment page 6-72 phn-2513_001v000 (Apr 2012)
- 499. PTP 800 Series User Guide Task 7: Configuring wireless interface Step 6: Completing configuration without alignment The Step 6: Configuration Complete page is displayed (Figure 151). If the pre- configuration of the PTP 800 system is complete, then close the web interface. Figure 151 Step 6: Configuration Complete page (step 5 cancelled) . phn-2513_001v000 (Apr 2012) 6-73
- 500. Task 8: Setting up SNMP agent Chapter 6: Configuration and alignment Task 8: Setting up SNMP agent If SNMP is enabled, when an event occurs, the SNMP agent on the unit sends a trap to whatever SNMP trap receivers have been configured. Depending upon which SNMP version is required, choose one of the following procedures: • Configuring SNMPv3 agent on page 6-74 • Configuring SNMPv1/2c agent on page 6-83 Configuring SNMPv3 agent Perform this task to enable the system to generate Simple Network Management Protocol version 3 (SNMPv3) traps. Starting SNMP wizard To start the SNMP wizard, select menu option Management, SNMP. The Current SNMP Summary page is displayed (Figure 152). Review the summary. If any updates are required, select Continue to SNMP Wizard. Figure 152 Current SNMP Summary page (when SNMP is disabled) 6-74 phn-2513_001v000 (Apr 2012)
- 501. PTP 800 Series User Guide Task 8: Setting up SNMP agent Step 1: SNMP configuration (for SNMPv3) The Step 1: SNMP Configuration page is displayed. Set SNMP State to ‘Enabled’ and set SNMP Version to ‘v3’. The page is redisplayed with SNMPv3 attributes (Figure 153). Update the attributes (Table 233), then select Next. Figure 153 Step 1: SNMP Configuration page (for SNMPv3) Table 233 Step 1: SNMP Configuration attributes (for SNMPv3) Attribute Meaning SNMP State Disable or enable SNMP. SNMP Access Disable or Enable access control to SNMP via IP address. When Control enabled, up to three IP addresses may be entered. SNMP Version SNMP protocol version v1/2c or v3. SNMP Security ‘MIB-based’ means that SNMPv3 security parameters are Mode managed via SNMP MIBs. ‘Web-based’ means that the SNMPv3 security parameters are not available over SNMP, but instead are configured using the SNMP Accounts page, as described in Step 3: SNMP user policy configuration (for SNMPv3) on page 6-76. SNMP Engine ID Specifies whether the Engine ID is generated from the MAC Format Address, IP Address or Text String. SNMP Engine ID Only enabled when SNMP Engine ID Format is set to ‘Text Text String’. Text used to generate the SNMP Engine ID. phn-2513_001v000 (Apr 2012) 6-75
- 502. Task 8: Setting up SNMP agent Chapter 6: Configuration and alignment Attribute Meaning SNMP Port Enter the port that the SNMP agent is listening to for commands Number from a management system. Step 2: SNMP MIB-II system objects The Step 2: SNMP MIB-II System Objects page is displayed (Figure 154). Update the attributes (Table 234), then select Next. Figure 154 Step 2: SNMP MIB-II System Objects page Table 234 Step 2: SNMP MIB-II System Objects attributes Attribute Meaning Sys Contact The contact name for this managed node, with contact details. Sys Name An administratively-assigned name for this managed node. By convention, this is the fully-qualified domain name. Sys Location The physical location of this node. Step 3: SNMP user policy configuration (for SNMPv3) If the chosen SNMP Security Mode is ‘Web-based’, the Step 3: SNMP User Policy Configuration page is displayed (Figure 155). Update the web-based security profile attributes (Table 235): these determine which authentication and privacy protocols are required for SNMP users with roles ‘System administrator’ and ‘Read only’. Select Next. 6-76 phn-2513_001v000 (Apr 2012)
- 503. PTP 800 Series User Guide Task 8: Setting up SNMP agent Figure 155 Step 3: SNMP User Policy Configuration page (for SNMPv3) phn-2513_001v000 (Apr 2012) 6-77
- 504. Task 8: Setting up SNMP agent Chapter 6: Configuration and alignment Table 235 Step 3: SNMP User Policy Configuration attributes (for SNMPv3) Attribute Meaning Security Level Defines the security level and associated protocols that are required to allow SNMP users to access the system. ‘No Auth No Priv’ means that users are not required to use authentication or privacy protocols. ‘Auth No Priv’ means that users are required to use only authentication protocols. ‘Auth Priv’ means that users are required to use both authentication and privacy protocols. Authentication The authentication protocol to be used to access the system via Protocol SNMP. This is disabled when Security Level is set to ‘No Auth No Priv’. ‘MD5’ means Message Digest Algorithm. ‘SHA’ means NIST FIPS 180-1, Secure Hash Algorithm SHA-1. Privacy Protocol The privacy protocol to be used to access the system via SNMP. This is disabled when Security Level is set to ‘No Auth No Priv’ or ‘Auth No Priv’. ‘DES’ means Data Encryption Standard (DES) symmetric encryption protocol. ‘AES’ means Advanced Encryption Standard (AES) cipher algorithm. A user configured to use AES privacy protocol will not be able to transmit and receive encrypted messages unless the license key enables the AES capability. 6-78 phn-2513_001v000 (Apr 2012)
- 505. PTP 800 Series User Guide Task 8: Setting up SNMP agent Step 4: SNMP user accounts configuration (for SNMPv3) If the chosen SNMP Security Mode is ‘Web-based’, the Step 4: SNMP User Accounts Configuration page is displayed (Figure 156). Update the individual user attributes (Table 236) for up to 10 SNMP users, then select Next. Figure 156 Step 4: SNMP User Accounts Configuration page (for SNMPv3) Table 236 Step 3: SNMP User Accounts Configuration attributes (for SNMPv3) Attribute Meaning Name Name to be used by the SNMP user to access the system. Role Selects which of the two web-based security profiles are applied to this user: ‘System administrator’ or ‘Read only’. Select ‘Disabled’ to disable the SNMP account. Auth/Priv Indicates whether the Passphrase applies to authentication or privacy protocols. Passphrase The phrase to be entered by this SNMP user to access the system using an authentication or privacy protocol. Length must be between 8 and 32 characters. May contain spaces. The ‘Auth:’ Passphrase is hidden when Security Level for this user’s Role is set to ‘No Auth No Priv’. The ‘Priv:’ Passphrase is hidden when Security Level for this user’s Role is set to ‘No Auth No Priv’ or ‘Auth No Priv’. phn-2513_001v000 (Apr 2012) 6-79
- 506. Task 8: Setting up SNMP agent Chapter 6: Configuration and alignment Attribute Meaning Passphrase Passphrase must be reentered to confirm it has not been mis- Confirm keyed. Step 5: SNMP trap configuration (for SNMPv3) If the chosen SNMP Security Mode is ‘Web-based’, the Step 5: SNMP Trap Configuration page is displayed (Figure 157). Update the attributes (Table 237), then select Next. Figure 157 Step 5: SNMP Trap Configuration page (for SNMPv3) Table 237 Step 5: SNMP Trap Configuration attributes (for SNMPv3) Attribute Meaning SNMP Enabled Select the events that will generate SNMP traps. Traps 6-80 phn-2513_001v000 (Apr 2012)
- 507. PTP 800 Series User Guide Task 8: Setting up SNMP agent Attribute Meaning SNMP Trap IP The IP address of the first SNMP server (trap receiver). This will Address 1 normally be the network management system, but it may be a separate trap receiver. Enter zeros to disable logging on the first SNMP server. SNMP Trap Port The server 1 port at which SNMP traps are received. Number 1 SNMP Trap User The user name (and associated protocols) to use when sending Account 1 SNMP traps to server 1. SNMP Trap IP The IP address of the second SNMP server (trap receiver). This Address 2 will normally be the network management system, but it may be a separate trap receiver. Enter zeros to disable logging on the second SNMP server. SNMP Trap Port The server 2 port at which SNMP traps are received. Number 2 SNMP Trap User The user name (and associated protocols) to use when sending Account 2 SNMP traps to server 2. Confirming SNMP configuration (for SNMPv3) When the Confirm SNMP Configuration page (Figure 158) is displayed, review the settings and select either Back or Confirm SNMP Configuration and Reboot. When the settings are confirmed, the unit reboots. phn-2513_001v000 (Apr 2012) 6-81
- 508. Task 8: Setting up SNMP agent Chapter 6: Configuration and alignment Figure 158 Confirm SNMP Configuration page (for SNMPv3) 6-82 phn-2513_001v000 (Apr 2012)
- 509. PTP 800 Series User Guide Task 8: Setting up SNMP agent Configuring SNMPv1/2c agent Perform this task to enable the system to generate Simple Network Management Protocol version 1 or 2c (SNMPv1 or SNMPv2c) traps. Start SNMP wizard To start the SNMP wizard, select menu option Management, SNMP. The Current SNMP Summary page is displayed (Figure 152). Review the summary. If any updates are required, select Continue to SNMP Wizard. Step 1: SNMP Configuration (for SNMPv1/2c) The Step 1: SNMP Configuration page is displayed. Set SNMP State to ‘Enabled’ and set SNMP Version to ‘v1/2c’. The page is redisplayed with SNMPv1/2c attributes (Figure 159). Update the attributes (Table 238), then select Next. Figure 159 Step 1: SNMP Configuration page (for SNMPv1/2c) Table 238 Step 1: SNMP Configuration attributes (for SNMPv1/2c) Attribute Meaning SNMP State Disable or enable SNMP. SNMP Access Disable or Enable access control to SNMP via IP address. When Control enabled, up to three IP addresses may be entered. SNMP Version SNMP protocol version v1/2c or v3. phn-2513_001v000 (Apr 2012) 6-83
- 510. Task 8: Setting up SNMP agent Chapter 6: Configuration and alignment Attribute Meaning SNMP Community The SNMP community string acts like a password between the String network management system and the distributed SNMP clients (PTP 800 ODUs). Only if the community string is configured correctly on all SNMP entities can the flow of management information take place. By convention the default value is set to ‘public’. SNMP Port Enter the port that the SNMP agent is listening to for commands Number from a management system. Step 2: SNMP MIB-II system objects The Step 2: SNMP MIB-II System Objects page is displayed (Figure 154). Update the attributes (Table 234), then select Next. Step 3: SNMP Trap Configuration (for SNMPv1/2c) If the chosen SNMP Security Mode is ‘MIB-based’, the Step 5: SNMP Trap Configuration page is displayed (Figure 160). Update the attributes (Table 239), then select Next. Figure 160 Step 3: SNMP Trap Configuration page (for SNMPv1/2c) 6-84 phn-2513_001v000 (Apr 2012)
- 511. PTP 800 Series User Guide Task 8: Setting up SNMP agent Table 239 Step 3: SNMP Trap Configuration attributes (for SNMPv1/2c) Attribute Meaning SNMP Trap Version Select the SNMP protocol version to use for SNMP traps: ‘v1’ or ‘v2c’. SNMP Enabled Traps Select the events that will generate SNMP traps. SNMP Trap IP The IP address of the first SNMP server (trap receiver). This Address 1 will normally be the network management system, but it may be a separate trap receiver. Enter zeros to disable logging on the first SNMP server. SNMP Trap Port The server 1 port at which SNMP traps are received. Number 1 SNMP Trap IP The IP address of the second SNMP server (trap receiver). Address 2 This will normally be the network management system, but it may be a separate trap receiver. Enter zeros to disable logging on the second SNMP server. SNMP Trap Port The server 2 port at which SNMP traps are received. Number 2 Confirm SNMP Configuration (for SNMPv1/2c) When the Confirm SNMP Configuration page (Figure 161) is displayed, review the settings and select either Back or Confirm SNMP Configuration and Reboot. When the settings are confirmed, the unit reboots. phn-2513_001v000 (Apr 2012) 6-85
- 512. Task 8: Setting up SNMP agent Chapter 6: Configuration and alignment Figure 161 Confirm SNMP Configuration page (for SNMPv1/2c) 6-86 phn-2513_001v000 (Apr 2012)
- 513. PTP 800 Series User Guide Task 9: Configuring alarms and messages Task 9: Configuring alarms and messages This task consists of the following procedures: • Configuring generation of diagnostics alarms on page 6-87 • Configuring generation of email messages on page 6-89 Configuring generation of diagnostics alarms To select which diagnostic alarms will be notified to the system administrator, select menu option Management, Diagnostic Alarms. The Diagnostic Alarms page is displayed (Figure 162). These alarms are described in Managing alarms on page 7-15. Tick the boxes against the required alarms, then select Submit Updated Configuration. phn-2513_001v000 (Apr 2012) 6-87
- 514. Task 9: Configuring alarms and messages Chapter 6: Configuration and alignment Figure 162 Diagnostic Alarms page (with protection alarms) 6-88 phn-2513_001v000 (Apr 2012)
- 515. PTP 800 Series User Guide Task 9: Configuring alarms and messages Configuring generation of email messages To enable the system to generate Simple Mail Transfer Protocol (SMTP) email messages to notify the system administrator when certain events occur, proceed as follows: 1 Select menu option Management, Email. The Email Configuration page is displayed (Figure 163). 2 Update the Email Configuration attributes (Table 240). 3 Select Submit Updated Configuration. The Configuration Change Reboot dialog is displayed. 4 Select Reboot Wireless Unit. The Reboot Confirmation dialog is displayed. 5 Select OK. The reboot progress message is displayed. On completion, the unit restarts. Figure 163 Email Configuration page phn-2513_001v000 (Apr 2012) 6-89
- 516. Task 9: Configuring alarms and messages Chapter 6: Configuration and alignment Table 240 Email Configuration attributes Attribute Meaning SMTP Email Alert Controls the activation of the SMTP client. SMTP Enabled The SMTP Enabled Messages attribute controls which email Messages alerts the unit will send. SMTP Server IP The IP address of the networked SMTP server. Address SMTP Server Port The SMTP Port Number is the port number used by the Number networked SMTP server. By convention the default value for the port number is 25. SMTP Source Email The email address used by the unit to log into the SMTP Address server. This must be a valid email address that will be accepted by your SMTP Server. SMTP Destination The email address to which the unit will send the alert Email Address messages. Send SMTP Test Email Generate and send an email in order to test the SMTP settings. The tick box will self-clear when Submit is selected. 6-90 phn-2513_001v000 (Apr 2012)
- 517. PTP 800 Series User Guide Task 10: Configuring syslog Task 10: Configuring syslog This task is only performed when system logging is required. For more information on syslog, refer to Managing event notification messages on page 7- 31. Configuring system logging (syslog) Only users with ‘Security Officer’ role are permitted to configure the syslog client. To configure system logging, select menu option Management, Syslog, Syslog configuration. The Syslog Configuration page is displayed (Figure 164). Update the attributes as required (Table 241), then select Submit Updated Configuration. Figure 164 Syslog Configuration page phn-2513_001v000 (Apr 2012) 6-91
- 518. Task 10: Configuring syslog Chapter 6: Configuration and alignment Table 241 Syslog Configuration attributes Attribute Meaning Syslog State Enable or disable system logging. Syslog Client Enable or disable the syslog client. Syslog Client Port The client port from which syslog messages are sent. Syslog Server IP The IP address of the first syslog server. Address 1 Enter zeros to disable logging on the first syslog server. Syslog Server Port 1 The server 1 port at which syslog messages are received. Syslog Server IP The IP address of the second syslog server. Address 2 Enter zeros to disable logging on the second syslog server. Syslog Server Port 2 The server 2 port at which syslog messages are received. 6-92 phn-2513_001v000 (Apr 2012)
- 519. PTP 800 Series User Guide Task 11: Configuring remote access Task 11: Configuring remote access Configuring web-based management attributes The HTTP and Telnet interfaces should be disabled if the HTTPS interface is configured. See Configuring HTTPS/TLS page 6-29. If the HTTP, HTTPS, Telnet and SNMP interfaces are all disabled, then it will be necessary to use the Recovery image to reset IP & Ethernet Configuration back to factory defaults to re-enable the interfaces. To configure HTTP, Telnet and TFTP access, select menu option Management, Web. The Web-Based Management page is displayed (Figure 165). Update the attributes as required (Table 242), then select Submit Updated Configuration. phn-2513_001v000 (Apr 2012) 6-93
- 520. Task 11: Configuring remote access Chapter 6: Configuration and alignment Figure 165 Web-Based Management page 6-94 phn-2513_001v000 (Apr 2012)
- 521. PTP 800 Series User Guide Task 11: Configuring remote access Table 242 Web-Based Management attributes Attribute Meaning HTTPS Access Only displayed when HTTPS is configured. Shows the current Enabled status of HTTPS access (enabled or not). HTTPS Port Only displayed when HTTPS is configured. The port number for Number HTTPS access. A value of zero means the wireless unit uses the default port. HTTP Access ‘No’ means that the unit will not respond to any requests on the Enabled HTTP port. ‘Yes’ means that the unit will respond to requests on the HTTP port. HTTP Port The port number for HTTP access. A value of zero means the Number wireless unit uses the default port. Telnet Access ‘No’ means that the unit will not respond to any requests on the Enabled Telnet port. ‘Yes’ means that the unit will respond to requests on the Telnet port. Telnet Port The port number for Telnet access. A value of zero means the Number wireless unit uses the default port. Access Control ‘Enabled’ means that web-based management can be access by IP address. Up to three IP addresses may be entered. SNMP Control of ‘Disabled’ means that neither HTTP nor Telnet can be controlled HTTP And Telnet remotely via SNMP. ‘Enabled’ means that both HTTP and Telnet can be controlled remotely via SNMP. TFTP Client ‘Disabled’ means that the unit will not respond to any TFTP software download requests. ‘Enabled’ means that software can be downloaded via TFTP, as described in Upgrading software on page 7-68. Debug Access ‘Yes’ means that Cambium Technical Support is allowed to Enabled access the system to investigate faults. Cross Site Request ‘Enabled’ means that Cross Site Request Forgery Protection is Forgery Protection enabled. phn-2513_001v000 (Apr 2012) 6-95
- 522. Task 12: Aligning antennas Chapter 6: Configuration and alignment Task 12: Aligning antennas Use the Installation Wizard to set the system into alignment mode, to achieve the lowest possible link loss through correct antenna alignment, and to report on the performance of the configured link. Do not start antenna alignment until it is safe for the antennas to radiate RF, that is, until the antennas and ODUs have been installed on the masts or poles and no personnel are in front of the antennas. For background on the alignment process, refer to Introduction to antenna alignment on page 6-96. Check that the requirements in Prerequisites for alignment on page 6-97 have been met. For a 1+1 Hot Standby link with two antennas at each end of the link, perform Aligning protected antennas on page 6-97. For an unprotected link, or for a 1+1 Hot Standby link that uses ODU couplers, perform Aligning a pair of antennas on page 6-98. Introduction to antenna alignment Licensed microwave links use parabolic dish antennas which have narrow beam widths ranging from 4.7° down to 0.5°. Beam width depends on antenna gain, larger gain antennas having narrower beam widths. It is most important that all PTP 800 antennas are precisely aligned at the centre of the main beam. If antennas are not aligned at the centre of the main beam, performance will be dramatically reduced. The alignment process requires the elevation angle (vertical plane) and azimuth angle (horizontal plane) to be adjusted. Antenna assemblies provide a mechanism for independently adjusting in both planes whilst the antenna mounting bracket is securely mounted to the mast. Please refer to the instructions provided with the antenna. Alignment is achieved by monitoring the receive signal strength indicator (RSSI). This is provided at the RFU BNC socket in the form of a dc voltage (RSSI Voltage). 6-96 phn-2513_001v000 (Apr 2012)
- 523. PTP 800 Series User Guide Task 12: Aligning antennas Prerequisites for alignment Before starting alignment, check that the following requirements have been met: • The antennas, cables and CMUs have been installed at both ends of the link. • A link planning report is available (for example, from LINKPlanner). It should include predicted RSSI voltage ranges (or received signal levels) and bearings for both ends of the link. If the report specifies predicted receive signal levels (dBm) but not voltages, then convert dBm to volts using the formula or graph in RSSI output on page 4-5. • Two voltmeters with BNC connectors are available. • No personnel are in front of the antennas. Aligning protected antennas For a 1+1 Hot Standby link with two antennas at each end of the link, align each of the following three pairs by following Aligning a pair of antennas on page 6-98: 1 Align the ‘Tx Hi’ primary antenna to the ‘Tx Lo’ primary antenna. Do not make any further adjustments to the two primary antennas. 2 Align the ‘Tx Hi’ secondary antenna to the (now fixed) ‘Tx Lo’ primary antenna. 3 Align the ‘Tx Lo’ secondary antenna to the (now fixed) ‘Tx Hi’ primary antenna. Step 1 should be performed first, but step 3 can be performed before step 2, if preferred. Aligning dual-polar antennas Alignment should be performed with either the Horizontal units muted or Vertical units muted. The RSSI should be taken on link not muted. After alignment, the difference in receive power should be within tolerance of Link Planner. For more information, refer to the antenna manufacturer’s instructions. phn-2513_001v000 (Apr 2012) 6-97
- 524. Task 12: Aligning antennas Chapter 6: Configuration and alignment Aligning a pair of antennas Connect the CMUs to a management PC and open the web interfaces at both ends of the link. For more information, see Connecting to the PC and powering up on page 6-6 and Logging into the web interface on page 6-6. When the Start Alignment option is selected, the Installation Wizard automatically enables wireless transmission in alignment mode. Antennas are aligned by monitoring RFU output voltage and receive power. Align each pair of antennas by using Step 5, Step 6 and Step 7 of the Installation Wizard, as described in the following procedures: • Step 5: Starting antenna alignment on page 6-98 • Step 6: Aligning antennas on page 6-98 • Step 7: Completing alignment on page 6-103 Step 5: Starting antenna alignment At both link ends, check that the Step 5: Start Antenna Alignment page is displayed (Figure 150). If necessary, select menu option Installation Wizard and click through Steps 1 to 4 of the wizard. Step 6: Aligning antennas Select Start Alignment at both link ends. The Step 6: Antenna Alignment page is displayed (Figure 166). In the Step 6: Antenna Alignment page (Figure 166 and Figure 169), Transmit Power, Receive Power, Vector Error and Link Loss are presented as an array of four elements. These elements represent the maximum, mean, minimum and latest values respectively. The maximum, mean and minimum are calculated over a running one hour period. During the alignment process, ensure that antenna waveguide and coaxial components are not strained beyond their minimum bend radii. 6-98 phn-2513_001v000 (Apr 2012)
- 525. PTP 800 Series User Guide Task 12: Aligning antennas Figure 166 Step 6: Antenna Alignment page (searching for link) Preparing for alignment To prepare the antennas for alignment, proceed as follows at both link ends: 1 Using the instructions provided with the antenna, set the elevation and azimuth adjustment mechanisms to the centre of the range. 2 Using the instructions provided with the antenna, adjust the position of the antenna mounting bracket such that the antenna is pointing at the other end of the link. Use a compass and the bearing provided by the planning report. 3 Once the antenna is in position, resecure the mounting bracket. 4 Connect a suitable voltmeter to the RSSI connector. Figure 9 shows the location of this connector for the ODU and Figure 17 shows the connector on the IRFU. Connect the center of the RSSI connector to the positive terminal of the voltmeter. 5 Use the voltmeter to monitor the RSSI voltage during alignment. phn-2513_001v000 (Apr 2012) 6-99
- 526. Task 12: Aligning antennas Chapter 6: Configuration and alignment Aligning one end Align the antenna at one end of the link while keeping the antenna at the other end of the link stationary. To find the correct elevation and azimuth angles at one end, proceed as follows: 1 Perform a complete sweep of the elevation range of the antenna by adjusting the elevation angle incrementally. The extent of the sweep depends upon antenna gain. Measure RSSI voltage at each point in the sweep. 2 The resulting plot of voltage against elevation should be symmetrical. Record the elevation angle that appears to be at the axis of symmetry, as this is likely to be the correct angle for aligning with the other antenna (Figure 167). Figure 167 shows the axis of symmetry occurring at a voltage ‘peak’. However, it is possible for the axis of symmetry (and therefore the correct elevation angle) to occur at a voltage ‘trough’ (Figure 168). 3 Set the elevation angle to the axis of symmetry, as identified in the plot. 4 Perform a complete sweep of the azimuth range of the antenna and record the resulting plot of voltage against azimuth. 5 Set azimuth angle to the centre of the range over which the maximum RSSI voltage is recorded. Figure 167 Symmetrical relationship between voltage and alignment 6-100 phn-2513_001v000 (Apr 2012)
- 527. PTP 800 Series User Guide Task 12: Aligning antennas Figure 168 Typical RSSI voltage peaks and troughs phn-2513_001v000 (Apr 2012) 6-101
- 528. Task 12: Aligning antennas Chapter 6: Configuration and alignment Aligning the other end Repeat the above procedure at the other end of the link. Record the RSSI voltage at both ends of the link. If the voltage at either end of the link is not in the range predicted by the planning report, repeat alignment until this is the case. Post-alignment actions In a 1+1 Hot Standby link, the tolerances in the ODUs may result in the Receive Power delta between the primary and secondary units at same end of the link being different from the delta predicted by the network designer. Configurations using a single antenna may have up to ±5 dB additional delta when compared with the design value. Where separate antennas are used, the tolerances may increase if either path incurs any Excess Path Loss. When alignment is complete at both ends, proceed as follows: 1 At each end of the link in turn, lock off and tighten all the adjustment bolts as per the instructions provided with the antenna and check that the RSSI voltage does not change. If it does change, repeat alignment for the affected end. 2 Check that the following requirements are met: RSSI voltage at both ends is within the range predicted by the planning report. Wireless Link Status is ‘Up’ (green) (Figure 169). Receive Power at both end is within the range predicted by the planning report (Figure 169). 3 If any of the above requirements are not met, antenna alignment is not complete; refer to troubleshooting section Installing the link on page 8-9. 4 If all of the above requirements are met, select Alignment Complete (Figure 169). 5 If antenna alignment cannot be performed now and must be deferred, select Abandon Alignment. This cancels the Install Wizard without doing alignment. The transmitter is muted and the Step 7: Alignment Abandoned page is displayed (Figure 170). 6-102 phn-2513_001v000 (Apr 2012)
- 529. PTP 800 Series User Guide Task 12: Aligning antennas Figure 169 Step 6: Antenna Alignment page (link established) Figure 170 Alignment Abandoned Step 7: Completing alignment The Step 7: Installation Complete page is displayed (Figure 171). Figure 171 Step 7: Installation Complete page phn-2513_001v000 (Apr 2012) 6-103
- 530. Task 13: Reviewing configuration and performance Chapter 6: Configuration and alignment Task 13: Reviewing configuration and performance Perform this task after antenna alignment is complete. This task consists of the following procedures: • Reviewing system configuration attributes on page 6-104 • Comparing actual to predicted performance on page 6-108 Reviewing system configuration attributes To review and update the system configuration of a PTP 800 link, select menu option System, Configuration. The Installation Configuration page is displayed (Figure 172). Review the attributes (Table 243). If any of the following attributes are incorrect, update them and select Submit Updated System Configuration: • Site Name • Maximum Transmit Power • Max Mod Mode • Min Mod Mode • Encryption Algorithm • Encryption Key • Confirm Encryption Key • Automatic Transmit Power Control If any other attributes are incorrect, update them by following the procedures in this chapter. 6-104 phn-2513_001v000 (Apr 2012)
- 531. PTP 800 Series User Guide Task 13: Reviewing configuration and performance Figure 172 Installation Configuration page phn-2513_001v000 (Apr 2012) 6-105
- 532. Task 13: Reviewing configuration and performance Chapter 6: Configuration and alignment Table 243 System Configuration attributes Attribute Meaning Transmitter ‘Muted’ means that the RFU will not radiate and the CMU will not forward Ethernet Frames between the wireless interface and the Ethernet ports. This applies in all conditions. ‘Enabled’ means that the RFU is allowed to radiate and the CMU is allowed to forward Ethernet Frames between the wireless interface and the Ethernet Ports. However, other factors may still prevent this, for example if the unit is the inactive unit at an end of a 1+1 Hot Standby link. To change the state from ‘Muted’ to ‘Enabled’, select Enable Transmitter. To change the state from ‘Enabled’ to ‘Muted’, select Mute Transmitter. This attribute does not indicate whether the unit is actually radiating and forwarding Ethernet Frames but is a configuration attribute allowing the unit to radiate and forward traffic if other factors permit. To see if the unit is actually radiating and forwarding traffic, examine the Transmitter Status attribute, which is available on the Status page. Link Link Name Read only. This attribute is set in the Installation wizard (Table 230). Site Name The Site Name can be updated. Antenna Antenna Gain Read only. This attribute is set in the Installation wizard (Table 230). RF Feeder Loss Read only. This attribute is set in the Installation wizard (Table 230). IF Cable IF Cable Length Read only. This attribute is set in the Installation wizard (Table 230). Modem 6-106 phn-2513_001v000 (Apr 2012)
- 533. PTP 800 Series User Guide Task 13: Reviewing configuration and performance Attribute Meaning Short Power Cycle for Read only. This attribute is set in the Installation wizard Recovery (Table 230). Radio License These attributes are read only, as they are set in the Installation wizard (Table 231). Wireless Maximum Transmit Enter the maximum transmit power that the local wireless Power unit is permitted to use to sustain a link. EIRP The actual EIRP in dBm. Max Mod Mode This is the maximum modulation mode the radio can use when ACM is enabled. The valid range is dependant on the region, license and Tx Max Power. This control is only visible for certain regions when Radio License Modulation Selection is set to ‘Adaptive’. Min Mod Mode This is the minimum modulation mode the radio can use when ACM is enabled. The valid range is dependant on the region, license and Tx Max Power. This control is only visible for certain regions when Radio License Modulation Selection is set to ‘Adaptive’. Encryption Algorithm This is set in Configuring AES encryption on page 6-26. Encryption Key This is set in Configuring AES encryption on page 6-26. Automatic Transmitter Enable or disable ATPC. Power Control In regions and bands where ATPC is a regulatory requirement, for example 18 GHz Europe, this cannot be disabled. phn-2513_001v000 (Apr 2012) 6-107
- 534. Task 13: Reviewing configuration and performance Chapter 6: Configuration and alignment Comparing actual to predicted performance For at least one hour of operation after alignment is complete, the link should be monitored to check that it is achieving predicted levels of performance. To check performance, select menu option System, Statistics. The System Statistics and Counters page is displayed (Figure 194). Monitor the following attributes: • Link Loss • Transmit Data Rate • Receive Data Rate • Receive Power: To maintain error free communication, ensure that the average operational receive power, using ATPC if enabled, does not exceed -35 dBm. If the receive power exceeds -35d Bm, enable ATPC if currently disabled. Alternatively, reduce the maximum transmit power at the other end of the link to reduce the receive power to the normal operating level. If absolutely necessary the receive power level can be reduced by adding a fixed waveguide attenuator, which requires a remote mount antenna. PTP LINKPlanner provides the prediction in the form of an installation report. In a 1+1 Hot Standby link, the tolerances in the ODUs may result in the Receive Power delta between the primary and secondary units at same end of the link being different from the delta predicted by the network designer. Configurations using a single antenna may have up to ±5 dB additional delta when compared with the design value. Where separate antennas are used, the tolerances may increase if either path incurs any Excess Path Loss. For more information, refer to Checking system statistics and counters on page 7-57. 6-108 phn-2513_001v000 (Apr 2012)
- 535. PTP 800 Series User Guide Task 14: Configuring quality of service Task 14: Configuring quality of service Configuring quality of service To configure the classification of priority encoded Ethernet frames into up to eight traffic classes, select menu option System, Configuration, QoS Configuration. The QoS Configuration page is displayed (Figure 173 or Figure 174). Update the Layer 2 Control Protocols (Table 244) and Ethernet Priority Queue mapping (Table 245) as required. To use IEEE 802.1Q classification rules, select Reset Default Priority Mappings. The 802.1Q rules are shown in Table 245. Select Submit Updated Configuration. Figure 173 QoS Configuration page (Ethernet) phn-2513_001v000 (Apr 2012) 6-109
- 536. Task 14: Configuring quality of service Chapter 6: Configuration and alignment Figure 174 QoS Configuration page (IP/MPLS) 6-110 phn-2513_001v000 (Apr 2012)
- 537. PTP 800 Series User Guide Task 14: Configuring quality of service Table 244 Layer 2 Control Protocols Attribute Meaning Bridge The classification of each layer 2 control protocol (L2CP) to an egress queue at the wireless port. MRP CFM R-APS EAPS Priority Scheme Classification is based on fields in the Ethernet header (Layer 2) or in the Network header (Layer 3). The unit recognizes two network layer protocols: IP and MPLS. Unknown Protocol The classification of unknown network protocols (not IP or MPLS) to an egress queue at the wireless port. Only displayed when Priority Scheme is IP/MPLS. Table 245 Ethernet Priority Queue settings VLAN Priority IEEE802.1Q traffic class P0 Q1 P1 Q0 P2 Q2 P3 Q3 P4 Q4 P5 Q5 P6 Q6 P7 Q7 Untagged Q1 phn-2513_001v000 (Apr 2012) 6-111
- 538. Task 15: Connecting link to the network Chapter 6: Configuration and alignment Task 15: Connecting link to the network Perform this task to connect to the network and set the system clock. This task consists of the following procedures: • Connecting to the network on page 6-112 • Setting the real-time clock on page 6-113 • Saving the system configuration on page 6-117 Connecting to the network To complete and test the network connections, proceed as follows: 1 Disconnect the local PC from the CMU management port at each CMU. 2 Connect the CMUs to the network equipment using the cables that were prepared in Preparing network connections (1+0 and 2+0 links) on page 5-83 or Preparing network connections (1+1 Hot Standby) on page 5-88. 3 Check that each of the CMUs is reachable from the network management system by opening the web interface to the management agents, or by requesting ICMP echo response packets using the Ping application. The network management system will normally be geographically remote from the site, so it may be necessary to request that this action is completed by co- workers at the management centre. Alternatively, it may be possible to use remote login to the management system. For testing the remote end of a link with in-band management, the wireless link may need to be operational first. 4 Check that the data network operates correctly across the wireless link. This may be by requesting ICMP echo response packets between hosts in the connected network segments, or by some more structured use of network testing tools. 5 For a 1+1 Hot Standby link: Initiate a protection switch at one end of the link (as described in Forcing protection switches on page 7-37) and check that the data network operates correctly across the wireless link (as described in the previous step). Initiate a switch back to the primary unit. Repeat for the other end of the link. 6-112 phn-2513_001v000 (Apr 2012)
- 539. PTP 800 Series User Guide Task 15: Connecting link to the network 6 For a 1+1 Hot Standby link, re-enable automatic fault protection switching by setting the Fault Protection Switching attribute to ‘Enabled’, as described in Configuring 1+1 Hot Standby links on page 6-51. Repeat for the other end of the link. 7 Check that the wireless interface is enabled at both ends, as described in Enabling wireless transmission on page 7-32. For a 1+1 Hot Standby link, check that both units are enabled at each end. 8 Select menu option Home and check that there are no alarms on any unit. For more information, see Managing alarms on page 7-15. Setting the real-time clock The clock supplies accurate date and time information to the CMU. It can be set to run with or without a connection to a network time server (SNTP): • In the absence of an SNTP server connection, the clock can be set to run manually. The clock is battery backed and will continue to operate for several days after the CMU is switched off. • If an SNTP server connection is available, the clock can be set to synchronize with the server time at regular intervals. Setting the real-time clock manually To set the CMU clock to keep time without connecting to a networked time server, select menu option Management, Time. The Time Configuration page is displayed. Set the SNTP State attribute to ‘Disabled’: the manual clock attributes are displayed (Figure 175). Review and update the manual clock attributes (Table 246), then select Submit Updated Configuration. phn-2513_001v000 (Apr 2012) 6-113
- 540. Task 15: Connecting link to the network Chapter 6: Configuration and alignment Figure 175 Time Configuration page (SNTP disabled) Table 246 Manual clock attributes Attribute Meaning SNTP State ‘Disabled’ means that the CMU will keep time without connecting to a networked time server. Set Time Set hours, minutes and seconds. Set Date Set year, month and day. Time Zone Set the time zone offset from Greenwich Mean Time (GMT). Daylight Saving ‘Disabled’ means that daylight saving adjustments will not be applied to the time. ‘Enabled’ means that daylight saving adjustments will be applied to the time, according to local rules. Setting the real-time clock to synchronize using SNTP To set the clock to synchronize with a networked time server, select menu option Management, Time. The Time Configuration page is displayed. Set the SNTP State attribute to ‘Enabled’: the SNTP clock attributes are displayed (Figure 176). Review and update the SNTP clock attributes (Table 247), then select Submit Updated Configuration. 6-114 phn-2513_001v000 (Apr 2012)
- 541. PTP 800 Series User Guide Task 15: Connecting link to the network Figure 176 Time Configuration page (SNTP enabled) phn-2513_001v000 (Apr 2012) 6-115
- 542. Task 15: Connecting link to the network Chapter 6: Configuration and alignment Table 247 SNTP clock attributes Attribute Meaning SNTP State ‘Enabled’ means that the CMU will obtain accurate date and time updates from a networked time server. SNTP Primary Server Specifies the primary SNTP server, determining the order in which the servers are tried. SNTP Primary Server Time (in seconds) to wait before retrying communications Dead Time with an unresponsive primary SNTP server. Setting the value to zero disables the timer. SNTP Server Retries Number of times the PTP will retry after an SNTP server fails to respond. SNTP Server Timeout Time (in seconds) the PTP will wait for a response from an SNTP server. SNTP Poll Interval Enter the period at which the SNTP client polls the server for time correction updates (default 1 hour). If an SNTP poll fails, the client will automatically perform three retries before waiting for the user defined poll period. SNTP Server 1 and 2: SNTP Server Status Status message reflecting the state of communications with the SNTP server. SNTP Server IP Enter the IP address of the networked SNTP server. Address SNTP Server Port Enter the port number of the networked SNTP server. By Number convention the default value for the port number is 123. SNTP Server Authentication protocol to be used with this SNTP server Authentication Protocol (None, DES or MD5). SNTP Server Key SNTP key identifier. A key of zeros is reserved for testing. Identifier Server Key Key used to authenticate SNTP communications. For DES keys this must be 16 hexadecimal characters as per the DES specification, with the least significant bit of each pair used to maintain odd parity. Server Key Confirm Must match the server key. Status: 6-116 phn-2513_001v000 (Apr 2012)
- 543. PTP 800 Series User Guide Task 15: Connecting link to the network Attribute Meaning SNTP Sync This shows the current status of SNTP synchronization. If ‘No Sync’ is displayed, then review the SNTP Server IP Address and Port Number. A change of state may generate an SNMP trap or SMTP email alert. SNTP Last Sync This shows the date and time of the last SNTP synchronization. System Clock This displays the local time, allowing for the Time Zone and Daylight Saving settings. Local Time Settings: Time Zone Set the time zone offset from Greenwich Mean Time (GMT). To set the clock to UTC time, set Time Zone to ‘GMT 00.00’. Daylight Saving ‘Disabled’ means that daylight saving adjustments will not be applied to the time. ‘Enabled’ means that daylight saving adjustments will be applied to the time, according to local rules. To set the clock to UTC time, set Daylight Saving to ‘Disabled’. Saving the system configuration Save the system configuration in the following situations: • After a new unit has been fully configured as described in this chapter. • After any change has been made to the configuration. • Before upgrading the unit to a new software version. • After upgrading the unit to a new software version. The process for restoring a PTP 800 CMU to a previously saved configuration is described in Restoring the system configuration on page 7-67. To save the current configuration, select menu option System, Configuration, Save And Restore. The Save & Restore Configuration page is displayed (Figure 177). Select Save Configuration File. Save the configuration file to a PC hard drive. phn-2513_001v000 (Apr 2012) 6-117
- 544. Task 15: Connecting link to the network Chapter 6: Configuration and alignment Figure 177 Save & Restore Configuration page The configuration file format is: MAC-mm-mm-mm_IP-iii-iii-iii-iii.cfg Where: Is: mm-mm-mm MAC address of unit iii-iii-iii-iii IP address of unit. 6-118 phn-2513_001v000 (Apr 2012)
- 545. PTP 800 Series User Guide Configuring for FIPS 140-2 applications Configuring for FIPS 140-2 applications This is a summary of all the configuration tasks that are necessary if the unit is to operate in FIPS 140-2 secure mode. For more information, refer to FIPS 140-2 on page 1-71 and Planning for FIPS 140-2 operation on page 2-24. Prerequisites for FIPS 140-2 configuration To confirm that all prerequisites for FIPS 140-2 are ready, proceed as follows: 1 Ensure that the following cryptographic material has been generated using a FIPS-approved cryptographic generator: Key Of Keys TLS Private Key and Public Certificates (for the correct IP address) Entropy Input Wireless Link Encryption Key for AES 2 Identify the Port number for HTTPS. 3 Ensure that the web browsers used are enabled for HTTPS/TLS operation using FIPS-approved cipher specifications. 4 Select menu option Management, Web, Local User Accounts and check that the current user's role is Security Officer. 5 Perform Task 3: Installing license keys on page 6-18 and ensure that the installed license key meets all requirements including FIPS 140-2 compatibility: Check that Security Level is ‘FIPS’. Check that Encryption Algorithm is ‘AES….’. If necessary, generate and enter a new license key with the above settings. 6 Perform Task 4: Upgrading software version on page 6-22 and ensure that the installed software version is prefixed FIPS-. If necessary, upgrade to the latest FIPS validated image. phn-2513_001v000 (Apr 2012) 6-119
- 546. Configuring for FIPS 140-2 applications Chapter 6: Configuration and alignment 7 To confirm that the above steps have been completed, check that the ‘FIPS 140-2 Validated’ logo is displayed in the Navigation Bar: Configuration procedures for FIPS 140-2 To activate FIPS 140-2 secure mode, perform the following procedures: • Using the Security Wizard on page 6-30. • Configuring local user accounts on page 6-39, taking care to complete the following additional settings: o Select Set Best Practice Complexity. o Configure appropriate identity-based user names and passwords. Checking that the unit is in FIPS 140-2 secure mode To confirm that the unit is now in FIPS 140-2 secure mode, select menu option Home and look for the FIPS Operational Mode Alarm: • If the FIPS Operational Mode Alarm is NOT present, the unit is in FIPS 140-2 mode. • If the alarm is present and has the value ‘FIPS mode is not configured’, return to Using the Security Wizard on page 6-30 and check that all Security Wizard settings are correct for FIPS 140-2. • If the alarm is present and has the value ‘FIPS mode is configured, but not active’, return to Step 7: HTTP and Telnet settings on page 6-36 and check the following attributes: HTTP Access Enabled: should be ‘No’. Telnet Access Enabled: should be ‘No’. SNMP Control of HTTP And Telnet: should be ‘Disabled’. If it is necessary to exit from FIPS 140-2 mode, refer to Exiting FIPS 140-2 mode on page 7-51. 6-120 phn-2513_001v000 (Apr 2012)
- 547. PTP 800 Series User Guide Configuring for FIPS 140-2 applications HTTPS key size warning If the HTTPS key size warning alarm (Figure 178) is present in the Home page, no immediate action is necessary, as this alarm does not block the transition to FIPS 140-2 secure mode. This alarm is produced because FIPS 140-2 recommends a TLS Private Key of at least 2048 bits, but a 1024 bit key has been entered. To clear this alarm, generate a new TLS certificate with key length of at least 2048 bits, then return to Step 2: TLS private key and public certificate on page 6-32. Figure 178 HTTPS key size warning alarm phn-2513_001v000 (Apr 2012) 6-121
- 548. Configuring for FIPS 140-2 applications Chapter 6: Configuration and alignment 6-122 phn-2513_001v000 (Apr 2012)
- 549. PTP 800 Series User Guide Chapter 7: Operation This chapter describes how to operate a PTP 800 link. The following topics are described in this chapter: • Web-based management on page 7-2 describes the layout and the main menu options of the PTP 800 web-based management interface. • Managing alarms and events on page 7-15 describes how to manage PTP 800 system alarms and events. • Disabling and enabling the wireless interface on page 7-32 describes how to disable wireless transmission (prevent antenna radiation) and enable wireless transmission (allow antenna radiation). • Managing 1+1 Hot Standby links on page 7-33 describes how to manage 1+1 links, and how to force protection switches and inhibit protection switching. • Managing security on page 7-51 describes how to manage security features such as FIPS 140-2 mode and AES encryption in operational PTP 800 links. • Managing performance on page 7-57 describes how to view and manage PTP 800 system statistics and diagnostics. • Restoring, upgrading and rebooting on page 7-67 describes how to restore the system configuration, upgrade the software and reboot the unit. • Using recovery mode on page 7-71 describes how the CMU enters recovery mode and how to recover the CMU. phn-2513_001v000 (Apr 2012) 7-1
- 550. Web-based management Chapter 7: Operation Web-based management This section describes the layout and the main menu options of the PTP 800 web-based management interface. Accessing the web interface The web interface is best viewed using a screen resolution of at least 1024 x 768 pixels. The web pages have been tested with Internet Explorer 7, Internet Explorer 8, Firefox 3 and Firefox 3.5. Other browsers have not been tested. To access the web interface, type the IP address of the unit into the browser address bar and press ENTER. If the Login page (Figure 179) is displayed, enter Password (if set) and select Login. Figure 179 System Administration Login page The web interface consists of the title bar at the top, the menu bar on the left, and the web page (for the selected menu option) on the right (Figure 180). 7-2 phn-2513_001v000 (Apr 2012)
- 551. PTP 800 Series User Guide Web-based management Figure 180 Menu and System Summary page (wireless link up) To maintain security, users must log out of the web interface at the end of a session. The System Administration menu options are not password protected until a password has been set. For more information, see Protecting access to the summary and status pages on page 6-46. If there is no user activity for a set period of time, the system administrator is automatically logged off. To change the automatic logout time period, or to disable automatic logout, see Changing the log-out timer on page 7-55. phn-2513_001v000 (Apr 2012) 7-3
- 552. Web-based management Chapter 7: Operation Using the menu options All web pages contain the menu navigation bar on the left hand side. The menu is used to navigate to other web pages. The currently selected option is always highlighted with a light blue background. Table 248 lists the procedures that may be performed from each menu option. Many of these procedures are part of the initial configuration and alignment process described in Chapter 6: Configuration and alignment. Table 248 Procedures performed from each menu option Menu option Procedures Viewing the system summary on page 7-6 Viewing the system status on page 7-7 Checking the installed software version on page 6-22 Configuring AES encryption on page 6-26 Reviewing system configuration attributes on page 6-104 Disabling wireless transmission on page 7-32 Enabling wireless transmission on page 7-32 Disabling AES encryption on page 7-52 Changing AES encryption keys on page 7-53 Configuring the IP interface and management mode on page 6-10 This option is only available when an SFP module is fitted. It displays information about the SFP module. There is no associated procedure. Configuring quality of service on page 6-109 Saving the system configuration on page 6-117 Restoring the system configuration on page 7-67 Task 6: Configuring protection on page 6-50 Managing 1+1 Hot Standby links on page 7-33 This menu option is only available if 1+1 protection has been configured; see Configuring 1+1 Hot Standby links on page 6-51. 7-4 phn-2513_001v000 (Apr 2012)
- 553. PTP 800 Series User Guide Web-based management Menu option Procedures Comparing actual to predicted performance on page 6-108 Checking system statistics and counters on page 7-57 Resetting system statistics and counters on page 7-62 Viewing diagnostics on page 7-62 Using the diagnostics plotter on page 7-63 Changing the diagnostics refresh period on page 7-65 Downloading diagnostic data on page 7-64 Checking licensed capabilities on page 6-18 Entering a new license key on page 6-20 Upgrading to a new software version on page 6-23 Task 7: Configuring wireless interface on page 6-60 Task 12: Aligning antennas on page 6-96 Configuring web-based management attributes on page 6-93 Configuring local user accounts on page 6-39 Setting password complexity on page 6-42 Creating or updating identity-based users on page 6-44 Configuring RADIUS authentication on page 6-47 Displaying login information on page 7-52 Protecting access to the summary and status pages on page 6-46 Identifying a unit from the web browser title on page 7-12 Configuring SNMPv3 agent on page 6-74 Configuring SNMPv1/2c agent on page 6-83 Configuring generation of email messages on page 6-89 Configuring generation of diagnostics alarms on page 6-87 Setting the real-time clock on page 6-113 Managing event notification messages on page 7-31 Configuring system logging (syslog) on page 6-91 Configuring HTTPS/TLS on page 6-29 phn-2513_001v000 (Apr 2012) 7-5
- 554. Web-based management Chapter 7: Operation Menu option Procedures Zeroizing critical security parameters on page 7-51 Changing own user password on page 6-45 Logging out on page 7-14 Rebooting on page 7-69 Viewing the system summary To display the System Summary page, select menu option Home. The System Summary page (Figure 181) contains a high level summary of the status of the wireless link and associated equipment. Figure 181 System Summary page The System Summary page displays any uncleared system alarms below the System Clock attribute. Whenever system alarms are outstanding, a yellow warning triangle is displayed on the navigation bar. For more information, refer to Managing alarms on page 7-15. Password protection can be extended to cover the System Summary page. For more information, see Protecting access to the summary and status pages on page 6-46. The attributes of the System Summary page are described in Table 249. Table 249 System Summary attributes Attribute Meaning Wireless Link Status Current status of the wireless link. A green background with status text ‘Up’ means that the point-to-point link is established. A red background with suitable status text (for example ‘Searching’) indicates that the link is not established. 7-6 phn-2513_001v000 (Apr 2012)
- 555. PTP 800 Series User Guide Web-based management Attribute Meaning Link Name The name of the PTP link, as set in the Installation wizard. The Link Name must be the same at both sites, as it is used to establish a connection with the other site. Site Name The name given to the site by the system administrator and set by the Installation wizard. Elapsed Time Indicator The time (hh:mm:ss) that has elapsed since the last system reboot. The system can reboot for several reasons, for example, commanded reboot from the system reboot webpage, or a power cycle of the equipment. System Clock The CMU clock presented as local time, allowing for zone and daylight saving. Status attributes Status attributes may be displayed in the System Summary page to indicate abnormal states. Viewing the system status To display the System Status page, select menu option Status. The System Status page (Figure 182) gives the user a detailed view of the operation of the PTP 800 from both the wireless and network perspectives. The contents of the System Status page depend upon the configuration of the PTP 800. For example, for in-band management of an unprotected unit, no status information is shown for the unused Management Port. For an unprotected link, no status information is shown relating to protection. Password protection can be extended to cover the System Status page. For more information, see Protecting access to the summary and status pages on page 6-46. phn-2513_001v000 (Apr 2012) 7-7
- 556. Web-based management Chapter 7: Operation Figure 182 System Status page (unprotected link) Transmit power, receive power, vector error and link loss are presented as an array of four elements. These elements represent the maximum, mean, minimum and latest values respectively. The maximum, mean and minimum are calculated over a running one hour period. Status page for 1+1 Hot Standby links For a 1+1 protection scheme, the IP addresses of the neighboring PTP 800 and the two remote PTP 800s are displayed on the System Status page (Figure 183). If the IP address is shown then this is an active link to the GUI of the other PTP 800 and clicking it transfers access to the GUI of the other PTP 800. The full status of the protection is shown by the Protected Link screen, Managing 1+1 Hot Standby links on page 7-33. 7-8 phn-2513_001v000 (Apr 2012)
- 557. PTP 800 Series User Guide Web-based management Figure 183 System Status page (1+1 Hot Standby link) Status attributes The System Status page contains a number of status attributes. These are highlighted in green for normal operation, or in red to indicate abnormal operation. The following status attributes are defined: • RFU Status (Table 250). • Transmitter Status (Table 251). • Wireless Link Status (Table 252). • Transmit Modulation Selection Detail Status (Table 253). • Data Port Status (Table 254). • Management Port Status (Table 255). phn-2513_001v000 (Apr 2012) 7-9
- 558. Web-based management Chapter 7: Operation Table 250 RFU Status attribute values Value Meaning OK The RFU is ready for use. RFU Fault The RFU has raised alarms, but the CMU makes its best effort to carry on. Incompatible License The configured radio license is not compatible with this RFU. The RFU remains muted. In Reset The RFU is booting. This state is transient during CMU boot or after firmware download. Download In Progress New RFU firmware is being downloaded. Percentage completion is shown here. Incompatible Firmware The RFU firmware is too old. If possible, download will Version begin. Incompatible Device The connected device is an RFU, but it is not a Cambium branded product. IF Card Attached The connected device is an IF card, not an RFU. No Response No response can be detected from the RFU. It is probably not connected. Power Supply Fault The power supply to the RFU is at fault (short circuited). Power Supply Disabled The power supply to the RFU is disabled. It can only be enabled by Cambium. Table 251 Transmitter Status attribute values Value Meaning Transmitting Normal transmission is in progress. Inactive The RFU is mute because it is in the inactive mode. Muted - By User The user has disabled transmission using the Configuration Page. Muted - Configuration The transmission is enabled but the radio license is not Error compatible. Muted - RFU Fault Transmission is enabled but an RFU fault is preventing transmission. 7-10 phn-2513_001v000 (Apr 2012)
- 559. PTP 800 Series User Guide Web-based management Table 252 Wireless Link Status attribute values Value Meaning Up The point-to-point link is established Searching A red background with status text “searching” indicates that the link is not established and no signal has yet been detected from the PTP 800 at the other end of the link. This is a valid status value; if the link remains in this state it implies that the remote PTP 800 has not been detected. Other values A red background with status text (registering, acquiring, initialising) indicates that the link is not yet established. These are normal stages in the establishment of an operational link. If the link remains in any state for a long period of time it implies a problem with the PTP 800. Table 253 Transmit Modulation Selection Detail attribute values Value Meaning Acquiring Link The wireless link is not established. Fixed The Transmit Modulation Selection is set to ‘Fixed’. Installation ACM Highest This is the highest transmit modulation that can be used for the installation settings. Installation ACM Lowest This is the lowest transmit modulation that can be used for the installation settings. User ACM Highest The transmit modulation is the highest configured by the user. User ACM Lowest The transmit modulation is the lowest configured by the user. Limited by wireless channel The transmit modulation is limited by the wireless conditions conditions. phn-2513_001v000 (Apr 2012) 7-11
- 560. Web-based management Chapter 7: Operation Table 254 Data Port Status attribute values Value Meaning Down The data port is not in operation. Copper Link Up The copper data port is operating normally. Fiber Link Up The fiber data port is operating normally. Fiber-Y Standby The PTP 800 is in standby mode in a 1+1 Hot Standby link with a Fiber-Y configuration. Table 255 Management Port Status attribute values Value Meaning Down The management port is not in operation. Copper Link Up The copper management port is operating normally. Identifying a unit from the web browser title An option is available to configure the web browser such that units can be individually identified from the browser and tab titles. This can be very useful when managing a number of units from multiple browser tabs. By default, the web browser title displays the following text: Cambium PTP 800 - <current page> (IP = <ipAddress>) For example, if the IP address is 10.10.10.41 and the current page is the System Status page, the browser title is displayed as shown in Figure 184. Figure 184 Web browser with default title 7-12 phn-2513_001v000 (Apr 2012)
- 561. PTP 800 Series User Guide Web-based management To configure the browser title, select menu option Management, Web, Web Properties. The Webpage Properties page is displayed (Figure 185). Update the Browser Title attribute (a blank entry will display the default title). Select Apply Properties. Figure 185 Browser Title variable entry The Browser Title attribute allows the user to enter simple text. In addition, the attribute accepts specific variables which can be used to identify the units. Each variable is prefixed with a $ character. Any combination of variables and simple text may be entered into this attribute. The full list of variables is in Table 256. Table 256 Browser Title attribute variables Variable Meaning $siteName Site name. $linkName Link name. $primarySecondaryMode Whether unit is configured as Primary or Secondary in 1+1 Hot Standby link. $transmitHiLo Whether unit is Tx Hi or Tx Lo. $ipAddress IP address of the CMU. $sysName Sys Name which is a part of the SNMP configuration. $productName This is a fixed value of Cambium PTP 800. $pageName Name of the page currently being browsed. phn-2513_001v000 (Apr 2012) 7-13
- 562. Web-based management Chapter 7: Operation Example Each unit in a 1+1 Hot Standby link may be fully identified by the siteName, the primarySecondaryMode and the linkName. For example, suppose that these variables are set to: • siteName = ‘Site1’, ‘Site2’, ‘Site3’ and ‘Site4’ • primarySecondaryMode = ‘Primary’ or ‘Secondary’ • linkName = ‘Rack RBW4’ For each unit, use the Webpage Properties page to enter the relevant Browser Title variables (Figure 185). As a result, the four units in the 1+1 Hot Standby are identified in the browser tabs, and the currently selected unit is identified in the browser title bar (Figure 186). Figure 186 Identifying units in the web browser title bar and tabs Logging out To maintain security, always log out at the end of a session by selecting menu option Logout. Alternatively, the unit will log out automatically, but this depends upon the setting of Auto Logout Period in the Webpage Properties page (Figure 134). 7-14 phn-2513_001v000 (Apr 2012)
- 563. PTP 800 Series User Guide Managing alarms and events Managing alarms and events This section describes how to manage PTP 800 system alarms and events. This section contains the following procedures: • Managing alarms on page 7-15. • Managing email alerts on page 7-24. • Managing SNMP traps on page 7-24. • Managing event notification messages on page 7-31. Managing alarms Whenever system alarms are outstanding, a yellow warning triangle is displayed on the navigation bar. The warning triangle is visible from all web pages. Click the warning triangle (or menu option Home) to return to the System Summary page and view the alarms. If the warning triangle disappears when it is clicked, it indicates that the outstanding alarms have been cleared. A change of state in most alarms generates an SNMP trap or an SMTP email alert. The alarm configuration procedure is described in Task 9: Configuring alarms and messages on page 6-87. The example in Figure 187 shows the warning triangle in the navigation bar and the ‘Channel A’ alarm displayed in the System Summary page. Figure 187 Alarm warning triangle phn-2513_001v000 (Apr 2012) 7-15
- 564. Managing alarms and events Chapter 7: Operation The alarms are defined as follows: <attribute name> Neighbor Compatibility Definition: In order for a 1+1 Hot Standby link end to be correctly protected, a number of key attributes must be configured to be compatible in the two neighbor CMUs. If a key attribute is configured to be mismatched, an associated alarm will be displayed on the Home page of both neighbor CMUs. Each alarm has the form <attribute name> neighbor compatibility, for example ‘Radio License Tx Freq Neighbor Compatibility’ indicates that the Radio License Tx Freq is different for the neighbor CMUs. Cause and action: Correct the attribute which is indicating the mismatch. Alignment mode Definition: The CMU is in alignment mode. Cause and action: This should only occur during installation or maintenance when the wireless link is being aligned. To take a unit out of alignment mode, access the Installation Wizard (see Task 7: Configuring wireless interface on page 6-60). Data port configuration mismatch Definition: The Ethernet configuration of the data port is not compatible with the connected network equipment. Cause and action: This is probably due to a configuration error such as an auto- negotiation or forced configuration mismatch. Data port disabled warning Definition: The fiber and copper data port has been disabled by means of the SNMP MIB. Cause and action: The port has been disabled by a network management system. The web browser provides no means of disabling this port. Data Port Ethernet Speed Status Definition: In a 1+1 Hot Standby configuration, this indicates if the Ethernet Speed of the Data port is below that of its neighbor. For example, where the Data Port has negotiated at 100BASE-T but the neighbor has negotiated at 1000BASE-T. Cause and action: This could be due to a difference between the configuration of the Data ports of the neighbor CMUs (see LAN Configuration page) or in the configuration of the two ports at the network equipment. A fault in the Ethernet cable could also cause an Ethernet port to negotiate at a lower speed. 7-16 phn-2513_001v000 (Apr 2012)
- 565. PTP 800 Series User Guide Managing alarms and events Data port fiber status Definition: Reports the status of the fiber data port. Cause and action: There are two possible causes: • The interface could not be established even though a fiber carrier was detected. This could be due to a broken TX fiber, or because the interface is disabled at the other end of the fiber link. • The interface could not be established and no fiber carrier is detected. Data port status Definition: The status of the data port, either fiber or copper link. Cause and action: See Table 254 for values and their meanings. Encryption Enabled Mismatch Definition: Encryption has been enabled on one end of the wireless link but not the other. Cause and action: This is probably due to an encryption configuration error. Reconfigure encryption. End Wireless Receive Signal Status Definition: This indicates if the end, consisting of two neighbor CMUs and two neighbor RFUs, are able to demodulate the transmit signal from the remote end of the link. For a 1+1 Hot Standby link with Rx Diversity enabled, both neighbors must be unable to demodulate the signal before this indicates a value of Not Detected. For 1+1 Hot Standby link where Rx Diversity is disabled, this indicates a value of Not Detected only if the active CMU cannot demodulate the signal. Cause and action: If this alarm is unaccompanied by other alarms, the cause will often be due to a deep fade of the wireless channel. This could be caused by many environmental effects such as rain fades in the higher frequency bands or ducting for long links where Spatial Rx Diversity is not deployed. FCC capacity check Definition: The Transmit Capacity Limit of the unit (lower of license key and negotiated Ethernet speed at remote end) is below the appropriate level required by FCC Part 101.141. Cause and action: This is probably due to a configuration error or the wrong license being applied to one of the CMUs. phn-2513_001v000 (Apr 2012) 7-17
- 566. Managing alarms and events Chapter 7: Operation Fips Operational Mode Alarm Definition: The unit is FIPS 140-2 capable, but has not been configured correctly for FIPS 140-2 operation. Cause and action: • ‘FIPS mode is not configured’: The Security Wizard has not been completed. • ‘FIPS mode is configured, but not active’: The Security Wizard has been completed, but the HTTP and Telnet management interfaces have not been disabled. Licensed Transmit Capacity Status Definition: In a 1+1 Hot Standby configuration, this indicates that the Licensed Transmit Capacity is below that of its neighbor. Cause and action: This is probably due to a configuration error or the wrong license being applied to one of the CMUs. Link name mismatch Definition: The link names at each end of the wireless link do not match. Cause and action: The link name is configured differently at each end of the wireless link. This may be because of: • A configuration error in defining the link name at one of the PTP 800s, see Step 1: Enter equipment details on page 6-62; • This unit is aligned to the wrong link partner. Management port configuration mismatch Definition: The Ethernet configuration of the management port is not compatible with the connected network equipment. Cause and action: This is probably due to a configuration error such as an auto- negotiation or forced configuration mismatch. See Configuring the IP interface and management mode on page 6-10. Management port disabled warning Definition: The management port has been disabled by means of the SNMP MIB. Cause and action: The port has been disabled by a network management system. The web browser provides no means of disabling this port. 7-18 phn-2513_001v000 (Apr 2012)
- 567. PTP 800 Series User Guide Managing alarms and events Management Port Ethernet Speed Status Definition: In a 1+1 Hot Standby configuration, this indicates if the Ethernet Speed of the Management port is below that of its neighbor. For example, where the Management port has negotiated at 10BASE-T but the neighbor has negotiated at 100BASE-T. Cause and action: This could be due to a difference between the configuration of the Management ports of the neighbor CMUs (see LAN configuration page) or in the configuration of the two ports at the network equipment. A fault in the Ethernet cable could also cause an Ethernet port to negotiate at a lower speed. Management port status Definition: The status of the management port if out-of-band management is being used. Cause and action: See Table 255 for values and their meanings. Protection Availability Status Definition: This indicates if an end of a 1+1 Hot Standby link is not protected, for example due to the inactive unit exhibiting a fault, the protection cable being disconnected, the configuration of the inactive unit being incompatible with that of the active unit, or Fault Protection Switching being set to disabled. If the end is not protected, the active unit will indicate 'Not Protected' and the inactive unit will indicate ‘Not Protecting’. Cause and action: If a unit is indicating that it is not protected or not protecting, check the following: • Check that the configuration of the two neighbors is compatible. See <attribute name> neighbor compatibility. • Check that the transmitter of the inactive unit is not muted. This is controlled on the Configuration page or the Protection Page. • Check that the two neighbors are not in Alignment Mode (See Alignment Mode (top of this table)). • Check that Fault Protection Switching is Enabled. This can be set from the Protection Configuration page or the Protected Link Management page. • Check that the Protection Interface is operating correctly (see Protection Interface Status) • Check that the inactive unit is not exhibiting any faults. phn-2513_001v000 (Apr 2012) 7-19
- 568. Managing alarms and events Chapter 7: Operation Protection Interface Status Definition: • If the protection cable is physically disconnected from either CMU, this indicates ‘Not Connected’. • If the protection cable is connected at both neighbor CMUs but the neighbor is not responding, this indicates ‘Neighbor Not Responding’. Cause and action: • If indicating ‘Not Connected’ check that the protection cable is physically connected at both CMUs. If installed, check the cabling to the OOB Protection Splitter. • If indicating ‘Neighbor Not Responding’ check the following: o Check that the neighbor CMU is powered up and functioning. o Check that Protection has been configured as 'Protection 1+1' - see Protection Configuration page. o Check the integrity of the protection cables. RFU Common IF Synth Lock Definition: This indicates a failure of the Common IF synthesizer in the RFU. Cause and action: This is a failure of the RFU hardware. Please inform Customer Support of this alarm. RFU Common RF Synth Lock Definition: This indicates a failure of the Common RF synthesizer in the RFU. Cause and action: This is a failure of the RFU hardware. Please inform Customer Support of this alarm. RFU Fan Definition: This indicates when the IRFU transceiver fan assembly has failed. The assembly consists of two fans and if one fan fails, the this will report partial failure. If both fans fail, this will report total failure. Cause and action: This is a failure of the IRFU fan assembly. Please inform Customer Support of this alarm. 7-20 phn-2513_001v000 (Apr 2012)
- 569. PTP 800 Series User Guide Managing alarms and events RFU High Temperature Definition: This indicates when the temperature of the IRFU transceiver has risen above either of two thresholds: • If the temperature exceeds the High Temperature threshold, the transmit power may reduce. • If the temperature exceeds the Very High Temperature threshold, the transceiver will mute the transmitter. Cause and action: This could be caused by failure of the IRFU transceiver fan assembly. Check if there is an active fan alarm: • If there is no active fan alarm, check that there is nothing obstructing the correct operation of the fan assembly. • If nothing is obstructing the fan assembly, ensure that the IRFU has been installed correctly and in an environment which is in line with specifications. RFU RF Switch Definition: For a 1+1 IRFU, both the Primary and Secondary transceivers transmit but the energy from only one of the transceivers is switched to the antenna via an RF switch. The RF switch resides in the branching unit of the IRFU. This alarm is displayed if the RF switch fails to switch. Cause and action: The most likely cause is a failure of the IRFU RF Switch. Please inform Customer Support of this alarm. RFU RF Switch Cable Definition: For a 1+1 IRFU, both the Primary and Secondary transceivers transmit but the energy from only one of the transceivers is switched to the antenna via an RF switch. The RF switch resides in the branching unit of the IRFU and connects to each transceiver with a separate cable. This alarm is raised if the transceiver cannot detect the RF Switch. Cause and action: The most likely cause is that the cable connecting the transceiver to the RF switch is faulty or disconnected. RFU Rx IF Synth Lock Definition: This indicates a failure of the Rx IF synthesizer in the RFU. Cause and action: This is a failure of the RFU hardware. Please inform Customer Support of this alarm. phn-2513_001v000 (Apr 2012) 7-21
- 570. Managing alarms and events Chapter 7: Operation RFU Rx RF Synth Lock Definition: This indicates a failure of the Rx RF synthesizer in the RFU. Cause and action: This is a failure of the RFU hardware. Please inform Customer Support of this alarm. RFU Status Definition: The status of the RFU. Cause and action: The possible values for this attribute are shown in Table 250. If the value is set to Fault, there will be another RFU alarm condition displayed indicating the detail of the fault. RFU Tx IF Synth Lock Definition: This indicates a failure of the Tx IF synthesizer in the RFU. Cause and action: This is a failure of the RFU hardware. Please inform Customer Support of this alarm. RFU Tx RF Synth Lock Definition: This indicates a failure of the Tx RF synthesizer in the RFU. Cause and action: This is a failure of the RFU hardware. Please inform Customer Support of this alarm. Rx Diversity Availability Status Definition: Receive Diversity is enabled but not operating. Cause and action: • The Inactive CMU is not operating. Check that it is powered up and can be managed. • The neighbor CMU does not have Rx Diversity enabled. Check the value of the protection attribute. • The neighbor CMUs are configured with incompatible attribute values. Check for any outstanding configuration attributes <attribute Name> Neigbor Compatibility and correct the mismatch. • The RFU of the Inactive unit is faulty or not responding to the CMU. Check that there is no outstanding RFU Status alarm. • The IF cable between Inactive CMU and RFU is faulty. Check that there is no outstanding RFU Status alarm. • The Protection Interface is not operating. Check that there is no outstanding Protection Interface Status alarm. 7-22 phn-2513_001v000 (Apr 2012)
- 571. PTP 800 Series User Guide Managing alarms and events • The Data Port of either CMU is not connected or has not negotiated at 1000 Mbps. Check that there is no outstanding Rx Diversity Data Port Status alarm on either CMU. • If none of the above conditions exist but Rx Diversity Availability is still indicating a problem, the likely cause is the configuration of the Rx Diversity VLAN in the Ethernet Switch. Check that the Ethernet Switch is configured correctly to ensure that Rx Diversity Ethernet Frames are bridged between the Inactive and Active. Rx Diversity Data Port Status Definition: For Rx Diversity to operate, the Data Port of both the Active and Inactive CMU must be negotiated at 1000 Mbps. This attribute is displayed if this is not the case. Cause and action: • There is a problem with the Ethernet Cable. Check that the Data Port Status of both neighbor CMUs is indicating that the port has negotiated at 1000 Mbps Full Duplex. • The Active or Inactive CMU has been configured to prevent operation at 1000 Mbps. Check that the Data Port Copper Auto Negotiation is set to enabled and that Data Port Copper Auto Neg Advertisement includes 1000 Mbps Full Duplex. These are available on the LAN Configuration page. • The Ethernet Switch is configured to prevent operation at 1000 Mbps. • If operating with Fiber-Y,the Data Port of the Inactive CMU has trained with fiber. This is incorrect for Fiber-Y. Check that the value of Data Port Status is set to Copper Link Up. This is displayed on the Status Page. If this is not the case, check that copper Data Port is also connected to the Ethernet Switch as well as the Fiber-Y cable. SNTP Synchronization Failed Definition: SNTP has been enabled but the unit is unable to synchronize with the specified SNTP server. Cause and action: If SNTP Sync fails then check the server settings or disable SNTP and set the time locally. See Setting the real-time clock on page 6-113. Unit Out Of Calibration Definition: The unit is out of calibration and must be returned to the factory using the RMA process for re-calibration. Cause and action: Check the calibration status and arrange for recalibration of the unit. Wireless link status Definition: The status of the end-to-end wireless link. Cause and action: See Table 252 for values and their meanings. phn-2513_001v000 (Apr 2012) 7-23
- 572. Managing alarms and events Chapter 7: Operation Wireless Receive Signal Status Definition: The Wireless Receive Signal Status indicates if the receiver is able to demodulate the transmit signal from the remote end of the link. Cause and action: If this alarm is unaccompanied by other alarms, the cause will often be due to a deep fade of the wireless channel. This could be caused by many environmental effects such as rain fades in the higher frequency bands or ducting for long links. Managing email alerts The management agent can be configured to generate alerts by electronic mail when certain events occur. The email message configuration procedure is described in Task 9: Configuring alarms and messages on page 6-87. The alerts mirror the SNMP traps defined in Table 257. Managing SNMP traps The PTP 800 supports SNMP v2 remote management and provides a comprehensive range of alarms. Table 257 lists the SNMP traps that the PTP 800 supports, their significance and possible causes. The SNMP configuration procedure is described in Task 9: Configuring alarms and messages on page 6-87. The traps may be disabled totally or individual traps disabled. These traps mirror the system status and alarm information displayed on the System Summary and System Status pages. Table 257 SNMP traps supported by PTP 800 SNMP Trap name Description Cause and action MIB2 traps coldStart A coldStart trap signifies that The CMU has rebooted. the SNMPv2 entity, acting in an See Rebooting on page 7-69. agent role, is reinitializing itself and that its configuration may have been altered. 7-24 phn-2513_001v000 (Apr 2012)
- 573. PTP 800 Series User Guide Managing alarms and events SNMP Trap name Description Cause and action linkDown A linkDown trap signifies that The link has gone down. the SNMP entity, acting in an This may be due to: agent role, has detected that the Operational Status for one of its Problems with the communication links is about to PTP 800. enter the down state from some Problems on the link other state. itself Failure of a device at the other end of the link. linkUp A linkUp trap signifies that the The link is now available for SNMP entity, acting in an agent service. role, has detected that the Operational Status for one of its communication links left the down state and transitioned into some other state – normally up. protectionStateTrap In a 1+1 Hot Standby link, this A protection switch may have trap is sent to indicate a change occurred due to a fault. in the protectionState of a unit Check for faults on the newly from active to inactive or vice inactive unit. versa. The protectionState trap is also sent when a unit initializes. Diagnostic alarms alignmentModeTrap Indicates if the unit is This should only occur undergoing alignment. during installation or maintenance when the A change of state during wireless link is being aligned. operation may generate an SNMP trap and/or SMTP email alert. linkNameMismatchTr Signaling was received with the The link name is configured ap wrong Link Name. differently at each end of the wireless link. This may be because of: A configuration error in defining the link name at one of the PTP 800s. This unit is aligned to the wrong link partner. phn-2513_001v000 (Apr 2012) 7-25
- 574. Managing alarms and events Chapter 7: Operation SNMP Trap name Description Cause and action unitOutOfCalibration The unit is out of calibration. Check the calibration status Trap and arrange for re- calibration of the unit. encryptionEnabledMi Encryption has been enabled on Configuration error in smatchTrap one end of the wireless link but defining use of encryption not the other. over the wireless link. sNTPSyncTrap The PTP 800 has failed to If SNTP Sync fails then check synchronize its time with the the server settings in the SNTP server. Remote Management page, or disable SNTP and set the time locally. See Setting the real-time clock on page 6- 113. wirelessLinkStatusTr The status of the wireless link This shows the status that ap has changed. the wireless link has entered. If the link remains in the state ‘registering’ or ‘searching’ it is unable to detect the PTP 800 at the other end of the link. This may be due to the unit at the other end of the link not being operational, being incorrectly configured/aligned or due to adverse weather conditions. dataPortConfiguratio The detection of Ethernet This is probably due to a nMismatchTrap fragments (runt packets) on the configuration error such as data Ethernet port when the link an auto-negotiation or forced is in full duplex operation. configuration mismatch. dataPortDisabledWar The Administrative Status of the The Ethernet data port has ningTrap data Ethernet interface has been been disabled remotely by a set to disabled. management system. The physical port continues to remain operational but no data is transmitted. 7-26 phn-2513_001v000 (Apr 2012)
- 575. PTP 800 Series User Guide Managing alarms and events SNMP Trap name Description Cause and action dataPortFiberStatusT A problem has been detected There are three possible rap with the fiber interface on the causes: data Ethernet port. 1) The fiber interface has The attribute been installed but disabled dataPotrtFiberStatus identifies (because the license key does which problem has been not include fiber support). detected. 2) The interface could not be established even though a fiber carrier was detected. This could be due to a broken TX fiber, or because the interface is disabled at the other end of the fiber link. 3) The interface could not be established and no fiber carrier is detected. managementPortConf The detection of Ethernet This is probably due to a igurationMismatchTr fragments (runt packets) on the configuration error such as ap data Ethernet port when the link an auto-negotiation or forced is in full duplex operation. configuration mismatch. managementPortDisa The Administrative Status of the The management Ethernet bledWarningTrap out-of-band management port has been disabled Ethernet interface has disabled remotely by a management Ethernet traffic. system. Note that the physical port continues to operate but no data is transmitted over it. rFUStatusTrap A change of status of the RFU The RFU Status indicates the has occurred. nature of the RFU fault. A state of 'ok' indicates that the RFU is fully operational, although may not be transmitting. dataPortStatusTrap A change of state for the data The data port status has port has occurred. changed – most significantly to up or down phn-2513_001v000 (Apr 2012) 7-27
- 576. Managing alarms and events Chapter 7: Operation SNMP Trap name Description Cause and action managementPortStat Change of status of the out-of- This may be due to failure of usTrap band management Ethernet link. the link or equipment at the either end of the link. This may indicate a status of “down” or “copper link up”. Note that a failure trap may not be received if no route is available. protectionAvailability This indicates that an end of a If this trap is generated when StatusTrap 1+1 Hot Standby link is not a unit is not protected or not protected, for example due to protecting, check the the inactive unit exhibiting a configuration of both units fault, the protection cable being and check for alarms on the disconnected, the configuration inactive unit. of the Inactive unit being Check whether fault incompatible with that of the protection switching is active unit or Fault Protection enabled. Switching being set to disabled. If the end is not protected, the active unit will indicate 'Not Protected' and the inactive unit will indicate ‘Not Protecting’. protectionConfigurati In order for a 1+1 Hot Standby If a onStatus link end to be correctly configurationProtectedStatus protected, a number of key trap indicates that the attributes must be configured to configuration of the inactive be compatible in the two unit is not protecting the neighbor CMUs. If a key active unit, log into the web attribute is configured to be interface of either unit and mismatched, a check which attribute is configurationProtectionStatus mismatched (see <attribute trap will be generated with a name> neighbor value of ‘Configuration Not compatibility). Protecting’. A trap will be sent with a value of OK if the condition is cleared. rxDiversityAvailabilit Receive Diversity is enabled but Refer to Rx Diversity yStatusTrap not operating. Availability Status on page 7- 22. 7-28 phn-2513_001v000 (Apr 2012)
- 577. PTP 800 Series User Guide Managing alarms and events SNMP Trap name Description Cause and action rxDiversityDataPortS For Rx Diversity to operate, the Refer to Rx Diversity Data tatusTrap Data Port of both the Active and Port Status on page 7-23. Inactive CMU must be negotiated at 1000 Mbps. This attribute is displayed if this is not the case. rxDiversityConfigurat In order for Receive Diversity to Log into the web interface of ionStatusTrap operate correctly in a 1+1 Hot either unit and check which Standby link, a number of key attribute is mismatched. attributes must be configured to be compatible in the two neighbor CMUs. If a key attribute is configured to be mismatched, this trap will be generated. A trap will be sent with a value of OK if the condition is cleared. wirelessReceiveSigna This trap is only issued for 1+1 This may be due to hardware lStatusTrap Hot Standby configurations. problems: the RFU, antenna or CMU. The Wireless Receive Signal Status indicates if the receiver is It may also be due to able to demodulate the transmit incorrect configuration, or signal from the remote end of radio fading caused by the link. adverse weather conditions. If it cannot demodulate the signal, a protection switch may occur. endWirelessReceiveSi In a 1+1 Hot Standby Refer to End Wireless gnalStatusTrap configuration, this indicates if Receive Signal Status on the end, consisting of two page 7-17. neighbor CMUs and two neighbor RFUs, is able to demodulate the transmit signal from the remote end of the link. licensedTransmitCap In a 1+1 Hot Standby This is probably due to a acityStatusTrap configuration, this indicates that configuration error or the the Licensed Transmit Capacity wrong license being applied is below that of its neighbor. to one of the CMUs. phn-2513_001v000 (Apr 2012) 7-29
- 578. Managing alarms and events Chapter 7: Operation SNMP Trap name Description Cause and action dataPortEthernetSpe In a 1+1 Hot Standby This is probably due to a edStatusTrap configuration this indicates that configuration error. the Ethernet Speed of the Data Port is below that of its neighbor. managementPortEthe In a 1+1 Hot Standby This is probably due to a rnetSpeedStatusTrap configuration, this indicates that configuration error. attribute indicates that the Ethernet Speed of the Management Port is below that of its neighbor. protectionInterfaceSt In a 1+1 Hot Standby This may indicate that the atusTrap configuration, information is other unit is faulty, not shared between neighbor CMUs available or the protection over the Protection Interface. interface is not installed, not working or disconnected. This reports whether the neighbor CMU is successfully responding, physically disconnected or whether it is physically connected but not responding, for example powered down. 7-30 phn-2513_001v000 (Apr 2012)
- 579. PTP 800 Series User Guide Managing alarms and events Managing event notification messages When system logging is enabled, log entries are added to the internal log and (optionally) transmitted as UDP messages to one or two syslog servers. For more information about system logging, refer to: • System logging (syslog) on page 1-59 describes the system logging feature. • Syslog message formats on page 4-73 describes the format and content of syslog event messages. • Task 10: Configuring syslog on page 6-91 describes the system logging configuration procedure. To enable system logging, select menu option Management, Syslog, Syslog configuration. The Syslog Configuration page is displayed (Figure 164). Set the Syslog State attribute to ‘Enabled’. To view the log, select menu option Management, Syslog. The local log is displayed (Figure 188). Figure 188 Syslog local log phn-2513_001v000 (Apr 2012) 7-31
- 580. Disabling and enabling the wireless interface Chapter 7: Operation Disabling and enabling the wireless interface This section describes how to disable wireless transmission (prevent antenna radiation) and enable wireless transmission (allow antenna radiation). Disabling wireless transmission This is necessary when maintenance work is needed near the antenna. To disable wireless transmission, select menu option Configuration. The System Configuration page is displayed (Figure 172). Select Mute Transmitter. The Transmitter attribute value changes to ‘Muted’. Wireless transmission can also be disabled from the Protection Configuration page (Figure 136), for both protected and unprotected links. In a 1+1 Hot Standby link, disable protection switchover before disabling wireless transmission (see Enabling and disabling fault protection on page 7-43). Otherwise, a switchover to the inactive unit may occur when the wireless interface is muted. Re-enable protection switchover when wireless transmission is re-enabled. Enabling wireless transmission This is necessary to restart the link when maintenance work is complete. To enable wireless transmission, select menu option Configuration. The System Configuration page is displayed (Figure 189). Select Enable Transmitter. The Transmitter attribute value changes to ‘Enabled’. Wireless transmission can also be enabled from the Protection Configuration page (Figure 136), for both 1+1 Hot Standby and unprotected links. Figure 189 System Configuration page (partial view) when transmitter is muted 7-32 phn-2513_001v000 (Apr 2012)
- 581. PTP 800 Series User Guide Managing 1+1 Hot Standby links Managing 1+1 Hot Standby links This section describes how to manage 1+1 Hot Standby links If a software upgrade is required, see Upgrading software in an operational 1+1 Hot Standby link on page 7-69. Viewing the status of a 1+1 Hot Standby link To view the status of a 1+1 Hot Standby link, select menu option Configuration, Protected Link (this option is only available when link protection is enabled). The Protected Link page (Figure 190) is displayed. Figure 190 Protected Link page phn-2513_001v000 (Apr 2012) 7-33
- 582. Managing 1+1 Hot Standby links Chapter 7: Operation This page shows the same view of the link from the web interface of any of the four units. The positions of the units on the page are determined by their Tx Hi/Lo and Primary/Secondary mode settings. The symbols, text and their meanings are shown in Table 258. Table 258 Protected Link page symbols and text Symbols or text Meaning Each end of the link is identified by a Site Name. The Site Name is configured using the Install Wizard or can be updated using the Configuration page. At a given end, it is recommended that the Site Name is configured to the same name for both Primary and Secondary CMUs. The end which is configured with the transmit frequency on the high side of the FDD frequency plan (Tx Hi) is always shown on the left. If no Site Name has been configured at either end, the labels will indicate Tx Hi or Tx Lo. The CMU configured as Primary is the preferred unit in that it will become the active unit unless it is faulty. In the case where the two ODUs at an end have a different path loss, for example where they are coupled to a common antenna using an asymmetric coupler mounting kit (see Coupler mounting kits on page 1-30) , the CMU configured as Primary should be connected to the RFU with the lowest path loss. For IRFUs, the CMU configured as Primary should always be connected to the left hand transceiver. 7-34 phn-2513_001v000 (Apr 2012)
- 583. PTP 800 Series User Guide Managing 1+1 Hot Standby links Symbols or text Meaning The CMU configured as Secondary will become the inactive unit unless the Primary unit develops a fault. In the case where the two ODUs at an end have a different path loss, for example where they are coupled to a common antenna using an Asymmetric Coupler Mounting Kit (see Coupler mounting kits on page 1-30) , the CMU configured as Secondary should be connected to the RFU with the highest path loss. For IRFUs, the CMU configured as Secondary should always be connected to the right hand transceiver. The IP address of the unit being browsed. The IP address of the unit. These units are active (Tx Hi and Tx Lo). Active units are the units which radiate at the antenna and forward traffic between the wireless interface and the Ethernet ports. The black line represents the link between active units. These units are inactive (Tx Hi and Tx Lo). Inactive units remain on standby waiting to take over the active role in case of a fault. They do not radiate or forward traffic between the Wireless interface and the Ethernet ports. These units are not protecting the active unit. They may be faulty or configured in a way which is not protecting the active unit. Roll the mouse over the icon to see the reason why the unit is not protecting. The unit being browsed cannot communicate with a unit identified in this way. This may be because the unit is powered down or the protection cable is not connected. If both units at the end remote from the end being managed are gray, this indicates that the wireless link is down. phn-2513_001v000 (Apr 2012) 7-35
- 584. Managing 1+1 Hot Standby links Chapter 7: Operation Symbols or text Meaning This indicates that fault protection is disabled by management. This prevents automatic protection switching on detection of a fault occurs. A managed protection switch can still be executed. Using the Protected Link page Viewing system status To view the System Status page for an active, inactive or faulty unit, click on the icon. See Viewing the system status on page 7-7. Viewing alarms and faults If the alarm warning triangle is displayed on the menu bar, click on it to view the outstanding alarm list for the unit that currently provides the management interface. See Viewing the system summary on page 7-6 and Managing alarms on page 7-15. Rolling the cursor over a red icon causes a list of protection faults for that unit to be displayed. Viewing the status of mismatched neighbors Certain configuration attributes must be the same on neighbors in order for an inactive unit to protect an active unit. If the inactive unit does not match, it will be shown in red on the Protected Link page and the reason will be ‘Configuration not protecting’. To determine which attribute is not matched, select the Home page of the misconfigured unit. If the inactive unit is not protecting the active unit for any reason (for example, it is misconfigured or has a fault) a summary attribute called protectionAvailabilityStatus will be displayed on the Home page of both the active and inactive unit. On the active unit it will have the value of ‘Not Protected’. On the inactive unit it will have the value of ‘Not Protecting’. 7-36 phn-2513_001v000 (Apr 2012)
- 585. PTP 800 Series User Guide Managing 1+1 Hot Standby links Forcing protection switches Protection switches may be forced for a variety of reasons, for example: • During maintenance operations. • During software or hardware upgrades. • To investigate error conditions that have not resulted in a protection switch. • To confirm that the inactive unit remains fully functional. To avoid loss of service, force protection switches only if link planning indicates that the unit(s) are capable of operating a satisfactory link. After a protection switch has been initiated, if work is to be carried out on the newly inactive unit, ensure that fault protection is temporarily disabled until the activity is completed. To force protection switches, click on the buttons on the Protected Link page. The text in the buttons varies depending upon which units are active and which are inactive. phn-2513_001v000 (Apr 2012) 7-37
- 586. Managing 1+1 Hot Standby links Chapter 7: Operation Example For example, one possible forced protection switching sequence is as follows: 1 Suppose that the initial status is Primary to Primary: 7-38 phn-2513_001v000 (Apr 2012)
- 587. PTP 800 Series User Guide Managing 1+1 Hot Standby links 2 Select Make Secondary Active at the Tx Lo end. The result is: phn-2513_001v000 (Apr 2012) 7-39
- 588. Managing 1+1 Hot Standby links Chapter 7: Operation 3 Select Make Tx Hi Secondary and Tx Lo Primary Active. The result is: 7-40 phn-2513_001v000 (Apr 2012)
- 589. PTP 800 Series User Guide Managing 1+1 Hot Standby links 4 Select Make Secondary Active at the Tx Lo end. The result is: phn-2513_001v000 (Apr 2012) 7-41
- 590. Managing 1+1 Hot Standby links Chapter 7: Operation 5 Select Make Tx Hi Primary and Tx Lo Primary Active. The initial status (Primary to Primary) is restored: 7-42 phn-2513_001v000 (Apr 2012)
- 591. PTP 800 Series User Guide Managing 1+1 Hot Standby links Enabling and disabling fault protection The Protected Link page can be used to enable or disable fault protection switching during the operation of the link. When switching is disabled, a fault will not cause a protection switch, but the user may still manually switch. This feature is intended to be used during maintenance actions where the user does not wish faults to change which CMU/RFU is active. This may be a required state with Spatial Diversity to prevent transmission through a non-compliant diverse antenna. Enable and disable fault protection using the buttons on the Protected Link page. The text in the buttons varies depending upon which units are active and which are inactive. Example For example, one possible disabling and enabling sequence is as follows: phn-2513_001v000 (Apr 2012) 7-43
- 592. Managing 1+1 Hot Standby links Chapter 7: Operation 1 Suppose that initially, fault protection is enabled at both ends: 7-44 phn-2513_001v000 (Apr 2012)
- 593. PTP 800 Series User Guide Managing 1+1 Hot Standby links 2 Select Disable Fault Protection at the Tx Hi end. The result is: phn-2513_001v000 (Apr 2012) 7-45
- 594. Managing 1+1 Hot Standby links Chapter 7: Operation 3 Select Disable Fault Protection at the Tx Lo end. The result is: 7-46 phn-2513_001v000 (Apr 2012)
- 595. PTP 800 Series User Guide Managing 1+1 Hot Standby links 4 Select Enable Fault Protection at the Tx Hi end. The result is: Protection switching can also be enabled or disabled from the Protection Configuration page, as described in Task 6: Configuring protection on page 6-50. phn-2513_001v000 (Apr 2012) 7-47
- 596. Managing 1+1 Hot Standby links Chapter 7: Operation Replacing a CMU in a 1+1 Hot Standby link Pre-configuring the replacement CMU Before delivering the replacement CMU to the PTP 800 site, ensure that it is ready to operate in the link. Proceed as follows: 1 Connect the replacement CMU to a management PC and open the web interface. 2 Use the latest saved configuration file from the faulty CMU to configure the replacement CMU. For instructions, refer to Restoring the system configuration on page 7-67. Ensure that the replacement CMU has the same licensed capabilities as the faulty CMU. If necessary, obtain and install a new license key. If a saved configuration file is not available, use the web interface to configure the replacement CMU as described in Chapter 6: Configuration and alignment. 3 If the installation includes a Fiber-Y interface, select menu option System, Configuration, Protection and confirm that Fiber Y is set to ‘Enabled’. Ensure this is done before replacing the CMU on site. If the Fiber-Y cable is connected to the replacement CMU whilst Fiber-Y is 'Disabled', the Ethernet connection will drop. 4 Select menu option System, Software Upgrade. The Software Upgrade page is displayed. 5 Make sure that the application software version is the same as the software installed on the other units in the link. 6 If Fiber-Y is enabled, make sure that: Application Software version is 800-04-00 or higher version. Boot Software is BOOT-03-00 or higher version. Recovery software is RECOVERY-04-00 or higher version If the requirements for boot or recovery are not met, contact customer support. 7-48 phn-2513_001v000 (Apr 2012)
- 597. PTP 800 Series User Guide Managing 1+1 Hot Standby links Replacing the CMU on site To replace the CMU on site, proceed as follows: 1 Identify the faulty CMU. The 1+1 LED state should be orange blink to indicate that the CMU is faulty and not protecting. 2 Remove power cable from the faulty CMU, disconnect all other interface cables, then remove the CMU. 3 Mount the replacement CMU. If the installation includes a Fiber-Y interface, the CMU must have Fiber-Y enabled before executing the remaining steps. 4 Connect interface cables to the replacement CMU (Figure 4), ensuring the power cable is connected last: a. Connect IF cable to RFU connector. b. If configured for out-of-band management, connect the CMU Management port to the appropriate CMU port of the 1+1 protection splitter. c. Connect copper data cable (if used) to copper Data port. d. Connect SFP module and fiber cable (if used) to Fiber SFP port. e. Connect ground cable to ground stud. f. Connect power cable to -48 V DC power socket and power up. 5 After approximately 2 minutes from powering up, check that the Management port 1+1 LED state is either green steady (CMU is active) or green blink (CMU is inactive). If it is in any other state, confirm that the correct CMU has been replaced and re-check the CMU configuration. See Table 4 for details of CMU LED states. phn-2513_001v000 (Apr 2012) 7-49
- 598. Managing 1+1 Hot Standby links Chapter 7: Operation Making the Primary unit the active unit If the replacement unit is configured as Primary, you may wish to make this the active unit, for example, if it is connected to the lower loss arm of an asymmetric coupler. This can be done by forcing a protection switch, see Managing 1+1 Hot Standby links on page 7-33. Alternatively, the CMU configured as Secondary may be configured with the Primary Recovery feature enabled, in which case there will be an automatic protection switch making the Primary CMU active once the Primary unit has been continually free of faults for a configurable period of time. See Configuring 1+1 Hot Standby links on page 6-51. 7-50 phn-2513_001v000 (Apr 2012)
- 599. PTP 800 Series User Guide Managing security Managing security This section describes how to manage security features such as FIPS 140-2 mode and AES encryption in operational PTP 800 links. Exiting FIPS 140-2 mode To exit from the FIPS 140-2 mode, do one of the following: • Load a PTP 800 license key that has FIPS operation disabled and reboot. Refer to Task 3: Installing license keys on page 6-18. • Load PTP 800 software that is not FIPS-validated and reboot. Refer to Task 4: Upgrading software version on page 6-22. The critical security parameters (CSPs) are zeroized when the unit is no longer FIPS 140- 2 Capable. Zeroizing critical security parameters Critical security parameters (CSPs) are as follows: • Key of keys. • AES encryption keys for the wireless interface. • Private key for the HTTPS/TLS interface. • Entropy value for the HTTPS/TLS interface. • User account passwords for the web-based interface. To zeroize the CSPs, select option Security, Zeroize CSPs and then Select Zeroize CSPs and Reboot Wireless Unit. Confirm the reboot. Alternatively, select the Zeroize CSPs option in Recovery mode. phn-2513_001v000 (Apr 2012) 7-51
- 600. Managing security Chapter 7: Operation Displaying login information To display details of the most recent successful login, and the most recent unsuccessful login attempt, for each user of the web-based interface, select menu option Management, Web, Login Information. The Login Information page is displayed (Figure 191). Figure 191 Login Information page Disabling AES encryption Perform this task to disable the encryption of data transmitted over the PTP 800 bridge. For more information on AES encryption, see AES license on page 1-60 This procedure must be repeated at both ends of the link. If AES encryption is disabled at one end of the link, it must also be disabled at the other end of the link, otherwise the link will not work. Unprotected link To disable AES encryption for an unprotected link, proceed as follows: 1 Select menu option Configuration. The System Configuration page is displayed (Figure 172). 2 Set the Encryption Algorithm attribute to ‘None’. 3 Select Submit Updated System Configuration. The Configuration Change Reboot dialog is displayed. 7-52 phn-2513_001v000 (Apr 2012)
- 601. PTP 800 Series User Guide Managing security 4 Select Reboot Wireless Unit. The Reboot Confirmation dialog is displayed. 5 Select OK. The reboot progress message is displayed. On completion, the unit restarts with AES encryption disabled. 1+1 Hot Standby link To disable AES encryption for a 1+1 Hot Standby link, proceed as follows: 1 If link planning indicates that the inactive units are not able to operate a link of satisfactory quality, force a protection switch at one end of the wireless link. 2 Disable fault protection switching for all PTP 800 units, as described in Enabling and disabling fault protection on page 7-43. 3 Disable AES Encryption for both inactive PTP 800 units as defined above for unprotected links. 4 Force a simultaneous protection switch at both ends of the wireless link, as described in Forcing protection switches on page 7-37. Check that the link is operating correctly without encryption. 5 Disable AES Encryption for both newly inactive PTP 800 units as defined in the above procedure for unprotected links. 6 Force a simultaneous protection switch at both ends of the wireless link, as described in Forcing protection switches on page 7-37. Check that the link is operating correctly without encryption. 7 If a protection switch was forced at one end of the link (Step 1) force a protection switch at the other end of the link so that the link is operated by the two primary units. 8 Re-enable protection switching for all PTP 800 units, as described in Enabling and disabling fault protection on page 7-43. Changing AES encryption keys Perform this task to update the encryption key used for data transmitted over the PTP 800 bridge. For more information on AES encryption, see AES license on page 1-60 This procedure must be repeated at both ends of the link. If the AES encryption key is changed at one end of the link, it must also be changed to the same value at the other end of the link, otherwise the link will not work. phn-2513_001v000 (Apr 2012) 7-53
- 602. Managing security Chapter 7: Operation Unprotected link To change the AES encryption key for an unprotected link, proceed as follows: 1 Select menu option Configuration. The System Configuration page is displayed (Figure 172). 2 If the encryption attributes are not displayed, or if the Encryption Key attribute is set to ‘None’, see Configuring AES encryption on page 6-26. 3 Update the Encryption Key attribute. 4 Select Submit Updated System Configuration. The Configuration Change Reboot dialog is displayed. 5 Select Reboot Wireless Unit. The Reboot Confirmation dialog is displayed. 6 Select OK. The reboot progress message is displayed. On completion, the unit restarts with AES encryption enabled, using the new key. 1+1 Hot Standby link This procedure must be performed for all units. When upgrading each pair of units, then either the web interface can be opened simultaneously for each CMU, or the remote system can be configured and then the local system configured. Before changing encryption keys, check that no alarms are outstanding for the units to be upgraded. See Managing alarms on page 7-15. It is expected that this procedure will normally take place from an initial status of Primary to Primary, especially for an asymmetric coupler or for a protected antenna when the inactive unit has a lower capacity. To change the AES encryption key for a 1+1 Hot Standby link, proceed as follows: 1 Disable local and remote protection switching, as described in Enabling and disabling fault protection on page 7-43. 2 Force a protection switch at the local end of the wireless link, as described in Forcing protection switches on page 7-37, so that the link is operating between a primary and a secondary unit. 3 Change AES Encryption keys for both inactive PTP 800 units, as defined in Unprotected link on page 7-54. If an incorrect encryption key is entered at the remote end, then it may be necessary to go to the remote end to correct the encryption key. 7-54 phn-2513_001v000 (Apr 2012)
- 603. PTP 800 Series User Guide Managing security 4 Force a simultaneous protection switch at both ends of the wireless link, as described in Forcing protection switches on page 7-37. Check that the link is operating correctly using the new encryption key. 5 Change AES Encryption keys for both newly inactive PTP 800 units, as defined in Unprotected link on page 7-54. 6 Check the System Status page for encryption alarms (Figure 192). If any are displayed, investigate and correct the encryption configuration. 7 Force a simultaneous protection switch at both ends of the wireless link, as described in Forcing protection switches on page 7-37. Check that the link is operating correctly using the new encryption keys. 8 Force a protection switch at the local end of the link, so that the link is running Primary to Primary, and check that the link is operating correctly. This confi
