S-Functions in MATLAB Presentation
0 likes439 views
The document discusses allowing researchers and engineers to incorporate S-functions models into MATLAB. It shows that S-functions models extracted in ICE can be queried, visualized, and have their response retrieved for given operating points and excitation signals using MATLAB's .NET Framework support. An example loads an S-functions model file and retrieves interpolated parameter values to predict the modeled device's response.
S-Functions in MATLAB Presentation
- 1. TM MATLAB support for S-functions models @ ICE © NMDG 6/2012
- 2. Summary Goal: allow researchers and engineers to incorporate S-functions models in the development environment of their choice Here it is shown that it is possible to use S-functions models from within MATLABTM R2012A using its support for the .NET Framework ● Query and visualize S-functions models which were extracted in ICE ● Retrieve the response of the device or system represented by this model for a given set of large-signal operating points and small-signal excitation signals ● Example: S-functions model which is provided as part of “ICE Getting Started” MATLAB is a registered trademark of The MathWorks, Inc © NMDG 2012 2
- 3. Load S-functions model from file and show its basic properties © NMDG 2012 3
- 4. Get an idea of the validity range of the S-functions model © NMDG 2012 4

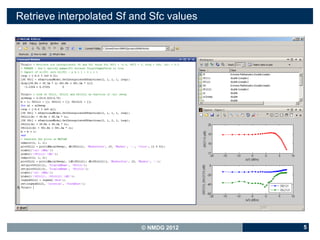

- 5. Retrieve interpolated Sf and Sfc values © NMDG 2012 5
- 6. Predict the response of the modelled device © NMDG 2012 6

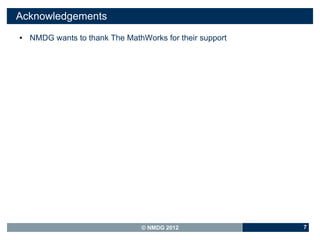

- 7. Acknowledgements ● NMDG wants to thank The MathWorks for their support © NMDG 2012 7
- 8. Contact info Want to try this capability? Contact us at info@nmdg.be © NMDG 2012 8
