This document provides instructions for installing and configuring TinyOS on Ubuntu Linux. It outlines downloading TinyOS from its website, adding the TinyOS repositories, configuring environment variables, and compiling and pushing applications to sensor motes. Shell scripts are provided to simplify connecting motes, compiling modules, and pushing compiled code. Running the Java listener and GUI are also explained for receiving and viewing sensor data from motes over a TCP/IP network connection.
TinyOS installation Guide And Manual
- 1. TinyOS Manual For Beginners in Linux (Ubuntu) Ankit Singh FH Frankfurt am Main February 10, 2011
- 2. Contents 1 TinyOS Installation Guide for Beginners 2 1.1 Procedure for Installation and configuring TinyOS . . . . . . 2 1.1.1 Installation of TinyOS (Source tinyos.net) . . . . . . . 2 1.1.2 Configuration of TinyOS . . . . . . . . . . . . . . . . . 3 1.1.3 Confirming the correct configuration of the Tinyos . . 4 1.1.4 Connecting Motes & pushing modules to Motes . . . . 4 1.1.5 Setting Up Environment for Mote Listener . . . . . . 6 1.2 Compiling and Pushing Sensor board specific Application . . 7 1.2.1 Compile Module . . . . . . . . . . . . . . . . . . . . . 7 1.2.2 To Push it to the Motes . . . . . . . . . . . . . . . . . 7 1.2.3 Running GUI in For Base Station . . . . . . . . . . . 7 1
- 3. Chapter 1 TinyOS Installation Guide for Beginners 1.1 Procedure for Installation and configuring TinyOS 1.1.1 Installation of TinyOS (Source tinyos.net) In Ubuntu operating system open following file: System → Administration → Synaptic Package Manager After Synaptic Package Manager get open goto: Settings → Repositories → Other software → (Press) Add After pressing Add button, Please enter the following line to add the tinyOS repositories: deb http://tinyos.stanford.edu/tinyos/dists/ubuntu <distribution> main Distribution is the distribution name of the Ubuntu. If you do not know the distribution name then please follow the steps to know your Ubuntu Distribution: Type the the folllowing command on your linux command line: ankit@ubuntu:~$ lsb_release -a No LSB modules are available. Distributor ID: Ubuntu Description: Ubuntu 10.04.1 LTS Release: 10.04 Codename: lucid You will get some output like the above. The Codename: lucid is my dis- tribution name. So, Just use the name which shows to you. 2
- 4. After you inserted the above line in the add pop-up then press close. The linux will ask your permission to update the repositories. Just close it and it will automatically do it. Now, there is a option called Quick Search: Please enter tinyos as search key. You can see some result on it. Choose tinyos-2.1.1. Then press Apply button in Synaptic Package Manager. It will install tinyos for you. 1.1.2 Configuration of TinyOS Open Terminal in Ubuntu You need to source the tinyos.sh (shell script) in bashrc. Type the following command: ankit@ubuntu:~$ sudo gedit .bashrc The .bashrc file will be open after hitting enter Then copy & paste the following lines after the first syntax lines: #Sourcing the tinyos environment variable setup script source /opt/tinyos-2.1.1/tinyos.sh After that, save & exit. Change the owner ship of the tinyos directory Change directory to: (use the following command) ankit@ubuntu:~$cd /opt/ ankit@ubuntu:~$sudo Chown -R ankit:ankit tinyos-2.1.1/ Note: use your home folder name given before ’@’ sign - Add path to tinyos.jar file in tinyos.sh ankit@ubuntu:~$cd /opt/tinyos-2.1.1 ankit@ubuntu:/opt/tinyos-2.1.1$sudo gedit tinyos.sh Add the following line just after the end of the CLASSPATH: :$TOSROOT/support/sdk/java/tinyos.jar:. The line should look like: CLASSPATH=$CLASSPATH:$TOSROOT/support/sdk/java: $TOSROOT/support/sdk/java/tinyos.jar:. 3
- 5. 1.1.3 Confirming the correct configuration of the Tinyos Change directory to: ankit@ubuntu:~$cd /opt/tinyos-2.1.1/apps/Blink Type the make command for the module Blink ankit@ubuntu:/opt/tinyos-2.1.1/apps/Blink$ make micaz You should see the output like this: mkdir -p build/micaz compiling BlinkAppC to a micaz binary ncc -o build/micaz/main.exe -Os -fnesc-separator=__ -Wall -Wshadow -Wnesc-all -target=micaz -fnesc-cfile=build/micaz/app.c -board=micasb -DDEFINED_TOS_AM_GROUP= 0x22 --param max-inline-insns-single=100000 -DIDENT_APPNAME="BlinkAppC" - DIDENT_USERNAME="ankit" -DIDENT_HOSTNAME="ubuntu" - DIDENT_USERHASH=0x1bba31edL -DIDENT_TIMESTAMP=0x4cec121eL -DIDENT_UIDHASH=0x92b330deL -fnesc- dump=wiring - fnesc-dump=’interfaces(!abstract())’ -fnesc- dump=’referenced(interfacedefs, components)’ -fnesc- dumpfile=build/micaz/wiring-check.xml BlinkAppC.nc -lm compiled BlinkAppC to build/micaz/main.exe 2052 bytes in ROM 51 bytes in RAM avr-objcopy --output-target=srec build/micaz/main.exe build/micaz/main.srec avr-objcopy --output-target=ihex build/micaz/main.exe build/micaz/main.ihex writing TOS image If you are able to see ’writing TOS’ image at end then you have successfully configured the Tinyos. 1.1.4 Connecting Motes & pushing modules to Motes Every time you connect a new mote to the serial-based programming board , you have to again setup & configure the network address of the program- ming board and system. So, to make life easy, I wrote a shell script. All SHELL SCRIPTS tools can be found in MicazXpl project repositories. Following are the shell script for configuring network ankit@ubuntu:~$sudo gedit /bin/runMoteSetup.sh #!/bin/sh sudo ifconfig eth0 10.5.5.1 4
- 6. sudo arp -s 10.5.5.5 00204A13E829 netcat 10.5.5.5 1 netcat 10.5.5.5 9999 NOTE: 00204A13E829 is the MAC address of my serial-based programming board. You need to put your own MAC address finding on the board. This will save the shell script in /bin folder which will make this shell script accessible from any folder or path. Don’t forget to make the shell script to executable file by using the following command. ankit@ubuntu:~$sudo chmod +x /bin/runMoteSetup.sh ankit@ubuntu:~$ runMoteSetup.sh ??#??# *** Lantronix Universal Device Server *** Serial Number 1359433 MAC address 00204A13E829 Software version V5.8.0.1 (041112) LTX Press Enter for Setup Mode Now, The shell script to push the modules to the Motes: ankit@ubuntu:~$sudo gedit /bin/pushToMotes.sh #!/bin/sh ## For comiling Data And pushing it in the Mote make micaz install eprb,10.5.5.5 For making the above shell script executable. ankit@ubuntu:~$sudo chmod +x /bin/pushToMotes.sh ankit@ubuntu:/opt/tinyos-2.1.1/apps/Blink$ pushToMotes.sh mkdir -p build/micaz compiling BlinkAppC to a micaz binary ncc -o build/micaz/main.exe -Os -fnesc-separator=__ -Wall -Wshadow -Wnesc-all -target=micaz -fnesc-cfile= build/micaz/app.c -board=micasb -DDEFINED_TOS_AM_GROUP=0x22 --param max-inline-insns-single=100000 -DIDENT_APPNAME="BlinkAppC" - DIDENT_USERNAME="ankit" -DIDENT_HOSTNAME="ubuntu" - DIDENT_USERHASH=0x1bba31edL -DIDENT_TIMESTAMP=0x4ceef6c4L - DIDENT_UIDHASH=0x44161342L -fnesc- dump=wiring -fnesc-dump=’interfaces(!abstract())’ fnesc- dump=’referenced(interfacedefs, components)’ -fnesc- dumpfile=build/ micaz/wiring-check.xml BlinkAppC.nc -lm compiled BlinkAppC to build/micaz/main.exe 2052 bytes in ROM 51 bytes in RAM 5
- 7. avr-objcopy --output-target=srec build/micaz/main.exe build/micaz/main.srec avr-objcopy --output-target=ihex build/micaz/main.exe build/micaz/main.ihex writing TOS image cp build/micaz/main.srec build/micaz/main.srec.out installing micaz binary using eprb uisp -dprog=stk500 -dhost=10.5.5.5 --wr_fuse_h=0xd9 - dpart=ATmega128 --wr_fuse_e=ff --erase --upload if=build/micaz/main.srec.out --verify Firmware Version: 1.7 Atmel AVR ATmega128 is found. Uploading: flash Verifying: flash Fuse High Byte set to 0xd9 Fuse Extended Byte set to 0xff rm -f build/micaz/main.exe.out build/micaz/main.srec.out 1.1.5 Setting Up Environment for Mote Listener Mote Listner is used to read the data broadcasted by motes in the network and saves to the output file. Following are the commands for listening: java net.tinyos.tools.Listen -comm network@10.5.5.5:10002 It is supposed to be serial communication but in our case, we are us- ing TCP/IP connection. That is why we are using ”network@IP:PORT” in above command. You can also go through the java source for getting more details on number of options available for your type of connection to your PC: ankit@ubuntu:/opt/tinyos-2.1.1/support/sdk/java/net/tinyos$ vim packet/BuildSource.java You can export the MOTECOM for not always passing option -comm export MOTECOM=network@10.5.5.5:10002 Then run java listner without -comm parameter ankit@ubuntu:/opt/tinyos-2.1.1/apps/tests/TestSerial$ java net.tinyos.tools.Listen 6

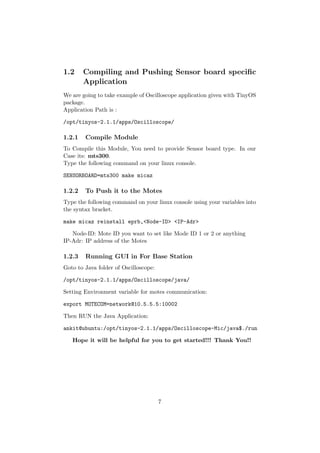

- 8. 1.2 Compiling and Pushing Sensor board specific Application We are going to take example of Oscilloscope application given with TinyOS package. Application Path is : /opt/tinyos-2.1.1/apps/Oscilloscope/ 1.2.1 Compile Module To Compile this Module, You need to provide Sensor board type. In our Case its: mts300. Type the following command on your linux console. SENSORBOARD=mts300 make micaz 1.2.2 To Push it to the Motes Type the following command on your linux console using your variables into the syntax bracket. make micaz reinstall eprb,<Node-ID> <IP-Adr> Node-ID: Mote ID you want to set like Mode ID 1 or 2 or anything IP-Adr: IP address of the Motes 1.2.3 Running GUI in For Base Station Goto to Java folder of Oscilloscope: /opt/tinyos-2.1.1/apps/Oscilloscope/java/ Setting Environment variable for motes communication: export MOTECOM=network@10.5.5.5:10002 Then RUN the Java Application: ankit@ubuntu:/opt/tinyos-2.1.1/apps/Oscilloscope-Mic/java$./run Hope it will be helpful for you to get started!!! Thank You!! 7
