VMworld 2013: Cloud Service Automation with NSX and vCloud Automation Center
1 like861 views
The document discusses cloud service automation through VMware's NSX and vCloud Automation Center, focusing on consumption models, user needs, and the current capabilities of these technologies. It outlines the benefits of on-demand provisioning of application infrastructure, network virtualization, and automation to improve efficiency for business users and IT administrators. Additionally, it emphasizes the importance of simplifying networking and security management while enhancing the speed and flexibility of cloud services.
VMworld 2013: Cloud Service Automation with NSX and vCloud Automation Center
- 1. Cloud Service Automation with NSX and vCloud Automation Center Gargi Keeling, VMware Valentina Reutova, VMware VCM5477 #VCM5477
- 2. Agenda Consumption Models and Tradeoffs What Users Want from Cloud Infrastructure Where We Are Today Technology Preview + DEMO – vCloud Automation Center with NSX Summary of Automation Capabilities – vCloud Automation Center with NSX Next Steps
- 3. A Valid Model for Consumption – Fully Stocked Inventory Advantages Items always available Requests immediately fulfilled Considerable choice Disadvantages Inventory costs Unused items go to waste Requires planning Pay a premium for instant gratification and convenience (little choice)
- 4. Another Model - “Pay As You Go” Advantages No inventory costs Only pay for what you use Disadvantages Restricted by product availability and store hours No instant gratification It could be worse…?
- 5. What Are You Trying to Optimize For Application Infrastructure? COST (Money) CHOICE (Scope) AGILITY (Time) APP DATABASE WEB
- 6. Agenda Consumption Models and Tradeoffs What Users Want from Cloud Infrastructure Where We Are Today Technology Preview + DEMO – vCloud Automation Center with NSX Summary of Automation Capabilities – vCloud Automation Center with NSX Next Steps
- 7. End Users Still Wait Weeks for Their Apps Network and security challenges hamper cloud service provisioning. VI Admin / Cloud Operator I need to check with the network team for VLANs and IP addresses. Hmmm….I’ll need to ask the ops team for available addresses, put in a change request for new firewall rules, ask for a load balancer pool… Get back to you in a month? Network Architect They said a few weeks… Oh…just forget it. Aargh! Business User I need this, NOW.
- 8. What if … Your cloud service provisioning solution could spin up and tear down logical networks and services as needed, to deliver application infrastructure on-demand? VI Admin / Cloud Operator I saved a lot of time, too. Now I can work on other stuff. Business User Got my machines. Now I’m in business. Thanks! I’ve got visibility and control over virtual network infrastructure. No complaints here. Network Architect
- 9. Agenda Consumption Models and Tradeoffs What Users Want from Cloud Infrastructure Where We Are Today Technology Preview + DEMO – vCloud Automation Center with NSX Summary of Automation Capabilities – vCloud Automation Center with NSX Next Steps
- 10. Most Requested Deployment Models for Multi-Tiered Apps Cloud Automation + Network Virtualization Leverage pre-created logical networks and services to deliver application infrastructure on-demand. Create On- Demand Leverage Existing Infrastructure WEB APP DATABASE APPLICATION APP DATABASE WEB APPLICATIONNetwork Router Load Balancer Firewall Rules
- 11. The Solution Cloud Automation Self - Service IaaS PaaS DaaS XaaS Cloud Service Automation Heterogeneous Infrastructure Policy-Based Governance with Automated Delivery Network Virtualization Any Application (without modification) Virtual Networks VMware NSX Network Virtualization Platform Logical L2 Any Network Hardware Any Cloud Management Platform Logical Firewall Logical Load Balancer Logical L3 Logical VPN Any Hypervisor
- 12. Templates Address a Big Part of the Problem “We are really striving to create a frictionless environment for any common, allowed, repeatable configurations that would allow people to point and click provision from an approved template.” Don Wood, Cloud Architect, McKesson
- 13. Policy Enforcement At Multiple Layers Cloud Automation Resource Reservations Enforce at infrastructure layer Application Blueprints Enforce based on end user entitlements Network Virtualization + Compute Virtualization ► Logical Firewalls (Security Groups) ►Logical Switches ►Load Balancer Resources provisioned in infrastructure Provisioning Group Enforce based on group entitlements
- 14. Why NSX? Built-in, logical services that are programmable for easy consumption by cloud automation solutions. Logical FirewallLogical Switch Logical Load Balancer Logical Router VM VM VM VM VMVM VM VM VMVM VM VM VM VM VM VM VM VMVMVMVM VM VM VM VM VM VM VM VM VM Security Groups
- 15. Agenda Consumption Models and Tradeoffs What Users Want from Cloud Infrastructure Where We Are Today Technology Preview + DEMO – vCloud Automation Center with NSX Summary of Automation Capabilities – vCloud Automation Center with NSX Next Steps
- 16. Future Direction Cloud Automation + Network Virtualization Spin up and tear down logical networks and services as needed, to deliver application infrastructure on-demand. Create On- Demand Leverage Existing Infrastructure APP DATABASE WEB WEB APP DATABASE
- 17. Hierarchy of Needs for Networking & Security of Applications Simplicity Availability Security Connectivity & Scale
- 18. Connect the App Perimeter Gateway to External Networks Gateway Logical Router Create On- Demand Leverage Existing Infrastructure WEB APP DATABASE Logical Switch 1. Spin up the workloads 2. Attach them to new logical switches 3. Spin up a logical router and attach new switches to router interfaces 4. Connect logical router uplink to perimeter gateway
- 20. Scale Within App, Across Apps Perimeter Gateway to External Networks Gateway Create On- Demand Leverage Existing Infrastructure 1. Add more workloads to existing apps 2. Create more apps 3. Destroy apps
- 21. Secure the App 1. Place app in appropriate security zones, protected by firewall rules Multi Network Model Use security group to isolate entire app, virtual firewall to control traffic between tiers. Flat Network Model Use security groups to isolate entire app and app tiers, virtual firewall to control all traffic. APP DATABASE WEB WEB APP DATABASE APPLICATION APPLICATION Create On- Demand Leverage Existing Infrastructure
- 23. Add Availability and Performance to App 1. Spin up a new NSX gateway edge 2. Create load balancer pool based on app workloads, network APP DATABASE WEB WEB APP DATABASEServices Edge (Load Balancer) Services Edge (Load Balancer) Create On- Demand Leverage Existing Infrastructure
- 25. Simplify Networking for the App 1. Network team pre-defines ‘profiles’ for connectivity 2. Cloud architect defines blueprints using these profiles PRIVATE NAT ROUTED Create On- Demand Leverage Existing Infrastructure
- 27. Simplify Deployment Topology for the App 1. Provide flat network topology for each new app 2. Use shared or dedicated logical router for connectivity 3. Rely on security groups for app isolation 4. Repeat Create On- Demand Leverage Existing Infrastructure Perimeter Gateway to External Networks Gateway
- 29. Automate, Then Customize “The only time they (users) should need to come to us is for a non-standard request or a request that requires an additional level of security sign-off.” Don Wood, Cloud Architect, McKesson
- 30. Agenda Consumption Models and Tradeoffs What Users Want from Cloud Infrastructure Where We Are Today Technology Preview + DEMO – vCloud Automation Center with NSX Summary of Automation Capabilities – vCloud Automation Center with NSX Next Steps
- 31. Network Profiles Simplify Network Consumption in Cloud Cloud Operator creates network profiles based on guidance from networking team. Is this what you wanted? VI Admin / Cloud Operator Yup. Looks good. Network Architect
- 32. Blueprints Can Provision Logical Networks and Services VI Admin / Cloud Operator Good to know. We’ll spin it up and tear it down when you’re done. Blueprints can now create infrastructure on demand - networks, routers, firewall and load balancer services. Infrastructure can be torn down when lease is up. Business User I only need this for 2 months. I get to optimize my cloud resource pools AND I didn’t have to deal with the physical network!
- 33. Optimize with vCloud Automation Center + NSX COST CHOICE AGILITY APP DATABASE WEB
- 34. Agenda Consumption Models and Tradeoffs What Users Want from Cloud Infrastructure Where We Are Today Technology Preview + DEMO – vCloud Automation Center with NSX Summary of Automation Capabilities – vCloud Automation Center with NSX Next Steps
- 35. Back at the Office… VI Admin / Cloud Operator What do you need from us? Network Architect Plan your evaluation of NSX with vCloud Automation Center. Talk to your networking team about collaborating to build network profiles, for on-demand creation of logical networks and services. Anything else? Let us know how to connect these apps to the IP network.OK. We’ll help you define network profiles. Any hardware, any IP fabric. We will deploy NSX. Thanks! Our users need app infrastructure on-demand, but relying on physical networks is slowing us down.
- 36. It IS Possible Your cloud service automation solution CAN spin up and tear down logical networks and services on-demand, with configurable options, and with optimal value. VI Admin / Cloud Operator I saved a lot of time, too. Now I can work on other stuff. Business User Got my machines. Now I’m in business. Thanks! I’ve got visibility and control over virtual network infrastructure. No complaints here. Network Architect
- 37. Templates: Pre-defined, some customization Infrastructure: On-demand Consumption, Your Way Templates: Pre-defined, no customization Infrastructure: Pre-created
- 38. Other VMware Activities Related to This Session HOL: HOL-SDC-1303 VMware NSX Network Virtualization Platform Group Discussions: VCM1003-GD Cloud Automation with Naomi Sullivan
- 39. THANK YOU
- 41. Cloud Service Automation with NSX and vCloud Automation Center Gargi Keeling, VMware Valentina Reutova, VMware VCM5477 #VCM5477
- 42. Background Slides vCloud Automation Center, NSX
- 43. Most Requested Deployment Models for Multi-Tiered Apps Multiple Networks Flat Network APP DATABASE WEB WEB APP DATABASE
- 44. Most Requested Network and Security Services Built-in, logical services that are programmable for easy consumption by cloud automation solutions. FirewallNetwork Load Balancer Router
- 45. Where We Are Today Create On- Demand Leverage Existing Infrastructure APP DATABASE WEB Pre-Created, Logical Networks Applications can be spun up on-demand, using logical networks that have already been created. APP DATABASEWEB Routed Network A.B.C.# A.B.C.# NAT Network A.B.C.#X.Y.Z.#
- 46. Where We Are Today Create On- Demand Leverage Existing Infrastructure Pre-created, Firewall Rules Apps can be added to existing security groups. APP DATABASE WEB WEB APP DATABASE APPLICATION APPLICATION
- 47. Where We Are Today Pre-created, Load Balancer Pool Apps can be added to existing load balancer pools. APP DATABASE WEB WEB APP DATABASEServices Edge (Load Balancer) Services Edge (Load Balancer) Create On- Demand Leverage Existing Infrastructure
- 48. vCloud Automation Center Extensibility Spectrum Flexibility without Complexity
- 49. Key Software-Defined Data Center Capabilities Hybrid cloud extensibility App deployment across multiple hardware stacks physical or virtual Support for multiple hypervisors (Hyper-V, KVM) and clouds (OpenStack, Amazon AWS) Choice Compute virtualization Network and security virtualization Software-defined storage Automated operations management Control Automated Business Continuity / Disaster Recovery Virtualization aware security and compliance across clouds Management across private and public clouds Operational analytics Agility Service provisioning across multi-platform multi- cloud Policy driven automation Self-service portal and catalog
- 50. VMware Cloud Service Provisioning Solution vCloud Automation Center Business Impact • Increase customer satisfaction by reducing service delivery times • Reduce OPEX - reallocate resources to high impact projects • Reduce CAPEX – eliminate over provisioning and automate resource reclamation • Improve perception & relevancy of IT • Automate delivery of Infrastructure and Desktop as a Service Rapidly deploy the right size machine at the right service level Self - Service IaaS PaaS DaaS XaaS Cloud Service Provisioning Heterogeneous Infrastructure Policy-Based Governance with Automated Delivery
- 51. The VMware User Centric, Business Relevant Cloud Desktop Production Dev/Test vCloud Automation Center Shared Infrastructure
- 52. vCloud Automation Center Policy Management Business Groups B A C USERS A C B A Authentication & Role-Based Authorization Authorized Users Resource Reservations Cost Profile A Tier 1 Public Physical Virtual Shared Infrastructure Service Blueprints A Requisition Cost Profile Provision Manage Retire Public Physical Virtual C B B A B A C BA
- 53. VMware NSX – The Platform for Network Virtualization VMware NSX Transforms the Operational Model of the Network • Network provisioning time reduced from 7 days to 30 sec Reduce network provisioning time from days to seconds Cost Savings • Reduce operational costs by 80% • Increase compute asset utilization upto 90% • Reduce hardware costs by 40-50% Operational Automation Simplified IP hardware Choice • Any Hypervisor: vSphere, KVM, Xen, HyperV • Any CMP: vCAC, Openstack • Any Network Hardware • Partner Ecosystem Any hypervisor Any CMP with Partner
- 54. VMware NSX – Networking & Security Capabilities Rich Networking & Security Services • Scalable Logical Switching • Physical to Virtual L2 Bridging • Dynamic L3 Routing: OSPF, BGP, IS-IS • Logical Services: Firewall, Identity-based Firewall, Load- balancing, VPN (IPSec, SSL, L2VPN) Automation & Operations • API Driven Integration • Service Composer for Security Workflows • Server Access Monitoring • Troubleshooting & Visibility Partner Extensibility • Physical ToR L2 Integration • Security Services – IDS / IPS, AV, Vulnerability Mgmt • Network Services – Load Balancers, WAN Optimization Any Application (without modification) Virtual Networks VMware NSX Network Virtualization Platform Logical L2 Any Network Hardware Any Cloud Management Platform Logical Firewall Logical Load Balancer Logical L3 Logical VPN Any Hypervisor
- 55. VMware NSX – Networking & Security Capabilities Any Application (without modification) Virtual Networks VMware NSX Network Virtualization Platform Logical L2 Any Network Hardware Any Cloud Management Platform Logical Firewall Logical Load Balancer Logical L3 Logical VPN Any Hypervisor Logical Switching– Layer 2 over Layer 3, decoupled from the physical network Logical Routing– Routing between virtual networks without exiting the software container Logical Firewall – Distributed Firewall, Kernel Integrated, High Performance Logical Load Balancer – Application Load Balancing in software Logical VPN – Site-to-Site & Remote Access VPN in software NSX API – RESTful API for integration into any Cloud Management Platform Partner Eco-System
- 56. Comparing vCNS 5.5 to NSX Optimized for vSphere vCNS (part of vCloud Suite) NSX Layer 2 - Switching • Virtual Distributed Switch (vDS),+ VXLAN Overlay, requires multicast in physical network • NSX vSwitch • Complete Network Virtualization Overlay (no multicast required) • L2 logical to physical bridging (VXLAN to VLAN) Layer 3 – Routing • Centralized Virtual Router Appliance • Static Routing • NAT • E-W Distributed Routing • N-S Centralized Routing • Dynamic Routing (BGP, OSPF) • Static Routing • NAT Firewall Services • Firewall Virtual Appliance (~2Gbps) • Virtualization Aware • Distributed Virtual Firewall • Kernel enabled line rate (~18+Gbps) • Virtualization and Identity Aware • Activity Monitoring Load Balancer Services • Load Balancer Virtual Appliance • Logical Load Balancer • Layer 7 rules • SSL Termination Virtual Private Network (VPN) • Site-to-Site & Remote Access VPN • Site-to-Site & Remote Access VPN Hypervisor Support • ESXi • ESXi Management • Basic management UI • Full NGC Integration • Service Composer • NSX Manager • NSX API 1 Cloud Management Platforms • vCenter/vCD, vCAC • vCenter/vCD, vCAC, Custom THIS IS NOT A ROADMAP 1 POC only
- 57. Reserving Resources for Each Group • VXLANs appear as network paths in resource reservations • Security Groups, Load Balancers − Can be specified as custom properties on the reservation or on the blueprint VXLANs can be reserved by Provisioning Group Current Release: vCloud Automation Center 5.2 with vCloud Networking and Security 5.1
- 58. Configuring Service Blueprints VCAC Blueprint Custom Properties define the Load Balancer and Security Groups, that will be associated with the Machine being provisioned. Current Release: vCloud Automation Center 5.2 with vCloud Networking and Security 5.1
- 59. End User Experience Completely Pre-defined Partially Customizable Organizations can have users select templates with networking and security that is completely pre-defined or partially customizable. FW FW LB NW
- 60. New Network Profiles PRIVATE No routes to outside app. Routing only between networks within app. Can use distributed router for optimal scalability and performance. ROUTED Network addresses are routable (no private addresses). Routes enabled to outside application boundary. Routing inside app supported. NAT Private addressing for application networks. External IP is routable. Routing inside app supported. Supports DNAT (destination), SNAT (source), 1:1 NAT)
- 61. NSX – Existing Logical Switches
- 62. NSX – Existing Edge Gateways
- 63. NSX – Existing Edge Gateway, Network Interfaces
- 64. NSX – Existing Edge Gateway, Dynamic Routing
- 65. vCloud Automation Center – Service Catalog
- 66. vCloud Automation Center – Multi-Machine Blueprint (Request)
- 67. vCloud Automation Center – Multi-Machine Blueprint (Manage)

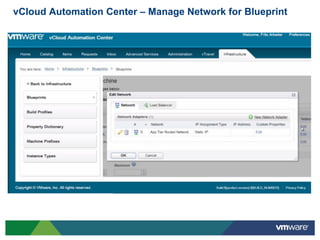

- 68. vCloud Automation Center – Manage Network for Blueprint
- 69. NSX – Networks Created On-Demand by vCloud Automation Center
- 70. NSX - Logical Router Created On-Demand by vCloud Automation Center
- 71. NSX – Network Interfaces Configured by vCloud Automation Center
- 72. NSX – VM Connected to Network by vCloud Automation Center
- 73. NSX – VMs Placed in Security Groups Protected by Firewall Rules, by vCloud Automation Center
- 74. vCloud Automation Center – Reservations
- 75. NSX – VMs Placed in Security Groups by vCloud Automation Center
- 76. vCloud Automation Center – Scale Blueprint by Adding VM
- 77. vCloud Automation Center – Specify Load Balancer Rules
- 78. vCloud Automation Center – Specify Virtual IP for Load Balancer Rule
- 79. NSX – Load Balancer Rules Configured by vCloud Automation Center
- 80. vCloud Automation Center – Two Different Networks for Multi- Machine Blueprint
- 81. vCloud Automation Center – Network Profile for Private Network
- 82. vCloud Automation Center – IP Addressing for Private Network Profile
- 83. vCloud Automation Center – Network Profile for NAT
- 84. vCloud Automation Center – Load Balancer Configuration
- 85. NSX – Multiple Logical Routers Created by Different Blueprints from vCloud Automation Center
- 86. NSX – NAT Configured by vCloud Automation Center
- 87. NSX – NAT Firewall Rule Configured by vCloud Automation Center
- 88. vCloud Automation Center – Blueprint with Flat, Logical Switch (Network)
- 89. vCloud Automation Center – Configure Flat Network
- 90. vCloud Automation Center – Add Load Balancer to Blueprint with Flat Network
