- 25GbE is the best choice for data centers to address the exponential growth in bandwidth needs driven by mobile data and video. - Upgrading directly to 40GbE and 100GbE is too costly, while 10GbE is no longer sufficient. 25GbE provides a cost-effective migration path as it leverages existing 10GbE infrastructure and delivers 2.5x the performance through a single lane. - A 25GbE ecosystem is developing, including standards work, available FPGA implementations from vendors like Xilinx, and the formation of a 25GbE consortium to accelerate product rollouts within the next 12-18 months.
Why 25G is the Best Choice for Data Centers
- 1. Why 25GE is the Best Choice for Data Centers Gilles Garcia – Xilinx Director Wired Communication Business Santa Clara, CA USA April 2015 1
- 2. Outline - update Data center drivers Why 25GE The need for 25GE Applications 25GE timeline 25GE ecosystem Summary 2Santa Clara, CA USA, April 2015 Forum 1A_Garcia_Final
- 3. The Need for More Speed Unrelenting IP traffic growth Driven by mobile data and video WEB 2.0 data handled gigantic Source: http://www.ieee802.org/3/ad_hoc/bwa/BWA_Report.pdf 3Santa Clara, CA USA, April 2015 Forum 1A_Garcia_Final
- 4. Santa Clara, CA USA, April 2015 4 Service Providers Servers Data Centers Core Networking Doubling ≈18 mos Server I/O Doubling ≈24 mos - Let’s not forget OPEX and CAPEX of WEB 2.0 companies - Increase server rack capacity and bandwidth Multiple Drivers Forum 1A_Garcia_Final

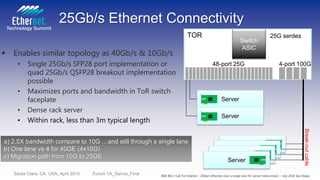

- 5. 25Gb/s Ethernet Connectivity Enables similar topology as 40Gb/s & 10Gb/s • Single 25Gb/s SFP28 port implementation or quad 25Gb/s QSFP28 breakout implementation possible • Maximizes ports and bandwidth in ToR switch faceplate • Dense rack server • Within rack, less than 3m typical length Server Server TOR Switch ASIC 48-port 25G 4-port 100G Server Server Server Server Break-outcable 25G serdes IEEE 802.3 Call For Interest – 25Gb/s Ethernet over a single lane for server interconnect – July 2014 San Diego a) 2.5X bandwidth compare to 10G …and still through a single lane b) One lane vs 4 for 40GE (4x10G) c) Migration path from 10G to 25GE Santa Clara, CA USA, April 2015 Forum 1A_Garcia_Final
- 6. Page 6 Economical Considerations Data centers traffic is increasing exponentially, requiring higher bandwidth • Running out of gas with 10GE Upgrading directly to 40G and 100G is cost prohibitive • Optical modules ‘cost prohibitive’ for WEB 2.0 companies 25G leverages existing (10G, single port/lane) infrastructure 2.5x performance per lane of twinax copper wiring between the server and the switch • Reduces data center CapEx by providing a migration path from 10G to 25G links Provides easy migration path to 50GE (2x25GE) & 100G (4x25G) • Special server • Uplinks • Another 2x performance improvement Santa Clara, CA USA, April 2015 Forum 1A_Garcia_Final
- 7. 25G Consortium formed July 2014 • Interoperability Ethernet specification for speeds between a server NIC and top of rack switch • Accelerate rollout of products in next 12 to 18 months • Royalty free • Xilinx is a member • Founding members: – Arista, Broadcom, Google, Mellanox and Microsoft IEEE 25Gb/s Ethernet Study Group progressing Page 7 25G Ethernet Standards Landscape Santa Clara, CA USA, April 2015 Forum 1A_Garcia_Final
- 8. Nov 2014: • 25GE Study Group => Task Force Feb 2015: • IEEE 802.3by new 25G Ethernet draft standard 2016: expect standards to be finalized – Short timeline because of reuse from 10GE, 100GE – YE 2016 IEEE 25GE Standardization Timeline Santa Clara, CA USA, April 2015 Forum 1A_Garcia_Final
- 9. FPGAs for 25GE The official 25GE standard won’t be published until YE 2016 Robust pre-standard market today, based on FPGA implementations Broadcom Switch sampling with 128 25GE ports FPGA designs can track changes in the standards as it progresses The following figures shows a typical 1st generation implementation 9 MAC/PCS Server Copper Cable 25GE Santa Clara, CA USA, April 2015 Forum 1A_Garcia_Final
- 10. Xilinx Virtex UltraScale VCU107 Board Virtex UltraScale 25GE to Ixia Tester OFC 2015 Demo Page 10 Xilinx Virtex UltraScale XCVU095 3m Direct Attached Copper Cabling X c e l l o n - M u l t i s 1 0 0 / 4 x 2 5 G E Santa Clara, CA USA, April 2015 Forum 1A_Garcia_Final
- 11. Application #1: Nx25G Ethernet to PCI Express Base NIC Card Page 11 PCIe Block DMA Memory Controller 25 GE MAC #1 25 GE MAC #4 PCIe G3x8 Nx25GbE NIC card for data center applications • Xilinx 25G low latency solution available today • Increases system performance enabling chip to chip solutions utilizing world class 25Gb/s serial transceivers Q S F P 28 … 3 to 5m Copper 2Km Optical (Luxtera, Intel) Xilinx IP Integrated Xilinx IP x4 Xilinx IP Xilinx IP Santa Clara, CA USA, April 2015 Forum 1A_Garcia_Final
- 12. Application #2: Programmable NIC Page 12 Redundancy not shown Packet processing NIC card for data center applications • Xilinx Virtex® UltraScale™ enable switchable interface between 4x10G Ethernet, 4x25G Ethernet and 100G Ethernet • Flexible packet processing IP for customer custom logic Bypass Path PCIe Hard IP MUX DMUX DMA Eng OFF LOAD Classifier Lookup Prog Packet Parser MUX DMUX 25GbE PCIe G3x8 4x10GE 4x25GE 100GE Xilinx IPXilinx IPIntegrated Xilinx IP Xilinx IPXilinx IP Xilinx IPXilinx IP 3rd party IP Santa Clara, CA USA, April 2015 Forum 1A_Garcia_Final
- 13. 25Gb/s Technologies Readily Available IEEE 802.3 Call For Interest – 25Gb/s Ethernet over a single lane for server interconnect – July 2014 San Diego Page 13 Santa Clara, CA USA, April 2015 Forum 1A_Garcia_Final
- 14. Summary Data center bandwidth explosion driving the 25GE 25GE promoted by large industry players (DC and OEMs) 25GE demand aligned with technology single lane transceiver 25GE ecosystem is ready for prime time • Xilinx 25GE pre-standard MAC IP available • Ixia 25GE tester announced at OFC 2015 • QSFP28 copper cables available • 25GE switch silicon sampling 25GE standards (25GE consortium & IEEE) ratification: 2016-17 50GE is around the corner …. 50GE MAC/PCS IP available from Xilinx Santa Clara, CA USA April 2015 14
