Embedded programming u3 part 1
- 2. OBJECTIVE 2
- 3. OBJECTIVE 3
- 6. 6 1. COMPONENTSOF EMBEDDED PROGRAM 2. MODELS OF PROGRAM 3.ASSEMBLY , LINKING & LOADING
- 8. 1. Finite State Machine 2. Circular Buffer 3. Queue 8
- 10. COMPONENTS OF EMBEDDED PROGRAM FSM Fetaures Seat belt controller Concept C implementation QUEUE Unpredictable Eg: Car driver P/C system 10 CIRCULAR BUFFER APP Concept with 6 Data stream C implementation
- 12. MODELS OF PROGRAM C-text Inorder to compile & Optimize the pro we need DS. Reason not considering the source code? DFG original basic block single assignment form Implementation of DFG from single assignment form 12
- 13. MODELS OF PROGRAM x = a + b; y = c - d; z = x * y; y = b + d; original basic block single assignment form x = a + b; y = c - d; z = x * y; y1 = b + d; 13
- 14. DFGs and partial orders 14
- 15. Control-data flow graph > CDFG: represents the data flow with control. > Uses data flow graphs as components. > Two types of nodes: - decision; - data flow. 15 x = a + b; y = c + d
- 16. Control-data flow graph example 16
- 17. 17 CDFG for a While loop
- 19. 19 Block diagram
- 20. TOOLS . 20
- 21. DIFFERENCE BETWEEN GPS & ES

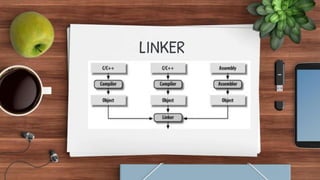

- 23. LINKER
- 24. > Programs may be composed from several files. > Addresses become more specific during processing: > absolute addresses > relative addresses 24
- 25. ASSEMBLER > Major tasks: - generate binary instruction format; - translate labels into addresses; - handle pseudo-ops > Assembly labels: ORG 100 Label1 ADR r4,c 25
- 26. SYMBOL TABLE 26 ADD r0,r1,r2 xx ADD r3,r4,r5 CMP r0,r3 yy SUB r5,r6,r7 assembly code xx 0x8 yy 0x16 symbol table
- 28. 28
- 29. 29
- 30. 30

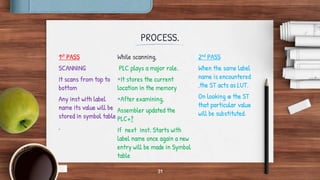

- 31. PROCESS. 1st PASS SCANNING It scans from top to bottom Any inst with label name its value will be stored in symbol table . While scanning, PLC plays a major role. It stores the current location in the memory After examining, Assembler updated the PLC+? If next inst. Starts with label name once again a new entry will be made in Symbol table 2nd PASS When the same label name is encountered ,the ST acts as LUT. On looking @ the ST that particular value will be substituted. 31
- 32. Two-pass assembly > Pass 1: - generate symbol table > Pass 2: - generate binary instructions 32

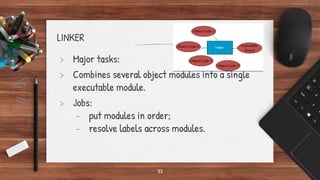

- 33. LINKER > Major tasks: > Combines several object modules into a single executable module. > Jobs: - put modules in order; - resolve labels across modules. 33

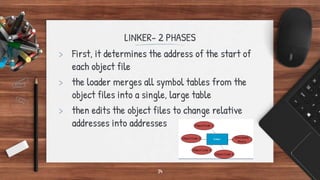

- 34. LINKER- 2 PHASES > First, it determines the address of the start of each object file > the loader merges all symbol tables from the object files into a single, large table > then edits the object files to change relative addresses into addresses 34
- 35. 35 Entry point & external reference
- 36. 36 Thanks!
