Pre-Computer Calculations
 Counting on fingers and toes
 Stone or bead abacus
Calculate comes from calculus, the Latin word
for stone
 1642: first mechanical adding machine
Invented by Blaise Pascal
Wheels moved counters
Modified in 1674 by Von Leibnitz
 Age of industrialization
Mechanical loomed used punch cards

Early Computing
 19th Century
Charles Babbage proposed the Analytical
Engine, which could calculate, store values in
memory, perform logical comparisons
Never built because of lack of electronics
 1880s
Hollerith’s punched cards used to record
census data using On/Off patterns
The holes turned sensors On or Off when run
through tabulating machine
This company became the foundation for IBM

Electronic Computers
 1946 - First Generation Computer
ENIAC
Programmable
5000 calculations per second
Used vacuum tubes
Drawbacks were size and processing ability
 1950s
ENIAC replaced by UNIVAC 1, then the
IBM 704
Calculations jumped to 100,000 per second

Waves of Computing
 Late 1950s - Second Generation
Transistors replaced vacuum tubes
200,000 to 250,000 calculations per second
 Mid-1960s - Third Generation
Integrated circuitry and miniaturization
 1971 - Fourth Generation
Further miniaturization
Multiprogramming and virtual storage
 1980s - Fifth Generation
Millions of calculations per second

Microcomputers
 1975
ALTAIR flicking switches
 1977
Commodore and Radio Shack produce
personal computers
 1979
Apple computer, the fastest selling PC thus far
 1982
IBM introduced the PC, which changed the
market

Categories of Computer
Systems

Microcomputer Systems
 Usually called a personal computer or PC
 Computing power now exceeds that of the
mainframes of previous generations
 Relatively inexpensive
 Are the networked professional workstations
used by business processions
 Versions include hand-held, notebook, laptop,
tablet, portable, desktop, and floor-standing

Recommended PC Features
Business Pro Multimedia Heavy Newcomer
2-3 GHz processor Mac G4 or 2-3 GHz
Intel processor
1-2 GHz Celeron
processor
512MB RAM 512MB RAM 256MB RAM
80GB hard drive 120GB+ hard drive 40GB hard drive
18-inch flat-panel
display
18-inch or larger CRT,
flat-panel LCD, or
plasma display
17-inch CRT or 15-inch
flat panel LCD
CD-RW/DVD drive or
portable hard drives for
backup
CD-RW/DVD+RW
drive
CD-RW/DVD drive
Network interface card
(NIC)
High-end color printer Internal, 56K modem
Basic speaker system Deluxe speaker system Basic inkjet printer

Microcomputer Uses
 Workstations
Supports have mathematical computer and
graphics display demands
CAD, investment and portfolio analysis
 Network Servers
More powerful than workstations
Coordinates telecommunications and resource
sharing
Supports small networks and Internet or
intranet websites

Corporate PC Criteria
 Solid performance at a reasonable price
 Operating system ready
 Connectivity
Network interface cards
or wireless capabilities

Information Appliances
 Hand-held microcomputer devices
 Known as personal digital assistants (PDAs)
Web-enabled PDAs use touch screens,
handwriting recognition, or keypads
Mobile workers use to access email or the Web,
exchange data with desktop PCs or servers
Latest entrant is the BlackBerry
 PDAs include
Video-game consoles
Cellular and PCS phones
Telephone-based home email appliances

Midrange Systems
 High-end network servers that handle large-scale
processing of business applications
 Not as powerful as mainframes
Less expensive to buy, operate, and maintain
 Often used to manage
Large Internet websites
Corporate intranets and extranets
Integrated, enterprise-wide applications
 Used as front-end servers to assist mainframes
with telecommunications and networks

Mainframe Computer Systems
 Large, fast, powerful computer systems
Large primary storage capacity
High transaction processing
Handles complex computations
 Widely used as superservers for…
Large client/server networks
High-volume Internet websites
 Becoming a popular computing platform for…
Data mining and warehousing
Electronic commerce applications

Supercomputer Systems
 Extremely powerful systems designed for…
Scientific, engineering, and business applications
Massive numeric computations
 Markets include…
Government research agencies
Large universities
Major corporations
 Uses parallel processing
Billions to trillions of operations per second
(gigaflops and teraflops)
Costs $5 to $50 million

Computer System Concept
 A system of hardware devices organized by
function
Input
 Keyboards, touch screens, pens,
electronic mice, optical scanners
 Converts data into electronic form for entry
into computer system
Processing
 Central Processing Unit (CPU)
 CPU subunits: arithmetic-logic and control
unit

Output
 Video display units, printers, audio response
units,
and so on
 Converts electronic information into human-
intelligible form
Storage
 Primary storage (memory)
 Secondary storage (disk drives)
Control
 CPU controls other components of the system

Computer Processing Speeds
 Early computers
Milliseconds (thousandths of a second)
Microseconds (millionths of a second)
 Current computers
Nanoseconds (billionth of a second)
Picoseconds (trillionth of a second)
 Program instruction processing speeds
Megahertz (millions of cycles per second)
Gigahertz (billions of cycles per second)
 Commonly called the “clock speed”

Computer Processing Speeds
 Throughput
The ability to perform useful computation or
data processing assignments during a given
period
 Speed is dependant on…
Size of circuitry paths (buses) that interconnect
microprocessor components
Capacity of instruction processing registers
Use of high-speed cache memory
Use of specialized microprocessor, such as
math coprocessor

Moore’s Law
 A doubling in the number of transistors per
integrated circuit every 18 to 24 months
Originally observed in 1965, it holds true
today
 Common corollary of Moore’s Law…
Computing prices will be cut in half every 18
to 24 months
This has been consistently accurate
Applies to cost of storage as well

Moore’s Law

Peripherals
 Peripheral is a generic name for all input, output,
and secondary storage devices
Parts of the computer system, but not the CPU
Are all online devices
 Online devices
Separate from the CPU, but electronically
connected to and controlled by it
 Offline devices
Separate from and not under the control of the
CPU

Peripherals Advice

Input Technologies
 Keyboard - Still most widely used input device
 Graphical User Interface (GUI) - Icons, menus,
windows, buttons, bars; Selected with pointing
devices
 Electronic Mouse - Most popular pointing device;
Pressing mouse buttons initiates activity
represented by the icon selected
 Trackball - Stationary device, similar to mouse;
Roller ball moves cursor on screen
 Pointing Stick - Small eraser-head device
embedded in keyboard; Cursor moves in the
direction of the pressure placed on the stick

Input Technologies
 Touchpad
 Small, rectangular, touch-sensitive surface
 Usually on keyboard
 Cursor moves in direction your finger moves
 Touch Screen
 Use computer by touching screen Screen emits
a grid of infrared beams, sound waves, or
electric current
 Grid is broken when screen is touched

Pen-Based Computing
 Used in Tablet PCs and PDAs
Pressure-sensitive layer, similar
to touch screen, under liquid
crystal display screen
Software digitizes handwriting,
hand printing, and hand drawing

Speech Recognition Systems
 Speech be the future of data entry
 Easiest, most natural means of human communication
 Recognizing speech patterns
 Discrete required pauses between each word
 Continuous speech recognition software (CSR) recognized
continuous, conversationally paced speech
 Speech recognition systems digitize, analyze, and classify
speech and sound patterns
 Compares to a database of sound patterns in its vocabulary
 Passes recognized words to the application software
 Typically requires voice recognition training
 Speaker-independent voice recognition systems
 Allows computer to recognize words from a voice it has never
heard before
 Typically used in voice-messaging computers

Optical Scanning
 Devices read text or graphics and convert them into digital input
for a computers
 Enables direct entry of data from source documents
 A document management library system
 Scans documents, then organizes and stores them for easy
reference or retrieval
 Scanners
 Compact desktop models are popular for low cost and ease of
use
 Larger, more expensive flatbed scanners are faster and
provide high-resolution color scanning
 Optical Character Recognition (OCR)
 Software that reads characters and codes
 Used to real merchandise tags, sort mail, score tests
 Optical scanning wands read bar codes

Other Input Technologies
 Magnetic Stripe
 Reads the magnetic stripe on credit cards
 Smart Cards
 Microprocessor chip and memory on credit card
 Use more in Europe than in the U.S.
 Digital Cameras
 Allows you to shoot, store, and download photos or full-
motion video with audio into the PC
 Images and audio can then be edited or enhanced
 Magnetic Ink Character Recognition (MICR)
 Used by banks to magnetically read checks and deposit
slips
 Requires an iron oxide-based ink
 Reader-sorter equipment magnetizes the ink, then passes
it under a reading head to sense the signal

Output Technologies
 Video Displays
Cathode-ray tube (CRT)
Liquid crystal displays (LCDs)
 Active matrix and dual scan
Plasma displays
 Used in large TVs and flat-panel monitors
 Printed Output
Inkjet printers spray ink on a page
Laser printers use an electrostatic process
similar to a photocopying machine

Storage Tradeoffs

Computer Storage Fundamentals
 Uses a two-state or binary representation of data
On or Off
On represents the number 1
Off represents the number 0
 Data are processed and stored in computer
systems through the presence or absence of
On/Off signals

Bit and Byte
 Bit
Short for binary digit
Smallest element of data
Either zero or one
 Byte
Group of eight bits, which operate as a single
unit
Represents one character or number

Representing Characters in Bytes

Using Binary Code to Calculate

Storage Capacity Measurement
 Kilobyte (KB): one thousand bytes
 Megabyte (MB): one million bytes
 Gigabyte (GB): one billions bytes
 Terabyte (TB): one trillion bytes
 Petabyte (PB): one quadrillion bytes

Direct and Sequential Access
 Direct or Random Access
 Directly store and retrieve data
 Each storage position has a unique address and can be
accessed in the same length of time
 Semiconductor memory chips, magnetic disks
 Sequential Access
 Data is stored and retrieved sequentially
 Must be accessed in sequence by searching through prior
data
 Magnetic tape

Semiconductor Memory
 Microelectronic semiconductor memory chips
are used for primary storage
Advantages: small size, fast, shock and
temperature resistance
Disadvantages: volatility; must have
uninterrupted electric power or loses memory

Types of Semiconductor Memory
 Random Access Memory (RAM)
Most widely used primary storage medium
Volatile memory
Read/write memory
 Read-Only Memory (ROM)
Permanent storage
Can be read, but not overwritten
Frequently used programs burnt into chips
during manufacturing process
Called firmware

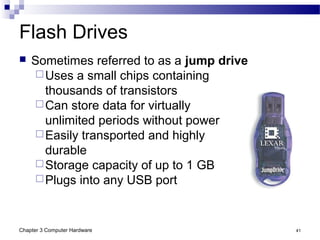

Flash Drives
 Sometimes referred to as a jump drive
Uses a small chips containing
thousands of transistors
Can store data for virtually
unlimited periods without power
Easily transported and highly
durable
Storage capacity of up to 1 GB
Plugs into any USB port

Magnetic Disks
 Used for secondary storage
 Fast access and high capacity
 Reasonable cost
 Types of Magnetic Disks
 Floppy Disks (diskettes)
 Magnetic disk inside a plastic jacket
 Hard Disk Drives (hard drives)
 Magnetic disk, access arms, and read/write heads in
sealed module for stable environment
 Fixed or removable
 Capacity from several hundred MBs to
hundreds of GBs

RAID Storage
 Redundant Arrays of Independent Disks
Disk arrays of hard disk drives
Provides virtually unlimited online storage
Combines from 6 to more than 100 small hard
disk drives into a single unit
Data are accessed in parallel over multiple
paths from many disks
Redundant storage of data on several disks
provides fault-tolerant capacity
Storage area networks can interconnect many
RAID units

Magnetic Tape
 Secondary storage
Tape reels, cassettes, and cartridges
Used in robotic, automated drive assemblies
Archival and backup storage
Lower-cost storage solution

Optical Disks

Uses of Optical Disks
 Image processing
Long-term storage of historical image files
Storage of scanned documents
 Publishing medium
Allows fast access to reference materials
Catalogs, directories, and so on
 Interactive multimedia applications
Video games, educational videos, and so on

Radio Frequency Identification (RFID)
 One of the newest and fastest growing storage
technologies
System for tagging and identifying mobile
objects
Used with store merchandise, postal packages,
casino chips, pets
Special reader allows objects to be tracked as
they move from place to place
Chips half the size of a grain of sand
 Passive chips derive power from reader signal
Active chips are self-powered

RFID Versus Bar Coding
 RFID
Scans from greater distance
Can store data
Allows more information to be tracked
 Privacy concerns
Invisible nature of the system
Capacity to transmit fairly sophisticated
messages

Chap03 Computer Hardware

More Related Content

What's hot (20)

Similar to Chap03 Computer Hardware (20)

More from Aqib Syed (20)

Recently uploaded (20)

Chap03 Computer Hardware
