CCNAv5 - S2: Chapter 6 Static Routing

© 2008 Cisco Systems, Inc. All rights reserved. Cisco ConfidentialPresentation_ID 1
Chapter 6: Static
Routing
Routing and Switching Essentials

Presentation_ID 2© 2008 Cisco Systems, Inc. All rights reserved. Cisco Confidential
Chapter 6
6.1 Static Routing Implementation
6.2 Configure Static and Default Routes
6.3 Review of CIDR and VLSM
6.4 Configure Summary and Floating Static Routes
6.5 Troubleshoot Static and Default Route Issues
6.6 Summary

Chapter 6: Objectives
 Explain the advantages and disadvantages of static
routing.
 Explain the purpose of different types of static routes.
 Configure IPv4 and IPv6 static routes by specifying a
next-hop address.
 Configure an IPv4 and IPv6 default routes.
 Explain the use of legacy classful addressing in network
implementation.
 Explain the purpose of CIDR in replacing classful
addressing.

Chapter 6: Objectives (cont.)
 Design and implement a hierarchical addressing scheme.
 Configure an IPv4 and IPv6 summary network address to
reduce the number of routing table updates.
 Configure a floating static route to provide a backup
connection.
 Explain how a router processes packets when a static
route is configured.
 Troubleshoot common static and default route
configuration issues.

Static Routing
Reach Remote Networks
A router can learn about remote networks in one of two
ways:
• Manually - Remote networks are manually entered
into the route table using static routes.
• Dynamically - Remote routes are automatically
learned using a dynamic routing protocol.

Static Routing
Why Use Static Routing?
Static routing provides some advantages over dynamic
routing, including:
 Static routes are not advertised over the network,
resulting in better security.
 Static routes use less bandwidth than dynamic routing
protocols, no CPU cycles are used to calculate and
communicate routes.
 The path a static route uses to send data is known.

Static Routing
Why Use Static Routing? (cont.)
Static routing has the following disadvantages:
 Initial configuration and maintenance is time-
consuming.
 Configuration is error-prone, especially in large
networks.
 Administrator intervention is required to maintain
changing route information.
 Does not scale well with growing networks;
maintenance becomes cumbersome.
 Requires complete knowledge of the whole network for
proper implementation.

Static Routing
When to Use Static Routes
Static routing has three primary uses:
 Providing ease of routing table maintenance in smaller
networks that are not expected to grow significantly.
 Routing to and from stub networks. A stub network is a
network accessed by a single route, and the router has
no other neighbors.
 Using a single default route to represent a path to any
network that does not have a more specific match with
another route in the routing table. Default routes are
used to send traffic to any destination beyond the next
upstream router.

Types of Static Routes
Static Route Applications
Static Routes are often used to:
 Connect to a specific network.
 Provide a Gateway of Last Resort for a stub network.
 Reduce the number of routes advertised by
summarizing several contiguous networks as one static
route.
 Create a backup route in case a primary route link fails.

Standard Static Route

Default Static Route
 A default static route is a route that matches all
packets.
 A default route identifies the gateway IP address to
which the router sends all IP packets that it does not
have a learned or static route.
 A default static route is simply a static route with
0.0.0.0/0 as the destination IPv4 address.

Summary Static Route

Floating Static Route
 Floating static routes are static routes that are used to provide a
backup path to a primary static or dynamic route, in the event of a
link failure.
 The floating static route is only used when the primary route is not
available.
 To accomplish
this, the floating static
route is configured with
a higher administrative
distance than the primary
route.

Configure IPv4 Static Routes
ip route Command

Next-Hop Options
The next hop can be identified by an IP address, exit
interface, or both. How the destination is specified
creates one of the three following route types:
 Next-hop route - Only the next-hop IP address is
specified.
 Directly connected static route - Only the router exit
interface is specified.
 Fully specified static route - The next-hop IP address
and exit interface are specified.

Configure a Next-Hop Static Route
When a packet is destined for the 192.168.2.0/24 network, R1:
1. Looks for a match in the routing table and finds that it has to
forward the packets to the next-hop IPv4 address 172.16.2.2.
2. R1 must now determine how
to reach 172.16.2.2; therefore,
it searches a second time for a
172.16.2.2 match.

Configure Directly Connected Static Route

Configure a Fully Specified Static Route
In a fully specified static route:
 Both the output interface and the next-hop IP address
are specified.
 This is another type of static route that is used in older
IOSs, prior to CEF.
 This form of static route is used when the output
interface is a multi-access interface and it is necessary
to explicitly identify the next hop.
 The next hop must be directly connected to the
specified exit interface.

Verify a Static Route
Along with ping and traceroute, useful commands to
verify static routes include:
 show ip route
 show ip route static
 show ip route network

Configure IPv4 Default Routes
Default Static Route

Configure a Default Static Route

Verify a Default Static Route

The ipv6 route Command
Most of parameters are identical to the IPv4 version of
the command. IPv6 static routes can also be
implemented as:
 Standard IPv6 static route
 Default IPv6 static route
 Summary IPv6 static route
 Floating IPv6 static route

Next-Hop Options
The next hop can be identified by an IPv6 address, exit
interface, or both. How the destination is specified
creates one of three route types:
 Next-hop IPv6 route - Only the next-hop IPv6 address
is specified.
 Directly connected static IPv6 route - Only the router
exit interface is specified.
 Fully specified static IPv6 route - The next-hop IPv6
address and exit interface are specified.

Configure a Next-Hop Static IPv6 Route

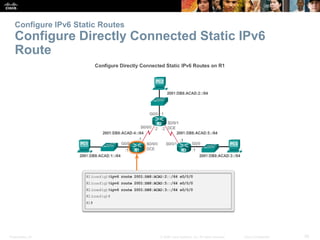

Configure Directly Connected Static IPv6
Route

Configure Fully Specified Static IPv6 Route

Verify IPv6 Static Routes
Along with ping and traceroute, useful commands to
verify static routes include:
 show ipv6 route
 show ipv6 route static
 show ipv6 route network

Default Static IPv6 Route

Configure a Default Static IPv6 Route

Verify a Default Static Route

Classful Addressing
Classful Network Addressing

Classful Addressing
Classful Subnet Masks
Class A
Class B
Class C

Classful Addressing
Classful Routing Protocol Example

Classful Addressing
Classful Addressing Waste

CIDR
Classless Inter-Domain Routing

CIDR
CIDR and Route Summarization

CIDR
Static Routing CIDR Example

CIDR
Classless Routing Protocol Example

VLSM
Fixed Length Subnet Masking

VLSM
Variable Length Subnet Masking

VLSM
VLSM in Action
VLSM allows the use of different masks for each subnet:
 After a network address is subnetted, those subnets
can be further subnetted.
 VLSM is simply subnetting a subnet. VLSM can be
thought of as sub-subnetting.
 Individual host addresses are assigned from the
addresses of "sub-subnets".

VLSM
Subnetting Subnets

VLSM
VLSM Example

Configure IPv4 Summary Routes
Route Summarization
Route summarization, also known as route aggregation,
is the process of advertising a contiguous set of
addresses as a single address with a less-specific,
shorter subnet mask:
 CIDR is a form of route summarization and is
synonymous with the term supernetting.
 CIDR ignores the limitation of classful boundaries, and
allows summarization with masks that are smaller than
that of the default classful mask.
 This type of summarization helps reduce the number of
entries in routing updates and lowers the number of
entries in local routing tables.

Calculate a Summary Route

Summary Static Route Example

Summarize IPv6 Network Addresses
 Aside from the fact that IPv6 addresses are 128 bits
long and written in hexadecimal, summarizing IPv6
addresses is actually similar to the summarization of
IPv4 addresses. It just requires a few extra steps due to
the abbreviated IPv6 addresses and hex conversion.
 Multiple static IPv6 routes can be summarized into a
single static IPv6 route if:
• The destination networks are contiguous and can be
summarized into a single network address.
• The multiple static routes all use the same exit interface or
next-hop IPv6 address.

Calculate IPv6 Network Addresses
There are seven steps to summarize IPv6 networks into a single
IPv6 prefix:
Step 1. List the network addresses (prefixes) and identify the part
where the addresses differ.
Step 2. Expand the IPv6 if it is abbreviated.
Step 3. Convert the differing section from hex to binary.
Step 4. Count the number of far left matching bits to determine the
prefix-length for the summary route.
Step 5. Copy the matching bits and then add zero bits to determine
the summarized network address (prefix).
Step 6. Convert the binary section back to hex.
Step 7. Append the prefix of the summary route (result of Step 4).

Configure an IPv6 Summary Address

Configure Floating Static Routes
Floating Static Routes
Floating static routes are static routes that have an
administrative distance greater than the administrative
distance of another static route or dynamic routes:
 The administrative distance of a static route can be increased to
make the route less desirable than that of another static route or a
route learned through a dynamic routing protocol.
 In this way, the static route “floats” and is not used when the route
with the better administrative distance is active.
 However, if the preferred route is lost, the floating static route can
take over, and traffic can be sent through this alternate route.

Configure a Floating Static Route

Test the Floating Static Route
To test a floating static route:
 Use a show ip route command to verify that the routing table is
using the default static route.
 Use a traceroute command to follow the traffic flow out the
primary route.
 Disconnect the primary link or shutdown the primary exit interface.
 Use a show ip route command to verify that the routing table is
using the floating static route.
 Use a traceroute command to follow the traffic flow out the backup
route.

Troubleshoot Static and Default Route Issues
Static Routes and Packet Forwarding

Troubleshoot IPv4 Static and Default Route Configuration
Troubleshoot a Missing Route
Common IOS troubleshooting commands include:
 ping
 traceroute
 show ip route
 show ip interface brief
 show cdp neighbors detail

Solve a Connectivity Problem
 Finding a missing (or misconfigured) route is a relatively
straightforward process, if the right tools are used in a methodical
manner.
 Use the ping command to confirm the destination can’t be
reached.
 A traceroute would also reveal what is the closest router (or
hop) that fails to respond as expected. In this case, the router
would then send an Internet Control Message Protocol (ICMP)
destination unreachable message back to the source.
 The next step is to investigate the routing table. Look for missing or
misconfigured routes.
 Incorrect static routes are a common cause of routing problems.

Solve a Connectivity Problem (cont.)

 Refer to the topology shown in the previous slide.
 The user at PC1 reports that he cannot access resources on the
R3 LAN.
 This can be confirmed by pinging the LAN interface of R3 using the
LAN interface of R1 as the source (see Figure 1). The results show
that there is no connectivity between these LANs.
 A traceroute would reveal that R2 is not responding as expected.
 For some reason, R2 forwards the traceroute back to R1. R1
returns it to R2.
 This loop would continue until the time to live (TTL) value
decrements to zero, in which case, the router would then send an
Internet Control Message Protocol (ICMP) destination unreachable
message to R1.

 The next step is to investigate the routing table of R2, because it is
the router displaying a strange forwarding pattern.
 The routing table would reveal that the 192.168.2.0/24 network is
configured incorrectly.
 A static route to the 192.168.2.0/24 network has been configured
using the next-hop address 172.16.2.1.
 Using the configured next-hop address, packets destined for the
192.168.2.0/24 network are sent back to R1.
 Based on the topology, the 192.168.2.0/24 network is connected to
R3, not R1. Therefore, the static route to the 192.168.2.0/24
network on R2 must use next-hop 192.168.1.1, not 172.16.2.1.

Chapter 6: Summary
 Static routes can be configured with a next-hop IP
address, which is commonly the IP address of the next-
hop router.
 When a next-hop IP address is used, the routing table
process must resolve this address to an exit interface.
 On point-to-point serial links, it is usually more efficient to
configure the static route with an exit interface.
 On multi-access networks, such as Ethernet, both a next-
hop IP address and an exit interface can be configured
on the static route.
 Static routes have a default administrative distance of "1".

Chapter 6: Summary (cont.)
 A static route is only entered in the routing table if the
next-hop IP address can be resolved through an exit
interface.
 Whether the static route is configured with a next-hop IP
address or exit interface, if the exit interface that is used
to forward that packet is not in the routing table, the static
route is not included in the routing table.
 In many cases, several static routes can be configured as
a single summary route.

Chapter 6: Summary (cont.)
 The ultimate summary route is a default route, configured
with a 0.0.0.0 network address and a 0.0.0.0 subnet
mask.
 If there is not a more specific match in the routing table,
the routing table uses the default route to forward the
packet to another router.
 A floating static route can be configured to back up a
main link by manipulating its administrative value.

CCNAv5 - S2: Chapter 6 Static Routing

More Related Content

What's hot (20)

Viewers also liked (20)

Similar to CCNAv5 - S2: Chapter 6 Static Routing (20)

More from Vuz Dở Hơi (20)

Recently uploaded (20)

CCNAv5 - S2: Chapter 6 Static Routing
