- 1. CAD – Machine building Assembly line Contains: Semi automated process Automatic screwdriving machine Cover crimper machine Press fit machine Welding machine, Plasma treatment, leakage testers,
- 2. CAD – Machine building Assembly lines Contains: 3 separated assembly lines Semi automated Lean process Screw stations, welding machines, Leak testers, HV testers, EOL testers. Altogether 27 stations.
- 3. Srewdiwers Semi automatic and automatic srewdriving stations
- 4. CAD – Machine building Automatic Screwdriving machine Goals: Tightening with moment and angle control Automatic feeders for parts Tighten 10 screws and 4 springs within 38s Solutions: EC Servo tightening machine 2.5 axle robot with 1m/s speed axles
- 5. CAD – Machine building Assembly station Solutions : PCB check with camera Checked screw process Component grip with vacuum Goals: PCB pre-assembly Splitview sandwich assembly

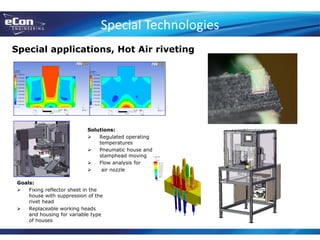

- 6. Special Technologies Special applications, Hot Air riveting Goals: Fixing reflector sheet in the house with suppression of the rivet head Replaceable working heads and housing for variable type of houses Solutions: Regulated operating temperatures Pneumatic house and stamphead moving Flow analysis for air nozzle
- 7. CAD – Machine building Hot air riveting Goals: Fixing reflector sheet in the house with suppression of the rivet head Replaceable workheads and housing for variable type of houses Solutions: Regulated operating temperatures Pneumatic house and workhead moving Flow analysis for air nozzle
- 8. Robot cells Robot cells for palletising applications
- 9. Pick & Place automat High speed automatic machines Goals: 2 piece parallel montage (right/left) Component filling in every 2 hour Cycling time: 2.3sec; 2x33.000 piece./day Solutions: Parallel system 6 pcs bowl feeder High speed pneumatic manipulators
- 10. Teszters End of line, High Voltage, Leak testers
- 11. Welding, Crimping Resistance welding, Crimping machines
- 12. Handling equipment, Tire line, Fuel tank balancer, Dashboard applicator, Paletts Material Handling
- 13. Transmission oil charger Aims: Punctuality of filling: ±0.01 l Speed of filling: 30 l/min Stable fixing under process Drip free system Solutions: Gear type flow meter, Punctuality: ±0.1 ccm Pneumatic actuated oil valve (developed by eCon) Pneumatic actuated fixing mechanism for every gearbox We use series of air impulse on filler channels of head to prevent dripping Filling & connectors Connectors, lubricators, dispensers
