Out of box page object design pattern, java

Anton Semenchenko
Out of box Page Object
Design Pattern, Java

About 
Creator of communities
www.COMAQA.BY and
www.CoreHard.by, founder of
company www.DPI.Solutions,
«tricky» manager at EPAM
Systems. Almost 15 years of
experience in IT, main
specialization: Automation, С++
and lower development,
management, sales.

Agenda, part 1 (to refresh)
1. Page Object – just to “refresh”
2. State-less or state-full solution - just to “refresh”
3. How to select a proper PO implementation?

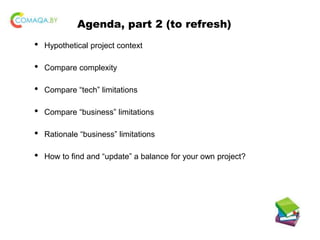

Agenda, part 2 (to refresh)
• Hypothetical project context
• Compare complexity
• Compare “tech” limitations
• Compare “business” limitations
• Rationale “business” limitations
• How to find and “update” a balance for your own project?

Agenda, part 3 (solutions)
1. “raw” Selenium Page Objects
2. Page Factory from Selenium library

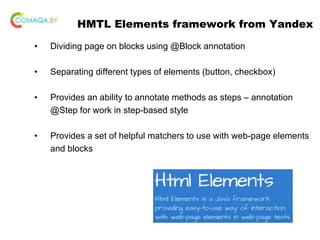

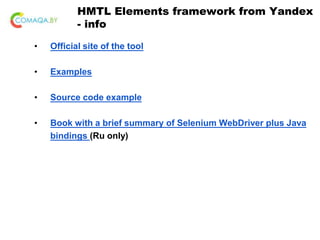

3. HMTL Element framework from Yandex
4. Selenide
5. JDI framework from EPAM
6. SWD Page Recorder

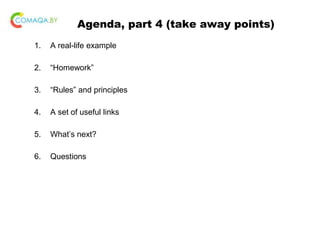

Agenda, part 4 (take away points)

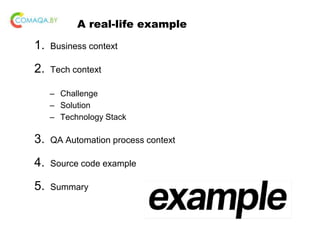

1. A real-life example

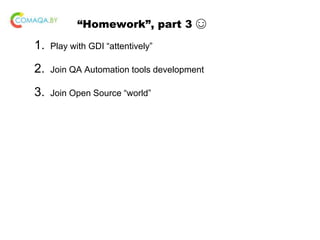

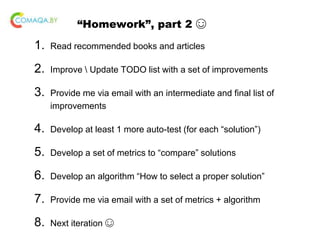

2. “Homework”

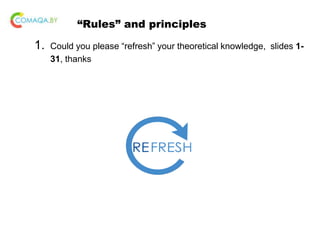

3. “Rules” and principles

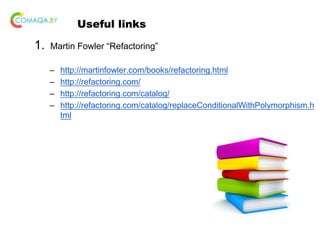

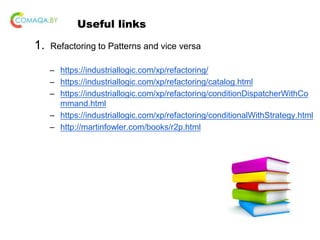

4. A set of useful links
5. What’s next?
6. Questions

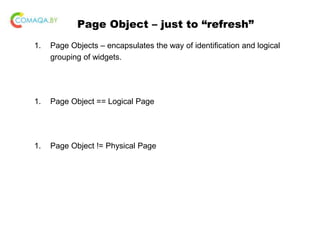

Page Object – just to “refresh”
1. Page Objects – encapsulates the way of identification and logical
grouping of widgets.
1. Page Object == Logical Page
1. Page Object != Physical Page

Page Object – “example” ☺

State-less or state-full solution?
1. Let’s compare:
– Photo
• Share – looks like parallelism (easy parallelism).
– Video
• Share – looks like parallelism (not trivial parallelism).

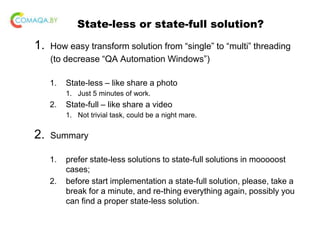

State-less or state-full solution?
1. How easy transform solution from “single” to “multi” threading
(to decrease “QA Automation Windows”)
1. State-less – like share a photo
1. Just 5 minutes of work.
2. State-full – like share a video
1. Not trivial task, could be a night mare.
2. Summary
1. prefer state-less solutions to state-full solutions in mooooost
cases;
2. before start implementation a state-full solution, please, take a
break for a minute, and re-thing everything again, possibly you
can find a proper state-less solution.

Object or static class State-full or
state-less solution?
1. Static class
 could be implemented as a state-less solution easily
2. Object
 State-full solution in 99,99% cases
3. Summary
 prefer static class based solutions (state-less) to object based
(state-full) in mooooost cases;
 before start implementation based on objects, please, take a
break for a minute, and re-thing everything again, possibly you
can find a proper solution based on static classes.

Page Objects – state-full, general case?
1. Too complicated business logic due to Domain
2. Too complicated business logic due to System size (thousands test-
cases)
3. Too many “contexts”
• Browser versions
• Environments
• Customers with a tiny nuances of functionality
• Platforms (cross-browser Web plus cross-platform Mobile)
• Combination ☺
1. Combination ☺

Page Objects – state-full, special cases
1. Web UI that behaves like a Wizard
2. Web UI in combination with Mobile in one use case
3. Internet of Things (in most cases)
4. More then 1 page during 1 test (for example several portals or several
instances of one portal to implement one “business use case”):
– Really seldom;
– Looks like integration tests (in most cases):
• Std solution- some type of White Box Testing.
5. Many others “special cases”

How to select a proper PO
implementation?

Hypothetical project context – to
compare
1. 30 Physical Pages
2. Standard Header, footer and search functionality for all
physical pages
3. Each Physical Page consists of
– Header – H
– Footer – F
– Search – S
– Some functionality, specific for the Page – U (unique)

Compare complexity – Static Page
Object based
1. 33 Static Page Objects = Logical Pages
2. 0 explicit and 30 implicit Physical Pages
3. Just share 33 Static Page Objects between 30 implicit
Physical Pages
– For example, Header Static Page Object (static class) is used in
test cases for all 30 Physical Page Objects
1. Complexity – just 33 static state-less entities (plus
limitations due to state-less solutions)

Compare complexity – Dynamic Page
Object based (option 1)
1. 33 Dynamic Page Objects = Logical Pages
2. It depends on implementation (one of the ways):
– 0 explicit and 30 implicit Physical Pages
– implicit Physical Page implements on Action layer (limitations
example)
– Action for Physical Page aggregates all necessary Dynamic
Logical Pages
• Physical Pages are implemented in a next way: create all necessary
instances of logical pages, aggregate in some way, use Action layer as
an point of aggregation in most cases, free resources

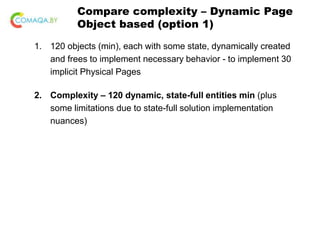

1. 120 objects (min), each with some state, dynamically created
and frees to implement necessary behavior - to implement 30
implicit Physical Pages
2. Complexity – 120 dynamic, state-full entities min (plus
some limitations due to state-full solution implementation
nuances)

1. 33 Dynamic Page Objects = Logical Pages
2. It depends on implementation (another way):
– 30 explicit Physical Pages
– Multiple Interface inheritance
– Combine Page Objects and Actions layer (in most cases)
– Action-Physical Page (limitations example)
• Implements all Logical Pages interfaces using aggregation and
“delegation”
• Aggregate all Dynamic Logical Page Objects
• Create and frees resources (Dynamic Logical Page Objects)

1. 150 objects, each with some state, dynamically
created and frees to implement necessary behavior
- to implement 30 explicit Physical Pages
2. Complexity – 150 dynamic, state-full not trivial
entities with a multiple interface inheritance
(plus some limitations due to state-full solution
implementation nuances)

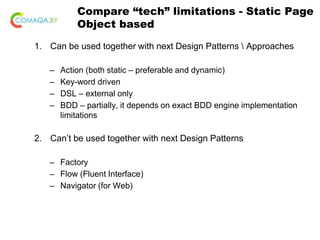

Compare “tech” limitations - Static Page
Object based
1. Can be used together with next Design Patterns Approaches
– Action (both static – preferable and dynamic)
– Key-word driven
– DSL – external only
– BDD – partially, it depends on exact BDD engine implementation
limitations
2. Can’t be used together with next Design Patterns
– Factory
– Flow (Fluent Interface)
– Navigator (for Web)

Compare “tech” limitations - Dynamic
Page Object based
1. No limitations, but …
– For example, in most cases it’s hard to isolate Action and Page
Objects layers

Compare “business” limitations - Static
1. Too complicated business logic due to Domain
2. Too complicated business logic due to System size
(thousands test-cases)
3. Too many “contexts”
– Browser versions
– Environments
– Customers with a tiny nuances of functionality
– Platforms (cross-browser Web plus cross-platform Mobile)
– Combination ☺
1. Combination ☺

Rationale “business” limitations - Static
1. State-less approach - you have a conditional that chooses
different behavior depending on …
2. Solution to simplify the project – refactoring “Replace
Conditional with Polymorphism”
3. Polymorphism = object = State-full approach

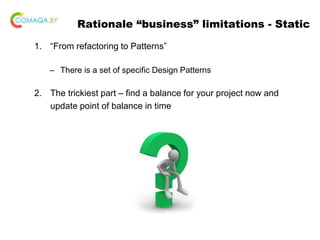

Rationale “business” limitations - Static
1. “From refactoring to Patterns”
– There is a set of specific Design Patterns
2. The trickiest part – find a balance for your project now and
update point of balance in time

Compare “business” limitations -
Dynamic
1. Relatively simple business logic due to Domain
2. Relatively simple business logic due to System size (hundreds
test-cases)
3. Not so many “contexts”
– Browser versions
– Environments
– Customers with a tiny nuances of functionality
– Platforms (cross-browser Web plus cross-platform Mobile)

Rationale “business” limitations -
Dynamic
1. State-full approach - you have a set of objects classes, which
developed, possibly, using several Design Patterns to
implement necessary functionality – to choose different
behavior depending on …
2. Solution to simplify the project – refactoring “Replace
Polymorphism with Conditional”
3. Polymorphism ~= object ~= State-full approach
4. No Polymorphism ~= no objects ~= State-less approach

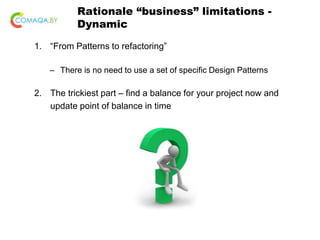

Rationale “business” limitations -
Dynamic
1. “From Patterns to refactoring”
– There is no need to use a set of specific Design Patterns
2. The trickiest part – find a balance for your project now and
update point of balance in time

Find and “update” a balance for your
own project

Page Factory from Selenium library

Page Factory - definition
1. Page Factory is an inbuilt page object model concept for
Selenium WebDriver but it is very optimized.
2. We use initElements method to initialize web elements
1. Additionally with the help of PageFactory class - use
annotations @FindBy to find WebElement.
2. @FindBy can accept as attributes:
1. tagName
2. name
3. partialLinkText
4. linkText
5. Id
6. Css
7. className
8. Xpath

Page Factory - notes
1. If you use the PageFactory, you can assume that the fields are
initialized. If you don't use the PageFactory, then
NullPointerExceptions will be thrown if you make the assumption
that the fields are already initialized.
2. List<WebElement> fields are decorated if and only if they have
@FindBy or @FindBys annotation. Default search strategy "by id
or name" that works for WebElement fields is hardly suitable for
lists because it is rare to have several elements with the same id
or name on a page.

Page Factory - notes
• WebElements are evaluated lazily. That is, if you never use a
WebElement field in a PageObject, there will never be a call to
"findElement" for it.
• The functionality works using dynamic proxies. This means
that you shouldn't expect a WebElement to be a particular
subclass, even if you know the type of the driver. For example, if
you are using the HtmlUnitDriver, you shouldn't expect the
WebElement field to be initialized with an instance of
HtmlUnitWebElement.

Login Page
1.public class LoginPage {
2. private WebDriver driver;
3. @FindBy(id = "id_username")
4. private WebElement usernameInput;
5. @FindBy(id = "id_password")
6. private WebElement passwordInput;
7. @FindBy(id = "main_action_form_button")
8. private WebElement loginButton;
9.}

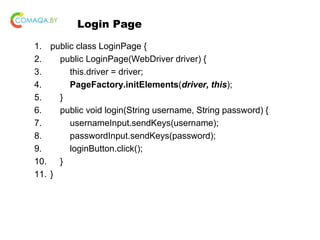

Login Page
1. public class LoginPage {
2. public LoginPage(WebDriver driver) {
3. this.driver = driver;
4. PageFactory.initElements(driver, this);
5. }
6. public void login(String username, String password) {
7. usernameInput.sendKeys(username);
8. passwordInput.sendKeys(password);
9. loginButton.click();
10. }
11. }

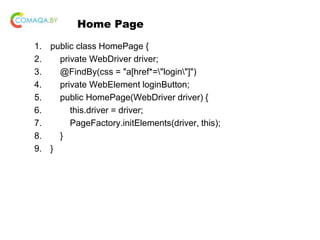

Home Page
1. public class HomePage {
3. @FindBy(css = "a[href*="login"]")
4. private WebElement loginButton;
5. public HomePage(WebDriver driver) {
7. PageFactory.initElements(driver, this);
8. }
9. }

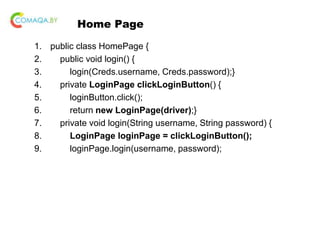

Home Page
2. public void login() {
3. login(Creds.username, Creds.password);}
4. private LoginPage clickLoginButton() {
6. return new LoginPage(driver);}
7. private void login(String username, String password) {
8. LoginPage loginPage = clickLoginButton();
9. loginPage.login(username, password);

Login test
1. public class LoginTest {
3. @BeforeMethod
4. public void setup() {
5. driver = new FirefoxDriver();
6. driver.manage().window().maximize();
7. driver.manage().timeouts().implicitlyWait(10,
TimeUnit.SECONDS);
8. driver.get("https://www.pandadoc.com/");}
9. @AfterMethod
10. public void teardown() {
11. driver.close();}}

Login test
2. private void assertSignedUp() {
3. new WebDriverWait(driver,
30000).until(ExpectedConditions.visibilityOfElementLocated(By.cs
sSelector(".header-avatar")));}
4. @Test
5. public void loginTest() {
6. HomePage homePage = new HomePage(driver);
7. homePage.login();
8. assertSignedUp();}}

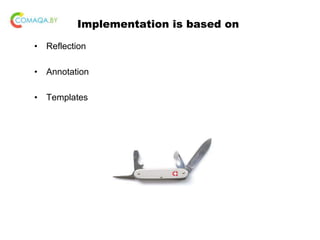

Implementation is based on
• Reflection
• Annotation
• Templates

Page Factory from Selenium library -
info
Page Object Model and Page Factory
Page Factory detailed desription
Page Object (Page Factory context)
AjaxElementLocatorFactory (obsolete)
Source code example
PageFactory.java (source code)
Book with a brief summary of Selenium WebDriver plus Java
bindings (Ru only)

HMTL Elements framework from Yandex
• Designed to provide easy-to-use way of interaction with web-page
elements in your tests.
• It may be considered as an extension of WebDriver Page Object
(PageFactory).
• With the help of Html Elements framework you can group web-
page elements into blocks (Logical Pages), encapsulate logic of
interaction with them and then easily use created blocks in page
objects (Physical Pages).

• Dividing page on blocks using @Block annotation
• Separating different types of elements (button, checkbox)
• Provides an ability to annotate methods as steps – annotation
@Step for work in step-based style
• Provides a set of helpful matchers to use with web-page elements
and blocks

Login Page
3. @FindBy(id = "id_username")
4. private static TextInput usernameInput;
5. @FindBy(id = "id_password")
6. private static TextInput passwordInput;
7. @FindBy(id = "main_action_form_button")
8. private static Button loginButton;
9. }

Login Page
2. public LoginPage(WebDriver driver) {
4. HtmlElementLoader.populatePageObject(this, driver);
5. }
7. usernameInput.sendKeys(username);
8. passwordInput.sendKeys(password);
10. }
11. }

Home Page
3. @FindBy(css = "a[href*="login"]")
4. private static Button loginButton;
5. public HomePage(WebDriver driver) {
7. HtmlElementLoader.populatePageObject(this, driver);
8. }
9. }

Home Page
3. login(Creds.username, Creds.password); }
6. return new LoginPage(driver); }
9. loginPage.login(username, password);}}

Login test
3. @BeforeMethod
4. public void setup() {
5. driver = new FirefoxDriver();
6. driver.manage().window().maximize();
7. driver.manage().timeouts().implicitlyWait(10,
TimeUnit.SECONDS);
8. driver.get("https://www.pandadoc.com/"); }
9. @AfterMethod
10. public void teardown() {
11. driver.close(); }}

Login test
3. private void assertSignedUp() {
4. new WebDriverWait(driver,
30000).until(ExpectedConditions.visibilityOfElementLocated(By.cs
sSelector(".header-avatar"))); }
5. @Test
6. public void loginTest() {
7. HomePage homePage = new HomePage(driver);
8. homePage.login();
9. assertSignedUp(); }}

- info
• Official site of the tool
• Examples
• Source code example
• Book with a brief summary of Selenium WebDriver plus Java
bindings (Ru only)

Selenide
Selenide is a wrapper for Selenium Webdriver, oriented, as Geb, on
fast and laconic automation but using Java. Just focus on your
business logic and let Selenide do the rest! Main advantages of that
tool:
• Concise fluent API for tests
• True Page Objects

Selenide
1. Webdriver access
2. jQuery style selectors
3. Ajax support for stable tests
4. Auto-start and browser destructions
5. You don't need to think how to shutdown browser, handle
timeouts and StaleElement Exceptions or search for relevant log
lines, debugging your tests.

Login Page
2. private static final By USERNAME_INPUT =
By.id("id_username");
3. private static final By PASSWORD_INPUT =
By.id("id_password");
4. private static final By LOGIN_BUTTON =
By.id("main_action_form_button");
6. $(USERNAME_INPUT).val(username);
7. $(PASSWORD_INPUT).val(password);
8. $(LOGIN_BUTTON).click();
9. }}

Login Page
Source code – where …?

Home Page
2. private static final By LOGIN_BUTTON =
By.cssSelector("a[href*="login"]");
4. login(Creds.username, Creds.password); }
6. $(LOGIN_BUTTON).click();
7. return page(LoginPage.class);}
10. loginPage.login(username, password); }}

Home Page

Login test
public class LoginTest {
private HomePage homePage;
private void assertSignedUp() {
$(By.cssSelector(".header-avatar")).waitUntil(Condition.visible,
30000); }
@BeforeMethod
public void setup() {
Configuration.timeout = 10000;
homePage = open("https://www.pandadoc.com/",
HomePage.class); }
@Test
public void loginTest() {
homePage.login();
assertSignedUp(); } }

Login test

Selenide - info
• Official site of the tool
• Examples
• Source code example
• Book with a brief summary of Selenium WebDriver plus Java
bindings (Ru only)

GDI – from EPAM Systems
JDI Goals
1. Accumulate best practices of UI automation (open source, page
objects, logging, parallelism etc.)
2. Multiplatform framework
3. Intuitive test framework
4. Stable framework
5. Flexible framework

GDI features
• Interfaces based elements
• Complex UI Objects
• Simple + Complex UI elements + standard Forms = 31
• Cascade UI Objects Initialization
• Multiplatform
• Logging for all actions
• Stabilization mechanism
• Wide Customization abilities
• Module-based architecture
• Parallel test runs support

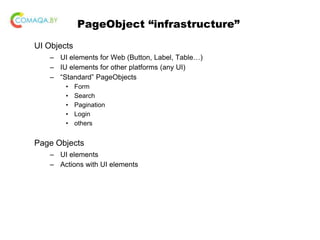

PageObject “infrastructure”
UI Objects
– UI elements for Web (Button, Label, Table…)
– IU elements for other platforms (any UI)
– “Standard” PageObjects
• Form
• Search
• Pagination
• Login
• others
Page Objects
– UI elements
– Actions with UI elements

Simple UI Elements – 10
1. Text
2. Button/Label
3. Link
4. Image
5. Checkbox
6. TextField
7. DatePicker
8. FileInput
9. TextArea
10. And others :)

Complex UI Elements – 12
• Selector
• RadioButtons
• Dropdown
• Tabs/Menu
• CheckList
• DropList
• ComboBox
• TextList
• Table
• Tree
• Range
• And others :)

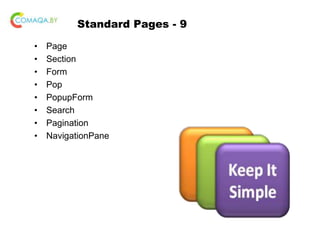

Standard Pages - 9
• Page
• Section
• Form
• Pop
• PopupForm
• Search
• Pagination
• NavigationPane

PageObject std example, 1 (GDI)
@JPage(url = "http://www.epam.com")
public class JacketPage extends WebPage {
@FindBy(css=“someSelector") public Menu menu;
@FindBy(css="someSelector") public CheckList sizes;
@FindBy(css=" someSelector") public Button searchButton;
@FindBy(css=" someSelector") public Table results;
}

Test std example, 1 (GDI)
1. @Test
2. public void menuTest() {
3. menu.select("Man");
4. sizes.check("M", "L");
5. searchButton.click();
6. Assert.areEquals(results.rows().count(), 4);
7. Assert.isNotEmpty(results.row("Best Jacket", column("Title")));
8. }

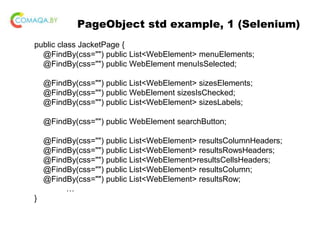

PageObject std example, 1 (Selenium)
public class JacketPage {
@FindBy(css="") public List<WebElement> menuElements;
@FindBy(css="") public WebElement menuIsSelected;
@FindBy(css="") public List<WebElement> sizesElements;
@FindBy(css="") public WebElement sizesIsChecked;
@FindBy(css="") public List<WebElement> sizesLabels;
@FindBy(css="") public WebElement searchButton;
@FindBy(css="") public List<WebElement> resultsColumnHeaders;
@FindBy(css="") public List<WebElement> resultsRowsHeaders;
@FindBy(css="") public List<WebElement>resultsCellsHeaders;
@FindBy(css="") public List<WebElement> resultsColumn;
@FindBy(css="") public List<WebElement> resultsRow;
…
}

PageObject std example, 1 (Selenium)
public class JacketPage {
@FindBy(css="") public List<WebElement> menuElements;
...
@FindBy(css="") public List<WebElement> resultsRow;
public void selectElementFromMenu(String name) { … }
public String getSelectedMenuItem() { … }
public boolean isMenuItemSelected(String name) { … }
public void selectElementFromMenu(String name) { … }
…
public int getResultsCount() { … }
public boolean isResultPresent(String name) { … }
public WebElement getSomeAttributeForResult(String name) { … }
…
public List<WebElement> findAllResultsMatch(String name) { … }
}

1. @JPage(url = "/login", title = "EPAM - Login page")
2. public class LoginPage extends PageForm {
3. @FindBy(css = “.login”) private ITextField login;
4. @FindBy(css = “.password”) private ITextField password;
5. @FindBy(css = “.loginButton”) private IButton loginButton;
6. }

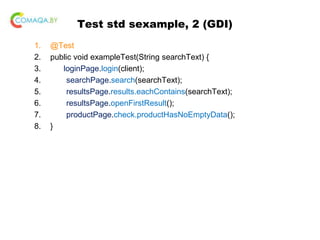

Test std sexample, 2 (GDI)
1. @Test
2. public void exampleTest(String searchText) {
3. loginPage.login(client);
4. searchPage.search(searchText);
5. resultsPage.results.eachContains(searchText);
6. resultsPage.openFirstResult();
7. productPage.check.productHasNoEmptyData();
8. }

Test std example, 3 (GDI)
@Test
public void shopTest() {
loginPage.open();
loginForm.login(new User(“user", "password"));
search.find("best jacket");
productForm.submit(Products.TestJacket);
pagination.next();
pagination.selectPage(5);
}

PageObject std example, 4 (GDI,
“model” based)
1. public class LoginForm extends Form<User> {
2. @FindBy(css=“someLocator")
3. public TextField name;
5. public TextField password;
7. public Button loginButton;
8. }

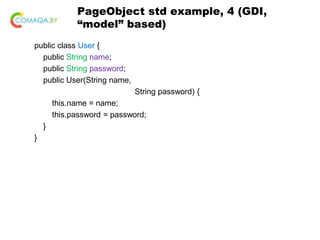

PageObject std example, 4 (GDI,
“model” based)
public class User {
public String name;
public String password;
public User(String name,
String password) {
this.name = name;
this.password = password;
}
}

1. @JSite(domain = "https://www.epam.com")
2. public class EpamSite extends WebSite {
3. @JPage(url = "/")
4. public static HomePage homePage;
5. @JPage(url = "/careers", title = "Careers")
6. public static CareerPage careerPage;
7. @JPage(url = "/careers/job-listings", title = "Job Listings",
8. urlCheckType = CONTAIN, titleCheckType = CONTAIN)
9. public static JobPage jobPage;
10....
11.}
WebSite.init(EpamSite.class);

“Forms” Page Object (GDI)
1. public class AddCVForm extends Form<Attendee> {
2. @FindBy(css = “.first-name“) private ITextField name;
3. @FindBy(css = “.last-name“) private ITextField lastName;
4. @FindBy(css = “.email“) private ITextField email;
5. @FindBy(css = “.file-upload“) private RFileInput cv;
6. @FindBy(css = “.comment-input“) private ITextArea comment;
7. @FindBy(xpath = “//*[.='Submit']“) private IButton submit;
8. @FindBy(xpath = “//*[.='Cancel']“) private IButton cancel;
9. }

Entities driven testing (GDI)
@Test(dataProvider = “attendees”)
public void menuTest(Attendee attendee) {
searchFilter.fill(attendee);
checkSuggestionsContains(attendee);
searchFilter.search(attendee);
assertEquals(results.rows().count(), 1);
results.row(attendee.name, column(“Name”))
addCVForm.submit(attendee.cv);
checkCVInDB(attendee.cv);
previewForm.verify(attendee);
}

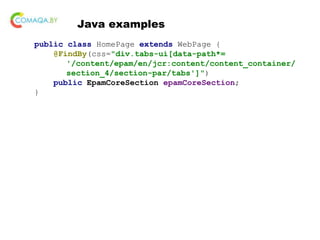

Java examples
public class HomePage extends WebPage {
@FindBy(css="div.tabs-ui[data-path*=
'/content/epam/en/jcr:content/content_container/
section_4/section-par/tabs']")
public EpamCoreSection epamCoreSection;
}

Java examples
public class EpamCoreSection extends Section {
@FindBy(css="div.tab-1>div.text>div.text-ui
>p>span.font-size-26")
public Text whoWeAreText;
public Text whatWeDoText;
public Text whoWeServeText;
@FindBy(xpath="//div[.='Who we serve']")
public Button whoWeServe;
@FindBy(xpath="//div[.='Who we are']")
public Button whoWeAre;
@FindBy(xpath="//div[.='What we do']")
public Button whatWeDo;
}

Java examples
@Test
public void presentationSimpleTest() {
homePage.checkOpened();
homePage.epamCoreSection.whoWeAre.highlight();
homePage.epamCoreSection.whoWeAreText.highlight();
new Check("Tab text").areEquals("" +
"We are more than developers.
We are the experts that
will take your business into the digital future.",
homePage.epamCoreSection.whoWeAreText.getText());
homePage.epamCoreSection.highlight();
homePage.epamCoreSection.whoWeServe.highlight();
homePage.epamCoreSection.whoWeServe.click();
}

Java examples
@Test
public void presentationComplexTest() {
homePage.checkOpened();
textToTest(HomeTabs.WHATWEDO,homePage.epamCoreSection);
textToTest(HomeTabs.WHOWEARE,homePage.epamCoreSection);
textToTest(HomeTabs.WHOWESERVE,homePage.epamCoreSection);
}

Java examples
public void textToTest(HomeTabs tab, EpamCoreSection
epamCoreSection){
switch (tab) {
case WHOWEARE:
chooseTab(epamCoreSection.whoWeAre,
epamCoreSection.whoWeAreText,
HomeTabsTextToCheck.WHOWEARE);
break;
case WHATWEDO:
chooseTab(epamCoreSection.whatWeDo,
epamCoreSection.whatWeDoText,
HomeTabsTextToCheck.WHATWEDO);
break;
case WHOWESERVE:
chooseTab(epamCoreSection.whoWeServe,
epamCoreSection.whoWeServeText,
HomeTabsTextToCheck.WHOWESERVE);
break;
}
}

Java examples
public void chooseTab(Button tab, Text text, String
textToCheck){
tab.highlight();
tab.click();
text.highlight();
new Check("Tab text").areEquals(textToCheck,
text.getText());
}

Java examples
public static class HomeTabsTextToCheck {
public static final String WHOWEARE="We are more than developers." +
" We are the experts that will take your business into the digital future.";
public final static String WHATWEDO="We transform businesses through the art of
digitization." + " Our expertise spans multiple disciplines," +
" providing our clients with software solutions that dramatically drive
results and outcomes.";
public final static String WHOWESERVE="The right technology translates business
strategies into results." + " We deliver domain-specific, transformative software
solutions that reshape the way you do business.";
}

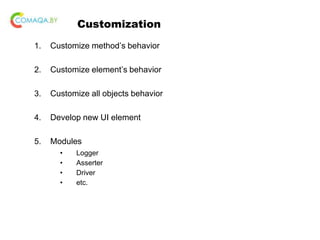

Customization
1. Customize method’s behavior
2. Customize element’s behavior
3. Customize all objects behavior
4. Develop new UI element
5. Modules
• Logger
• Asserter
• Driver
• etc.

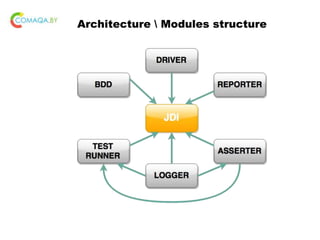

Architecture Modules structure

Implementation is based on
Implementation is based on … what?
Let’s:
• download source code
• familiarize
• investigate
• develop a tiny prototype
• try to use
• try to improve (for example, add Decorator DP based features)
• welcome to QA Automation tools development
• welcome to Open Source

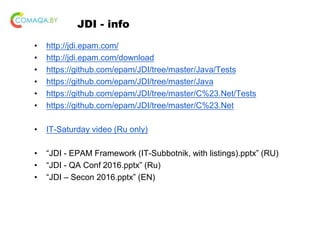

JDI - info
• http://jdi.epam.com/
• http://jdi.epam.com/download
• https://github.com/epam/JDI/tree/master/Java/Tests
• https://github.com/epam/JDI/tree/master/Java
• https://github.com/epam/JDI/tree/master/C%23.Net/Tests
• https://github.com/epam/JDI/tree/master/C%23.Net
• IT-Saturday video (Ru only)
• “JDI - EPAM Framework (IT-Subbotnik, with listings).pptx” (RU)
• “JDI - QA Conf 2016.pptx” (Ru)
• “JDI – Secon 2016.pptx” (EN)

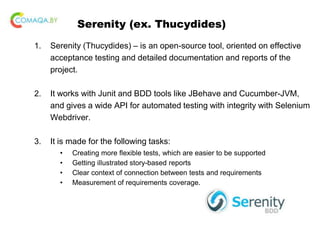

Serenity (ex. Thucydides)
1. Serenity (Thucydides) – is an open-source tool, oriented on effective
acceptance testing and detailed documentation and reports of the
project.
2. It works with Junit and BDD tools like JBehave and Cucumber-JVM,
and gives a wide API for automated testing with integrity with Selenium
Webdriver.
3. It is made for the following tasks:
• Creating more flexible tests, which are easier to be supported
• Getting illustrated story-based reports
• Clear context of connection between tests and requirements
• Measurement of requirements coverage.

Serenity (ex. Thucydides) workflow
• Step 1: Defining requirement and acceptance criteria
It starts from requirements, which are need to be tested. For every
requirement there is an acceptance criteria which describing the
requirement better. Thucydides automate acceptance criteria
• Step 2: Modelling the requirements
With the help of Thucydides you create a simple model of requirements
made on Java language. There are some ways of modelling requirements,
including simple Java class, using convention and structure of directories
of integrating with other tools like Jira. That approach allows the developer
what requirement is tested each of the test, and give Thucydides the ability
to track testing features and requirements

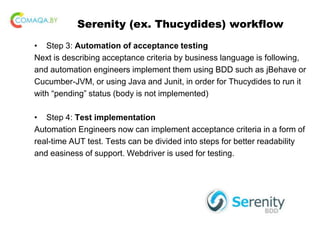

• Step 3: Automation of acceptance testing
Next is describing acceptance criteria by business language is following,
and automation engineers implement them using BDD such as jBehave or
Cucumber-JVM, or using Java and Junit, in order for Thucydides to run it
with “pending” status (body is not implemented)
• Step 4: Test implementation
Automation Engineers now can implement acceptance criteria in a form of
real-time AUT test. Tests can be divided into steps for better readability
and easiness of support. Webdriver is used for testing.

• Step 5: Test results report
Thucydides allow you to create detailed test reports about test runs,
including:
History for ach test
Screenshot for each test step
Result of test run including time and error messages
• Step 6: Requirements coverage report
Besides test run reports, Thucideds also provide information about:
Number of tested requirements
Number of passed requirements
Number of requirements which need to be run

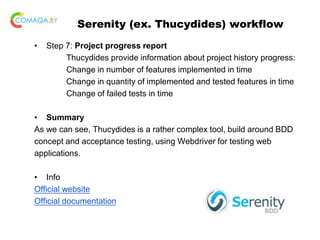

• Step 7: Project progress report
Thucydides provide information about project history progress:
Change in number of features implemented in time
Change in quantity of implemented and tested features in time
Change of failed tests in time
• Summary
As we can see, Thucydides is a rather complex tool, build around BDD
concept and acceptance testing, using Webdriver for testing web
applications.
• Info
Official website
Official documentation

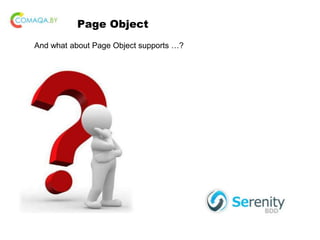

Page Object
And what about Page Object supports …?

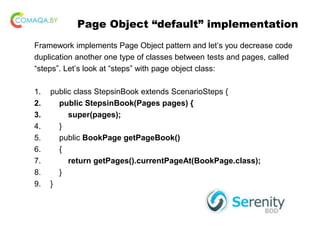

Page Object “default” implementation
Framework implements Page Object pattern and let’s you decrease code
duplication another one type of classes between tests and pages, called
“steps”. Let’s look at “steps” with page object class:
1. public class StepsinBook extends ScenarioSteps {
2. public StepsinBook(Pages pages) {
3. super(pages);
4. }
5. public BookPage getPageBook()
6. {
7. return getPages().currentPageAt(BookPage.class);
8. }
9. }

1. public class StepsinBook extends ScenarioSteps {
2. @Step public void getMain(String url)
3. {
4. getPageBook().getMainPage(url);
5. }
6. @Step public void AllBooks()
7. {
8. getPageBook().allBooks();
9. }
10. @Step public void search(){
11. getPageBook().search(“Book");
12. }
13. @Step public void catalog(){
14. getPageBook().catalog();
15. }}

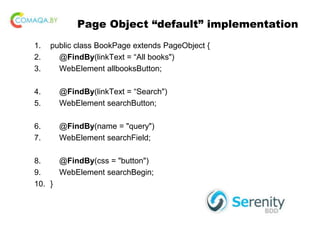

1. public class BookPage extends PageObject {
2. @FindBy(linkText = “All books")
3. WebElement allbooksButton;
4. @FindBy(linkText = “Search")
5. WebElement searchButton;
6. @FindBy(name = "query")
7. WebElement searchField;
8. @FindBy(css = "button")
9. WebElement searchBegin;
10. }

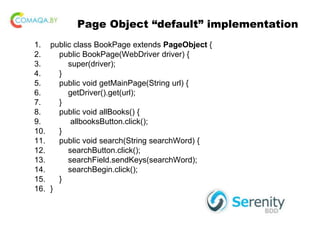

1. public class BookPage extends PageObject {
2. public BookPage(WebDriver driver) {
3. super(driver);
4. }
5. public void getMainPage(String url) {
6. getDriver().get(url);
7. }
8. public void allBooks() {
9. allbooksButton.click();
10. }
11. public void search(String searchWord) {
12. searchButton.click();
13. searchField.sendKeys(searchWord);
14. searchBegin.click();
15. }
16. }

Geb – general info
1. Tool for browser automation, made on Groovy (JVM-based) and based
on Selenium Webdriver.
1. It using:
1. Selenium for browser automation
2. jQuery selectors for locating elements
3. Page object pattern
.
2. In the bounds of testing it can be easily integrated with different test
frameworks like:
1. Junit
2. TestNG
3. Spock

Geb – general info
If to compare with Webdriver API, Geb provides more comfortable interface
in the following areas:
• Working with Webdriver instance (creating, configuration, moves,
destruction)
• Locating elements (jQuery locators)
• Page object pattern
• Waiters
• Page interactions
• Work with AJAX elements
• Integration with build-tools (maven, gradle, grails)
• Integration with cloud services (Sauce labs, Browser Stack)
Official website
Official documentation

Geb - example
1. import geb.Browser
2. Browser.drive {
3. go "http://myapp.com/login"
4. assert $("h1").text() == "Please Login"
5. $("form.login").with {
6. username = "admin"
7. password = "password"
8. login().click()
9. }
10. assert $("h1").text() == "Admin Section"
11. }

SWD Page Recorder
1. SWD Page Recorder helps you to create locators of web-page,
debug them in the application and generate PageObject code for
classes on C#, Java, Python, Ruby, Perl for using them in
Selenium Webdriver tests.
2. That tool not only lets you find locator needed, but also optimize it
and generate all the code needed for further element declaration in
the code.
3. SWD Page Recorder is a unified tool for working with locators in
every browser which are supported by Selenium.
4. Important moment that Page Recorder tests the selectors using
Webdriver – so you’re not going to have cases when locator find
other way will not work in Webdriver.

SWD Page Recorder
Sources, documentation and so on

How to select an appropriate solution?

A real-life example
1. Business context
2. Tech context
– Challenge
– Solution
– Technology Stack
3. QA Automation process context
4. Source code example
5. Summary

Example
1. Example and “home work”
– How to setting up environment
• This is task 0 ☺
– Where to download
(https://github.com/comaqaby/Patterns/tree/master/C%23)
– How to build
– How to configure
– How to run

“Homework”, part 1 ☺
1. Download example’ source code (for each “solution”)
2. “Investigate”
3. Develop a TODO list with a set of improvements
4. Setting up environment
5. Compile and Run
6. “Play”
7. Improve Update TODO list with a set of improvements

1. Read recommended books and articles
2. Improve Update TODO list with a set of improvements
3. Provide me via email with an intermediate and final list of
improvements
4. Develop at least 1 more auto-test (for each “solution”)
5. Develop a set of metrics to “compare” solutions
6. Develop an algorithm “How to select a proper solution”
7. Provide me via email with a set of metrics + algorithm
8. Next iteration ☺

1. Play with GDI “attentively”
2. Join QA Automation tools development
3. Join Open Source “world”

“Rules” and principles
1. Could you please “refresh” your theoretical knowledge, slides 1-
31, thanks

Useful links
1. Martin Fowler “Refactoring”
– http://martinfowler.com/books/refactoring.html
– http://refactoring.com/
– http://refactoring.com/catalog/
– http://refactoring.com/catalog/replaceConditionalWithPolymorphism.h
tml

Useful links
1. Refactoring to Patterns and vice versa
– https://industriallogic.com/xp/refactoring/
– https://industriallogic.com/xp/refactoring/catalog.html
– https://industriallogic.com/xp/refactoring/conditionDispatcherWithCo
mmand.html
– https://industriallogic.com/xp/refactoring/conditionalWithStrategy.html
– http://martinfowler.com/books/r2p.html

Useful links
1. https://sourcemaking.com/
– https://sourcemaking.com/refactoring
– https://sourcemaking.com/refactoring/replace-conditional-with-
polymorphism
– https://sourcemaking.com/design_patterns
– https://sourcemaking.com/antipatterns
• https://sourcemaking.com/antipatterns/software-development-antipatterns
• https://sourcemaking.com/antipatterns/software-architecture-antipatterns
– https://sourcemaking.com/uml

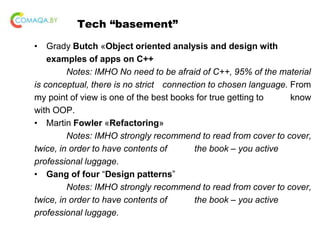

Tech “basement”
• Grady Butch «Object oriented analysis and design with
examples of apps on C++
Notes: IMHO No need to be afraid of C++, 95% of the material
is conceptual, there is no strict connection to chosen language. From
my point of view is one of the best books for true getting to know
with OOP.
• Martin Fowler «Refactoring»
Notes: IMHO strongly recommend to read from cover to cover,
twice, in order to have contents of the book – you active
professional luggage.
• Gang of four “Design patterns”
Notes: IMHO strongly recommend to read from cover to cover,
twice, in order to have contents of the book – you active
professional luggage.

Tech “basement”
• D. Thomas, Andrew Hunt “Pragmatic Programmer, The: From
Journeyman to Master”
Notes: IMHO Amazing book that consists of a ton of advices.
IMHO strongly recommend to read from cover to cover, twice, in
order to have contents of the book – you active professional
luggage. And then look through different chapters before
talking to a customer.
• Steve McConnel “Code complete”
Notes: IMHO No need to be afraid of the size of the book ... it
should be read or before “going to bed”, or from any place, of
separate chapters, just to fresh things in the memory in the chosen f
ield of problem.

What’s next?!
• “Out of box Page Object Design Pattern, Java”
• Dynamic solutions
• Let’s compare with a static one
• “Out of box Page Object Design Pattern, .Net C#”
• Let’s compare with a static one
Summary: 5/12 - Webinar, 5/13 – send all necessary materials
• “Variants of implementation Page Object Design Pattern from the
scratches, without being bind to any programming language”
• Static solutions
• Let’s compare static and dynamic
• Answer to all our questions
Summary: 5/19 - Webinar, 5/19 – send all necessary materials

Anton_Semenchenko@epam.com
Skype - semenchenko_anton_v
+375 33 33 46 120
+375 44 74 00 385
https://www.linkedin.com/in/anton-semenchenko-612a926b
https://www.facebook.com/semenchenko.anton.v
https://twitter.com/comaqa
www.comaqa.by
www.corehard.by

Out of box page object design pattern, java

More Related Content

What's hot (20)

Viewers also liked (20)

Similar to Out of box page object design pattern, java (20)

More from COMAQA.BY (20)

Recently uploaded (20)

Out of box page object design pattern, java
