This document discusses replacement theory and models for determining optimal replacement times for equipment and components. It covers different types of failure mechanisms including gradual, sudden, progressive, and retrogressive failure. Key factors in replacement decisions are purchase costs, salvage values, maintenance costs, and operating costs. Optimal replacement minimizes total average costs over the lifetime of the item. Group replacement policies can be more cost effective than individual policies for items that fail suddenly by replacing items in a group before failures occur.
Replacement model
- 1. REPLACEMENT THEORY Prof.P.D.Devan Asst Professor Department of Mechanical Engineering Kumaraguru College of Technology Coimbatore
- 2. Replacement Model The problem of replacement arises when any one of the components of productive resources, such as machinery, building and men deteriorates due to time or usage. Ex: A machine, which is purchased and installed in a production system, due to usage some of its components wear out and its efficiency is reduced. A building in which production activities are carried out, may leave cracks in walls, roof etc, and needs repair. A worker, when he is young, will work efficiently, as the time passes becomes old and his work efficiency falls down and after some time he will become unable to work.
- 3. Efficiency Vs Time At the beginning the operating efficiency id 95% and it is reduced to 50% at final stage. When the efficiency is too low its not advisable to use the facility further, as the maintenance cost will be very high and unit production cost also will increase. Hence the replacement of the facility is due at this stage.
- 4. Decision Types We may decide whether to wait for complete failure of the item . The expensive item may be considered individually to decide whether we should replace now or, if not, when it should be reconsidered for replacement. Whether the item is to be replaced by similar type of item or by different. The main objective of replacement is to help the organization for maximizing its profit or to minimize the cost.
- 5. Failure Mechanism of Items Nature of Failure Gradual Progressive Retrogressive RandomSudden
- 6. Gradual Failure As the life of the machine increases or due continuous usage, due to wear and tear of components of the facility, its efficiency deteriorates due to which the management can experience. a) Progressive Increase in maintenance expenditure or operating costs, b) Decreased productivity of the equipment c) Decrease in the value of the equipment (resale value) of the equipment/facility decreases. Ex: Automobile, Machine Tool
- 7. Sudden Failure The items ultimately fail suddenly after a period of time. The life of the equipment cannot be predicted and is some sort of random variable The period between installation and failure is not constant for any particular type of equipment but will follow some frequency distribution
- 8. Progressive Failure In this case probability of failure increases with the increase in life of an item. Ex: Electrical bulbs and computer components
- 9. Retrogressive failure Some items will have higher probability of failure in the beginning of their life, and as the time passes chances of failure becomes less. That is the ability of the item to survive in the initial period of life increases its expected life. Ex: Newly installed machines and new vehicles
- 10. Random Failure Constant probability of failure is associated with items that fail from random causes such as physical shocks, not related to age. In such cases all items fail before aging has any effect. Ex: Vacuum Tubes
- 12. Costs Associated with Maintenance Purchase or Capital Cost (C) Salvage value / Scrap value / Resale value / Depreciation (S) Running costs including maintenance, Repair and Operating costs
- 13. Types of Replacement Problems Replacement of items that deteriorate with time (value of money not changing with time) Replacement of items that deteriorate with time (Value of money changing with time) Replacement of items that fail suddenly (individual and group replacement policies) Staff Replacement
- 14. General Approach to Replacement Problem The information necessary to formulate optimum replacement policy is: (i) Objective assessment of the probability of the item failing at a particular point of time (ii) Assessments of the cost of replacement in terms of: (a) Actual cost of the item, (b) Direct costs of labour involved in replacement, (c) Costs of disruption in terms of lost production, lost orders etc.,
- 15. Replacement of items that deteriorate with time (Value of money not changing with time) Certain equipment/parts are deteriorate gradually with respect to time. After a certain period the efficiency of the item will reduce and maintenance cost increases. Then the old item must be replaced by new one. Ex: Automobile part wear out with age and the owner needs to replace the old part at suitable time by a new one
- 16. Costs to be Considered Capital/Purchase cost =(C) Scrap value after ‘t’ years= S(t) Operating cost at time ‘t’ = M(t) Optimal replacement period = n Depreciation cost Operating cost Optimal replacement period is corresponding to which the minimum average cost
- 17. Replacement of items that deteriorate with time (Value of money changing with time) This problem is complicated as the money value changes with time. This can be dealt under two different conditions: (a) The maintenance cost goes on increasing with usage or age or time and then we have to find out optimum time of replacing the item. Here the value of money decreases with a constant rate which is known as its depreciation ratio or discounted factor. (b) If a businessman takes a loan for a certain period at a given interest rate and agrees to pay it in a number of instalments, then we have to find the most suitable period during which the loan would be repaid.

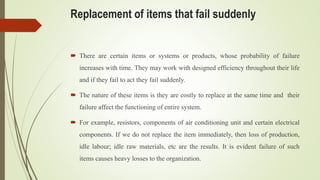

- 18. Replacement of items that fail suddenly There are certain items or systems or products, whose probability of failure increases with time. They may work with designed efficiency throughout their life and if they fail to act they fail suddenly. The nature of these items is they are costly to replace at the same time and their failure affect the functioning of entire system. For example, resistors, components of air conditioning unit and certain electrical components. If we do not replace the item immediately, then loss of production, idle labour; idle raw materials, etc are the results. It is evident failure of such items causes heavy losses to the organization.
- 19. Individual Replacement Policy This policy states that replace the item soon after its failure. Here the cost of replacement will be somewhat greater as the item is to be purchased individually from the seller as and when it fails. From the time of failure to the replacement, the system remains idle. More than that, as the item is purchased individually, the cost of the item may be more. In case, the component or the item is not available in the local market, we have to get it from other places, where the procurement cost may be higher for individual purchase. Ex: Bearing in a machine
- 20. Group Replacement Policy If the organization has got the statistics of failure of the item, it can calculate the average life of the item and replace the item before it fails, so that the system can work without break. In this case, all the items, even they are in good working condition, are replaced at a stipulated period as calculated by the organization by using the group replacement policy. In case any item fails, before the calculated group replacement period, it is replaced individually immediately after failure. Hence this policy utilizes the strategy of both individual replacement and group replacement. Ex: Street Lights, Electronic Parts and etc
- 21. THANK YOU
