SMART GRID
SIET, VIJAYPUR DEPT. OF EEE Page 1
CHAPTER 1: INTRODUCTION
1.1 Existing Scenario
INDIA is a energy deficient country, with 1.4 billion people without electricity
.The density of distribution is unequal. Six decades after independence, India‟s villages
are groping in the dark. One-third rural areas have no electricity. In some parts of India,
there is still scarcity of electricity. India‟s per capita consumption is very low but still
35% rural house-holds are powerless.
Aging power plants and transmission network: Since most of the power plants and
transmission lines have been installed immediately after the independence, they have
become old and inefficient. This is the main reason for low growth and transmission rate
in electricity generation and transmission during the recent years. Old and inefficient
plants and lines need to be replaced or renovated and modernized to achieve the
electricity production and demand target.
Less inclination of renewable: India is abundantly gifted with variety of renewable
energy sources, not all states are endowed with same level of renewable energy sources.
Some states have very high level of renewable energy potentials generated from l, but still
the renewable resources are not explored in India. Only about 10% of total energy is
generated from renewable energy sources.
Due to lack of electricity supply many consumers depend on DG sets using costly
diesel oil for meeting unavoidable power requirements. More than 10 million households
are using battery storage UPS as back-up in case of load shedding .India imports nearly 2
billion US$ worth of battery storage UPS every year. So the distribution companies
should focus on providing uninterrupted power supply to all the consumers.
The traditional power grids are generally used to carry power from a few central
generators to a large number of users or customers.
Traditionally, the term grid is used for an electricity system that may support all
or some of the following four operations: electricity generation, electricity transmission,
electricity distribution and electricity control.
A smart grid (SG), also called smart electrical power grid, intelligent grid, future-
grid, inter-grid, or intra-grid, is an enhancement of the 20th
century power grid. The

SMART GRID
traditional power grids are generally used to carry power from a few central generators to
a large number of users or customers. In contrast, the SG uses two-way flows of
electricity and information to create an automated and distributed advanced energy
delivery network. Table I gives a brief comparison between the existing grid and the SG.
Table 1.1: Comparison between Conventional and Smart Grid
Existing Grid Smart Grid
Electromechanical Digital
One-way communication Two-way communication
Centralized generation Distributed generation
Few sensors Multiple sensors
Manual monitoring Self monitoring
Manual restoring Self – healing
Few customer choices Many customer choices
By utilizing modern information technologies, the SG is capable of delivering
power in more efficient ways and responding to wide ranging conditions and events.
Broadly stated, the SG could respond to events that occur anywhere in the grid, such as
power generation, transmission, distribution, and consumption, and adopt the
corresponding strategies. For instance, once a medium voltage transformer failure event
occurs in the distribution grid, the SG may automatically change the power flow and
recover the power delivery service. More specifically, the SG can be regarded as an
electric system that uses information, two-way, cyber-secure communication
technologies, and computational intelligence in an integrated fashion across electricity
generation, transmission, substations, distribution and consumption to achieve a system
that is clean, safe, secure, reliable, resilient, efficient, and sustainable.
In the smart grid, reliable and real-time information becomes the key factor for
reliable delivery of power from the generating units to the end-users. The impact of
equipment failures, capacity constraints, and natural accidents, which cause power
disturbances and outages, can be largely avoided by online power system condition
monitoring, diagnostics and protection. To this end ,the intelligent monitoring and control
enabled by modern information and communication technologies have become essential
to realize the envisioned smart grid. As the greenhouse gas emissions on earth have been
a significant threat that is caused by the electricity and transportation industries. So ,a new

SMART GRID

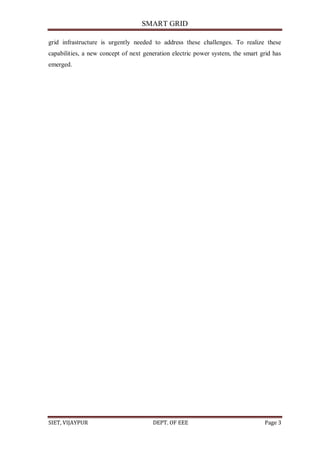

grid infrastructure is urgently needed to address these challenges. To realize these
capabilities, a new concept of next generation electric power system, the smart grid has
emerged.

SMART GRID
CHAPTER 2: SMART GRID
2.1 BACKGROUND
A smart grid (SG), is also called as smart electrical/power grid, intelligent grid,
future grid, intergrid, or intragrid. The SG uses two-way flow of electricity and
information to gather and act on information. The information is about the behavior of
suppliers and consumers, in an automated fashion to improve the efficiency, reliability
economics, and sustainability of the production and to create an automated and
distributed advanced energy delivery network.
The table 2.1 shows comparison existing grid and smart grid.
Table 2.1: Comparison between Conventional and Smart Grid
Existing Grid Smart Grid
Electromechanical Digital
One-way communication Two-way communication
Centralized generation Distributed generation
Few sensors Multiple sensors
Manual monitoring Self monitoring
Manual restoring Self – healing
Few customer choices Many customer choices

SMART GRID
Fig. 2.1: The NIST conceptual model for SG
In order to realize this new grid paradigm NIST (National Institute of Standards
and Technology) provided a conceptual model (as shown in Fig. 2.1), which can be used
as a reference for the various parts of the electrical system where SG standardization
works are taking place. This conceptual model divides the SG into seven domains. The
brief descriptions of the domains and actors are given in Table 2.2.
Table 2.2: Description of domains and actors
DOMAIN ACTORS IN THE DOMAIN
Customer The end users of electricity. May also generate, store.
Markets The operators and participants in electricity markets
Service Providers
The organizations providing services to electrical customers and
utilities.
Operations The managers of the movement of electricity.
Bulk Generation
The generators of electricity in bulk quantities. May also store
energy for later distribution.
Transmission
The carriers of bulk electricity over long distances may also store
and generate electricity
Distribution
The distributors of electricity to and from customers may also
store and generate electricity.

SMART GRID
CHAPTER 3: COMPONENTS OF SMART GRID
In contrast, SG from a technical view point divides SG into three major systems:
 Smart infrastructure System
 Smart management System and
 Smart protection system.
3.1 Smart infrastructure system
The smart infrastructure system is the energy, information, and communication
infrastructure underlying the SG. It supports two-way flow of electricity and information.
Note that it is straightforward to understand the concept of “two-way flow of
information.” “Two-way flow of electricity” implies that the electric energy delivery is
not unidirectional anymore. For example, in the traditional power grid, the electricity is
generated by the generation plant, then moved by the transmission grid, the distribution
grid and finally delivered to users.
In an SG, electricity can also be put back into the grid by users. For example, users
may be able to generate electricity using solar panels at homes and put it back into the
grid, or electric vehicles may provide power to help balance loads by “peak shaving”
(sending power back to the grid when demand is high). This backward flow is important.
For example, it can be extremely helpful in a micro-grid that has been „islanded‟ due to
power failures. The micro-grid can function at a reduced level, with the help of the energy
fed back by the customers. Smart infrastructure system is further divided into three
subsystems: the smart energy subsystem, the smart information subsystem, and the
smart communication subsystem.
 The smart energy subsystem is responsible for advanced electricity generation,
delivery and consumption.
 The smart information subsystem is responsible for advanced information
metering, monitoring and management in the context of the SG.
 The smart communication subsystem is responsible for communication
connectivity and information transmission among systems, devices, and
applications in the context of the SG

SMART GRID
3.2 Smart Management System
The smart management system is the subsystem in SG that provides advanced
management and control services and functionalities. The key reason why SG can
revolutionize the grid is the explosion of functionality based on its smart infrastructure.
With the development of new management applications and services that can leverage the
technology and capability upgrades enabled by this advanced infrastructure, the grid will
keep becoming “smarter.” The smart management system takes advantage of the smart
infrastructure to pursue various advanced management objectives. Thus far, most of such
objectives are related to energy efficiency improvement, supply and demand balance,
emission control, operation cost reduction, and utility maximization.
3.3Smart Protection System
The smart protection system is the subsystem in SG that provides advanced grid
reliability analysis, failure protection, and security and privacy protection services. By
taking advantage of the smart infrastructure, the SG must not only realize a smarter
management system, but also provide a smarter protection system which can more
effectively and efficiently support failure protection mechanisms, address cyber security
issues, and preserve privacy.

SMART GRID

SMART GRID
CHAPTER 4: SMART INFRASTRUCTURE SYSTEM I:
SMART ENERGY SYSTEM
Two-way flow of electricity and information lay the infrastructure foundation for
the SG. The smart infrastructure can be subdivided into the smart energy subsystem, the
smart information subsystem, and the smart communication subsystem.
The traditional power grid is unidirectional in nature. Electricity is often generated
at a few central power plants by electromechanical generators, primarily driven by the
force of flowing water or heat engines fueled by chemical combustion or nuclear power.
In order to take advantage of the economies of scale, the generating plants are usually
quite large and located away from heavily populated areas. The generated electric power
is stepped up to a higher voltage for transmission on the transmission grid. The
transmission grid moves the power over long distances to substations. Upon arrival at a
substation, the power will be stepped down from the transmission level voltage to a
distribution level voltage. As the power exits the substation, it enters the distribution grid.
Finally, upon arrival at the service location, the power is stepped down again from the
distribution voltage to the required service voltage(s). Fig. 4.1 shows an example of the
traditional power grid.
Fig. 4.1: Traditional power grid
In contrast with the traditional power grid, the electric energy generation and the
flow pattern in an SG are more flexible. For example, the distribution grid may also be

SMART GRID
capable of generating electricity by using solar panels or wind turbines. The energy
subsystem is divided into power generation, transmission grid, and distribution grid.
SMART ENERGY SUBSYSTEM
Power Generation Distribution Grid
Transmission Grid
4.1 Power Generation
Electricity generation is the process of generating electricity from other
forms of energy, such as natural gas, coal, nuclear power, the sun, and wind. There are
many energy sources used to generate electric power. In contrast to the power generation
in the traditional power grid, smarter power generation becomes possible as the two way
flows of electricity and information are supported. A key power generation paradigm
enabled by SG will be the distributed generation (DG). DG takes advantage of distributed
energy resource (DER) systems (e.g. solar panels and small wind turbines), which are
often small-scale power generators (typically in the range of 3 kW to 10,000 kW), in
order to improve the power quality and reliability. For example, a micro-grid which is a
localized grouping of electricity generators and loads can disconnect from the macro-grid
so that distributed generators continue to power the users in this micro-grid without
obtaining power from outside. Thus, the disturbance in the macro-grid can be isolated and
the electric power supply quality is improved.
A power system based on a large number of reliable small DGs can operate with
the same reliability and a lower capacity margin than a system of equally reliable large
generators. A review of different distributed energy technologies such as micro-turbines,
photovoltaic, fuel cells, and wind power turbines can be used.
4.2 Transmission Grid:
On the power transmission side, factors such as infrastructure challenges
(increasing load demands and quickly aging components) and innovative technologies

SMART GRID
(new materials, advanced power electronics, and communication technologies) drive the
development of smart transmission grids. The smart transmission grid can be regarded as
an integrated system that functionally consists of three interactive components: smart
control centers, smart power transmission networks, and smart substations.
Based on the existing control centers, the future smart control centers enable
many new features, such as analytical capabilities for analysis, monitoring, and
visualization. The smart power transmission networks are conceptually built on the
existing electric transmission infrastructure. However, the emergence of new technologies
(e.g new materials, electronics, sensing, communication, computing, and signal
processing) can help improve the power utilization, power quality, and system security
and reliability, thus drive the development of a new framework architecture for
transmission networks.
The vision of the smart substation is built on the existing comprehensive
automation technologies of substations. Although the basic configurations of high-voltage
substations have not changed much over the years, the monitoring, measurement, and
control equipment have undergone a sea change in recent years. Major characteristics of a
smart substation shall include digitalization, atomization, coordination, and self-healing.
By supporting these features, a smart substation is able to respond rapidly and provide
increased operator safety. In brief, with a common digitalized platform, in the smart
transmission grid it is possible to enable more flexibility in control and operation.
4.3 Distribution Grid:
For the distribution grid, the most important problem is how to deliver power to
serve the end users better. However, as many distributed generators will be integrated into
the smart distributed grid, this, on one hand, will increase the system flexibility for power
generation, and on the other hand, also makes the power flow control much more
complicated, in turn, necessitating the investigation of smarter power distribution and
delivery mechanisms. In power distribution systems, the information is added to the
electric power itself and electricity is distributed according to this information.

SMART GRID
4.4 Some New Grid Paradigms:
The two most important new grid paradigms are micro-grid and G2V-V2G these two
paradigms promote the development of SG. These two paradigms are widely regarded as
important components of the future SG.
4.4.1 Micro-grid: Distributed generation promotes the development of a new grid
paradigm, called micro-grid, which is seen as one of the cornerstones of the future SG. A
micro-grid is a localized grouping of electricity generations, energy storages, and loads.
In the normal operation, it is connected to a traditional power grid (macro grid). The users
in a micro grid can generate low voltage electricity using distributed generation, such as
solar panels, wind turbines, and fuel cells. The single point of common coupling with the
macro grid can be disconnected, with the micro grid functioning autonomously. This
operation will result in an islanded micro grid, in which distributed generators continue to
power the users in this microgrid without obtaining power from the electric utility located
in the macro grid. Fig 4.2 shows an example of the microgrid. The multiple distributed
generators and the ability to isolate the microgrid from a larger network in disturbance
will provide highly reliable electricity supply. This intentional islanding of generations
and loads has the potential to provide a higher local reliability than that provided by the
power system as a whole
Fig. 4.2: Example of a microgrid
4.4.2 G2V and V2G:
An electric vehicle is a vehicle that uses one or more electric motors for
propulsion. As fossil fuels diminish and generally get more expensive, fully electric
vehicles or plug-in hybrid electric vehicles will rise in popularity. In the following, we

SMART GRID
use EV to represent both fully electric vehicle and plug-in hybrid electric vehicle. The
wide use and deployment of EVs leads to two concepts, namely Grid-to- Vehicle (G2V)
and Vehicle-to-Grid (V2G).
In G2V, EVs are often powered by stored electricity originally from an external
power source, and thus need to be charged after the batteries deplete. This technology is
conceptually simple. However, from the perspective of the grid, one of the most
important issues in G2V is that the charging operation leads to a significant new load on
the existing distribution grids. We need to keep the peak power demand as small as
possible, taking into account the extra power consumption from the vehicle charging.
This can be done by coordinating the charging operations of different EVs so that they are
not charged at the same time.
In V2G, EVs provide a new way to store and supply electric power. V2G-enabled
EVs can communicate with the grid to deliver electricity into the grid, when they are
parked and connected to the grid. There exist three major delivery setups:
1) A hybrid or fuel cell vehicle, which generates power from storable fuel, uses its
generator to produce power for a utility at peak electricity usage times. These vehicles
serve as a distributed generation system producing energy from conventional fossil fuels
or hydrogen.
2) A battery-powered or plug-in hybrid vehicle uses its excess rechargeable battery
capacity to supply power for a utility at peak electricity usage times. These vehicles can
then be recharged during off-peak hours at cheaper rates. These vehicles serve as a
distributed battery storage system to store power.
3) A solar vehicle which uses its excess charging capacity to provide power to the power
grid when the battery is fully charged. These vehicles serve as a distributed small
renewable energy power system.

SMART GRID
CHAPTER 5: SMART INFRASTRUCTURE SYSTEM II-
SMART INFORMATION SUBSYSTEM
The evolution of SG relies on not only the advancement of power equipment
technology, but also the improvement of computer monitoring, analysis, optimization,
and control from exclusively central utility locations to the distribution and transmission
grids. A smart information subsystem is used to support information generation,
modeling, integration, analysis, and optimization in the SG. The information metering
and measurement, generates information from end entities (e.g. smarter meters, sensors).
This information is often used for billing, grid status monitoring, and user appliance
control.
5.1 Smart Metering:
A smart metering communication system consists of the following components:
(e.g. smart metering and energy management in the consumer premises); Neighborhood
Area Network (NAN) that collects data from multiple HANs and deliver the data to a data
concentrator; Wide Area Network (WAN) which is the data transport network that carries
metering data to central control centers; and Gateway which is the device that collects or
measures energy usage information from the HAN members (and of the home as a whole)
and transmits this data to interested parties. Table below indicates the typical
communication requirements and the potential technologies that could be employed to
realize the different types of network mentioned below.

SMART GRID

SMART GRID
Fig. 5.1: Typical smart metering architecture

SMART GRID
CHAPTER 6: SMART INFRASTRUCTURE SYSTEM III-
SMART COMMUNICATION SUBSYSTEM:
The third part in the smart infrastructure system is the smart communication
subsystem. This subsystem is responsible for communication connectivity and
information transmission among systems, devices, and applications of the SG. Different
communication technologies supported by two main communications media, i.e., wired
and wireless, can be used for data transmission between smart meters and electric
utilities. In some instances, wireless communications have some advantages over wired
technologies, such as low-cost infrastructure and ease of connection to difficult or
unreachable areas. The nature of the transmission path may cause the signal to attenuate.
On the other hand, wired solutions do not have interference problems and their functions
are not dependent on batteries, as wireless solutions often do. Basically, two types of
information infrastructure are needed for information flow in a smart grid system. The
first flow is from sensor and electrical appliances to smart meters, the second is between
smart meters and the utility‟s data centers. The first data flow can be accomplished
through power line communication or wireless communications, such as ZigBee, Satellite
communication, Z-wave, and others. For the second information flow, cellular
technologies or the Internet can be used.
The fig 6.1 shows the communication system of SG

SMART GRID
Fig.6.1: Communication Network in SG

SMART GRID
CHAPTER 7: ADVANTAGES OF SMART GRID
1) Economic Development:
New Jobs: The manufacture, installation operation and maintenance of the smart grid and
its components will create new jobs within the state.
Innovation: Smart grid innovation will enable the growth of business while rewarding
customers with valuable new products.
2) Improved Reliability: Smart grid will reduce and shorten outages and improve the
quality of power.
3) Customer energy/Cost savings: As pricing becomes more transparent and is aligned
with the underlying economics of generation and distribution customer‟s decisions to
save money will benefit society.

SMART GRID
CONCLUSION
Consumers can balance their energy consumption with the real-time supply of
energy. Variable pricing will provide consumer incentives to install their own
infrastructure that supports the Smart Grid. Utilities can provide more reliable energy,
particularly during challenging emergency conditions, while managing their costs more
effectively through efficiency and information. The Smart Grid facilitates an improved
environment.
It helps to reduce greenhouse gases (GHG) and other pollutants by reducing
generation from inefficient energy sources, supports renewable energy sources, and
enables the replacement of gasoline-powered vehicles with plug-in electric vehicles. The
Smart Grid provides a reliable power supply with fewer and briefer outages, “cleaner”
power, and self- healing power systems, through the use of digital information, automated
control, and autonomous systems.
The Smart Grid accommodates generation and storage options; it also provides
reliable power that is relatively interruption-free. ƒ
Thus Smart Grid is the future grid with intelligence embedded in it, with self-
healing capabilities.

SMART GRID
FUTURE SCOPE
Considering the various benefits of Smart Grid over existing Grid, it has wide
applications in the future. Smart Grid is implemented in various countries Germany being
the first. India has started some Smart pilot projects in various cities as stated below:
Current Smart Grid activities in India are:
First smart grid pilot project is started in Mysore, Karnataka.
SMART GRID Project BESCOM (Bangalore) integration of renewable and decentralized
energy sources in power grid.
Four pilot sites (North Delhi, Bangalore, Gujarat, Maharashtra).

SMART GRID
REFERENCE
[1] I. F. Akyildiz, W. Su, Y. Sankarasubramaniam, and E. Cayirci. A survey on sensor networks.
IEEE Commun. Mag., 40(8):102–114, 2002.
[2] I. F. Akyildiz and X. Wang. A survey on wireless mesh networks. IEEE Radio
Communications, pages 23–30, 2005.
[3] B. Akyol, H. Kirkham, S. Clements, and M. Hadley. A survey of wireless communications for
the electric power system. Prepared for the U.S. Department of Energy, 2010.
[4] H. Al-Nasseri and M. A. Redfern. A new voltage based relay scheme to protect micro-grids
dominated by embedded generation using solid state converters. 19th International Conference
Electricity Distribution, 2007.
[5] American Transmission Company. American Transmission Company Phasor Measurement
Unit Project Description, http://www.smartgrid. gov/sites/default/files/09-0282-atc-project-
description-07-11-11.pdf.
[6] P. B. Andersen, B. Poulsen, M. Decker, C. Træholt, and J. Østergaard. Evaluation of a generic
virtual power plant framework using service oriented architecture. IEEE PECon‟08, pages 1212–
1217, 2008.
[7] R. Anderson and S. Fuloria. Who controls the off switch? IEEE SmartGridComm‟10, pages
96–101, 2010.
[8] R. N. Anderson, A. Boulanger, W. B. Powell, and W. Scott. Adaptive stochastic control for
the smart grid. Proc. IEEE, 99(6):1098 – 1115,

Smart grid report 11111111

More Related Content

What's hot (20)

Similar to Smart grid report 11111111 (20)

Recently uploaded (20)

Smart grid report 11111111
