Virtual Reality: Sensing the Possibilities
- 1. VIRTUAL REALITY: SENSING THE POSSIBILITIES Professor Mark Billinghurst Director Empathic Computing Lab mark.billinghurst@unisa.edu.au Dr. Ross Smith Co-Director: Wearable Computer Laboratory ross.smith@unisa.edu.au
- 2. Outline 5:50 – What is VR (Mark) 6:00 – History and Business of VR (Mark) 6:15 - Applications of VR (Ross) 6:25 - Tools for Developing VR (Ross) 6:35 - VR Research Directions (Mark) 6:45 – Demos (Mark and Ross)
- 3. Downloads to Try • Search on iOS/Play Store for: • Google Cardboard • Cardboard Camera • DiveCityCoaster • Streetview • Within
- 4. WHAT IS VIRTUAL REALITY?
- 5. Ivan Sutherland (1963) • Sketchpad – first interactive graphics program
- 6. The Ultimate Display “The ultimate display would, of course, be a room within which the computer can control the existence of matter. A chair displayed in such a room would be good enough to sit in. Handcuffs displayed in such a room would be confining, and a bullet displayed in such a room would be fatal”. Ivan Sutherland, 1965
- 8. Virtual Reality Computer generated multi-sensory simulation of an artificial environment that is interactive and immersive.
- 10. What is Virtual Reality? Virtual reality is.. a computer technology that replicates an environment, real or imagined, and simulates a user's physical presence and environment to allow for user interaction. (Wikipedia) • Defining Characteristics • Environment simulation • Presence • Interaction
- 11. Defined in Terms of Presence • Presence is the key to defining VR in terms of experience • Presence is defined as the sense of being in an environment • Telepresence is defined as the experience of presence in an environment by means of a communication medium. • A “virtual reality” is defined as a real or simulated environment in which a perceiver experiences telepresence.
- 12. David Zeltzer’s AIP Cube ! Autonomy – User can to react to events and stimuli. ! Interaction – User can interact with objects and environment. ! Presence – User feels immersed through sensory input and output channels Interaction Autonomy Presence VR Zeltzer, D. (1992). Autonomy, interaction, and presence. Presence: Teleoperators & Virtual Environments, 1(1), 127-132.
- 13. First VR Experience • “This is so real..” • https://www.youtube.com/watch?v=pAC5SeNH8jw
- 14. Key Technologies • Autonomy • Head tracking, body input • Intelligent systems • Interaction • User input devices, HCI • Presence • Graphics/audio/multisensory output • Multisensory displays • Visual, audio, haptic, olfactory, etc
- 15. Types of VR 1 5
- 16. HISTORY OF VR
- 17. Early History (30,000 BC - ) The history of VR is rooted in human’s first attempts to reproduce the world around them
- 18. 1800’s – Capturing Reality • Panoramas (1790s) • Immersive paintings • Photography (1820-30s) • Oldest surviving photo (Niépce, 1826) • Stereo imagery (1830s) • Wheatstone (1832) • Brewster (1851) • Movies (1870s) • Muybridge (1878) • Roundhay Garden Scene (1888)
- 19. Stereo Viewers Wheatstone (1832) Brewster (1860)
- 21. 1900s – Interactive Experiences • Early Simulators (<1960s) • Flight simulation • Sensorama (1955) • Early HMDs (1960s) • Philco, Ivan Sutherland • Military + University Research (1970-80s) • US Airforce, NASA, MIT, UNC • First Commercial Wave (1980-90s) • VPL, Virtual i-O, Division, Virtuality • VR Arcades, Virtual Boy
- 22. Ivan Sutherland HMD (1968) https://www.youtube.com/watch?v=NtwZXGprxag
- 23. Early Experimenters (1950’s – 80’s) Helig 1956 Sutherland 1965 Furness 1970’s
- 24. The First Wave (1980’s – 90’s) NASA 1989 VPL 1990’s Virtuality 1990’s
- 25. Desktop VR - 1995 • Expensive - $150,000+ • 2 million polys/sec • VGA HMD – 30 Hz • Magnetic tracking
- 26. Rise of Commercial VR Companies • W Industries/Virtuality (1985 - 97) • Location based entertainment • Virtuality VR Arcades • Division (1989 – 1998) • Turn key VR systems • Visual programming tools • Virtual i-O (1993 -1997) • Inexpensive gamer HMDs • Sense8 (1990 - 1998) • WorldToolKit, WorldUp • VR authoring tools
- 27. • April 2007 Computer World • VR Voted 7th on of 21 biggest flops • MS Bob #1
- 28. Second Wave (2010 - ) • Palmer Luckey • HMD hacker • Mixed Reality Lab (MxR) • Oculus Rift (2011 - ) • 2012 - $2.4 million kickstarter • 2014 - $2B acquisition FaceBook • $350 USD, 110o FOV
- 29. • sddg
- 30. Oculus Rift Sony Morpheus HTC/Valve Vive 2016 - Rise of Consumer HMDs
- 31. Desktop VR 2016 • Graphics Desktop • $1,500 USD • >4 Billion poly/sec • $600 HMD • 1080x1200, 90Hz • Optical tracking • Room scale
- 32. HTC Vive • Room scale tracking • Gesture input devices
- 33. Example Vive App – Tilt Brush https://www.youtube.com/watch?v=ijukZmYFX-0
- 34. Computer Based vs. Mobile VR
- 35. Mobile VR: Google Cardboard • Released 2014 (Google 20% project) • >5 million shipped/given away • Easy to use developer tools + =
- 36. Multiple Mobile VR Viewers Available

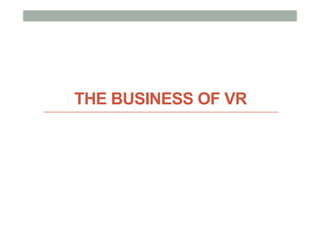

- 37. THE BUSINESS OF VR

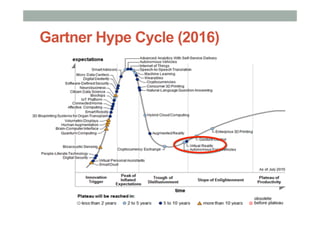

- 38. Gartner Hype Cycle (2016)
- 39. Gartner Hype Cycle (2016)
- 40. Companies • sdfa
- 41. AR/VR Investments • > $1 Billion USD from VCs, > 120 deals in US alone
- 42. HMD Sales • asdf
- 43. Market Size
- 44. AR / VR Market Size • sadf
- 45. • In 2016 – 46m possible desktop VR users vs. 400 m mobile VR users • https://thoughts.ishuman.co/vr-will-be-mobile-11529fabf87c#.vfcjzy1vf
- 46. • zxcvz
- 47. Potential for Disruption (BDMI) • asD
- 48. Why 2016 won’t be like 1996 • It’s not just VR anymore • Huge amount of investment • Inexpensive hardware platforms • Easy to use content creation tools • New devices for input and output • Proven use cases – no more Hype! • Most important: Focus on User Experience

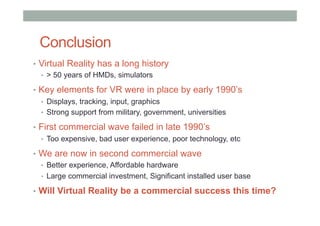

- 49. Conclusion • Virtual Reality has a long history • > 50 years of HMDs, simulators • Key elements for VR were in place by early 1990’s • Displays, tracking, input, graphics • Strong support from military, government, universities • First commercial wave failed in late 1990’s • Too expensive, bad user experience, poor technology, etc • We are now in second commercial wave • Better experience, Affordable hardware • Large commercial investment, Significant installed user base • Will Virtual Reality be a commercial success this time?
- 51. Types of VR Experiences • Immersive Spaces • 360 Panorama’s/Movies • High visual quality • Limited interactivity • Changing viewpoint orientation • Immersive Experiences • 3D graphics • Lower visual quality • High interactivity • Movement in space • Interact with objects
- 52. Immersive Panorama • High quality 360 image or video surrounding user • User can turn head to see different views • Fixed position
- 53. Example Applications • VRSE – Storytelling for VR • http://vrse.com/ • High quality 360 VR content • New York Times VR Experience • NYTVR application • Documentary experiences • Vrideo • http://vrideo.com/ • Streamed immersive movies
- 54. Applications: Virtual Tours • Visualise architectural diagrams • Tools such as Autodesk, Revit supporting VR • Metricon, 3D tours
- 55. Demo: Metricon VR Tours • https://www.youtube.com/watch?v=vN16M2RZ8k4
- 56. Applications: Games and Entertainment • 100s of games
- 57. Star Wars Trials On Tatooine VR Game • https://www.youtube.com/watch?v=zb2HTngc8xE
- 58. 100’s of Google Play Cardboard apps
- 59. Applications: Sports and Entertainment • www.Nexvr.com • Live streaming events • NBA Basketball VR • (1 game per week) • US Open Tennis VR • Live Nation concerts
- 60. Virtual Campus Tour • Current undergraduate student project • Captured hundereds 360 photos • Custom menus and navigation • Allowing remote experience of facilities
- 61. Applications: Architectural Visualizations • Combined virtual and real imagery • Revit architectual diagrams • Incorporated Street photography • Available today from app store
- 62. Applications: Medical • Virtual Reality in Clinical Applications • Acute and Chronic Pain Modification • Phobias, Post-traumatic stress disorder • Eating disorders • Benefits • Low cost • Repeatable
- 63. How do these systems work? • Phobias • Repeated experience reduces fear and anxiety • Wound dressing • Distraction • Lower pain self report compared to opiates • Chronic pain • Illusion based systems
- 64. Application: Chronic Neck Pain •Injuries happen to everyone, for some pain persists after injury healing •1 in 5 Australians suffer chronic pain •Current Treatments provide no long term benefit, AND often cause further complications. •Science suggests these methods don’t target the main contributor: the brain. •Pain with movement depends on perceived, not actual movement (Harvie, Smith et al. 2015). •Shows real time manipulation of pain using MoOVi
- 65. Application: Virtual Training • Virtual Dissection • Cadaver lab • OH&S Training tools (Forklift) • Learning benefits • Easily repeatable • No harm to specimen • No exposure to chemicals • http://www.tactustech.com
- 66. TOOLS FOR DEVELOPING VR EXPERIENCES
- 67. Capturing Panoramas • Stitching photos together • Image Composite Editor (Microsoft) • AutoPano (Kolor) • Using 360 camera • Ricoh Theta-S • Fly360
- 68. Capturing 360 images Kodac 360 Fly 360 Gear 360 Theta S Nikon LG 360 Pointgrey Ladybug Panono 360 Bublcam
- 69. 360 Images with Smartphone • Cardboard Camera • Capture 360 panoramas • S3tch together images on phone • View in VR on Cardboard
- 70. What You Need • Cardboard Viewer/VR Viewer • https://www.google.com/get/cardboard/ • Smart phone • Android/iOS • Authoring Tools/SDK • Google VR SDK • Unity/Unreal game engine • Non programming tools • Content • 3D models, video, images, sounds
- 71. Software Tools • Low level SDKs • Need programming ability • Java, C#, C++, etc • Example: Google VR SDK (iOS, Android) • https://developers.google.com/vr/ • Game Engines • Powerful, need scripting ability • Unity - https://unity3d.com/ • Unreal - https://www.unrealengine.com/vr • Combine with VR plugins (HMDs, input devices) • Google VR Unity plugin
- 72. Unity Interface
- 73. Developing Software • Unity Game Engine • Unreal Game Engine • Asstore access (not just for developers) • Comprehensive tools to support • Physics • Lighting effects • Animations • Colliders • Scripts • Audio • Particle systems (smoke, fog..) •
- 74. Tools for Non-Programmers • Focus on Design, ease of use • Visual Programming, content arrangement • Examples • Insta-VR – 360 panoramas • http://www.instavr.co/ • Vizor – VR on the Web • http://vizor.io/ • A-frame – HTML based • https://aframe.io/ • ENTiTi – Both AR and VR authoring • http://www.wakingapp.com/ • Eon Creator – Drag and drop tool for AR/VR • http://www.eonreality.com/eon-creator/
- 75. InstaVR (Web Based) • http://www.instavr.co/ • Development flow • Capture 360 photos • Upload to web • Add content flow • Add links, hotspots • Publish to platform: • Android, IOS, Gear VR, Web, • Daydream, Oculus Rift, HTC Vive, Playstation VR
- 78. Areas for VR Research • Display • Wide field of view, new display technologies • Tracking • Precise tracking, wide area • Interaction • Natural gesture interaction, human factors • Authoring Tools • Content capture, authoring in VR • Applications • Collaboration, large scale VR
- 79. Bare Hands • Using computer vision to track bare hand input • Creates compelling sense of Presence, natural interaction • Challenges need to be solved • Not having sense of touch • Line of sight required to sensor • Fatigue from holding hands in front of sensor
- 80. Example: Leap Motion • https://www.youtube.com/watch?v=QD4qQBL0X80
- 81. Eye Tracking • Technology • Shine IR light into eye and look for reflections • Advantages • Provides natural hands-free input • Gaze provides cues as to user attention • Can be combined with other input technologies
- 82. Example: FOVE VR Headset • Eye tracker integrated into VR HMD • Gaze driven user interface, foveated rendering • https://www.youtube.com/watch?v=8dwdzPaqsDY
- 83. Pedestrian Devices • Pedestrian input in VR • Walking/running in VR • Virtuix Omni • Special shoes • http://www.virtuix.com • Cyberith Virtualizer • Socks + slippery surface • http://cyberith.com
- 84. Cyberith Virtualizer Demo • https://www.youtube.com/watch?v=R8lmf3OFrms
- 85. Social VR • Facebook Social Virtual Reality, AltspaceVR • Bringing Avatars into VR space • Natural social interaction
- 86. Demo: Facebook Social VR • https://www.youtube.com/watch?v=W71o4RbckNA
- 87. CONCLUSIONS
- 88. Conclusions • Virtual Reality has long history • 60 years of experimentation • Recent VR explosion • Desktop VR, mobile VR • Rapidly growing market • Many areas for commercial application • Significant Research Opportunities • Collaboration, applications, display, interaction
- 89. DEMONSTRATIONS
- 90. Hands on Demonstrations • HTC Vive • PC Based VR • Wide area tracking • Two handed input • Google Cardboard • Mobile VR • iOS/Android applications • Gear VR • Mobile VR • Improved Tracking • Touch pad input
- 91. Google Cardboard Demonstration Step 2: - Search for a location - I chose “Brighton Beach” - Click “red dot” Step 3: - Select from available - 360 images and click Step 4: - Click on cardboard icon - Place in viewer Step 1: Download “Street View” from Apple or Play store
